KitchenAid KUDC02IRBL0 dishwasher Parts

On your KitchenAid KUDC02IRBL0 dishwasher, the rinse aid symbol (rinse refill indicator) means the rinse aid dispenser level is low and it is time to add liquid rinse aid. Keeping it filled improves drying and helps prevent spots and streaks.

What to do when the indicator comes on

• Open the dishwasher door fully.
• Turn the rinse aid dispenser knob to Open and remove it.
• Pour liquid rinse aid in until the indicator shows Full (do not overfill).
• Wipe up any spilled rinse aid with a damp cloth.
• Reinstall the knob and turn it to Lock.

For the exact dispenser location and indicator window details, use the KUDC02IRBL0 owner's manual.

Rinse aid basics (and what not to use)

Rinse aid is designed to help water sheet off dishes during the final rinse so they dry faster and cleaner.

Item	Recommended	Not recommended
Rinse aid type	Liquid rinse aid	Solid or bar-type rinse aid
Best results	Better drying, fewer spots	More spotting, slower drying

Adjusting the rinse aid setting

If you still see spots (hard water) or you notice a slippery feel (too much rinse aid), adjust the dispenser setting.

• Most homes do well at the factory setting (commonly around 2).
• Increase the setting if you see rings, calcium spots, or filming.
• Decrease the setting if you see excess foaming or a bluish haze.

Why it matters

A low rinse aid level is one of the most common reasons dishes come out wet or spotty, especially on glassware and plastics. Keeping the dispenser filled helps the drying system work as designed.

Last updated: February 2026

To force reset a KitchenAid dishwasher like model KUDC02IRBL0, we cancel the current cycle and let the dishwasher run its short drain and self-check; once that finishes, the control is reset and you can start a new wash cycle.

Quick reset steps (most common)

• Press Cancel/Drain once.
• Close the door (or press Start/Resume, depending on your console style).
• Wait for the dishwasher to drain and stop (often a few minutes).
• Open the door and select a new cycle.
• Press Start/Resume and close the door.

If the dishwasher is unresponsive

Try these in order:

• Power reset: turn the breaker OFF for 1 minute, then back ON.
• Check the door is fully latched; a weak latch feel can prevent a restart.
• If the unit has power but will not run, look for a control lock or a stuck cycle.
• If you recently moved the dishwasher, confirm nothing is kinked or pinched (drain hose, power cord, or wiring) per the installation guide.

What you should see during a normal reset

What happens	What it means	What to do
Drain pump runs, then stops	Cancel/reset completed	Start a new cycle
Pump runs continuously	Unit may be stuck draining or sensing water	Check drain path and hose routing
No response at all	Power or control issue	Do breaker reset; then check fuse/control

Why it matters

A forced reset clears a stuck cycle and returns the electronic control to a known state. If the dishwasher is not draining during the reset, the drain system is the first place we check, including the dishwasher drain pump WPW10348269 and the drain hose routing.

Last updated: February 2026

Most KitchenAid dishwashers last 10 to 14 years with normal household use; with consistent cleaning and quick repairs, many run longer. For your KitchenAid KUDC02IRBL0, following the care and operating steps in the KUDC02IRBL0 owner's manual helps you get the full expected service life.

Typical lifespan and what affects it

A dishwasher’s life is mostly driven by how hard it works and how clean the wash system stays.

• Usage frequency (daily loads wear pumps, seals, and racks faster)
• Water quality (hard water speeds up mineral buildup)
• Detergent and rinse aid habits (too much detergent can leave residue)
• Cleaning and maintenance (filters, spray arms, and sump area)
• Early symptom response (fixing leaks, draining issues, or heating problems quickly)

What “end of life” usually looks like

These are the most common failure points as a dishwasher ages.

Symptom	Common cause	Example part for KUDC02IRBL0
Won’t drain	Drain pump or drain path restriction	Dishwasher drain pump WPW10348269

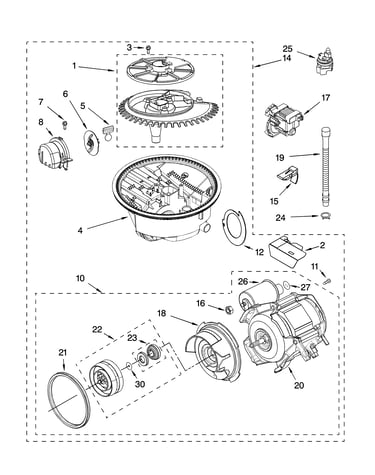

Poor cleaning	Circulation issues, clogged spray arm, sump problems	Pump motor WPW10757217
Not drying	Heating circuit issue	Heater element WPW10082892
Dead/no power	Blown fuse or control problem	Fuse W10258275

Maintenance that extends lifespan

We recommend these habits to reduce wear on the wash and drain motor, electronic controls, and heating system.

• Clean the filter area and remove debris from the sump regularly
• Check and clear spray arm holes if you see food particles left behind
• Run hot water at the sink before starting a cycle (improves wash performance)
• Use a dishwasher cleaner monthly if you have hard water
• Address unusual grinding or buzzing promptly (objects can enter the wash module)

Why it matters

A well-maintained dishwasher typically reaches the 10 to 14 year range with fewer expensive repairs, better cleaning, and fewer leaks. On the KUDC02IRBL0, keeping the wash system clean also helps protect high-wear components like the pump motor, drain pump, and heater.

Last updated: February 2026

Flashing lights on your KitchenAid KUDC02IRBL0 dishwasher usually mean the control is sensing a condition that prevents a cycle from running, most often a door not fully latched, a power interruption, or a heater circuit fault (commonly shown as a flashing Clean light). Use the checks below to pinpoint the cause.

Quick checks that fix most “flashing lights, won’t start” issues

• Press the door closed firmly until you feel the latch engage; then try Start/Resume.
• Confirm the cycle is actually selected (some models will not start without a valid selection).
• Check the home breaker or fuse; restore power if it tripped or blew.
• Power reset: turn off power at the breaker for 5 minutes, then restore power and retry.
• If the motor overloaded, wait a few minutes; many motors reset automatically.

For the model-specific troubleshooting flow and indicator meanings, follow the steps in the KUDC02IRBL0 owner’s manual.

If the Clean light is flashing

On this KitchenAid design, a flashing Clean light points to a malfunction that commonly involves the heater circuit. That can be caused by a heating problem, wiring issue, or a control that is not sensing proper heating.

What to do next

• Run a reset (breaker off 5 minutes) and try a normal cycle.
• Verify hot water supply to the dishwasher is on; low incoming temperature can extend heating time.
• If the Clean light continues flashing, plan on heater-circuit diagnosis.

Symptom	Most likely area	Common next step
Clean light flashing	Heater circuit	Check heater wiring and heating components
Lights flash, no response	Power/control	Check breaker, then inspect control connections
Starts then stops	Motor overload or door switch	Wait for reset; re-check latch

Parts that are commonly involved (when diagnosis points there)

We replace parts only after confirming the failure, but these are frequently related to “won’t run” complaints:

• Fuse W10258275 (protects the dishwasher’s electrical circuit)
• Dishwasher electronic control WPW10084141 (manages cycle logic and indicator lights)
• Heater element WPW10082892 (heats water and supports drying)

Why it matters

A dishwasher that will not start is often protecting itself. A simple door-latch or power issue is quick to correct, but a flashing Clean light can indicate a heating fault that affects wash performance and can stop the cycle.

Last updated: February 2026

For the KitchenAid KUDC02IRBL0 dishwasher, the most common problems we see are poor cleaning, not draining, leaks, and won’t start/no power. These usually trace back to clogged spray paths or filters, a restricted drain hose or failing drain pump, a worn door seal, or an electronic control or fuse issue.

Most common symptoms and what they usually mean

• Dirty dishes or grit left behind: spray arm holes or filtration area restricted; circulation issues
• Standing water in the bottom: drain path blocked, drain hose kinked, or drain pump not moving water
• Water leaking at the door: door seal not sealing, debris on the sealing surface, door not closing squarely
• Dead or unresponsive controls: power supply issue, blown fuse, or control problem
• Grinding or buzzing noise: a hard object in the wash module; if it continues after a full cycle, service is needed (see the troubleshooting section in the KUDC02IRBL0 owner’s manual)

Quick checks we recommend first (before replacing parts)

1. Cancel/drain the cycle, then check for standing water and remove any visible debris.
2. Inspect the drain hose routing for kinks and confirm the high loop/air gap setup matches the KUDC02IRBL0 installation guide.

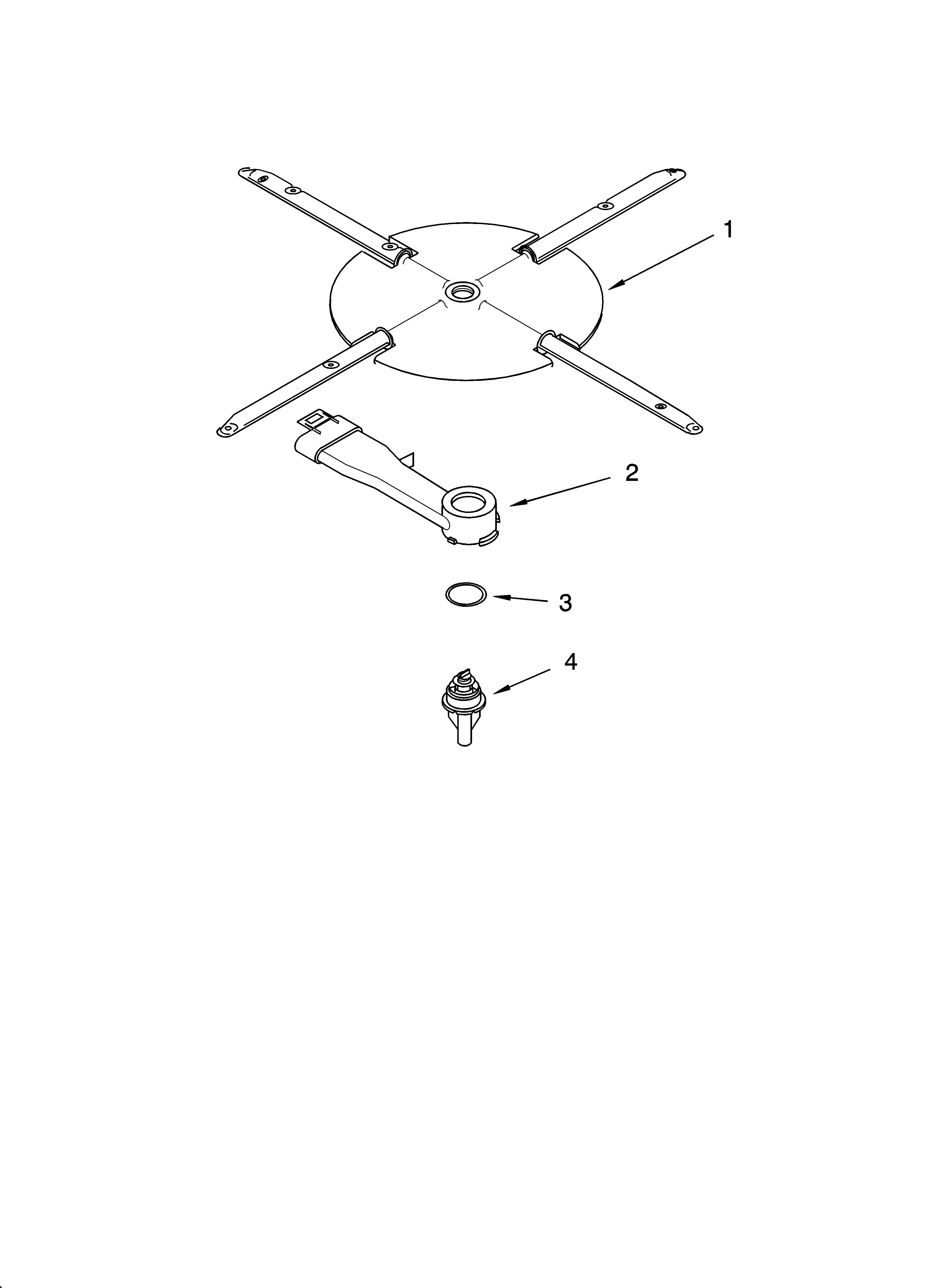

3. Check the spray arm for blocked holes and confirm it spins freely.
4. Clean the door sealing surfaces; confirm racks are not preventing the door from closing.
5. If the unit has power but will not run, check for error indications and basic reset steps.

Common parts involved (when symptoms match)

Symptom	Likely area	Example part for this model
Not draining	Drain system	Dishwasher drain pump WPW10348269 or drain hose 8269144A
Leaking at door	Door sealing	Door seal W11196317
Won’t start/no power	Electrical/control	Fuse W10258275 or electronic control WPW10084141
Not drying	Heating circuit	Heater element WPW10082892

Why it matters

Catching the root cause early prevents repeat wash failures and helps avoid secondary damage, like a drain pump running hot while blocked or a small door-seal leak turning into cabinet and flooring issues.

Last updated: February 2026

In a KitchenAid KUDC02IRBL0 dishwasher, the most commonly replaced parts are the components that handle water flow, heating, sealing, and door movement, plus a few wear items inside the tub. These parts typically fail from clogs, leaks, corrosion, or normal wear over time.

Most commonly replaced parts (and what they affect)

• Drain and circulation: poor draining, standing water, or loud pump noise
• Water fill: slow fill, no fill, or weak wash action
• Heating and drying: water not heating, poor drying, or long cycle times
• Door sealing and hinges: leaks at the door, door not closing smoothly
• Controls and safety: dead unit, intermittent power, or cycles that stop mid-run

Model-relevant examples for KUDC02IRBL0

These are common replacements we see for this model family:

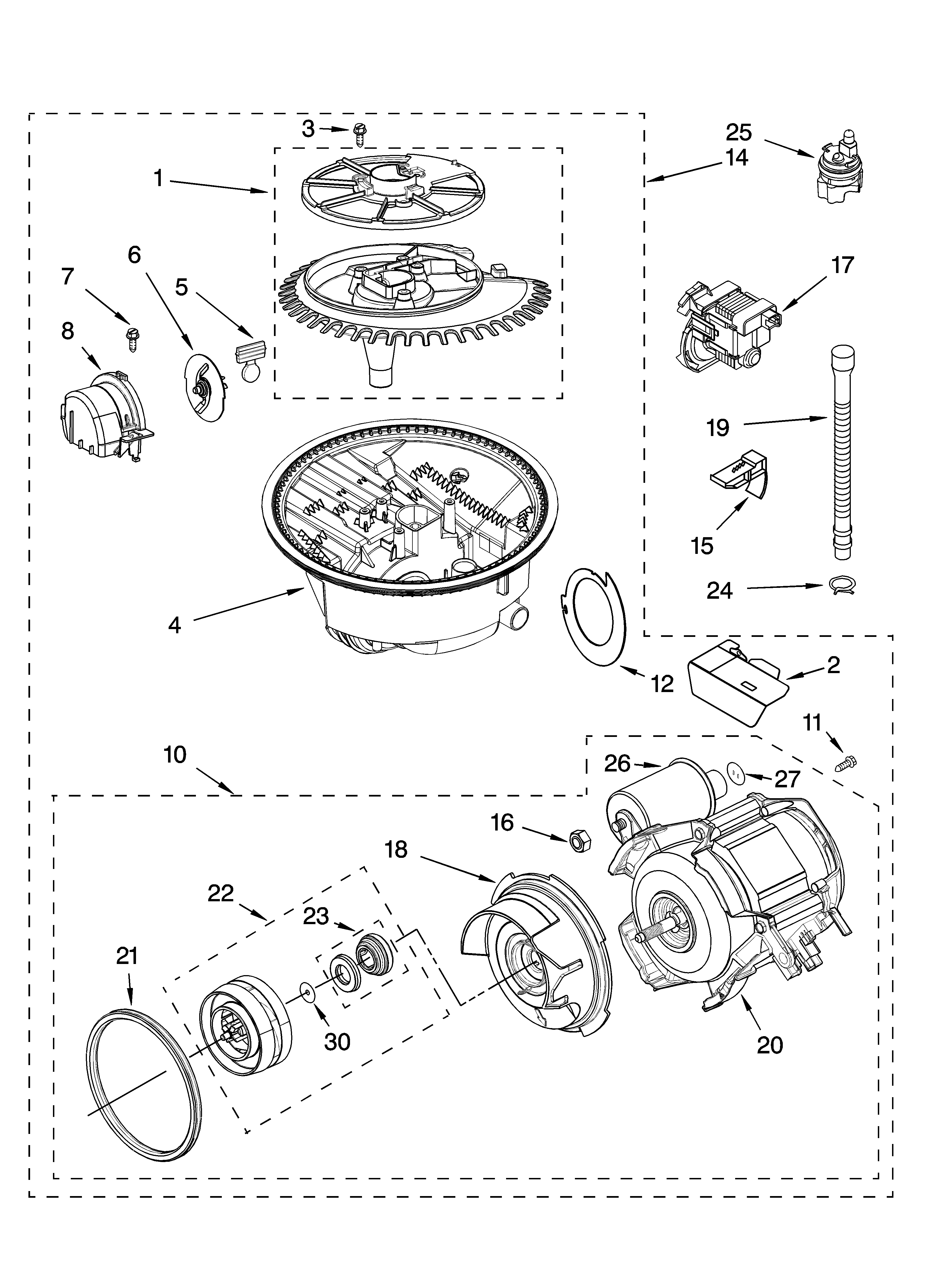

• Dishwasher drain pump WPW10348269

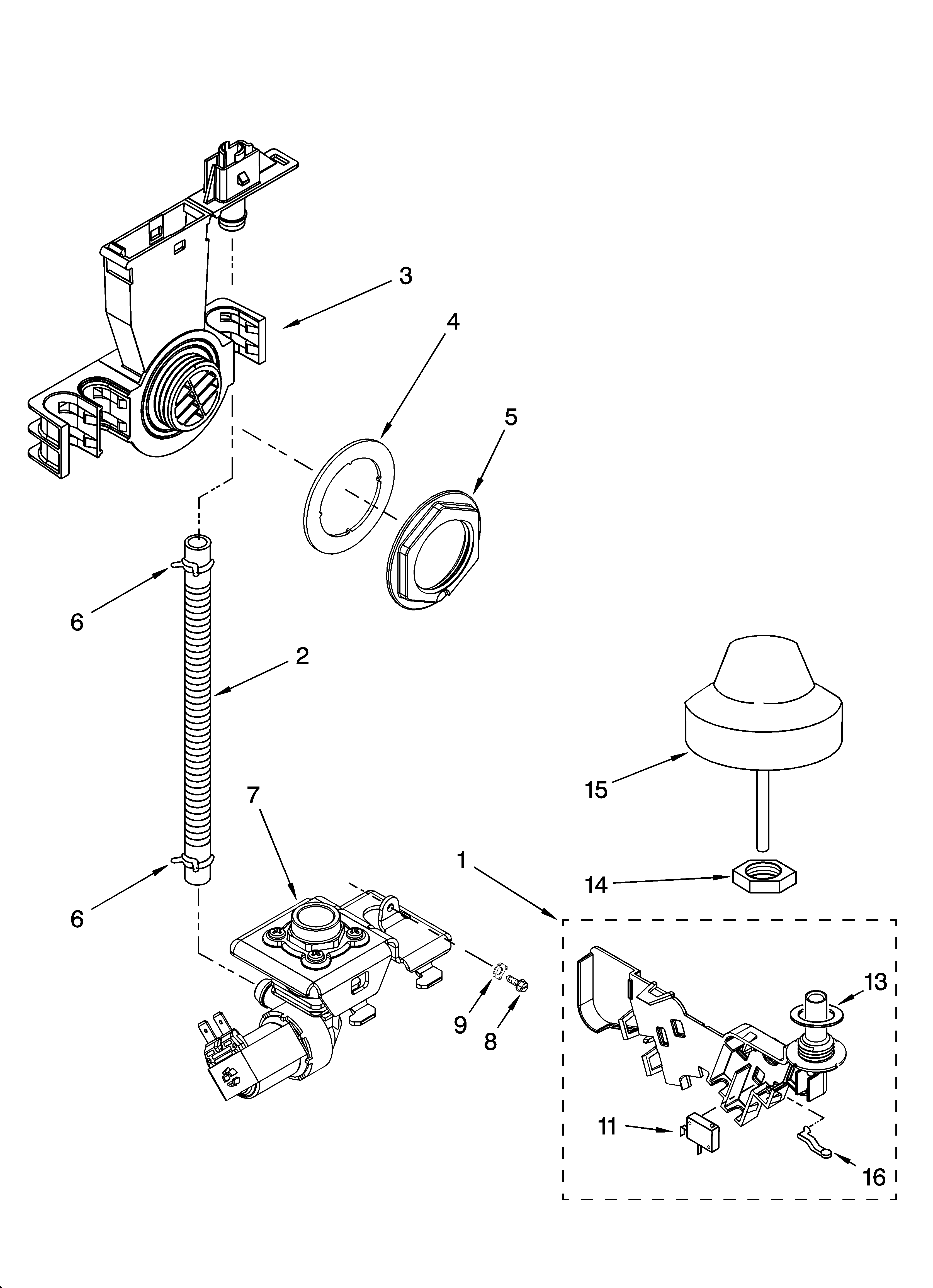

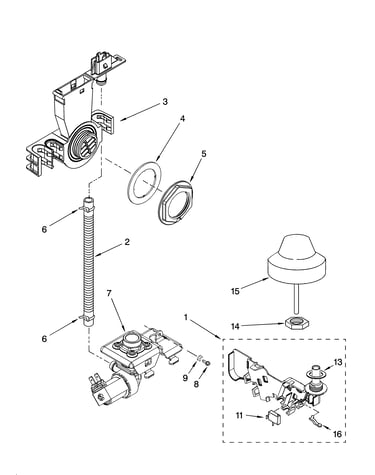

• Dishwasher water inlet valve WPW10158389

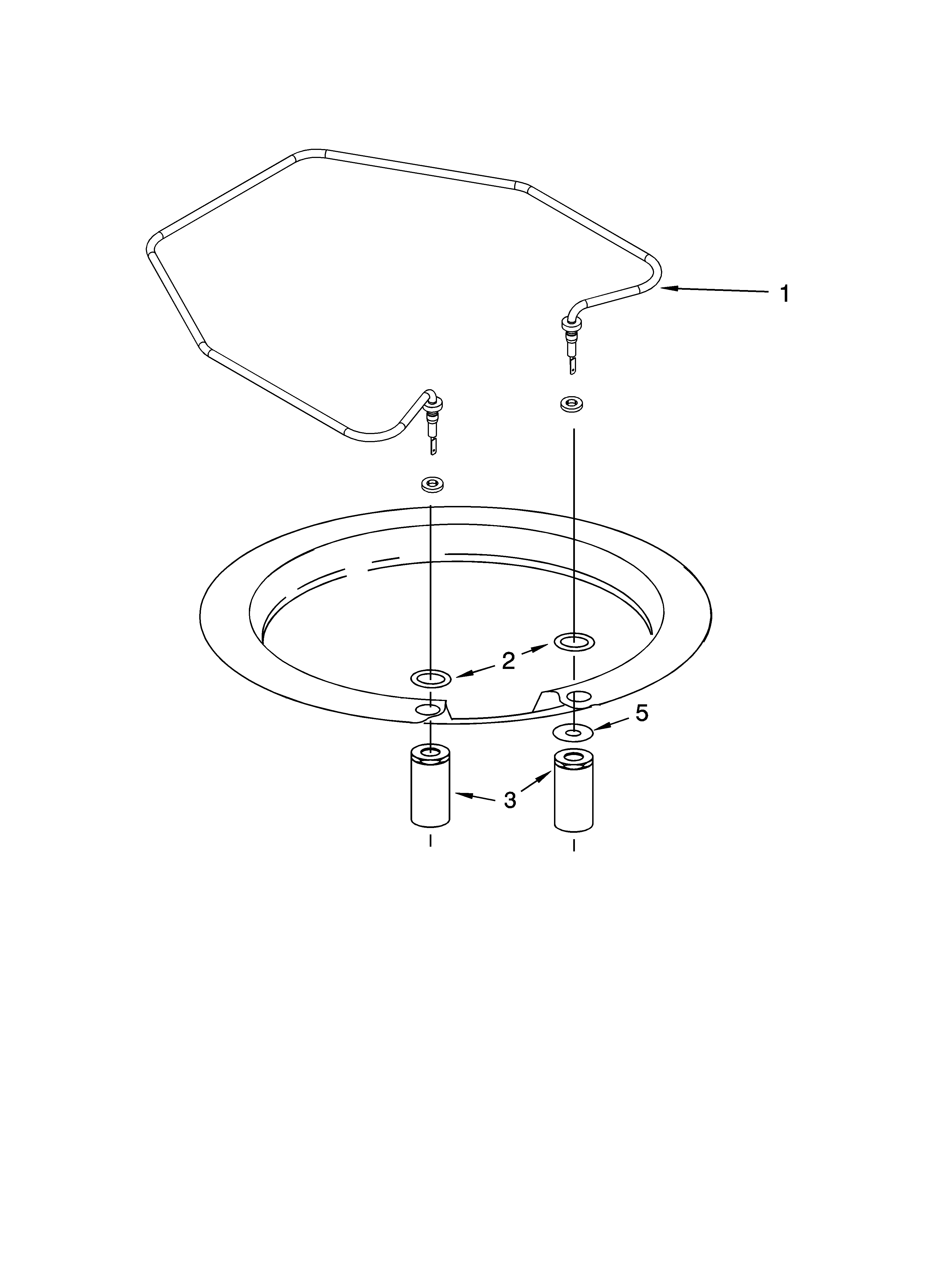

• Heater element WPW10082892
• Gasket W11196317

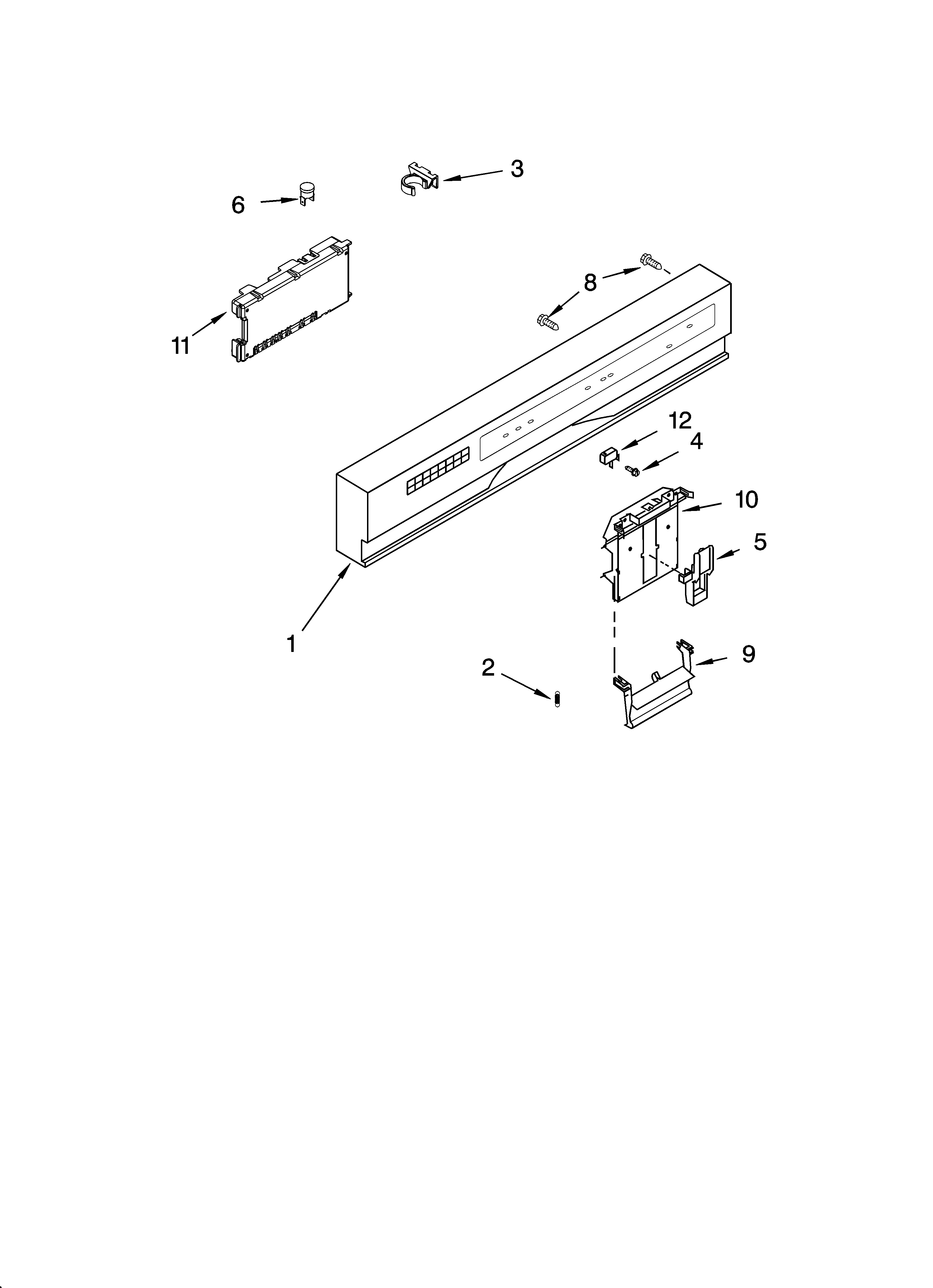

• Dishwasher electronic control WPW10084141

Quick symptom-to-part guide

Symptom	Most likely part area	Example part for this model
Won’t drain, water left in tub	Drain path or drain pump	WPW10348269, 8269144A
Won’t fill or fills slowly	Water inlet valve	WPW10158389
Not drying or not heating	Heating circuit	WPW10082892
Leaks at the door	Door seal or vent gasket	W11196317, WP8269259
No response or erratic cycles	Control or fuse	WPW10084141, W10258275

Why it matters

Replacing the correct part restores cleaning performance and prevents secondary damage. For example, a restricted drain hose can overwork the drain pump, and a leaking door gasket can lead to repeated moisture issues around the tub opening.

Before you order a part

Use these checks first to avoid replacing good parts:

• Clean the filter area and inspect spray arm holes for debris.
• Confirm the drain hose routing is not kinked and has a proper high loop.
• Verify the dishwasher is level and secured so the door seals evenly.
• Match the part by model number and compare the old part to the replacement.

For diagrams, troubleshooting steps, and installation notes specific to KUDC02IRBL0, use the KUDC02IRBL0 owner’s manual.

Last updated: February 2026
