Kenmore 10651582200 side-by-side refrigerator Parts

Yes, you can transport the Kenmore 10651582200 side-by-side refrigerator laying down if you have to, but we recommend keeping it upright whenever possible to protect the sealed system. If it rides on its side, stand it upright at the destination and wait about 24 hours before plugging it in so compressor oil can settle.

Best practice for moving model 10651582200

We follow the same core safety steps in the owner's manual and add a few transport-specific precautions.

• Use two or more people to move the refrigerator (it is heavy).
• Remove all food; pack frozen food in dry ice if needed.
• Empty the ice bin.
• Turn the control to OFF, then unplug the refrigerator.
• Turn off the water supply to the ice maker at least one day ahead of time.
• Disconnect the water line from the back of the refrigerator.

If you must lay it down

Laying a refrigerator down can let compressor oil migrate into the refrigerant lines. The goal is to minimize that risk.

• Keep it on its side, not on its back.
• Protect the doors and handles; tape doors shut after removing loose bins and shelves.
• Move it gently; avoid bouncing that can stress the compressor mounts.
• Once upright again, wait about 24 hours before powering on.

Quick decision table

Transport method	Risk level	What we recommend
Upright (preferred)	Lowest	Plug in after it is in place and settled
On its side (short trip)	Medium	Stand upright; wait about 24 hours before plugging in
On its back	Highest	Avoid; can increase the chance of oil migration and damage

Why it matters

The compressor relies on oil staying where it belongs. When a refrigerator is laid down, oil can move into the cooling circuit; running the unit before it settles can reduce cooling performance and shorten compressor life.

Parts that are commonly affected after a move

If the ice maker or water dispenser acts up after transport, these model-matched parts are common suspects:

• Refrigerator inlet valve W10408179 (water supply to ice maker and dispenser)

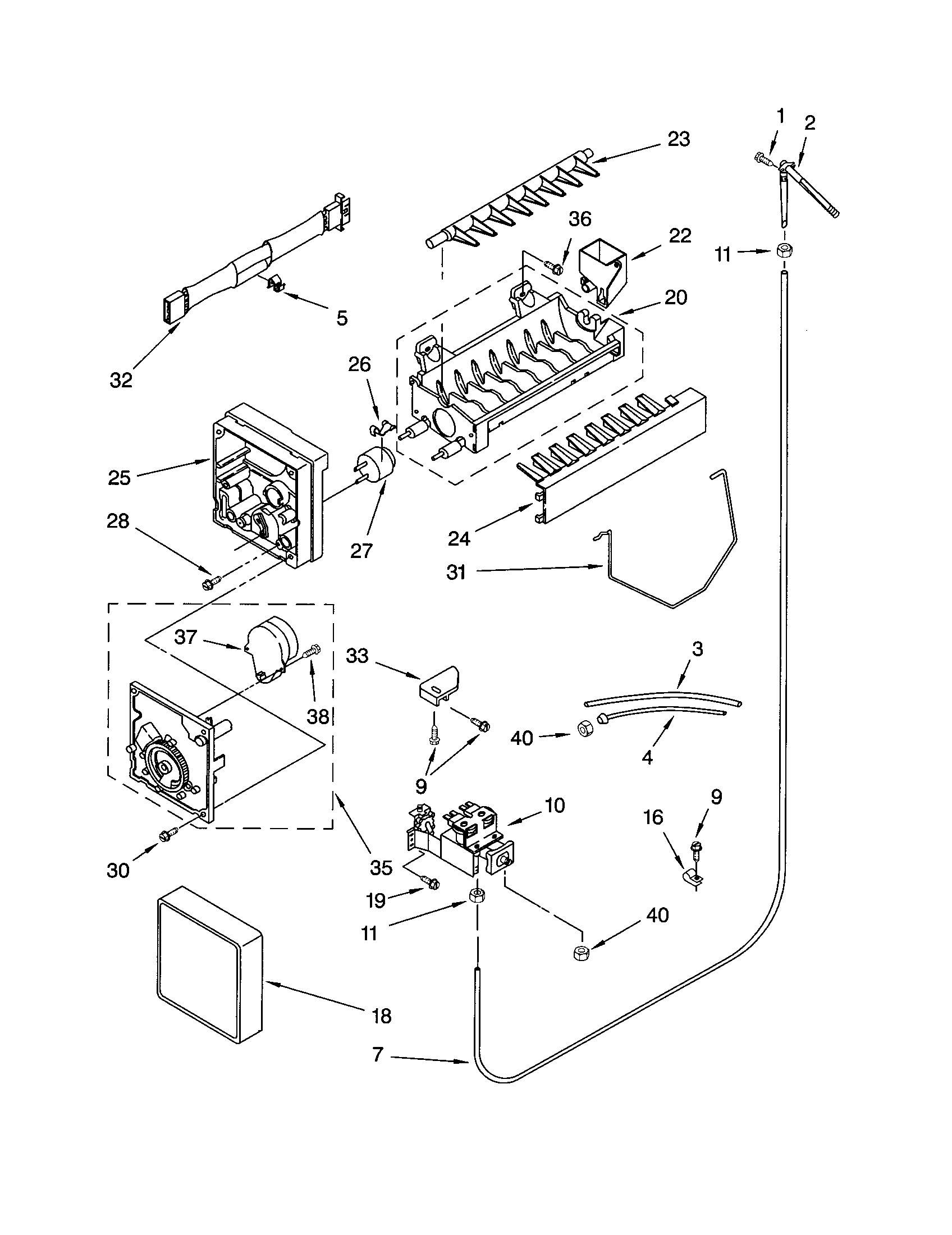

• Ice maker assembly - refrigerator ice maker by whirlpool 4317943 (ice production)
• Refrigerator water tube 8201597 (water routing)

You can order replacement parts for Kenmore 10651582200 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Most Kenmore side-by-side refrigerators are about 32 to 36 inches wide; for your specific Kenmore 10651582200, the exact cabinet width is listed in the 10651582200 owner's manual and the 10651582200 installation guide.

Typical widths you will see (and what they mean)

Side-by-side refrigerator widths usually fall into a few common sizes. Use this as a planning guide for cabinetry, door swing, and delivery.

• 32 to 33 inches: space-saving models
• 35 to 36 inches: most common full-size side-by-side footprint
• 42 inches: extra-wide, higher-capacity models (less common)

How to measure width the right way

To avoid fit issues, we recommend measuring both the refrigerator and the opening.

• Measure the cabinet width (main box), not just the doors.
• Measure the widest point (handles can add width).
• Confirm the opening is square; measure top, middle, and bottom.
• Plan for door swing clearance next to walls.
• Leave ventilation space; many models need about 1/2 inch at the sides and top.

Clearance checklist (quick reference)

The installation instructions for this Kenmore side-by-side call out common spacing needs that affect “how wide it feels” once installed.

What you are planning for	Typical allowance
Side and top ventilation gap	1/2 in. each side and top
Clearance next to a fixed wall for door swing	about 2 in. minimum
Extra room behind for water line (if equipped)	allow additional space

Why it matters

Width is only part of the fit. Door swing, handle depth, and ventilation gaps determine whether your Kenmore 10651582200 will open fully and cool properly without rubbing cabinets or overheating.

Last updated: February 2026

On Kenmore model 10651582200 side-by-side refrigerators, we find the model number on the model and serial number label inside the refrigerator compartment, typically on an inside wall. Open the fresh food door and look along the side walls near the crisper area or upper shelf line; the label lists both model and serial.

How to find it fast

• Open the refrigerator (fresh food) door, not the freezer door
• Look on the inside left or right wall of the refrigerator compartment
• Check near the crisper drawers and the lower side wall area first
• Also scan near the top shelf area and side wall edges
• Write down the full model number and serial number exactly as shown

What the label usually includes

Item on label	What it’s used for
Model number	Matching parts and diagrams to your exact refrigerator
Serial number	Identifying production details for service records
Purchase date (you add this)	Helpful for warranty and maintenance tracking

Why it matters

Using the exact model number helps us match the correct Kenmore parts for your refrigerator, such as an ice maker assembly, water inlet valve, or defrost components. For the official location notes and record-keeping section, use the 10651582200 owner's manual.

Ordering the right parts once you have the model number

• Use the model number to select the correct parts list and diagrams
• Match part IDs carefully before ordering
• Common examples for this model include the refrigerator inlet valve W10408179 and ice maker assembly - refrigerator ice maker by whirlpool 4317943
• If you are shopping by model number across appliances, search on Sears PartsDirect

Last updated: February 2026

A Kenmore 10651582200 side-by-side refrigerator usually stops cooling because power is interrupted, the controls are set incorrectly, airflow is blocked, or the unit is in a defrost-related condition. Start with the simple checks first, then move to cooling-system and defrost components. See the owner's manual for control settings and troubleshooting steps.

Quick checks we recommend first

• Confirm the cord is fully plugged into a grounded 3-prong outlet.
• Reset the tripped breaker or replace a blown household fuse.
• Make sure the refrigerator and freezer controls are not set to OFF.
• Check that air vents are not blocked by food packages (blocked vents stop cold air movement).
• Close doors firmly and reduce frequent door openings.
• If the unit has digital controls, turn it OFF, then ON to reset.

Common causes and what you typically notice

What’s happening	Common symptom	What to check next
No power to refrigerator	No lights, no fan/compressor sound	Outlet, breaker/fuse, power cord seating
Airflow blocked	Freezer cold but fresh food warm (or uneven temps)	Vents blocked, overpacked compartments
Defrost issue building frost on evaporator	Gradual warming, weak airflow, frost/ice on rear freezer panel	Defrost heater, defrost bi-metal, defrost timer
Sealed system or compressor problem	Warm in both sections, compressor may run a lot or click	Compressor start components, compressor health

Parts that often relate to “not cooling” on this model

If your checks point to a defrost or airflow problem, these model-matched parts are common suspects:

• Refrigerator defrost timer W10822278 (can affect defrost cycling)
• Refrigerator defrost bi-metal WPW10225581 (can stop defrost heat when it fails)
• Refrigerator heater WP2323198 (defrost heater that melts frost)
• Refrigerator thermostat WP2198202 (temperature control issues can mimic cooling failure)

Why it matters

When cooling stops, food temperatures can rise quickly. Simple issues like blocked vents or an OFF control are fast fixes; defrost failures can snowball into heavy frost that chokes airflow and makes the refrigerator section warm even if the freezer seems close to normal.

When a service call is the right move

• The refrigerator has power but won’t restart after a control reset.
• You see heavy frost returning soon after you clear it.
• The compressor repeatedly clicks on and off, or both compartments stay warm.

You can order model-specific replacement parts from the parts list for Kenmore 10651582200, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10651582200 are no ice or slow ice production, warm temperatures (not cooling), water leaks at the dispenser or under the unit, frost buildup from defrost issues, and noisy operation. Many start with airflow, water supply, or door-seal problems.

Most common symptoms and likely causes

• Not cooling or weak cooling: blocked air vents, dirty condenser coils, thermostat/control issues
• Ice maker not making ice: shutoff valve closed, kinked line, clogged filter, failed ice maker
• Water leaking: air in lines after filter change, ice stuck in chute, inlet valve or tubing issue
• Frost buildup: defrost heater, defrost bi-metal, or defrost timer problem; door not sealing
• Noisy or runs too much: dirty coils, door left ajar, fan or motor wear

Quick checks we recommend first

• Confirm the refrigerator is plugged in and controls are set correctly (see the 10651582200 owner's manual).
• Keep packages from blocking vents in the refrigerator and freezer.
• Clean condenser coils to improve cooling and reduce run time.
• Inspect door gaskets for gaps and make sure doors close fully.
• Verify the home water shutoff is open and the supply line is not kinked.

Parts that commonly match these symptoms on model 10651582200

Problem area	Symptom	Example part
Ice maker	No ice, slow ice	Ice maker assembly 4317943
Water supply	No water to dispenser/ice maker	Refrigerator inlet valve W10408179
Defrost system	Frost buildup, warm fridge	Refrigerator defrost timer W10822278

Why it matters

Airflow restrictions, water supply issues, and poor door sealing can mimic bigger failures. Fixing those first helps prevent food spoilage, ice buildup, and compressor overwork.

Ordering the right parts

Match parts using the full model number 10651582200 from the parts list for this refrigerator, or search by model number on Sears PartsDirect.

Last updated: February 2026
