Yes, replacing the engine on your Craftsman 917289100 can be worth it if the tractor’s deck, steering, and drive system are still solid and you want more years of service. Use the 917289100 operator's manual for model-specific safety steps and troubleshooting before you commit.

Quick decision checklist

• Replace the engine if the tractor is structurally sound and the engine has internal failure (low compression, knocking, heavy oil burning).
• Skip the engine swap if the mower deck is rusted through, the transmission will not pull, or the frame/steering has major wear.
• Repair instead if it is a basic no-start or poor-run issue (stale fuel, dirty air filter, bad spark plug, weak battery).
• Confirm the root cause first; low oil, stale fuel, and clogged fuel flow can mimic “engine failure.”

What we can confirm for model 917289100

The operator’s manual for Craftsman 917289100 identifies it as a 20.0 HP, 42-inch mower deck tractor with an automatic transmission (HP is listed as rated by the engine manufacturer). That means the deck and drive components are a big part of the tractor’s overall value.

Check area	What to inspect	Why it matters
Mower deck	Rust-through, cracks, spindle/mandrel play	Deck repairs can rival the value of the tractor
Ground drive	Belt wear, idler noise, slipping or no movement	A weak drive can remain after an engine swap
Safety/electrical	Interlock operation, consistent starting	Prevents “no-start” after repairs

Parts to inspect before you decide

If your 917289100 is losing drive or performance, checking these common wear items can help you avoid an unnecessary engine replacement:

• Lawn tractor drive belt 532125907 (ground drive belt)
• Husqvarna lawn tractor ground drive idler pulley 532194327 (idler pulley)
• Lawn tractor 42-in deck high-lift blade 532138971 (cutting performance blade)

Why it matters

An engine swap restores power, but it will not fix a worn belt path, failing idler pulley, or a damaged deck. Evaluating the full machine condition helps you spend money where it actually improves mowing and reliability.

Last updated: January 2026

On the Craftsman 917289100 front-engine lawn tractor, the most common problems are no-start or hard-start, loss of power, poor cut quality, blades not engaging, and loss of drive. These issues usually trace back to fuel quality, routine maintenance, or worn deck and drive components covered in the 917289100 operator's manual.

Common problems and likely causes

• Won’t start / hard to start: stale fuel, dirty air filter, weak battery, dirty fuel filter, or a worn spark plug
• Loss of power: clogged mower deck underside, dirty air filter, low/dirty oil, or debris blocking engine cooling fins
• Poor cut or uneven cut: dull/bent blades, deck not level, low tire pressure, or buildup under the deck
• Blades won’t engage / won’t spin: worn blade drive belt, frozen idler pulley, or a failing mandrel

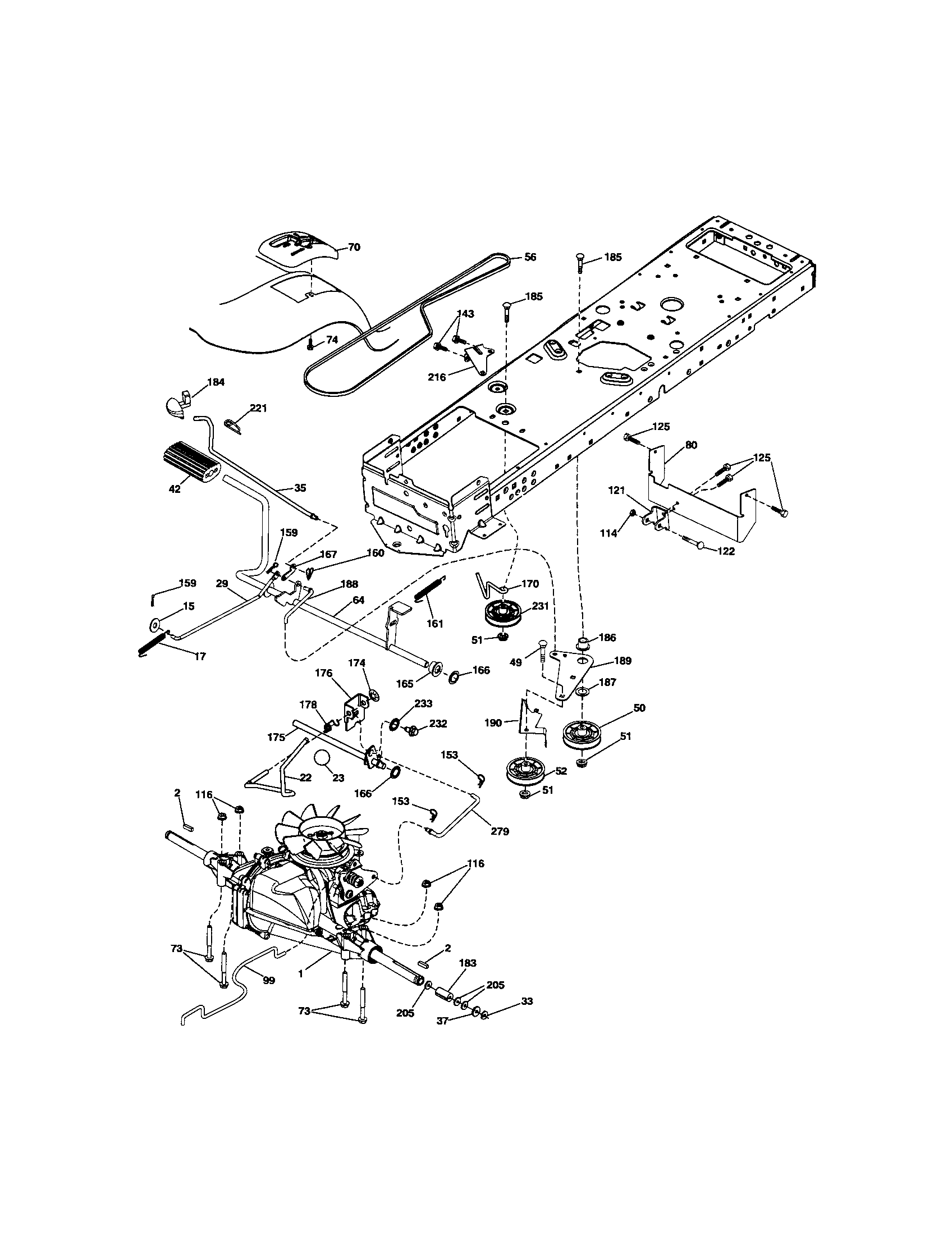

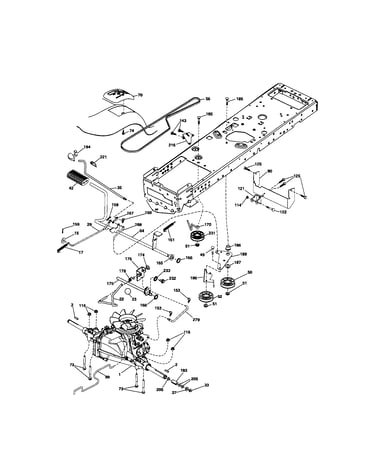

• Loss of drive: worn ground drive belt, debris buildup near the steering plate area, or air trapped in the transmission after service
• Excessive vibration: damaged blade, loose hardware, or a bent mandrel

Quick checks we recommend first (model-relevant)

• Use fresh unleaded fuel; the manual notes fuel should be used within about 30 days.
• Clean the underside of the mower deck and clear debris from cooling areas.
• Check tire pressure on all tires; uneven PSI can make the deck look “out of level.”
• Inspect belts for glazing, cracking, or slack.
• Inspect blades for bends and tighten/replace as needed.

Model-specific manual sections to use

Symptom	Manual section to follow	What you’ll do
Blades won’t spin	“TO REPLACE MOWER BLADE DRIVE BELT”	Remove deck, route belt correctly, verify guides/keepers
Tractor won’t move	“TO REPLACE MOTION DRIVE BELT”	Replace ground drive belt and confirm routing
Uneven cut	“TO LEVEL MOWER”	Level deck side-to-side and front-to-back

Parts that commonly fix cut and drive complaints

Problem	Compatible part option for this model	What it affects
Poor discharge or clumping	Lawn tractor 42-in deck high-lift blade 532138971	Lift and discharge performance
Slipping or broken ground drive	Lawn tractor drive belt 532125907	Tractor movement
Slipping blade drive	Husqvarna lawn tractor belt, 1/2 x 101-1/6-in 592855001	Blade drive on many deck setups

Why it matters

Fixing the root cause early helps protect the engine and deck, improves cut quality, and prevents secondary damage (like belt slip overheating pulleys or debris causing overheating).

Last updated: January 2026

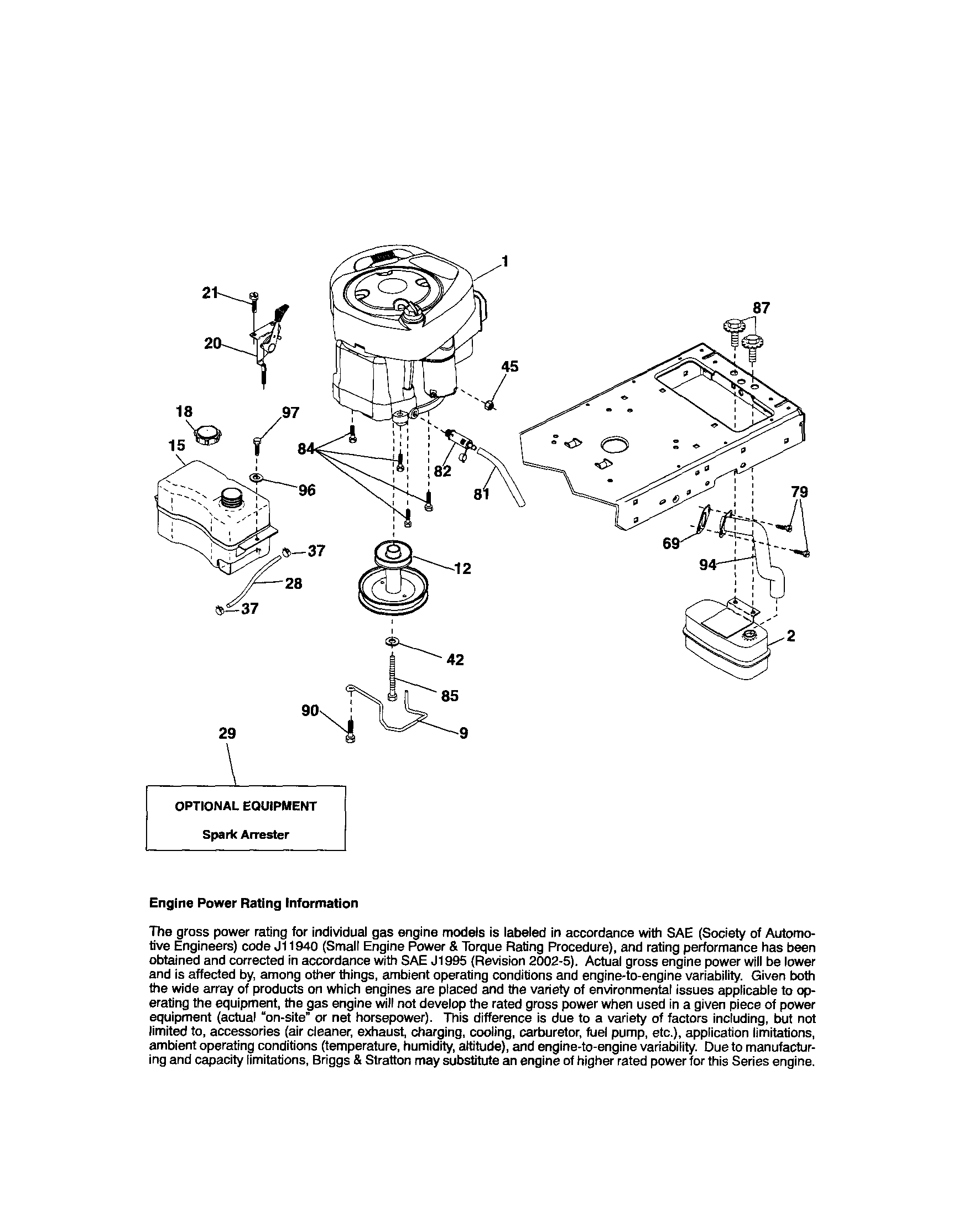

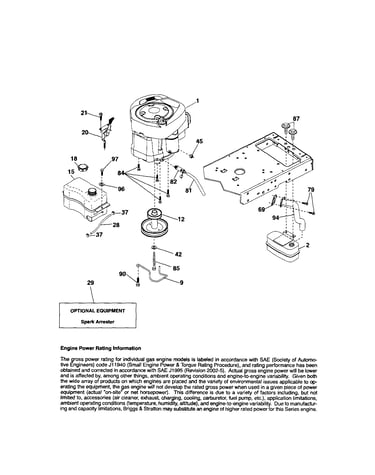

The Craftsman 917289100 front-engine lawn tractor uses a 20.0 HP, low-emission, internal combustion gasoline engine. The 917289100 operator's manual confirms the horsepower and fuel and maintenance specs, but it does not list the engine manufacturer or engine model number.

What we can confirm for model 917289100

From the operator’s manual, these engine-related specs apply to this tractor:

• Gasoline type: unleaded regular
• Fuel capacity: 1.50 gallons
• Spark plug: Champion RC12YC (gap 0.030 in)
• Oil type: SAE 30 (above 32°F), SAE 5W30 (below 32°F)
• Oil capacity: 56 oz with filter, 48 oz without filter

How to identify the exact engine make and model

Because the tractor model number does not always uniquely identify the engine brand, we recommend checking the engine’s ID label on the engine itself.

• Look for an engine ID tag or sticker on the blower housing, valve cover, or near the spark plug
• Record all fields shown (often “Model / Type / Code” on many small engines)
• Use that engine ID when selecting tune-up parts (air filter, oil filter, fuel filter, spark plug)
• If the label is missing, look for a stamped number on the shroud or valve cover

Quick reference table

Item	Model 917289100 spec
Engine type	Gasoline, internal combustion
Rated power	20.0 HP (as rated by engine manufacturer)
Fuel capacity	1.50 gallons
Spark plug	Champion RC12YC, 0.030 in gap

Why it matters

Matching parts and service procedures to the engine’s exact ID helps prevent wrong filters, incorrect spark plugs, and oil selection issues, which can affect starting, power, and engine life.

Last updated: January 2026

For Craftsman lawn tractors like model 917289100, the model number “917” does not identify the year. The year is typically determined from the product identification label (often a serial/date code) on the tractor, not from “917” itself. See the 917289100 owner's manual for label locations and identification details.

How to find the year on a Craftsman 917289100

Look for the product identification label and record what’s printed there (model, serial, and any date code). Common places include:

• Under the seat pan or on the seat bracket area
• On the rear fender (left or right side)
• On the frame near the engine compartment
• Near the transaxle or rear drawbar area
• Under the hood on the chassis rail

What “917” means (and what it does not)

“917” is a Craftsman model prefix used across many riding mowers and tractors. It helps identify the product family and parts system, but it does not reliably encode a build year.

Item	What it tells you	What it does not tell you
Model prefix “917”	Craftsman riding mower/tractor family	Exact manufacturing year
Full model “917289100”	The specific tractor configuration for parts matching	Exact manufacturing year
Serial/date code on label	Often includes build date information	N/A

Why it matters

Getting the year right helps us match the correct parts and specifications for your exact tractor, especially for wear items like blades, belts, and electrical switches.

Last updated: January 2026

For the Craftsman 917289100 lawn tractor, the operator’s manual confirms a 20.0 HP engine but does not name the engine manufacturer. Because the engine maker can vary by production run, the reliable way to identify who made your engine is to read the engine ID label and match its model/type code to the manufacturer.

How to identify the engine manufacturer on model 917289100

Use the tractor manual for safe access steps, then confirm the engine maker from the engine tag itself. See the 917289100 operator’s manual for operating and maintenance guidance.

• Turn the key to OFF, remove it, and let the engine cool
• Lift the hood and locate the engine ID label (often on the blower housing, valve cover, or near the starter)
• Write down the engine model, type, and code/spec numbers
• Match those numbers to the engine maker (commonly Briggs & Stratton, Kohler, or Kawasaki on Craftsman equipment)
• Use the engine maker’s manual for tune-up specs (spark plug, air filter, valve settings)

What we can confirm from the 917289100 manual

The tractor manual provides tractor-level specifications and maintenance intervals, but it does not tie the tractor to a single engine brand.

Spec listed in the manual	Value for 917289100
Engine rating	20.0 HP (as rated by the engine manufacturer)
Mower deck size	42 in
Fuel capacity	1.50 gallons (unleaded regular)

Why it matters

Engine service parts (spark plug, air filter, fuel filter) are selected by the engine’s model/type code, not just the Craftsman tractor model number.

Last updated: January 2026
