Whirlpool ED22TEXHN00 side-by-side refrigerator Parts

For your Whirlpool ED22TEXHN00 side-by-side refrigerator, the most reliable way to confirm cubic feet is to look up the capacity by model number. If you just need a quick estimate, we can calculate it by measuring the usable interior space and converting cubic inches to cubic feet.

Fast ways to find the cubic feet

• Check the model/serial tag inside the fresh food section and confirm the model is ED22TEXHN00.
• Use the model number to search capacity information on Sears PartsDirect.
• Estimate capacity by measuring the interior (best when you cannot find published specs).

How to estimate cubic feet by measuring

1. Measure the usable interior of the fresh food compartment (in inches): width, height, depth.
2. Measure the usable interior of the freezer compartment (in inches): width, height, depth.
3. Multiply each compartment’s measurements to get cubic inches.
4. Add them together.
5. Divide by 1,728 (12 × 12 × 12) to convert cubic inches to cubic feet.

Quick formula

• Cubic feet = (W × H × D in inches) ÷ 1,728

What to measure (so your estimate is realistic)

When we estimate capacity, we measure the open storage “box,” not the outside cabinet.

• Measure to the inside liner, not the door gasket.
• Do not include door bins as “interior volume.”
• Subtract space taken up by fixed features (ice maker housing, air towers) if they reduce usable space.
• Use the same units (inches) for every measurement.

Typical capacity range (for context)

Most Whirlpool side-by-side refrigerators like the ED22-series are commonly in this range:

Refrigerator style	Typical capacity range
Side-by-side	About 20 to 26 cu. ft.

Why it matters

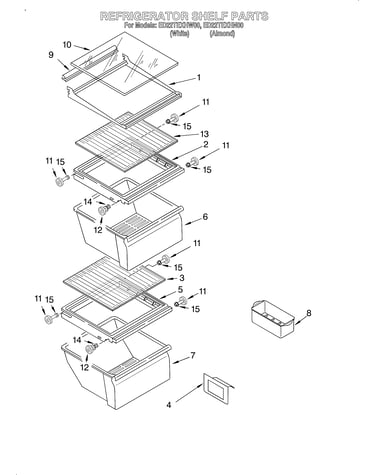

Knowing cubic feet helps us choose correctly sized replacement items (like shelves and bins), plan food storage, and compare models when you are troubleshooting cooling performance or airflow restrictions.

Last updated: February 2026

Whirlpool model numbers identify the product type, size/series, and the specific engineering version; for your side-by-side refrigerator, ED22TEXHN00 is the exact model number you will use to match the correct parts list and diagrams when ordering replacement parts.

What each section of a Whirlpool model number usually means

Most Whirlpool refrigerator model numbers break into chunks that help us narrow down the exact design:

• Prefix letters: product family/type (for example, many Whirlpool refrigerators start with letters like ED)
• Number block: capacity/series identifier (often tied to size or platform)
• Middle letters: feature set or design series (varies by product line)
• Final digits: engineering revision/version (important for part compatibility)
• Optional suffix: color or special configuration (not always present)

Where to find the model number on the refrigerator

On Whirlpool side-by-side refrigerators like ED22TEXHN00, the model/serial tag is commonly found in one of these places:

• Inside the fresh food compartment on a side wall
• Along the ceiling of the fresh food compartment
• Behind the crisper drawers area
• On the cabinet frame near the door opening

Why the last digits matter (example)

Even small changes at the end of the model number can change which ice maker, thermostat, or door hardware fits.

What you enter	What it affects	What to do
ED22TEXHN00	Exact match for parts diagrams	Use this for ordering
ED22TEXHN (missing digits)	Can pull the wrong parts list	Recheck the tag
ED22TEXHN01 (different revision)	Parts may differ by revision	Match the full number

Ordering parts using the model number

Once you confirm ED22TEXHN00, use that full model number to select parts that match your exact configuration. Common examples on this model include the ice maker assembly - refrigerator ice maker by Whirlpool 4317943 and the refrigerator thermostat WP2198202. For broader model searches and ordering, use Sears PartsDirect.

Why it matters

Using the full Whirlpool model number prevents mismatched parts, repeat repairs, and issues like poor cooling, ice maker failures, or door alignment problems caused by revision differences.

Last updated: February 2026

The most common Whirlpool refrigerator problem is poor cooling, usually caused by restricted airflow (dirty condenser coils, blocked vents, or a failing fan). On a Whirlpool ED22TEXHN00 side-by-side refrigerator, cooling complaints also commonly show up alongside ice maker and water dispenser issues.

Most common symptoms we see

• Refrigerator section warm but freezer still cold
• Freezer warming up or temperature swings
• Frost buildup on the freezer back wall (defrost problem)
• Ice maker not making ice or making small/hollow cubes
• Water leaking inside the fresh food section or onto the floor

Quick checks that fix many “no cool” calls

1. Clean the condenser coils (dust and pet hair reduce heat removal).
2. Confirm airflow: do not pack food tightly against vents in either compartment.
3. Listen for the evaporator fan: it should run when the compressor is running (door switch closed).
4. Check door closing and sealing: a small gap can cause warm temps and frost.
5. Look for a clogged defrost drain if you see puddles or ice under the freezer basket.

Parts that commonly cause these problems on side-by-side units

If the quick checks do not help, these parts are frequent culprits on Whirlpool side-by-side refrigerators like model ED22TEXHN00:

Symptom	Common cause	Example part for this model

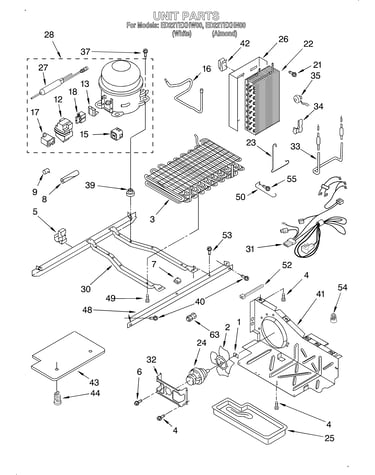

Warm fresh food section	Evaporator fan not moving air	Refrigerator evaporator motor 4389144

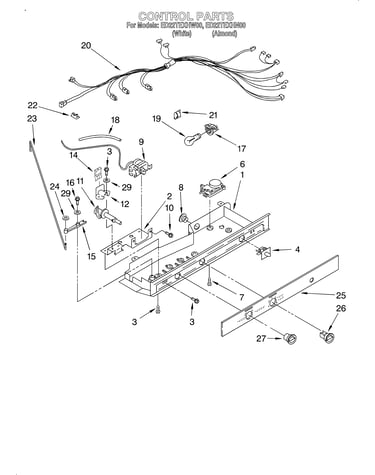

Temps too warm or too cold	Temperature control not regulating	Refrigerator thermostat WP2198202
Frost buildup, warming over time	Defrost system not opening/closing correctly	Refrigerator defrost bi-metal WPW10225581

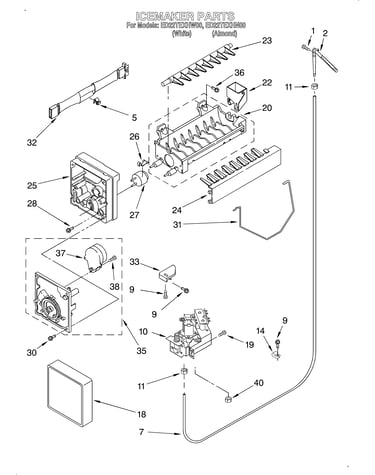

Ice maker not producing	Ice maker module or assembly failure	Ice maker assembly - refrigerator ice maker by Whirlpool 4317943

Why it matters

Cooling problems usually get worse, not better. A weak evaporator fan, a thermostat that is drifting, or a defrost failure can lead to food spoilage, heavy frost, and extra compressor run time (higher energy use).

Helpful DIY guidance

• For troubleshooting display or diagnostic issues, use Whirlpool refrigerator error codes.
• To reduce repeat ice and water issues, follow how to prevent water dispenser and ice maker problems.

If you are ready to replace a part, you can order ED22TEXHN00 replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Most Whirlpool refrigerators last 10 to 18 years on average. For a Whirlpool side-by-side refrigerator like ED22TEXHN00, lifespan depends most on airflow, clean condenser coils, and keeping the cooling system and defrost system working correctly.

Typical lifespan ranges (what to expect)

Here are realistic expectations for a Whirlpool refrigerator in normal home use:

• 10 to 18 years is the typical lifespan range
• 10 to 15 years is the most common replacement window
• 18+ years is achievable with consistent maintenance and timely part replacement

Lifespan range	What it usually means	What to do
0 to 9 years	Early failure is often a single component issue	Diagnose cooling, defrost, or airflow problems and replace the failed part
10 to 15 years	Normal wear period	Preventive cleaning and fix small issues quickly
16 to 20 years	Extended life	Expect more frequent repairs (fans, thermostat, ice maker, door hardware)

Maintenance that adds years (high impact)

These steps reduce compressor run time and prevent common side-by-side failures:

• Clean dust from the condenser area regularly so heat can dissipate
• Keep food from blocking interior vents so cold air circulates
• Confirm doors close fully and don’t sag (a worn door cam can cause warm temps)
• Keep the freezer from over-icing; heavy frost points to a defrost problem
• If you have a dispenser, replace filters on schedule and keep water lines from kinking

Parts that commonly affect lifespan on ED22TEXHN00

When these parts fail, the refrigerator can still be “fixable” and worth repairing:

• Cooling control issues: refrigerator thermostat WP2198202
• Defrost failures that cause frost buildup: refrigerator defrost bi-metal WPW10225581
• Ice production problems: ice maker assembly 4317943
• Door closing and alignment wear: refrigerator door cam (black) WP2182179

Why it matters

A refrigerator that runs warmer than normal or runs constantly wears the sealed system faster. Fixing airflow, defrost, and door-closing issues early helps your Whirlpool ED22TEXHN00 reach the upper end of the 10 to 18 year lifespan range.

You can order replacement parts for ED22TEXHN00 from the parts list for this model, or search by model number on Sears PartsDirect.
