Whirlpool WRS315SNHM03 refrigerator

Whirlpool WRS315SNHM03 refrigerator Parts

Here are the diagrams and repair parts for Whirlpool WRS315SNHM03 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WRS315SNHM03 Refrigerators

  • Refrigerator Uv Filter Dryer for Whirlpool WRS315SNHM03 - Part WPW10143759

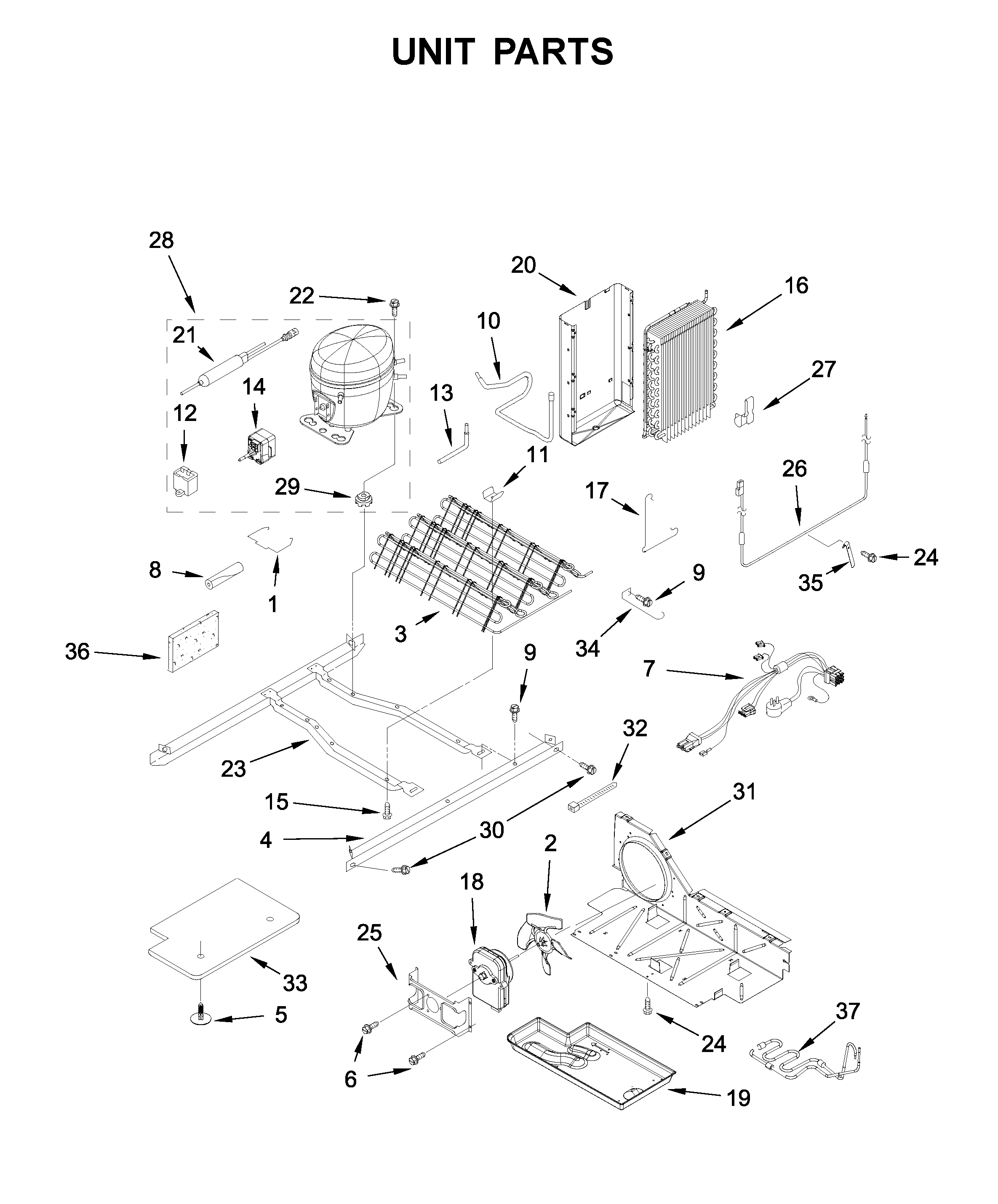

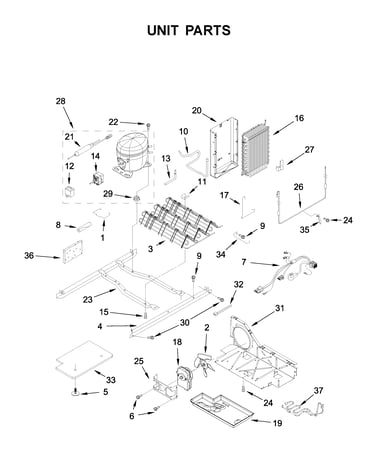

    Unit parts diagram

    Refrigerator Drier Assembly

    Part #W10771114

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces W10771114. Substitute parts can look different from the original.
    In Stock
    $22.85
    21% OFF Phone Price : $28.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Heater for Whirlpool WRS315SNHM03 - Part WP2323198

    Unit parts diagram

    Refrigerator Heater

    Part #2188175

    Replaced by #WP2323198

    Info Icon
    Manufacturer substitution
    This part replaces 2188175. Substitute parts can look different from the original.
    In Stock
    $46.19
    11% OFF Phone Price : $52.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for Whirlpool WRS315SNHM03 - Part WP2169142

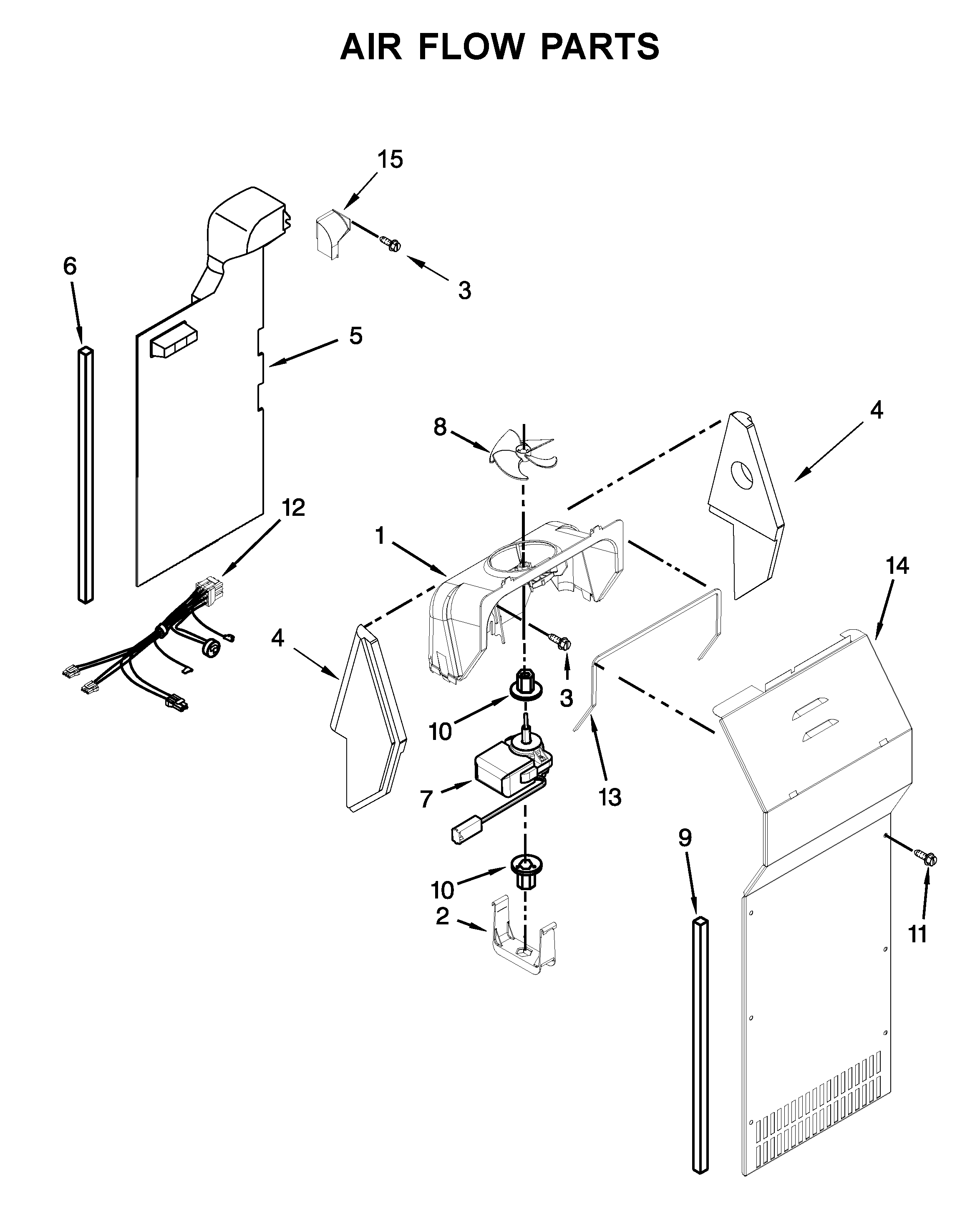

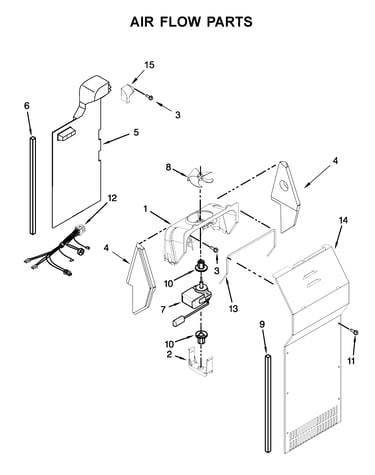

    Air flow parts diagram

    Refrigerator Evaporator Fan Blade

    Part #2169142

    Replaced by #WP2169142

    Info Icon
    Manufacturer substitution
    This part replaces 2169142. Substitute parts can look different from the original.
    In Stock
    $25.00
    19% OFF Phone Price : $31.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Led Light for Whirlpool WRS315SNHM03 - Part W11602886

    Refrigerator Led Light

    Part #W11251749

    Replaced by #W11602886

    Info Icon
    Manufacturer substitution
    This part replaces W11251749. Substitute parts can look different from the original.
    In Stock
    $31.50
    16% OFF Phone Price : $37.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator for Whirlpool WRS315SNHM03 - Part WP2188823

    Unit parts diagram

    Refrigerator Evaporator

    Part #2188823

    Replaced by #WP2188823

    Info Icon
    Manufacturer substitution
    This part replaces 2188823. Substitute parts can look different from the original.
    In Stock
    $316.14
    $12.00 OFF Phone Price : $328.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Switch for Whirlpool WRS315SNHM03 - Part W11384469

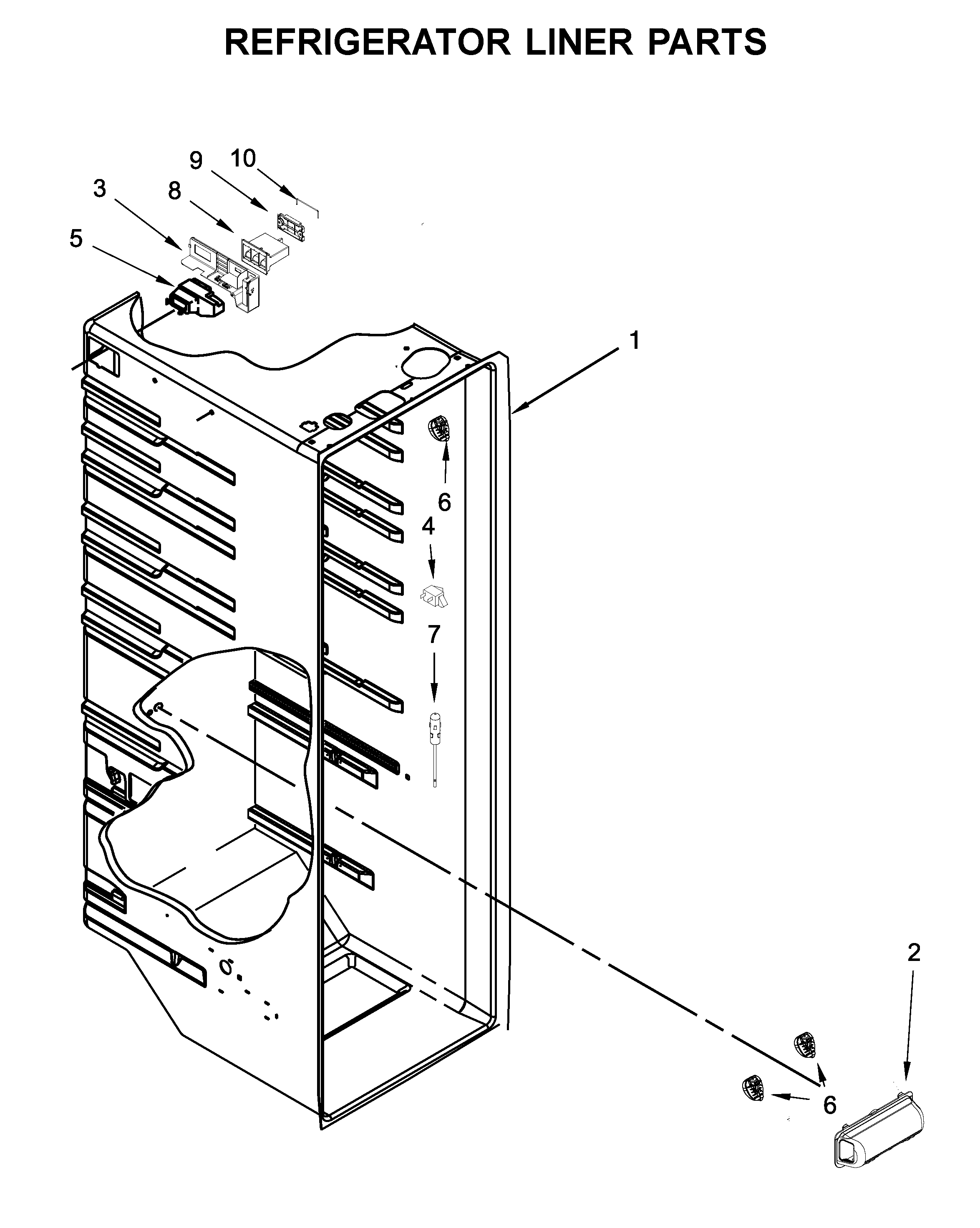

    Refrigerator liner parts diagram

    Refrigerator Light Switch

    Part #1118894

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces 1118894. Substitute parts can look different from the original.
    In Stock
    $25.91
    19% OFF Phone Price : $31.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for Whirlpool WRS315SNHM03 - Part WP2315549

    Air flow parts diagram

    Refrigerator Evaporator Fan Motor

    Part #2315549

    Replaced by #WP2315549

    Info Icon
    Manufacturer substitution
    This part replaces 2315549. Substitute parts can look different from the original.
    In Stock
    $173.12
    6% OFF Phone Price : $185.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Freezer Door Gasket (mist Beige) for Whirlpool WRS315SNHM03 - Part 2159074

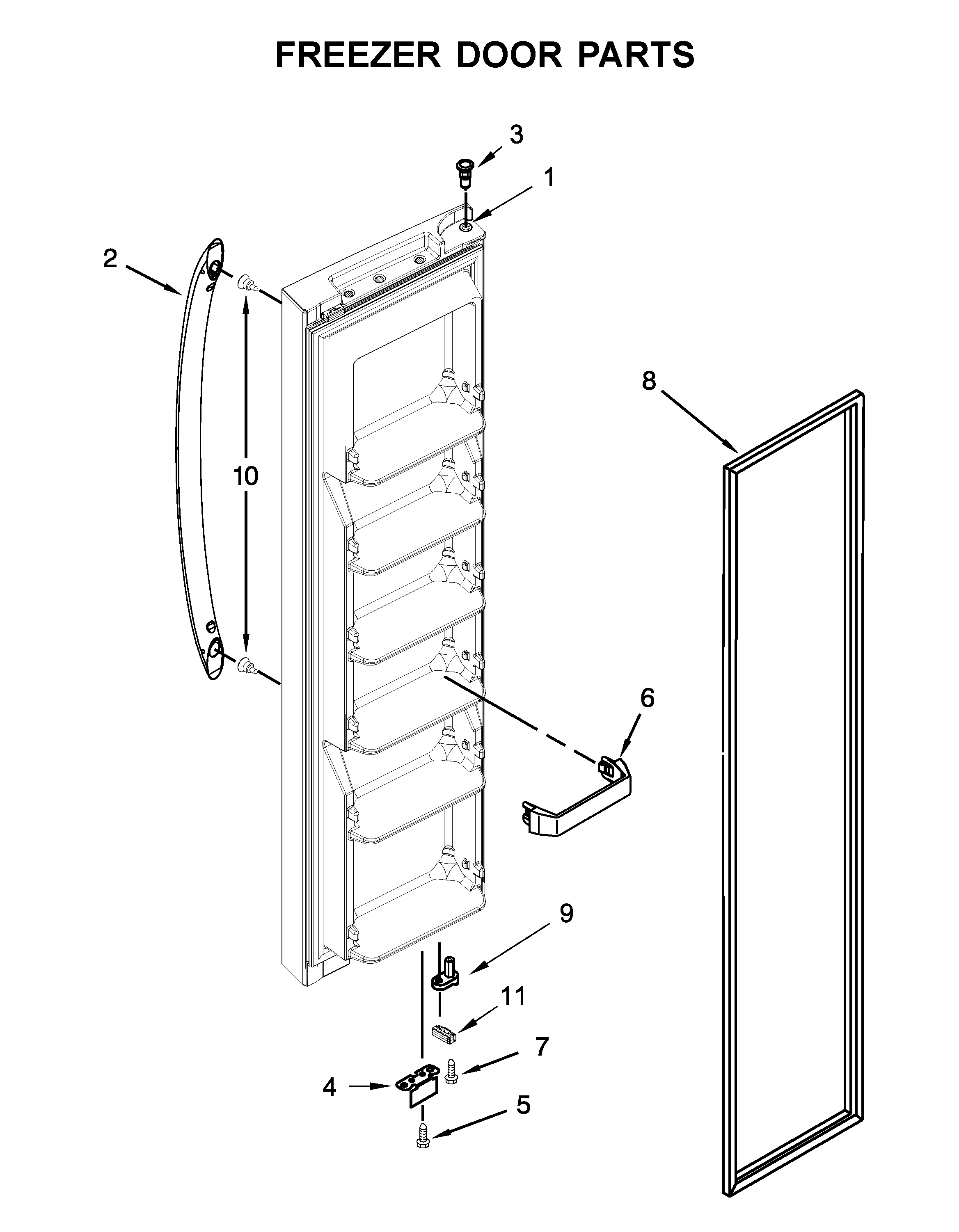

    Freezer door parts diagram

    Gasket, Door (beige)

    Part #W10911412

    Replaced by #2159074

    Info Icon
    Manufacturer substitution
    This part replaces W10911412. Substitute parts can look different from the original.
    In Stock
    $162.40
    7% OFF Phone Price : $174.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Gasket, Black for Whirlpool WRS315SNHM03 - Part 2159083

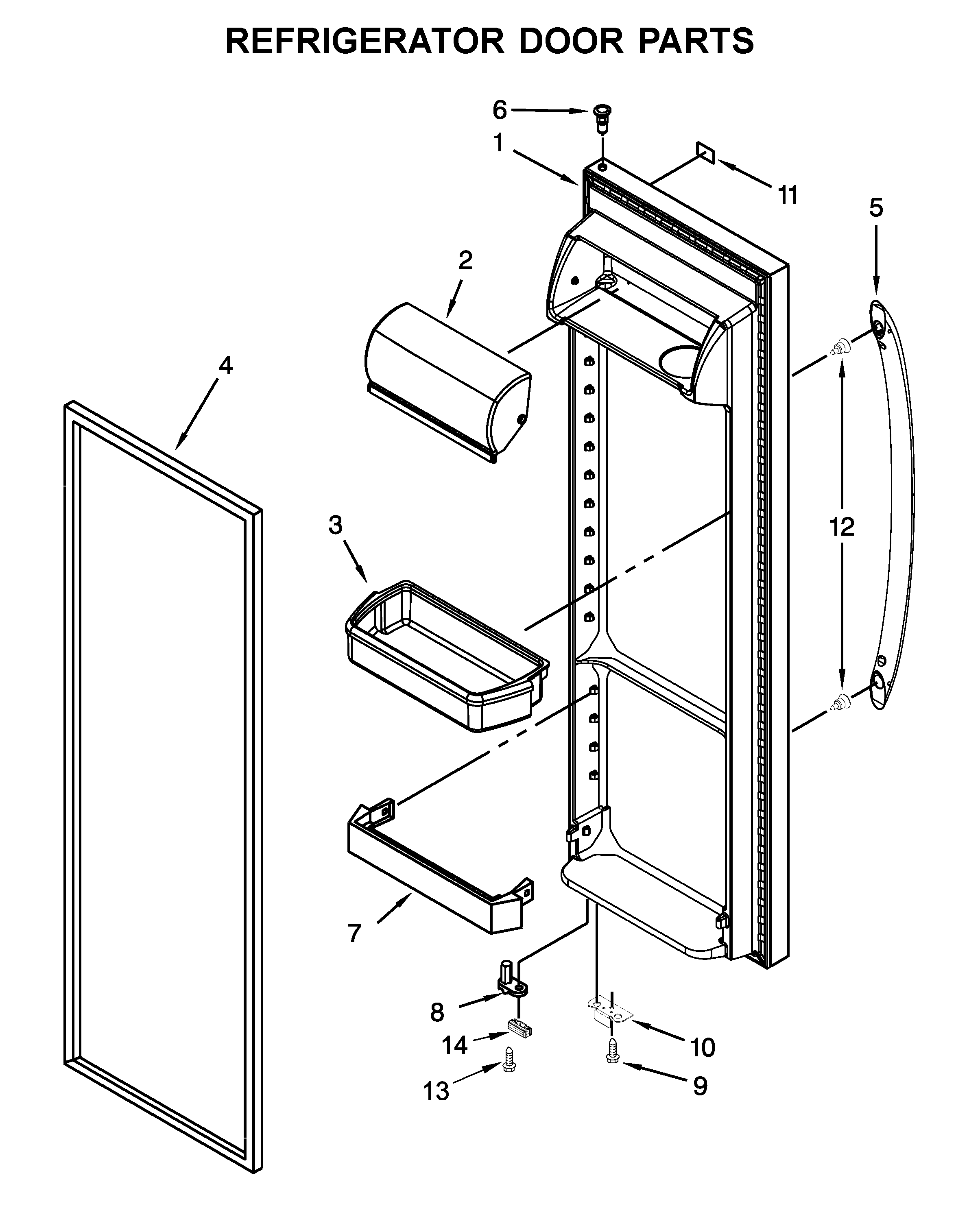

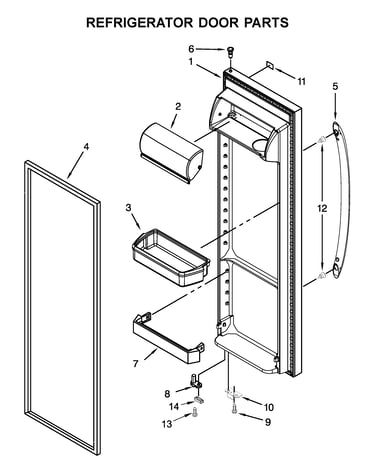

    Refrigerator door parts diagram

    Door Gasket (black)

    Part #W10912133

    Replaced by #2159083

    Info Icon
    Manufacturer substitution
    This part replaces W10912133. Substitute parts can look different from the original.
    In Stock
    $157.01
    7% OFF Phone Price : $169.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor Wire Harness And Thermal Fuse Assembly for Whirlpool WRS315SNHM03 - Part W11545823

    Air flow parts diagram

    Refrigerator Evaporator Fan Motor Wire Harness And Thermal Fuse Assembly

    Part #W11342162

    Replaced by #W11545823

    Info Icon
    Manufacturer substitution
    This part replaces W11342162. Substitute parts can look different from the original.
    In Stock
    $96.10
    Minus Item
    Qty
    Plus Item

Whirlpool REFRIGERATOR WRS315SNHM03 FAQs

Whirlpool and LG refrigerators tend to have the fewest problems overall because they’re widely considered durable and straightforward to service; GE and Samsung are also commonly rated as solid choices. For your Whirlpool WRS315SNHM03, long-term reliability improves most with correct installation, steady temperatures, and routine care from the WRS315SNHM03 owner's manual.

What “least problems” usually means

When customers ask this, we typically break it into a few practical reliability factors:

  • Fewer cooling complaints (compressor, evaporator fan, defrost system)
  • Fewer water/ice issues (water pressure, filter flushing, kinked lines)
  • Easier access to common replacement parts
  • Consistent door sealing (gaskets and alignment)
  • Clear troubleshooting guidance and error-code support

Brand reliability snapshot (real-world expectations)

These are common, service-based expectations for mainstream brands.

Brand Typical strengths Common trouble areas to watch
Whirlpool Serviceable design, strong parts availability Water/ice setup issues, door seal wear
LG Efficient cooling, strong owner satisfaction Some models can be more complex to diagnose
GE Broad model range, good support Varies by series; water/ice issues are common
Samsung Feature-rich designs Ice maker and dispenser complaints on some lines

How to reduce problems on a Whirlpool side-by-side like WRS315SNHM03

A lot of “brand problems” are actually installation or maintenance issues. We recommend:

  • Allowing a full 24 hours to cool after a new install before judging performance
  • Using a grounded 3-prong outlet (no extension cord)
  • Confirming the water shutoff valve is fully open and the supply line is not kinked
  • Making sure home water pressure is at least 30 psi for proper dispenser flow
  • Flushing the water system after connecting or replacing a filter to clear discoloration

If you’re troubleshooting dispenser flow or ice quality, the how to replace the water filter in a Whirlpool refrigerator guide is a strong starting point.

Why it matters

Choosing a reliable brand helps, but the biggest difference comes from preventing the most common failure triggers: poor airflow from overpacking, frequent door openings, weak door seals, and water supply issues that strain the dispenser and ice maker.

Last updated: February 2026

A Whirlpool refrigerator typically lasts 10 to 15 years, and that’s the right expectation for your Whirlpool WRS315SNHM03 side-by-side as well. Consistent cleaning, stable temperatures, and keeping the doors sealing properly are the biggest factors in reaching the high end of that range.

What helps a refrigerator reach 15 years

  • Keep condenser area and vents clear of dust and pet hair
  • Avoid frequent, long door openings (reduces compressor run time)
  • Set temperatures correctly and avoid “coldest” as a habit
  • Keep door gaskets clean so the seal stays tight
  • Fix cooling-airflow issues early (fan noise, warm spots, frost buildup)

Quick care checklist (model-relevant)

Use the cleaning and care steps in the WRS315SNHM03 owner's manual. The manual also notes that after a new installation you should allow 24 hours for the refrigerator and freezer to cool completely, and that setting controls to the coldest setting will not cool faster.

Maintenance item Good interval Why it matters
Interior wipe-down Monthly Prevents odors and bacteria buildup
Check door seal for gaps Monthly Stops warm air leaks and frost
Deep clean shelves/bins Quarterly Keeps airflow paths open
Watch for “runs all the time” symptoms Anytime Can signal warm room, heavy load, or door left open

When “end of life” is approaching

These symptoms often show up as a refrigerator nears the end of its service life:

  • Temperatures swing even after adjustments
  • Compressor runs much longer than normal
  • Repeated frost buildup or poor airflow in the freezer
  • Water leaks or recurring ice maker and dispenser issues

If you’re troubleshooting performance symptoms, the Whirlpool refrigerator error codes guide can help you narrow down what the refrigerator is detecting.

Why it matters

A refrigerator that’s running longer than it should uses more energy and struggles to hold safe food temperatures. Catching seal, airflow, and cooling issues early often prevents bigger failures later.

Last updated: February 2026

On the Whirlpool WRS315SNHM03, one of the most common cooling complaints we see is poor airflow from a failing evaporator fan motor; when the fan is not moving air across the evaporator, the refrigerator section warms up even if the freezer still feels cold. Use the WRS315SNHM03 owner's manual troubleshooting section to confirm symptoms before replacing parts.

Quick signs it is an airflow (fan) problem

  • Refrigerator side is warm but freezer is closer to normal
  • Weak or no airflow from the refrigerator vents
  • Frost buildup on the back wall of the freezer (airflow gets blocked)
  • Unusual whirring, pulsing, or rattling sounds that come and go
  • Temperatures swing more than normal after the door is opened

What to check first (fast, no-parts steps)

  1. Give it time after setup: after a new installation, allow 24 hours for full cooling.
  2. Listen for normal vs. abnormal sounds: the manual notes that pulsating/whirring can be normal as fans and the compressor adjust; loud grinding or repeated stalling points to a fan issue.
  3. Look for airflow blockage: overpacked shelves, blocked vents, or heavy frost can stop circulation.
  4. Confirm power basics: grounded outlet, no extension cord, breaker not tripped.

Common causes and likely fixes

Symptom Most likely cause Typical fix
Warm fresh food, freezer OK Evaporator fan not running Test/replace fan motor; inspect wiring and connectors
Fan runs but airflow is weak Ice buildup restricting air path Defrost and correct the defrost cause (heater, control, door left ajar)
Clicking/buzzing near back Water valve cycling (if connected) Normal; if not connected to water, turn ice maker off

Parts that often relate to this problem

If you confirm the fan is not running or is noisy, the repair commonly involves the fan motor and sometimes the blade.

Why it matters

Airflow is what carries cold air from the evaporator to both compartments. When circulation drops, food spoils faster, the compressor can run longer, and frost can build up and further restrict cooling.

Last updated: February 2026

Yes. The Whirlpool WRS315SNHM03 can be equipped with an automatic ice maker; some units come with one installed, and others are ice maker kit-ready and need the optional kit added. For model-specific operating details, follow the WRS315SNHM03 owner's manual.

How to tell what you have (installed vs. kit-ready)

Check these common signs:

  • Ice maker installed: you see an ice maker module in the freezer and an ice bin below it.
  • Kit-ready: there is space and mounting points for an ice maker, but no ice maker module.
  • Water line present: a 1/4-inch household water line is connected to the refrigerator.
  • Shutoff arm or switch: the ice maker has a wire arm (up = off) or an on/off switch.
  • No water connection: the refrigerator will not make ice until it is connected to a potable water supply.

Optional ice maker kit for this model

If your WRS315SNHM03 is kit-ready, the correct add-on is the refrigerator ice maker kit W11700559.

Situation What it means What to do
Ice maker present but no ice Ice maker is off, no water, or low water flow Turn ice maker on; confirm water supply valve is fully open
Kit-ready, no ice maker installed Ice maker is optional Install the ice maker kit
New install or recently connected to water Normal startup time Allow 24 hours to start making ice; 72 hours for full production

Why it matters

Ice makers depend on steady water flow and correct setup. A kinked water line, a closed shutoff valve, or leaving the ice maker switched off can look like a “bad ice maker” when the fix is simple.

Quick setup and troubleshooting checklist

Use this list before replacing parts:

  • Confirm the refrigerator is connected to a potable water supply
  • Make sure the household shutoff valve is fully open
  • Straighten any kinks in the water line
  • Turn the ice maker ON (arm down or switch on)
  • After hookup, flush the water system and discard the first batches of ice

For deeper diagnostics and any model-specific steps, use the WRS315SNHM03 owner's manual and the how to prevent water dispenser and ice maker problems guide.

Last updated: February 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Repair time and Difficulty

 30 minutes or less
How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair time and Difficulty

 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your refrigerators

Use the advice and tips in these articles and videos to get the most out of your refrigerator.

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

Learn how easy replacing the water filter in a Universal/Multiflex refrigerator is.…

How to Replace the Water Filter in a KitchenAid Refrigerator

How to Replace the Water Filter in a KitchenAid Refrigerator

Discover how easy it is to replace the water filter in your KitchenAid refrigerator.…

Troubleshooting a refrigerator not cooling video

Troubleshooting a refrigerator not cooling video

Learn what to check if the inside of your fridge is wayyyy too warm.…

Parts & More

Bottom-Mount Refrigerator
Dishwasher
Dryer
Electric Chainsaw
Electric Range
Engine & Drivetrain
Freestanding Freezer
Front-Engine Lawn Tractor
Gas Grill
Gas Walk-Behind Mower
Laundry Center
Lawn Sweeper
Parts
Range Hood
Wall Oven
Washer
