What are the most common issues with 79097513102?
On the Kenmore Elite 79097513102 electric range, the most common problems we see are uneven oven temperatures, surface elements that do not heat correctly, and control or power connection issues. These symptoms usually trace back to a sensor, heating element, relay/control board, or a loose/burned power connection.
Common symptoms and what they usually point to
- Oven bakes too hot or too cool: a failing temperature sensor or control issue; see range oven temperature sensor 5304504897.

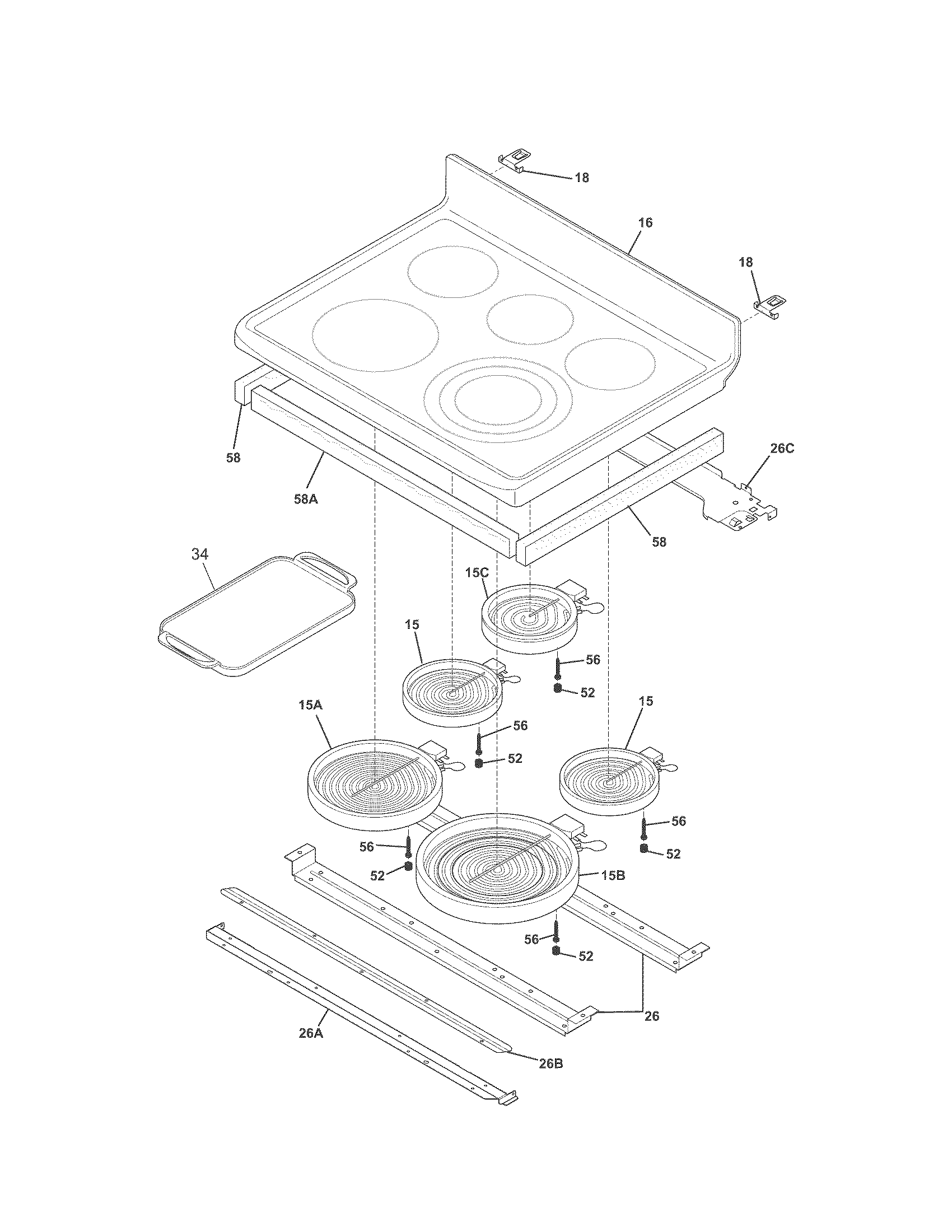

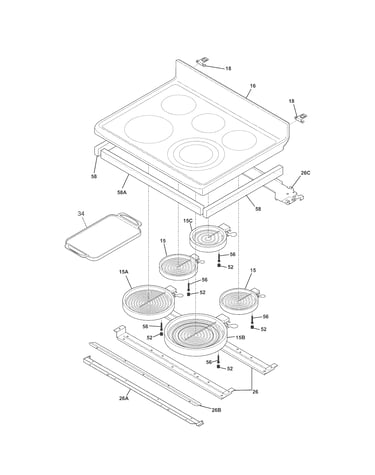

- One or more burners not heating, cycling wrong, or stuck on: a radiant surface element or surface-element relay problem; see range triple radiant surface element 318297810 and frigidaire range surface unit power relay board 316442119.
- Oven will not heat or heats intermittently: relay/control board problems; see range oven relay control board 316443944.
- Range completely dead, burning smell at the cord, or power cuts in and out: terminal block connection failure; see terminal block 5304409888.
- Oven light not working: burned-out bulb; see lamp 318241008.
Quick checks we recommend first
- Confirm the range has proper power (electric ranges typically need a full 240V supply).
- For burner issues, try a different element setting and watch for normal cycling.
- For baking issues, compare set temperature vs. actual using an oven thermometer.
- If you notice heat damage at the power cord connection, stop using the range and inspect the terminal block.

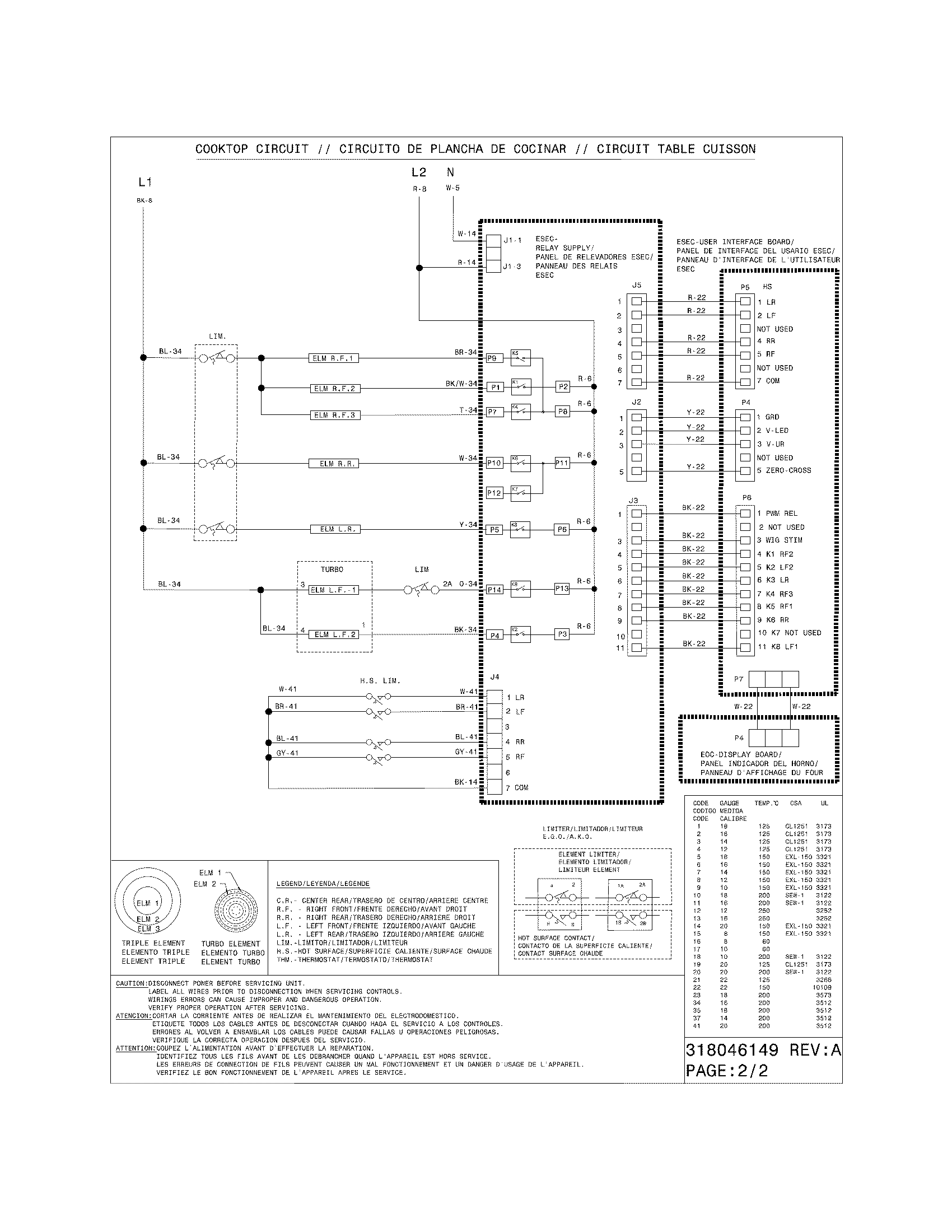

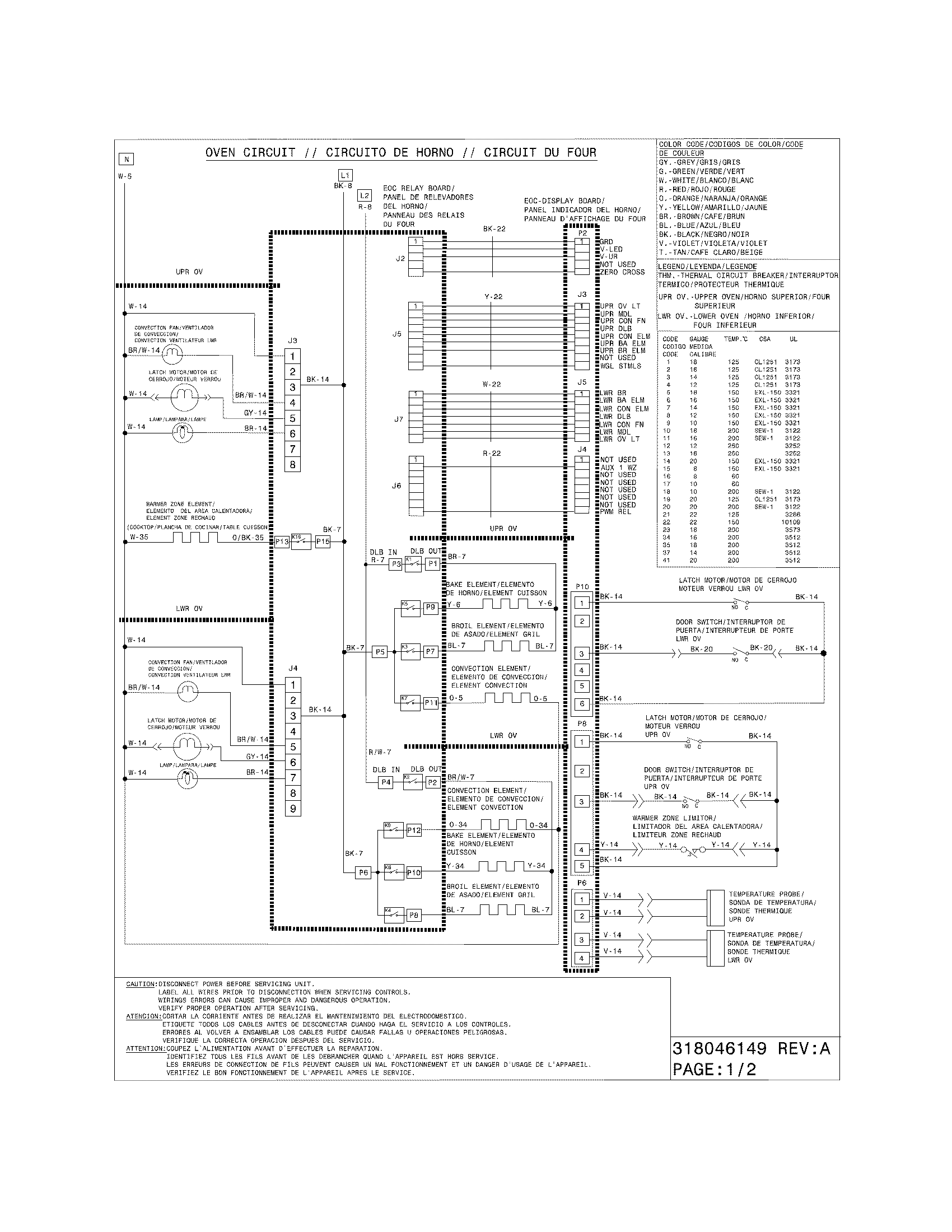

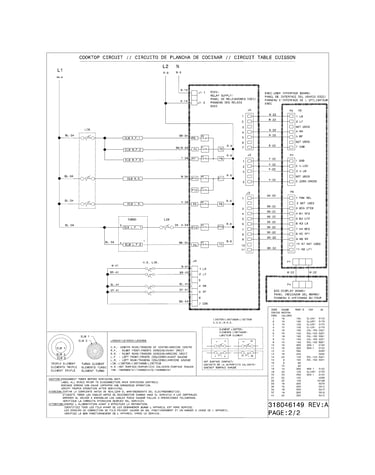

- Use the wiring diagram and troubleshooting steps in the owner's manual to match symptoms to tests.
Symptom-to-part cheat sheet
| Symptom | Most likely area | Example part on this model page |
|---|---|---|
| Oven temperature inaccurate | Sensor or control | Range oven temperature sensor (5304504897) |
| Burner not heating | Element or relay | Triple radiant element (318297810) |
| Burner stuck on/erratic | Relay board | Surface unit power relay board (316442119) |
| No power/intermittent power | Power connection | Terminal block (5304409888) |
Why it matters
Accurate diagnosis prevents repeat failures and protects expensive components like the control board. For example, a loose terminal block can overheat wiring, and a drifting sensor can make food undercook or burn.
Last updated: March 2026
What is the average lifespan of 79097513102?
A Kenmore Elite electric range like model 79097513102 typically lasts 13 years with normal household use. Keeping the oven and cooktop clean, ensuring proper electrical supply, and replacing wear parts promptly helps you reach that expected service life.
Typical lifespan and what affects it
Most electric ranges land in a similar window; usage and heat exposure drive the difference.
- Heavy daily baking and high-heat broiling shorten component life
- Power surges or loose wiring can damage controls and relays
- Self-clean cycles add extreme heat stress to door locks, sensors, and insulation
- Spills under elements can overheat wiring and terminals
- Good ventilation and routine cleaning reduce heat buildup
What “end of life” usually looks like
These are the most common age-related failures we see on electric ranges.
| Symptom | Common cause | Example part on this model page |
|---|---|---|
| Oven temperature swings or won’t hold set temp | Failed temperature sensor | Range oven temperature sensor 5304504897 |
| Oven light out | Burned-out lamp | Lamp 318241008 |
| One surface burner not heating | Failed radiant element or control issue | Range radiant surface element 8583165300010 |
| Range intermittently loses power | Loose/burned power connection | Terminal block 5304409888 |
Maintenance that extends life
We recommend these practical steps for the 79097513102.
- Wipe up sugary or acidic spills quickly to prevent etching and hot spots
- Avoid slamming the oven door; it stresses hinges and the door switch
- Use cookware that matches the element size to reduce cycling and overheating
- If you smell hot plastic or see discoloration at the cord connection, stop using the range and inspect the terminal area
- Follow cleaning and self-clean guidance in the owner's manual
Why it matters
Knowing the typical lifespan helps you decide whether to repair (often cost-effective for a sensor, lamp, or surface element) or plan for replacement if multiple major electrical parts are failing.
Last updated: March 2026
Where is the model number on a Kenmore Elite oven?
On the Kenmore Elite electric range model 79097513102, the model number is printed on the serial plate. On this style of range, that serial plate is located on the appliance as shown in the installation instructions; check the serial plate for the model, lot, and serial number. See the 79097513102 installation guide for the exact serial plate location diagram.
Common places to check on a Kenmore range
If you do not spot the serial plate right away, these are the most common areas to inspect on a freestanding electric range:
- Along the oven frame behind the oven door (open the oven door and look around the front frame)
- On the lower drawer frame (warming drawer or storage drawer area)
- On the back of the range near the power cord access area
- On a side frame edge behind the drawer
What the serial plate label tells you
The serial plate is more than just a model tag; it is the label we use to match the correct Kenmore parts and wiring information.
| Label item | What it’s used for |
|---|---|
| Model number | Ensures the correct parts list and diagrams for your exact range |
| Serial number | Helps identify production details for compatible replacement parts |
| Voltage / kW rating | Confirms electrical requirements for safe installation |
Why it matters
Kenmore Elite ranges often have multiple versions that look similar. Using the exact model number (like 79097513102) prevents ordering the wrong surface element, control board, or oven sensor.
Last updated: January 2026
