Kenmore Elite 66513933K014 undercounter dishwasher Parts

Yes. We still carry replacement parts for many Kenmore dishwashers, including the Kenmore Elite 66513933K014. The key is matching parts to your exact model number so items like seals, pumps, racks, and valves fit and function correctly; use the owner's manual to confirm features and service details.

What parts are commonly available for this model?

For the Kenmore Elite 66513933K014, these are some frequently replaced dishwasher parts we list for this model:

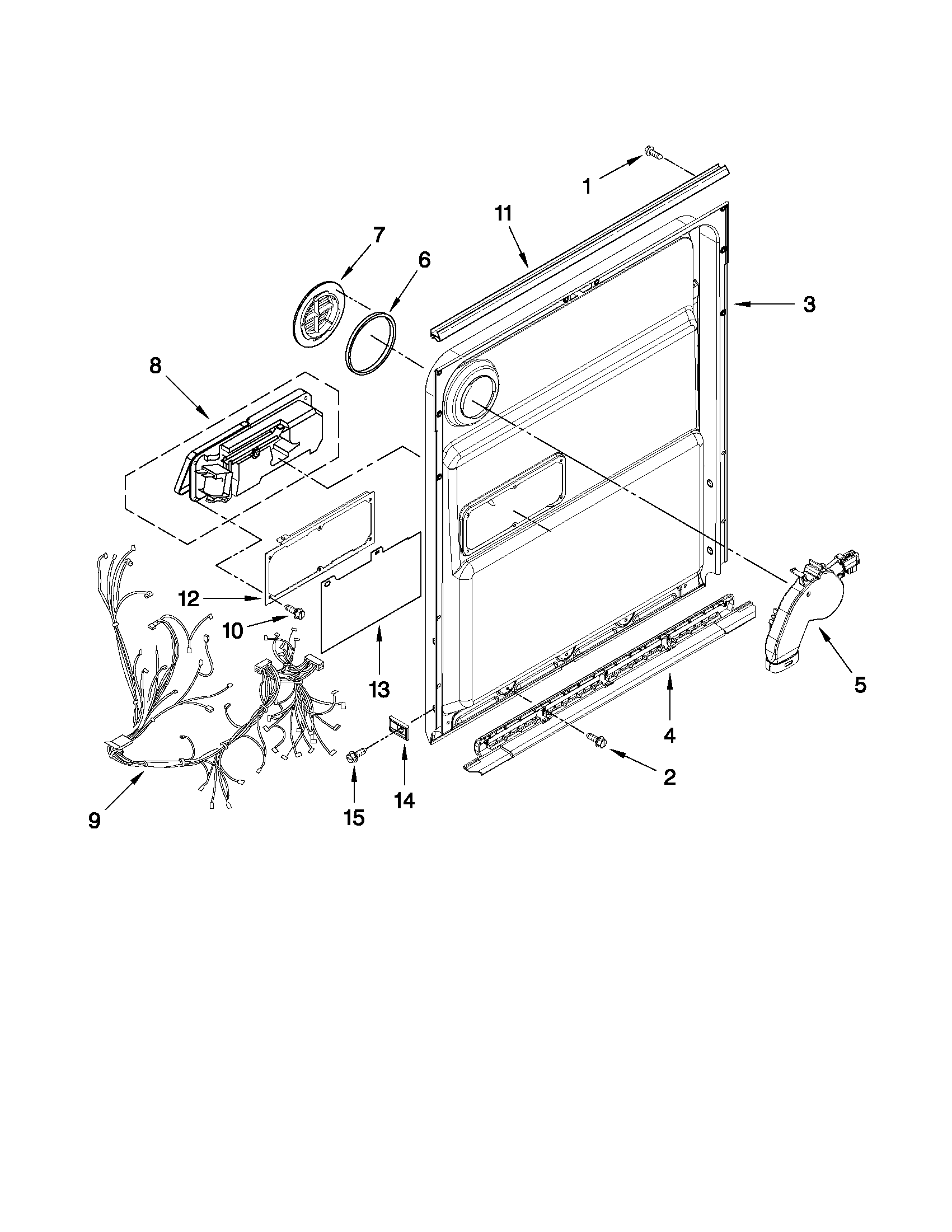

• Door sealing parts such as the dishwasher door seal W11177741 and the seal WPW10497235

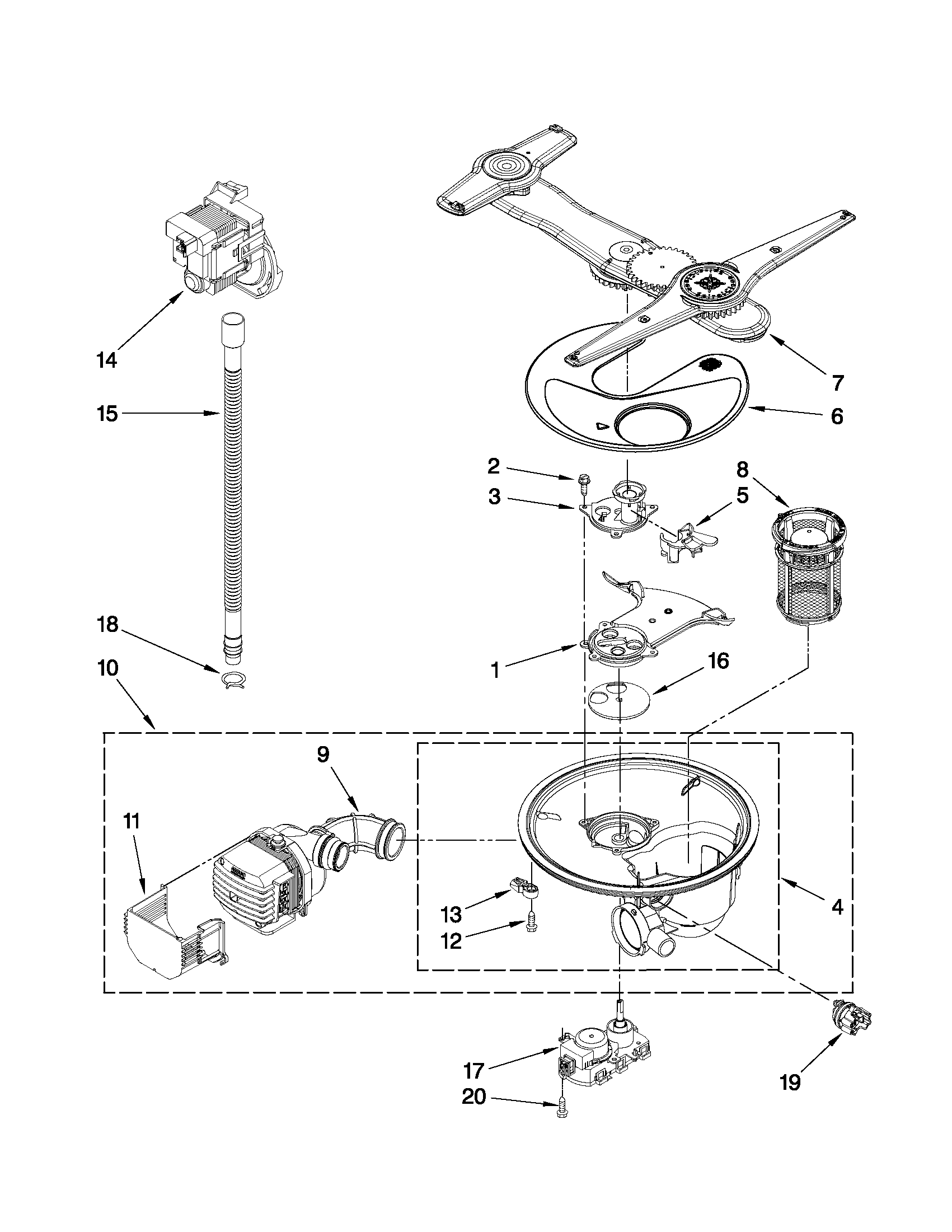

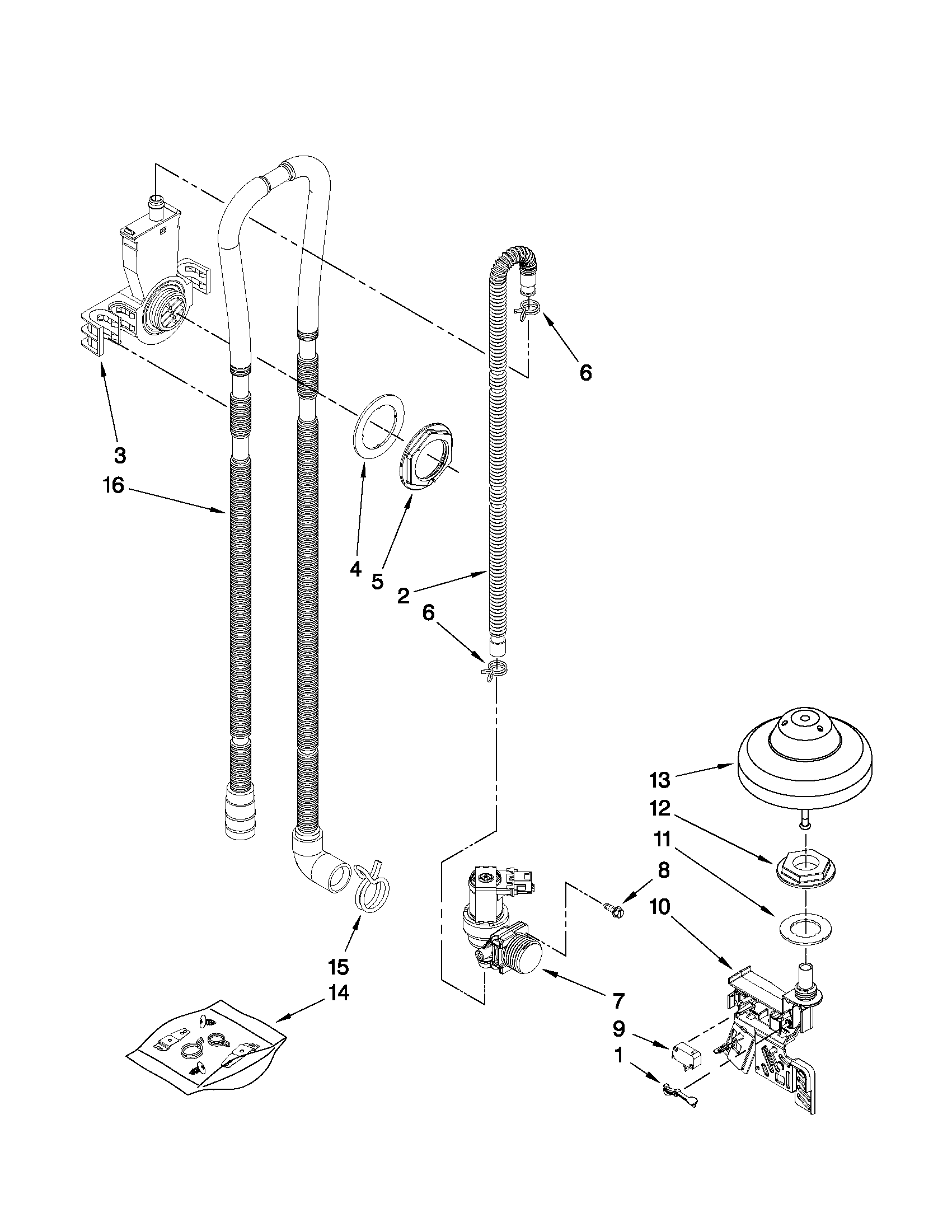

• Drain and water-fill parts such as the dishwasher drain pump WPW10348269 and the dishwasher water inlet valve W11175771

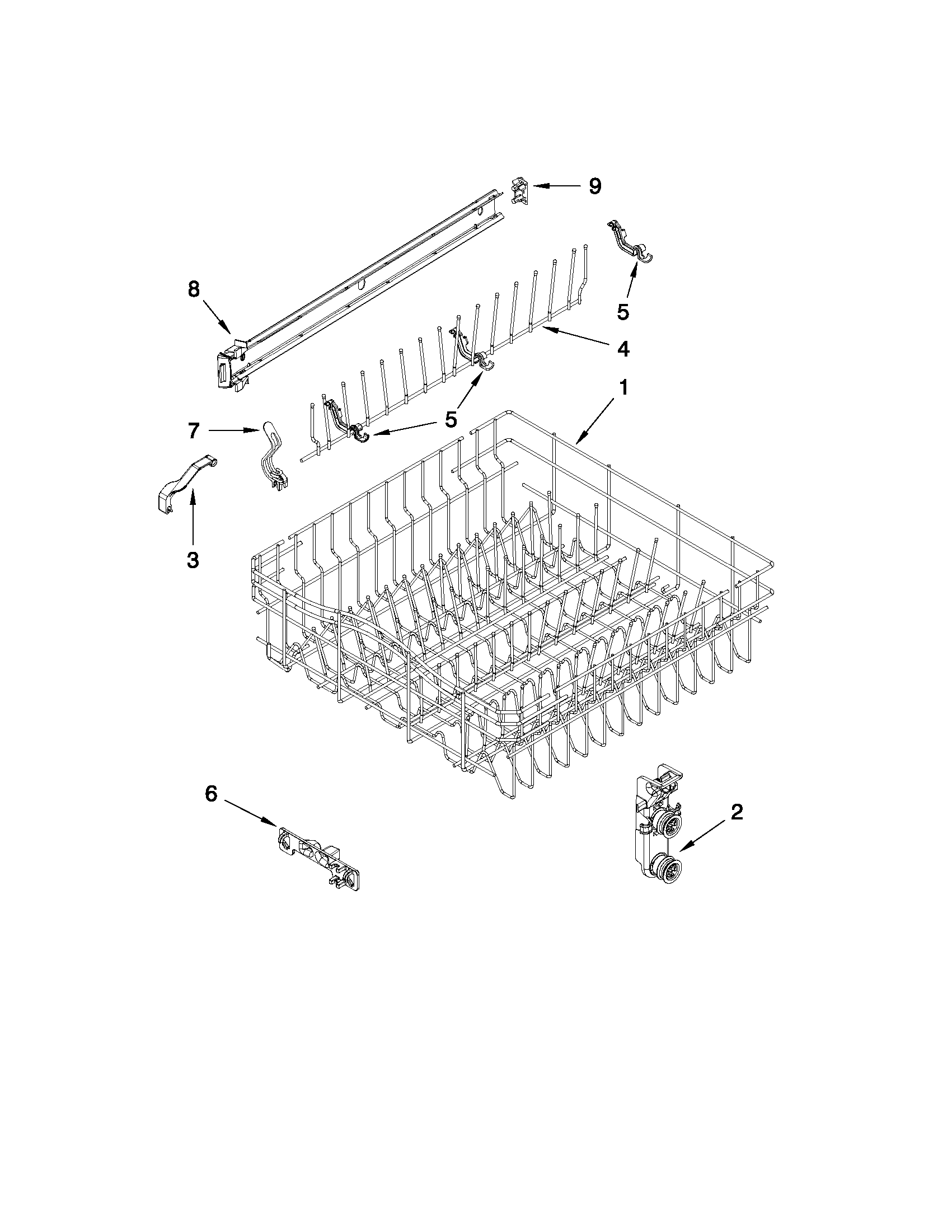

• Rack and rack hardware such as the dishwasher dishrack roller assembly, lower WPW10195417 and the dishwasher dishrack slide rail stop, upper WPW10195622

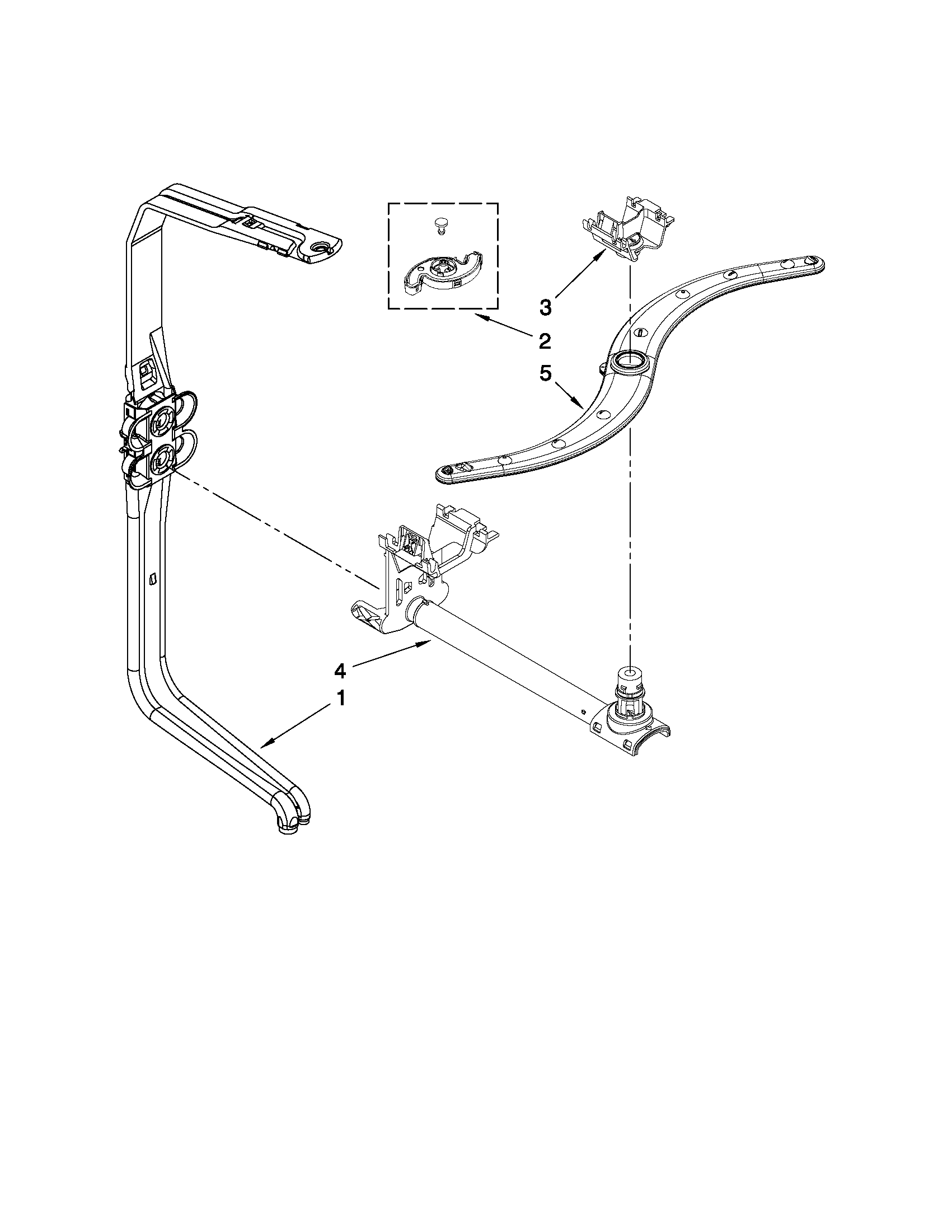

• Wash performance parts such as the dishwasher spray arm WPW10195601 and the dishwasher filter W10872845

How we recommend you match the right part

Using the correct model number (66513933K014) prevents ordering a look-alike part that mounts differently or has the wrong electrical connector.

• Match by model number first, then confirm the part name and part ID
• Compare the old part to the listing (ports, tabs, wire plugs, and mounting holes)
• If the issue is a leak, check both the main door seal and the lower door seal area
• If the issue is not draining, check the drain hose routing and the drain pump
• If the issue is not filling, check the inlet valve and household water supply

Quick guide: symptom to part area

Symptom	Most likely area to check	Example part for this model
Water leaking at the door	Door seal surfaces and lower seal	W11177741, WPW10497235
Not draining	Drain pump, drain hose, installation routing	WPW10348269
Not filling or fills slowly	Water inlet valve, supply line	W11175771
Upper rack won’t roll smoothly	Rack rollers and rail stops	WPW10195417, WPW10195622

Why it matters

Dishwashers are model-specific: a door seal that is slightly different in profile, or a pump with a different outlet angle, can cause leaks, poor draining, or fit problems. Matching parts to Kenmore Elite 66513933K014 keeps the repair straightforward and helps restore normal wash performance.

Last updated: February 2026

Yes, repairing a Kenmore Elite dishwasher like model 66513933K014 is worth it when the problem is a wear item (seal, rack wheels, drain hose) or a single failed component; those repairs usually cost far less than replacement and restore normal cleaning and draining performance. Use the 66513933K014 owner's manual to match symptoms to the right fix.

Quick way we decide: repair vs replace

We use these practical checkpoints:

• Repair if the dishwasher is cleaning well overall and you have one clear failure (leak, no drain, door won’t seal, rack won’t roll).
• Repair if the needed part is a common service item (seal, valve, pump, heater).
• Replace if you have multiple major failures at once (for example: control issues plus leaking plus poor wash).
• Replace if the tub is damaged or the repair requires extensive teardown.
• Repair if the unit is in good condition and you can do a DIY install safely.

Common repairs that are usually worth it on 66513933K014

These are frequent, targeted fixes that often solve the complaint without major cost:

• Door leaking: check the dishwasher door seal W11177741 and the lower door seal area
• Not draining or leaving water: inspect the drain path and consider the dishwasher drain pump WPW10348269

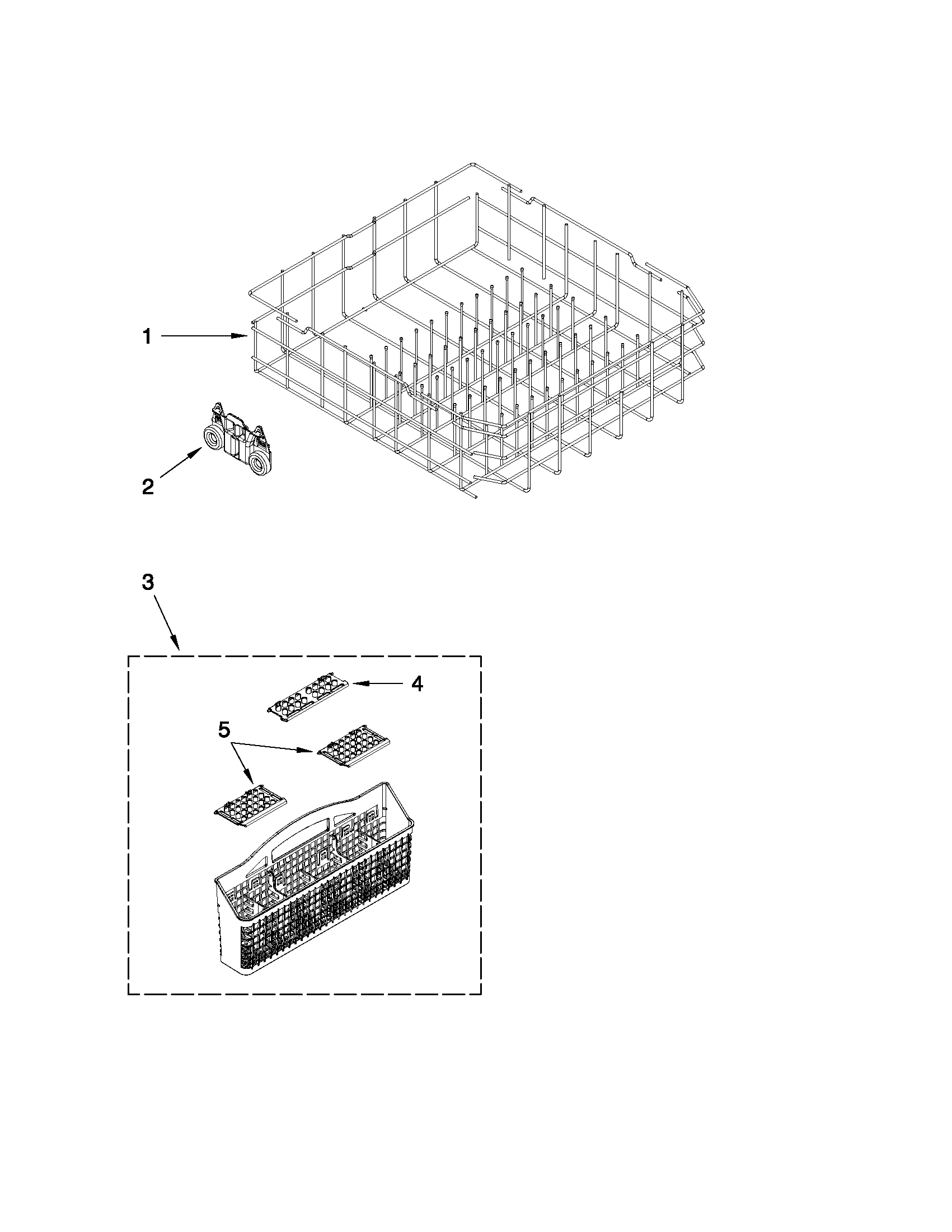

• Upper or lower rack problems: replace worn wheels such as the dishwasher dishrack roller assembly, lower WPW10195417
• Slow fill or no fill: test the water supply and consider the dishwasher water inlet valve W11175771

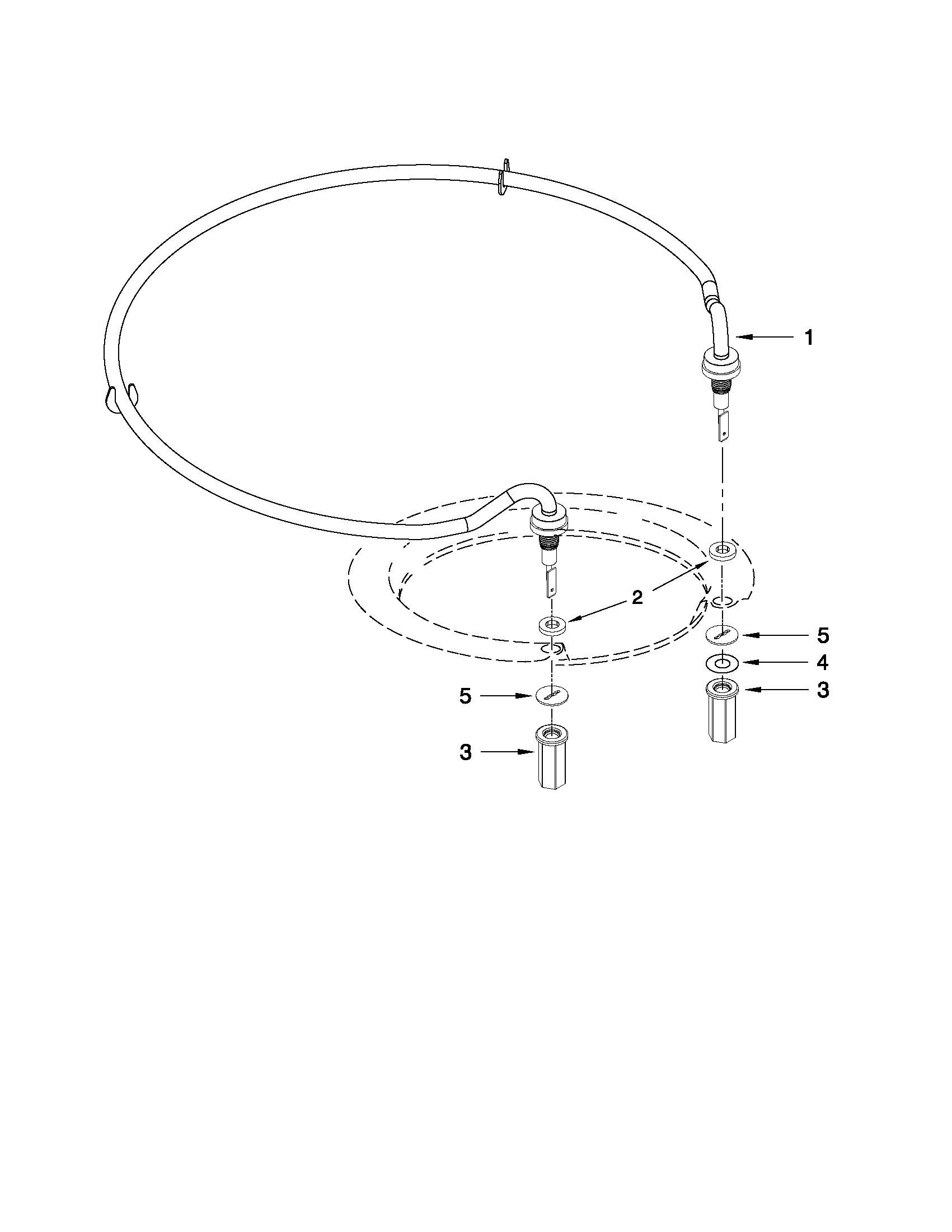

• Poor drying or water not heating: diagnose the heating circuit and consider the dishwasher heater W10703867

Cost and effort comparison (typical)

Repair type	Typical effort	Typical outcome
Seal or rack wheel replacement	Low	Stops leaks, restores smooth rack movement
Drain hose or drain pump service	Medium	Restores proper draining, prevents standing water
Inlet valve replacement	Medium	Restores filling and wash pressure
Electronic control replacement	High	Fixes power, cycle, or control problems

Why it matters

A dishwasher that leaks, won’t drain, or won’t heat can cause repeat cycle failures and poor cleaning. Fixing the single root cause (like a door seal, drain pump, or inlet valve) prevents secondary problems and keeps your Kenmore Elite running reliably.

Last updated: February 2026

Common problems we see with the Kenmore Elite 66513933K014 dishwasher include not starting or pausing mid-cycle, not filling, not draining (water left in the tub), detergent not dispensing, cycles running unusually long, and poor cleaning from loading or filtration issues. Many of these trace back to door-latch closure, power, water supply, drainage restrictions, or a dirty filter.

Most common symptoms and what they usually mean

• Dishwasher does not run or Start/Resume light blinks: the door is not fully closed and latched, or the cycle needs to be resumed.
• Will not fill: water supply is off, the float is stuck, or suds are interfering with sensing.
• Water remains in tub or will not drain: kinked drain hose, disposer knockout plug not removed, or a drain restriction.
• Detergent remains in dispenser: dishes are blocking the dispenser door, or the cycle did not complete.
• Food soils remain on dishes: improper loading, filter not installed correctly or needs cleaning, water temperature too low, or not enough detergent for hard water.

Quick checks you can do first (before replacing parts)

• Confirm the door closes freely; re-load tall items so they do not interfere with the wash system at the back.
• Verify power to the dishwasher; check the house breaker or fuse.
• Turn the water supply fully on; make sure the float moves up and down freely.
• Run hot water at the sink faucet nearest the dishwasher before starting; incoming water should be about 120°F (49°C).
• Inspect the drain hose routing for kinks and high-loop/air-gap issues per the installation guide.

Parts that commonly relate to these problems (for this model)

Symptom	Common part to inspect	Example part for 66513933K014
Won’t drain, water left in tub	Drain pump, drain hose	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A
Won’t fill or fills slowly	Water inlet valve	Dishwasher water inlet valve W11175771
Poor cleaning, debris recirculating	Filter	Dishwasher filter W10872845

Why it matters

These issues often look like a “bad dishwasher,” but they are usually a simple interruption (door not latched, cycle not resumed), a supply problem (water or power), or a restriction (filter or drain path). Fixing the root cause prevents repeat failures and helps protect the tub and heater from running under poor conditions.

For model-specific operating steps and troubleshooting tables (Start/Resume blinking, fill and drain checks, cycle time notes), use the owner's manual.

Last updated: February 2026

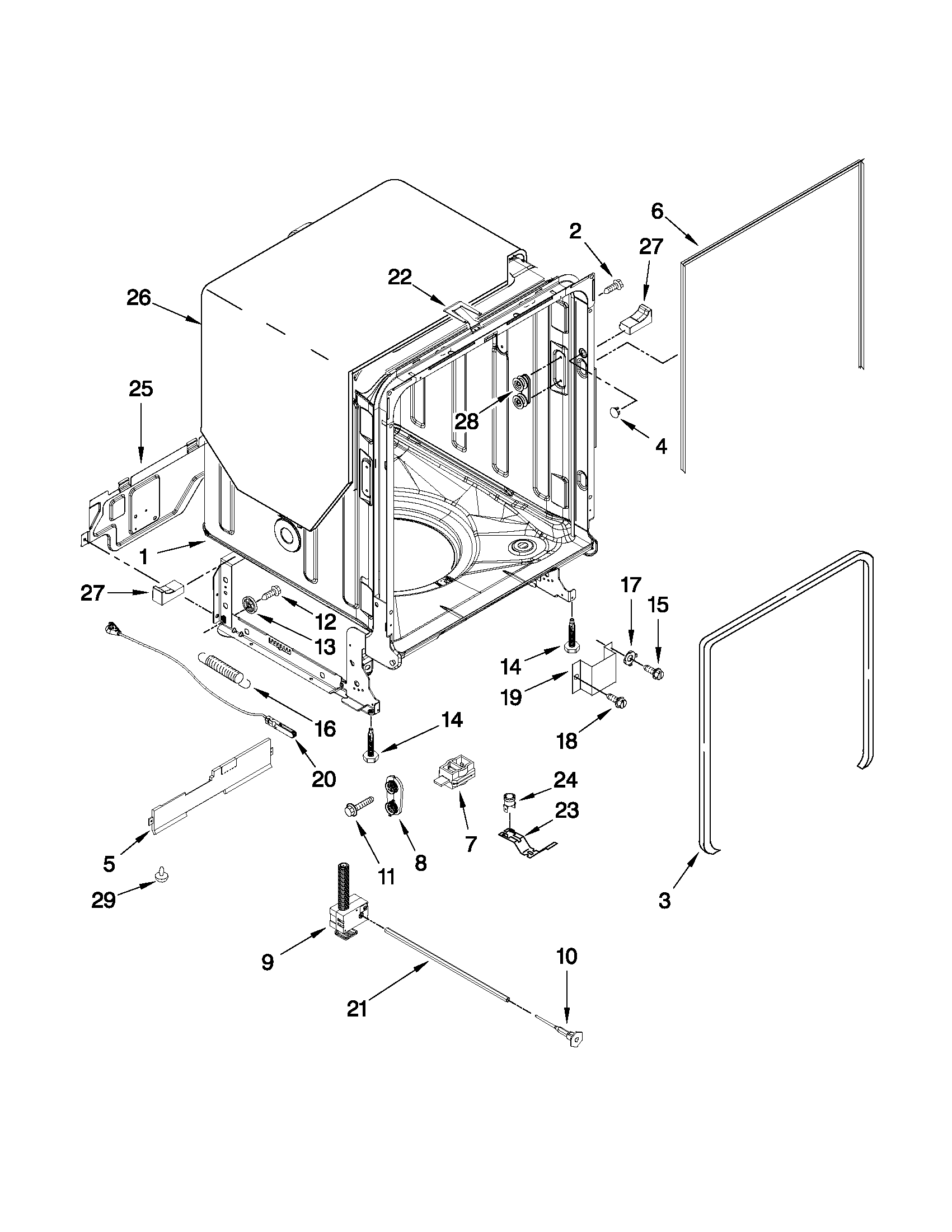

On Kenmore Elite dishwasher model 66513933K014, the model number is printed on the rating label located just inside the dishwasher door opening, typically along the left-hand side of the tub frame. The same label also lists the serial number for parts matching and service records.

Where to look (fast checklist)

• Open the dishwasher door fully.
• Look along the left inside edge of the tub opening.
• Check the vertical frame area where the door seals against the tub.
• Wipe the label with a damp cloth if it is hard to read.
• Write down the full model number and serial number exactly as shown.

What the label helps you do

Finding the exact model number prevents ordering the wrong Kenmore dishwasher parts and helps match the correct diagrams and instructions.

You need	Why it matters	Example (what it looks like)
Model number	Ensures parts fit your exact dishwasher version	66513933K014
Serial number	Identifies production run details for some part changes	A mix of letters and numbers

Why it matters

Kenmore Elite dishwashers can have small design changes within the same series. Using the full model number from the rating label is the most reliable way to match parts like a door seal, drain pump, or dishrack components to your exact unit.

Next step after you find it

Use the model number to reference the correct procedures and diagrams in the 66513933K014 owner's manual.

Last updated: February 2026
