Whirlpool WDT705PAKZ0 dishwasher

Whirlpool WDT705PAKZ0 dishwasher Parts

Here are the diagrams and repair parts for Whirlpool WDT705PAKZ0 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WDT705PAKZ0 DISHWASHER

  • Dishwasher Heating Element By Whirlpool for Whirlpool WDT705PAKZ0 - Part W10518394

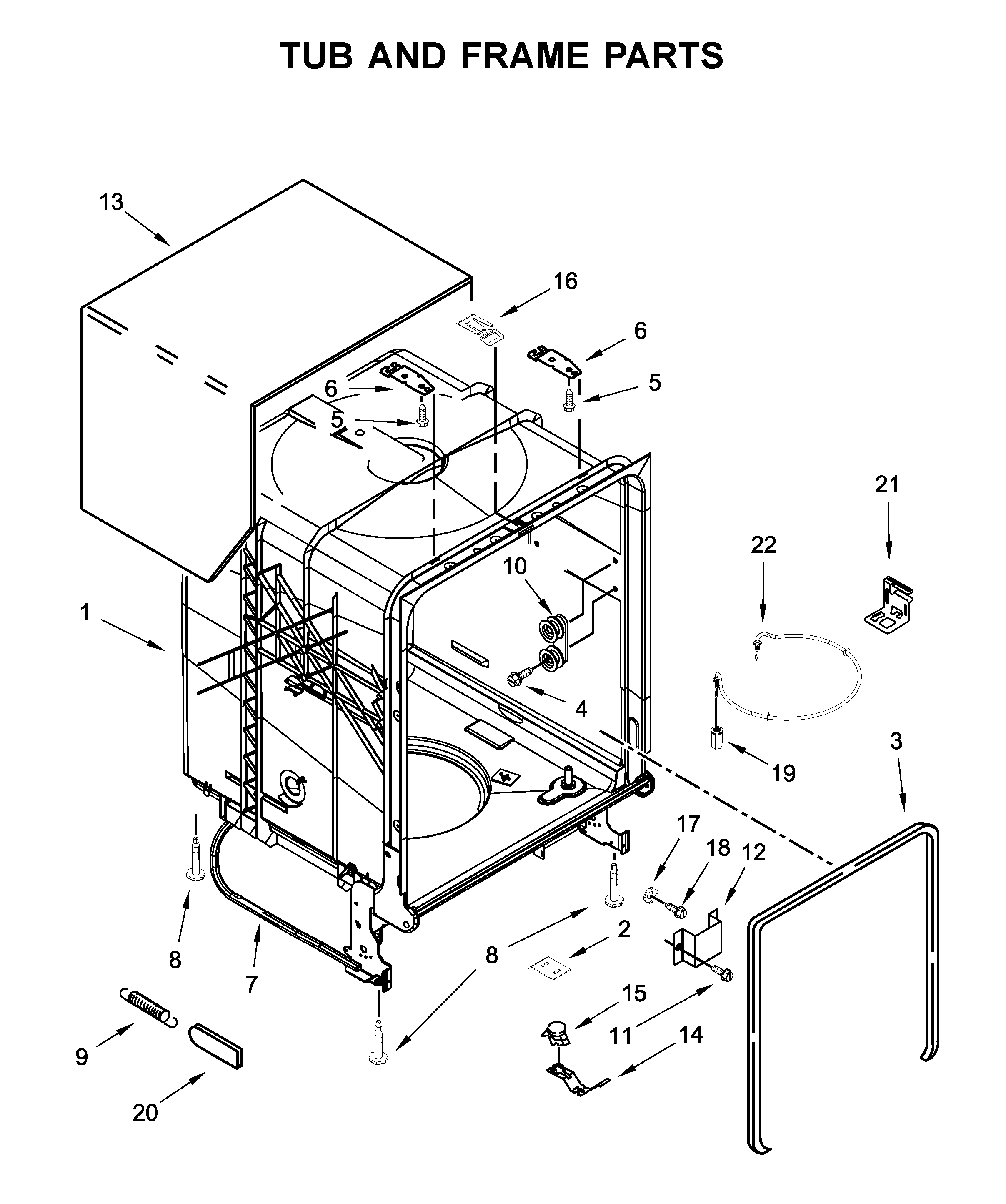

    Tub and frame parts diagram

    Element Assembly

    Part #W10441445

    Replaced by #W10518394

    Info Icon
    Manufacturer substitution
    This part replaces W10441445. Substitute parts can look different from the original.
    In Stock
    $39.21
    13% OFF Phone Price : $45.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Dishrack Slide Rail Stop, Upper for Whirlpool WDT705PAKZ0 - Part WP8565925

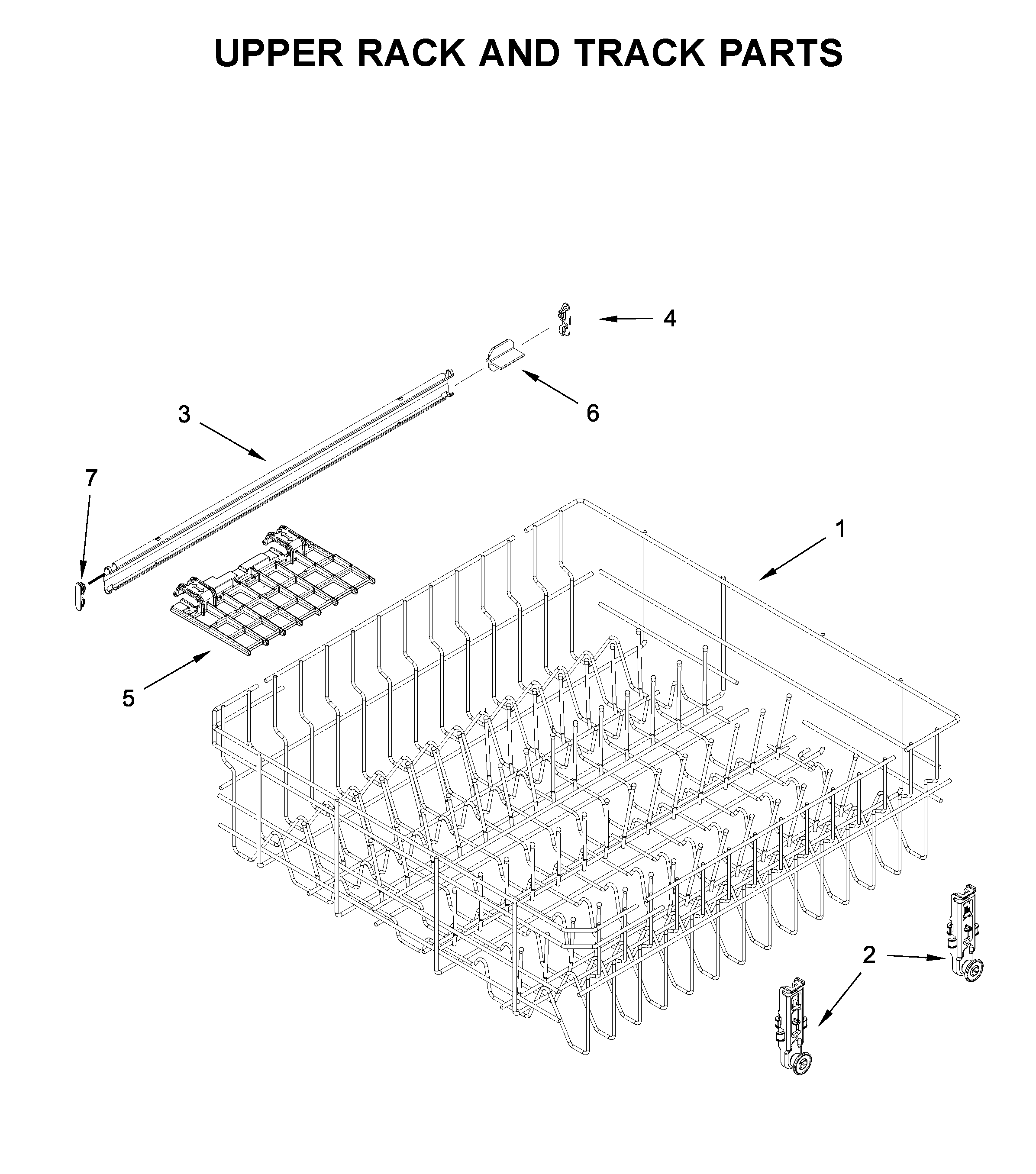

    Upper rack and track parts diagram

    Dishwasher Dishrack Slide Rail Stop, Upper

    Part #8565925

    Replaced by #WP8565925

    Info Icon
    Manufacturer substitution
    This part replaces 8565925. Substitute parts can look different from the original.
    In Stock
    $7.15
    12% OFF Phone Price : $8.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Dishrack Slide Rail Stop, Upper for Whirlpool WDT705PAKZ0 - Part WP8565925

    Upper rack and track parts diagram

    Dishwasher Dishrack Slide Rail Stop, Upper

    Part #W10082861

    Replaced by #WP8565925

    Info Icon
    Manufacturer substitution
    This part replaces W10082861. Substitute parts can look different from the original.
    In Stock
    $7.15
    12% OFF Phone Price : $8.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Spray Arm for Whirlpool WDT705PAKZ0 - Part WPW10491331

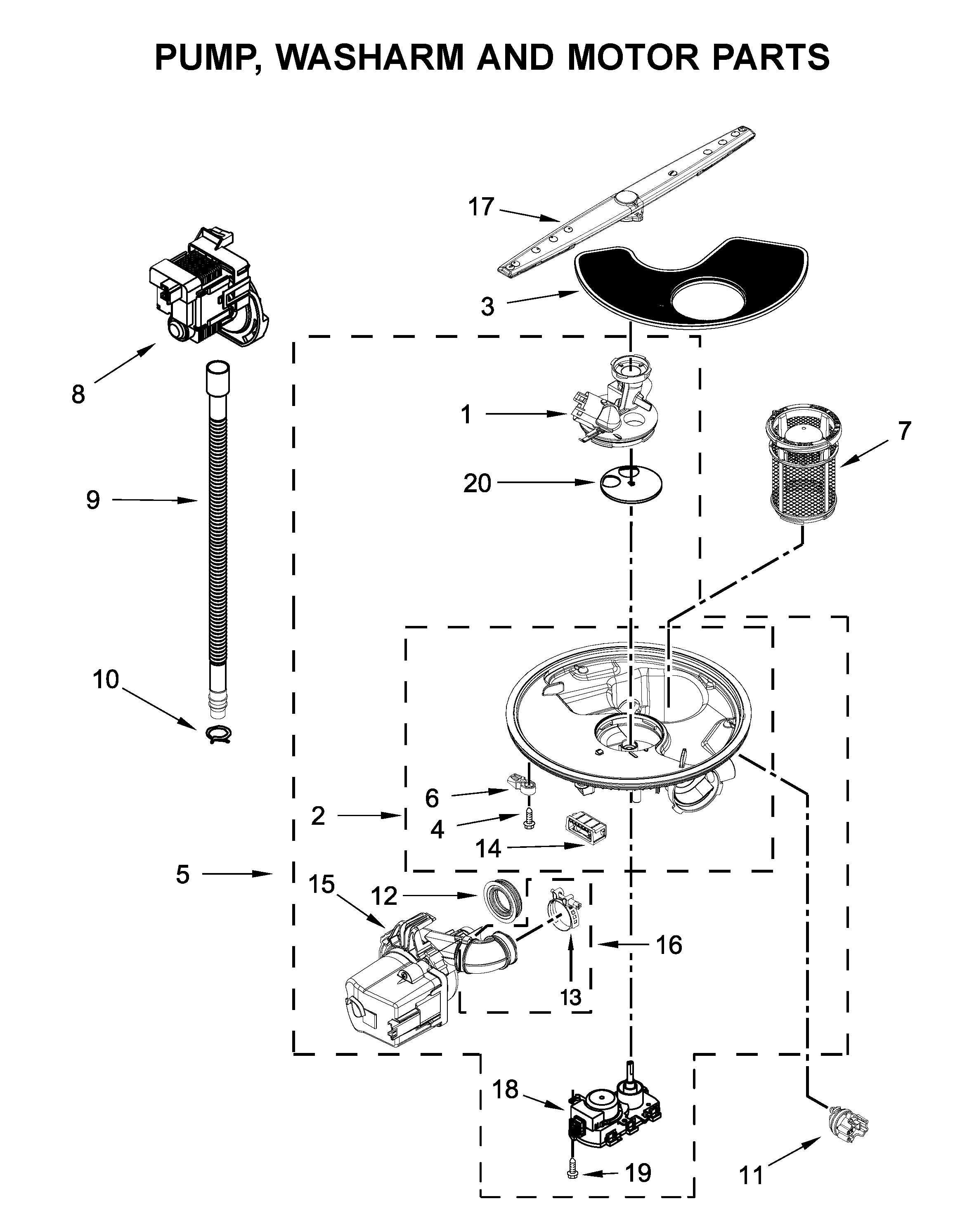

    Pump, washarm and motor parts diagram

    Dishwasher Spray Arm

    Part #W10491331

    Replaced by #WPW10491331

    Info Icon
    Manufacturer substitution
    This part replaces W10491331. Substitute parts can look different from the original.
    In Stock
    $36.95
    14% OFF Phone Price : $42.95Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Pump Grommet for Whirlpool WDT705PAKZ0 - Part WPW10538166

    Pump, washarm and motor parts diagram

    Grommet

    Part #W11182008

    Replaced by #WPW10538166

    Info Icon
    Manufacturer substitution
    This part replaces W11182008. Substitute parts can look different from the original.
    In Stock
    $21.98
    21% OFF Phone Price : $27.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Water Inlet Valve for Whirlpool WDT705PAKZ0 - Part W11175771

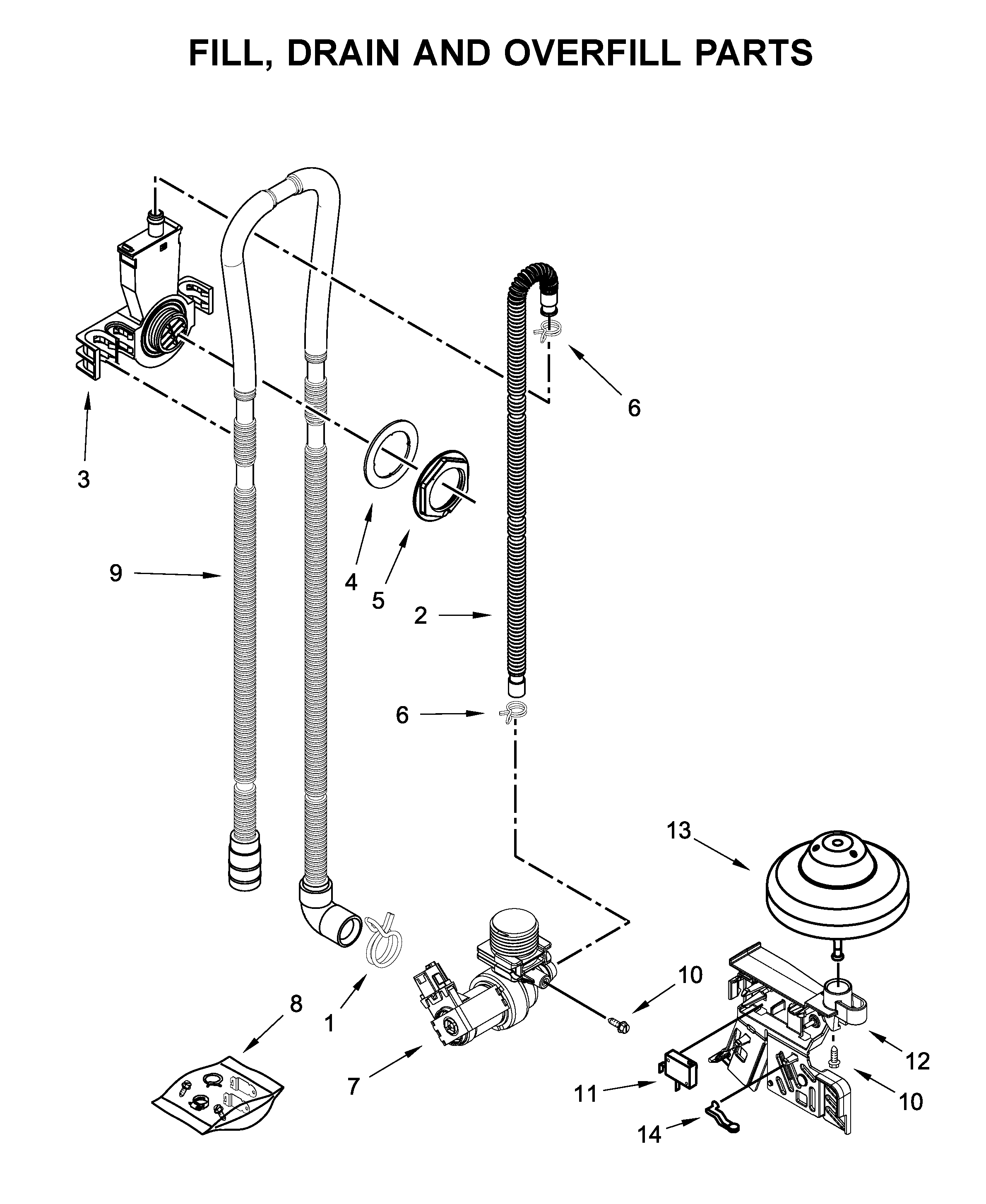

    Fill, drain and overfill parts diagram

    Valve-water

    Part #W11130744

    Replaced by #W11175771

    Info Icon
    Manufacturer substitution
    This part replaces W11130744. Substitute parts can look different from the original.
    In Stock
    $53.53
    10% OFF Phone Price : $59.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Door Latch for Whirlpool WDT705PAKZ0 - Part WPW10653840

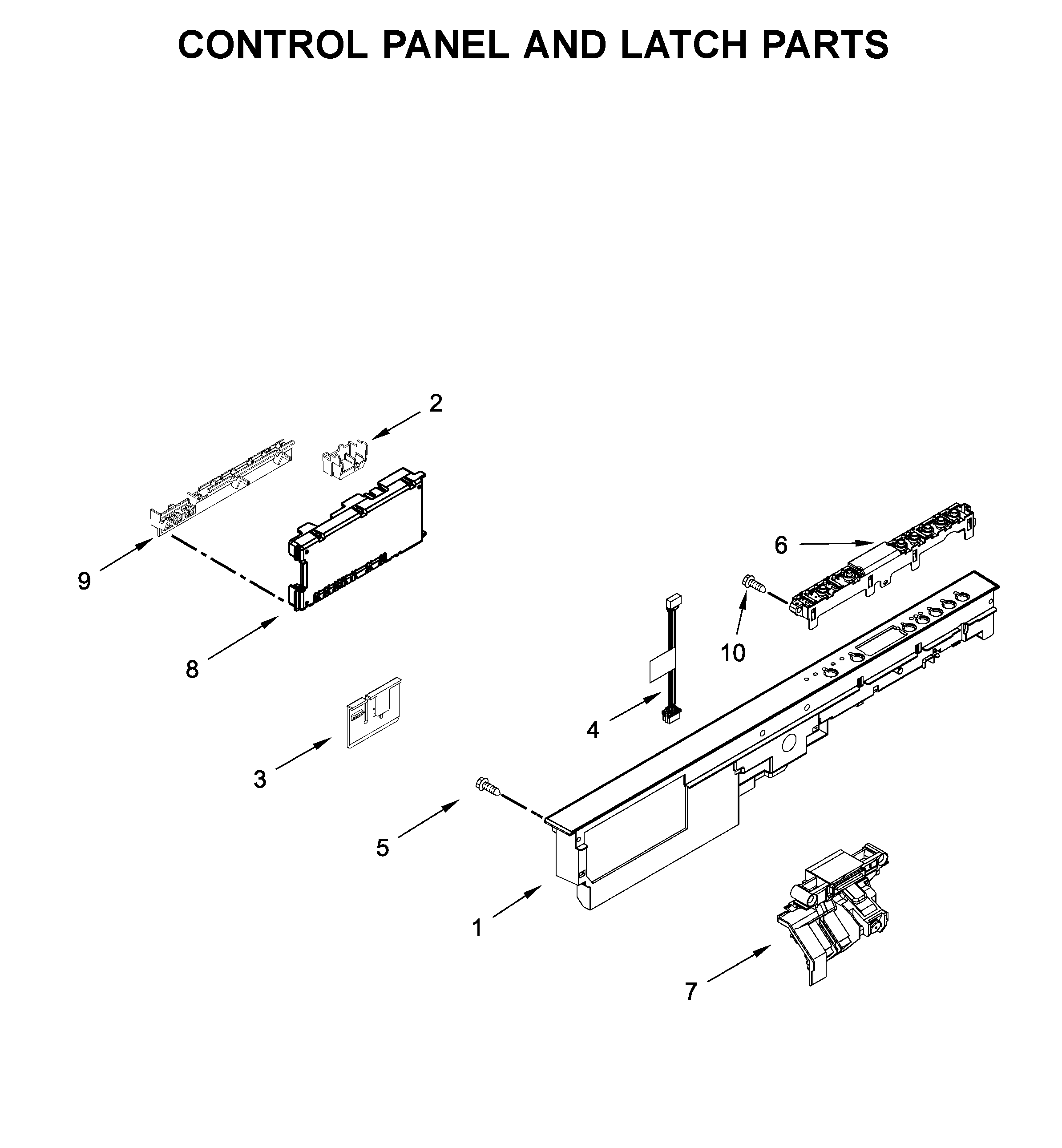

    Control panel and latch parts diagram

    Dishwasher Door Latch

    Part #W10574864

    Replaced by #WPW10653840

    Info Icon
    Manufacturer substitution
    This part replaces W10574864. Substitute parts can look different from the original.
    In Stock
    $25.45
    19% OFF Phone Price : $31.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Drain Hose for Whirlpool WDT705PAKZ0 - Part 8269144A

    Pump, washarm and motor parts diagram

    Dishwasher Drain Hose

    Part #8269144

    Replaced by #8269144A

    Info Icon
    Manufacturer substitution
    This part replaces 8269144. Substitute parts can look different from the original.
    In Stock
    $19.18
    9% OFF Phone Price : $21.18Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Diverter Motor for Whirlpool WDT705PAKZ0 - Part W10537869

    Pump, washarm and motor parts diagram

    Dishwasher Diverter Motor

    Part #W10849439

    Replaced by #W10537869

    Info Icon
    Manufacturer substitution
    This part replaces W10849439. Substitute parts can look different from the original.
    In Stock
    $55.50
    10% OFF Phone Price : $61.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dishwasher Drain Hose for Whirlpool WDT705PAKZ0 - Part WPW10545278

    Fill, drain and overfill parts diagram

    Dishwasher Drain Hose

    Part #W10545278

    Replaced by #WPW10545278

    Info Icon
    Manufacturer substitution
    This part replaces W10545278. Substitute parts can look different from the original.
    In Stock
    $50.90
    11% OFF Phone Price : $56.90Info Icon
    Minus Item
    Qty
    Plus Item

Whirlpool DISHWASHER WDT705PAKZ0 FAQs

Whirlpool dishwashers, including model WDT705PAKZ0, typically last 10 to 12 years with normal household use. Consistent maintenance (especially filter cleaning and proper detergent use) helps you reach the high end of that range and reduces common performance issues.

What affects lifespan the most
  • How often you run it (multiple loads daily shortens life faster than a few loads per week)
  • Hard water and mineral buildup (can reduce cleaning and strain components)
  • Filter and spray arm maintenance (clogs force the pump to work harder)
  • Detergent and rinse aid habits (too much, too little, or the wrong type can leave residue)
  • Early leak or drain issues (addressing them quickly prevents secondary damage)

For model-specific care steps and filter-cleaning guidance, follow the WDT705PAKZ0 owner's manual.

Maintenance schedule we recommend
Task Typical frequency Why it helps
Clean the filter system Monthly (more often with hard water) Prevents poor wash results and drain problems
Run a dishwasher cleaner cycle Monthly Reduces white residue and odor
Inspect spray arms for clogs Every 2 to 3 months Keeps water pressure and coverage strong
Check door seal area for debris Monthly Helps prevent leaks

If you’re replacing worn filtration components, the filter cup a W10872845 is one compatible part used in the filter area on this model.

Signs your dishwasher is nearing end of life
  • Cycles run but dishes stay gritty or cloudy even after cleaning the filter
  • Frequent draining problems or standing water after cycles
  • Persistent leaks around the door or under the unit
  • Unusual grinding or loud pump noise that returns after cleaning
  • Repeated electrical or control issues
Why it matters

Knowing the typical lifespan helps you decide when maintenance is worth doing versus when recurring problems may point to a larger issue (pump, heater, or control). Regular filter care is one of the simplest ways to protect the wash system and extend service life.

Last updated: January 2026

There is not one single “best” Whirlpool dishwasher for everyone; the best choice depends on your budget, noise expectations, and drying needs. If you already own a Whirlpool WDT705PAKZ0, the “best” model for you is often the one that fits your kitchen and performs well with proper loading, detergent, and routine filter care (see the WDT705PAKZ0 owner's manual).

How we recommend choosing the “best” Whirlpool dishwasher

We focus on the features that most affect real-world results:

  • Cleaning performance: soil sensing, strong wash action, good filtration
  • Drying performance: heated dry options, rinse aid use, venting design
  • Noise level: quieter models matter most in open kitchens
  • Rack flexibility: adjustable upper rack, third rack (if you want it)
  • Tub material: stainless steel tubs tend to resist staining and retain heat better
Quick comparison: what “best” means by priority
If you care most about... Prioritize these features What to expect
Quiet operation Lower dBA rating, solid insulation Less noticeable running sound
Better drying Rinse aid + heated/extended dry options Drier plastics and mixed loads
Value Proven wash system, simpler controls Fewer premium features, solid cleaning
Long-term upkeep Easy-to-clean filter, available replacement parts Easier maintenance over time
Tips to get top performance from your WDT705PAKZ0

Even a great dishwasher can seem “bad” if water flow or filtration is restricted.

  • Clean the filter on a regular schedule based on how often you run loads
  • Use high-quality detergent packs/tablets and rinse aid for drying
  • Avoid blocking the spray arms with tall pans or cutting boards
  • Run hot water at the sink until it is hot before starting a cycle
  • If dishes stay wet, select a stronger dry option and confirm rinse aid is filled
Why it matters

Choosing the “best” Whirlpool dishwasher is really about matching features to your household. For owners of WDT705PAKZ0, consistent cleaning and drying usually come down to maintenance and water flow. If you are troubleshooting poor results, a clogged spray arm can be a common cause; inspecting or replacing the dishwasher spray arm WPW10491331 is a practical next step.

Last updated: January 2026

For the Whirlpool WDT705PAKZ0 dishwasher, the most common day-to-day problem we see is poor draining or poor cleaning caused by simple flow restrictions: a dirty filter area, blocked spray-arm holes, or a kinked/partially clogged drain hose. These issues often show up as standing water, gritty dishes, or weak spray.

Quick checks that fix many “common problems”

Start with these no-cost steps before replacing parts:

  • Clean the filter area and remove any debris (labels, glass, food).
  • Spin the spray arms by hand; make sure they turn freely.
  • Clear spray-arm holes with a toothpick and rinse the arm.
  • Verify the drain hose is routed correctly (high loop or air gap) and not kinked.
  • Run hot water at the sink for 30 to 60 seconds before starting a cycle.
  • Use rinse aid and a high-quality detergent; avoid overfilling the detergent cup.

For model-specific maintenance steps and filter-cleaning guidance, follow the WDT705PAKZ0 dishwasher owner’s manual.

When it’s likely a part problem

If cleaning and hose checks do not help, these symptoms often point to a failing component.

Symptom Most likely area Example compatible part for WDT705PAKZ0
Standing water after cycle Drain system Dishwasher drain pump W10876537
Dishwasher won’t fill or fills slowly Water supply/inlet valve Valve-water W11175771
Dishes not getting clean (weak spray) Spray arm or circulation path Dishwasher spray arm WPW10491331
Why it matters

Drain and wash-performance problems usually start small, but restrictions can lead to odors, redepositing soil on dishes, and longer cycle times. Keeping the filter area clean and water flow strong helps protect the pump and improves cleaning results.

Helpful next step

If your dishwasher is flashing lights or showing an error pattern, use our Whirlpool dishwasher error codes guide to narrow the cause before ordering parts.

Last updated: January 2026

Most common symptoms to help you fix your dishwashers

Choose a symptom to see related dishwasher repairs.

Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…

Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…

Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …

Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…

Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, contro…

Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…

Main cause: damaged rack height adjuster…

Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…

Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…
