Model # KUIV18NNMM4 Official KitchenAid freestanding ice maker

Here are the diagrams and repair parts for Official KitchenAid KUIV18NNMM4 freestanding ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

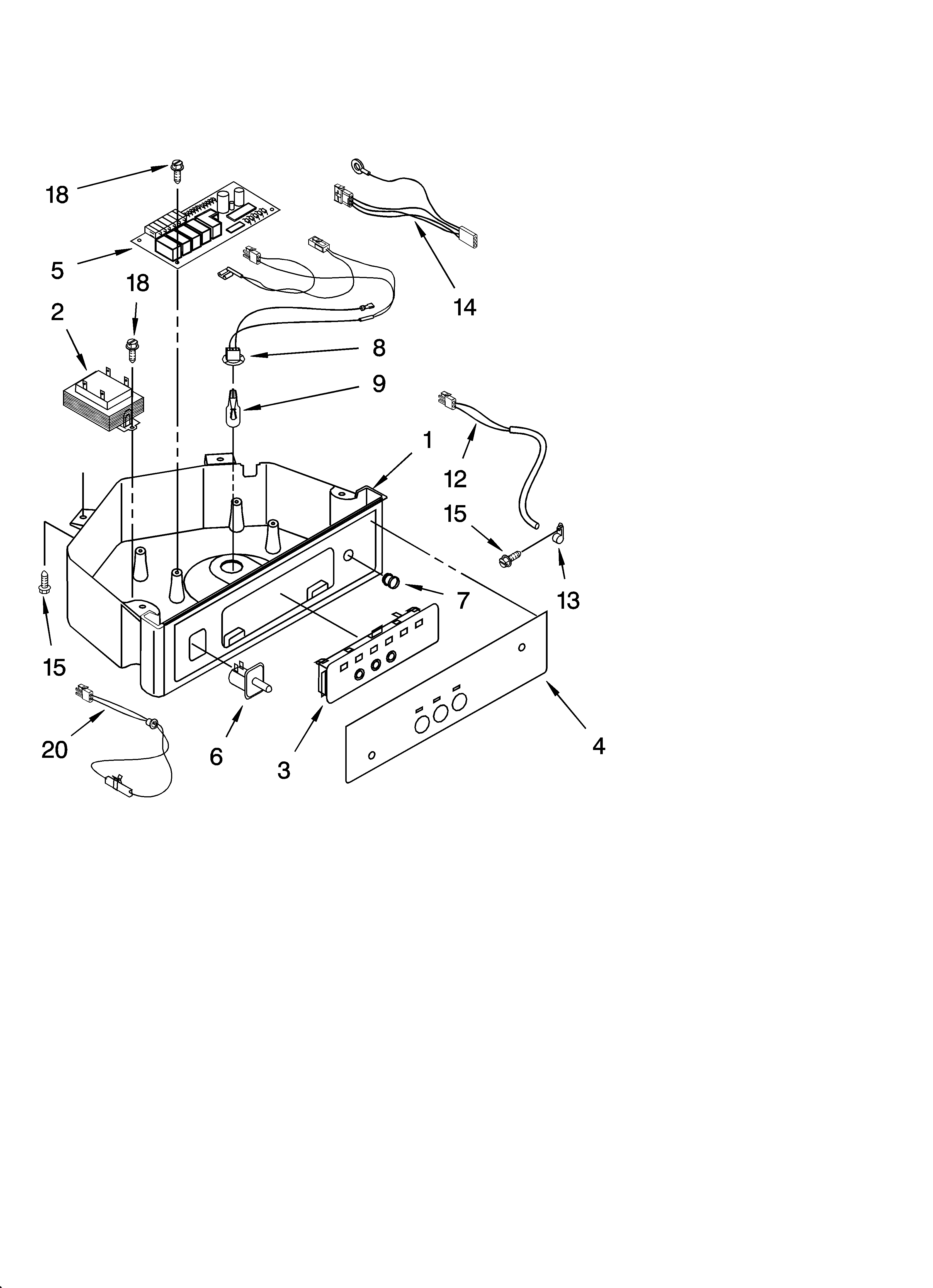

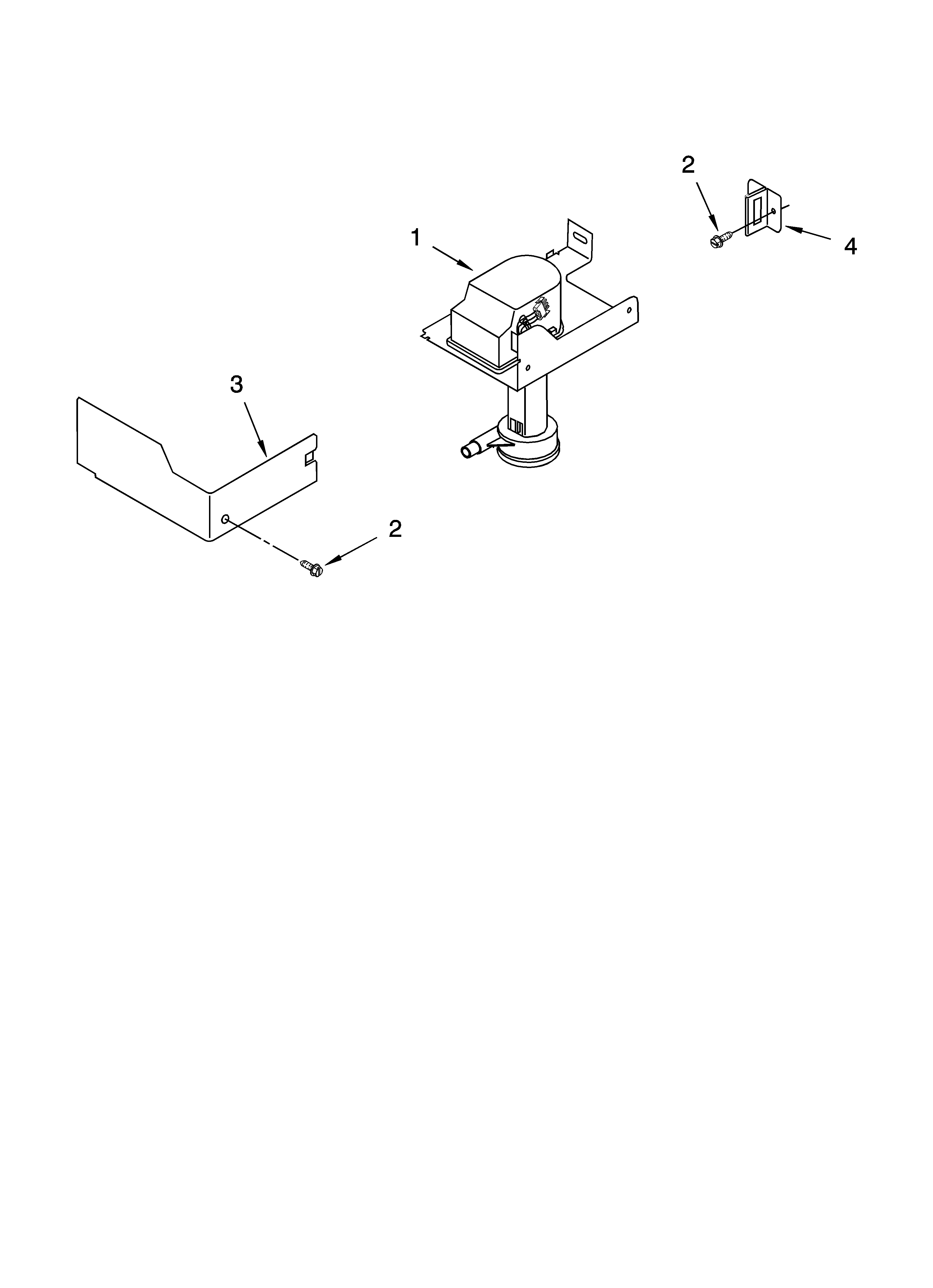

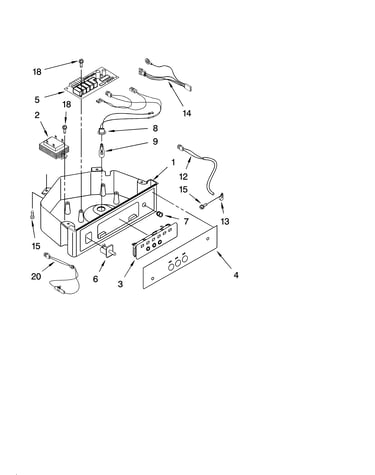

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |

Refrigerator Dryer Tube 4387019
#23A

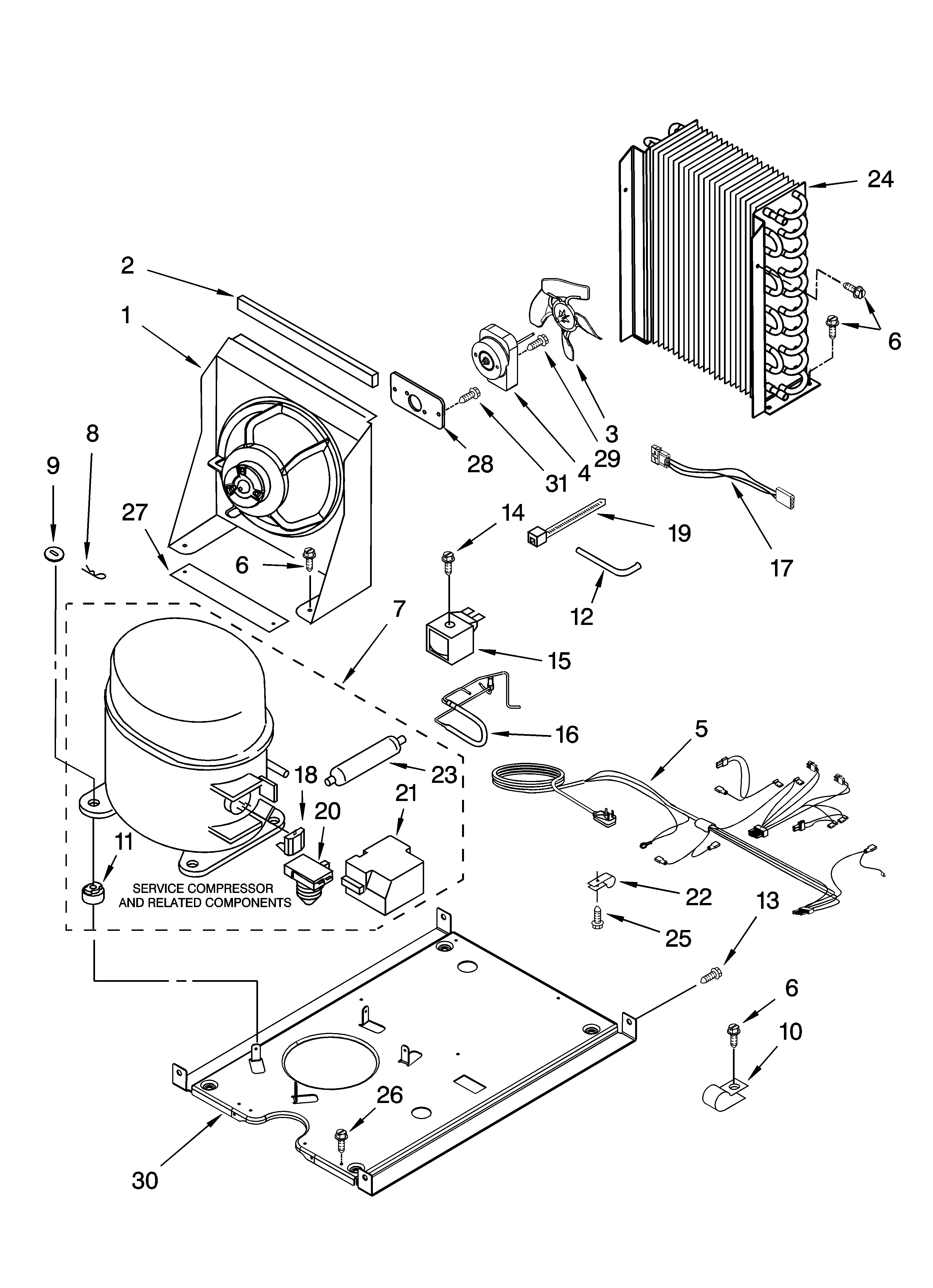

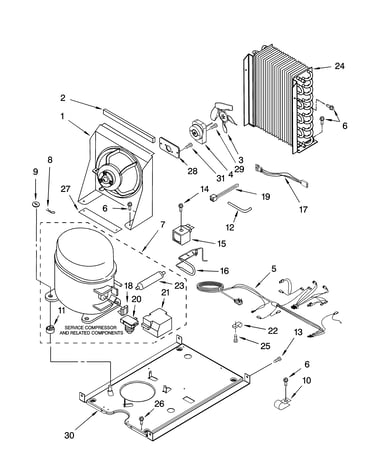

Unit parts, optional parts (not included) diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58
31% OFF MSRP : $46.00
In Stock
Drier Tube 2319826
#23

Unit parts, optional parts (not included) diagram

Drier tube

Part #2319826

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2319826. Substitute parts can look different from the original.
BEST SELLER
$31.58
31% OFF MSRP : $46.00
In Stock
Condenser Motor 2188891
#4

Unit parts, optional parts (not included) diagram

Condenser motor

Part #2188891

Replaced by #W10124096

?
Manufacturer substitution
This part replaces 2188891. Substitute parts can look different from the original.
BEST SELLER
$98.11
11% OFF MSRP : $110.00
In Stock
Water Tube 2172593
#8

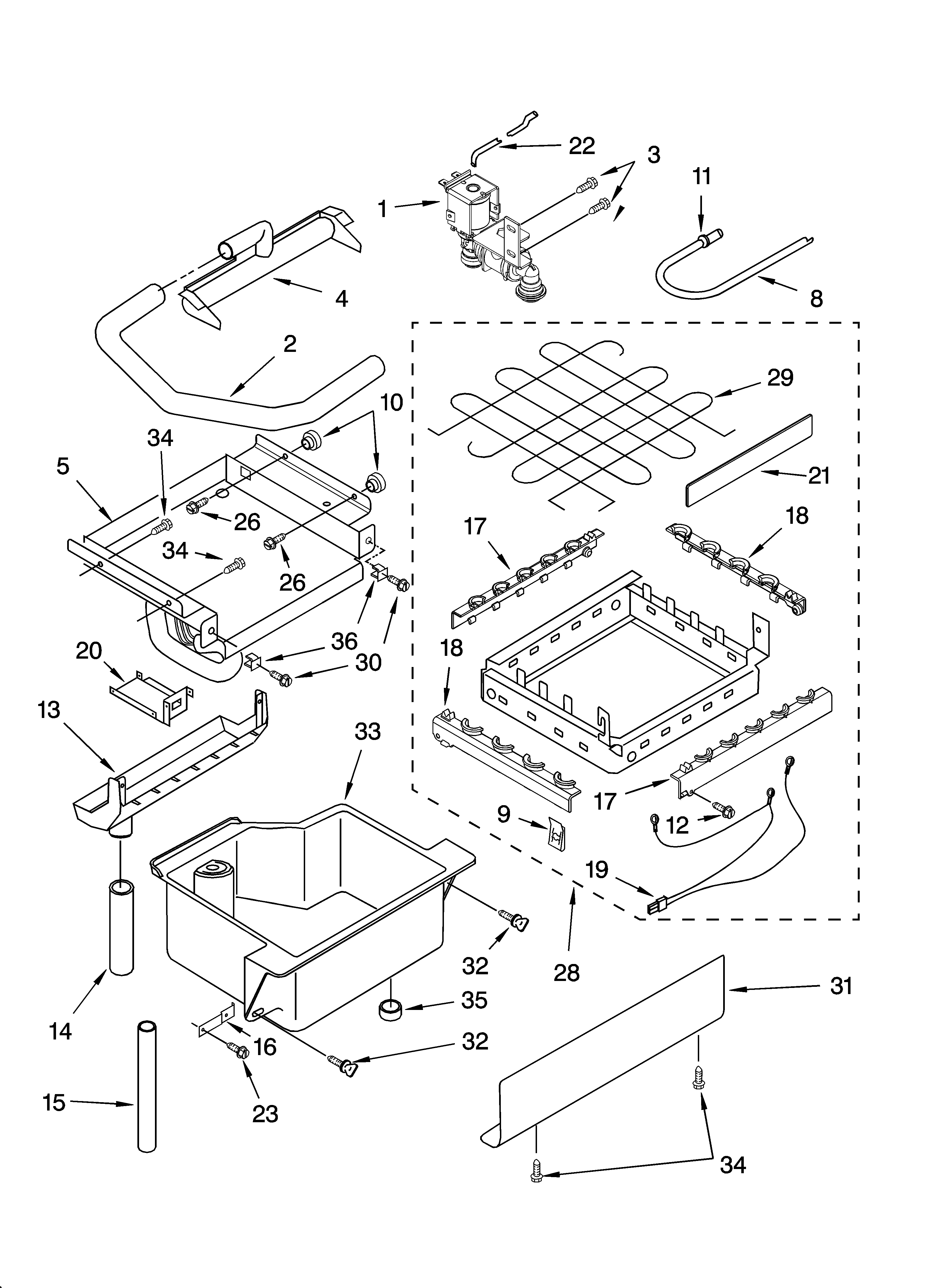

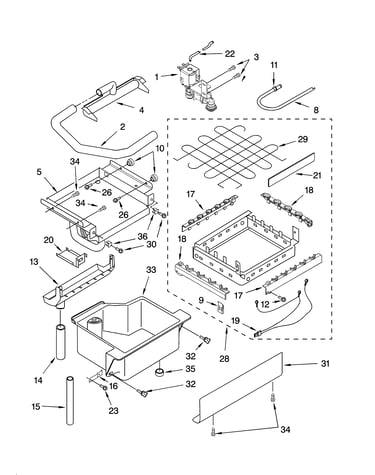

Evaporator, ice cutter grid and water parts diagram

Water tube

Part #2172593

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 2172593. Substitute parts can look different from the original.
BEST SELLER
$37.16
12% OFF Phone Price : $42.16
In Stock
Freestanding Ice Maker Cleaner 8171307
#NI

Unit parts, optional parts (not included) diagram

Freestanding ice maker cleaner

Part #8171307

Replaced by #W11179302

?
Manufacturer substitution
This part replaces 8171307. Substitute parts can look different from the original.
BEST SELLER
In Stock
Compressor 2208370
#7

Unit parts, optional parts (not included) diagram

Compressor

Part #2208370

Replaced by #W10823815

?
Manufacturer substitution
This part replaces 2208370. Substitute parts can look different from the original.
BEST SELLER
$379.56
$10.00 OFF Phone Price : $389.56
In Stock
Valve 2313644
#1

Evaporator, ice cutter grid and water parts diagram

Valve

Part #2313644

Replaced by #W10881366

?
Manufacturer substitution
This part replaces 2313644. Substitute parts can look different from the original.
BEST SELLER
$94.00
15% OFF MSRP : $110.00
In Stock
Refrigerator Service Valve, 3/4-in 978030
#NI

Unit parts, optional parts (not included) diagram

Refrigerator service valve, 3/4-in

Part #978030

$40.49
33% OFF MSRP : $60.00
In Stock
Scoop 2208386
#29

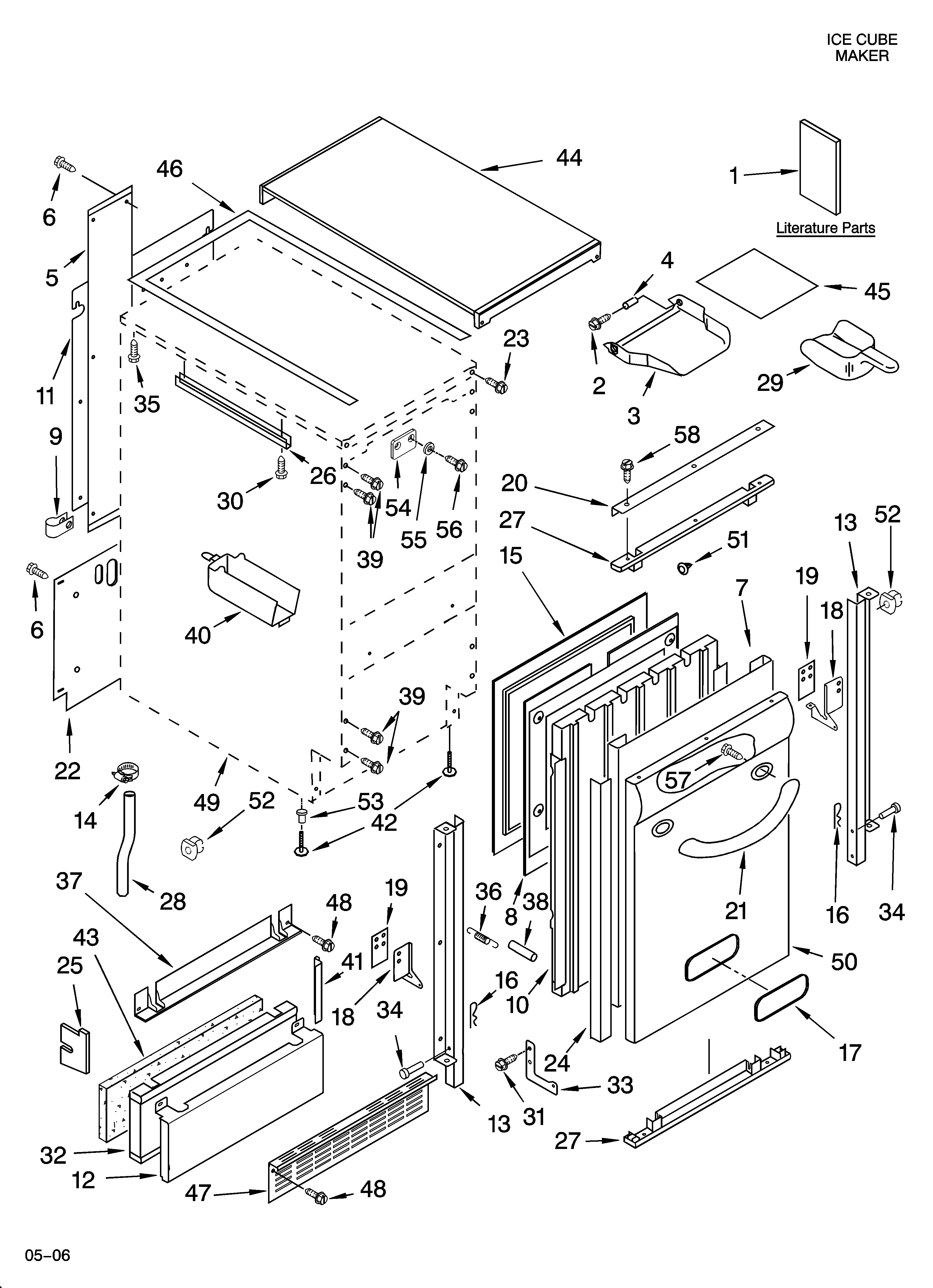

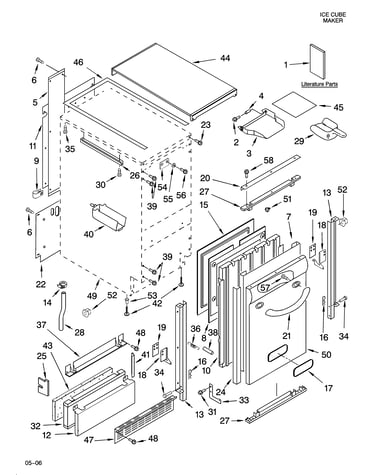

Cabinet liner and door parts diagram

Scoop

Part #2208386

Replaced by #W11420408

?
Manufacturer substitution
This part replaces 2208386. Substitute parts can look different from the original.
This item is not returnable
$12.69
14% OFF Phone Price : $14.69
In Stock
Screw 488500
#26

Unit parts, optional parts (not included) diagram

Screw

Part #488500

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 488500. Substitute parts can look different from the original.
This item is not returnable
$7.99
11% OFF Phone Price : $8.99
In Stock

Most common symptoms to help you fix your freestanding ice makers

Choose a symptom to see related ice maker repairs.

Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply proble…

Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin…

Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin…

Main causes: wiring failure, broken cutting grid, faulty electronic control board…

Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, brok…

Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cu…

Main causes: bad bin thermistor, condenser fan failure, faulty control board…

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad eva…
