Kenmore
Bottom-Mount Refrigerator

Model # 79579993510 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79579993510 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

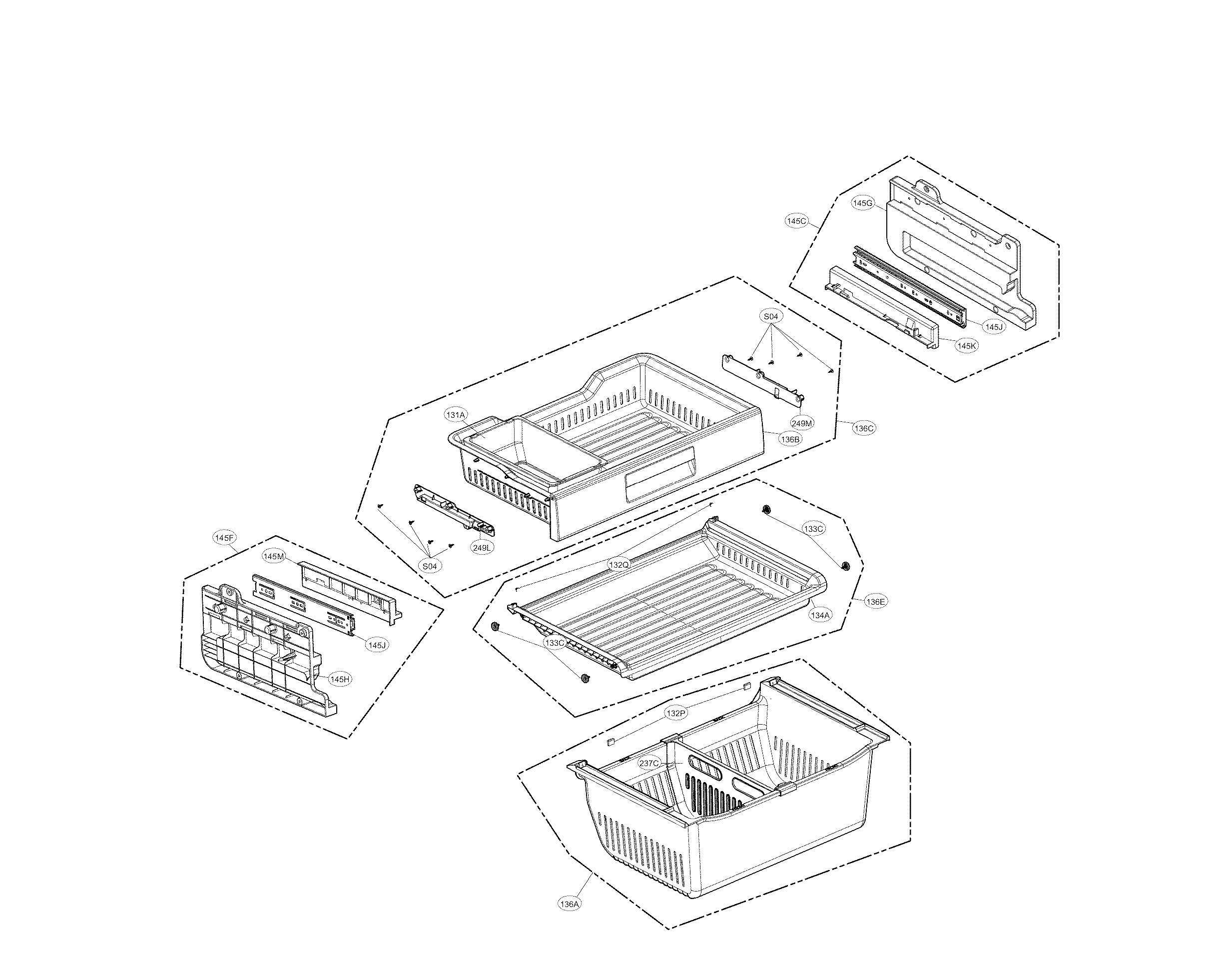

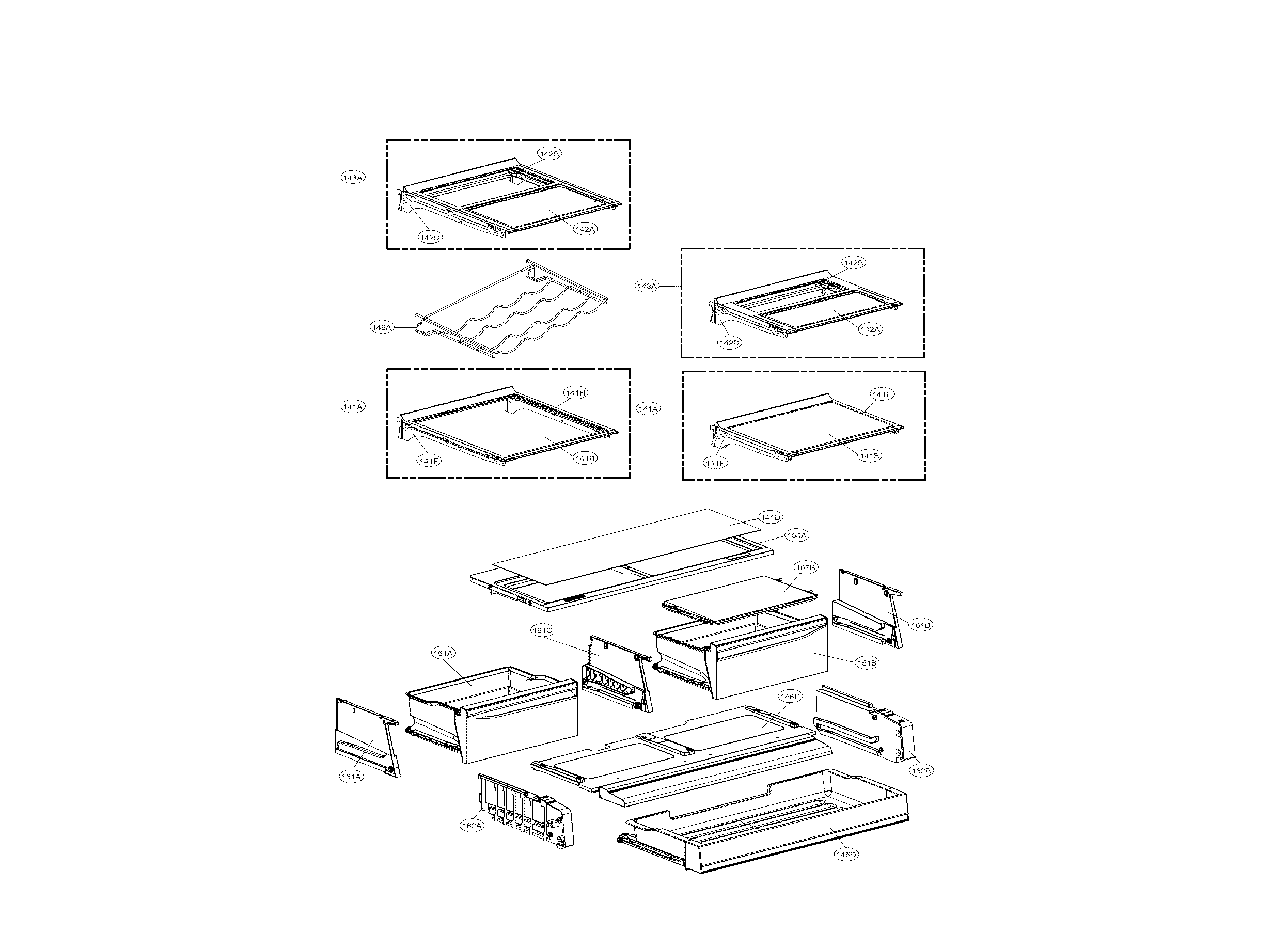

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Genuine Kenmore Refrigerator Water Filter 9690 ADQ36006102
#624A

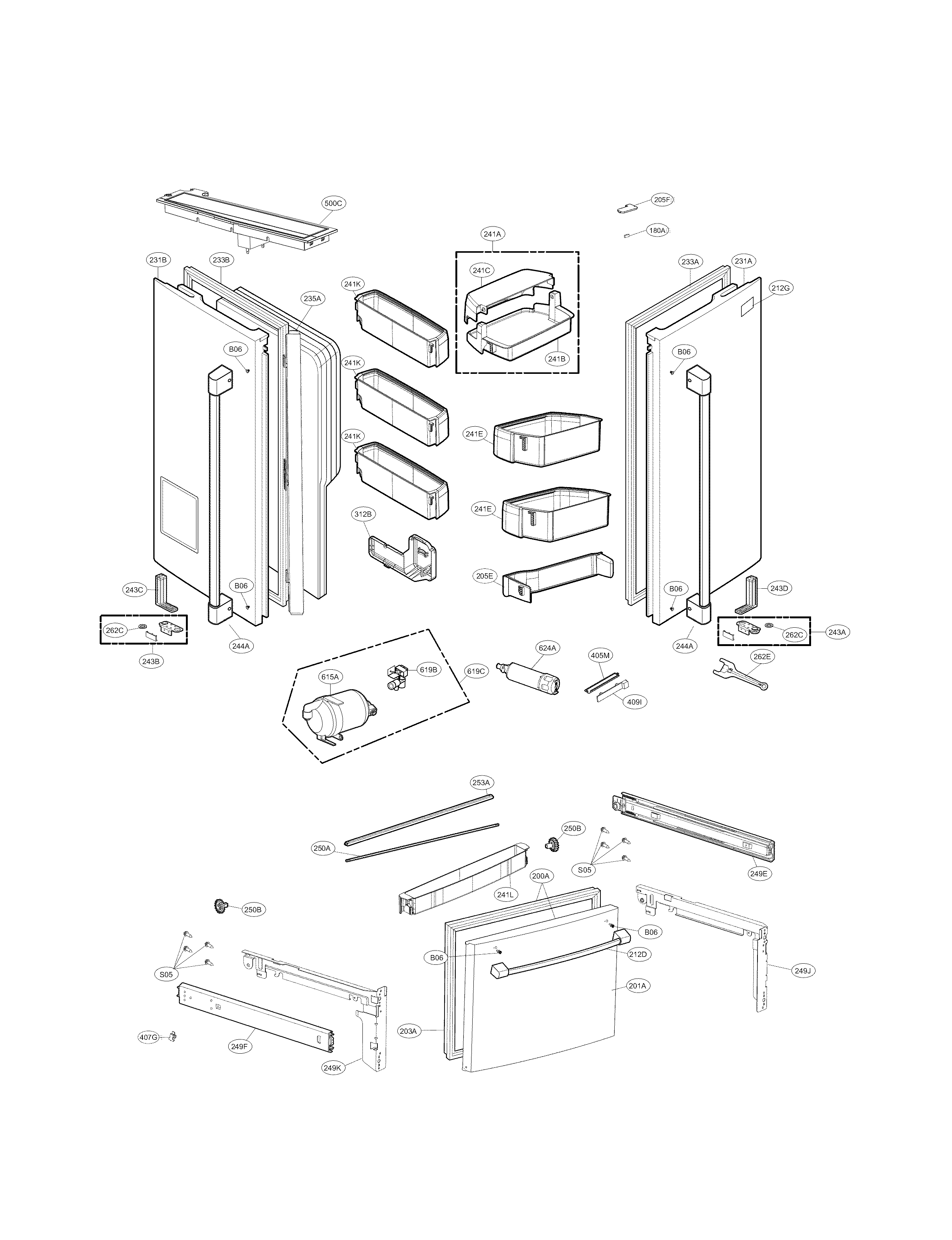

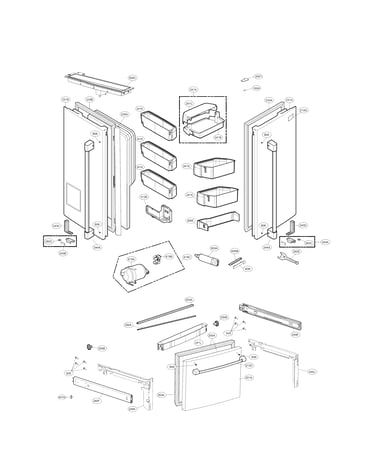

Door parts diagram

Genuine kenmore refrigerator water filter 9690

Part #ADQ36006102

Replaced by #ADQ36006114

?
Manufacturer substitution
This part replaces ADQ36006102. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$67.95
In Stock
Refrigerator Door Gasket, Right ADX72930414
#233A

Door parts diagram

Refrigerator door gasket, right

Part #ADX72930414

Replaced by #ADX72930461

?
Manufacturer substitution
This part replaces ADX72930414. Substitute parts can look different from the original.
BEST SELLER
$89.60 |
5% OFF Phone Price : $94.60
In Stock
Refrigerator Ice Maker AEQ73130004
#600A

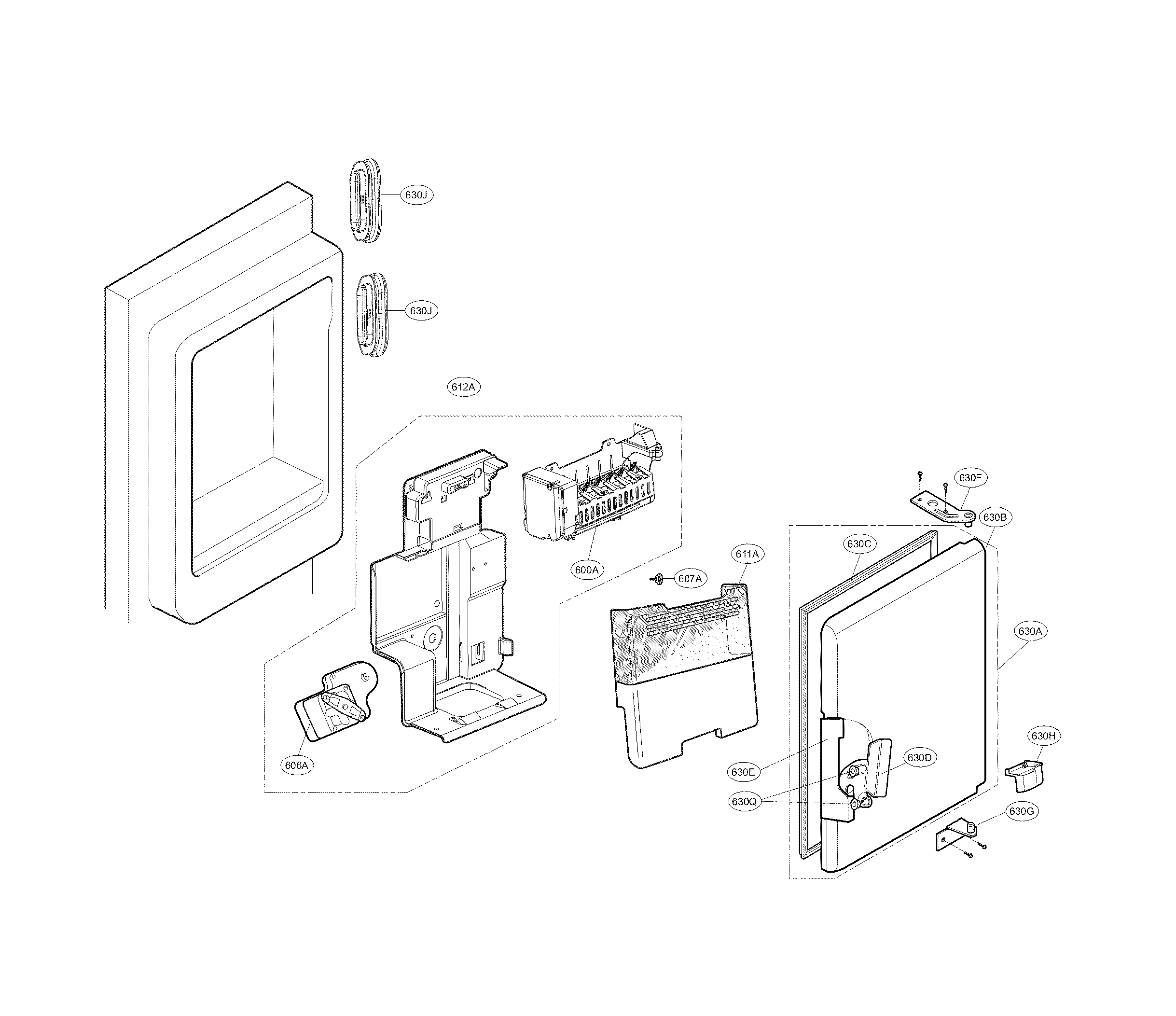

Ice maker parts diagram

Refrigerator ice maker

Part #AEQ73130004

BEST SELLER
$162.84 |
6% OFF Phone Price : $172.84
In Stock
Refrigerator Water Inlet Valve (replaces Aju72992610) AJU72992603
#619A

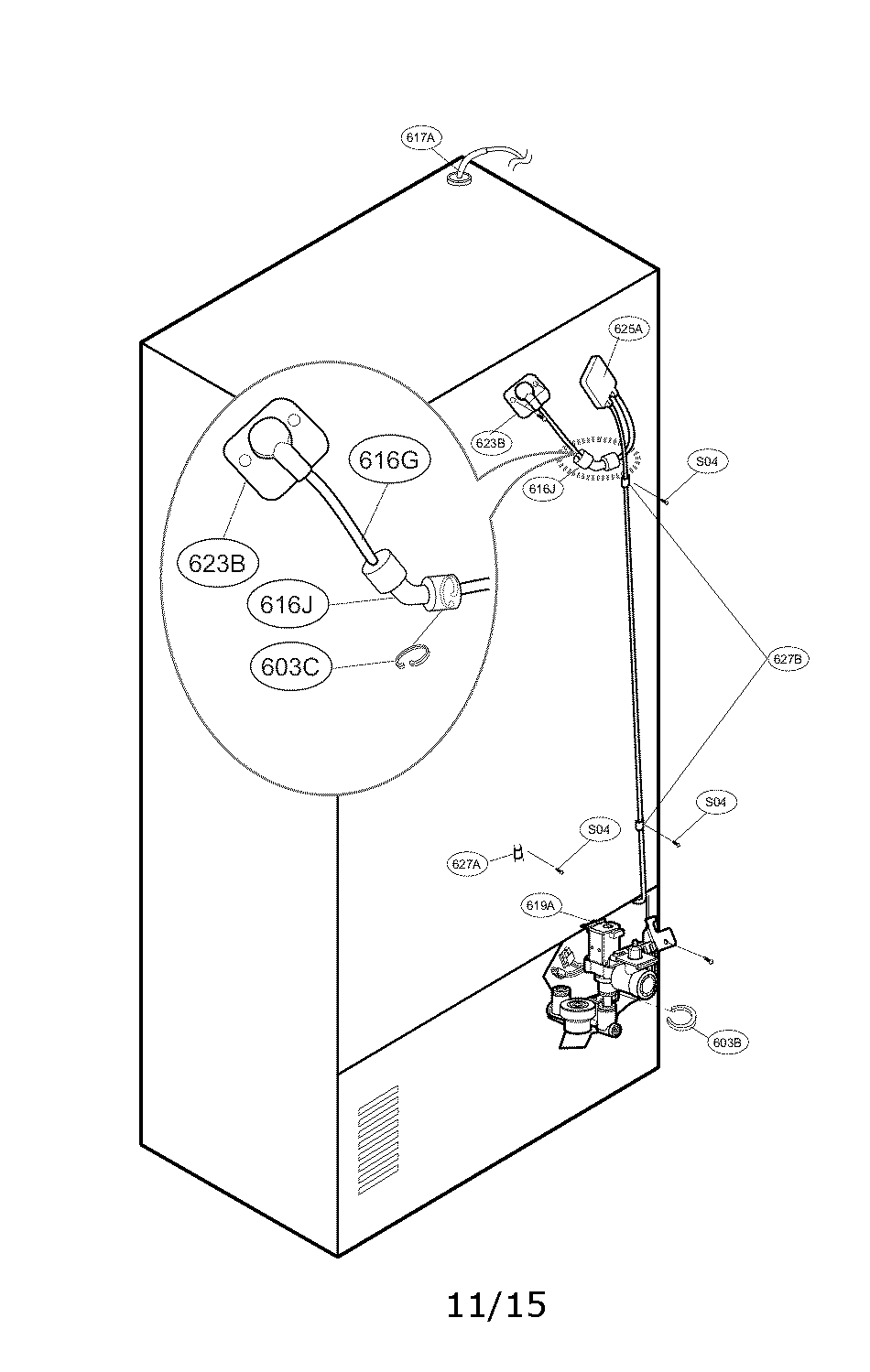

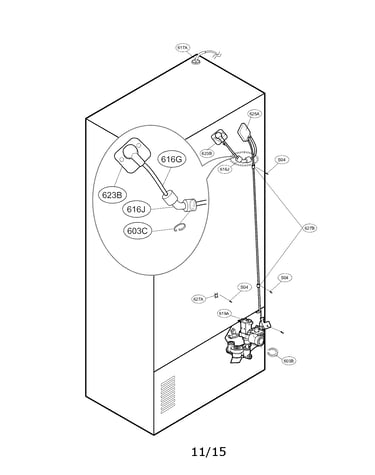

Valve and water parts diagram

Refrigerator water inlet valve (replaces aju72992610)

Part #AJU72992603

BEST SELLER
$89.96 |
5% OFF Phone Price : $94.96
In Stock
Refrigerator Evaporator (replaces Adl73341401, Adl73341402) ADL73341411
#302C

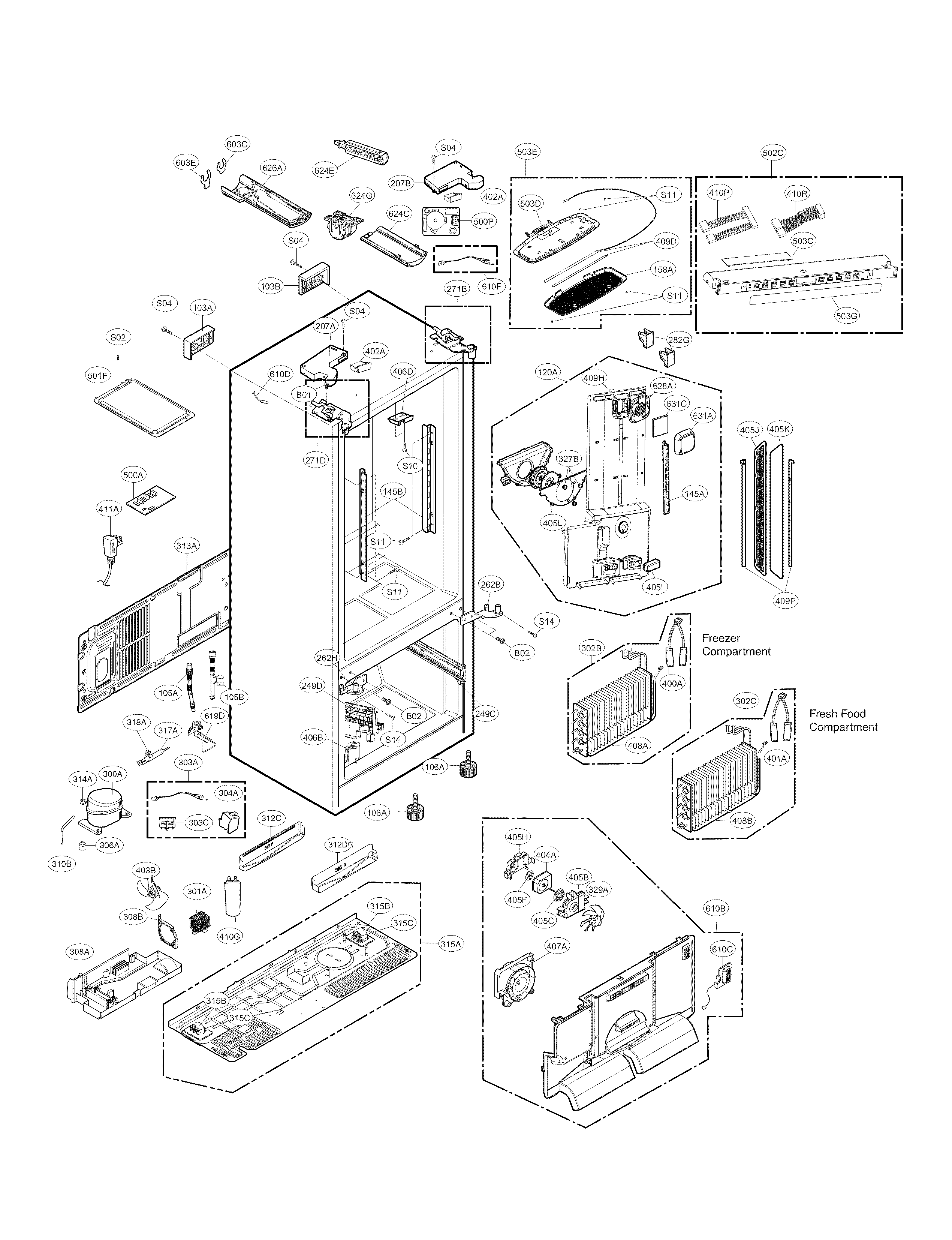

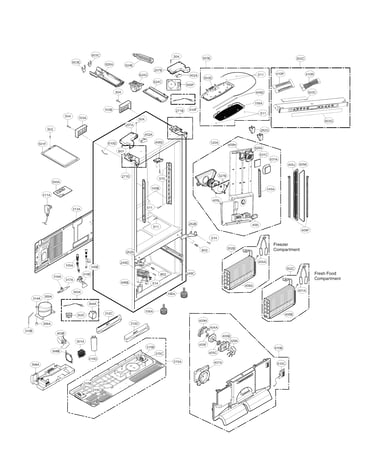

Case parts diagram

Refrigerator evaporator (replaces adl73341401, adl73341402)

Part #ADL73341411

BEST SELLER
$146.21 |
6% OFF Phone Price : $156.21
In Stock
Refrigerator Ice Maker And Auger Motor Assembly EAU62563503
#612A

Ice maker parts diagram

Refrigerator ice maker and auger motor assembly

Part #EAU62563503

BEST SELLER
$224.93 |
$10.00 OFF Phone Price : $234.93
In Stock
Refrigerator Freezer Door Gasket MDS38201414
#203A

Door parts diagram

Refrigerator freezer door gasket

Part #MDS38201414

Replaced by #MDS38201426

?
Manufacturer substitution
This part replaces MDS38201414. Substitute parts can look different from the original.
BEST SELLER
$68.39 |
7% OFF Phone Price : $73.39
In Stock
Refrigerator Door Gasket, Left ADX72930413
#233B

Door parts diagram

Refrigerator door gasket, left

Part #ADX72930413

Replaced by #ADX72930460

?
Manufacturer substitution
This part replaces ADX72930413. Substitute parts can look different from the original.
BEST SELLER
$71.80 |
7% OFF Phone Price : $76.80
In Stock
Refrigerator Refrigerant Valve (replaces Aju73793301) AJU73872501
#619D

Case parts diagram

Refrigerator refrigerant valve (replaces aju73793301)

Part #AJU73872501

BEST SELLER
$89.03 |
5% OFF Phone Price : $94.03
In Stock
Refrigerator Dispenser Switch (replaces 6600jb3001b, 6600jb3001h) 6600JB3001C
#402C

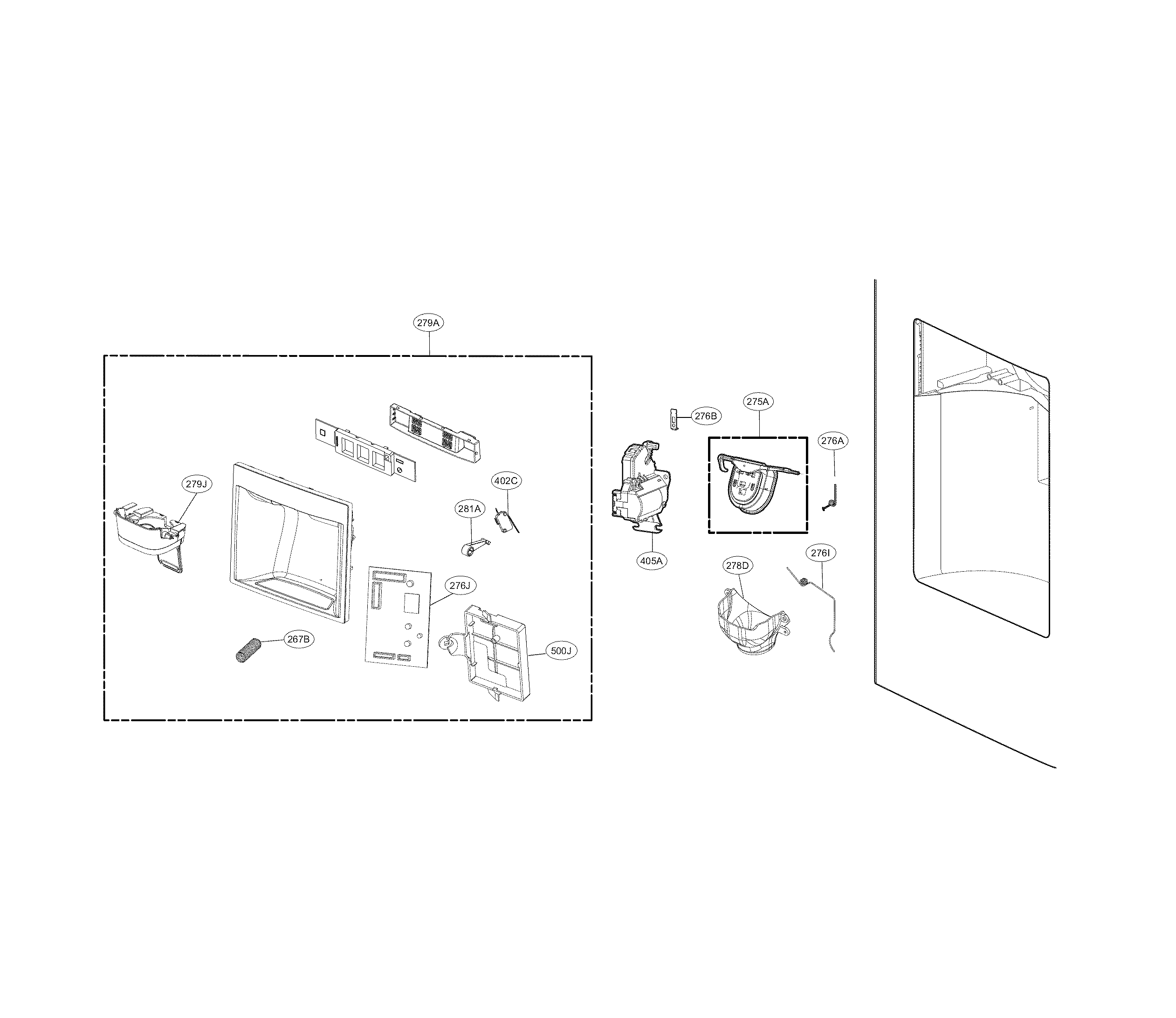

Dispenser parts diagram

Refrigerator dispenser switch (replaces 6600jb3001b, 6600jb3001h)

Part #6600JB3001C

BEST SELLER
$33.60 |
13% OFF Phone Price : $38.60
In Stock
