Maytag MFD2561KES refrigerator

Maytag MFD2561KES refrigerator Parts

Here are the diagrams and repair parts for Maytag MFD2561KES refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MFD2561KES Refrigerators

  • Whirlpool Everydrop 4 Refrigerator Water Filter for Maytag MFD2561KES - Part EDR4RXD1

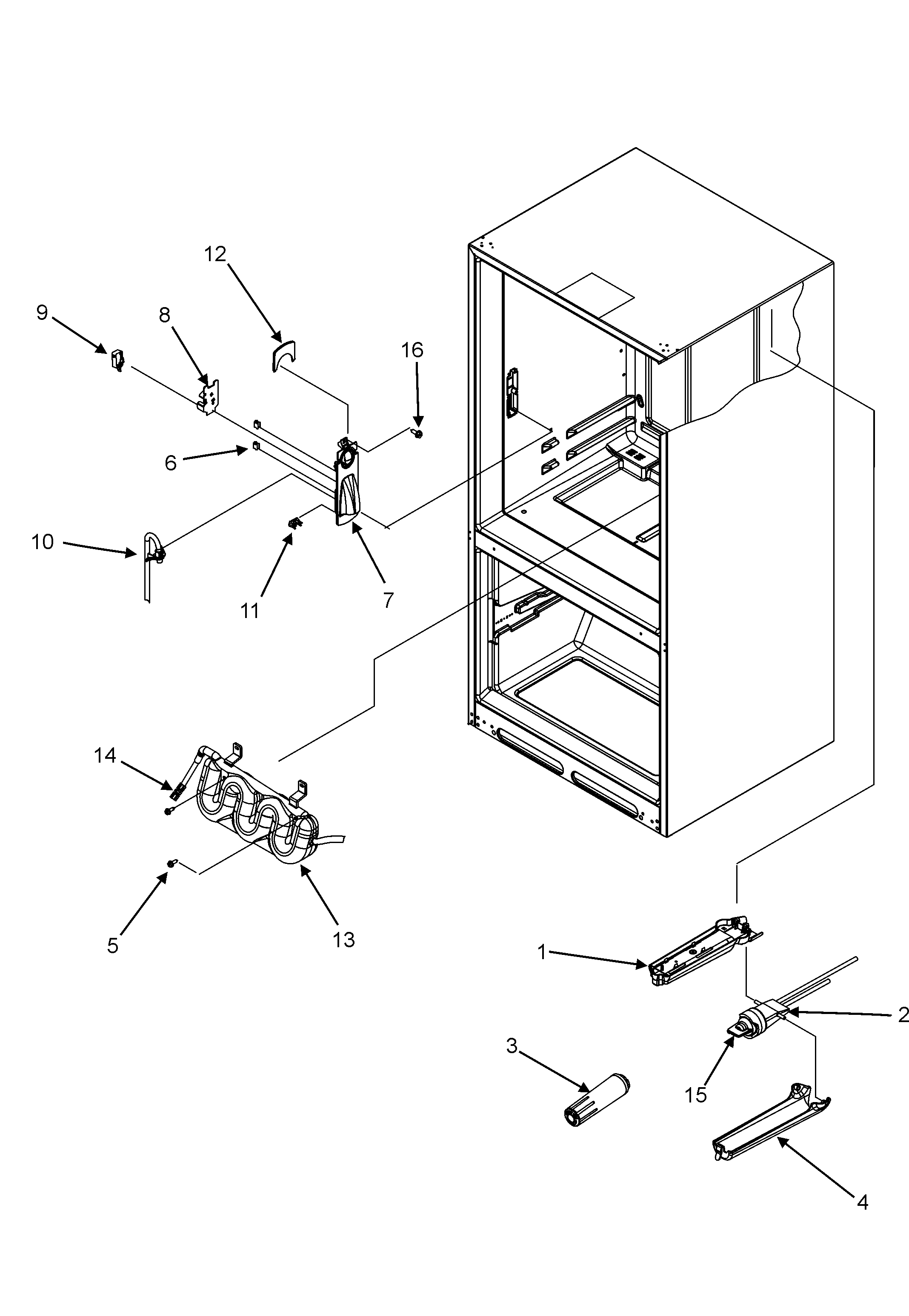

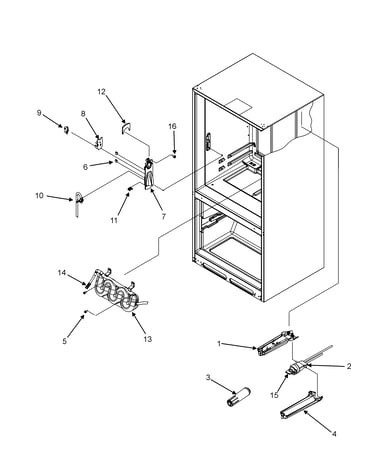

    Water dispenser/filter/tank diagram

    Refrigerator Water Filter

    Part #67003591

    Replaced by #EDR4RXD1

    Info Icon
    Manufacturer substitution
    This part replaces 67003591. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $61.63
    9% OFF Phone Price : $67.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Ice Maker (d7824706q) for Maytag MFD2561KES - Part D7824706Q

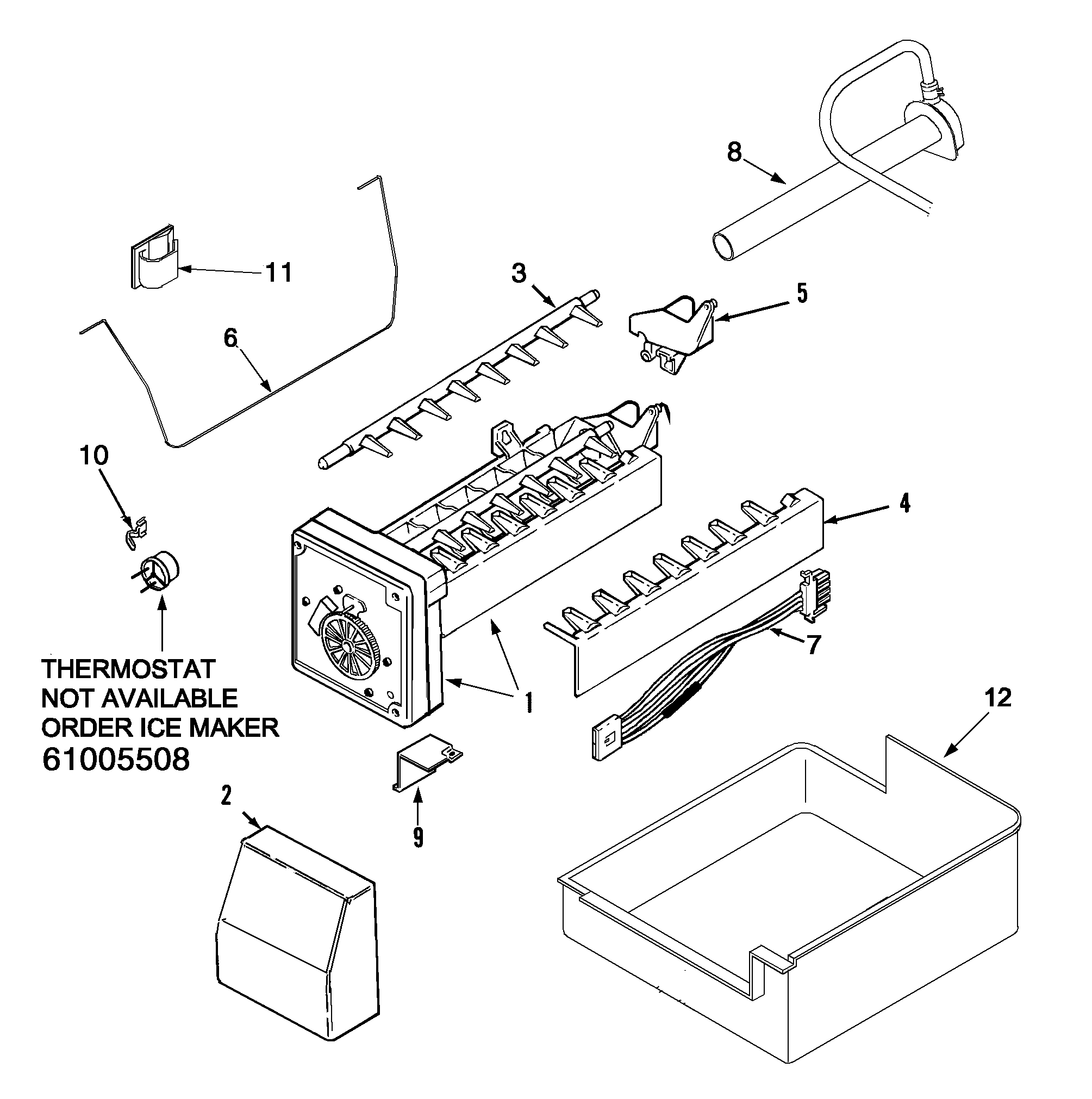

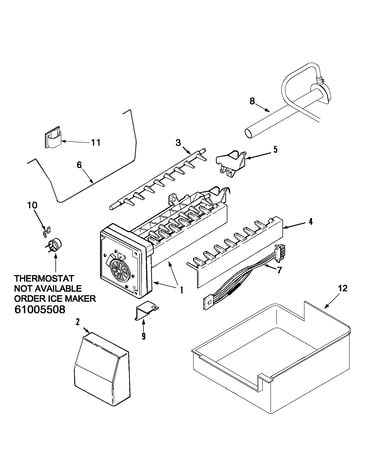

    Ice maker diagram

    Refrigerator Ice Maker

    Part #61005508

    Replaced by #D7824706Q

    Info Icon
    Manufacturer substitution
    This part replaces 61005508. Substitute parts can look different from the original.
    In Stock
    $101.86
    11% OFF Phone Price : $113.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Pantry Drawer End Cap Set for Maytag MFD2561KES - Part W10874836

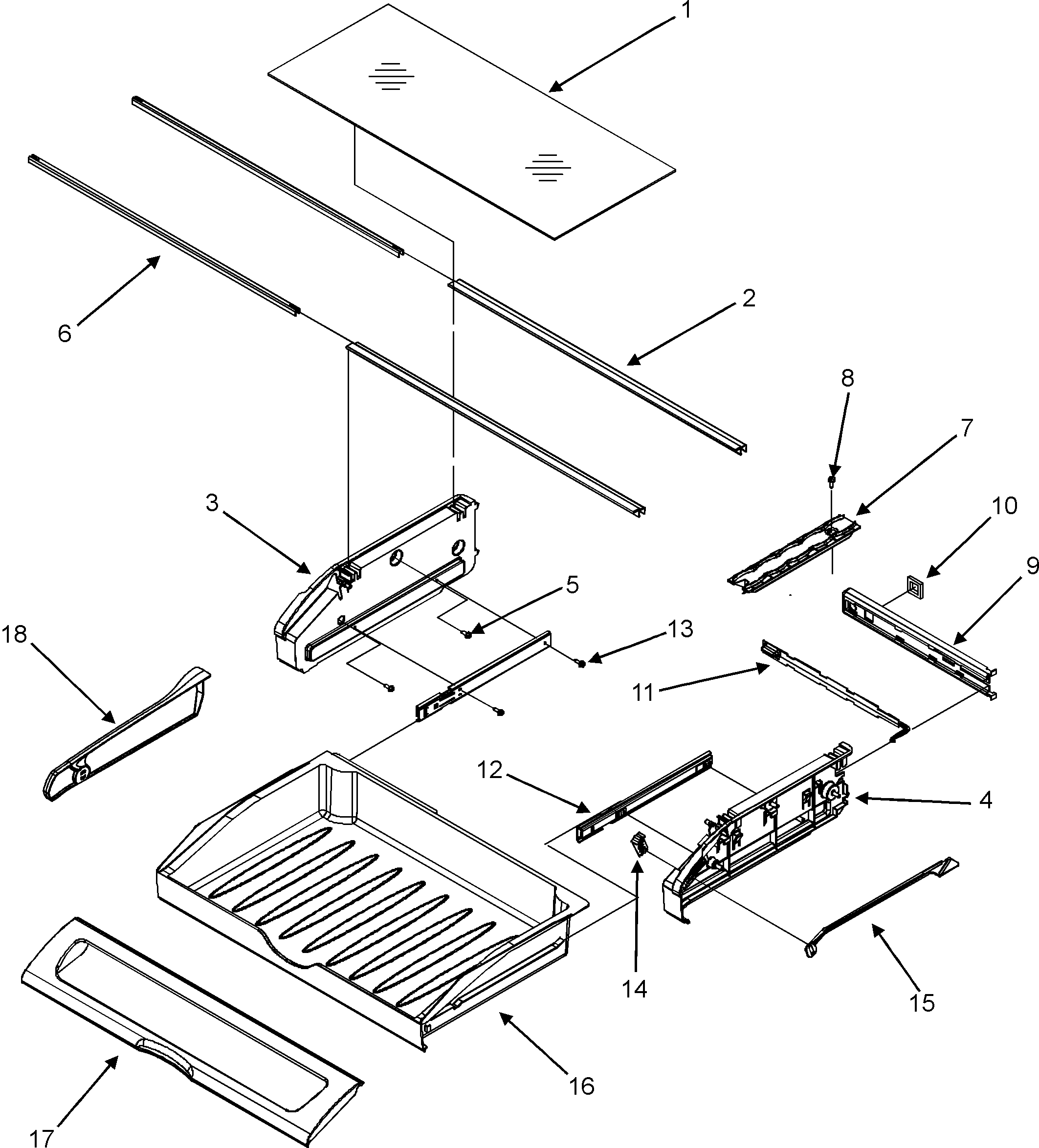

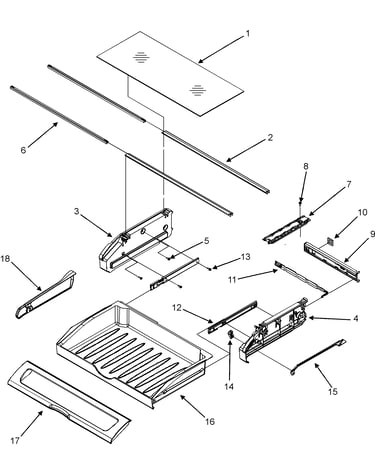

    Pantry assembly diagram

    Refrigerator Pantry Drawer End Cap

    Part #67005858

    Replaced by #W10874836

    Info Icon
    Manufacturer substitution
    This part replaces 67005858. Substitute parts can look different from the original.
    In Stock
    $29.45
    17% OFF Phone Price : $35.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Pantry Drawer End Cap Set for Maytag MFD2561KES - Part W10874836

    Pantry assembly diagram

    Refrigerator Pantry Drawer End Cap

    Part #67005863

    Replaced by #W10874836

    Info Icon
    Manufacturer substitution
    This part replaces 67005863. Substitute parts can look different from the original.
    In Stock
    $29.45
    17% OFF Phone Price : $35.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Switch for Maytag MFD2561KES - Part W11384469

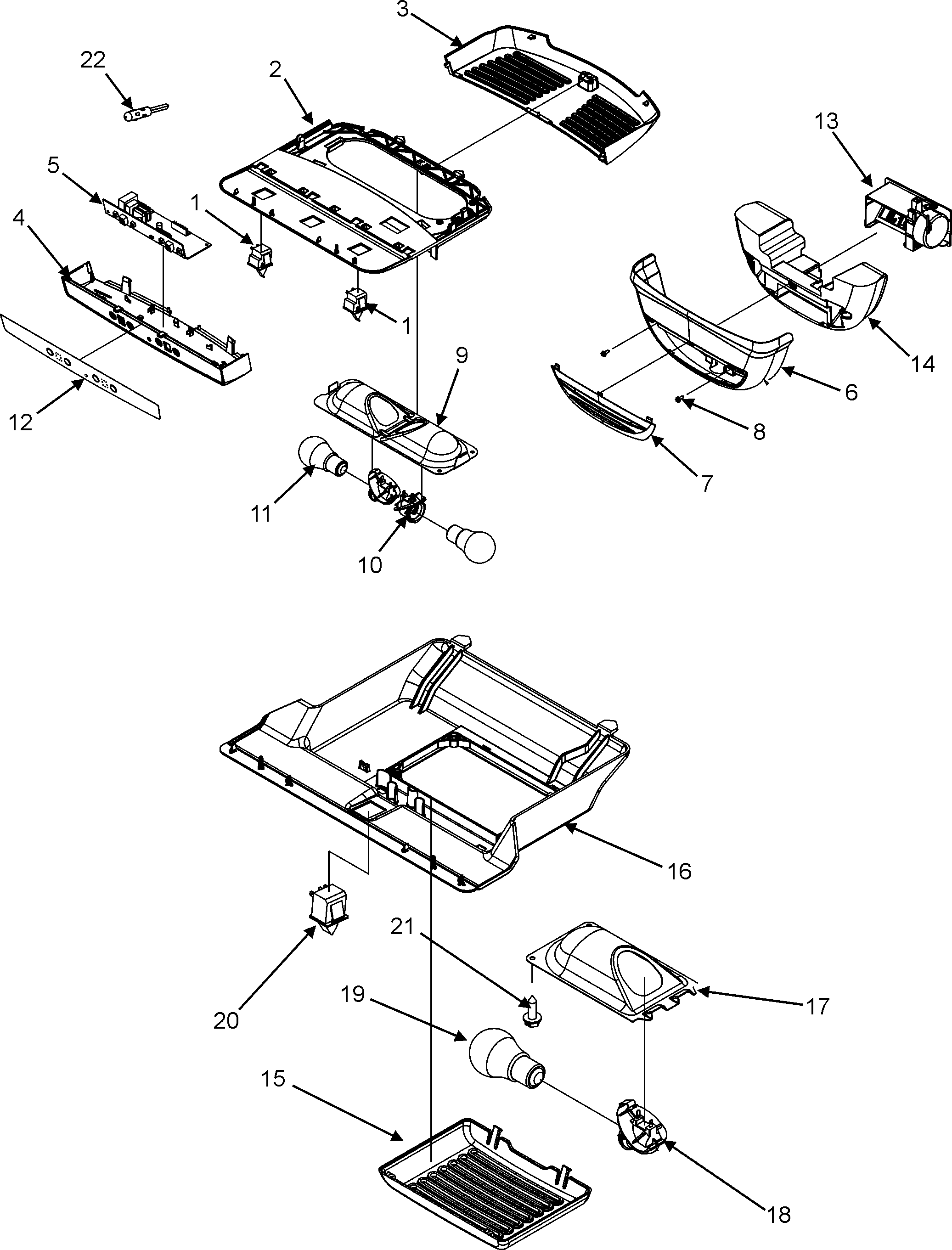

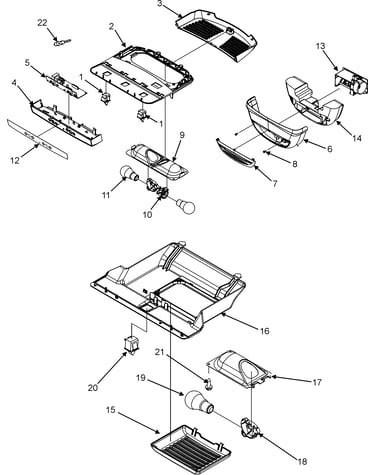

    Controls diagram

    Refrigerator Light Switch

    Part #C3680310

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces C3680310. Substitute parts can look different from the original.
    In Stock
    $25.13
    19% OFF Phone Price : $31.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Crisper Drawer Slide Rail for Maytag MFD2561KES - Part WPW10326469

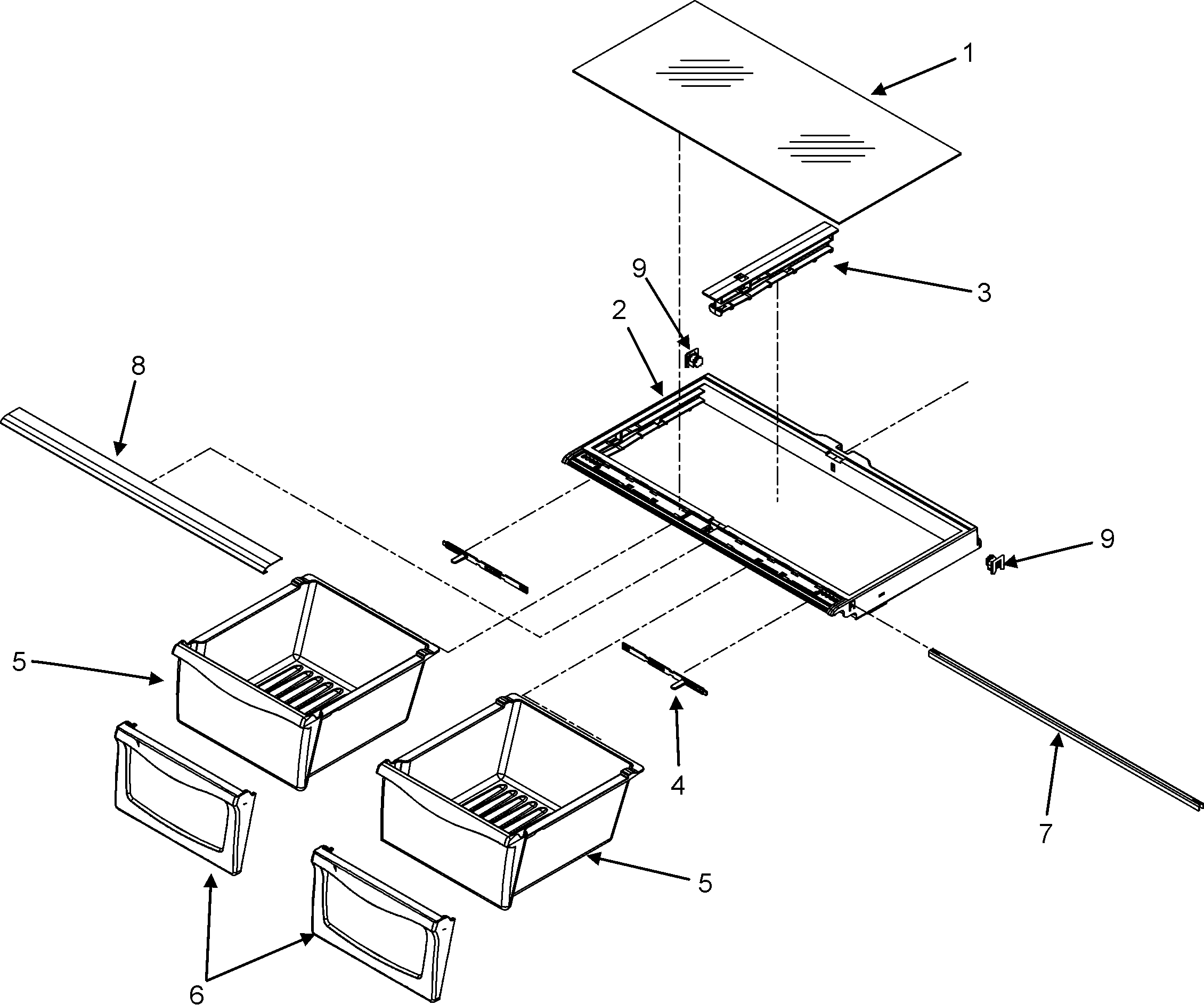

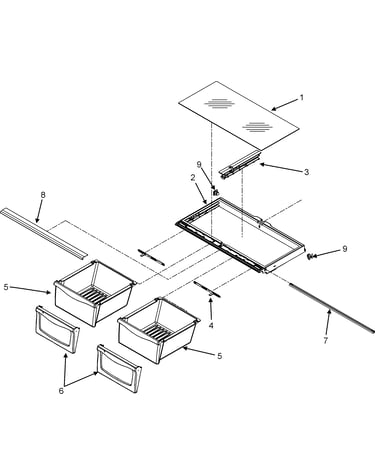

    Crisper assembly diagram

    Refrigerator Crisper Drawer Support Rail, Center

    Part #67004514

    Replaced by #WPW10326469

    Info Icon
    Manufacturer substitution
    This part replaces 67004514. Substitute parts can look different from the original.
    In Stock
    $17.88
    10% OFF Phone Price : $19.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Compressor Overload And Start Relay for Maytag MFD2561KES - Part W10613606

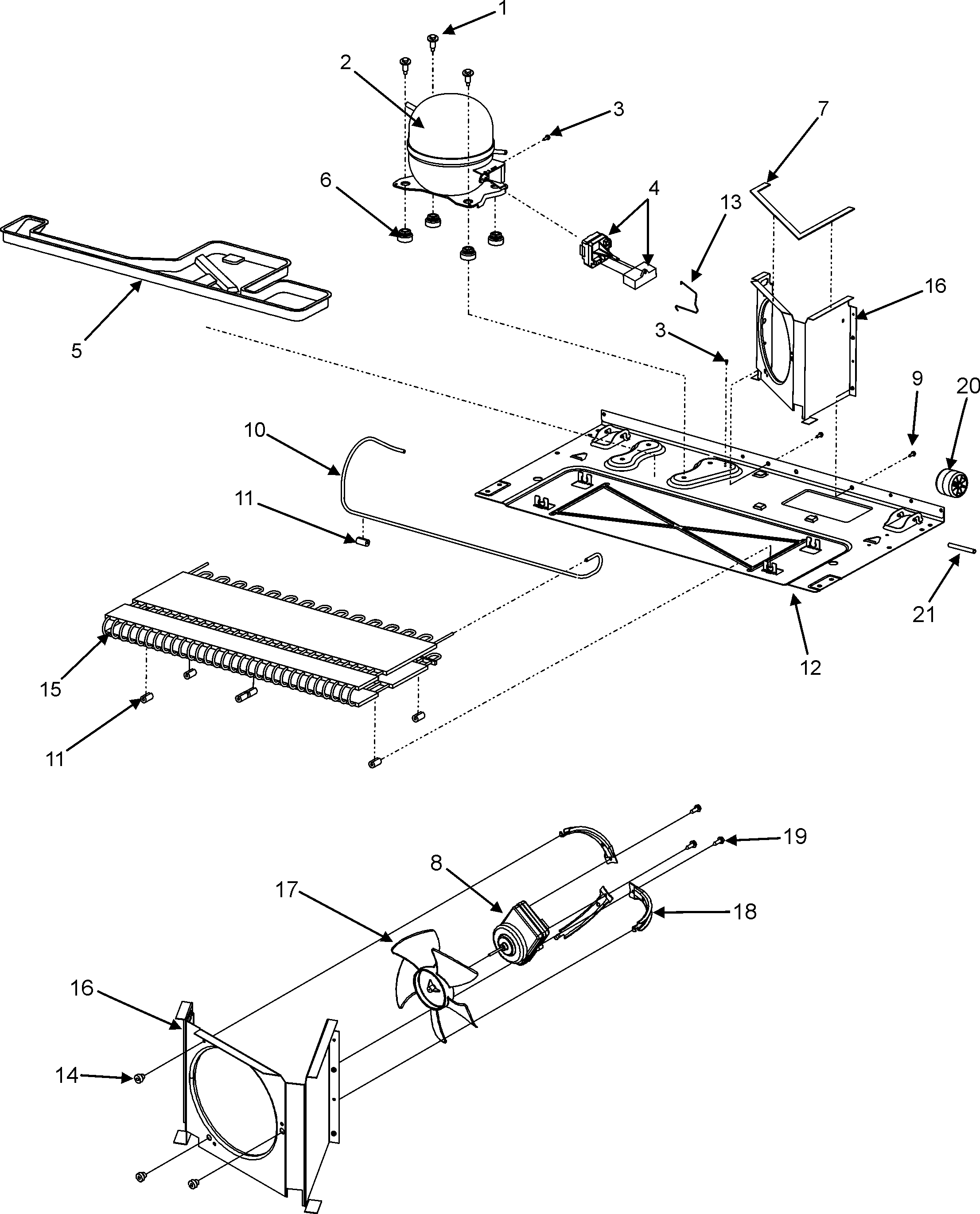

    Compressor & rear rollers diagram

    Refrigerator Start Device

    Part #67005560

    Replaced by #W10613606

    Info Icon
    Manufacturer substitution
    This part replaces 67005560. Substitute parts can look different from the original.
    In Stock
    $52.97
    10% OFF Phone Price : $58.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Pantry Drawer Door for Maytag MFD2561KES - Part W10827015

    Pantry assembly diagram

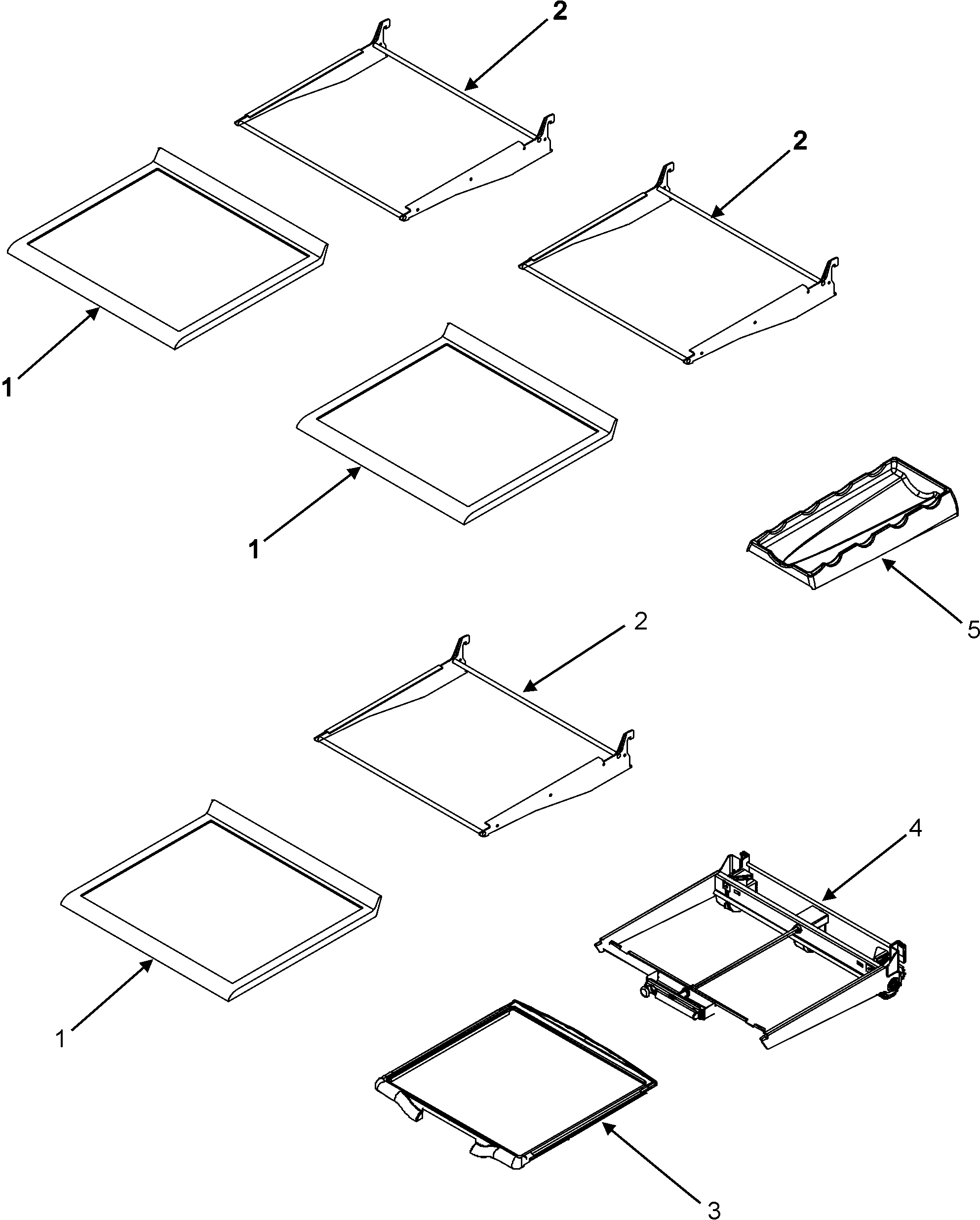

    Refrigerator Shelf

    Part #67005903

    Replaced by #W10827015

    Info Icon
    Manufacturer substitution
    This part replaces 67005903. Substitute parts can look different from the original.
    In Stock
    $123.00
    9% OFF Phone Price : $135.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor for Maytag MFD2561KES - Part W10160407

    Compressor & rear rollers diagram

    Refrigerator Compressor

    Part #12002634

    Replaced by #W10160407

    Info Icon
    Manufacturer substitution
    This part replaces 12002634. Substitute parts can look different from the original.
    In Stock
    $508.47
    Minus Item
    Qty
    Plus Item
  • 40 Watt Refrigerator Bulb for Maytag MFD2561KES - Part W11679940

    Refrigerator Light Bulb

    Part #67003883

    Replaced by #W11679940

    Info Icon
    Manufacturer substitution
    This part replaces 67003883. Substitute parts can look different from the original.
    In Stock
    $39.43
    13% OFF Phone Price : $45.43Info Icon
    Minus Item
    Qty
    Plus Item

Maytag Refrigerator MFD2561KES FAQs

A Maytag refrigerator like model MFD2561KES typically lasts 10 to 15 years. With consistent maintenance (clean condenser coils, good door seals, correct temperature settings), it commonly reaches the upper end of that range and can run longer with timely part replacement.

Typical lifespan ranges

Most full-size refrigerators fall into these real-world ranges:

  • Average: 10 to 15 years
  • Well maintained: 15 to 20 years
  • Shortened lifespan: under 10 years (often from poor airflow, dirty coils, or chronic door-seal leaks)
What you do What it helps prevent What it protects
Clean condenser area regularly Overheating, long run times Compressor, condenser fan system
Keep doors sealing tightly Warm air leaks, frost, moisture Cooling performance, energy use
Set correct temps Food spoilage, over-freezing Controls, airflow balance
Replace water filter on schedule (if used) Low flow, bad taste/odor Ice maker and dispenser performance

Maintenance that extends life (most important)

We recommend focusing on the items that reduce compressor workload and moisture problems:

  • Vacuum dust from the condenser area and keep airflow paths clear
  • Confirm the doors close fully and the gaskets seal all the way around
  • Keep the refrigerator reasonably full (but do not block vents)
  • Avoid frequent, long door openings that add heat and humidity
  • Follow the care and cleaning guidance in the MFD2561KES owner's manual

When repairs make sense vs. replacement

A refrigerator can still be worth repairing late in its life when the fix is straightforward.

  • Often worth it: door gasket issues, light switch problems, ice maker or water valve issues
  • Bigger decision: sealed-system or compressor-related failures

If you are troubleshooting cooling or starting problems, the refrigerator start device W10613606 is one of the common components involved in compressor start issues.

Why it matters

Lifespan is mostly about how hard the sealed system has to work. Clean airflow, tight door seals, and correct temperature settings reduce run time and heat stress, which directly supports long-term reliability.

Last updated: February 2026

A bottom-freezer refrigerator like the Maytag MFD2561KES keeps fresh food at eye level, but the tradeoff is more bending and heavier freezer drawers. It can also be less convenient if you access frozen foods often, and drawer wear can lead to more maintenance over time (slides, rails, gaskets).

Common disadvantages (what you will notice day to day)

  • You typically bend more to reach frozen items, especially those at the bottom of the basket.
  • Freezer drawers can feel heavy when fully loaded; that extra weight stresses slides and rails.
  • Organization can be harder if the freezer is a deep bin style; items can stack and get buried.
  • Door-open time can increase while you search for items; that can make the refrigerator run longer.
  • If the freezer is overpacked, airflow suffers and freezing performance can drop.

How to reduce the downsides

We recommend these practical habits (they align with the storage and efficiency guidance in the owner's manual):

  • Keep the freezer about two-thirds full for best efficiency.
  • Leave space between packages so cold air can circulate.
  • Avoid loading a lot of warm food at once; it slows freezing and can raise temperatures.
  • Store hard-to-freeze items (like ice cream) in the freezer interior, not on the door.
  • Organize to minimize door-open time.

Wear and maintenance: what parts are commonly affected

Heavier drawers and frequent openings can accelerate wear on a few common areas.

Area What you might see Example part on this model page
Drawer movement Drawer sticks, binds, or won’t glide smoothly Refrigerator drawer slide W11658402
Door sealing Frost, moisture, longer run times Refrigerator door gasket W10436252 or refrigerator door gasket W11368721
Cooling efficiency Longer run times if airflow is restricted or coils are dirty (Maintenance item; see manual tips)

Why it matters

Bottom-freezer designs are efficient and convenient for fresh-food access, but the freezer drawer is a high-use, high-load area. Good organization and airflow reduce run time, help prevent odors, and can extend the life of moving parts.

Last updated: February 2026

On Maytag model MFD2561KES, you lower the front by turning the front adjustment screws behind the toe grille; you then set the stabilizing legs so the refrigerator’s weight rests on them (not on the wheels/rollers). Follow the leveling steps in the MFD2561KES owner's manual.

Step-by-step: lower the front (and set it correctly)

  • Unplug the refrigerator for safety.
  • Remove the toe grille; grasp it firmly and pull outward to unclip it.
  • Use a 3/8-inch hex head driver to turn the front adjustment screws (A) on both sides:
    • Turn to lower the front.
    • Turn to raise the front.
  • Adjust the rear adjustment screws (B) if your model has them, to fine-tune rear height.
  • Use a carpenter’s level:
    • Set the front about 1/4 inch (6 mm) higher than the back (a slight backward tilt helps doors close).
    • Confirm it is level side-to-side.
  • Turn the stabilizing legs (C) clockwise until they are firmly against the floor.
  • Turn the front adjustment screws (A) so the full weight rests on the stabilizing legs.
  • Snap the toe grille back into place.

Quick reference: what each adjustment does

Adjustment point What it changes What you’re aiming for
Front adjustment screws (A) Raises/lowers the front Front slightly higher than back
Rear adjustment screws (B) (some models) Raises/lowers the rear Helps achieve proper tilt
Stabilizing legs (C) Transfers weight off rollers Firm, no rocking

Why it matters

Proper leveling improves cooling performance and helps the fresh food doors seal and close reliably. It also reduces vibration and prevents the cabinet from rocking when you open drawers.

Last updated: February 2026

Yes, a bottom-mount refrigerator like the Maytag MFD2561KES is better for many households because the fresh-food section sits at eye level, so you reach everyday items more easily and bend less often. The tradeoff is that you access the freezer lower down.

When a bottom-mount is the better choice

  • You use the refrigerator compartment more than the freezer
  • You want produce, dairy, and leftovers at a comfortable height
  • You prefer wider refrigerator shelves and door bins for daily items
  • You want easier visibility into the fresh-food section
  • You are okay bending to reach freezer baskets and drawer items

What to consider before you decide

Bottom-mount designs are great for convenience, but performance depends on installation and airflow. For the MFD2561KES, we recommend following the clearance guidance in the owner's manual so the machine compartment can ventilate properly.

  • Allow about 1/2 inch clearance at the top
  • Allow about 1 inch clearance behind the machine compartment cover
  • Avoid installing near heat sources (ovens, radiators)
  • Install indoors where temperatures stay roughly 55°F to 110°F

Quick comparison

Feature Bottom-mount refrigerator Top-freezer refrigerator
Fresh-food access Easier (eye level) Lower (more bending)
Freezer access Lower (more bending) Easier (higher)
Best for Frequent fresh-food use Frequent freezer use
Typical feel More “daily convenience” More “simple and basic”

Why it matters

Most people open the refrigerator section far more often than the freezer. Keeping fresh food higher reduces bending and makes it easier to see what you have, which can cut down on forgotten items and food waste.

Last updated: February 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Repair time and Difficulty

 30 minutes or less
How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair time and Difficulty

 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your refrigerators

Use the advice and tips in these articles and videos to get the most out of your refrigerator.

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

Learn how easy replacing the water filter in a Universal/Multiflex refrigerator is.…

How to Replace the Water Filter in a KitchenAid Refrigerator

How to Replace the Water Filter in a KitchenAid Refrigerator

Discover how easy it is to replace the water filter in your KitchenAid refrigerator.…

Troubleshooting a refrigerator not cooling video

Troubleshooting a refrigerator not cooling video

Learn what to check if the inside of your fridge is wayyyy too warm.…

Parts & More

Angle Grinder
Dishwasher
Dryer
Electric Range
Freestanding Freezer
Front-Engine Lawn Tractor
Furnace
Gas Range
Mechanical Sewing Machine
Microwave/Hood Combo
Parts
Side-By-Side Refrigerator
Television
Washer
