Whirlpool 3LBR8255EQ1 direct-drive washer Parts
Here are the diagrams and repair parts for Whirlpool 3LBR8255EQ1 direct-drive washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

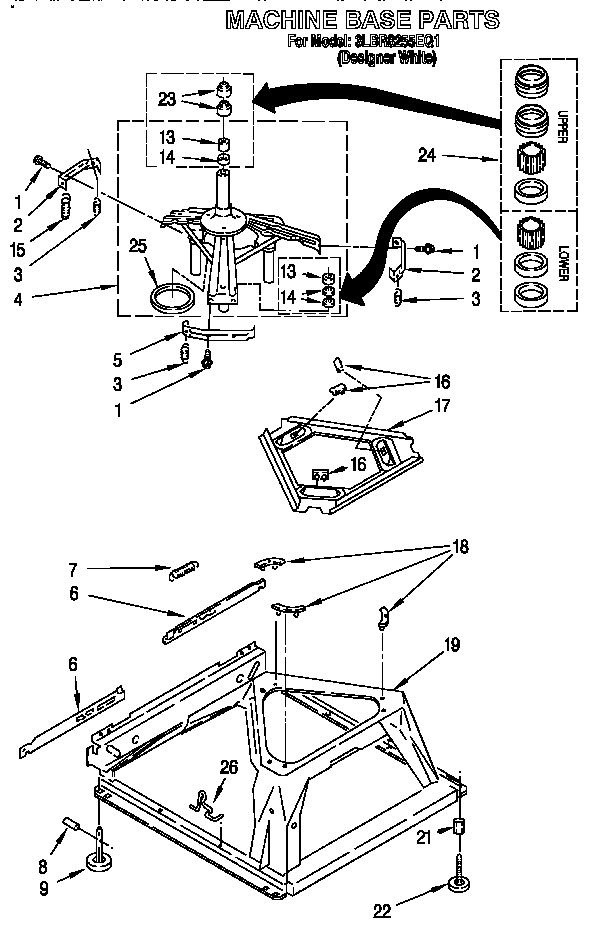

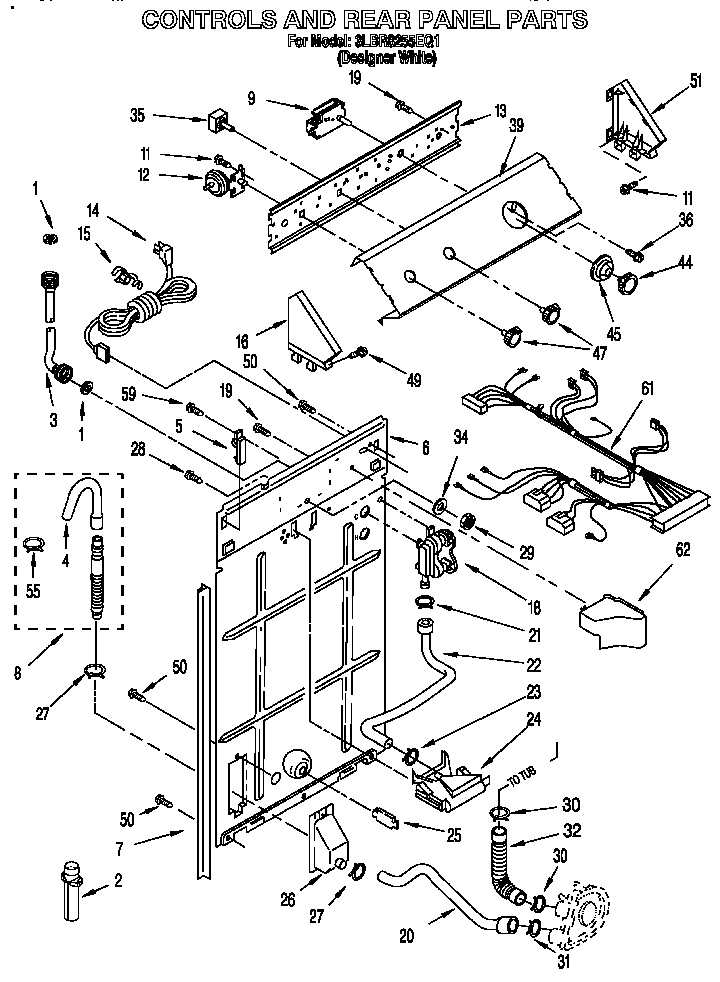

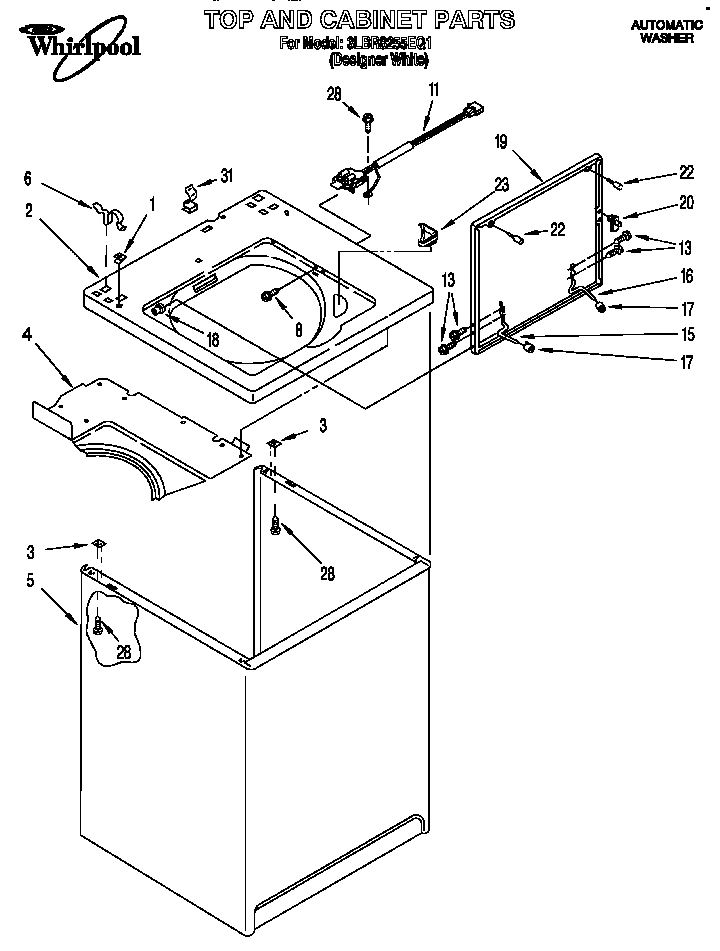

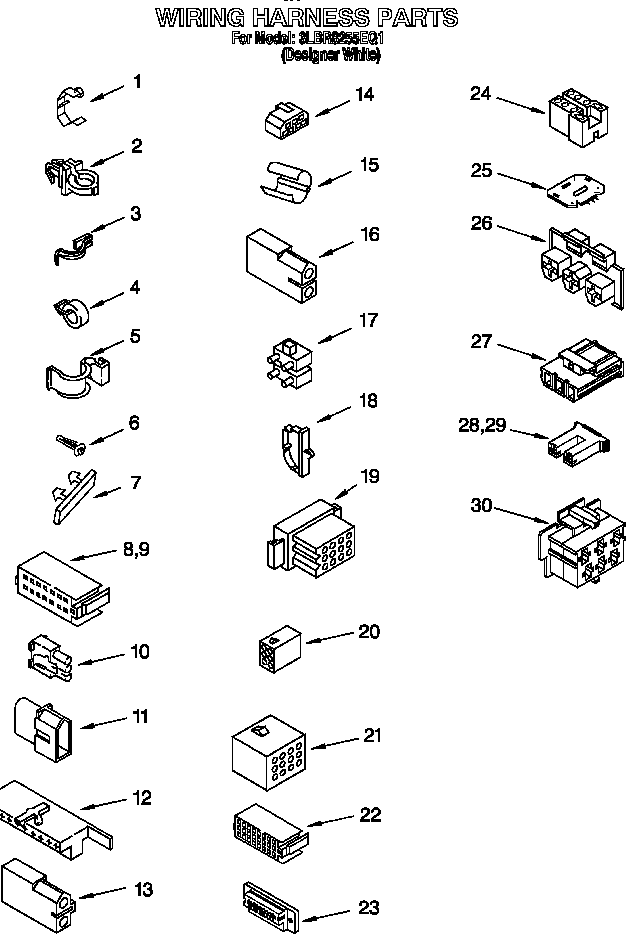

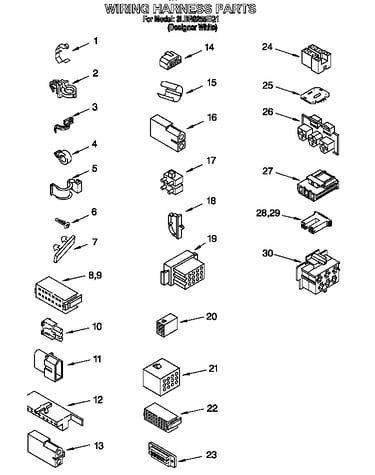

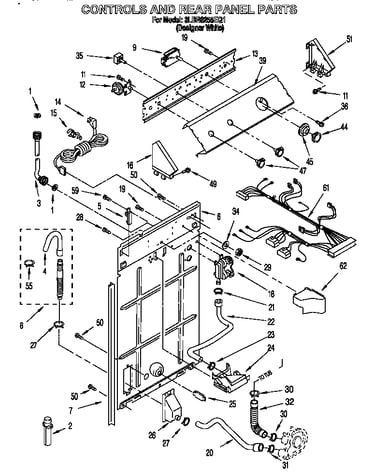

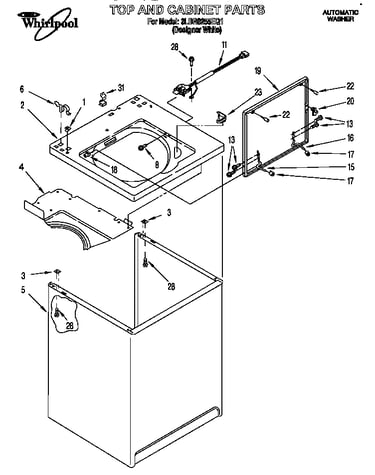

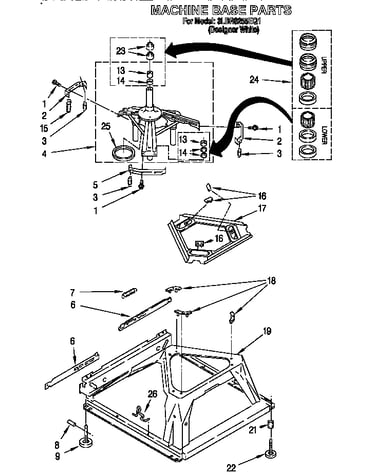

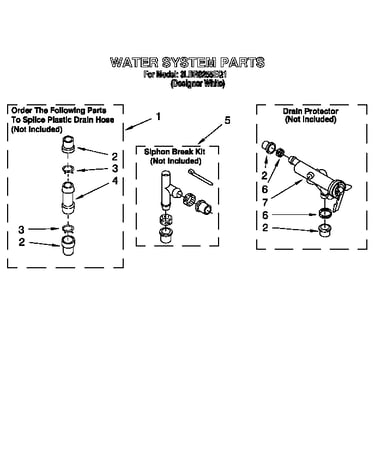

Browse Parts for 3LBR8255EQ1 Direct-Drive Washer

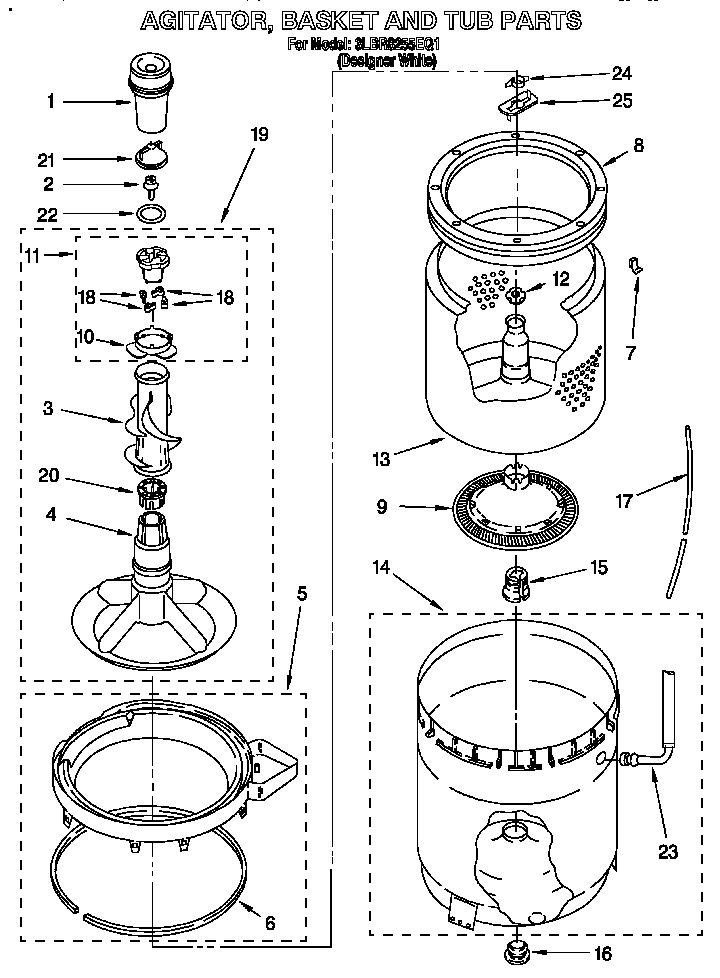

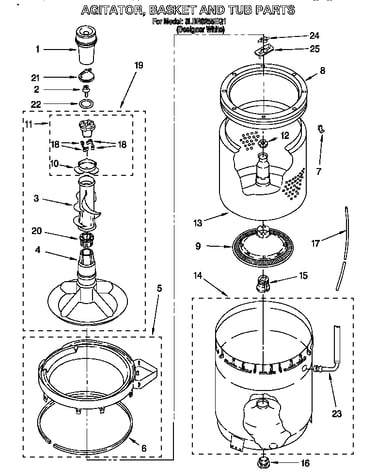

Agitator, basket and tub diagram
Agitator Dog
Part #3366877Replaced by #80040
Manufacturer substitutionThis part replaces 3366877. Substitute parts can look different from the original.In Stock$25.6919% OFF Phone Price : $31.69
Qty

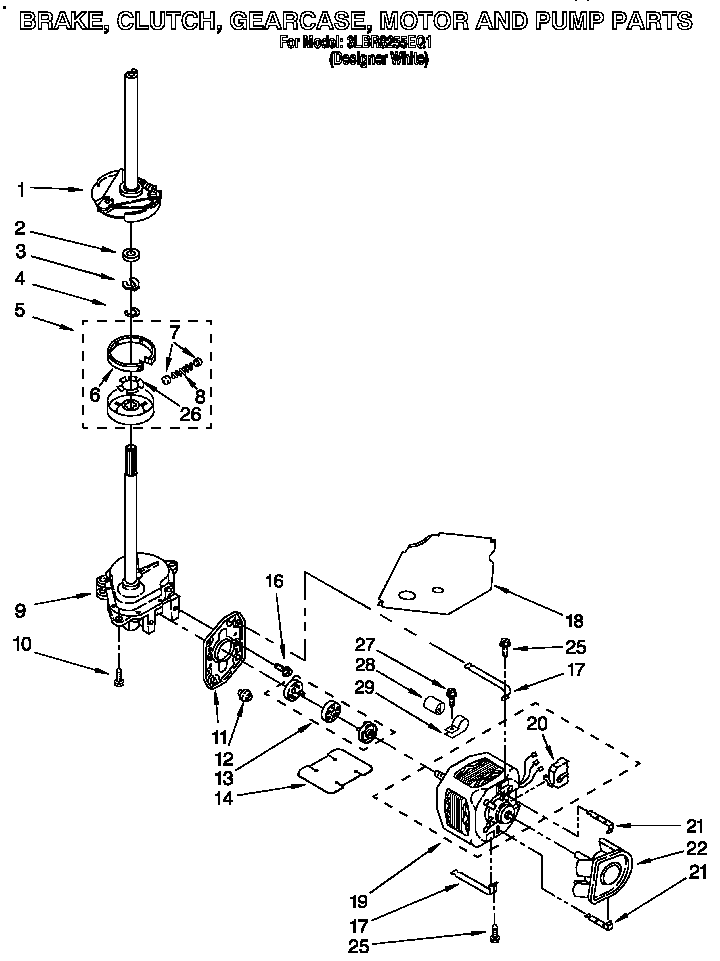

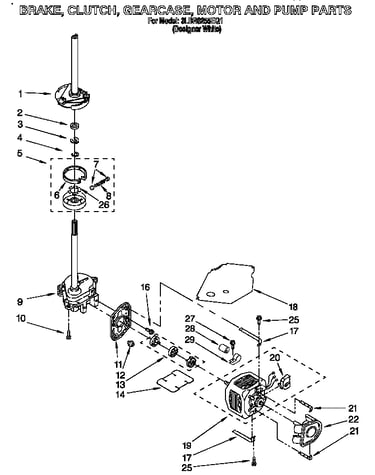

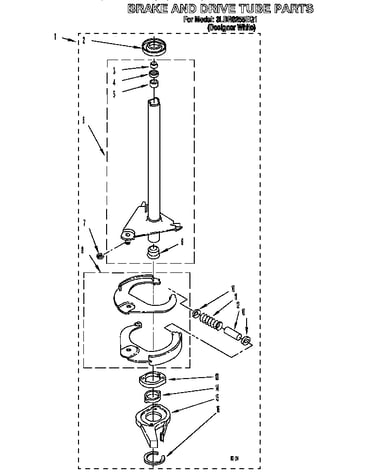

Brake, clutch, gearcase, motor and pump diagram
Clutch
Part #3951311Replaced by #285785
Manufacturer substitutionThis part replaces 3951311. Substitute parts can look different from the original.In Stock$20.0023% OFF Phone Price : $26.00QtyGearcase diagram
Pinion
Part #63320Replaced by #3360629

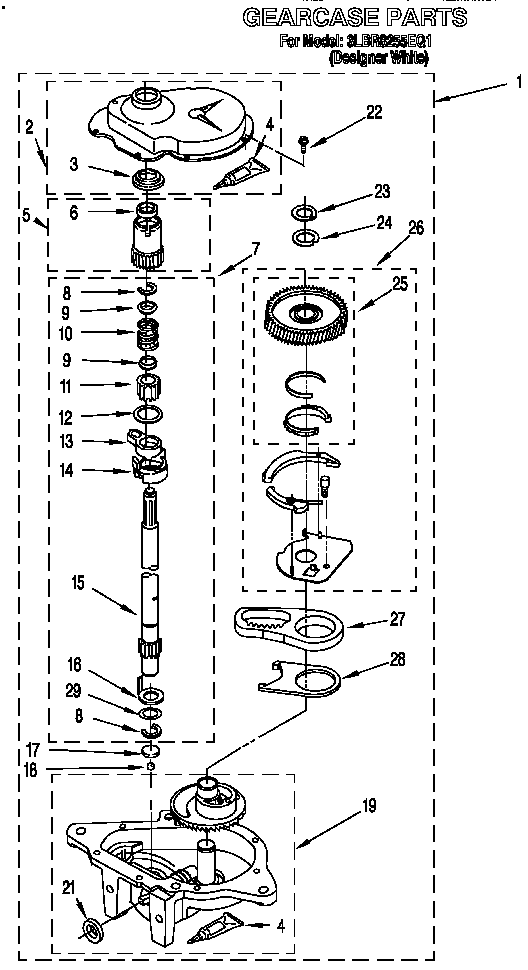

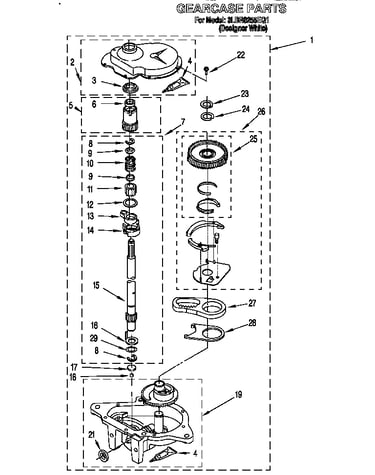

Manufacturer substitutionThis part replaces 63320. Substitute parts can look different from the original.In Stock$300.59$12.00 OFF Phone Price : $312.59QtyGearcase diagram
Actuator
Part #62621Replaced by #3360629
Manufacturer substitutionThis part replaces 62621. Substitute parts can look different from the original.In Stock$300.59$12.00 OFF Phone Price : $312.59QtyGearcase diagram
Rack
Part #3349296Replaced by #3360629
Manufacturer substitutionThis part replaces 3349296. Substitute parts can look different from the original.In Stock$300.59$12.00 OFF Phone Price : $312.59QtyAgitator, basket and tub diagram
Washer Drive Block
Part #389140Replaced by #WP389140
Manufacturer substitutionThis part replaces 389140. Substitute parts can look different from the original.In Stock$21.1522% OFF Phone Price : $27.15QtyBasketdriv
Part #388951Replaced by #W10820043
Manufacturer substitutionThis part replaces 388951. Substitute parts can look different from the original.In Stock$133.768% OFF Phone Price : $145.76QtyAgitator, basket and tub diagram
Washer Tub Gasket
Part #383727Replaced by #W10814296
Manufacturer substitutionThis part replaces 383727. Substitute parts can look different from the original.This item is not returnableIn Stock$4.3119% OFF Phone Price : $5.31QtyAgitator, basket and tub diagram
Washer Spanner Nut
Part #21366Replaced by #WP21366
Manufacturer substitutionThis part replaces 21366. Substitute parts can look different from the original.This item is not returnableIn Stock$7.4312% OFF Phone Price : $8.43QtyAgitator, basket and tub diagram
Washer Agitator Bolt
Part #358237Replaced by #WP358237
Manufacturer substitutionThis part replaces 358237. Substitute parts can look different from the original.This item is not returnableIn Stock$6.2714% OFF Phone Price : $7.27Qty
