Kenmore Elite 79572189315 refrigerator Parts

On the Kenmore Elite 79572189315 bottom-mount refrigerator, the water filter is typically located inside the fresh food (refrigerator) compartment, often in the upper-right area or along the top interior. Use the 79572189315 owner's manual to confirm the exact filter housing location for your configuration.

How to find it quickly

Check these common spots in the refrigerator section:

• Upper-right corner inside the refrigerator (push-in or twist-in cartridge)
• Along the top interior ceiling near the front
• Inside a small filter door or cover labeled “Filter”
• Near the back wall of the refrigerator compartment

If you only see water lines and no filter housing inside, your model may use an inline filter in the supply line behind the refrigerator.

Replacing the filter (typical steps)

Most Kenmore bottom-freezer designs use a simple cartridge swap:

• Dispense a little water first to relieve pressure.
• Open the filter cover (if equipped).
• Remove the old filter (twist counterclockwise or push-release, depending on the housing).
• Install the new filter fully seated (twist until it stops or push until it clicks).
• Run and discard several minutes of water to flush air and carbon fines.

A common replacement for this model is the genuine Kenmore refrigerator water filter 9690 AGF80300801.

What you should see (location and style)

What you see	Most likely setup	What to do
Filter cartridge inside refrigerator	Internal filter housing	Replace the cartridge and flush water
No cartridge inside; water line at back	Inline filter on supply line	Inspect the line behind the unit and replace inline filter if present
Filter cover but cartridge will not release	Locked or not fully disengaged	Follow the exact release method in the manual

Why it matters

A correctly installed refrigerator water filter helps maintain water flow to the dispenser and ice maker, reduces taste and odor issues, and prevents slow-fill symptoms that can look like an ice maker or valve problem.

For filter selection and replacement tips, we also recommend how to replace the water filter in a Kenmore refrigerator.

Last updated: February 2026

On Kenmore Elite refrigerator model 79572189315, dH (often shown as Er dH) indicates a defrost heating problem: the refrigerator is not sensing the expected temperature change during the defrost cycle. This is commonly tied to frost buildup, a failed defrost sensor, or a control issue.

What to do first (quick checks)

• Power reset: unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
• Check airflow: make sure vents in the fresh food section and freezer are not blocked by food packages.
• Look for symptoms: heavy frost on the freezer back wall, warm refrigerator temps, or a noisy fan can point to a defrost problem.
• Confirm doors seal well: a door left ajar or a poor seal can cause excess frost and trigger defrost errors.
• If the display is unresponsive during the error, restore power first; then recheck operation.

Parts that commonly relate to a dH / Er dH condition

A dH error is usually caused by the defrost system not detecting proper temperature change. On this model, these parts are common suspects:

• Refrigerator defrost sensor assembly 6615JB2005R
• Refrigerator electronic control board CSP30242818
• Refrigerator evaporator ADL73341411

Basic troubleshooting path (what we check in order)

Check	What you’re looking for	What it suggests
Freezer back wall frost	Thick, snowy frost layer	Defrost system not clearing ice
Fan noise and airflow	Weak or no airflow	Ice blockage or fan/airflow issue
Temperature trend	Temps rise over 12 to 48 hours	Defrost failure progressing
Error returns after reset	Code comes back	Component or wiring issue likely

Why it matters

When defrost heat is not working correctly, frost can cover the evaporator area and restrict airflow. That makes the refrigerator section warm up even if the freezer still feels cold, and it can lead to repeated error codes and poor cooling performance.

Model-specific reference

For display behavior, diagnostic steps, and any model-specific test modes for 79572189315, use the owner's manual. For code lookups and common fixes for this series, we also use Kenmore 795 model bottom freezer refrigerator error codes.

Last updated: February 2026

Common problems on the Kenmore Elite 79572189315 bottom-mount refrigerator include no cooling or warm temperatures, ice maker or dispenser failures, water leaks, and frost buildup. These symptoms often trace back to airflow issues, defrost problems, water-supply components, or a failed sealed-system/control component; use the owner's manual for model-specific checks.

Most common symptoms and what they usually point to

• Not cooling or weak cooling: dirty condenser coil, evaporator fan/airflow issue, or sealed-system trouble (compressor/evaporator)

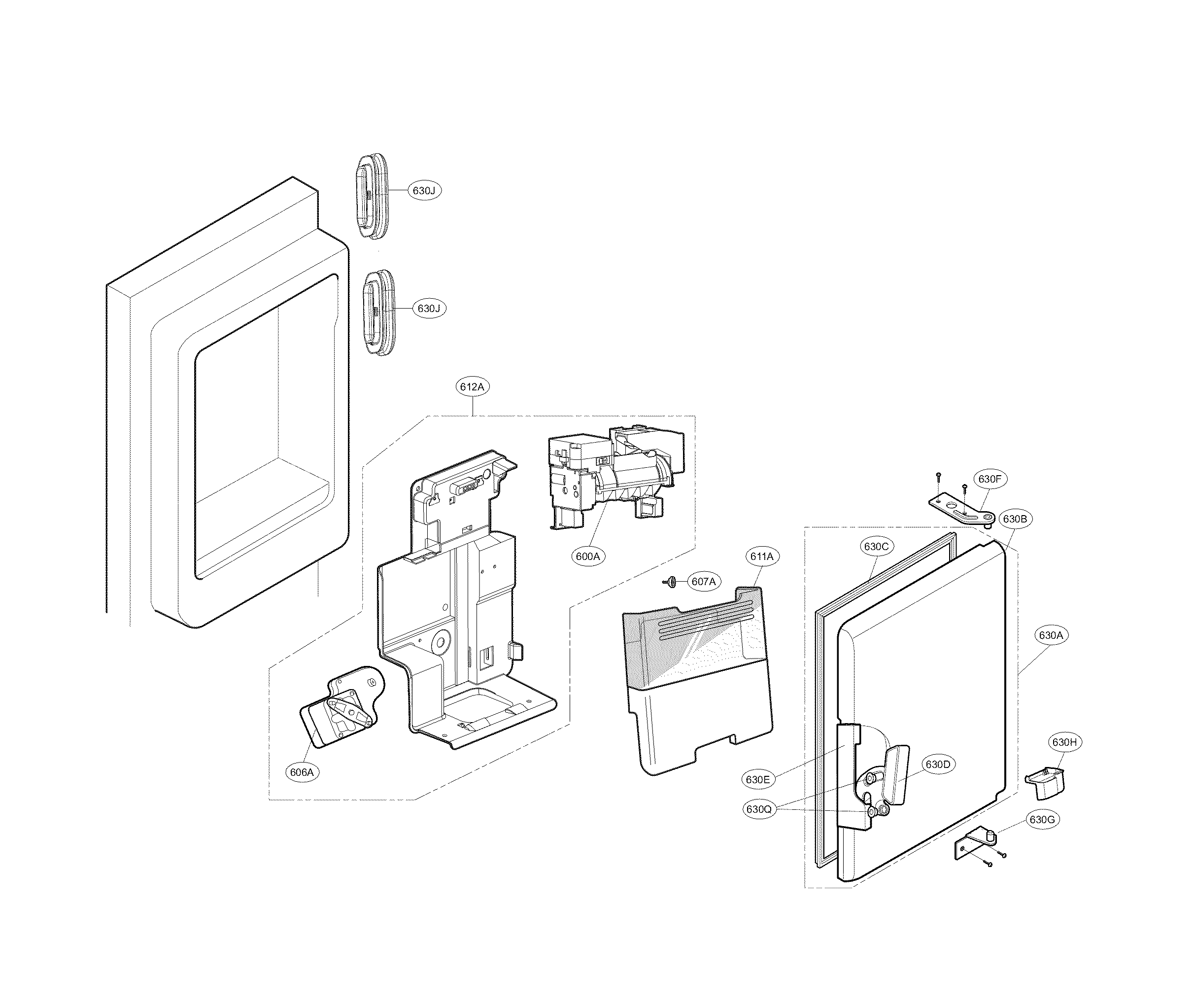

• Ice maker not making ice: ice maker assembly issue, low water pressure, or inlet valve problem

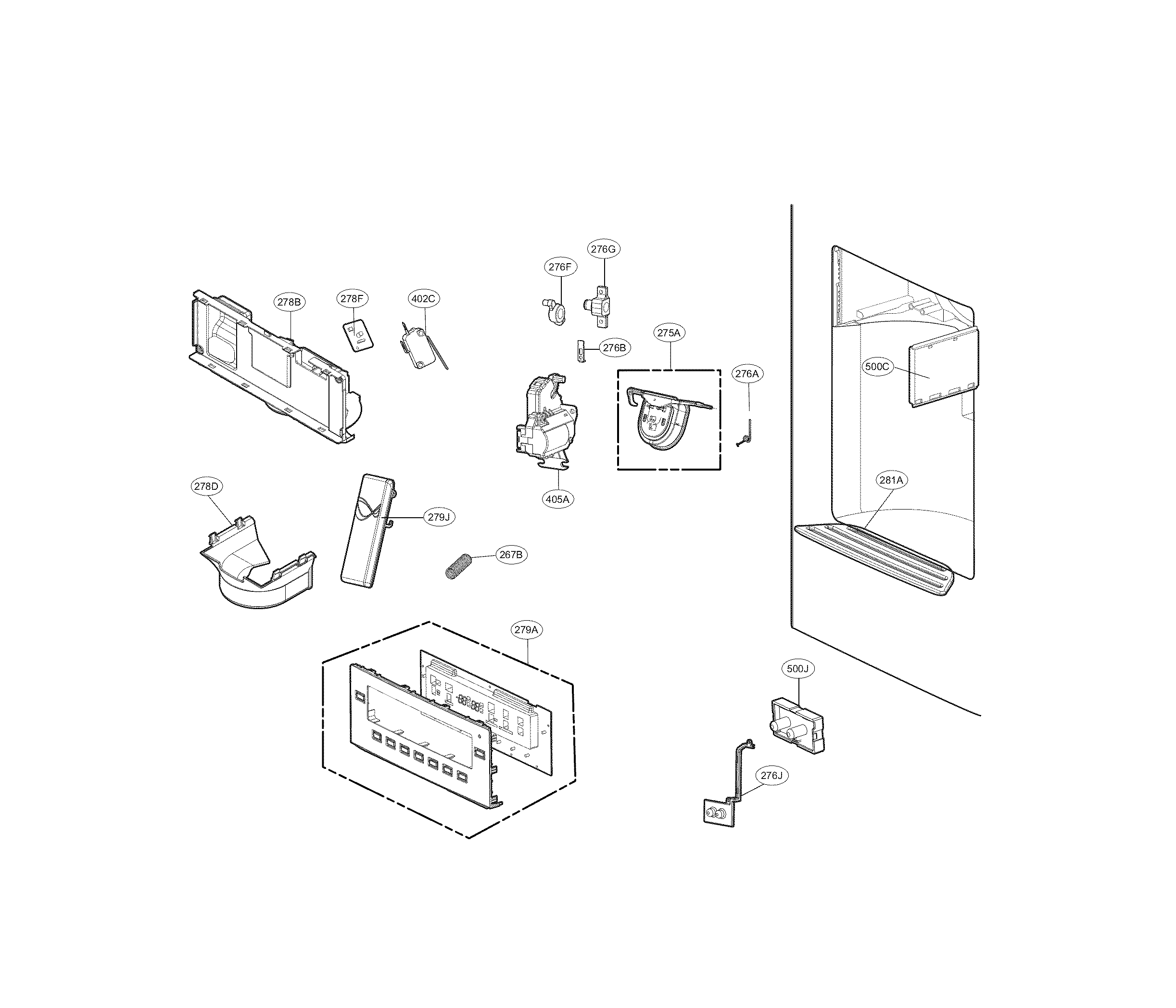

• Water dispenser not working: clogged filter, frozen water line, bad inlet valve, or dispenser switch
• Water leaking or puddles: clogged/iced drain path or cracked drain tube
• Frost buildup in freezer: defrost sensor/defrost system issue or door sealing problem

Parts that commonly fix these issues (for model 79572189315)

If troubleshooting points to a failed component, these are common replacements we see for this model:

Symptom	Common suspect part	Example part on this model page
Warm fridge/freezer	Compressor or sealed-system component	Refrigerator compressor TCA38091801
Poor heat removal, long run times	Condenser coil packed with dust or damaged	Refrigerator condenser coil ACG73645004
Frost buildup, erratic temps	Defrost sensor not reading correctly	Refrigerator defrost sensor assembly 6615JB2005R
No ice or no water fill	Water inlet valve not opening	Refrigerator water inlet valve AJU72992603
Bad-tasting water, slow dispense	Clogged water filter	Genuine Kenmore refrigerator water filter 9690 AGF80300801

Quick checks we recommend before replacing parts

• Confirm the temperature settings and allow 24 hours after changes.
• Clean dust from the condenser area; restricted airflow can mimic compressor problems.
• If water/ice is slow, replace the filter and purge air from the line.
• Check for a frozen fill tube or frozen water line (common after temp swings).
• Look for ice blocking the drain; clear it and inspect the drain tube.

Why it matters

Catching the root cause early helps prevent food spoilage and reduces strain on the compressor and control board. For example, a clogged filter can make the dispenser seem “dead,” while a defrost problem can cause frost buildup that blocks airflow and warms the fresh-food section.

For model-specific diagnostics and reset steps, we also use the Kenmore 795 model bottom freezer refrigerator error codes guide when an error code is showing.

Last updated: February 2026

A water leak at the bottom of your Kenmore 79572189315 bottom-mount refrigerator is most often caused by a clogged or frozen defrost drain; defrost water backs up, runs into the cabinet, and ends up on the floor. The next most common source is a slow leak in the water supply system.

Quick checks (start here)

• Look for ice on the freezer floor or water under the crisper drawers.
• Check the drain pan area underneath for overflow after a defrost cycle.
• Inspect the water filter area for drips after dispensing.
• Look behind the refrigerator for moisture at the household water line connection.
• Confirm doors seal tightly; heavy frost increases defrost water.

Most common cause: clogged or frozen defrost drain

When the drain opening or drain tube is blocked by ice or debris, meltwater cannot reach the drain pan and instead leaks out the bottom.

What to do

1. Unplug the refrigerator.
2. Remove freezer bins/drawer to access the back wall and floor.
3. Melt ice around the drain trough and drain hole using warm water and towels.
4. Flush the drain with warm water until it flows freely to the drain pan.
5. If the tube is split or stays restricted, replace the refrigerator drain tube 5251JA3003D.

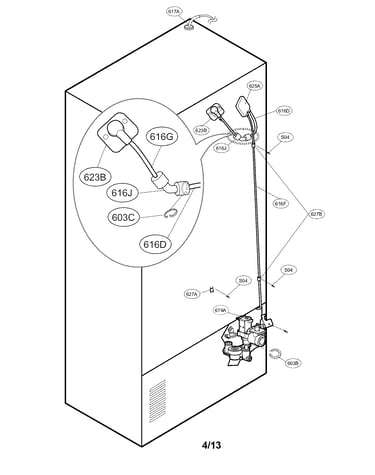

If the leak is from the water system (ice maker or dispenser)

Use the symptoms below to narrow it down.

When it leaks	Most likely source	What to do
Only while dispensing	Filter housing or tubing	Reseat filter, inspect line
Even when not dispensing	Inlet valve or tubing	Check fittings, replace valve
Starts as water/ice in freezer	Defrost drain	Clear drain, check drain tube

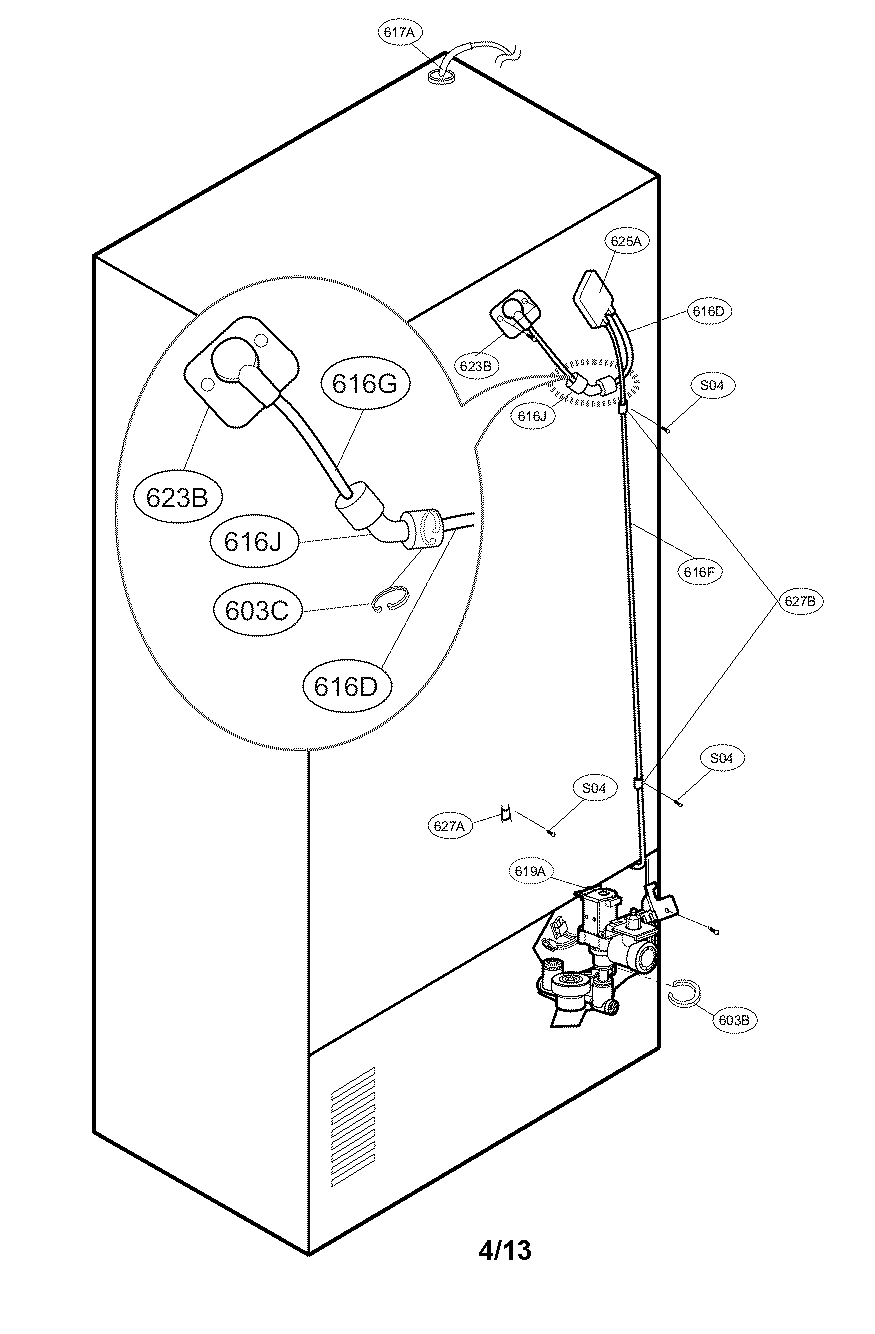

• Inspect the refrigerator water tubing MJU62070602 for kinks, rub-through, or cracks.
• Check the refrigerator water inlet valve AJU72992603 for seepage at the valve body and fittings.
• Make sure the filter is fully seated and not cross-threaded.

Why it matters

Stopping the leak prevents floor damage and reduces ice buildup that can affect airflow and cooling performance.

For model-specific access steps and diagrams, use the owner's manual.

Last updated: February 2026

For Kenmore Elite refrigerator model 79572189315, use the dimensions and capacity listed in the 79572189315 owner's manual for the exact size. For quick planning, most Kenmore bottom-mount refrigerators in this class are roughly 33 inches wide, 67 to 70 inches tall, and 30 to 34 inches deep depending on handles and door clearance.

How we recommend confirming the exact size

Use the manual first, then verify with a tape measure so your opening, doors, and airflow clearances all work.

• Look up the product specifications or dimensions section in the 79572189315 owner's manual
• Measure width at the cabinet, then again including handles
• Measure height from the floor to the top hinge cover area
• Measure depth from the back to the front edge, then including handles
• Allow clearance for ventilation behind and above the cabinet
• Confirm door and freezer-drawer swing clearance (especially near walls)

Typical planning ranges (bottom-mount refrigerators)

These ranges help you estimate fit before you do final measurements.

Measurement	Typical range	What commonly changes it
Width	32 to 34 in.	Handles, hinge covers, door design
Height	67 to 70 in.	Leveling legs, hinge cover
Depth	30 to 34 in.	Handles, door thickness, rear clearance

Why it matters

If the refrigerator is even 1 inch too wide or too deep, it can restrict airflow, prevent doors from opening fully, or keep the cabinet from sliding into the cutout. Using the model-specific specs in the 79572189315 owner's manual prevents clearance and installation problems.

Related tip if you are measuring because of dispenser or ice issues

If you recently moved the refrigerator and the water dispenser or ice maker started acting up, check for a kinked water line and confirm household water pressure. The guide how to prevent water dispenser and ice maker problems covers the most common causes.

Last updated: February 2026
