Hotpoint
Top-Mount Refrigerator

Model # HTH16BBSXRCC Official Hotpoint refrigerator - s series

Here are the diagrams and repair parts for Official Hotpoint HTH16BBSXRCC refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |

Appliance Light Bulb, 40-watt (replaces 40A15-2PK, 60A, 60A15RVL, STD398091, WR02X12328, WX12X1510)
#435

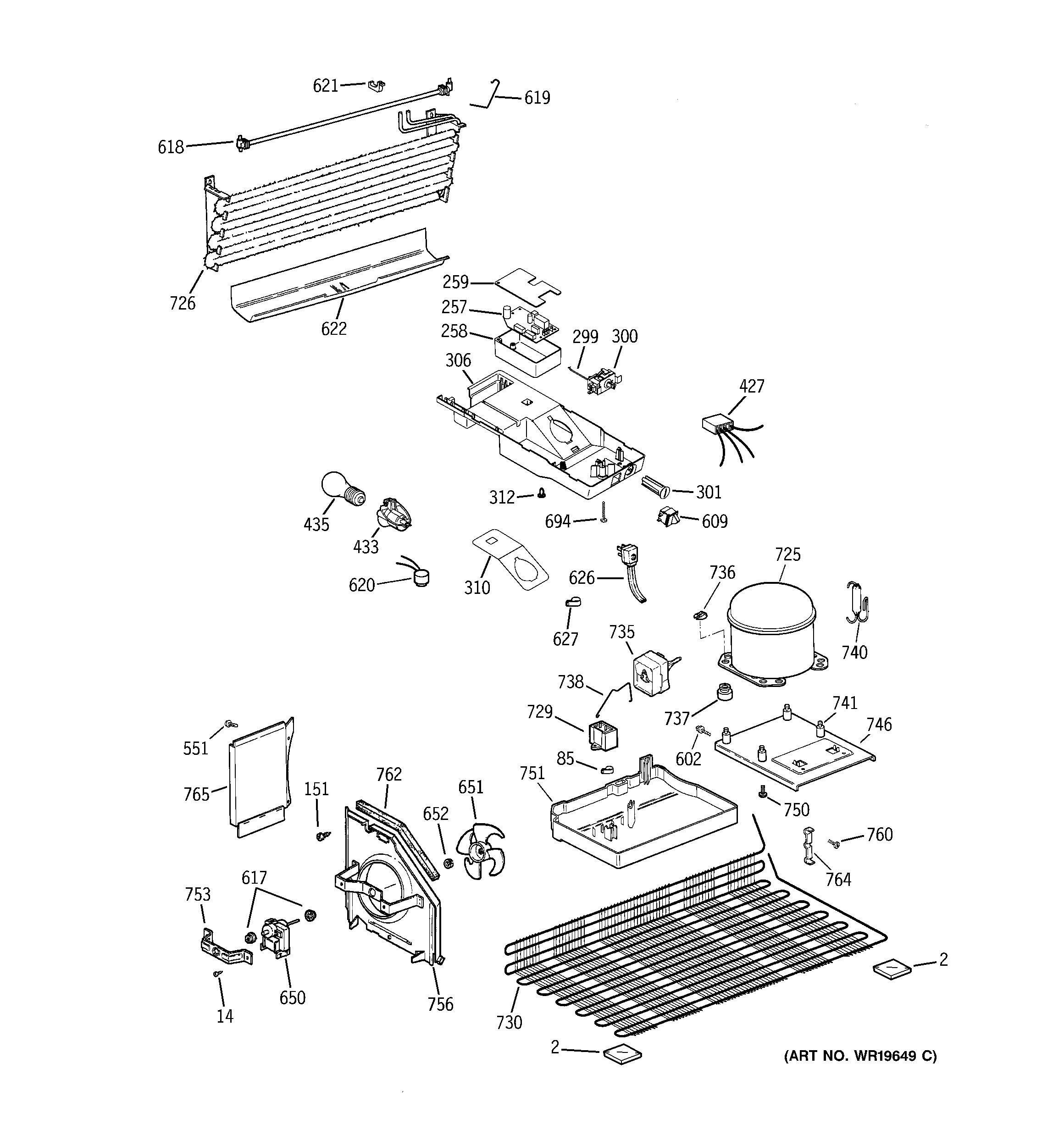

Unit parts diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Refrigerator Evaporator Fan Motor (replaces WR60X10045, WR60X23584, WR60X28783, WR60X31122, WR60X31523)
#610

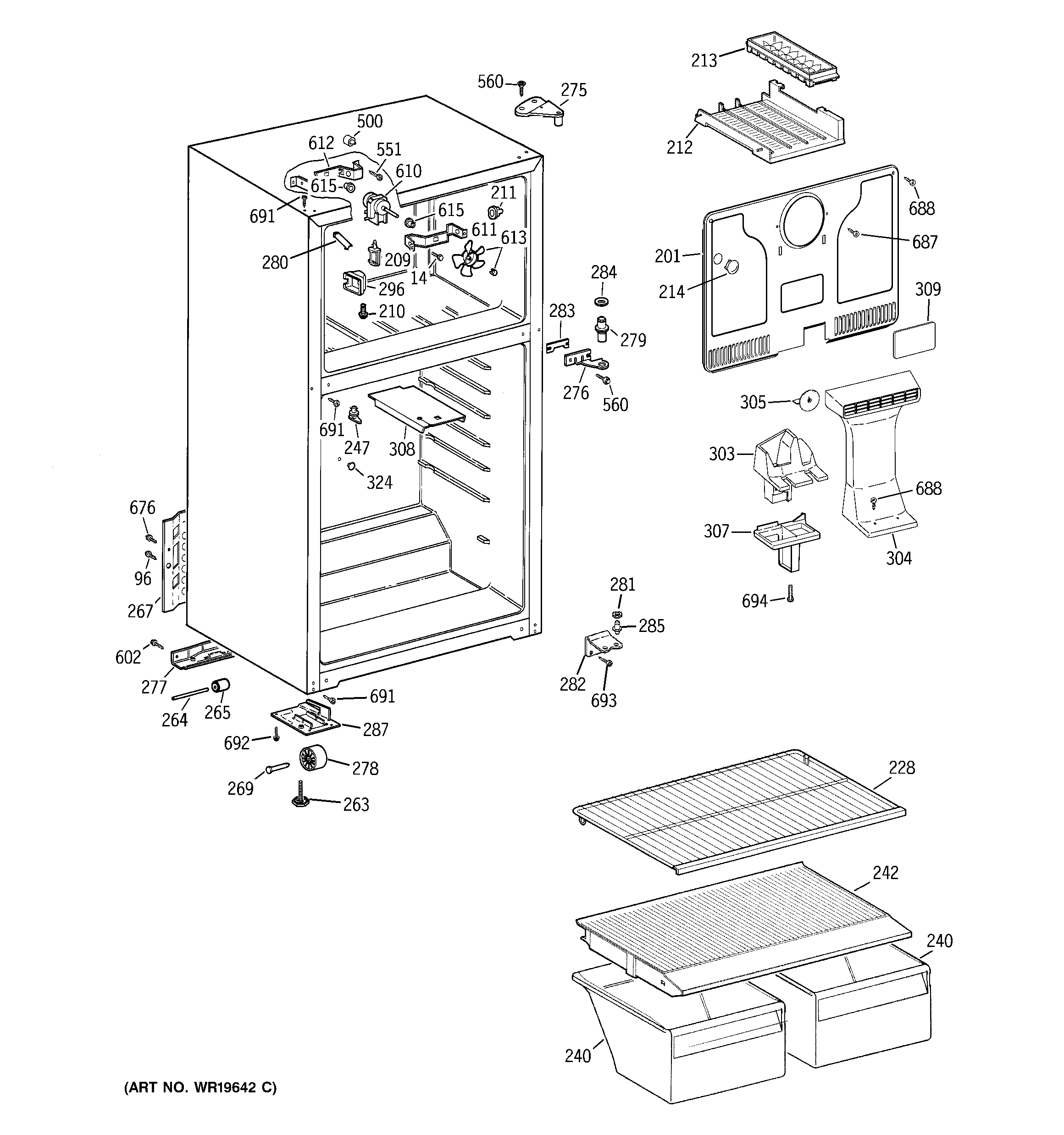

Cabinet diagram

Refrigerator evaporator fan motor

Part #WR60X10141

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X10141. Substitute parts can look different from the original.
BEST SELLER
$69.50
7% OFF Phone Price : $74.50
In Stock
Refrigerator Run Capacitor
#729

Unit parts diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$25.26
17% OFF Phone Price : $30.26
In Stock
Refrigerator Door Shelf Rail (replaces WR17X12916)
#108

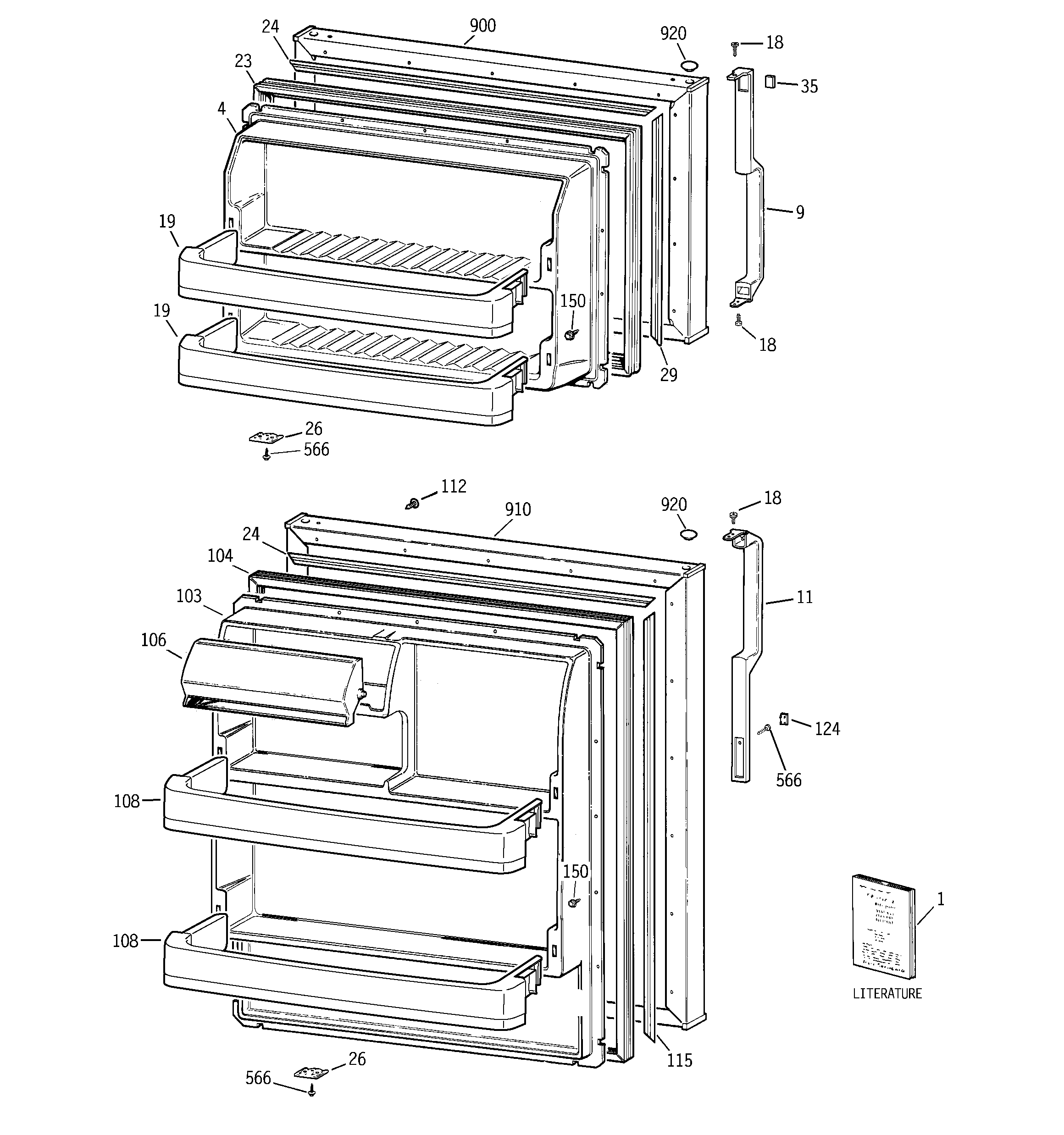

Doors diagram

Refrigerator door shelf rail (replaces wr17x12916)

Part #WR17X11889

BEST SELLER
$28.04
15% OFF Phone Price : $33.04
In Stock
Refrigerator Evaporator Fan Blade (replaces WR60X10047, WR60X10188)
#613

Cabinet diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.70
14% OFF Phone Price : $14.70
In Stock
Refrigerator Freezer Door Shelf Rail
#19

Doors diagram

Refrigerator freezer door shelf rail

Part #WR17X11890

BEST SELLER
This item is not returnable
$13.72
13% OFF Phone Price : $15.72
In Stock
Refrigerator Door Gasket (White) (replaces WR24X10049, WR24X485)
#104

Doors diagram

Ff gasket

Part #WR24X10049

Replaced by #WR24X10231

?
Manufacturer substitution
This part replaces WR24X10049. Substitute parts can look different from the original.
BEST SELLER
$59.62
8% OFF Phone Price : $64.62
In Stock
Refrigerator Light Switch
#609

Unit parts diagram

Refrigerator light switch

Part #WR23X10143

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Evaporator Fan Motor Grommet
Refrigerator evaporator fan motor grommet

Part #WR02X12008

In Stock
Refrigerator Evaporator Fan Motor Grommet
#615

Cabinet diagram

Refrigerator evaporator fan motor grommet (replaces wr02x12008)

Part #WR02X10519

Replaced by #WR02X12008

?
Manufacturer substitution
This part replaces WR02X10519. Substitute parts can look different from the original.
In Stock
