Side-By-Side Refrigerator

Model # CSHS6UGZBSS Official GE refrigerator - z series

Here are the diagrams and repair parts for Official GE CSHS6UGZBSS refrigerator - z series, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forCSHS6UGZBSS Refrigerators

  • Refrigerator Temperature Sensor WR55X10661
    #241

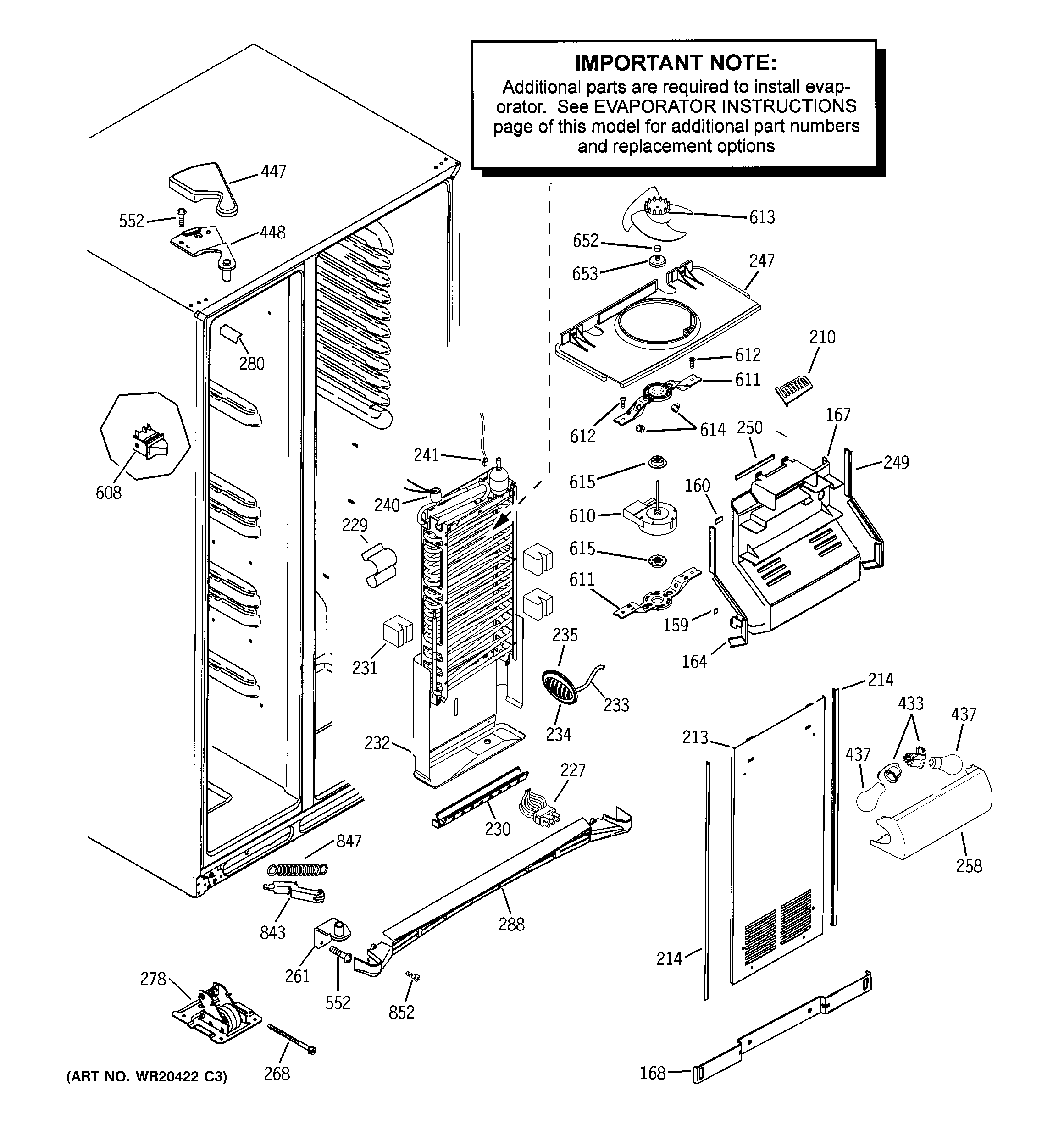

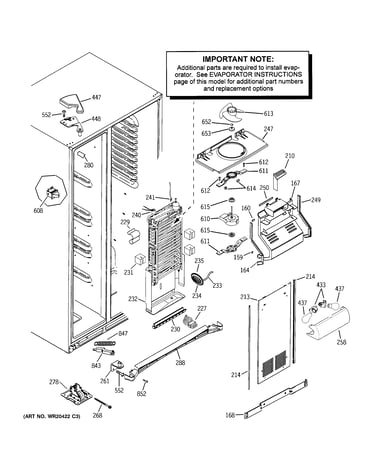

    Freezer section diagram

    Refrigerator temperature sensor

    Part #WR55X10661

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X10661. Substitute parts can look different from the original.
    BEST SELLER
    $19.24 |
    30% OFF Phone Price : $27.65
    In Stock
  • Refrigerator Temperature Sensor WR55X10938
    #233

    Freezer section diagram

    Refrigerator temperature sensor

    Part #WR55X10938

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X10938. Substitute parts can look different from the original.
    BEST SELLER
    $19.24 |
    30% OFF Phone Price : $27.65
    In Stock
  • Refrigerator Temperature Sensor WR55X10937
    #237

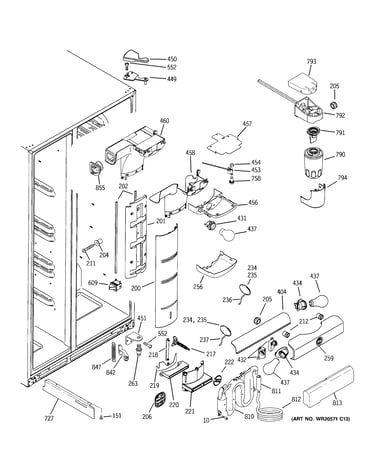

    Fresh food section diagram

    Refrigerator temperature sensor

    Part #WR55X10937

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X10937. Substitute parts can look different from the original.
    BEST SELLER
    $19.24 |
    30% OFF Phone Price : $27.65
    In Stock
  • Refrigerator Temperature Sensor WR55X10939
    #236

    Fresh food section diagram

    Refrigerator temperature sensor

    Part #WR55X10939

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X10939. Substitute parts can look different from the original.
    BEST SELLER
    $19.24 |
    30% OFF Phone Price : $27.65
    In Stock
  • Electronic I WR30X10061
    #820

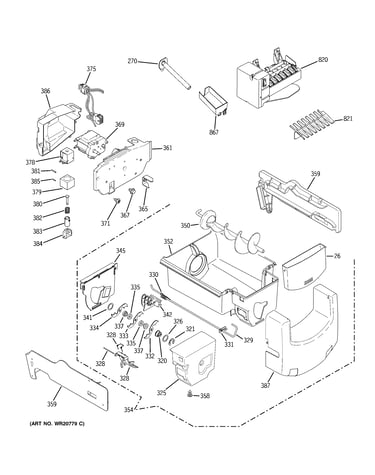

    Ice maker & dispenser diagram

    Electronic i

    Part #WR30X10061

    Replaced by #WR30X10093

    ?
    Manufacturer substitution
    This part replaces WR30X10061. Substitute parts can look different from the original.
    BEST SELLER
    $185.29 |
    15% OFF Phone Price : $218.32
    In Stock
  • Dryer Filter WR86X0096
    #740

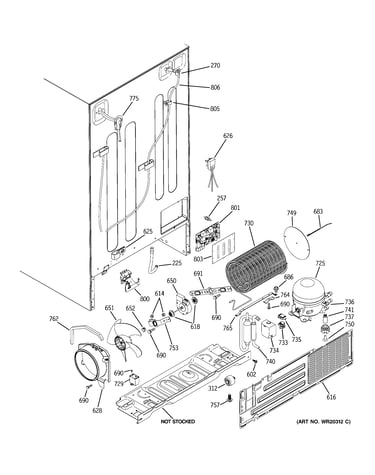

    Sealed system & mother board diagram

    Dryer filter

    Part #WR86X0096

    Replaced by #WR86X25269

    ?
    Manufacturer substitution
    This part replaces WR86X0096. Substitute parts can look different from the original.
    BEST SELLER
    $74.11 |
    7% OFF Phone Price : $80.11
    In Stock
  • Refrigerator Lamp WR02X12328
    Refrigerator lamp

    Part #WR02X12328

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces WR02X12328. Substitute parts can look different from the original.
    BEST SELLER
    $15.06 |
    9% OFF Phone Price : $16.62
    In Stock
  • Comp. Repl. WR87X10182
    #725

    Sealed system & mother board diagram

    Comp. repl.

    Part #WR87X10182

    Replaced by #WR87X20798

    ?
    Manufacturer substitution
    This part replaces WR87X10182. Substitute parts can look different from the original.
    BEST SELLER
    $448.79 |
    $12.00 OFF Phone Price : $460.79
    In Stock
  • Rca Refrigerator Dispenser Ice Chute Door Solenoid WR62X10055
    #36

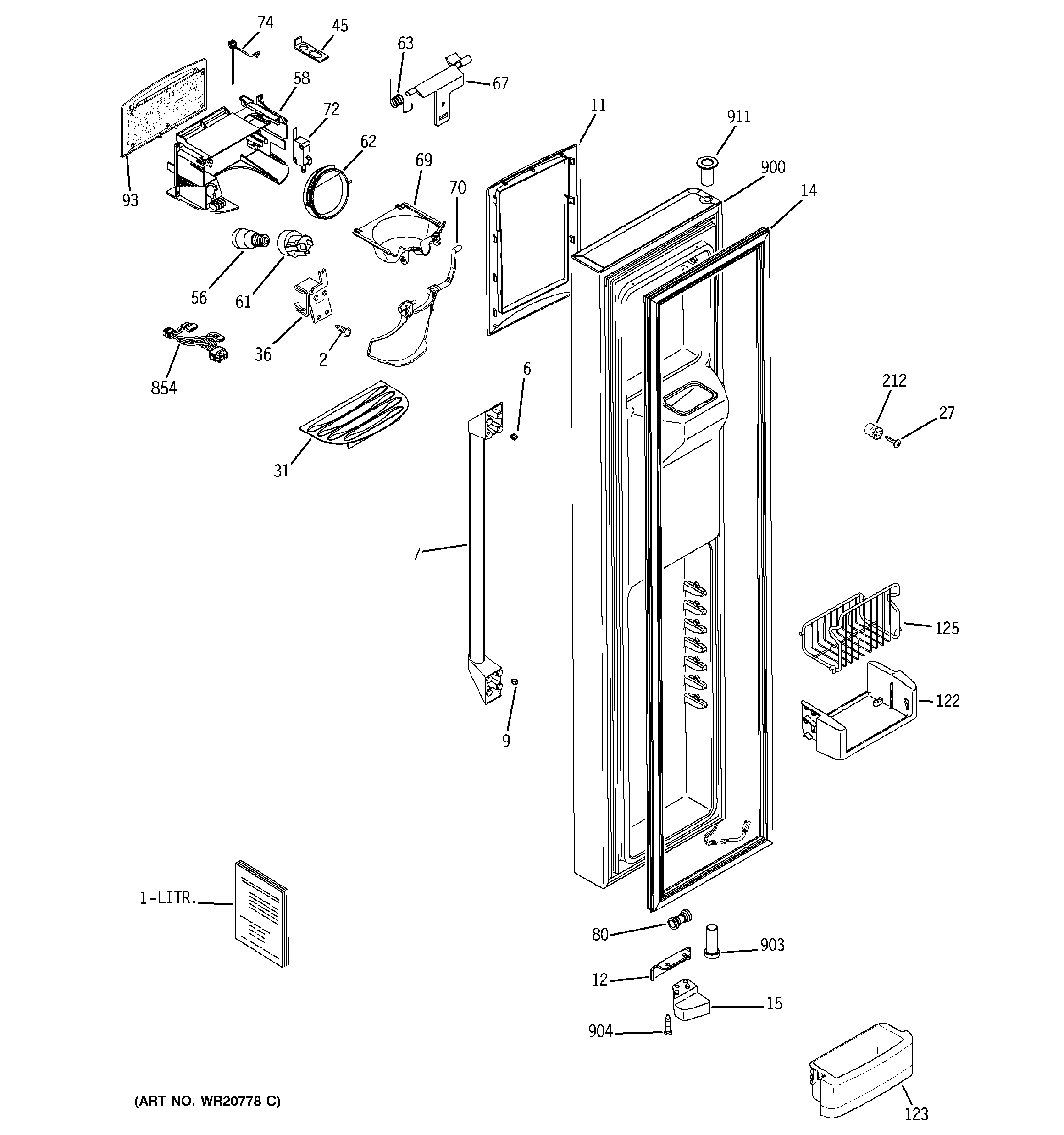

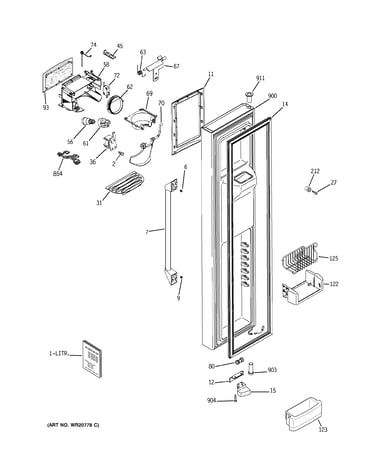

    Freezer door diagram

    Rca refrigerator dispenser ice chute door solenoid

    Part #WR62X10055

    BEST SELLER
    $55.99 |
    11% OFF Phone Price : $63.18
    In Stock
  • Refrigerator Evaporator Fan Motor WR60X10307
    #610

    Freezer section diagram

    Refrigerator evaporator fan motor

    Part #WR60X10307

    BEST SELLER
    $123.42 |
    6% OFF Phone Price : $131.83
    In Stock
