Craftsman
Wet/Dry Vacuum

Model # 113179830 Official Craftsman 6-gallon wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179830 6-gallon wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Hose 73177
#21

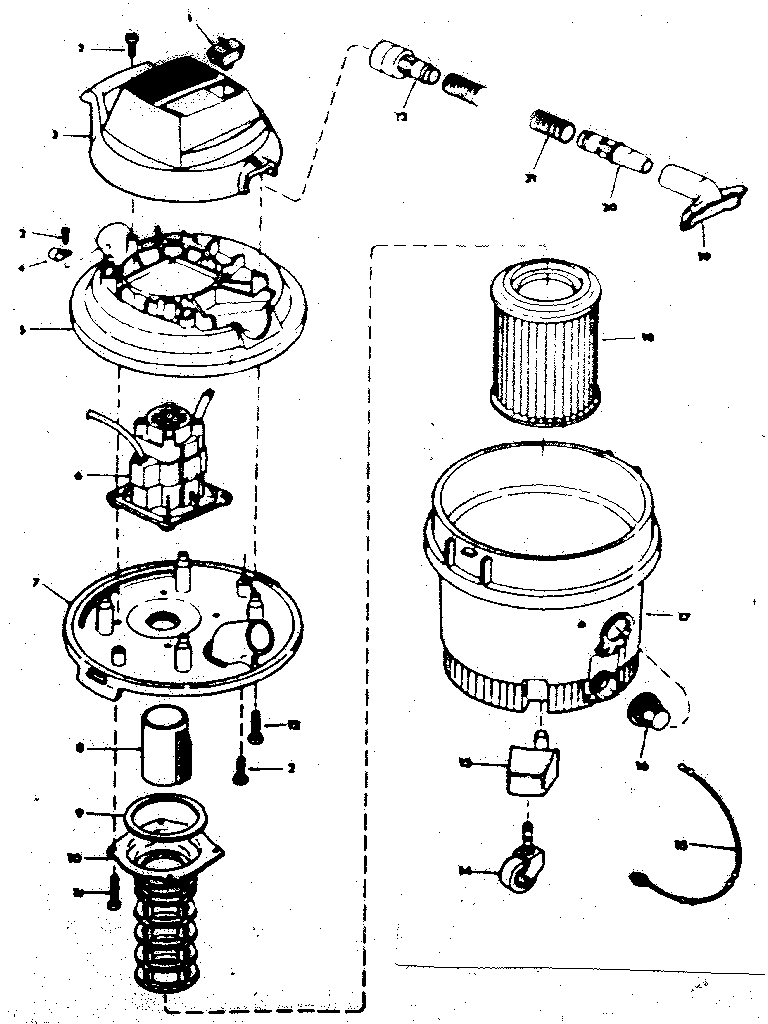

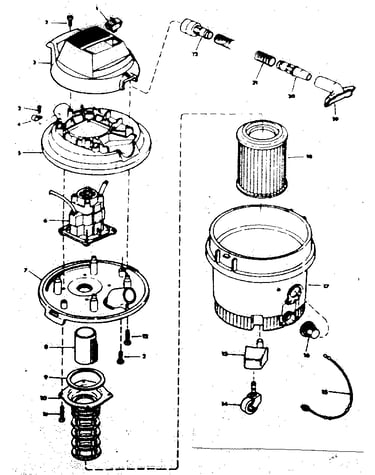

Unit diagram

Hose

Part #73177

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Inlet Port Hose Adapter 73172
#22

Unit diagram

Shop vacuum inlet port hose adapter

Part #73172

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch (replaces 73370, 813213) 73180
#1

Unit diagram

Shop vacuum on/off switch (replaces 73370, 813213)

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap Retainer Strap 73166
#15

Unit diagram

Shop vacuum drain cap retainer strap

Part #73166

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Screw 323723
#11

Unit diagram

Shop vacuum screw

Part #323723

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 73179
#19

Unit diagram

Nozzle

Part #73179

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster 73137
#14

Unit diagram

Vacuum caster

Part #73137

The manufacturer no longer makes this part, and there's no substitute part

Foot Caster 73176
#13

Unit diagram

Foot caster

Part #73176

The manufacturer no longer makes this part, and there's no substitute part

Screw 9426108
#2

Unit diagram

Screw

Part #9426108

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 73182
#6

Unit diagram

Motor assembly

Part #73182

The manufacturer no longer makes this part, and there's no substitute part
