Kenmore 10658943802 refrigerator Parts

For Kenmore model 10658943802, the correct base-grille water filter is part #9030, which corresponds to the replacement filter EDR3RXD1. Confirm by matching your model number and then verifying the filter location and change steps in the 10658943802 owner's manual.

Quick ways to confirm the right filter

• Match the refrigerator model number exactly: 10658943802.
• Check the filter location: this model uses a base grille filter.
• Look for the filter part callout in the accessories section of the manual.
• Match the replacement part ID when ordering: refrigerator water filter EDR3RXD1.
• If your dispenser flow is weak after installing a new filter, flush the system (steps below).

What to do after you install the new filter

The manual procedure for this style of filter includes installing the cap onto the new cartridge, pushing the filter into the base grille until it fully engages, and then flushing the water system.

• Dispense water 5 seconds on, 5 seconds off until water starts flowing
• Then continue the 5 on, 5 off cycle for 2 more minutes
• Expect sputtering at first; air can spurt from the dispenser during purge

Common mix-ups (and how to avoid them)

What you see	What it usually means	What to do
Filter numbers like 9081, 9083, 9690, 9890	Those are used on other Kenmore models	Always match by model number first
Water tastes odd right after replacement	New filter needs flushing	Flush for the full purge time
Low water flow with reverse osmosis	RO plus a fridge filter can reduce pressure	Verify supply is 30 to 120 psi; remove filter temporarily to test

Why it matters

Using the correct filter for Kenmore 10658943802 protects the water inlet valve and ice maker performance, keeps water tasting normal, and prevents nuisance issues like slow dispensing caused by a mismatched cartridge or incomplete flushing.

Last updated: February 2026

Kenmore model numbers tell us who manufactured the appliance and which product series it belongs to. For your Kenmore side-by-side refrigerator model 10658943802, the 106 prefix identifies the manufacturer, and the remaining digits narrow down the exact design so we can match the correct parts and service information in the 10658943802 owner's manual.

Where to find the model number on a refrigerator

On most Kenmore side-by-side refrigerators, we see the model and serial label in one of these spots:

• Inside the fresh food compartment on a side wall
• On the ceiling of the fresh food compartment near the light
• On the inside edge of the refrigerator door
• Behind the base grille or near the lower hinge area
• On the back of the cabinet (less common for daily access)

How to decode a Kenmore model number (quick guide)

Kenmore model numbers are typically structured like this:

Section	Example	What it means
Prefix (first 3 digits)	106	Manufacturer code used by Kenmore
Base model digits	589438	Product platform/series
Suffix digits	02	Version, color, or engineering revision

Why the prefix matters for parts

The prefix helps us route you to the right diagrams and compatible parts because different manufacturers use different designs for items like the ice maker, water filter, and control system.

• Use the full model number when ordering parts
• Match the full model number when looking up wiring diagrams
• Use the full model number when checking troubleshooting steps

Why it matters

A single missing digit can point to a different refrigerator platform, which can change fit and compatibility for common replacements like a water filter, inlet valve, thermostat, or ice maker.

Last updated: February 2026

For Kenmore model 10658943802, the most reliable way to get cubic feet is to look up the capacity listed for that exact model in the specifications section of the 10658943802 owner's manual. Model numbers alone do not consistently encode the refrigerator’s total capacity.

Fast ways to find the cubic feet

• Check the model and serial (rating) label inside the fresh food compartment (often on a side wall or ceiling area); it points you to the exact model identity used for specs.
• Use the specifications/capacity listing in the 10658943802 owner's manual.
• If you still need an estimate, measure the interior and calculate approximate volume (see below).

If you want to estimate cubic feet by measuring

We use this when the label is unreadable or the unit has been modified.

1. Measure usable interior dimensions (inches) of:
   • Fresh food compartment (width, depth, height)
   • Freezer compartment (width, depth, height)
2. Convert to cubic feet:

Step	What to do	Formula
1	Find cubic inches	W x D x H
2	Convert to cubic feet	cubic inches ÷ 1728
3	Add sections	fresh food + freezer

Tip: Subtract space taken by thick insulation, bins, and fixed ducting; measured volume usually reads higher than the published “total capacity.”

Why the model number is not enough

Kenmore model numbers (including 106-prefix models) identify a platform and configuration, but capacity varies by cabinet size, liner design, and features. The published spec in the 10658943802 owner's manual is the number that matches how the refrigerator was tested and rated.

Last updated: February 2026

The most common issues we see on Kenmore refrigerators like model 10658943802 are poor cooling, water leaks, ice maker or dispenser problems, and unusual noises. These problems usually trace back to airflow restrictions, frost buildup in the defrost system, or worn water-system components; use the 10658943802 owner's manual troubleshooting section to narrow it down.

Most common symptoms and what they usually mean

• Not cooling or warm temperatures: dirty condenser coils, evaporator fan issue, or defrost failure causing ice buildup
• Water leaking inside or onto the floor: clogged defrost drain, loose water line, or a leaking valve

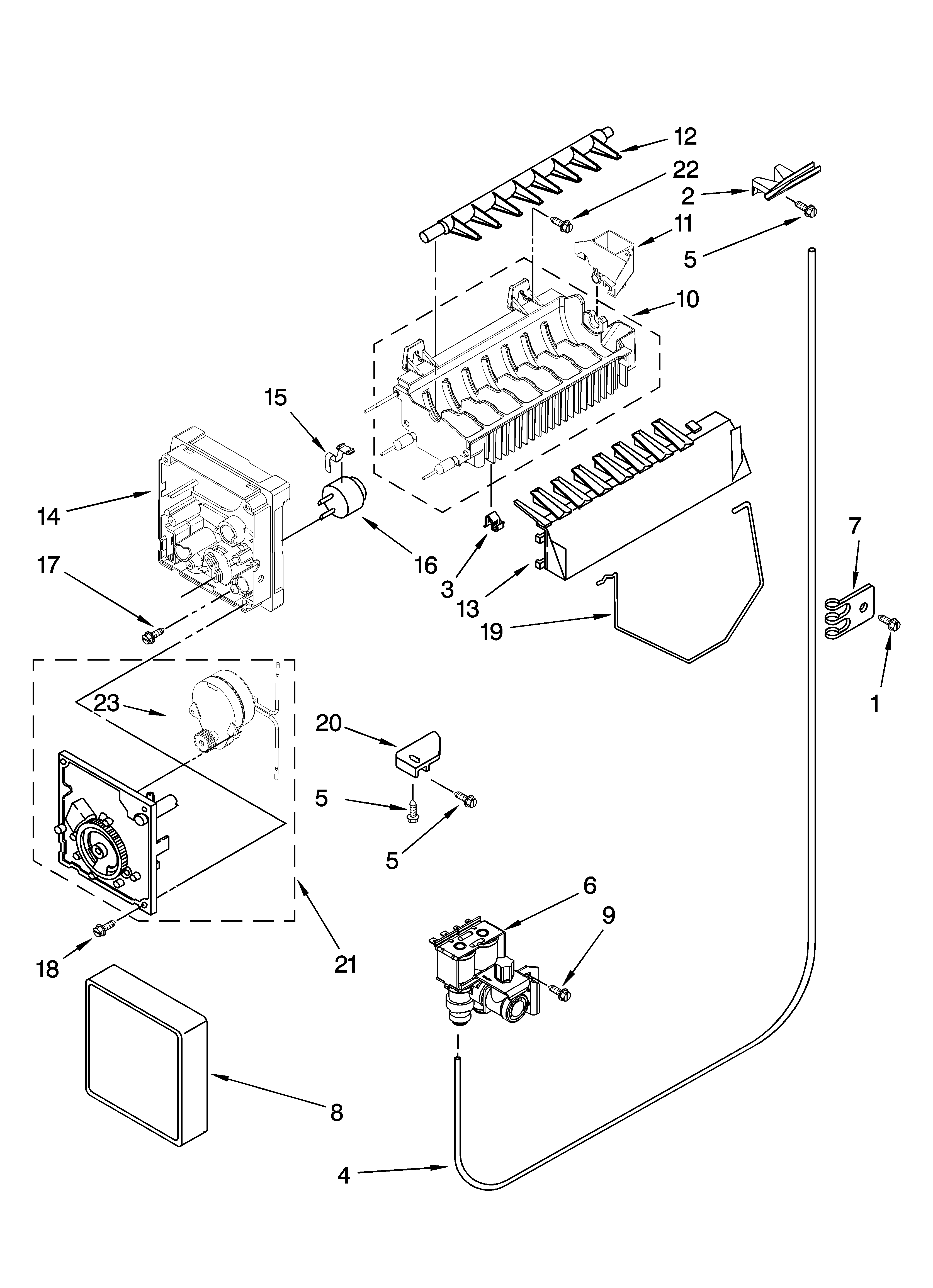

• Ice maker not making ice: water supply problem, frozen fill tube, or ice maker module failure
• Water dispenser slow or tastes off: restricted filter, air in the line after a filter change, or low supply pressure
• Clicking, buzzing, or rattling noises: fan blade hitting ice, condenser fan noise, or compressor start components

Quick checks we recommend first (fast, no parts)

1. Confirm settings: refrigerator about 37°F and freezer about 0°F.
2. Clean condenser coils and make sure airflow around the cabinet is open.
3. Check door closing and gasket seal; warm air leaks create frost and moisture.
4. If water was recently dispensed or the filter was changed, flush the water system; the manual notes dispenser water is typically chilled only to about 50°F.
5. Look for frost on the freezer back panel (a strong clue of a defrost problem).

Common parts involved (when a repair is needed)

Problem area	Typical culprit	Example part for 10658943802
Water/ice supply	Valve not opening or leaking	Refrigerator inlet valve W10408179
Water quality/flow	Clogged or overdue filter	Genuine Kenmore refrigerator water filter EDR3RXD1
Ice production	Failed ice maker assembly	Refrigerator ice maker WPW10190965
Defrost frost buildup	Heater or control issue	Refrigerator heater WP2323198

Why it matters

Cooling and ice/water problems often share the same root causes: restricted airflow, frost buildup, or inconsistent water supply. Catching the symptom early helps prevent food spoilage, ice jams, and recurring leaks.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10658943802, a “stopped cooling” complaint is usually caused by a power issue, controls being set to OFF or too warm, blocked airflow vents, or a cooling-system problem such as a failed fan or defrost issue. Start with the quick checks in the 10658943802 owner's manual.

Quick checks we recommend first (5 to 10 minutes)

• Confirm the refrigerator is plugged into a grounded 3-prong outlet and the outlet works.
• Check the house breaker or fuse and reset/replace if needed.
• Verify the temperature controls are ON (not in the OFF position).
• Make sure food packages are not blocking the air vents between the freezer and fresh food sections.
• If it was just installed or recently moved, allow 24 hours to cool completely.

Airflow and temperature control basics

This model relies on air moving between the freezer and refrigerator compartments. When vents are blocked, airflow is obstructed and temperature and moisture problems can occur.

Typical symptoms and what they point to

What you notice	Most likely cause	What to do next
Both sections warm	Power, controls OFF, sealed-system or compressor not running	Do power/control checks; listen for fans/compressor
Freezer cold, fridge warm	Blocked return vent, evaporator fan issue, damper/airflow restriction	Clear vents; check for fan noise
Frost buildup, weak cooling	Defrost system problem	Inspect for heavy frost; plan defrost diagnosis
Ice maker and water stop too	Water supply or valve issue (separate from cooling)	Use how to diagnose a faulty refrigerator water inlet valve if water issues also occur

Parts that commonly relate to “not cooling” symptoms

If the basic checks pass and cooling is still poor, these model-compatible parts are often involved in diagnosis or repair:

• Refrigerator thermostat WP2198202 (temperature control input)
• Refrigerator adaptive defrost control board WPW10366605 (defrost timing/control)
• Refrigerator heater WP2323198 (defrost heater)
• Refrigerator compressor W10139460 (cooling system drive component)

Why it matters

Running a warm refrigerator can spoil food quickly, and blocked airflow or incorrect control settings can mimic a major failure. Doing the power, control, and vent checks first prevents unnecessary parts replacement.

Last updated: February 2026

On a Kenmore refrigerator, the SY EF code points to a problem in the evaporator fan circuit (the fan that moves cold air through the freezer and into the fresh food section). On model 10658943802, this typically shows up when airflow is blocked by frost/ice or when the fan or its wiring is failing; use the 10658943802 owner's manual troubleshooting section to confirm the checks.

What to check first (fast, no parts)

• Power reset: Unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power.
• Airflow blockage: Make sure packages are not blocking freezer vents or the return air path.
• Frost buildup: If the freezer back wall is heavily frosted, the evaporator fan can slow or stop.
• Door sealing: A leaking door gasket can cause excess frost and fan errors.
• Fan noise: Listen for a steady fan sound when the freezer door switch is held closed.

Likely causes and what they mean

What you notice	Most likely cause	What to do next
Loud rubbing or ticking from freezer	Fan hitting ice	Defrost the unit and correct the frost cause
No fan sound, warm refrigerator section	Evaporator fan not running	Check for ice obstruction, then test fan/wiring
Heavy frost returns quickly	Defrost system issue	Check defrost heater, thermostat, and control
Code returns after reset	Electrical or control issue	Inspect harness connections; consider control diagnostics

Parts that commonly relate to SY EF symptoms

If you confirm a defrost-related frost problem, these model-matched parts are common suspects:

• Refrigerator heater WP2323198 (defrost heater)
• Refrigerator bi-metal thermostat WPW10225581 (defrost limit thermostat)
• Refrigerator adaptive defrost control board WPW10366605 (controls defrost timing)

Why it matters

The evaporator fan is what distributes cold air. When it cannot run normally, temperatures rise, food spoils faster, and frost can build up even more, which makes the problem snowball.

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life; a well-maintained Kenmore 10658943802 side-by-side can often reach the upper end of that range when airflow, door sealing, and cooling-system cleanliness are kept in good shape. For model-specific care steps and maintenance intervals, use the 10658943802 owner's manual.

Typical lifespan and what affects it

A refrigerator’s lifespan is driven less by the brand name on the door and more by how hard the sealed system and fans have to work.

• Condenser coil cleanliness (dirty coils raise compressor run time)
• Door gasket condition (air leaks cause frost and temperature swings)
• Ice maker and dispenser use (more cycling, more wear)
• Room temperature and ventilation around the cabinet
• Water filter changes (helps protect the water system from restriction)

Maintenance that helps you get the full lifespan

We recommend these habits for Kenmore side-by-side refrigerators like model 10658943802:

• Vacuum and brush the condenser area regularly
• Keep doors closing squarely; correct sagging hinges or cams if needed
• Set stable temps (avoid frequent dial changes)
• Replace the water filter on schedule; use the correct filter for this model
• Address unusual noises, warm temps, or heavy frost early

Quick reference: what “normal” looks like

Item	Normal expectation	What it suggests if not normal
Compressor run time	Cycles on and off throughout the day	Constant running can indicate dirty coils or air leaks
Frost level	Light, even frost only during normal operation	Heavy frost can indicate a defrost or door-seal issue
Water flow at dispenser	Steady stream	Slow flow can indicate a restricted filter or valve issue

Why it matters

If your refrigerator is approaching 10+ years, preventive maintenance is the difference between a minor part replacement and a major cooling failure. Keeping airflow and seals right reduces strain on the compressor and evaporator system.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10658943802, the model number is printed on the appliance identification label inside the fresh food (refrigerator) compartment. We use that label to match the correct parts, diagrams, and troubleshooting information for your exact refrigerator.

Where to look first

Check these common label locations on side-by-side refrigerators:

• Inside the refrigerator compartment on a side wall (often near the top front)
• On the ceiling of the refrigerator compartment near the light housing
• Behind the crisper drawers on the side wall
• Along the door frame (hinge side) when the refrigerator door is open
• Less common: behind the toe grille at the bottom front

For model-specific diagrams and label references, use the 10658943802 owner's manual.

What you should see on the label

The ID label typically includes both a model number and a serial number.

Item on label	What it’s used for	Example format
Model number	Identifies the exact refrigerator design for parts fit	10658943802
Serial number	Identifies production run and date information	Letters plus numbers

Why it matters

Using the exact model number prevents ordering the wrong Kenmore refrigerator parts (like a water filter, ice maker, or inlet valve) that may look similar but mount differently or use different connectors.

Quick tip for ordering parts

When you write the model number down:

• Copy it exactly, including all digits
• Take a clear photo of the label for reference
• Use the model number when selecting parts such as the refrigerator ice maker WPW10190965 or refrigerator inlet valve W10408179

Last updated: February 2026

Kenmore refrigerators made by Whirlpool typically have a model number prefix of 106 (like Kenmore 10658943802), which identifies Whirlpool as the manufacturer behind that Kenmore model line. For confirmation details tied to your exact unit, check the identification information in the 10658943802 owner's manual.

How to tell from the model number (fast check)

On Kenmore appliances, the first three digits of the model number are the most useful clue for who built the unit.

• Look at the model tag inside the fresh food compartment (often on a side wall or ceiling)
• Find the full model number (example: 10658943802)
• Use the first three digits as the prefix
• Prefix 106 points to Whirlpool-built Kenmore refrigerators
• Match the full model number when ordering parts to avoid fit issues

Common Kenmore prefixes that often indicate Whirlpool-built units

These prefixes are widely used on Whirlpool-manufactured Kenmore product lines.

Kenmore prefix	What it usually indicates	Example use
106	Whirlpool-built refrigerator	Side-by-side and other refrigerator platforms
110	Whirlpool-built laundry	Many Kenmore washers
665	Whirlpool-built kitchen products	Dishwashers and other kitchen items
198, 552	Whirlpool-built lines (varies by product)	Some Kenmore platforms

Why it matters (parts compatibility)

Knowing the manufacturer helps because Whirlpool-built Kenmore models often share the same engineering platform and parts style. For example, if you are maintaining the water system on this model, using the correct filter and following the flushing steps in the manual prevents dispenser flow issues and off-taste.

If you are replacing the filter on Kenmore 10658943802, use the exact filter listed for the model, such as the refrigerator water filter EDR3RXD1, and follow the “prepare the water system” steps in the manual after installation.

Last updated: February 2026
