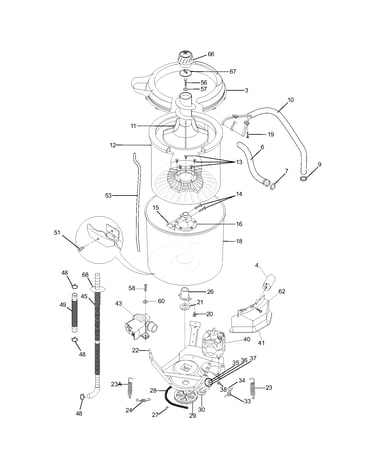

Frigidaire FWSB5700DS0 washer Parts

To reset your Frigidaire FWSB5700DS0 washer, unplug the power cord for 1 to 2 minutes, then plug it back in and start a new cycle. If the washer stopped mid-cycle, also check the lid is fully closed because this model will not spin with the lid open.

Quick reset steps (safe and effective)

• Push in the cycle selector knob to stop the washer.
• Unplug the washer from the wall outlet.
• Wait 1 to 2 minutes (this clears the control’s temporary state).
• Plug the washer back into a grounded outlet.
• Pull out the cycle selector knob to restart.
• If the tub was spinning, wait about 1 minute for the lid lock to release before opening the lid.

For model-specific operating details and lid lock behavior, use the FWSB5700DS0 owner's manual.

If it still will not start or spin after a reset

These checks solve the most common “needs a reset” symptoms on this washer:

• Power issue: Make sure the plug is fully seated; reset the breaker or replace a blown fuse.
• Lid not closed: The tub will not spin unless the lid is closed.
• Cycle selector not set: Turn the knob clockwise slightly to align the indicator, then pull out the knob.
• Overheated motor: The motor can shut off and restart after a cool-down period of up to 30 minutes.
• Drain restriction: Straighten a kinked drain hose; a poor drain can leave the load too wet.

What “reset” fixes vs. what needs troubleshooting

Symptom	Reset helps most when	More likely cause
Won’t start	Control got stuck after a pause/power flicker	No power at outlet, breaker tripped
Won’t spin	Cycle was interrupted	Lid not fully closed, out-of-balance load
Stops mid-cycle	Temporary control glitch	Motor overheated (cool-down needed)

Why it matters

Resetting clears a temporary control interruption, but this washer’s safety features (like the lid lock during spin) and basic conditions (power, lid closed, proper cycle selection) still have to be correct for the washer to run normally.

Last updated: February 2026

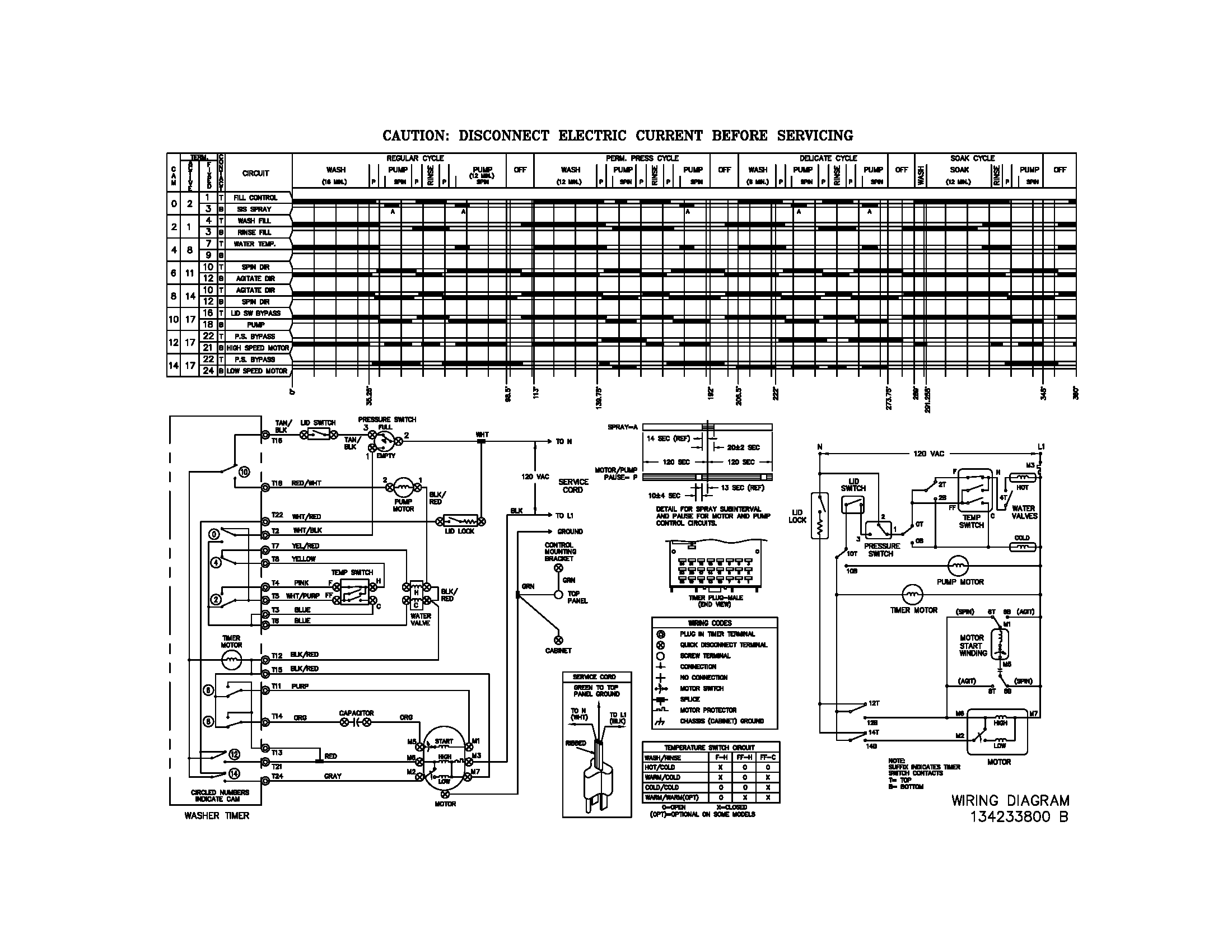

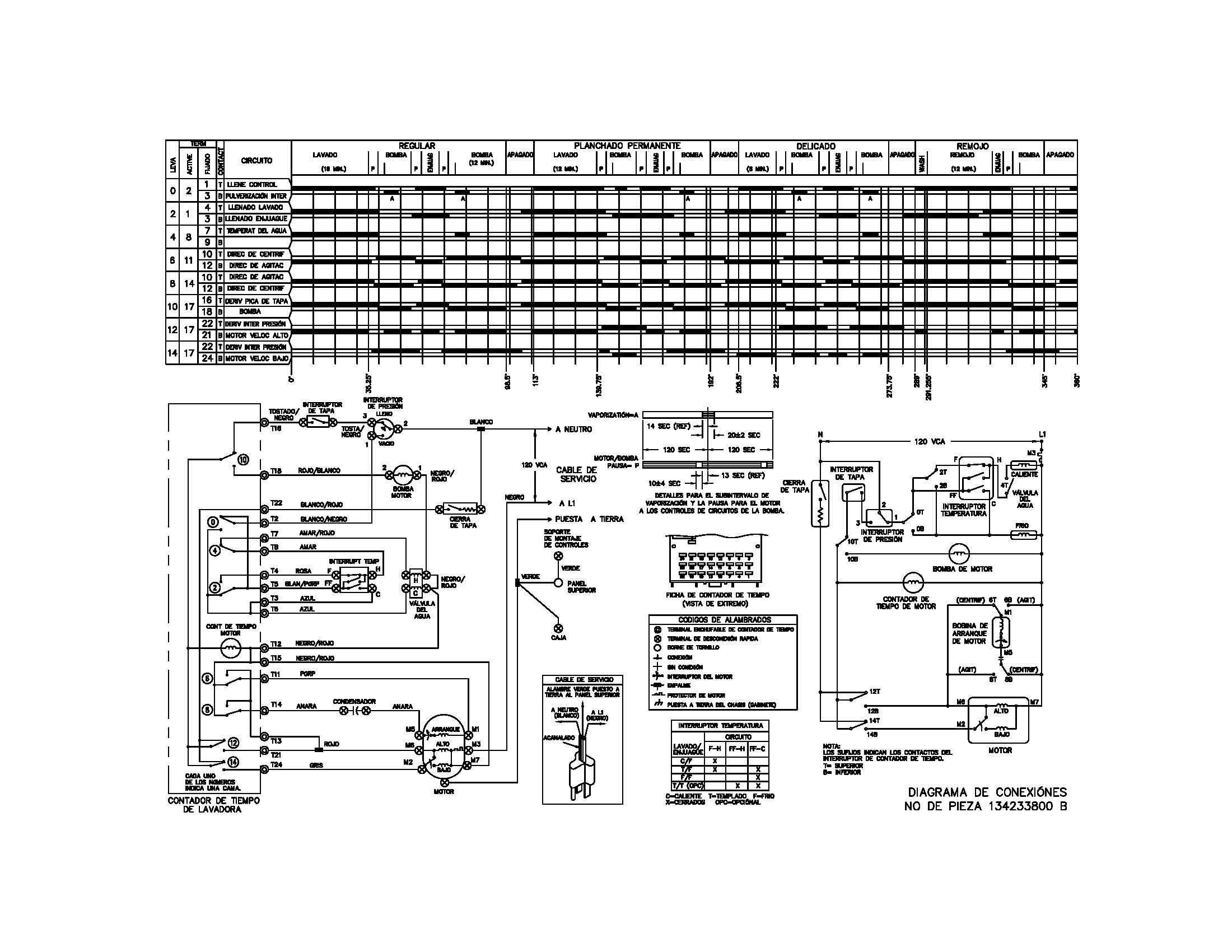

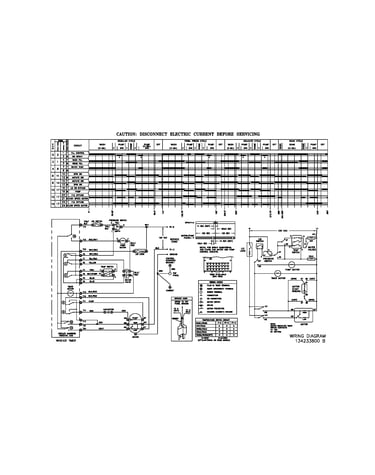

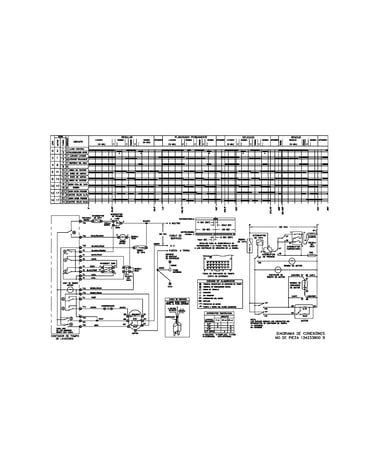

FWSB5700DS0 is the model number for your Frigidaire washer, not an error code. We use the model number to match the correct parts list, wiring diagram location info, and the right operating and installation instructions for your exact washer.

Where you’ll see the model number

On Frigidaire washers like model FWSB5700DS0, the model and serial information is recorded from the washer’s serial plate. Use the FWSB5700DS0 owner's manual to confirm where to find and record these numbers.

Common places customers check first:

• Under the washer lid (often on the underside of the lid or around the opening)
• On the cabinet frame near the lid opening
• On a label at the back of the washer
• In your purchase paperwork (if available)

Model number vs. error code (quick comparison)

If you’re seeing letters and numbers on the control area, this table helps you sort out what you’re looking at.

What you see	What it usually means	What to do next
FWSB5700DS0	Model identifier	Use it to find correct parts and instructions
Short code (letters or letters + numbers)	An operating status or fault code	Check the troubleshooting section in the manual
No display, only lights	Cycle status or a control issue	Verify power, then follow the manual checks

Why it matters

Using the exact model number FWSB5700DS0 prevents ordering the wrong Frigidaire parts and speeds up troubleshooting. It also helps when you’re checking installation requirements (power, water supply, drain setup) in the installation guide.

If you were actually looking for an error code

If your washer is showing a separate code (not the model number), start with these practical checks:

• Unplug the washer or switch off the breaker for 1 minute, then restore power
• Confirm the lid is fully closed and nothing is caught between the lid and rim
• Run a complete cycle and watch when the problem happens (fill, agitate, drain, spin)
• Check for draining issues if water remains in the tub (a common cause of “won’t spin” complaints)
• Use the model number to match the right troubleshooting steps and parts

If the issue is “won’t drain” or “won’t spin,” common repair parts for this model include the washer drain pump 137221600 and the belt 134511600.

Last updated: February 2026

On the Frigidaire FWSB5700DS0 washer, an E4 code is most often caused by an out-of-balance condition during spin. We fix it by stopping the cycle, redistributing the load, and making sure the washer sits firmly and level; then we check for drain restrictions if the load stays too wet.

Quick fixes to try first

• Pause the washer and rearrange the load (mix large and small items; avoid one heavy item by itself).
• Reduce load size if the tub is packed or items are waterlogged.
• Confirm the washer is resting firmly on the floor; adjust leveling legs as needed.
• Listen for ongoing thumping or vibration; that points back to balance and leveling.
• If the load is still very wet, inspect the drain hose for kinks and straighten it.

For model-specific operating and installation checks, use the FWSB5700DS0 owner's manual.

When E4 keeps coming back (what to inspect)

An E4 condition can repeat when the washer cannot reach or maintain a stable spin. These checks target the most common causes:

• Drain path restriction: kinked or clogged drain hose, slow draining, or standing water.
• Drain pump issue: pump not moving water out fast enough.
• Drive system slip: belt slipping can reduce spin performance.

Parts that commonly solve repeat spin and drain problems

Symptom you notice	Most likely area	Part on this model page
Tub won’t drain or drains slowly	Drain system	Washer drain pump 137221600 or washer drain hose 134592700
Spins weakly, squeals, or slips under load	Drive system	Belt 134511600

Why it matters

Running repeated out-of-balance spins can leave clothes too wet, increase vibration, and strain the drive and drain systems. Correct loading, solid leveling, and a clear drain path help the washer spin smoothly and finish cycles normally.

Last updated: February 2026

For your Frigidaire FWSB5700DS0 washer to drain, the drain hose must be installed correctly and free of kinks or clogs. Straighten and clear the hose, confirm the standpipe setup has an air gap, then run a drain and spin to verify normal pumping (see the owner's manual).

Quick checks that fix most “won’t drain” problems

• Unplug the washer, then check the drain hose for kinks, crushing, or a clog.
• Make sure the formed end of the drain hose is secured in the tub or standpipe (not laying flat).
• Confirm the standpipe has an air gap around the hose; a tight fit can cause siphoning.
• Verify the standpipe height is at least 33 inches to prevent siphoning.
• Reduce detergent if you see heavy suds; oversudsing can slow draining.
• If the washer drains slowly, check the home drain for a blockage.

Drain hose setup requirements (installation basics)

A correct drain installation prevents siphoning and helps the pump move water out efficiently. The installation guidance for this washer calls for a standpipe with at least a 1-1/4 inch inside diameter and an air gap around the hose.

Item to check	What “correct” looks like	What happens if it’s wrong
Standpipe height	33 inches minimum	Water can siphon back; tub may not fill or may drain oddly
Standpipe diameter	1-1/4 inches minimum	Hose can bind; draining can be restricted
Air gap	Hose not sealed tight in standpipe	Siphoning; inconsistent fill and drain

When a part is likely needed

If the hose and household drain are clear but the washer still will not drain (or you hear humming with no water movement), the drain pump is the most common suspect.

• If the pump runs but water barely moves: internal blockage or weak pump
• If the pump is silent during drain: electrical issue, wiring, or control problem
• If you see leaks near the pump area: pump housing or hose connection issue

For this model, the replacement part is the washer drain pump 137221600.

Why it matters

A washer that cannot drain will not spin properly, can leave clothes soaking wet, and can trigger repeated cycle interruptions. Correct hose routing and standpipe setup also prevents siphoning, which can look like a “drain problem” even when the pump is fine.
