Eureka
Canister Vacuum

Model #SE3712A Eureka vacuum cleaner

Here are the diagrams and repair parts for Eureka SE3712A vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 51 parts

    Baffle Plate#12

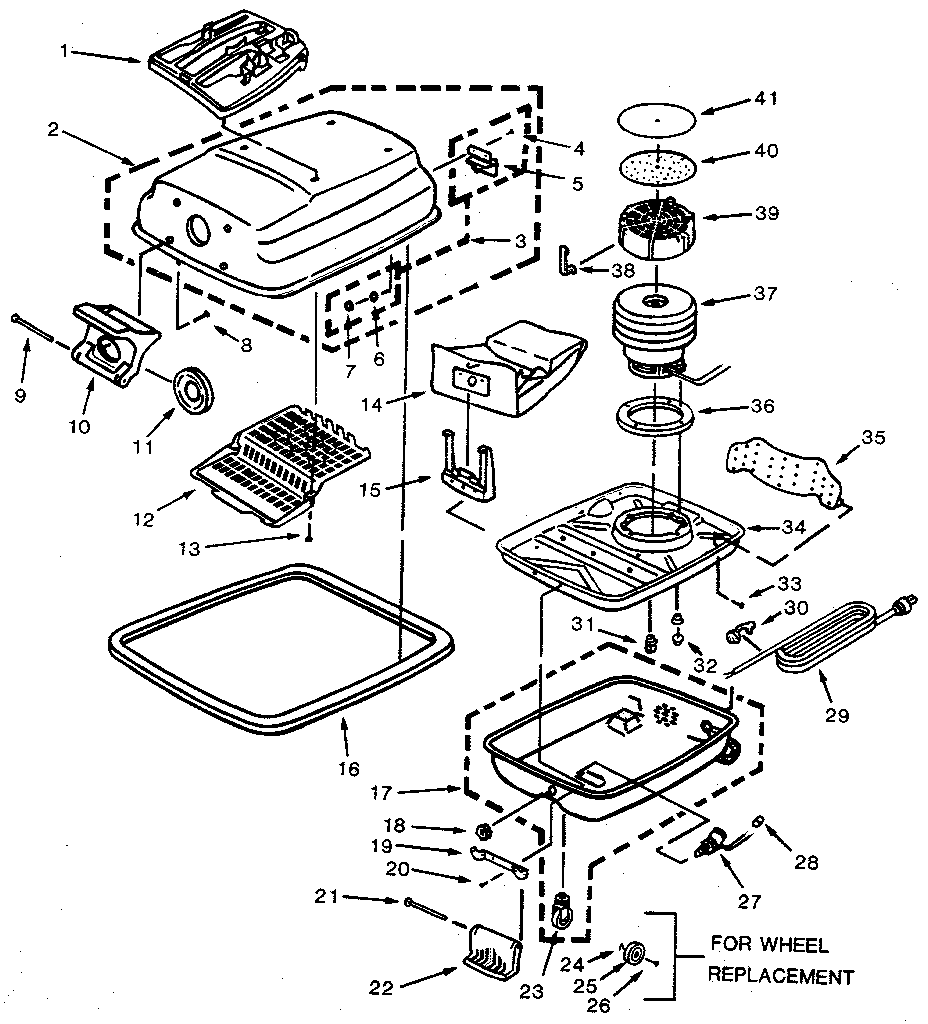

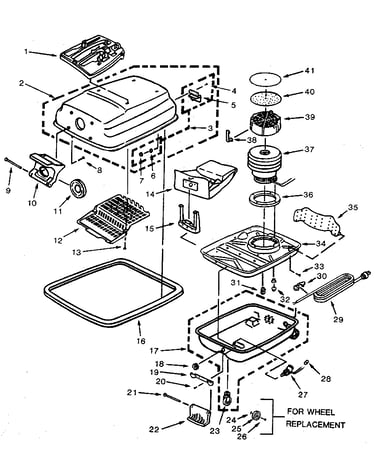

    Vacuum cleaner parts Diagram

    Baffle plate

    Part #14111

    The manufacturer no longer makes this part, and there's no substitute part

    Strain Relief#30

    Vacuum cleaner parts Diagram

    Strain relief

    Part #53089-1

    The manufacturer no longer makes this part, and there's no substitute part

    Screw Bushing#32

    Vacuum cleaner parts Diagram

    Screw bushing

    Part #56558-2

    The manufacturer no longer makes this part, and there's no substitute part

    Bleeder#2

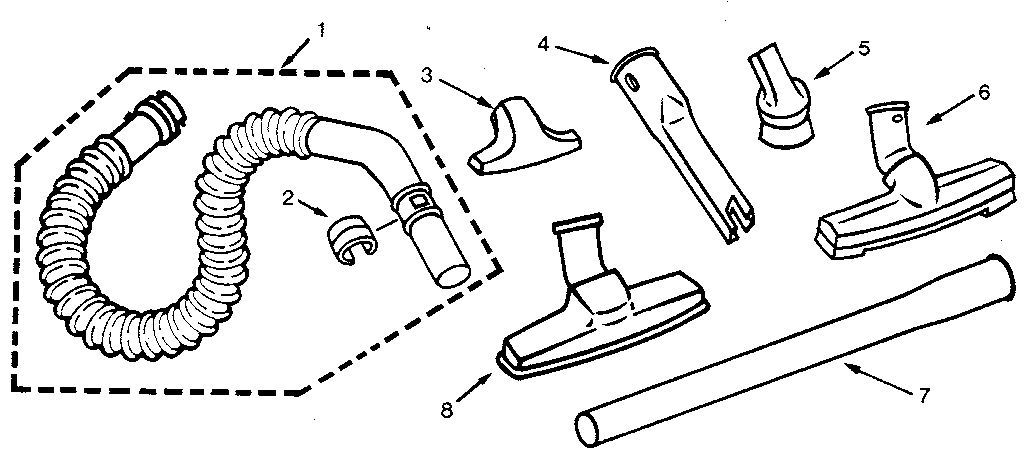

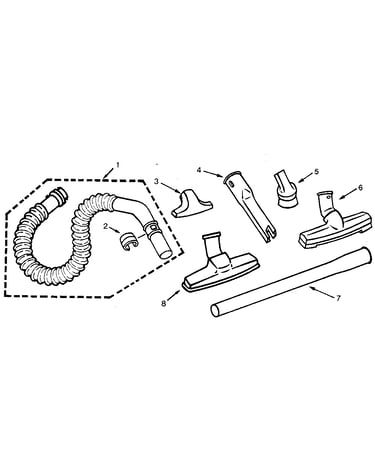

    Hose and attachment parts Diagram

    Bleeder

    Part #34272-5

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Nut#7

    Vacuum cleaner parts Diagram

    Hex nut

    Part #53213-3

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#8

    Vacuum cleaner parts Diagram

    Screw

    Part #EW285-8T6C

    The manufacturer no longer makes this part, and there's no substitute part

    Wire Clip#31

    Vacuum cleaner parts Diagram

    Wire clip

    Part #53120

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    See All Related Diagrams

    Screw

    Part #53134

    The manufacturer no longer makes this part, and there's no substitute part

    Filter Clip#38

    Vacuum cleaner parts Diagram

    Filter clip

    Part #48756-1

    The manufacturer no longer makes this part, and there's no substitute part

    Cotter Pin#24

    Vacuum cleaner parts Diagram

    Cotter pin

    Part #53232-1

    The manufacturer no longer makes this part, and there's no substitute part
