Kenmore 10686485691 automatic ice maker Parts
Here are the diagrams and repair parts for Kenmore 10686485691 automatic ice maker, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 10686485691 Automatic Ice Maker

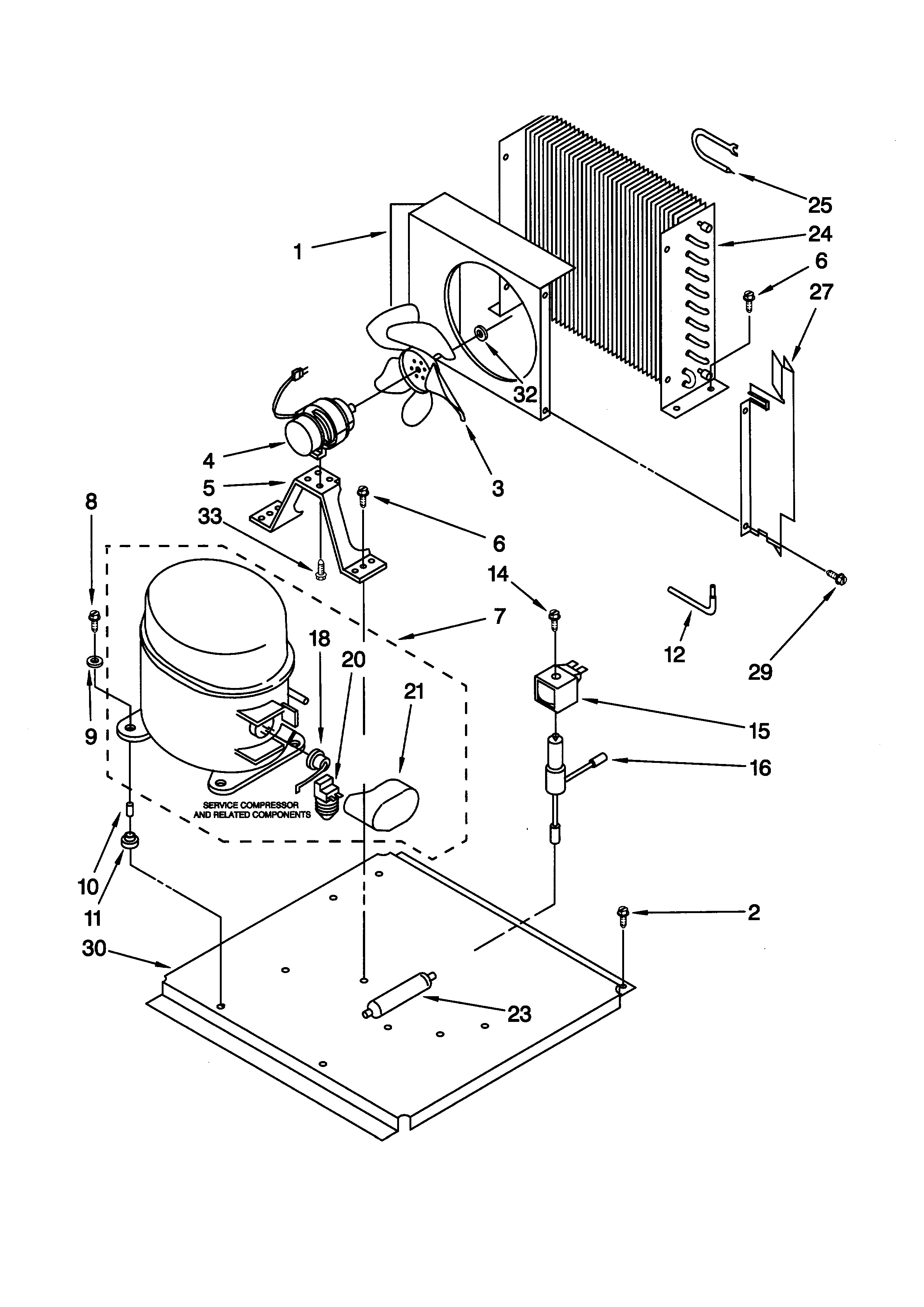

Unit diagram
Screw
Part #681305
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Ice Maker Solenoid Coil
Part #759112
The manufacturer no longer makes this part, and there's no substitute part

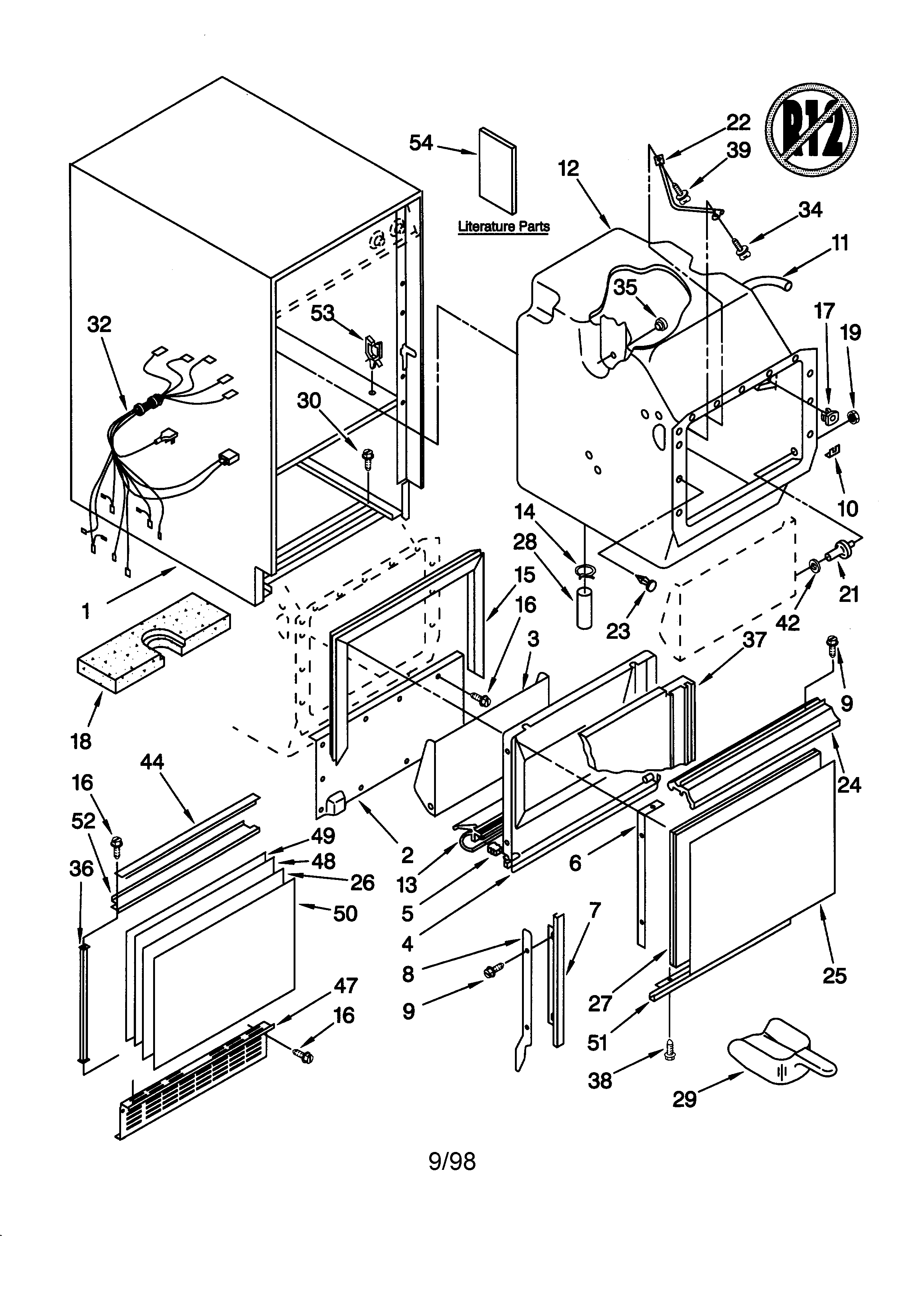

Cabinet liner and door diagram
Washer
Part #681613
The manufacturer no longer makes this part, and there's no substitute part

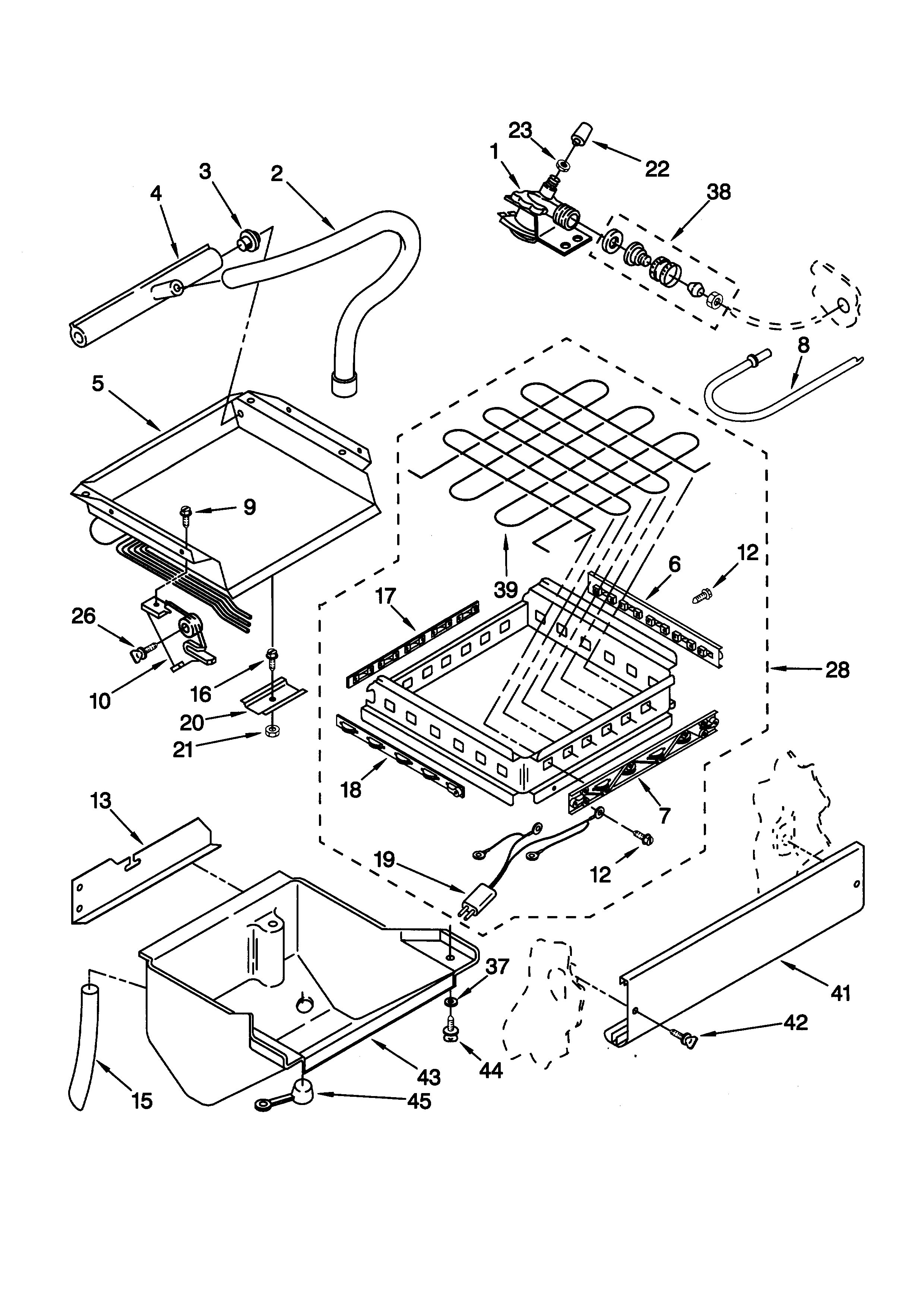

Evaporator/ice cutter grid/water diagram
Spacer
Part #2174724
The manufacturer no longer makes this part, and there's no substitute part

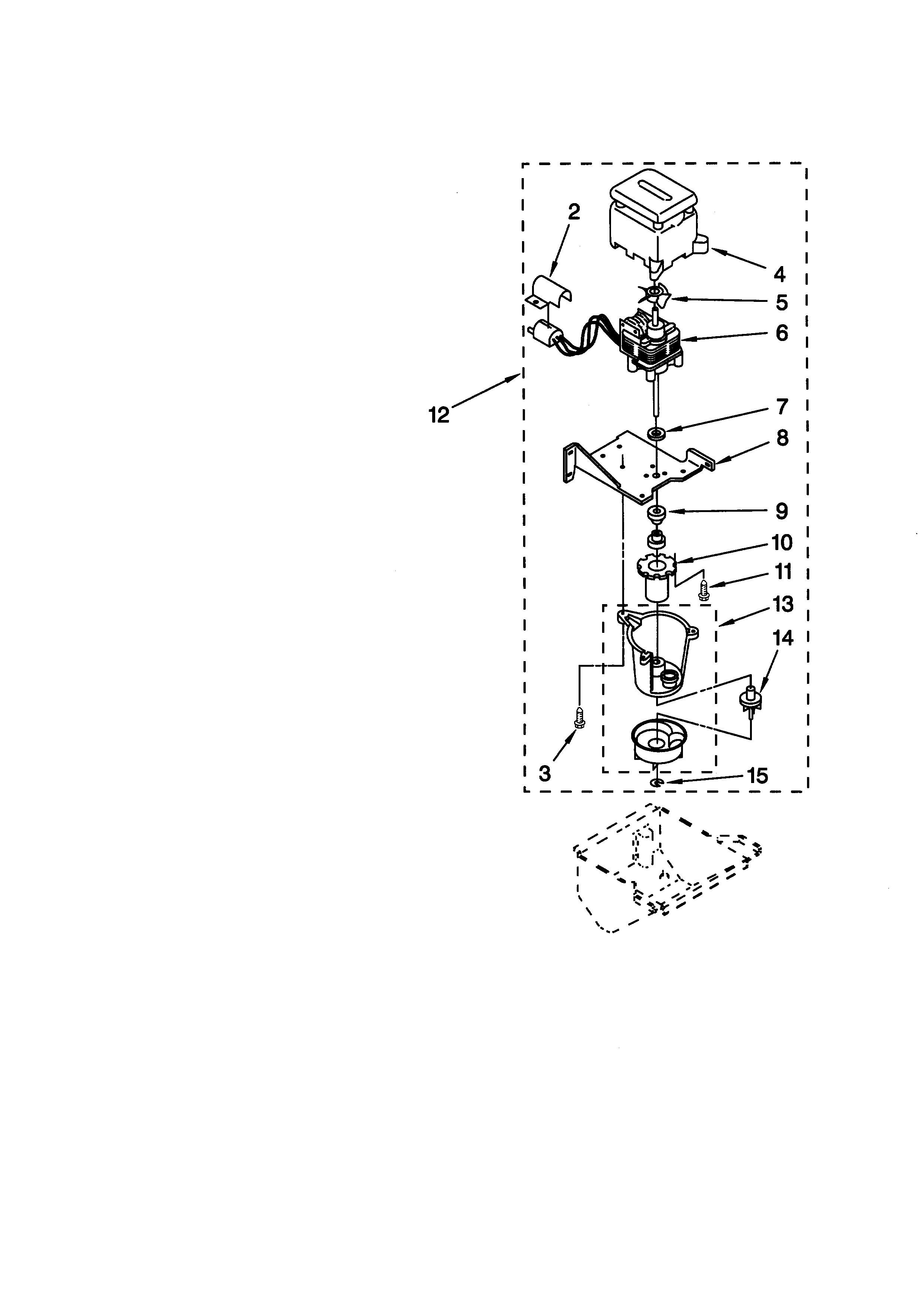

Pump diagram
Cover
Part #756124
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door diagram
Stud
Part #758220
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door diagram
Clip
Part #596812
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Bracket
Part #560817
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Nut
Part #681650
The manufacturer no longer makes this part, and there's no substitute part

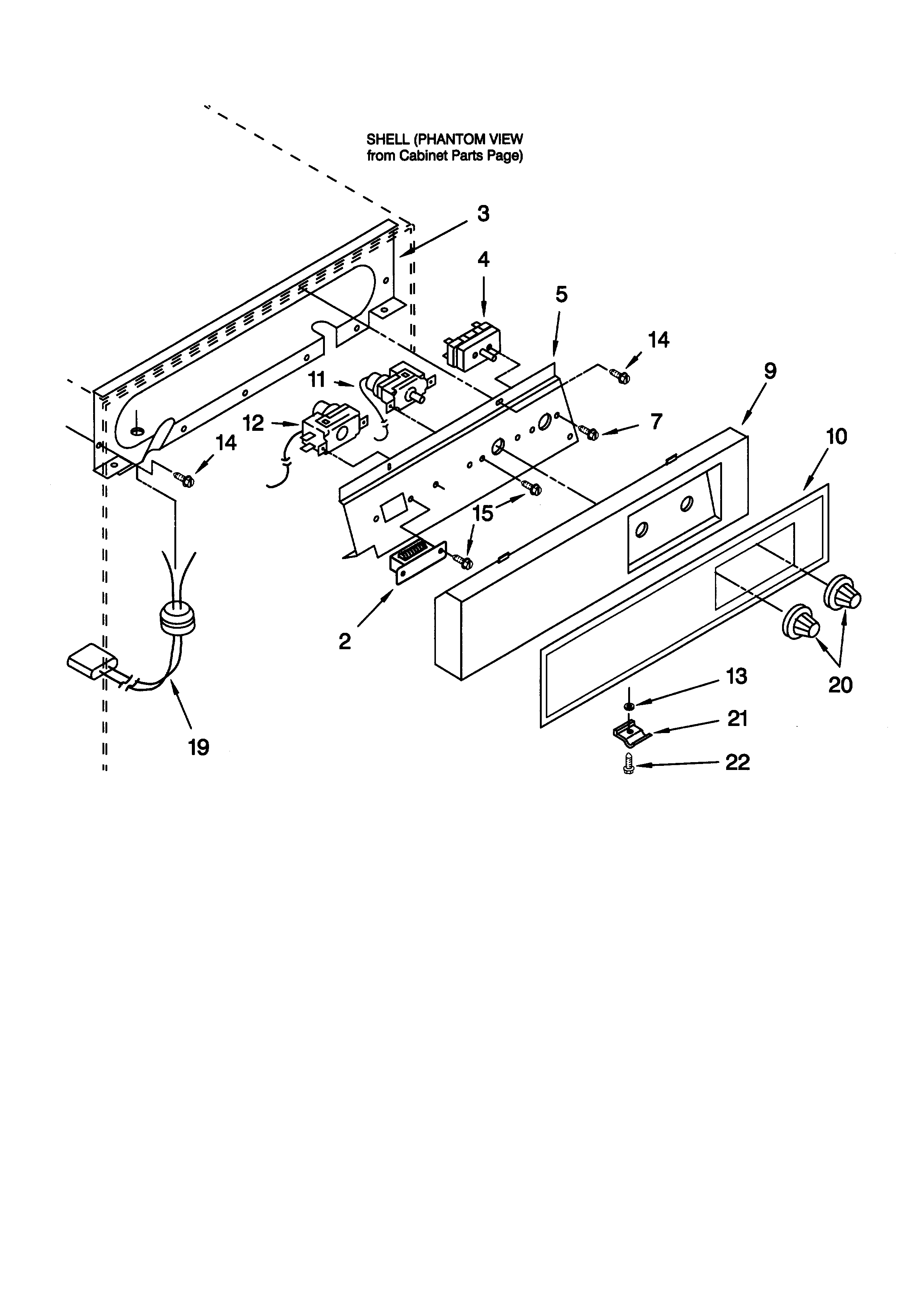

Escutcheon and control diagram
Control Knob
Part #2180895
The manufacturer no longer makes this part, and there's no substitute part
