Craftsman 91725874 st 16 garden tractor Parts
Here are the diagrams and repair parts for Craftsman 91725874 st 16 garden tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 91725874 Riding Mowers & Tractors

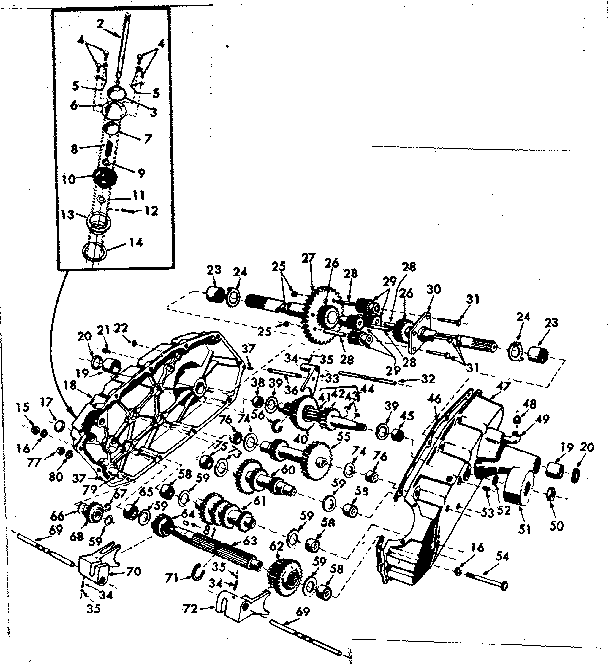

Transaxle diagram
Ball
Part #7392MReplaced by #532100482
Manufacturer substitutionThis part replaces 7392M. Substitute parts can look different from the original.This item is not returnableIn Stock$8.4011% OFF Phone Price : $9.40
Qty

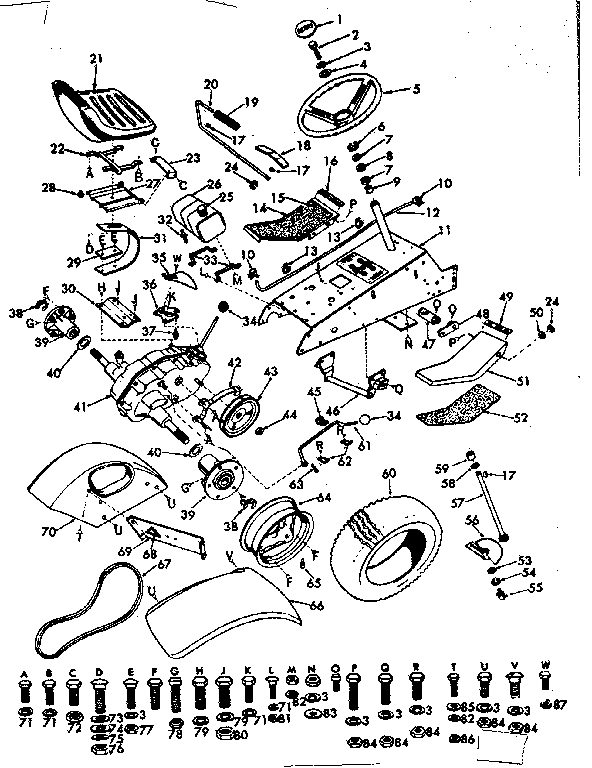

Steering and final drive diagram
Tire Tublss
Part #794RReplaced by #582957101
Manufacturer substitutionThis part replaces 794R. Substitute parts can look different from the original.In Stock$263.00$12.00 OFF Phone Price : $275.00QtySteering and final drive diagram
Wheel
Part #2893RReplaced by #548336001
Manufacturer substitutionThis part replaces 2893R. Substitute parts can look different from the original.In Stock$372.84QtyElectrical diagram
Battery Bolt
Part #5072H
The manufacturer no longer makes this part, and there's no substitute part

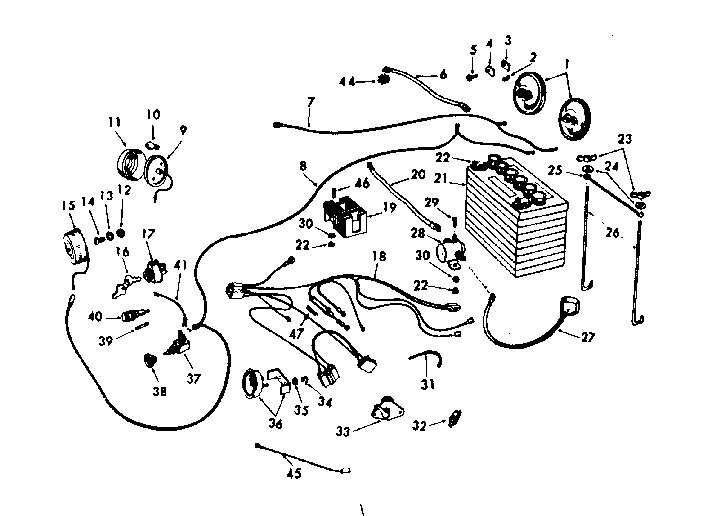

Electrical diagram
Key
Part #7552H
The manufacturer no longer makes this part, and there's no substitute part

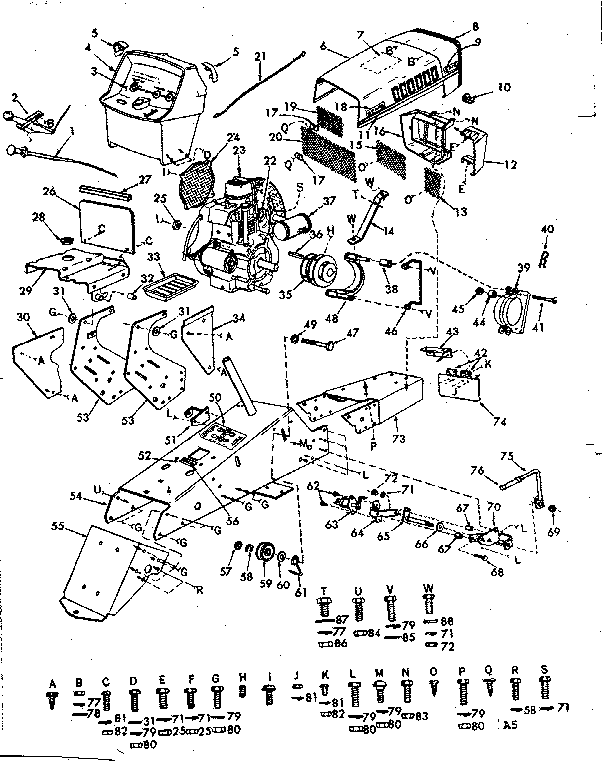

Main frame, dash and grill diagram
Control
Part #6259R
The manufacturer no longer makes this part, and there's no substitute part

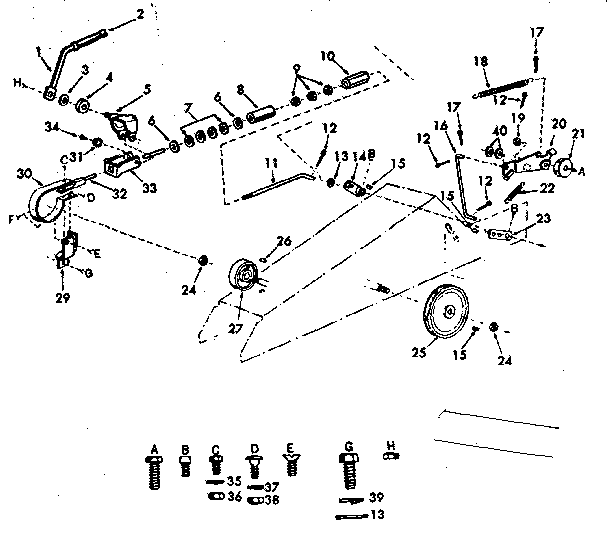

Brake and clutch diagram
Huglock Nut
Part #9071H
The manufacturer no longer makes this part, and there's no substitute part
Transaxle diagram
Lock Washer
Part #1007P
The manufacturer no longer makes this part, and there's no substitute part
Transaxle diagram
Shift Fork
Part #6260H
The manufacturer no longer makes this part, and there's no substitute part
Steering and final drive diagram
Flat Washer
Part #1559P
The manufacturer no longer makes this part, and there's no substitute part
