Whirlpool WFW9400VE01 washer Parts

On the Whirlpool WFW9400VE01, you typically clear a door lock issue by canceling the cycle and letting the washer drain so the door can unlock; then restart the cycle. If the controls are locked, unlock the control panel first. For model-specific button steps, use the owner's manual.

Quick reset steps (most effective)

• Press PAUSE/CANCEL twice to cancel the cycle.
• If there is water in the tub, select DRAIN/SPIN and press START (about 1 second).
• Wait for the cycle to finish; the door unlocks after the spin completes.
• Close the door firmly and restart your wash cycle.
• If Controls Lock is on, press and hold CONTROLS LOCK/UNLOCK for 3 seconds to turn it off.

If you see a door lock error (F22)

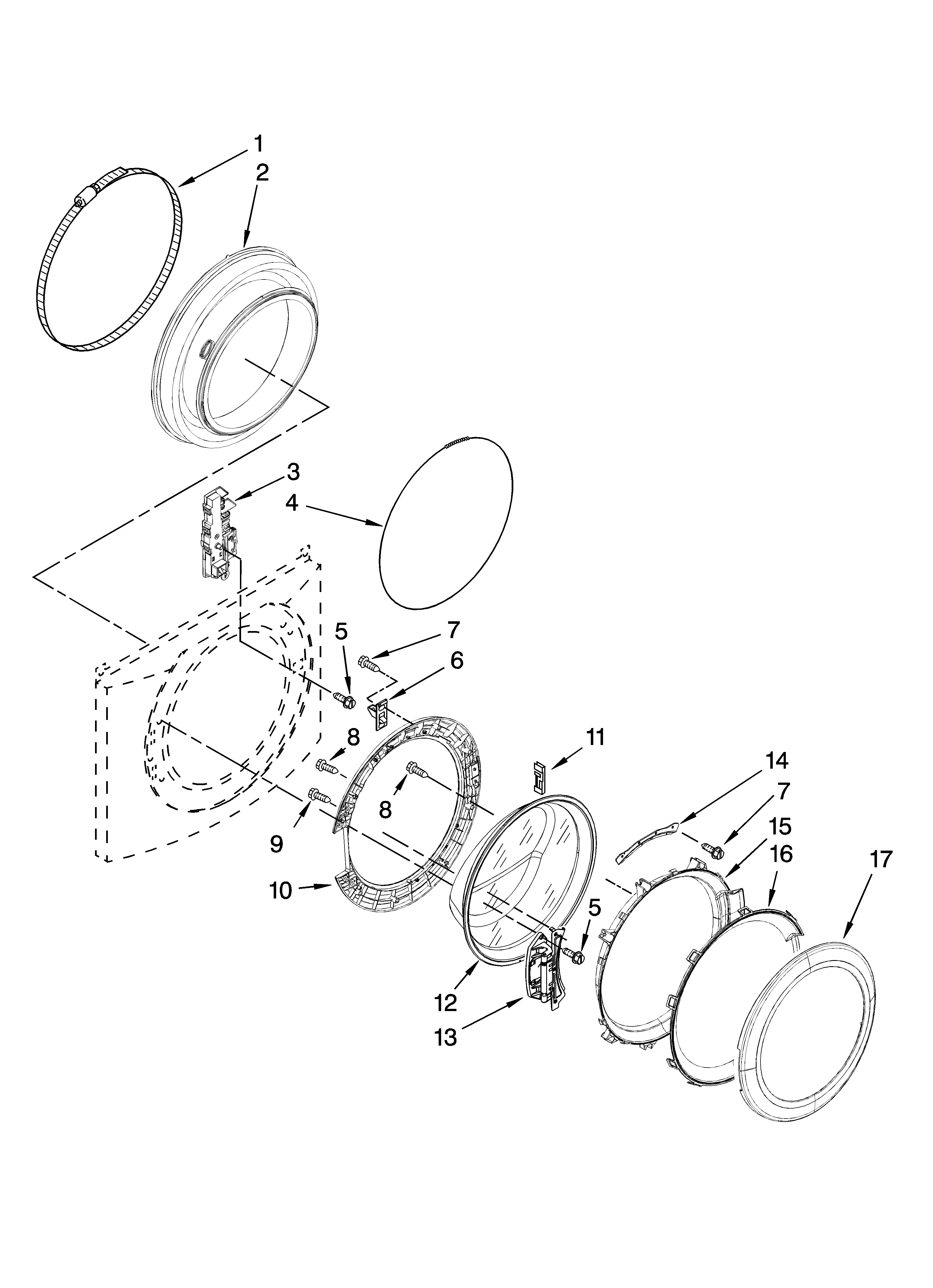

The WFW9400VE01 uses a front door lock (not a lid lock). If you get F22 (Front door lock), do this:

• Open the door and close it firmly so it fully latches.
• Check for clothing caught between the door and the door opening.
• Reduce load size if the basket is overfilled.
• Cancel the cycle (PAUSE/CANCEL twice), then restart.

Common causes and what to check

What you notice	Most likely cause	What to do next
Door will not unlock	Water level too high	Run DRAIN/SPIN and wait for unlock
F22 shows up	Door not fully latched	Re-close door firmly; remove trapped items
Buttons do nothing	Controls Lock enabled	Hold CONTROLS LOCK/UNLOCK 3 seconds
Door won’t stay aligned	Hinge or latch issue	Inspect hinge and lock for looseness

When a part is the fix

If the door won’t latch consistently or the lock error returns after resets, the lock or hinge can be worn.

• Consider replacing the washer door lock WP8183270 if the latch mechanism is failing.
• If the door is sagging or misaligned, check the washer door hinge WP8183202.

Why it matters

A front-load washer will not tumble or spin unless the door lock confirms the door is fully closed; canceling and draining safely removes water pressure so the lock can release and the cycle can restart normally.

Last updated: February 2026

Some Whirlpool washer parts are interchangeable, but only when the replacement part is listed as compatible for your exact model, Whirlpool WFW9400VE01. For the best fit and performance, we recommend using factory-specified parts for this washer and confirming compatibility in the parts list or the owner's manual.

What “interchangeable” really means for WFW9400VE01

Parts interchangeability depends on more than brand name. Whirlpool often uses similar designs across model families, but differences in wiring, mounting points, and software can make a “close” part fail or not fit.

Common examples where interchangeability breaks down:

• Control boards and sensors can have different connectors or programming
• Door lock and latch assemblies can vary by harness style
• Hoses and clamps can differ by diameter, length, or port angle
• Suspension parts can be tuned for a specific tub and counterweight
• Door components can change with hinge geometry and boot shape

Parts on this model page that should match WFW9400VE01

If you are repairing a leak, door issue, or vibration, these model-listed parts are the right starting point:

• Washer door boot WP8182119
• Washer door lock WP8183270
• Washer shock absorber W10822553
• Washer tub-to-pump hose WPW10467168

Quick compatibility check

Use this checklist before ordering:

• Match the model number exactly: WFW9400VE01
• Match the part ID on the listing to the part you need
• Compare mounting points, electrical connectors, and hose ports
• If your washer shows an error, confirm the failure first (not just the symptom)

Part type	Usually interchangeable?	What to verify first
Door boot, clamps	Sometimes	Diameter, drain port location, clamp style
Door lock/hinge	Sometimes	Connector style, strike alignment
Control boards	Rarely	Part ID match and correct revision
Suspension/shocks	Sometimes	Quantity, mounting ends, damping rating

Why it matters

Using the correct, factory-specified part prevents leaks, door sealing problems, repeat error codes, and premature wear. It also reduces the chance of ordering a part that physically fits but does not operate correctly.

Last updated: February 2026

Whirlpool washing machines typically last 10 to 14 years. For your Whirlpool WFW9400VE01 front-load washer, consistent care (proper detergent use, avoiding overloads, and routine cleaning) is what most often determines whether you land closer to 10 years or closer to 14.

Typical lifespan and what affects it

Most washer life comes down to wear on moving parts, water leaks, and vibration.

• Load size and balance: frequent overloading shortens bearing, suspension, and shock life
• Detergent type and amount: too much HE detergent can cause oversudsing and stress the drain system
• Moisture management: leaving the door closed traps moisture and speeds up odor and boot deterioration
• Water quality: hard water can increase scale and residue buildup
• Maintenance habits: periodic cleaning reduces mold, residue, and leak risk

For model-specific use and care guidance, follow the cleaning and operating recommendations in the owner's manual.

Maintenance checklist that helps you reach the full lifespan

Use these habits to reduce the most common front-load failures (leaks, odor, vibration, and drain issues):

• Wipe the door glass and door boot dry after the last load of the day
• Leave the door slightly ajar between loads to vent moisture
• Run a monthly cleaning cycle (or hot cycle) as outlined in the manual
• Use HE detergent and measure carefully (less is usually better)
• Check fill hoses for bulges or cracking and replace if worn
• Level the washer to reduce shaking and suspension wear

Parts that commonly impact longevity on front-load washers

If you are seeing leaks, odor, door issues, or heavy vibration, these are common wear items for the WFW9400VE01:

Symptom	Common wear area	Example part for this model
Water on floor at front	Door seal/boot	Washer door boot WP8182119
Door will not lock/unlock	Door latch/lock	Washer door lock WP8183270
Excessive shaking/banging	Suspension damping	Washer shock absorber W10822553

Why it matters

A washer that is kept clean, level, and leak-free runs with less strain on the motor control, pump, and suspension. That directly reduces breakdowns and helps your Whirlpool washer reach its expected 10 to 14 year service life.

Last updated: February 2026

For Whirlpool washers like model WFW9400VE01, the most common problems we see are drain and spin issues (clothes staying wet) and water leaks. Many of these start with simple causes such as excess suds, an unbalanced load, or a clogged/kinked hose, as outlined in the owner's manual.

Most common issues (and what usually causes them)

• Won't drain or won't spin: drain hose restriction, drain height too high (over 96 in.), low household voltage, or the SUD routine from too many suds
• Clothes too wet after the cycle: wrong cycle selection, overloaded drum, or a single bulky item causing imbalance
• Leaks: loose fill hoses, hose connection seepage, or a worn door seal area
• Noise or vibration: washer not level, feet not set correctly, or loads with metal snaps/zippers contacting the drum
• Odor: non-HE detergent residue and leaving the door closed between loads

Quick checks we recommend first

1. Reduce suds: Use HE detergent and the correct amount; too many suds can trigger a longer routine and affect draining/spinning.
2. Fix load balance: Add a few items to a single bulky load; redistribute and run DRAIN/SPIN.
3. Check drain setup: Make sure the drain hose is not clogged and the standpipe height is 96 inches (2.4 m) or less.
4. Inspect inlet hoses: Turn off water, remove hoses, and clean inlet valve screens; reinstall and check for leaks.
5. Level the washer: All four feet should be firmly on the floor with the lock nuts tightened.

Common symptoms and the most likely next step

Symptom	Most likely cause	Best next step
Clothes soaking wet	Imbalance or wrong cycle	Redistribute load; run DRAIN/SPIN
Won't drain/spin	Drain hose issue or excess suds	Check hose routing; reduce detergent
Shaking/banging	Not level or overloaded	Level feet; reduce load size
Musty smell	Residue and trapped moisture	Use HE detergent; leave door open

When a part is the likely fix

If you’ve ruled out setup and loading issues, a worn or failed part is often next. For this model, common leak and door-related repairs include the washer door boot WP8182119 and the washer door lock WP8183270.

Why it matters

Drain/spin problems and leaks can quickly lead to repeat wash cycles, odors, and water damage. Catching the simple causes first (suds, balance, hose routing, leveling) prevents unnecessary part replacement and gets your Whirlpool washer back to normal operation faster.

Last updated: February 2026

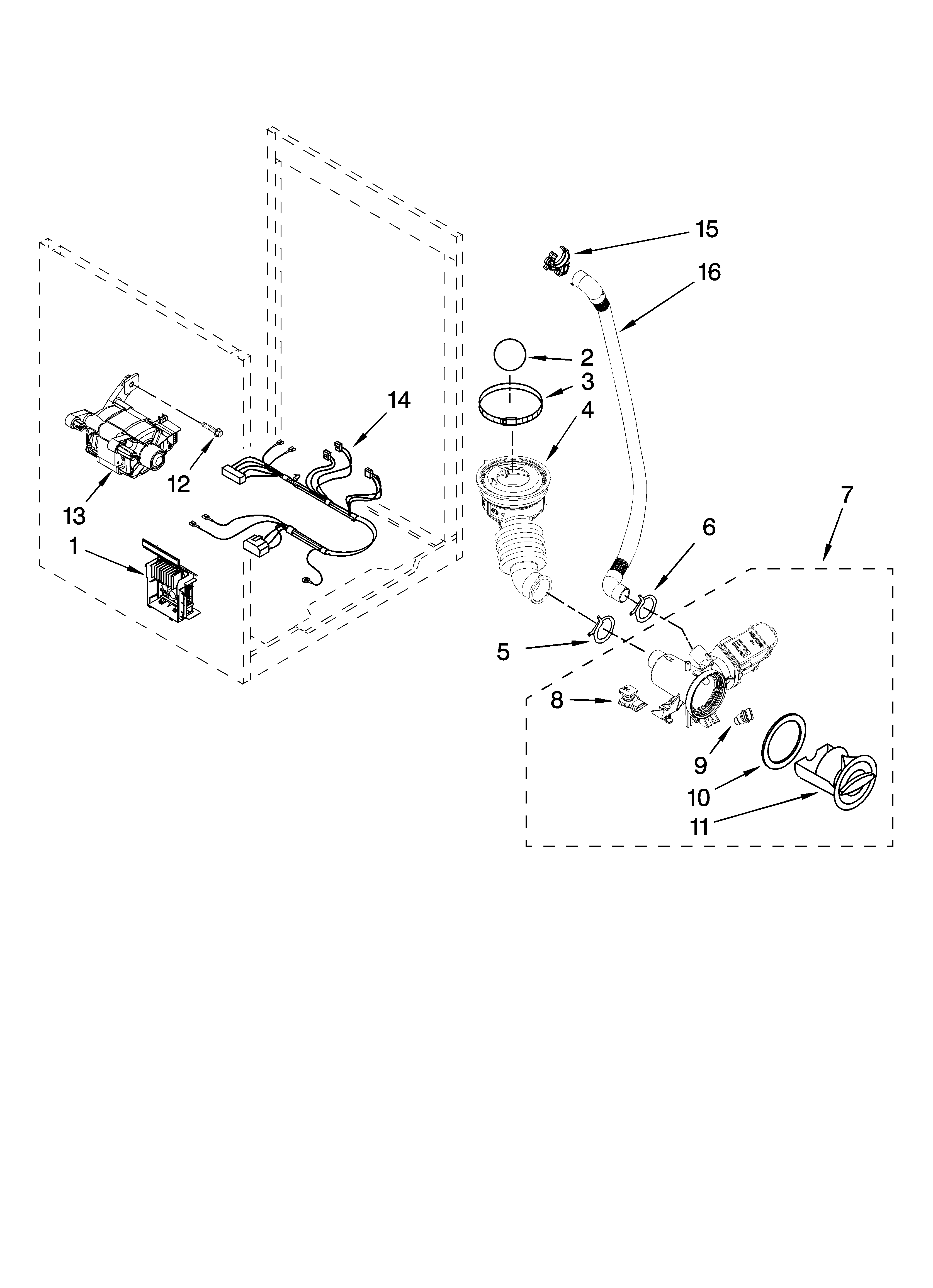

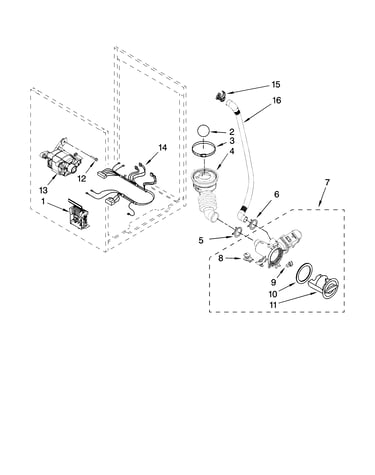

Yes. On the Whirlpool WFW9400VE01 front-load washer, the main “filter” you maintain is the drain pump clean-out (coin trap) area; cleaning it helps prevent slow draining, standing water, and odors. Use the steps in the WFW9400VE01 owner's manual for the correct access method and safety details.

Where the filter is and what it does

Most Whirlpool front-load washers use a drain pump clean-out that catches small items before they reach the pump.

Common signs it needs cleaning:

• Washer will not drain or drains slowly
• Water left in the drum after the cycle
• Rattling or grinding noise during drain
• Musty odor (especially after sitting)
• Error codes related to draining (model dependent)

How to clean the drain pump clean-out (safe, typical method)

1. Unplug the washer.
2. Place towels and a shallow pan under the lower front access area.
3. Open the lower access panel (or remove the toe panel, depending on configuration).
4. Drain water slowly (some models have a small drain hose; others drain when the cap is loosened).
5. Remove debris from the trap and check the pump cavity for obstructions.
6. Reinstall the cap firmly, close the panel, then run a quick rinse and drain to confirm no leaks.

Parts that commonly get disturbed during this job

If you see leaks afterward, these parts are often involved on this model:

• Door seal area: washer door boot WP8182119
• Boot retaining ring: washer door boot spring clamp WP8182210 (some builds use a different clamp style)
• Drain path to the pump: washer tub-to-pump hose WPW10467168

Quick reference: what to check

What you notice	Most likely cause	What to do next
Slow drain, water left in drum	Pump clean-out clogged	Clean trap and pump cavity
Loud noise during drain	Coin/hairpin in trap or pump	Remove obstruction, re-test
Leak after cleaning	Cap not seated, hose disturbed	Reseat cap, inspect hose/clamps
Repeated drain errors	Ongoing blockage or pump issue	Check drain hose, then evaluate pump

Why it matters

A partially blocked pump clean-out makes the washer work harder to drain; that increases cycle time, can leave detergent residue, and contributes to odor and mildew in a front-load washer.

For model-specific error code meaning and reset guidance, use Whirlpool duet alpha front load washer error codes.

Last updated: February 2026
