Whirlpool WRF550CDHZ01 refrigerator Parts

On your Whirlpool WRF550CDHZ01 bottom-mount refrigerator, the base grille (toe grille) typically pulls straight off from the front. Grasp the grille near the ends, pull forward to release the clips, then lift it away; reinstall by aligning it and snapping it back into place.

• Unplug the refrigerator or switch off power at the breaker (recommended before working near wiring).
• Open both refrigerator doors for better access.
• Grab the base grille near the left and right ends (not the center).
• Pull straight toward you to pop the retaining clips free.
• If the grille has screws on your unit, remove the screws first, then pull the grille forward.

• Line up the grille ends with the leveling leg/hinge areas.
• Press along the ends until the clips snap in.
• If your grille uses screws, reinstall and snug them (do not overtighten).

• Check for hidden screws at the ends or along the bottom edge.
• Pull evenly from both ends; twisting can bind the clips.
• If it feels stuck, gently work one end loose, then the other.
• Make sure the grille is not caught on the floor or a rug.

Removing the base grille gives you access to the condenser area and leveling legs. That helps with cleaning, checking airflow, and leveling the cabinet so the doors seal correctly.

For model-specific illustrations and fastener locations, follow the steps shown in the owner's manual.

Last updated: February 2026

The biggest problem we see in Whirlpool refrigerators like model WRF550CDHZ01 is a cooling problem: the fresh food section gets too warm, the freezer ices up, or temperatures swing. The most common root causes are restricted airflow, dirty condenser coils, or a defrost drain issue (all of which can also affect ice maker performance).

• Not cooling enough (fresh food warm, freezer OK or weak): airflow blockage, evaporator fan issue, frosted evaporator cover
• Freezer frosting or ice buildup: defrost system problem or door not sealing
• Water under the refrigerator or in the crisper area: clogged/iced defrost drain
• Ice maker not making ice or slow production: water supply restriction, filter issue, ice maker fault
• Unusual noises (buzzing, rattling, clicking): condenser fan area, ice maker cycling, or vibration from the cabinet/lines

1. Confirm controls are set to normal and vents are not blocked by food packages.
2. Clean condenser coils and make sure the unit has proper airflow around it.
3. Check door gaskets for gaps, tears, or areas not sealing.
4. If you have a water dispenser, verify strong flow; weak flow often tracks back to the filter or supply.
5. Look for frost behind the rear freezer panel; heavy frost usually means a defrost or airflow problem.

Cooling and airflow problems can quickly lead to food spoilage, excessive frost, and extra wear on the compressor. Catching simple causes early (airflow, coils, door seal, filter flow) prevents bigger repairs later.

• Use the owner's manual for temperature settings, airflow locations, and model-specific operating checks.
• If the refrigerator is showing a code or behaving oddly after a power outage, use Whirlpool refrigerator error codes to narrow the problem before replacing parts.

Last updated: February 2026

Most Whirlpool refrigerators last 10 to 15 years in typical home use; a well-maintained unit often reaches 15 to 20 years. For your Whirlpool WRF550CDHZ01 bottom-mount refrigerator, consistent airflow, clean seals, and on-time filter changes do the most to extend service life (see the owner's manual).

Refrigerator life depends more on usage and maintenance than brand alone. Here are practical ranges we see most often:

• Keep condenser area clean and allow space for ventilation behind and above the cabinet.
• Keep door gaskets clean and sealing; warm air leaks force longer compressor run time.
• Replace the water filter on schedule; a restricted filter can reduce dispenser flow and strain the water system.
• Avoid overpacking; blocked vents cause temperature swings and frost buildup.
• Keep freezer drawers closing fully; partial closure leads to moisture, frost, and fan noise.

• Food temperatures drift even after adjusting controls.
• Compressor runs almost constantly or cycles rapidly.
• Repeated ice maker or water dispenser problems.
• Excess frost, moisture, or puddling that keeps returning.
• Doors no longer align or seal well even after basic adjustments.

If performance issues are tied to water or ice, these model-matched parts are common maintenance or repair items:

• Refrigerator water filter EDR4RXD1

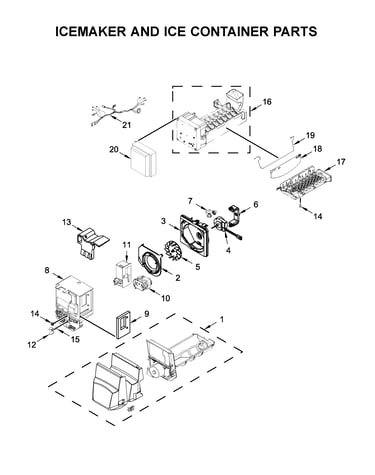

• Refrigerator ice maker assembly WPW10300024
• Whirlpool refrigerator door gasket, right (gray) W10830055

A refrigerator that is running longer to maintain temperature uses more energy and wears key components faster. Simple maintenance (airflow, seals, filters) helps your WRF550CDHZ01 cool more efficiently and last longer.

Last updated: February 2026

A bottom-mount layout (including French-door refrigerators with a bottom freezer drawer like Whirlpool WRF550CDHZ01) keeps the fresh-food section higher, so we grab everyday items with less bending. The freezer stays below, which works well when frozen foods are used less often.

• Fresh foods sit at eye and waist level for faster, more comfortable access
• Less bending compared with top-freezer designs
• Wide refrigerator shelves make it easier to see and organize groceries
• Bottom freezer drawer can separate items into tiers or baskets for better sorting
• Helps reduce “out of sight” leftovers because the main compartment is easier to scan

Most households open the refrigerator compartment far more than the freezer. Keeping fresh food higher reduces strain on your back and knees and makes it easier to spot what you have before it spoils.

• Put daily-use items (milk, eggs, leftovers) on the middle shelves
• Keep produce in the crisper drawers to maintain humidity
• Avoid overpacking the freezer drawer so cold air can circulate
• Follow temperature settings and loading guidance in the WRF550CDHZ01 owner's manual

Last updated: February 2026
