Model #11014502300 Kenmore washer

Here are the diagrams and repair parts for Kenmore 11014502300 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

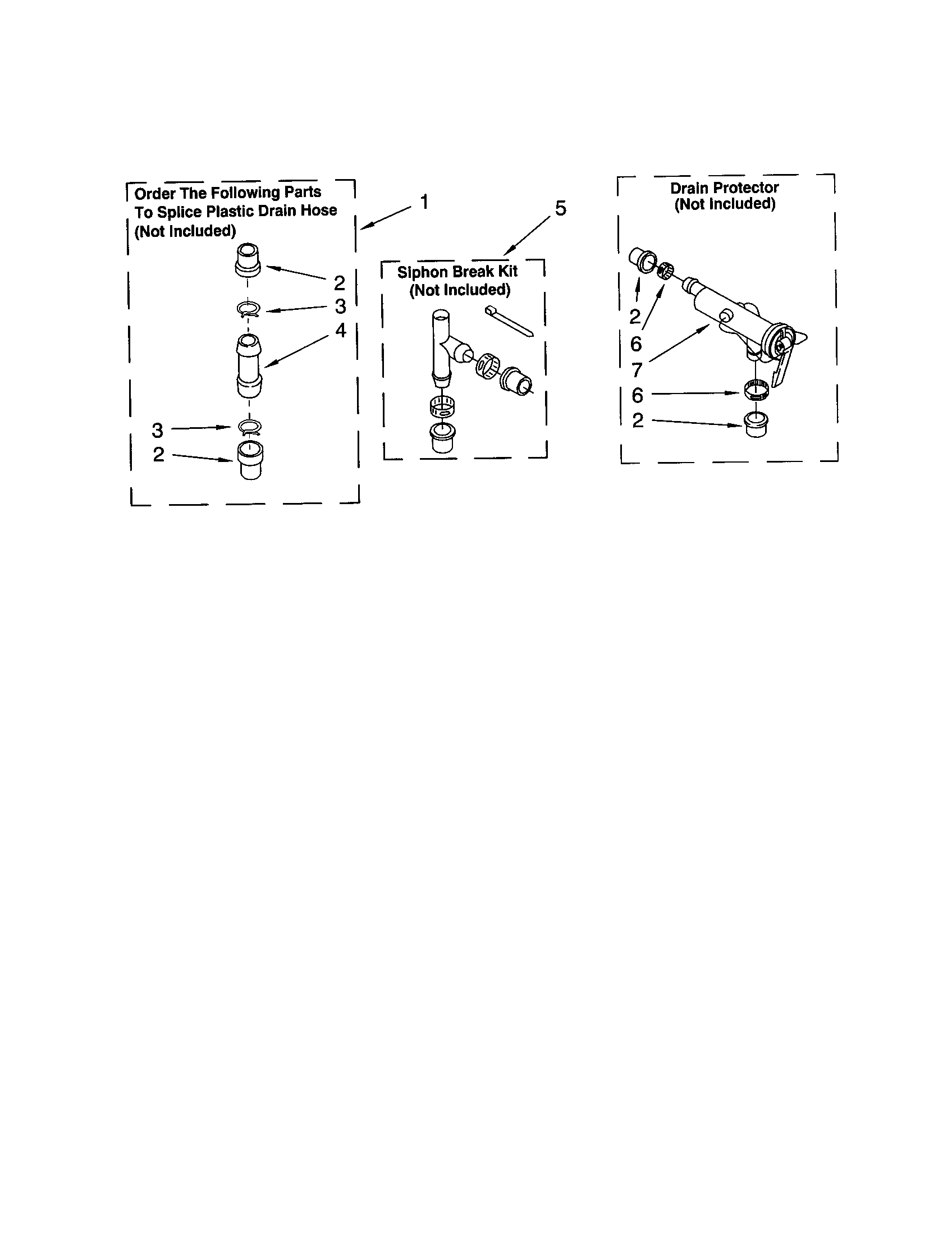

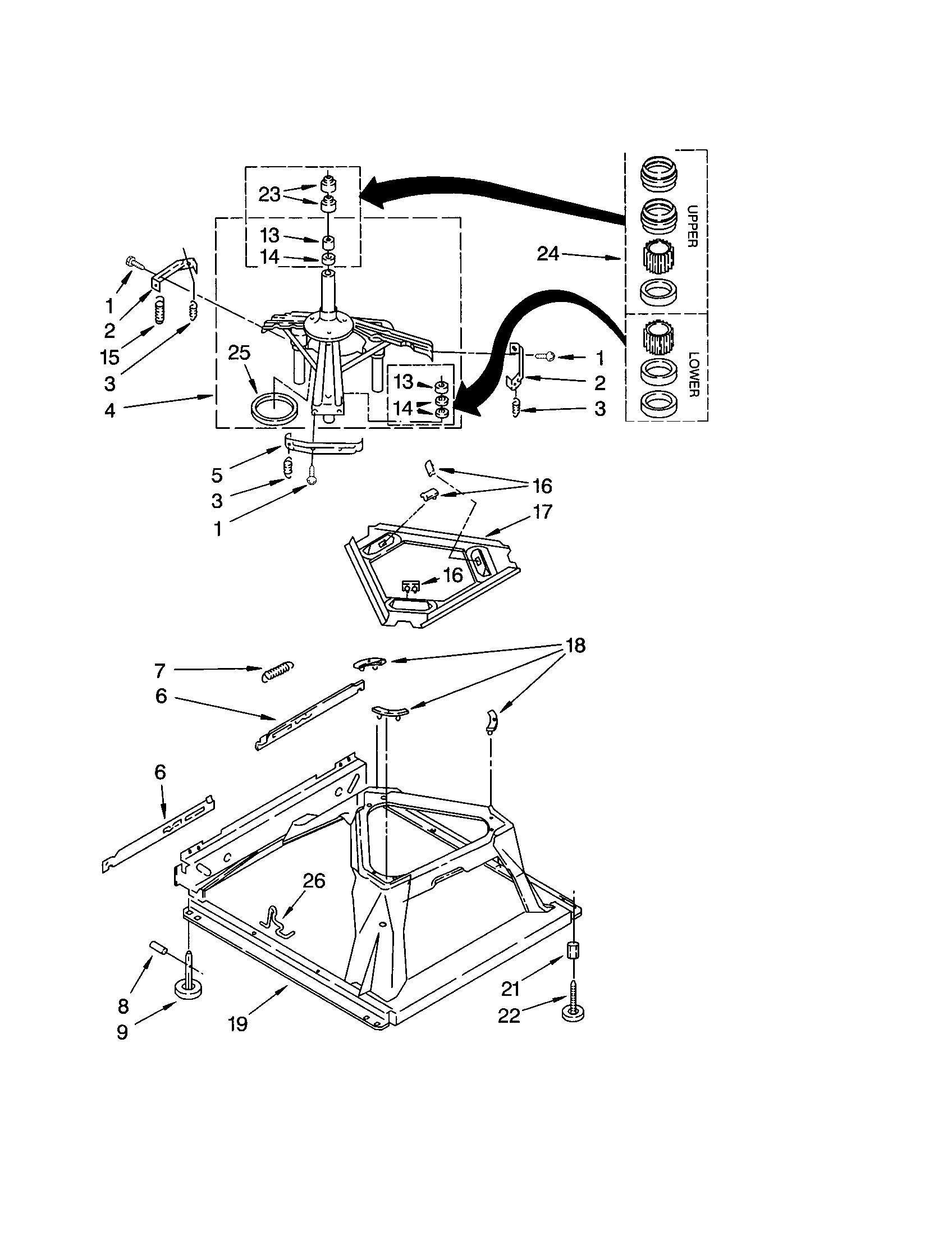

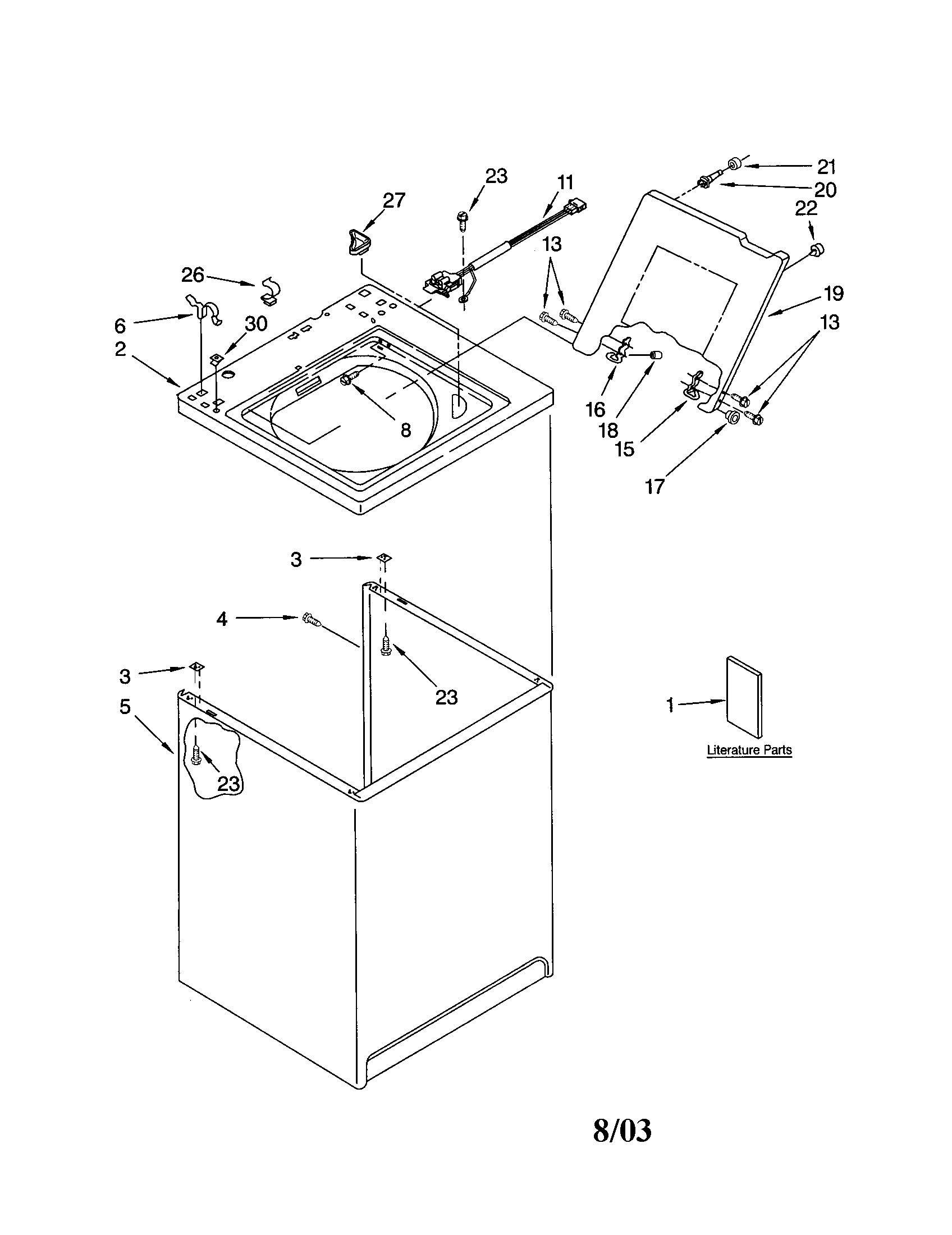

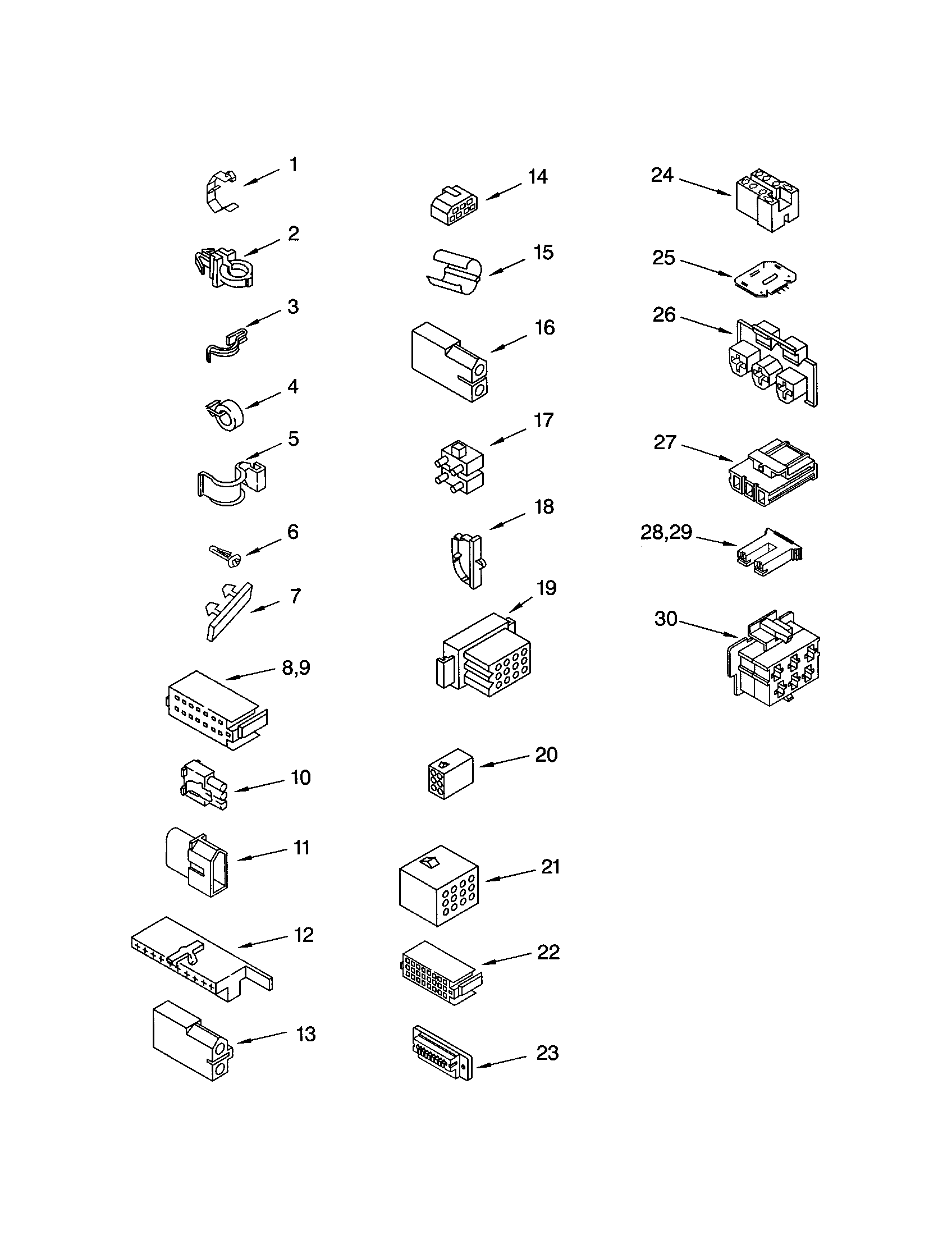

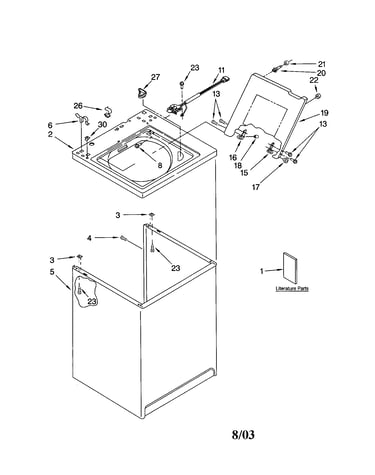

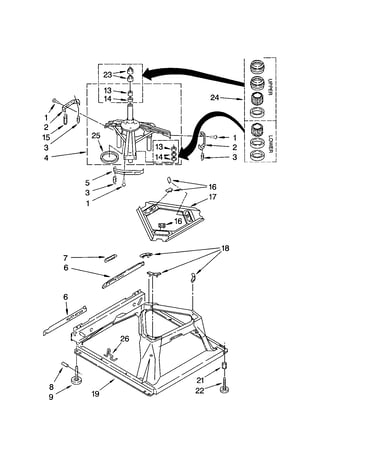

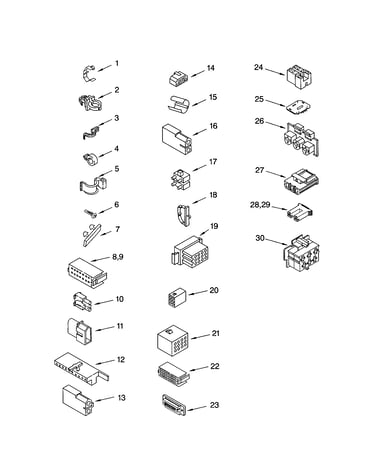

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 187 parts

    Washer Agitator Dog Set#5

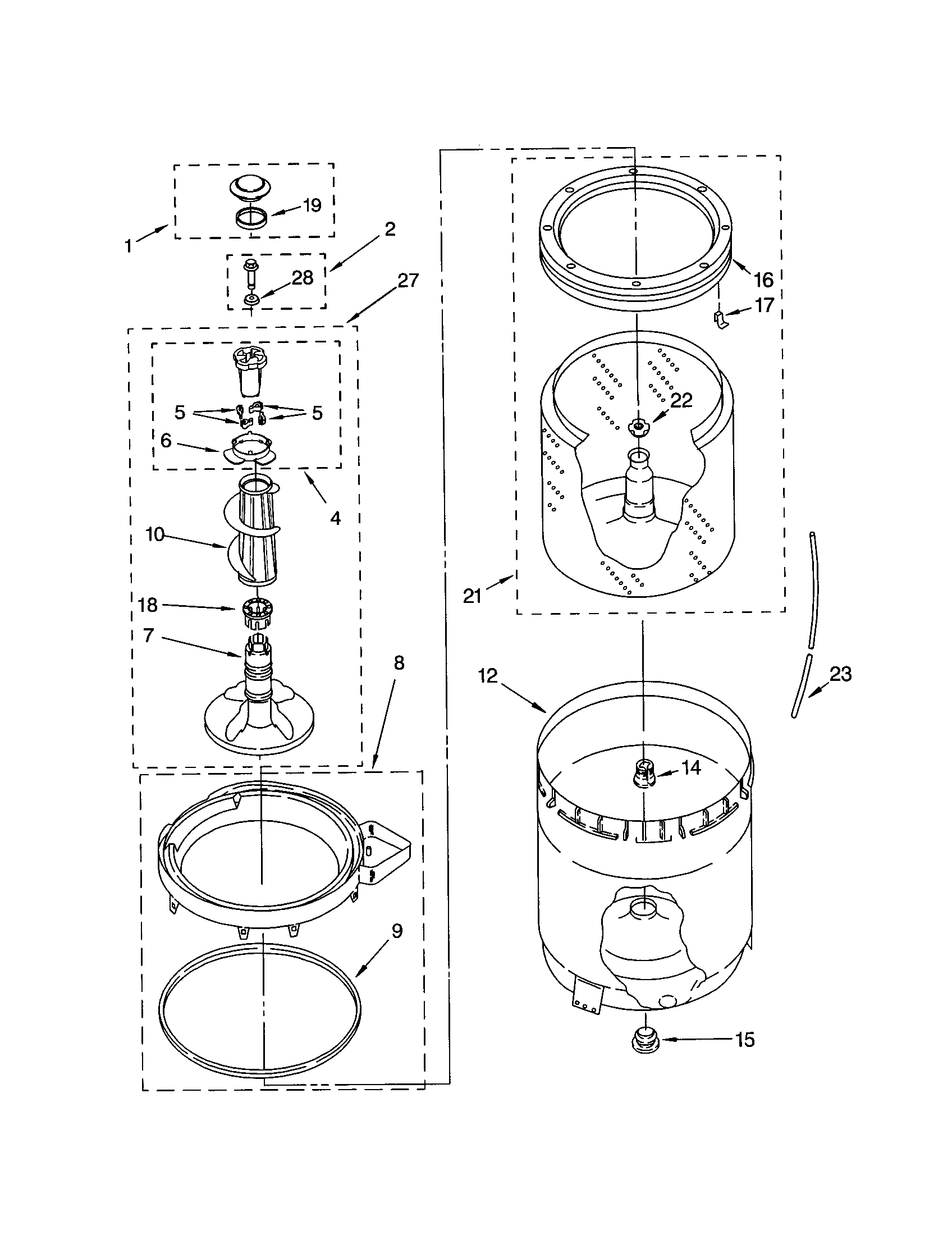

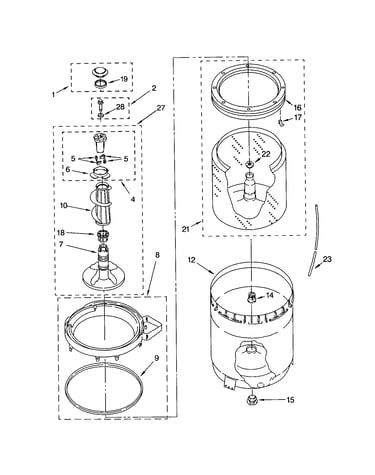

    Agitator, basket and tub Diagram

    Agitator dog

    Part #3366877
    Replaced by #80040
    ?
    Manufacturer substitution
    This part replaces 3366877. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.49
    Washer Motor Coupling#13

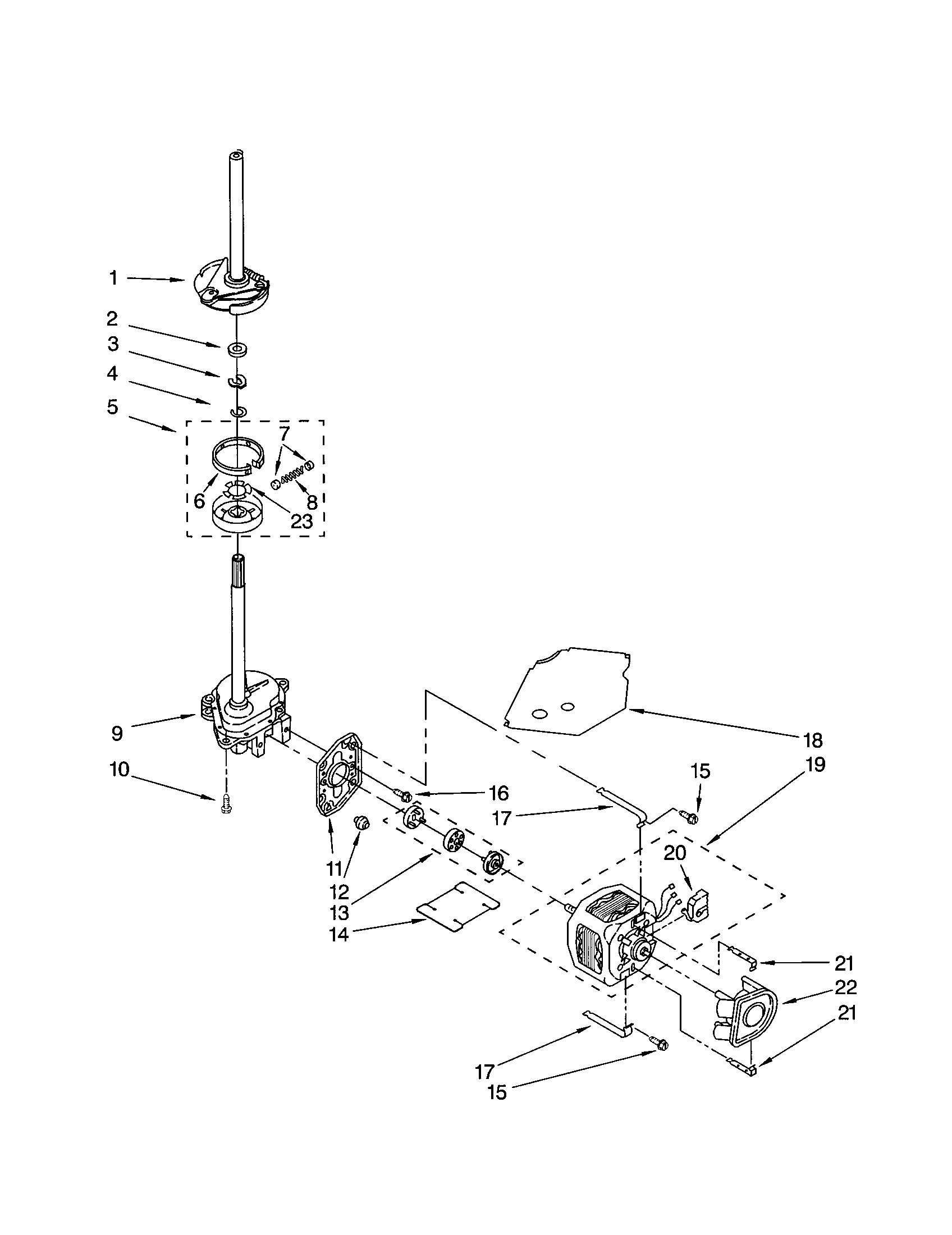

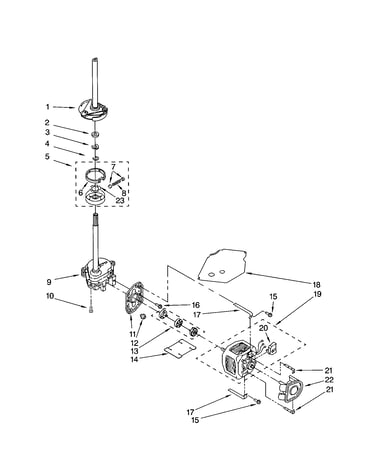

    Brake/clutch/gearcase/motor/pump Diagram

    Coupling

    Part #285753
    Replaced by #285753A
    ?
    Manufacturer substitution
    This part replaces 285753. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $29.39
    Washer Drain Pump#22

    Brake/clutch/gearcase/motor/pump Diagram

    Washer drain pump

    Part #3363394
    Replaced by #WP3363394
    ?
    Manufacturer substitution
    This part replaces 3363394. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $48.19
    Washer Agitator Cam#4

    Agitator, basket and tub Diagram

    Agitator cam

    Part #3363662
    Replaced by #285748
    ?
    Manufacturer substitution
    This part replaces 3363662. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $37.59
    Washer Water Inlet Valve#18

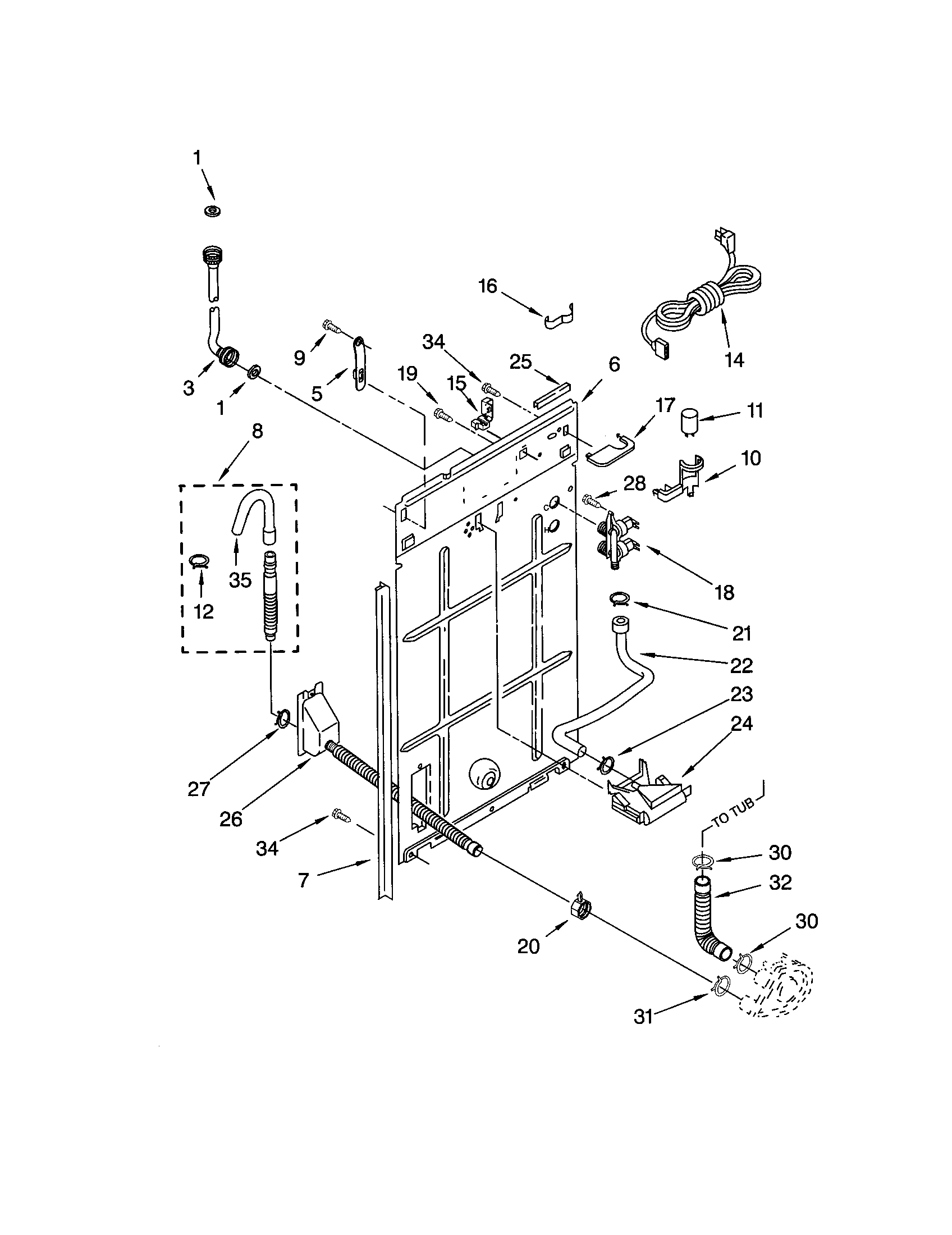

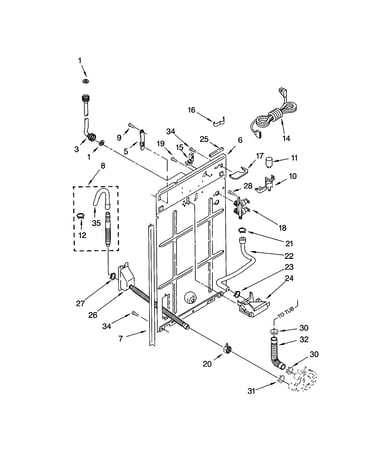

    Rear panel Diagram

    Valve

    Part #3955673
    Replaced by #285805
    ?
    Manufacturer substitution
    This part replaces 3955673. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $45.99
    Washer Clutch#5

    Brake/clutch/gearcase/motor/pump Diagram

    Clutch

    Part #3951311
    Replaced by #285785
    ?
    Manufacturer substitution
    This part replaces 3951311. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $41.89 |
    13% OFF
    MSRP: $48.00
    Appliance Touch-Up Paint, 0.6-oz (White)

    #NI01

    All parts Diagram

    Appliance touch-up paint, 0.6-oz (white)

    Part #72017
    BEST SELLER
    This item is not returnable
    Back Order
    $8.29
    Washer Water-Level Pressure Switch#2

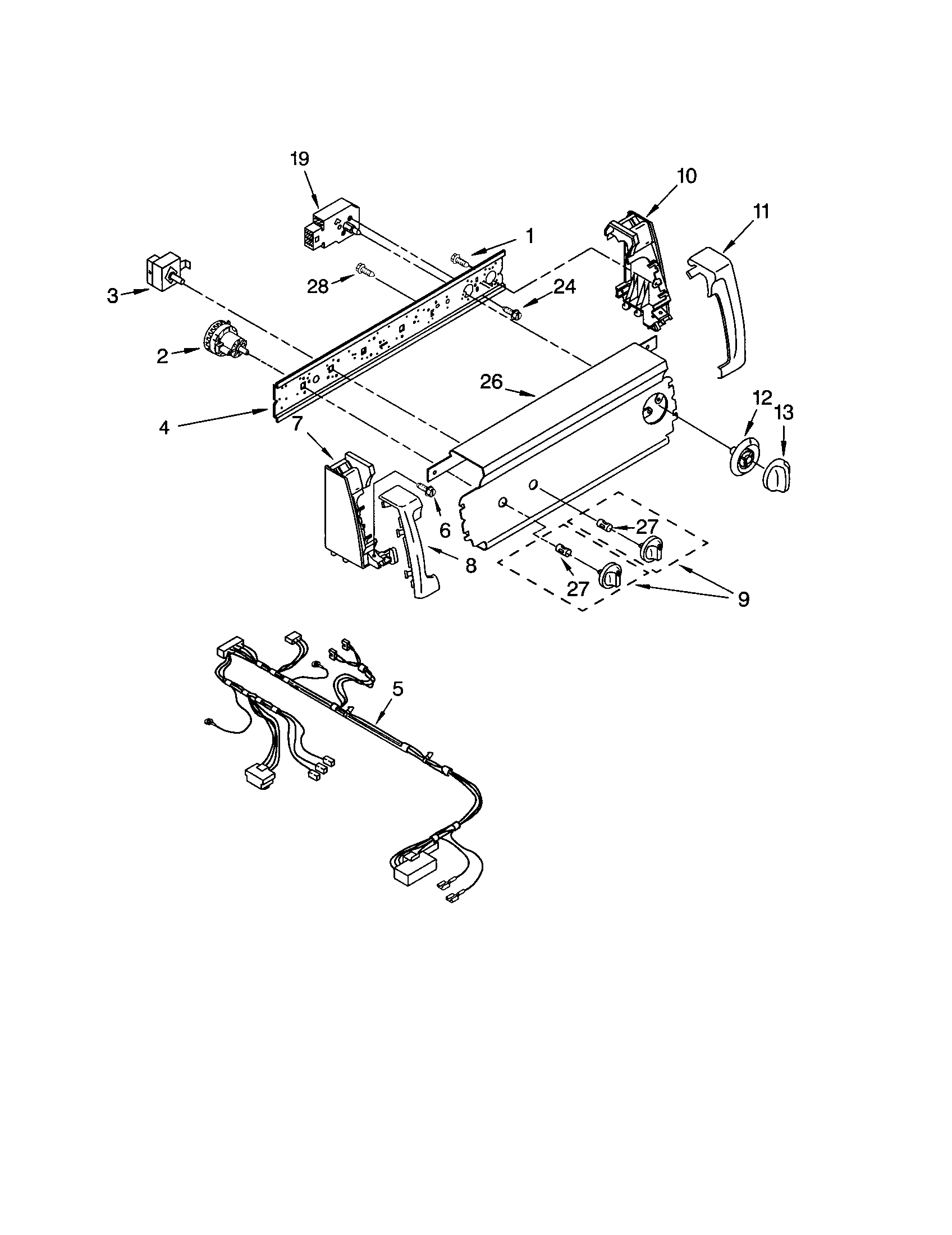

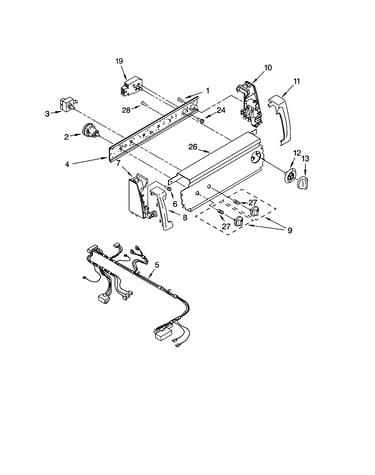

    Control panel Diagram

    Washer water-level switch

    Part #3366846
    Replaced by #W10335056
    ?
    Manufacturer substitution
    This part replaces 3366846. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $69.49
    Washer Basket Drive Assembly#1

    Brake/clutch/gearcase/motor/pump Diagram

    Basketdriv

    Part #388951
    Replaced by #W10820043
    ?
    Manufacturer substitution
    This part replaces 388951. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $150.49
    Washing Machine Washer#28

    Agitator, basket and tub Diagram

    Washing machine washer

    Part #3949550
    Replaced by #WP3949550
    ?
    Manufacturer substitution
    This part replaces 3949550. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $10.69

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
