For the Frigidaire FGSC2335TF5, the built-in “hard reset” is DEFAULT SETTINGS: press and hold it for 3 seconds to restore factory default settings. If the controls are unresponsive, unplug the refrigerator for 5 to 10 minutes, then restore power and allow the control board to reboot (see the FGSC2335TF5 owner’s manual).

Reset options for FGSC2335TF5

Use the option that matches what you are trying to fix:

• Reset all settings (factory defaults): press and hold DEFAULT SETTINGS for 3 seconds.
• Turn cooling off and back on: press and hold POWER ON-OFF for 3 seconds (display shows “OFF”), then press and hold again to turn cooling back on.
• Clear certain alarms: press MUTE ALARM (or SET on some control versions) after correcting the cause (door ajar, flapper jam).
• Reset filter reminders: press and hold AIR FILTER for 3 seconds (and use the water filter status key similarly, if equipped).

Quick steps (recommended order)

1. Try DEFAULT SETTINGS first (3 seconds).
2. If the display is frozen, unplug for 5 to 10 minutes, then plug back in.
3. Confirm doors are fully closed; door-ajar alarms can keep beeping until reset.
4. If ice dispensing is acting up, check for a chute flapper jam (ice cube holding the door open) and clear it.

What each reset does

Reset method	What it affects	When to use it
DEFAULT SETTINGS (3 sec)	Restores temperature and feature settings to factory defaults	Wrong temps, odd settings behavior
POWER ON-OFF (3 sec)	Stops and restarts cooling, ice maker, dispenser functions	Service, cleaning, quick restart
Unplug 5 to 10 minutes	Reboots the electronic control board	Unresponsive controls, glitch after outage

Why it matters

A true reset can clear a control-board “glitch,” but it will not fix a mechanical issue like a jammed ice chute, restricted airflow, or a clogged water filter. If ice or water problems continue after a reset, follow the troubleshooting in the FGSC2335TF5 owner’s manual and consider checking the refrigerator filter assembly EPTWFU01.

Last updated: February 2026

On the Frigidaire FGSC2335TF5 side-by-side refrigerator, the 5Y CF (or 5yCf) code points to a communication problem between the main electronic control board and the user interface (display) board. This is commonly caused by a loose connection, damaged wiring, or a failed board after a power interruption.

What to do first (safe, quick checks)

• Reset power: unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power.
• Check for a partial outage: confirm the outlet has steady power and the cord is fully seated.
• Look for obvious harness issues: pinched wires, corrosion at connectors, or a connector that is not fully locked.
• Avoid repeated rapid resets: cycling power repeatedly can make diagnosis harder.
• If cooling is affected: move perishables to a safe location while you troubleshoot.

Step-by-step troubleshooting path

We follow this order because it isolates the most common causes first.

1. Power reset (rules out a temporary logic fault).

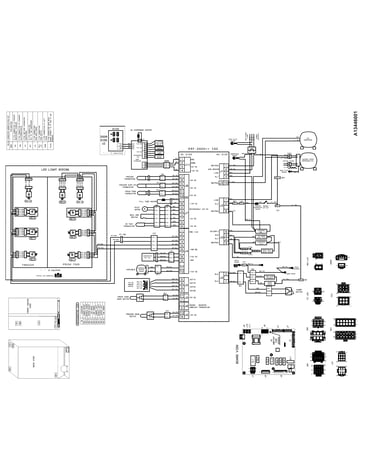

2. Inspect the wiring harness between the control board and the dispenser/user interface.
3. Check for moisture around the dispenser area (moisture can affect connectors).
4. If the code returns quickly after a reset, a board or harness issue is likely.

For control locations, connector callouts, and any model-specific diagnostic notes, use the FGSC2335TF5 owner’s manual.

When a part replacement is likely

If the wiring is intact and the code returns, replacement typically involves one of these:

Suspect	What you may notice	Example part on this model page

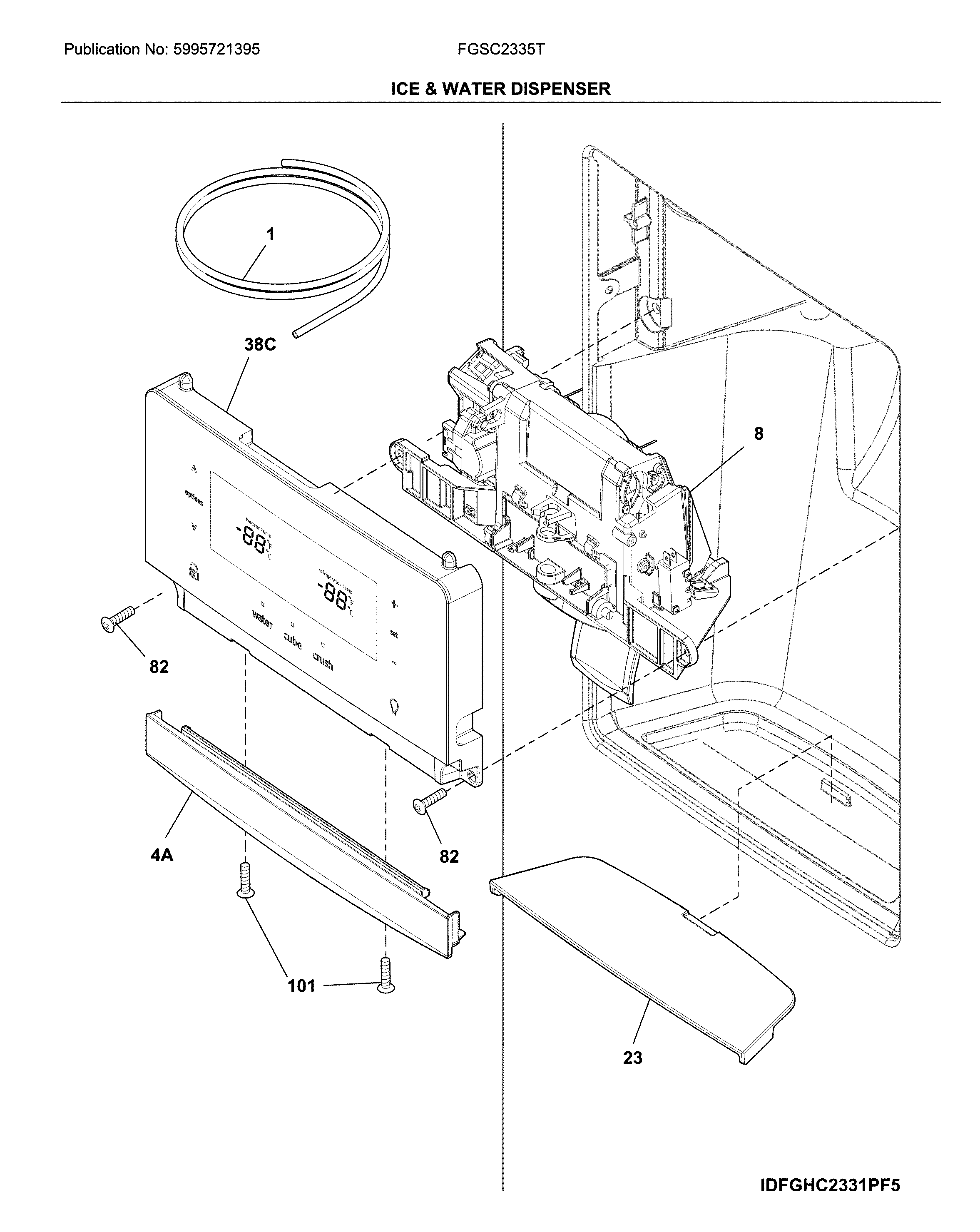

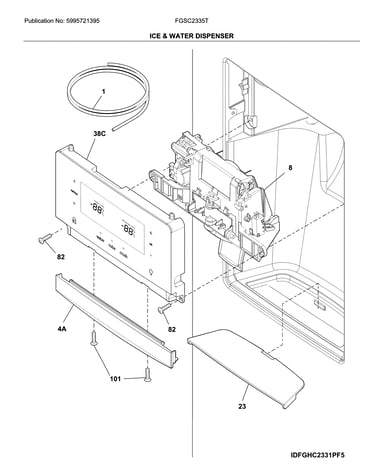

User interface/control at dispenser	Display acts erratic, buttons unresponsive	Refrigerator dispenser user interface control (stainless) 5304510322
Main electronic control board	Random resets, multiple odd behaviors	Frigidaire refrigerator electronic control board 5304512770

Why it matters

That communication link controls key functions like temperature management and dispenser operation. Restoring stable communication helps prevent warm temperatures, nuisance alarms, and intermittent dispenser or ice maker behavior.

Last updated: February 2026

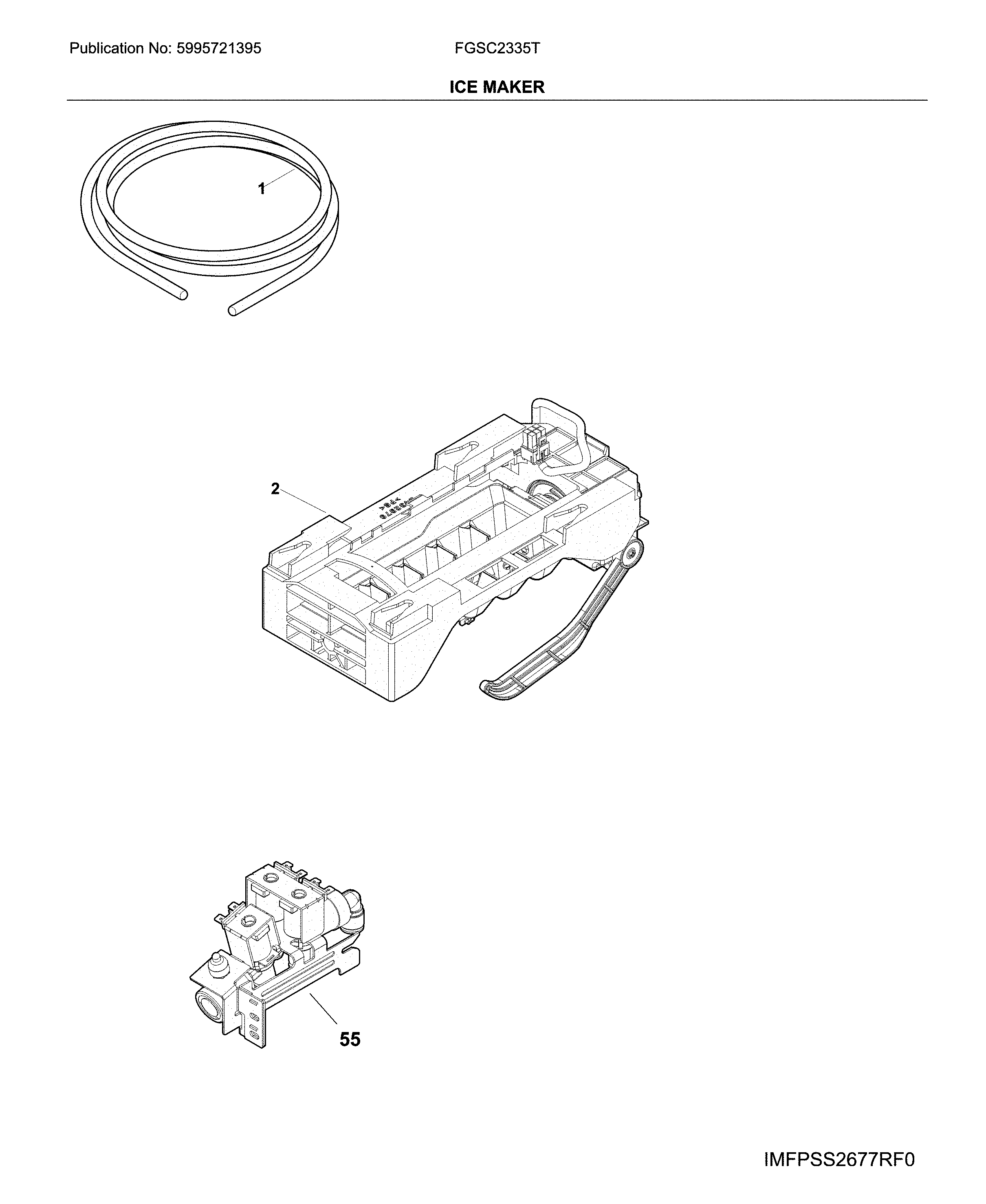

On the Frigidaire FGSC2335TF5 side-by-side refrigerator, an ice maker that stops making ice is usually caused by the ice maker being turned off, the household water valve being closed or the supply line being kinked, or a water filter that is not seated correctly or is clogged. Use the checks below to restore ice production.

Quick checks (most common fixes)

• Turn the ice maker ON: press and hold the ON-OFF button for 3 seconds until the indicator light is on (see the FGSC2335TF5 owner's manual).
• Confirm the refrigerator is connected to the water line and the household water valve is fully open.
• Inspect the water supply line behind the refrigerator for a kink or pinch.
• Reseat the water filter; a filter that is not locked in can stop water flow.
• Replace the filter if water dispenses slower than normal or the filter is 6 months old or older.

Step-by-step troubleshooting

1) Verify temperature and allow time

• Set the freezer colder if needed.
• After changing settings, allow 24 hours for temperatures to stabilize and ice production to recover.

2) Check for restricted water flow

Restricted water flow causes no ice, small cubes, or hollow cubes.

• Replace the water filter (model uses a filter assembly such as the refrigerator filter assembly EPTWFU01 when applicable).
• Make sure the supply line does not kink when the unit is pushed back.
• If you have a self-piercing saddle valve, replace it with a proper shutoff valve.

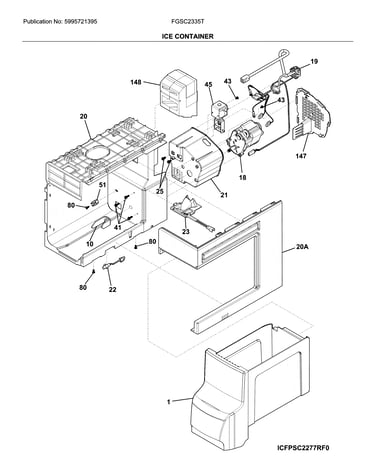

3) Look for ice jams and bin issues

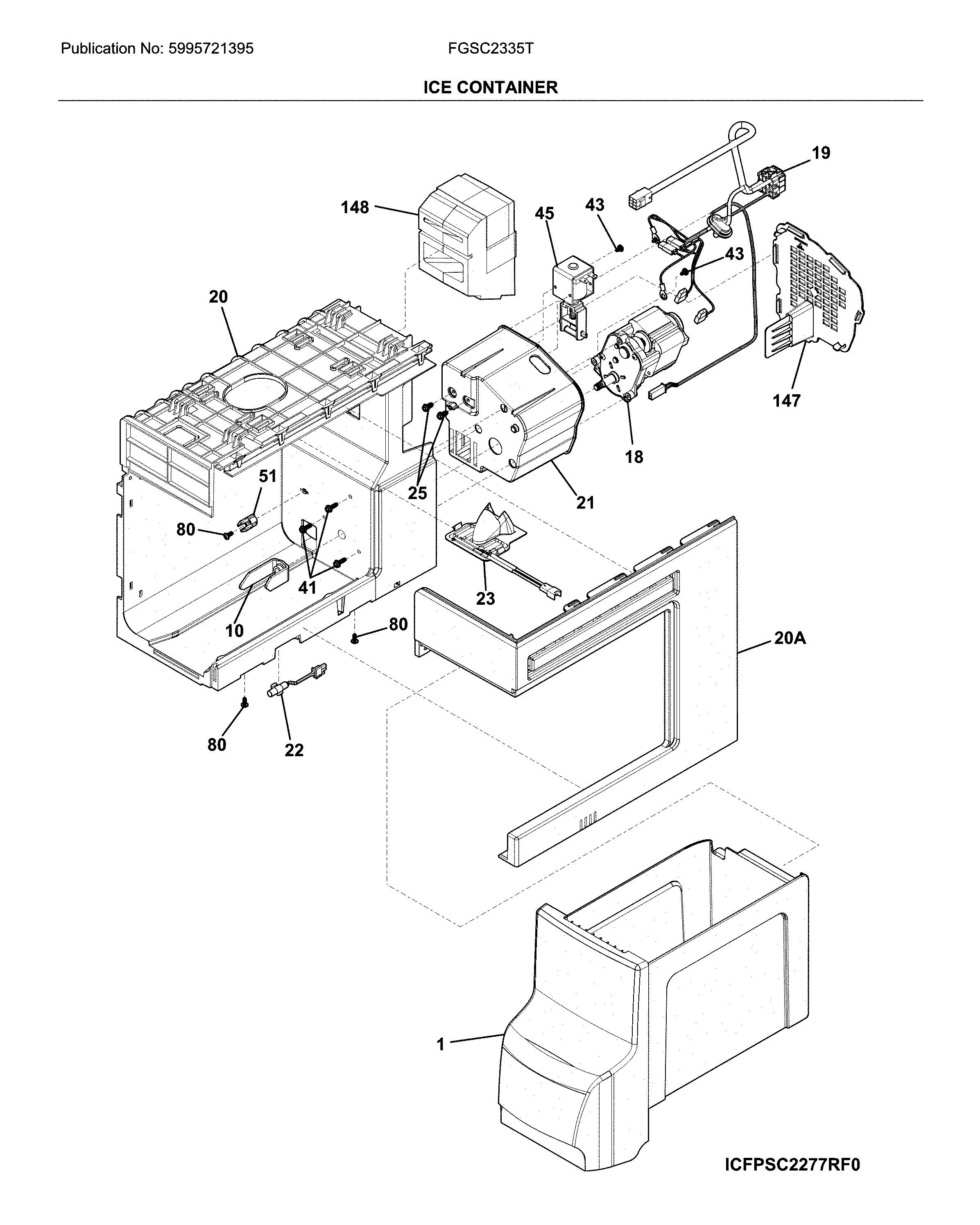

• Remove the ice container and check for melted ice that refroze around the auger.
• Empty old clumped ice; use ice at least twice weekly to help prevent cubes freezing together.

Symptoms and what they usually mean

What you notice	Most likely cause	What to do first
No ice at all	Ice maker off, water valve closed, kinked line	Turn ice maker on; open valve; straighten line
Small or hollow cubes	Clogged filter or restricted supply	Replace/seat filter; check valve and line
Ice in bin but won’t dispense	Jammed container/auger, doors not closed	Thaw/clean bin; fully close doors

Why it matters

An ice maker depends on steady freezer temperature and consistent water pressure. A partially blocked filter or kinked line can stop fills completely, leading to no ice and sometimes dispenser problems.

Last updated: February 2026
