Kenmore 10670219410 refrigerator Parts

The Kenmore top-mount refrigerator model 10670219410 is a full-size, standard-depth refrigerator. Most Kenmore 106 top-mount units are approximately 28 to 33 inches wide, 65 to 69 inches tall, and 30 to 34 inches deep (not including door swing). For the exact dimensions for your unit, use the 10670219410 owner’s manual.

How to get the exact dimensions (fast)

Use these checks so you measure the same way the manufacturer does:

• Look up the listed overall width, height, and depth in the 10670219410 owner’s manual.
• Measure width at the widest point (often the hinge side or handle side).
• Measure height from the floor to the top hinge cover (leveling legs affect this).
• Measure depth two ways: cabinet-only and with handles/doors.
• Allow extra clearance for door swing and airflow behind the refrigerator.

Typical size ranges for a Kenmore top-mount refrigerator

These ranges help with planning when you do not have the spec sheet in front of you.

Measurement	Typical range	What can change it
Width	28 to 33 in.	cabinet size, door style
Height	65 to 69 in.	leveling legs, hinge cover
Depth	30 to 34 in.	handles, door thickness

Why it matters

Correct dimensions prevent installation problems like doors hitting walls, poor ventilation (warm running and weak cooling), and difficulty sliding the refrigerator into a cabinet opening.

Pro tips before you move or replace it

• Plan at least 1 inch of clearance on the hinge side for easier door opening.
• Leave space behind the unit for the condenser airflow.
• If you are adding an ice maker or water line, confirm routing space for the water tube and valve area.

Last updated: January 2026

The most common problems we see on the Kenmore 10670219410 top-mount refrigerator are warm temperatures (fresh food or freezer), ice maker not making ice, water leaking, and door sealing issues. These symptoms usually trace back to airflow, defrost, water supply, or gasket problems; use the 10670219410 owner's manual for model-specific checks.

Common symptoms and what they usually point to

• Refrigerator warm but freezer cold: restricted airflow, evaporator fan issue, or a defrost problem
• Freezer warm: condenser airflow problem, sealed system/compressor issue, or heavy frost buildup
• Ice maker not working: water inlet valve problem, frozen fill tube, or ice maker assembly failure
• Water leaking: clogged defrost drain, cracked water tube, or valve seepage
• Door not sealing: torn or warped gasket, door alignment, or debris on the sealing surface

Quick checks we recommend first

1. Set temps to typical targets: 37°F fresh food, 0°F freezer.
2. Confirm the condenser area is clean and the unit has airflow at the back/bottom.
3. Listen for the evaporator fan when the freezer door switch is held in.
4. Look for frost blankets on the freezer back wall (often a defrost clue).
5. For ice and water issues, verify the household shutoff valve is fully open.

Parts commonly involved (for this model)

Symptom	Likely area	Example part on this model
Warm temps, poor airflow	Freezer airflow	Refrigerator evaporator fan motor WP2315539

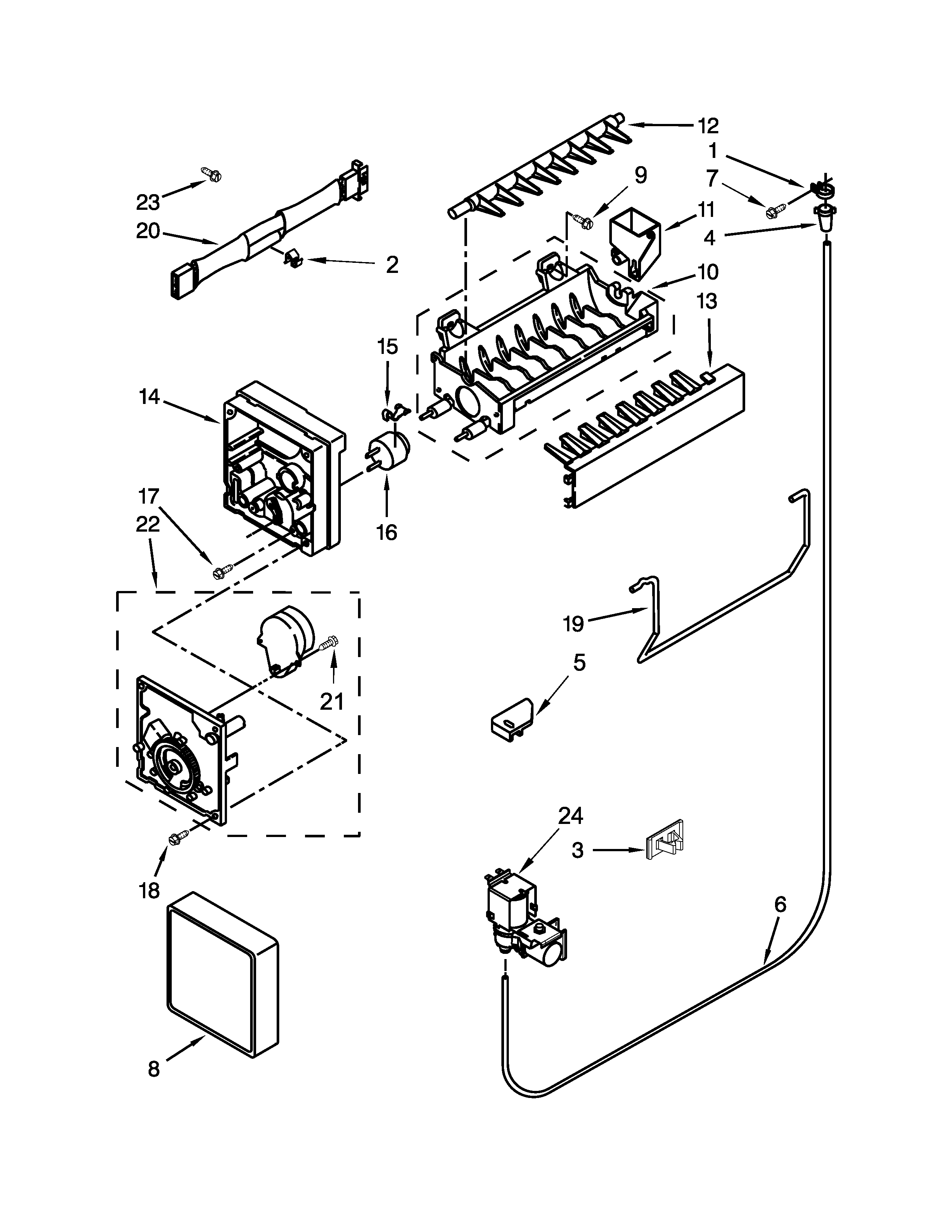

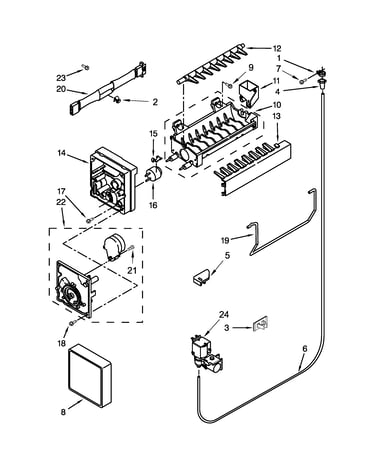

Ice maker not making ice	Ice maker system	Refrigerator ice maker assembly 4317943
No water to ice maker	Water supply control	Refrigerator water inlet valve WPW10279909
Door sweating, warm spots	Door seal	Refrigerator door gasket W10860480
Frost buildup, warming	Defrost circuit	Refrigerator defrost heater WPW10316428

Why it matters

Catching airflow, defrost, and door-seal problems early prevents food spoilage, reduces compressor run time, and helps avoid repeat icing and leaking issues.

Last updated: March 2026

A fridge with the freezer on top is called a top-freezer refrigerator, also commonly called a top-mount refrigerator. Your Kenmore model 10670219410 is in this classic style, with the freezer compartment above the fresh food compartment.

What “top-freezer” (top-mount) means

A top-freezer refrigerator has two vertically stacked compartments:

• Freezer on top for frozen food storage
• Refrigerator section below for fresh food storage
• Typically two separate doors that swing open from the side
• Usually a simple, reliable layout with straightforward temperature controls

For model-specific features and control locations, use the 10670219410 owner's manual.

Quick comparison of common refrigerator styles

Style name	Freezer location	Typical door layout	Common alternate name
Top-freezer	Top	Two swing doors	Top-mount
Bottom-freezer	Bottom	Two swing doors or drawer	Bottom-mount
Side-by-side	Left side	Two tall swing doors	Side-by-side
French door	Bottom	Two upper doors + freezer drawer	French door

Why it matters

Knowing the style helps you match the right parts, troubleshooting steps, and maintenance routines. For example, top-freezer models like the Kenmore 10670219410 commonly use an evaporator fan to move cold air from the freezer into the refrigerator section.

If you are diagnosing cooling issues or unusual fan noise, the how to fix your evaporator cooling fan guide is a good next step.

Last updated: January 2026
