Side-By-Side Refrigerator

Model # PSG22MIMCFWW Official GE refrigerator

Here are the diagrams and repair parts for Official GE PSG22MIMCFWW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

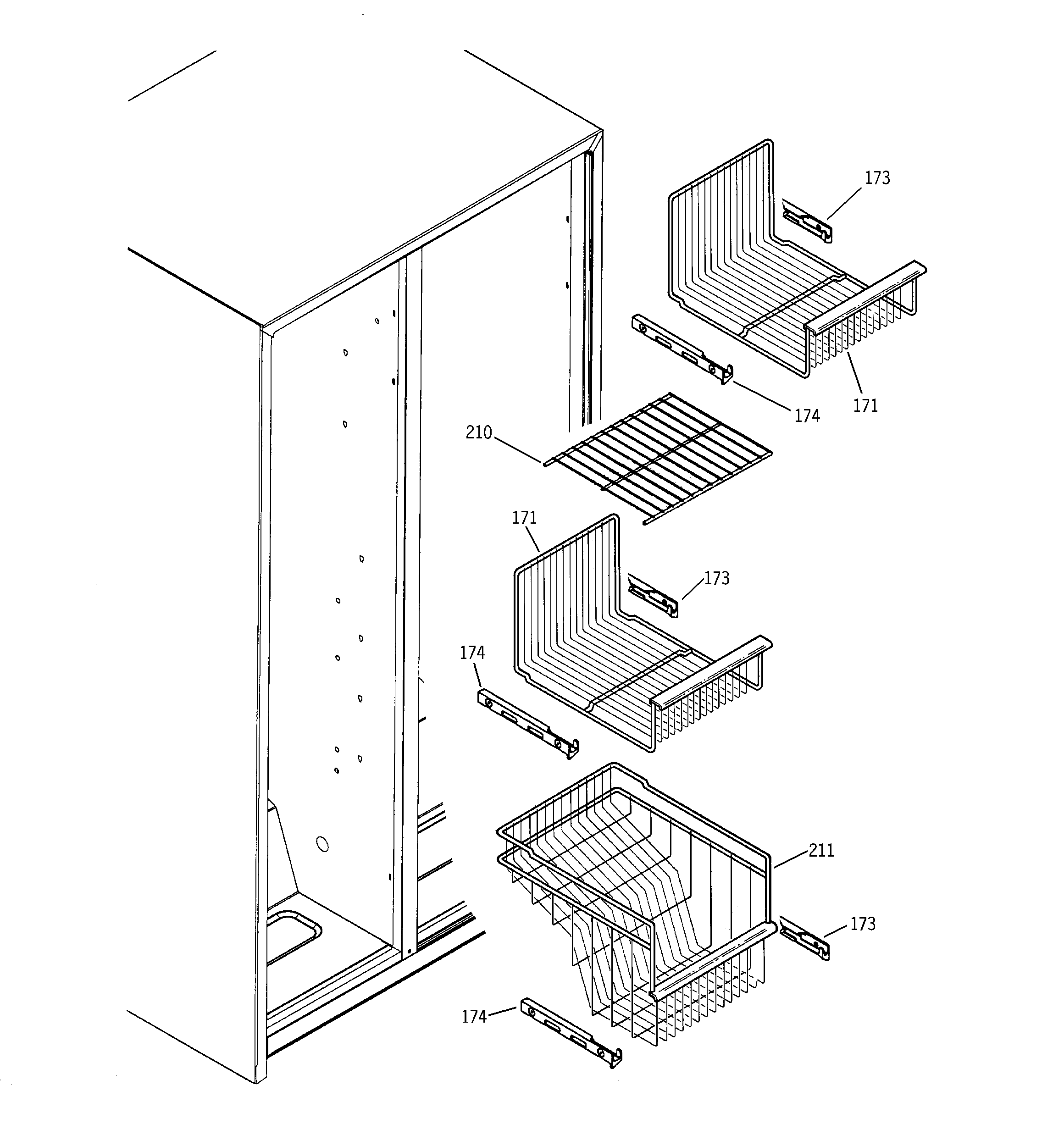

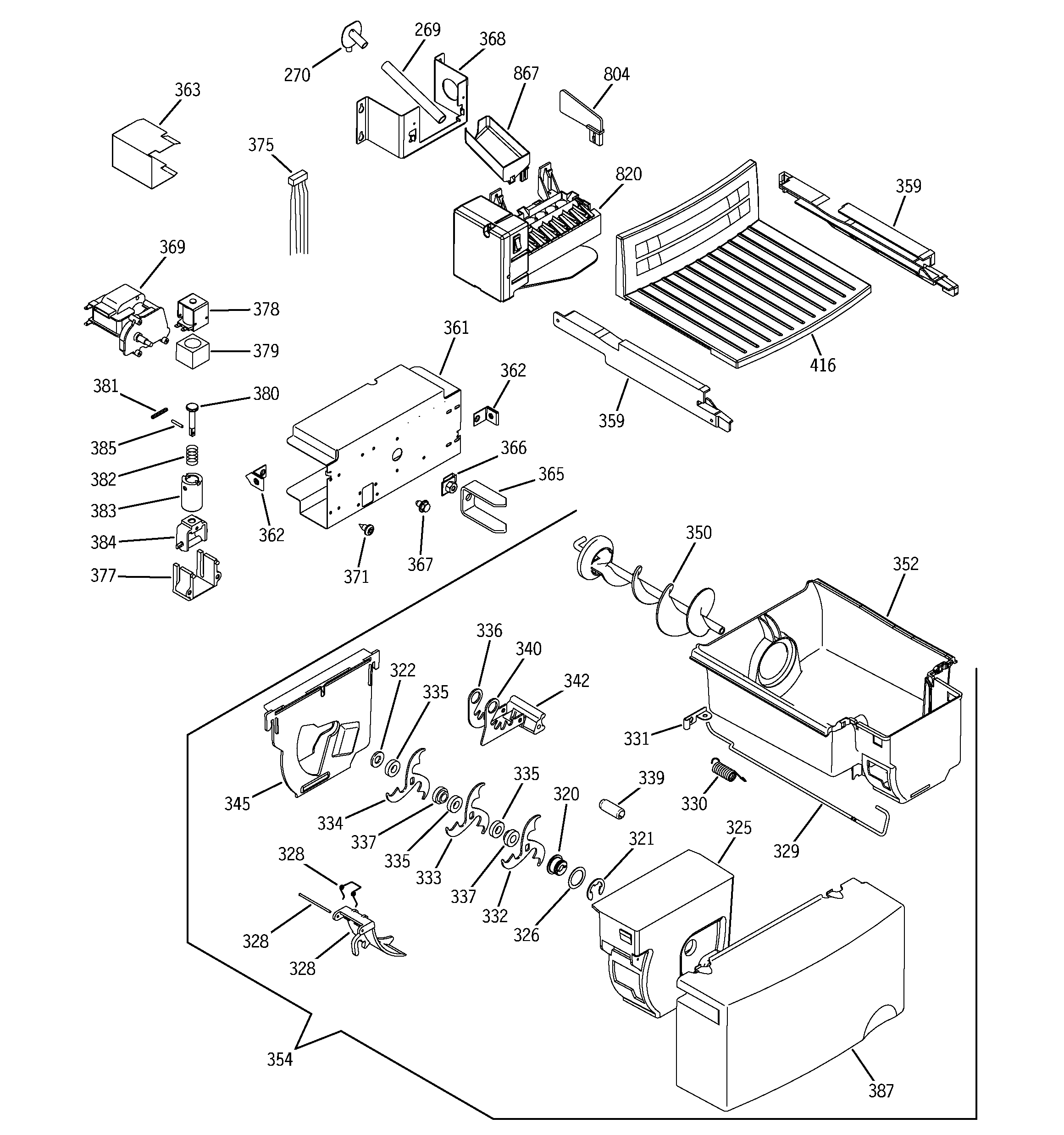

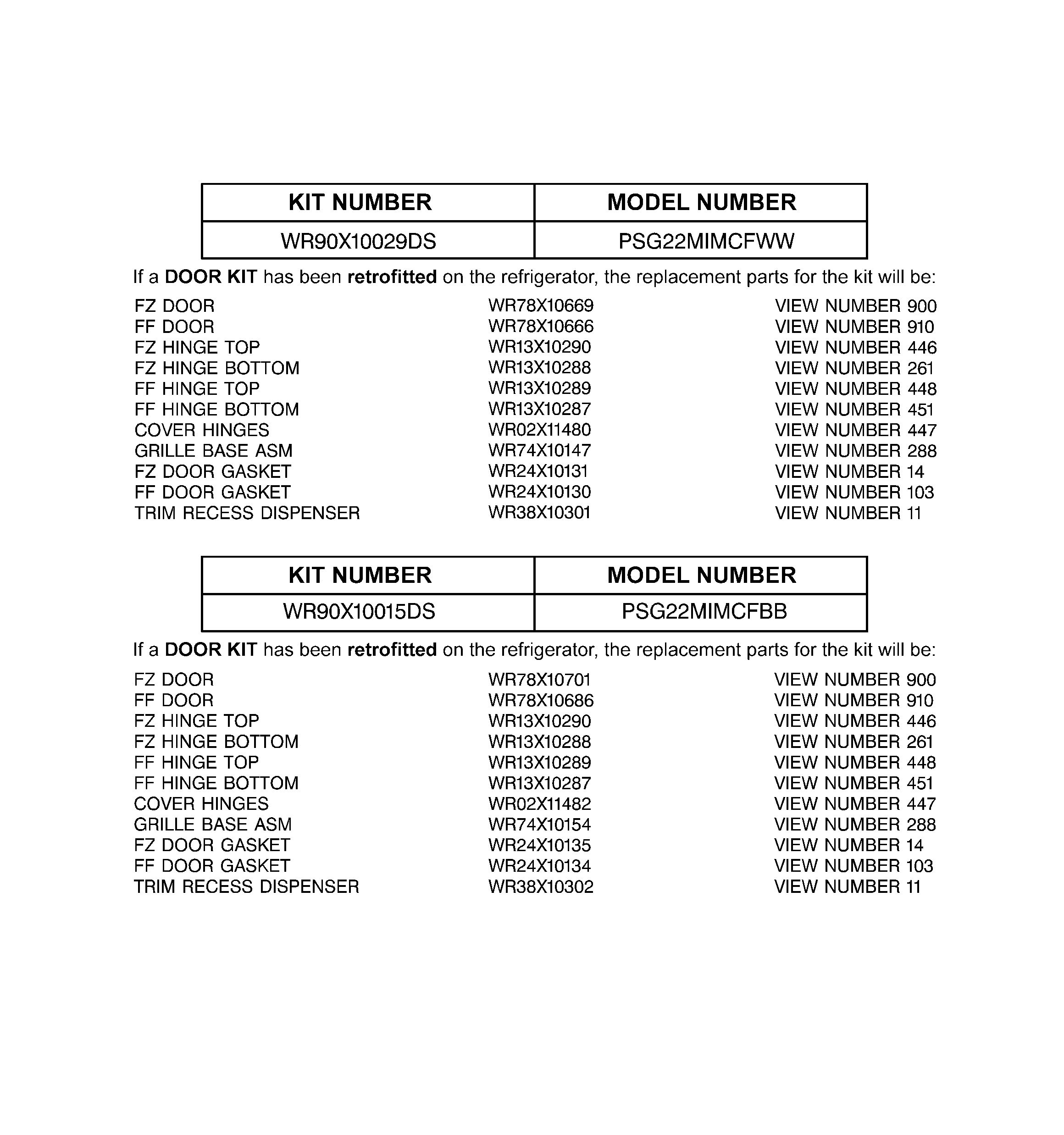

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 330 parts  |

Refrigerator Inline Water Filter WR97X10028
#815

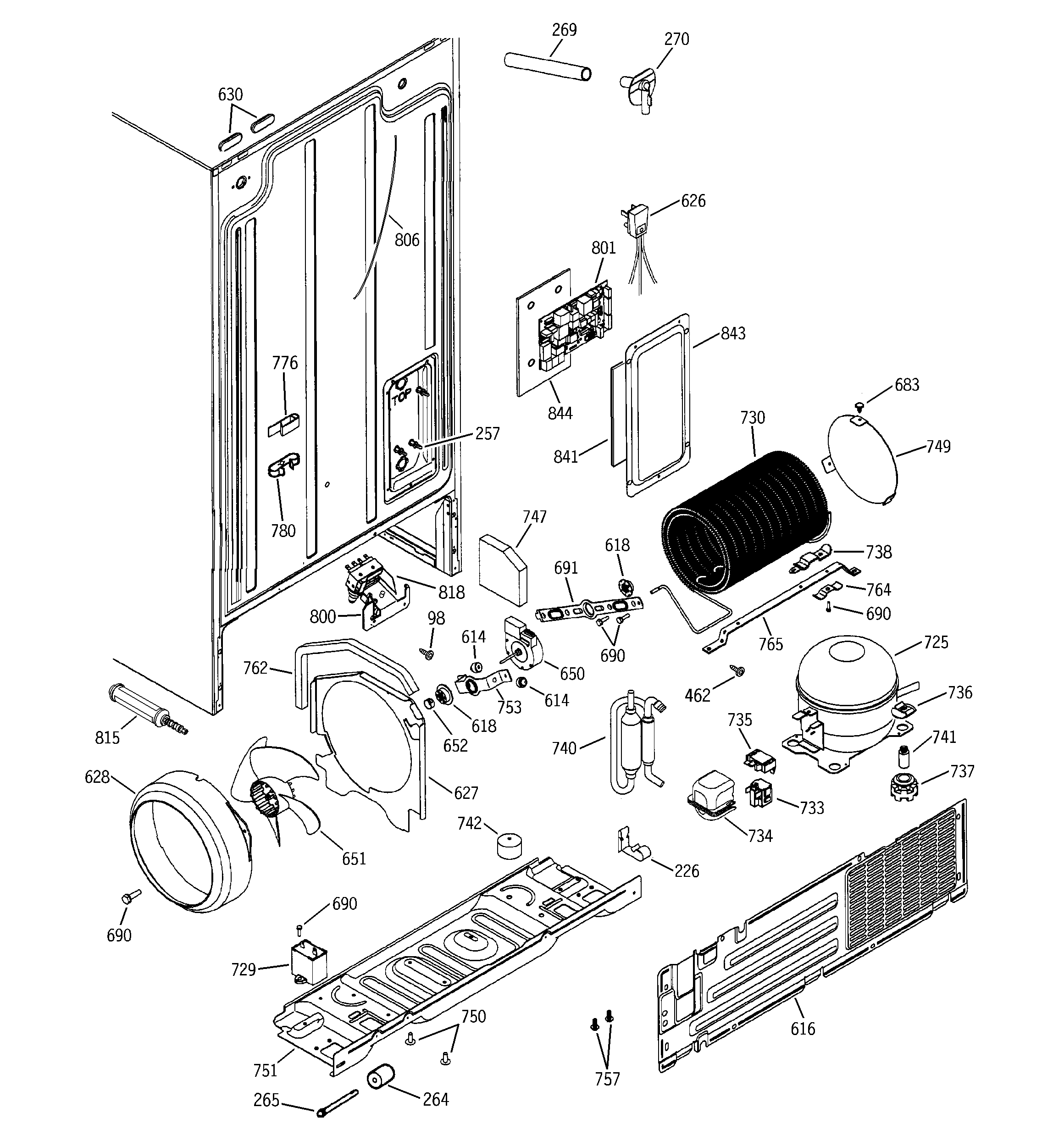

Sealed system & mother board diagram

Refrigerator inline water filter

Part #WR97X10028

Replaced by #GXRTDR

?
Manufacturer substitution
This part replaces WR97X10028. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Damper & The WR50X10034
Damper & the

Part #WR50X10034

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10034. Substitute parts can look different from the original.
BEST SELLER
$21.10
17% OFF Phone Price : $25.49
In Stock
Refrigerator Temperature Sensor WR50X10027
Refrigerator temperature sensor

Part #WR50X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10027. Substitute parts can look different from the original.
BEST SELLER
$21.10
17% OFF Phone Price : $25.49
In Stock
Refrigerator Slide Assembly, Left WR72X0239
#479

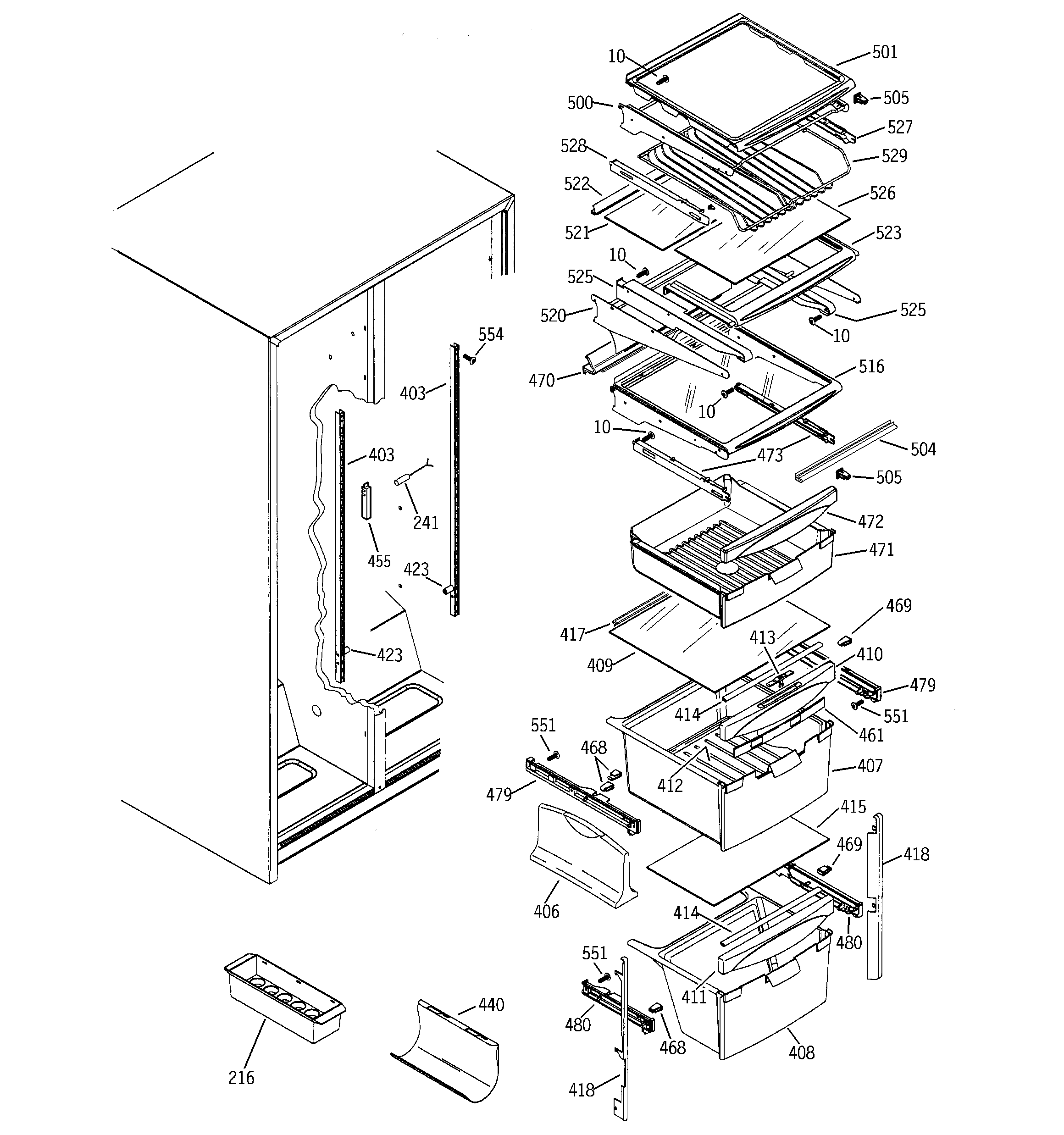

Fresh food shelves diagram

Refrigerator slide assembly, left

Part #WR72X0239

Replaced by #WR72X239

?
Manufacturer substitution
This part replaces WR72X0239. Substitute parts can look different from the original.
BEST SELLER
$25.29
17% OFF Phone Price : $30.29
In Stock
Refrigerator Meat Pan WR32X10131
#408

Fresh food shelves diagram

Refrigerator meat pan

Part #WR32X10131

Replaced by #WR32X10835

?
Manufacturer substitution
This part replaces WR32X10131. Substitute parts can look different from the original.
BEST SELLER
$69.69
7% OFF Phone Price : $74.69
In Stock
Refrigerator Vegetable Pan WR32X10133
#407

Fresh food shelves diagram

Refrigerator vegetable pan

Part #WR32X10133

Replaced by #WR32X10834

?
Manufacturer substitution
This part replaces WR32X10133. Substitute parts can look different from the original.
BEST SELLER
$100.45
7% OFF Phone Price : $107.52
In Stock
Refrigerator Thermostat WR50X10015
#240

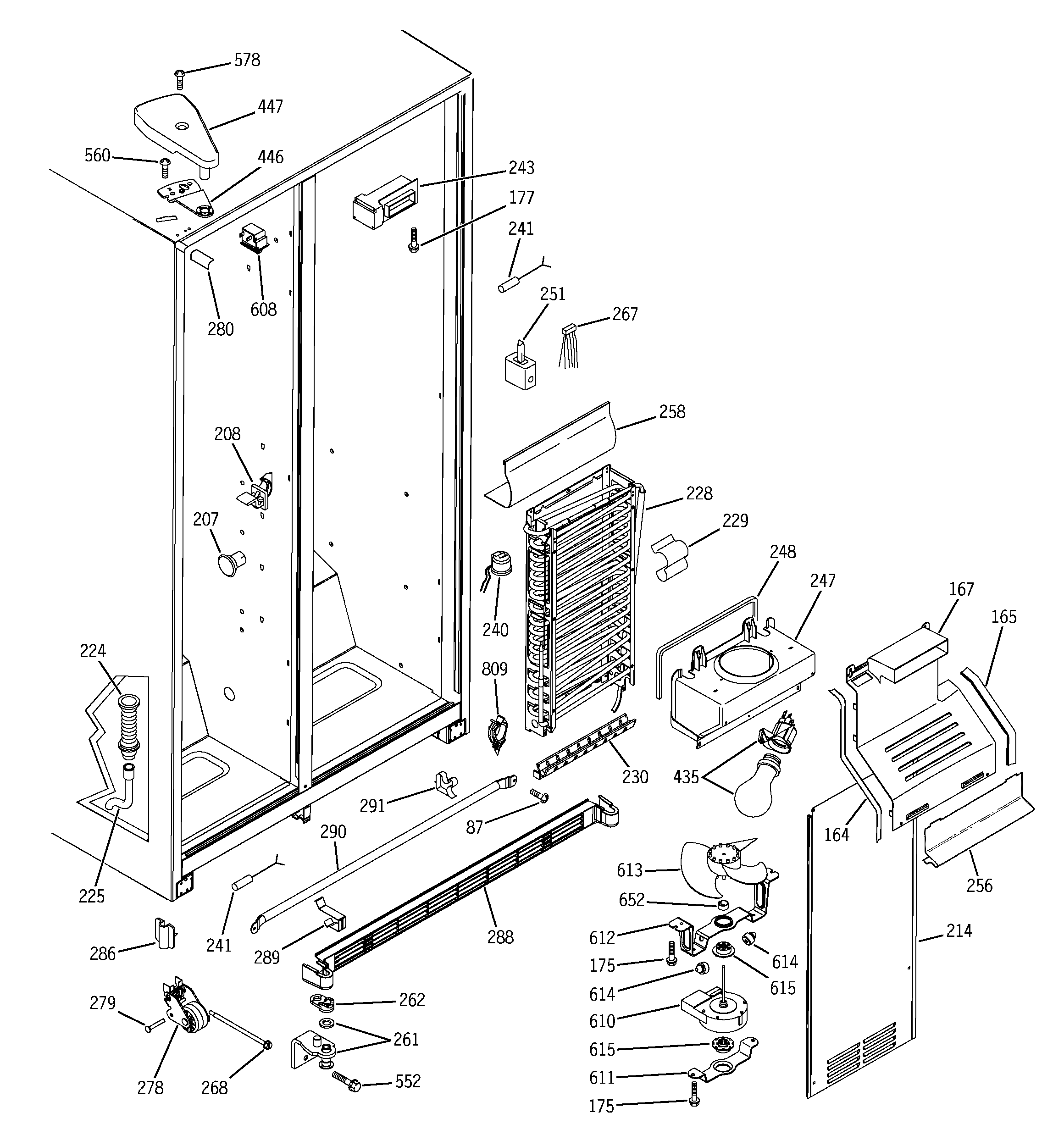

Freezer section diagram

Refrigerator thermostat

Part #WR50X10015

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10015. Substitute parts can look different from the original.
BEST SELLER
$20.93
19% OFF Phone Price : $25.93
In Stock
Refrigerator Dairy Bin Cover WR22X10012
#106

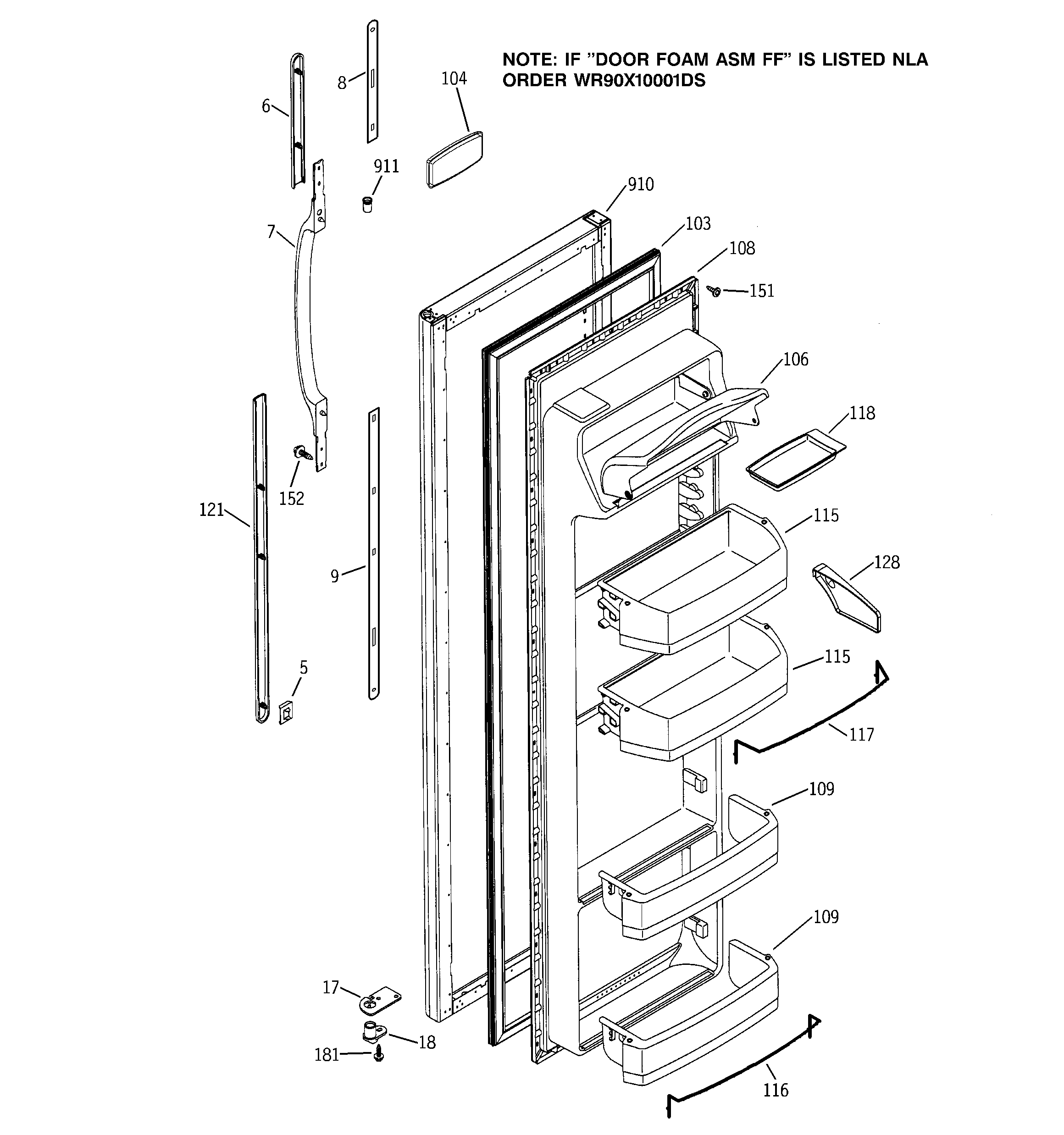

Fresh food door diagram

Refrigerator dairy bin cover

Part #WR22X10012

Replaced by #WR71X38317

?
Manufacturer substitution
This part replaces WR22X10012. Substitute parts can look different from the original.
BEST SELLER
In Stock
Refrigerator Light Switch WR23X10162
#609

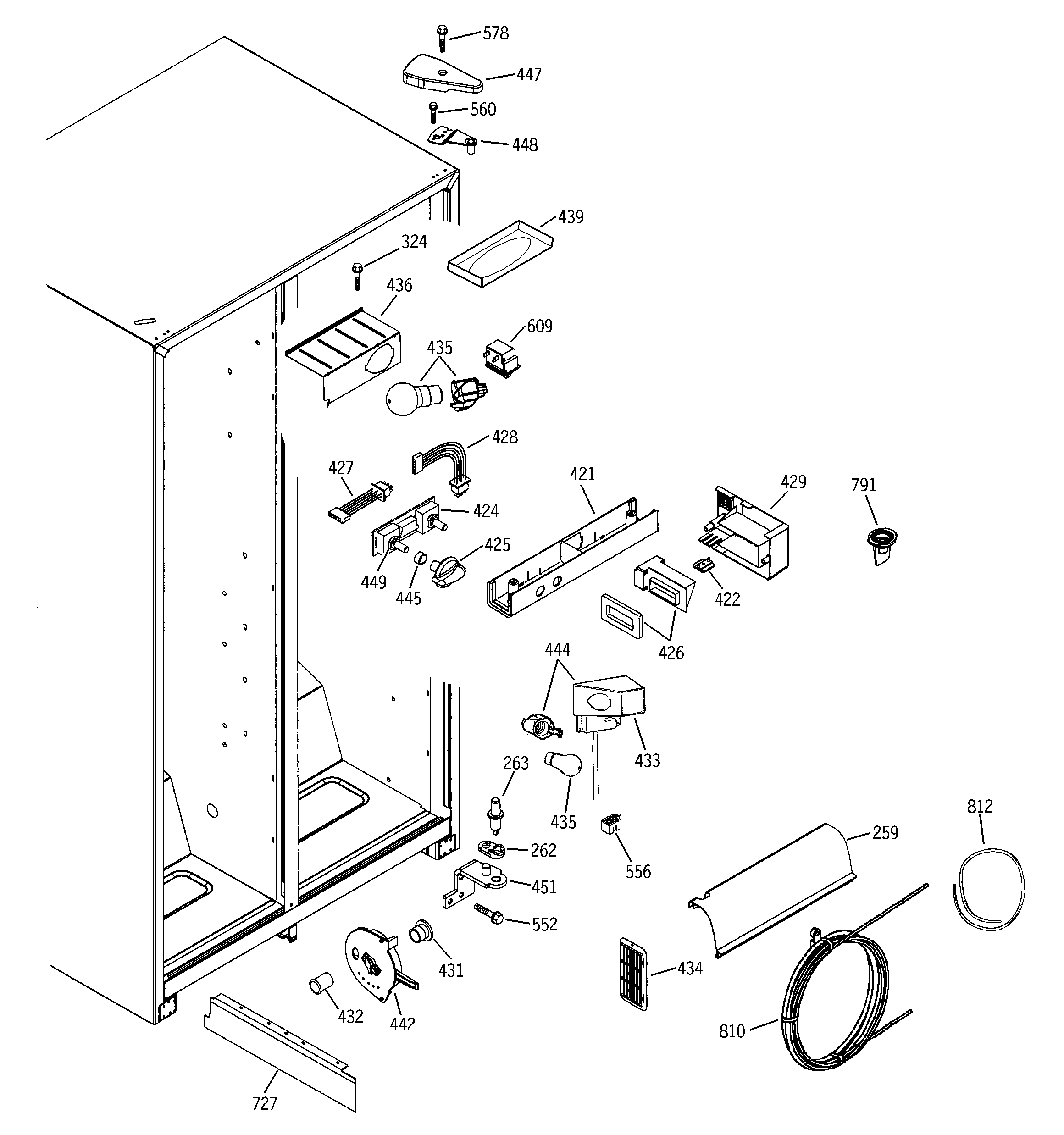

Fresh food section diagram

Refrigerator light switch

Part #WR23X10162

Replaced by #WR23X10725

?
Manufacturer substitution
This part replaces WR23X10162. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock

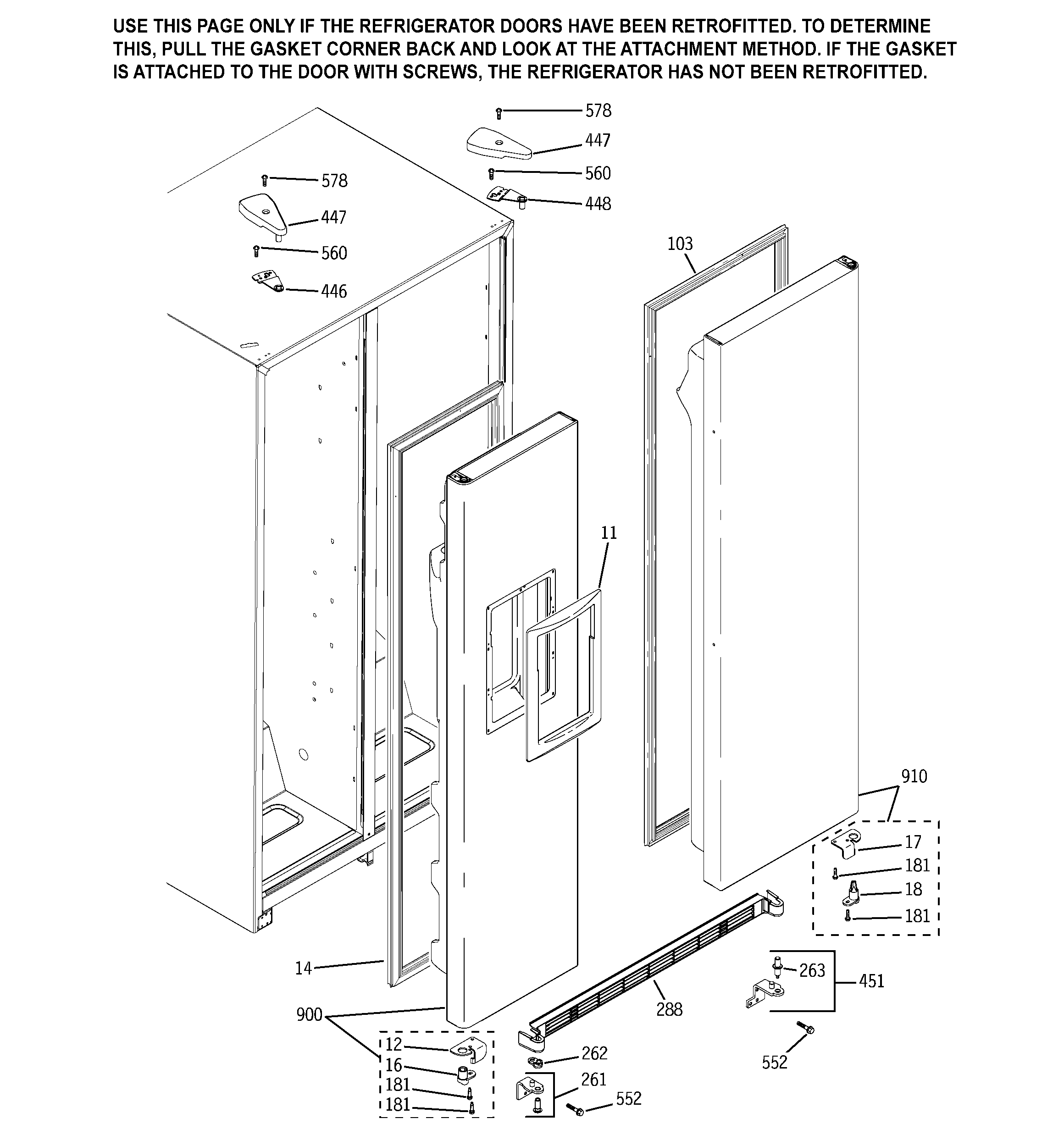

Dr Reces Asm WR17X3093
#62

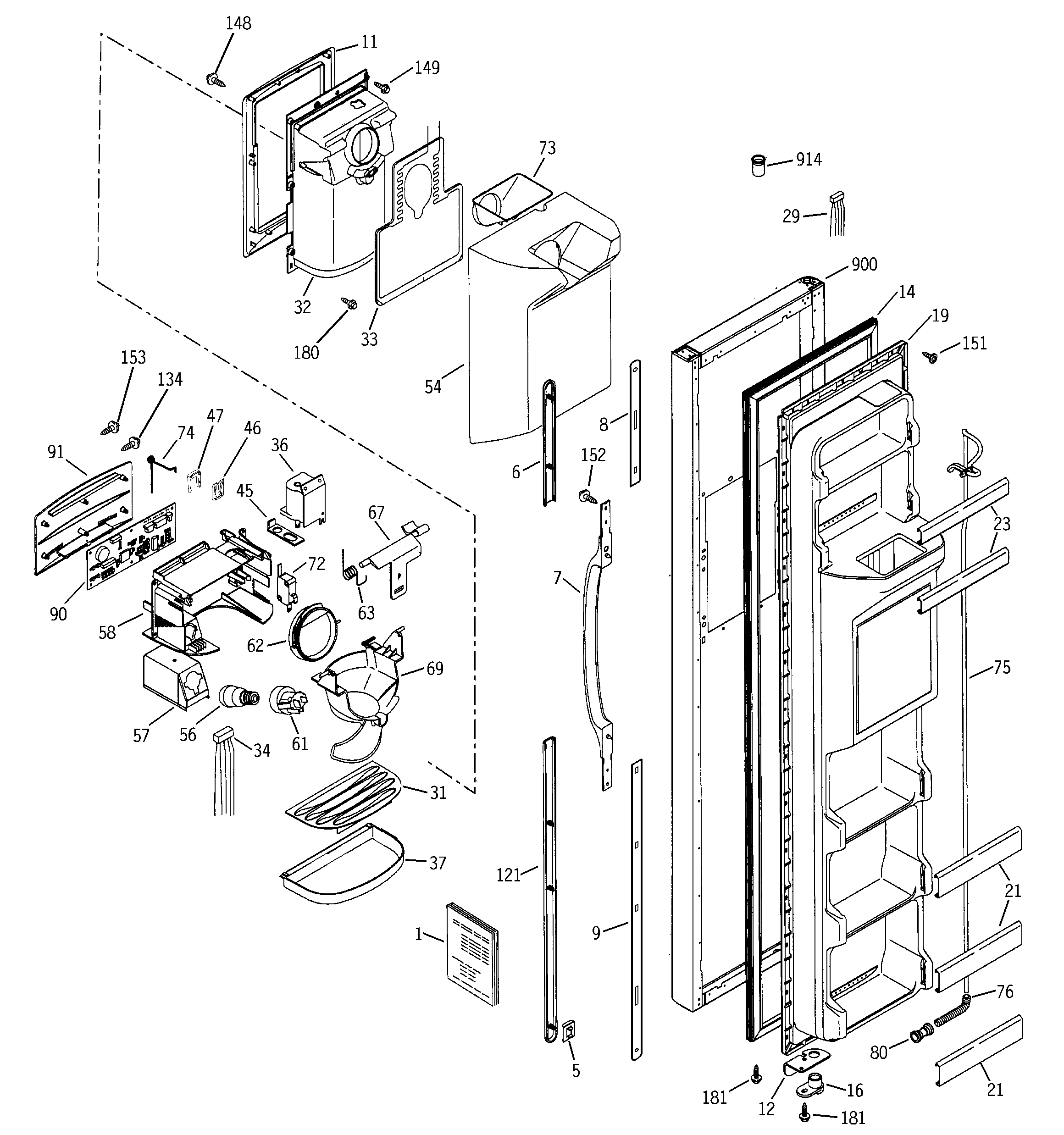

Freezer door diagram
