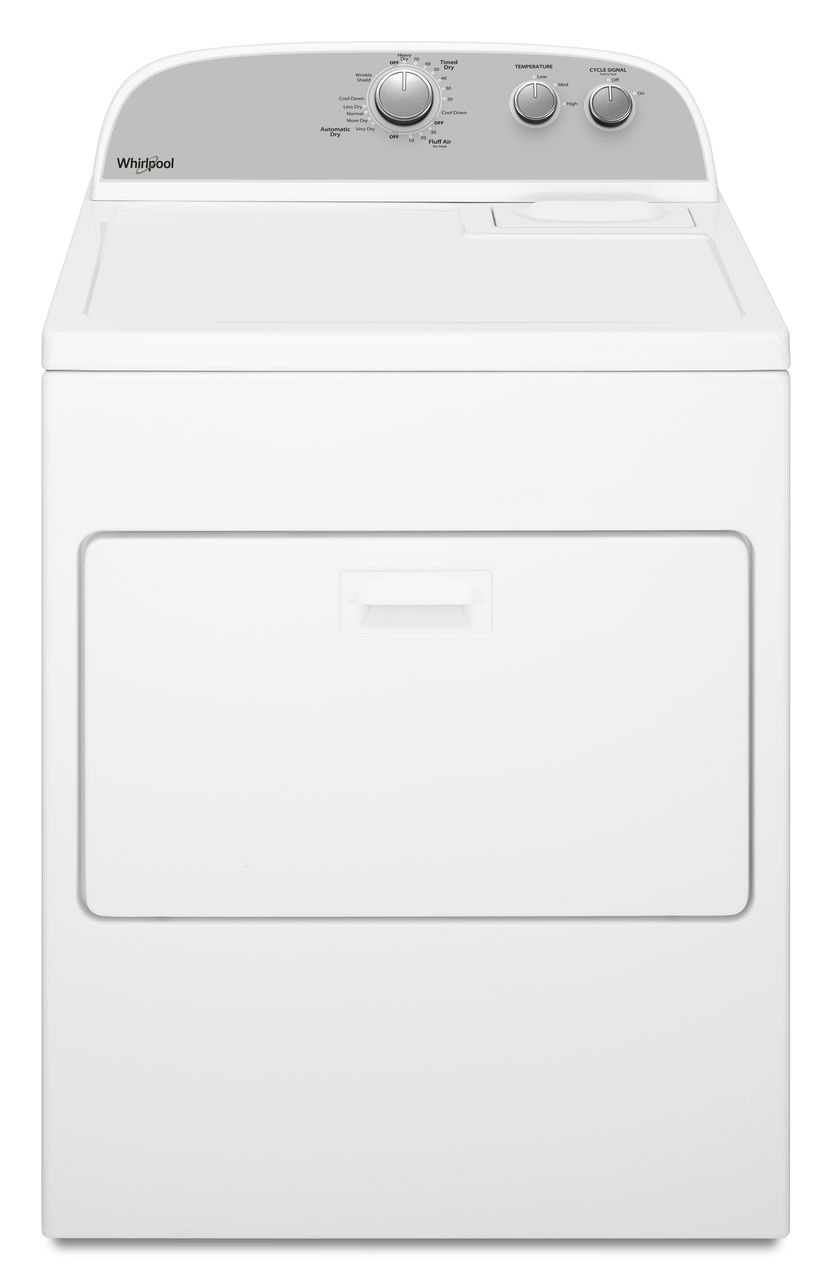

Whirlpool WED4950HW0 dryer Parts

The Whirlpool WED4950HW0 dryer uses a 7.0 cu. ft. drum capacity, which is considered a full-size residential drum and is designed to handle bulky items like comforters and large mixed loads. For the cabinet footprint and clearances, use the WED4950HW0 installation guide.

Drum size is the internal capacity of the dryer drum, measured in cubic feet (cu. ft.). It helps you estimate how much laundry you can dry per load.

• 7.0 cu. ft. is typically suitable for family-size loads
• Larger capacity helps reduce overdrying by allowing better tumbling
• Load size still matters; overpacking can increase dry time

Even with the right drum size, airflow and loading make a big difference.

• Clean the lint screen before every load
• Avoid packing the drum tight; items should tumble freely
• Use the shortest, most direct vent run possible
• Use rigid or flexible metal venting (avoid plastic/foil)
• If drying times are long, check the outside exhaust hood for airflow

Knowing the 7.0 cu. ft. capacity helps you match washer load size to dryer performance, reduce wrinkles, and avoid long dry times caused by overloading or restricted venting.

Last updated: January 2026

A Whirlpool dryer like model WED4950HW0 typically lasts 10 to 15 years with normal household use. Consistent airflow maintenance (lint screen and venting) and avoiding overloads are the biggest factors that help this dryer reach the high end of that range.

• Venting and airflow: restricted exhaust makes the dryer run hotter and longer
• Lint screen care: clean before every load; deep-clean residue buildup periodically
• Load size: chronic overloading strains the drive system and motor
• Heat settings and cycle choice: excessive high-heat use can accelerate wear
• Timely repairs: replacing wear parts early can prevent bigger failures

For model-specific care steps and troubleshooting basics, use the WED4950HW0 use and care guide.

• Drying times are getting longer even after vent cleaning
• Repeated “no heat” or overheating symptoms
• Loud thumping/squealing that returns soon after service
• Drum movement issues (slipping, not turning, intermittent start)

If the dryer is otherwise in good shape, replacing common wear items can be a cost-effective way to extend life.

A dryer that’s venting properly and running efficient cycles dries faster, runs cooler, and puts less stress on components like the motor, belt, and thermostats. That directly translates into more years of reliable service.

Last updated: January 2026

For Whirlpool dryers like model WED4950HW0, the most common issue we see is clothes taking too long to dry or not drying well, and the root cause is often restricted airflow from lint buildup or a crushed/kinked vent. Next most common are no heat and won’t start complaints.

Start with airflow and basic operation checks from the WED4950HW0 use & care manual.

• Clean the lint screen before every load; a blocked screen increases dry time.
• Check the outside exhaust hood for strong airflow while the dryer runs.
• Inspect the vent run for kinks, crushing, or too many elbows.
• Confirm you are using an Automatic/ACCUDRY cycle for most loads (Timed Dry can overdry or underdry depending on load).
• Avoid overloading; clothes need room to tumble.

If airflow is good but the dryer still won’t heat, won’t start, or won’t tumble, these parts are common suspects on WED4950HW0:

• No heat / weak heat: thermal fuse, heating element (electric models), operating thermostat, high-limit thermostat
• Won’t start: door switch, push-to-start switch
• Drum not spinning: belt, idler pulley, drive motor

If your symptom is “drum turns but no heat,” a failed safety device is common; see the dryer thermal fuse WP3392519 as a model-matched example.

Restricted venting can cause overheating, repeated shutdowns, and premature failure of safety parts. Keeping airflow strong is the simplest way to improve drying performance and reduce repairs.

Last updated: January 2026
