Kenmore 66513693N410 dishwasher Parts

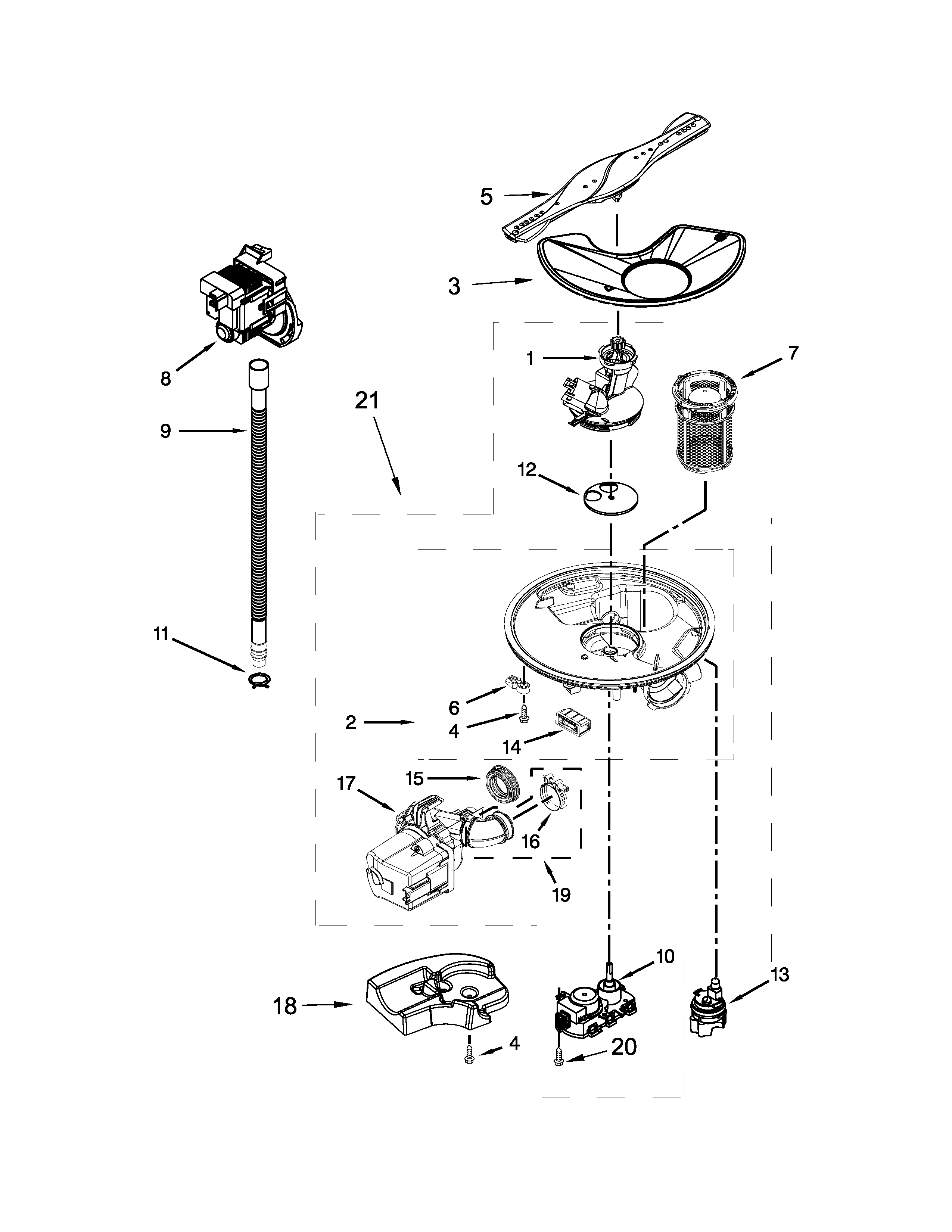

On Kenmore dishwasher model 66513693N410, the filter is located at the bottom center of the tub, underneath the lower dishrack. This model uses an ULTRA WASH HE filtration system with an upper filter assembly and a lower filter that you remove for periodic cleaning (see the 66513693N410 owner's manual).

How to access and remove the filter

1. Pull out the lower rack to expose the bottom of the dishwasher.
2. Find the round filter assembly at the bottom center.
3. Turn the upper filter assembly about 1/4 turn counterclockwise and lift it out.
4. Lift the lower filter slightly, then pull it forward to remove.

Cleaning tips (to avoid damage)

• Rinse both filters under running water until soils are removed.
• Use a soft brush only if you have stuck-on soil or hard-water deposits.
• Do not use a wire brush or scouring pad; it can damage the filter screens.
• Reinstall the lower filter under the locating tabs, then lock the upper filter by turning it clockwise.
• Do not run the dishwasher unless both filters are properly installed and locked.

What you will see on this model

Filter piece	Where it sits	What it does
Upper filter assembly	In the circular opening at the bottom center	Keeps oversized items and fine particles out of the pump
Lower filter	Under the upper filter, seated under locating tabs	Helps keep food from being recirculated onto dishes

Why it matters

A clean filter helps wash performance, drainage, and noise control. For this Kenmore Quiet Guard style filtration system, we suggest checking the filters about monthly and adjusting based on how often you run loads and how much food soil is on dishes.

Related maintenance that helps cleaning

• Scrape dishes instead of pre-rinsing to reduce redeposit while still saving water.
• Use detergent packs or tablets to help reduce filming.
• Make sure incoming water is hot enough (typically about 120°F) for best results.

Last updated: January 2026

To take your Kenmore dishwasher model 66513693N410 out of Lock (Control Lock) mode, press and hold SANI RINSE for 3 seconds until the Lock indicator light turns off. Once the light is off, the buttons work normally again; the door can still open while locked. See the 66513693N410 owner's manual for the exact button names on your control panel.

Quick unlock steps (Control Lock)

• Make sure the dishwasher is powered on.
• Press and hold SANI RINSE for 3 seconds.
• Watch for the Lock light to turn off.
• If the door was opened during a cycle, press START/RESUME to continue.
• If a button is pressed while locked, the Lock light typically flashes.

If it still seems locked

These checks solve most “won’t start” situations that look like Lock mode:

• Close the door firmly until it latches.
• Press START/RESUME after closing the door (especially if you opened it mid-cycle).
• Cancel the cycle and reselect a cycle, then press START/RESUME.
• Restore power by turning the breaker off for 1 minute, then back on.
• If the keypad is unresponsive, inspect the door latch area for a solid close.

What you should see

What you see	What it means	What to do
Lock light is on	Controls are disabled	Hold SANI RINSE 3 seconds
Lock light flashes when you press a button	It is still locked	Hold SANI RINSE 3 seconds
Door opens/closes but buttons do nothing	Normal for Control Lock	Unlock using SANI RINSE

Why it matters

Control Lock prevents accidental button presses between cycles. If it is on, the dishwasher cannot start, even though the door still opens and closes.

Last updated: January 2026

Common problems we see with the Kenmore dishwasher model 66513693N410 include the dishwasher not starting or pausing with blinking lights, poor cleaning from spray or filter issues, draining problems, and door or rack hardware wear. The 66513693N410 owner's manual troubleshooting section covers many of these symptoms and quick checks.

Most common symptoms and what usually causes them

• Won’t start / won’t run: door not fully latched, Control/Lock enabled, cycle not selected, or power issue (breaker/fuse).
• Blinking Start/Resume light: door not closed; press START/RESUME and close the door within 3 seconds.
• Poor cleaning: clogged filter, blocked spray arm holes, overloading, or low incoming water temperature.
• Not draining / water left in tub: drain path restriction, air gap or hose issue, or a failing drain pump.

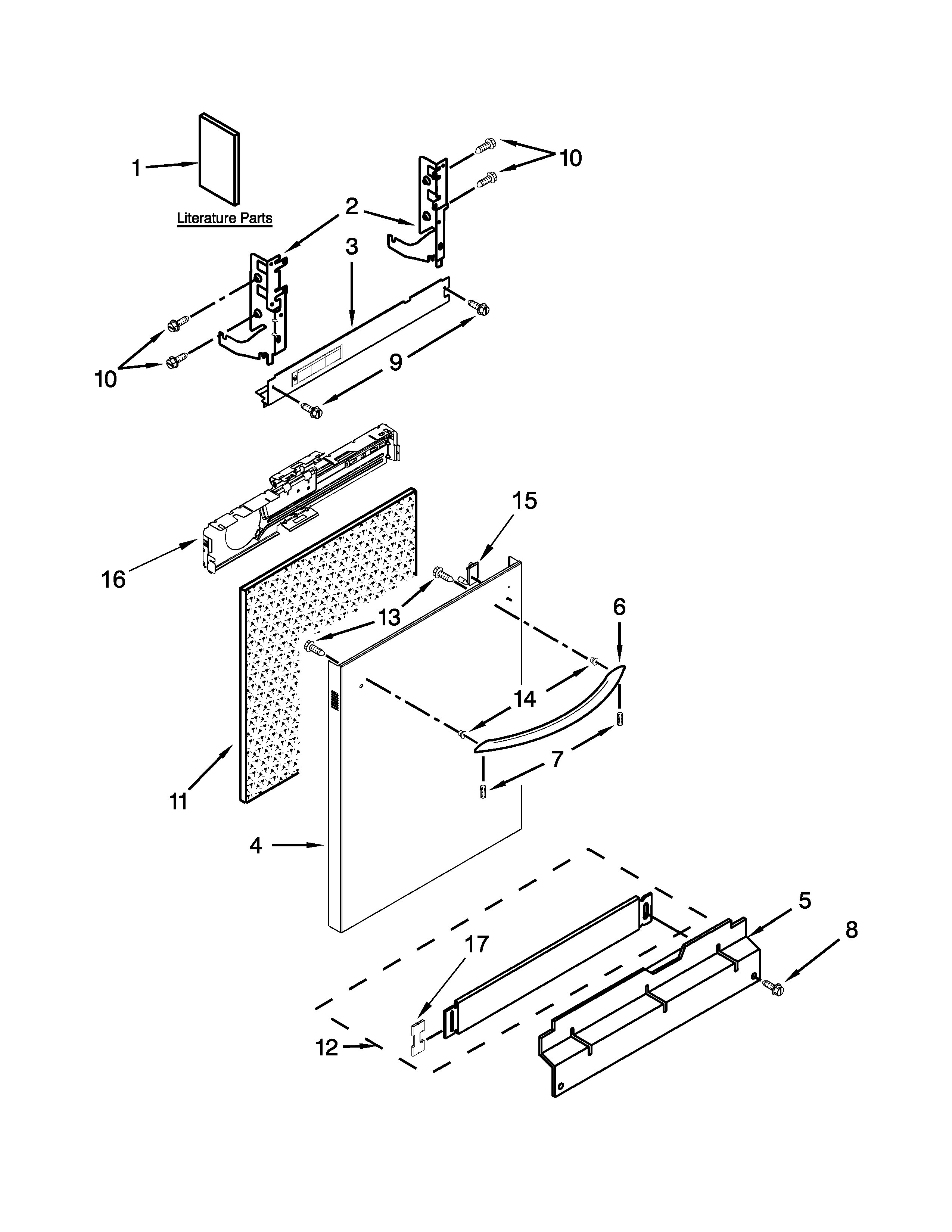

• Door problems: latch wear, hinge or balance link issues.
• Rack problems: worn adjusters, wheels, or rail stops causing the rack to bind or fall off track.

Quick checks we recommend first (before replacing parts)

• Confirm the door closes and latches firmly; remove interference from large dishes.
• If Start/Resume is blinking, press START/RESUME and close the door within 3 seconds.
• Verify the Control/Lock indicator is not lit.
• Check the home breaker or fuse if the dishwasher is completely dead.
• Make sure hot water is available; most dishwashers clean best with 120°F (49°C) incoming water.
• Clean the filter area and inspect spray arms for debris.

Parts that commonly fix these issues on 66513693N410

Symptom	Common part to inspect	Example part for this model
Won’t drain	Drain pump	Dishwasher drain pump WPW10348269
Won’t fill / fills slowly	Water inlet valve	Dishwasher water inlet valve W11175771
Door won’t latch	Door latch	Dishwasher door latch WPW10653840

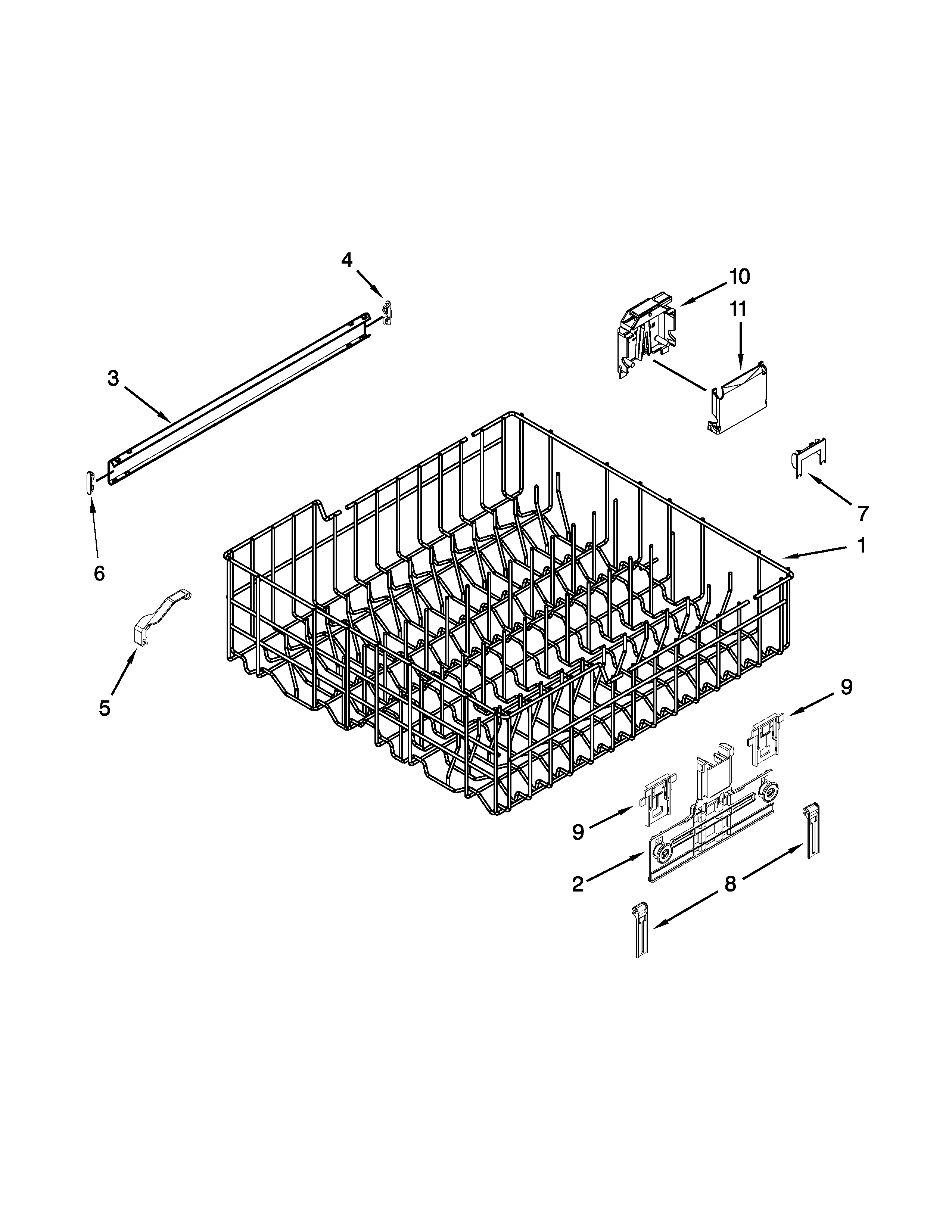

Upper rack won’t adjust smoothly	Rack adjuster	Dishwasher rack adjuster W10712395

Why it matters

Catching the simple causes first (door latch, loading interference, lock feature, water temperature, and basic cleaning) prevents repeat cycle failures and helps protect key components like the circulation system and heating element.

Last updated: January 2026

For Kenmore dishwasher model 66513693N410, the most reliable “hard reset” is to cancel the current cycle and drain the unit, then restart a new cycle. Use the control-panel cancel/drain function described in the 66513693N410 owner's manual to clear the cycle state and get the dishwasher running normally again.

Hard reset steps (cancel/drain reset)

1. Open the door slightly to stop the cycle and wait for spraying to stop.
2. Press and hold START/RESUME for 3 seconds to activate CANCEL/DRAIN.
3. Close the door within 3 seconds so the drain can begin.
4. Let the dishwasher drain completely (the cancel/drain indicator typically turns off after about 2 minutes).
5. Select your new cycle and options.
6. Press START/RESUME, then close the door within 3 seconds to start.

Quick checks if it still will not start

• Make sure Control Lock is off (Lock light off); on many versions you press and hold SANI RINSE for 3 seconds to toggle.
• If you opened the door (even during Delay), press START/RESUME again and close the door within 3 seconds.
• Confirm the door is fully latched; a weak latch can prevent starting (see dishwasher door latch WPW10653840 if yours will not hold closed).
• If the tub is full of water and will not drain, the drain system may need attention (common suspects are the dishwasher drain pump WPW10348269 and drain hose).

What “hard reset” means on this model

Reset type	What it does	When to use it
Cancel/drain reset	Stops the cycle, drains water, clears selections	Stuck cycle, wrong cycle selected, needs restart
Control lock toggle	Disables/enables buttons	Buttons do not respond

Why it matters

Cancel/drain is the fastest way to safely stop a cycle, remove standing water, and restart cleanly. It also helps you avoid restarting with an open detergent dispenser, which can reduce wash performance.

Last updated: January 2026
