Model #79064091309 Kenmore electric range

Here are the diagrams and repair parts for Kenmore 79064091309 electric range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

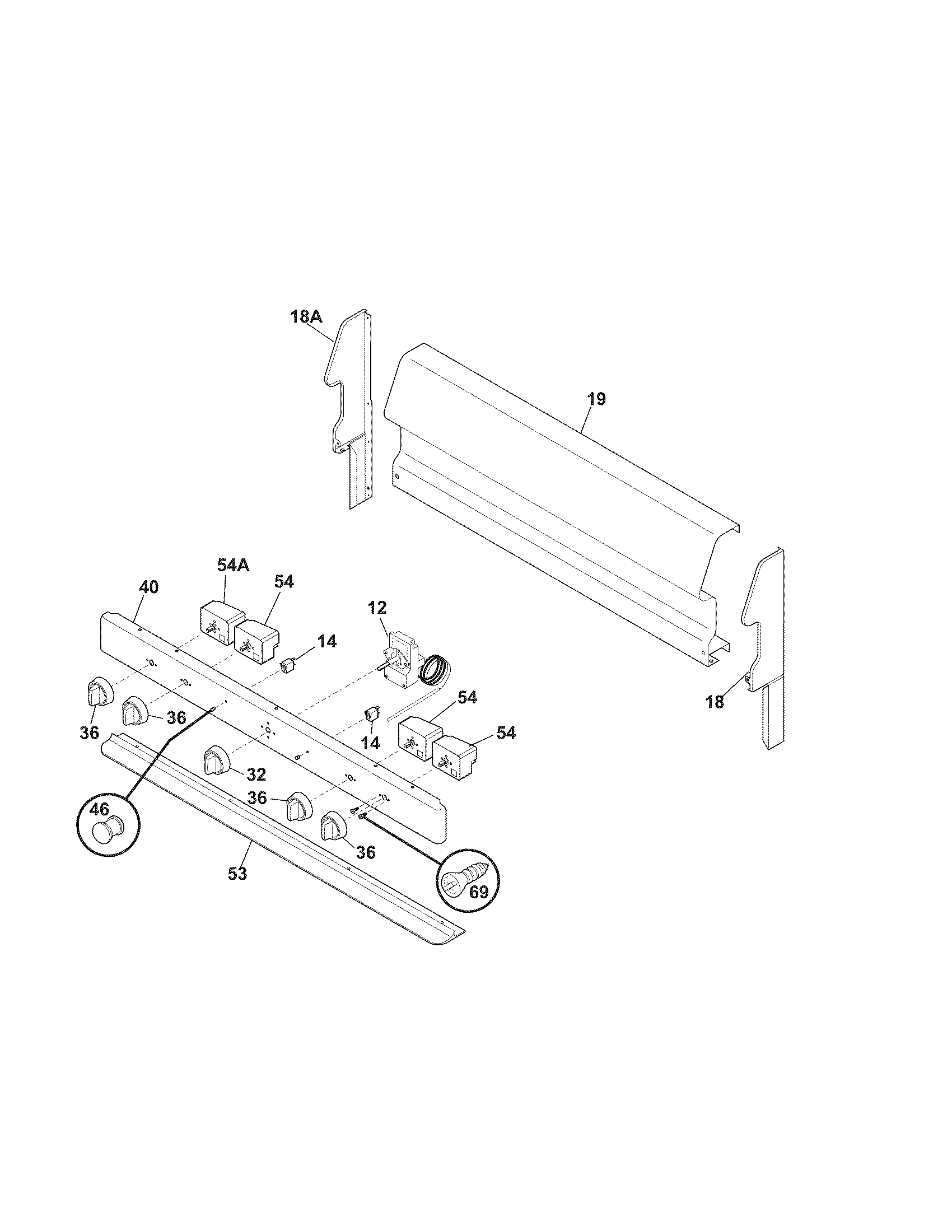

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 97 parts

    Range Drip Pan, 8-in (Chrome)

    #19

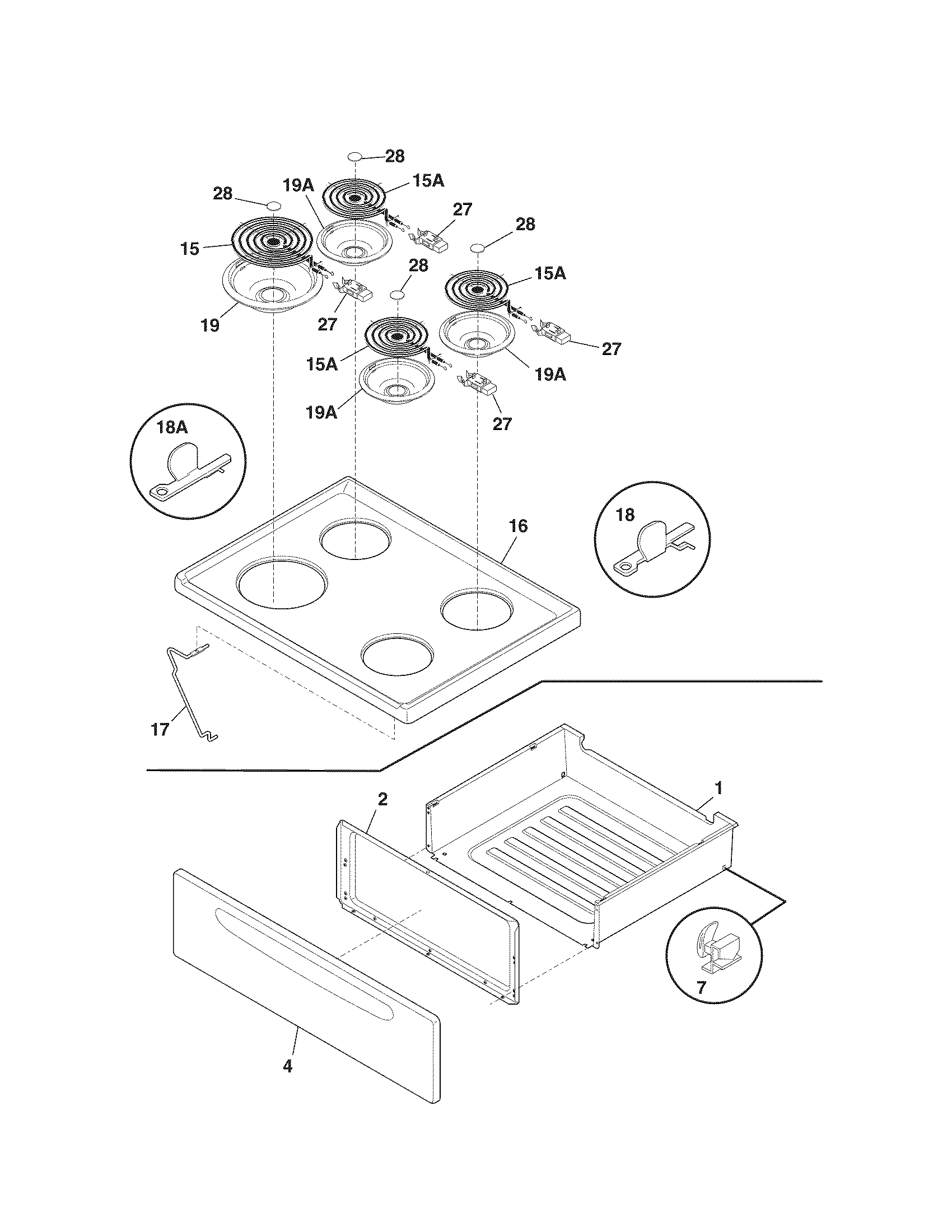

    Top/drawer Diagram

    Range drip pan, 8-in (chrome)

    Part #316048413
    This item is not returnable
    $6.73 |
    31% OFF MSRP:$9.74

    In Stock

    Range Drip Pan, 6-in (Chrome)

    #19A

    Top/drawer Diagram

    Range drip pan, 6-in (chrome)

    Part #316048414
    This item is not returnable
    $5.59

    In Stock

    Range Drawer Glide

    #7

    Top/drawer Diagram

    Range drawer glide

    Part #3051163
    This item is not returnable
    $5.60 |
    54% OFF MSRP:$12.07

    In Stock

    Range Drawer Glide, Front

    #29

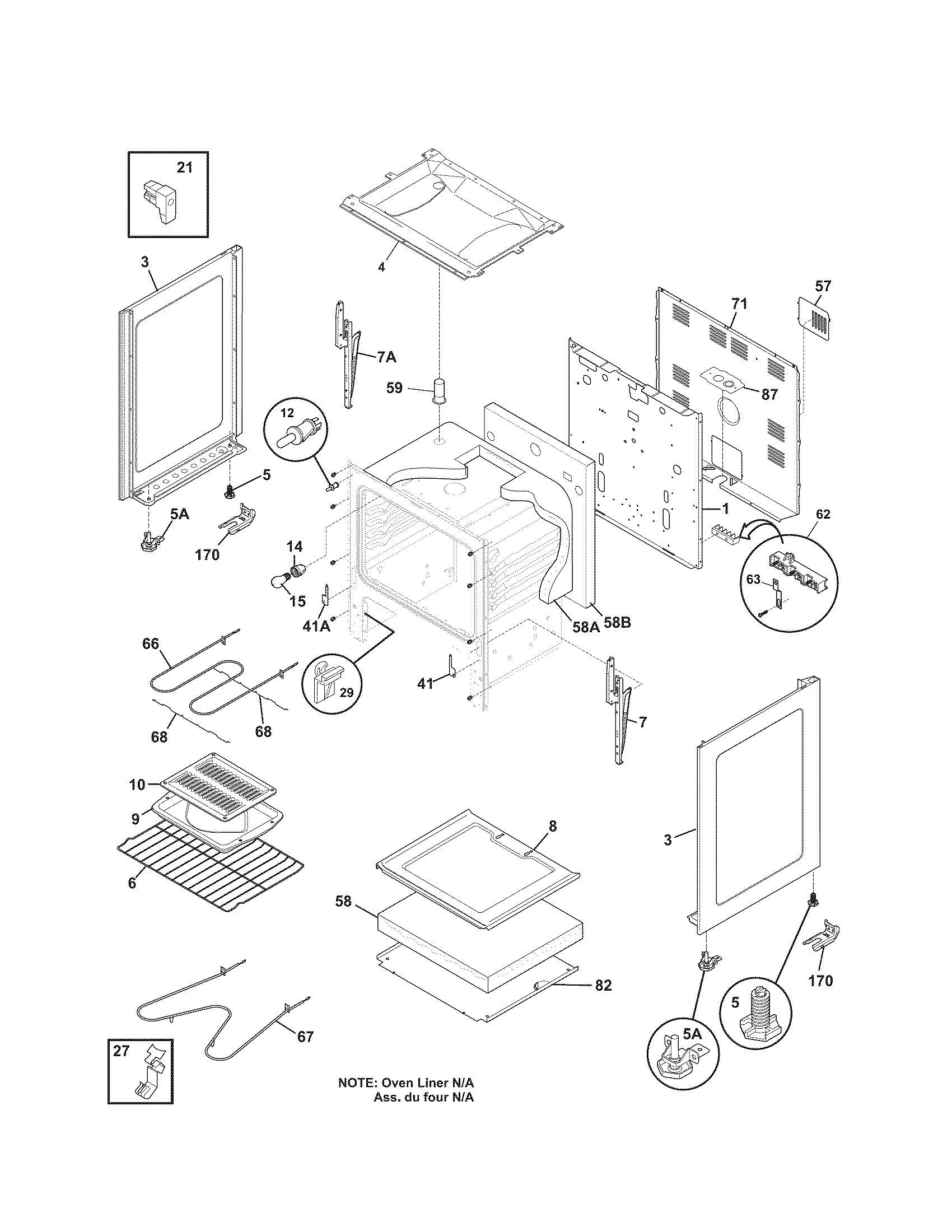

    Body Diagram

    Range drawer glide, front

    Part #3051162
    This item is not returnable
    $5.24

    In Stock

    Range Broil Element

    #66

    Body Diagram

    Range broil element

    Part #316203200
    $118.34 |
    30% OFF MSRP:$170.00

    In Stock

    Range Washer

    #10B

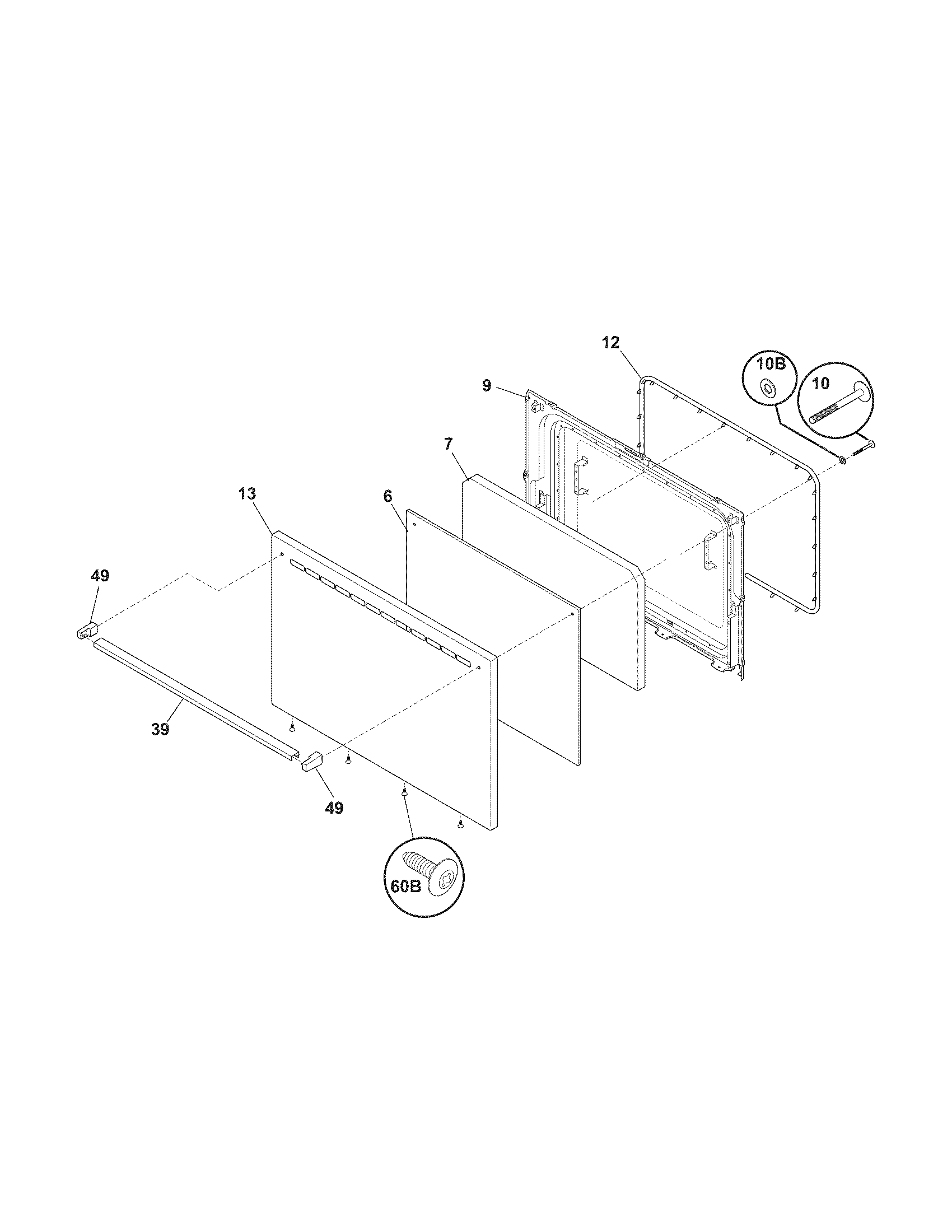

    Door Diagram

    Range washer

    Part #316008401
    $8.08

    In Stock

    Range Oven Door Seal

    #12

    Door Diagram

    Range oven door seal

    Part #316239700
    $76.92

    In Stock

    Range Terminal Block

    #62

    Body Diagram

    Range terminal block

    Part #5303935271
    $39.26 |
    16% OFF MSRP:$47.00

    In Stock

    Range Screw

    #NI

    Top/drawer Diagram

    Range screw

    Part #316021109
    $9.05 |
    5% OFF MSRP:$9.50

    In Stock

    Range Terminal Block Grounding Strap Plate

    #63

    Body Diagram

    Range terminal block grounding strap plate

    Part #316542600
    This item is not returnable
    $7.40 |
    14% OFF MSRP:$8.60

    In Stock
