Craftsman 917251520 tractor Parts
Here are the diagrams and repair parts for Craftsman 917251520 tractor, as well as links to manuals and error code tables, if available.
Owner’s manual
View engine
By Schematic
By Part
SELECT DIAGRAM

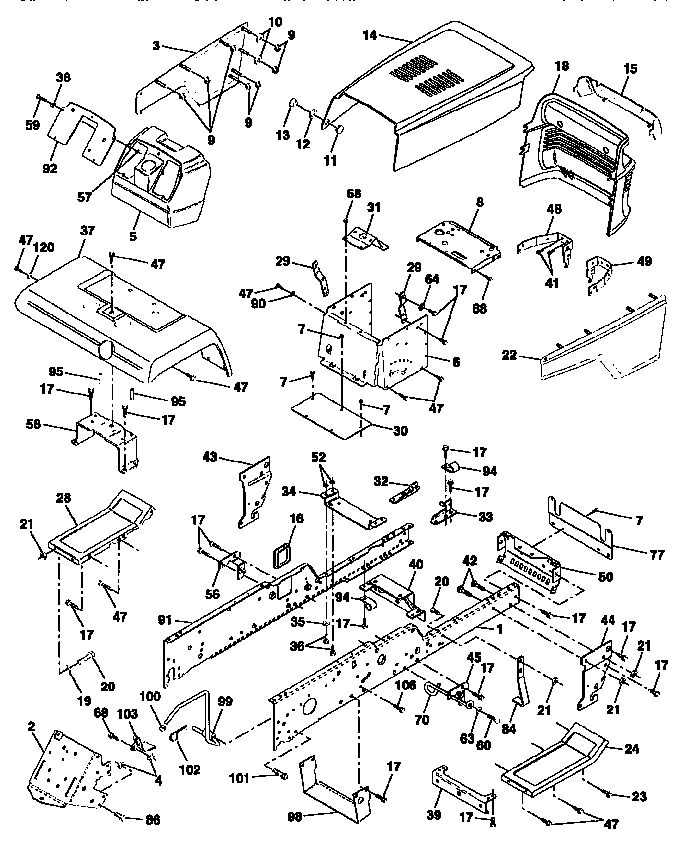

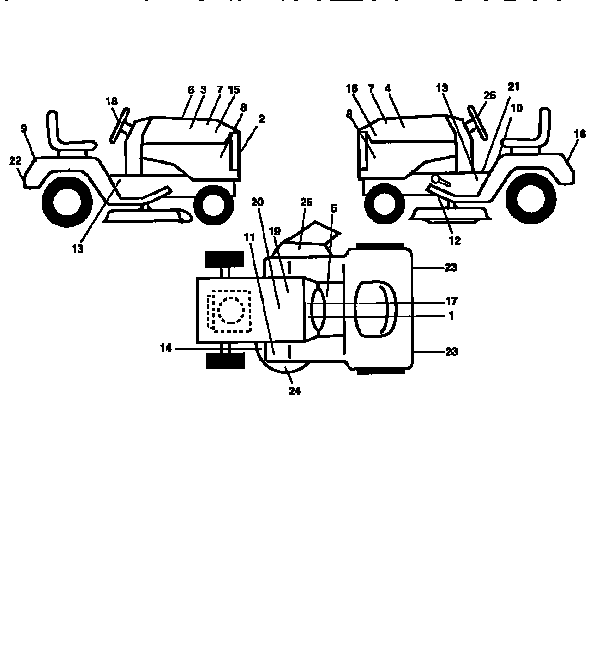

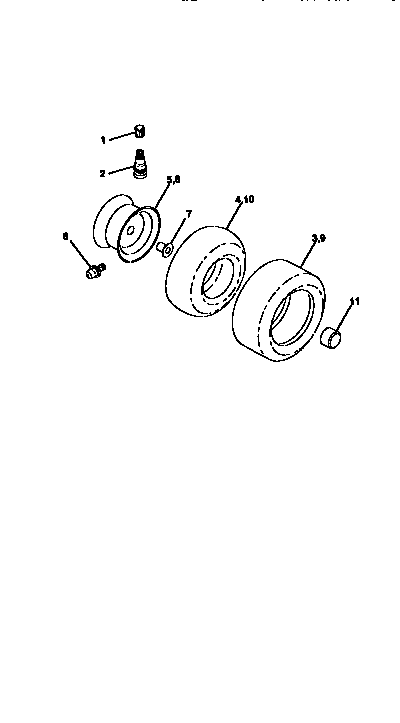

Browse Parts for917251520 Riding Mowers & Tractors

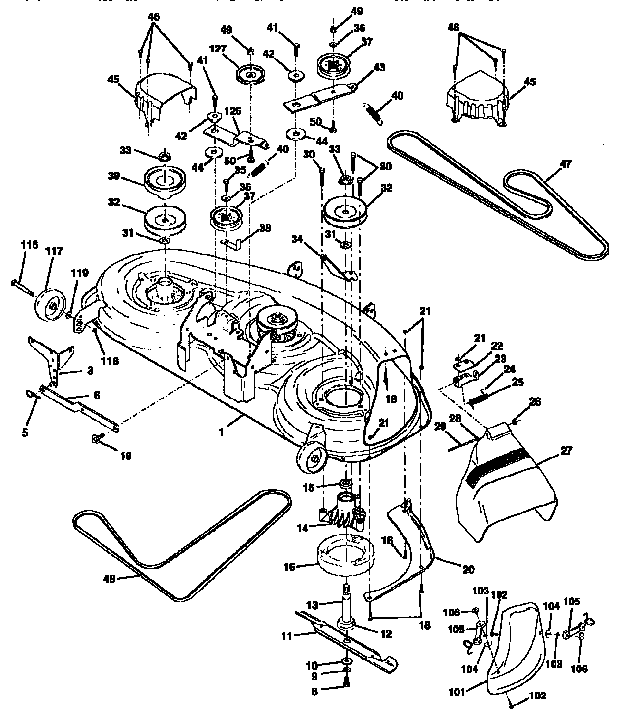

Mower deck diagram
Washer, 3/16 X 3/4-in, 16-gauge
Part #19061216Replaced by #819061216
Manufacturer substitutionThis part replaces 19061216. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0317% OFF Phone Price : $6.03
Qty

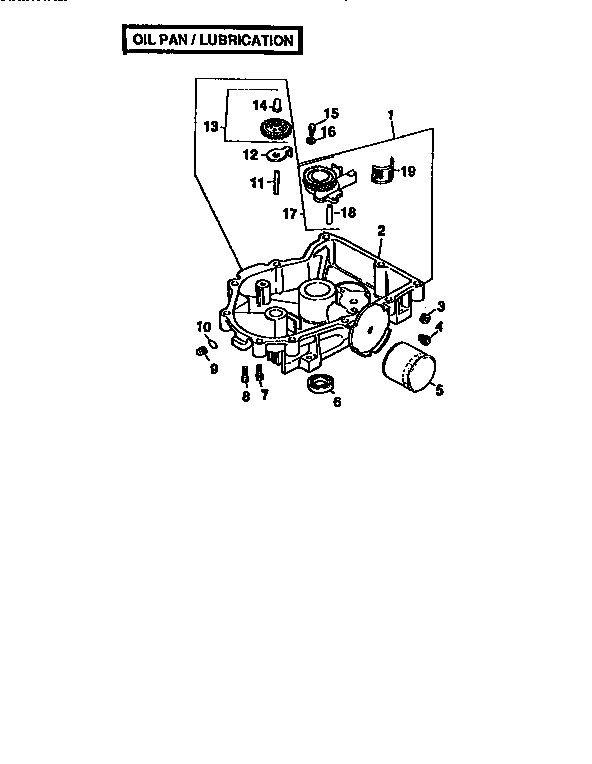

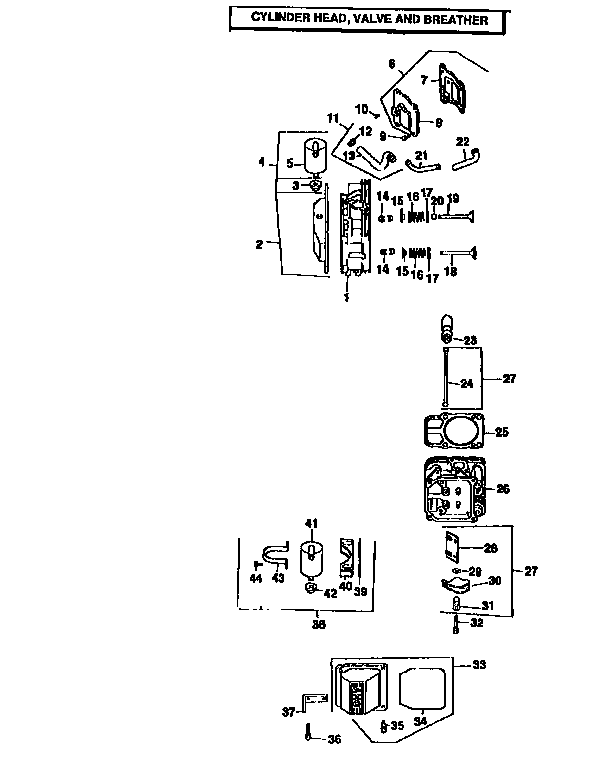

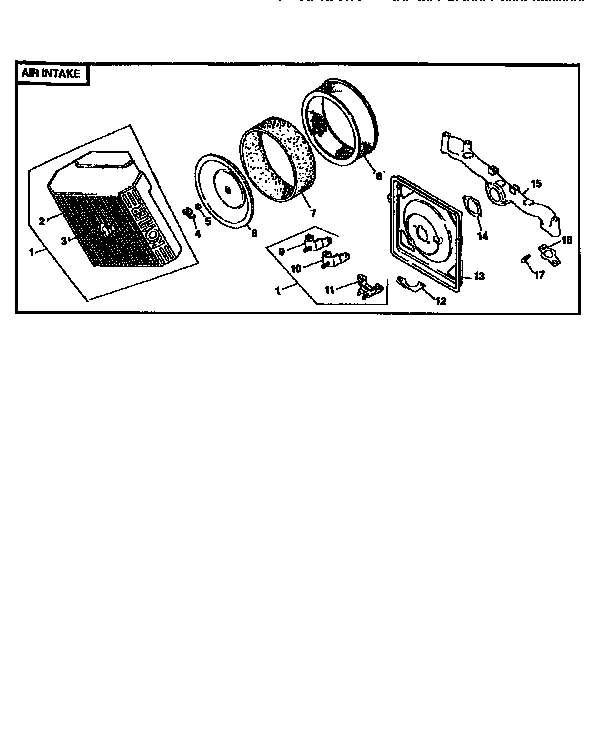

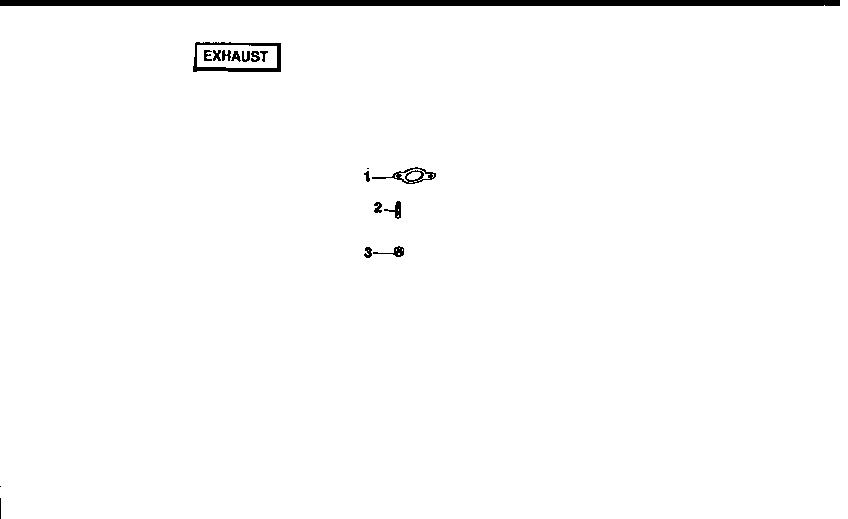

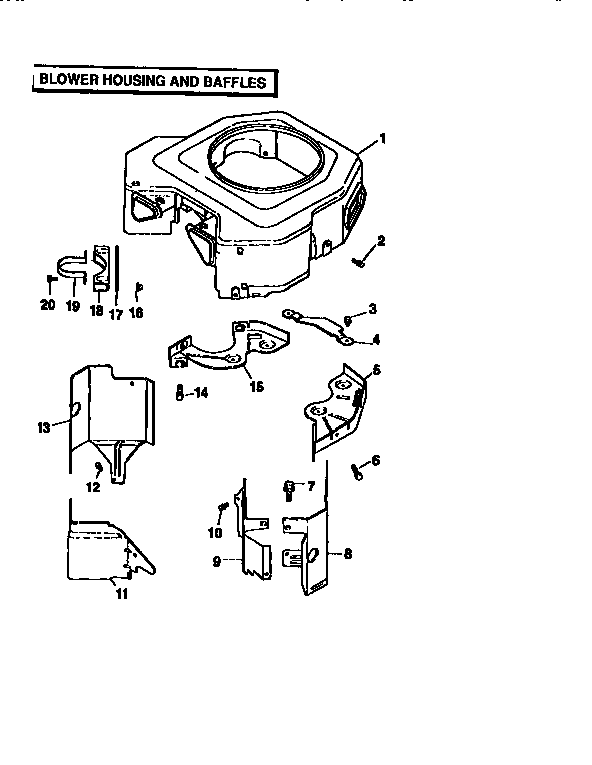

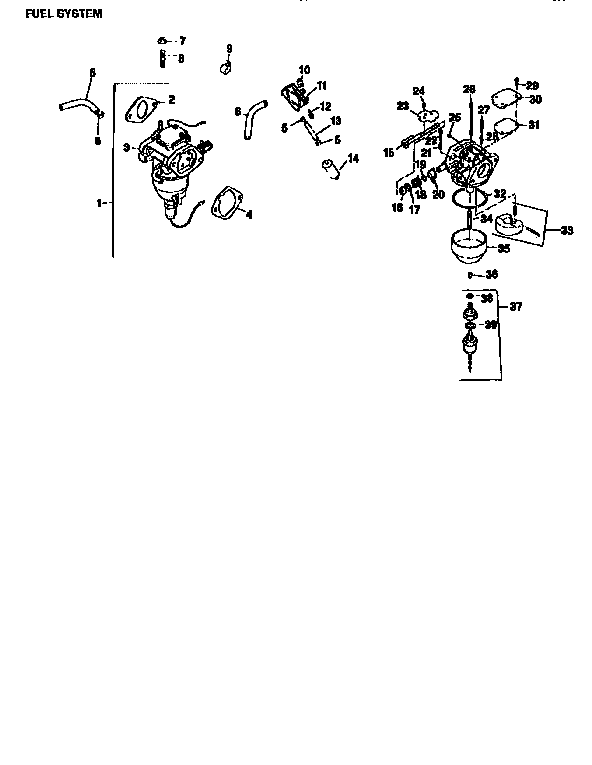

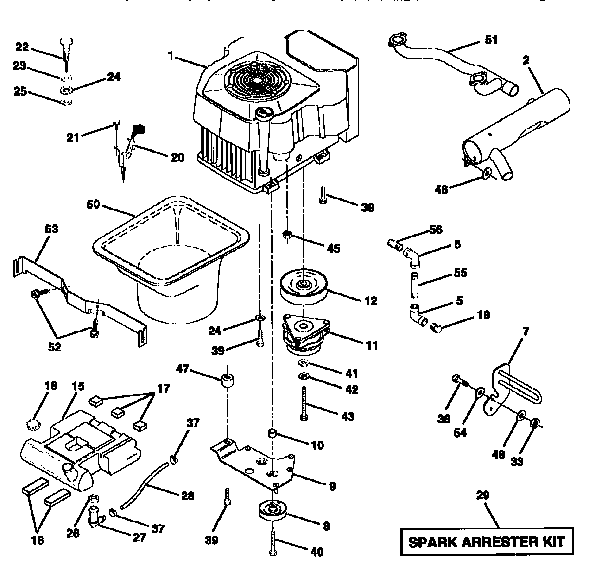

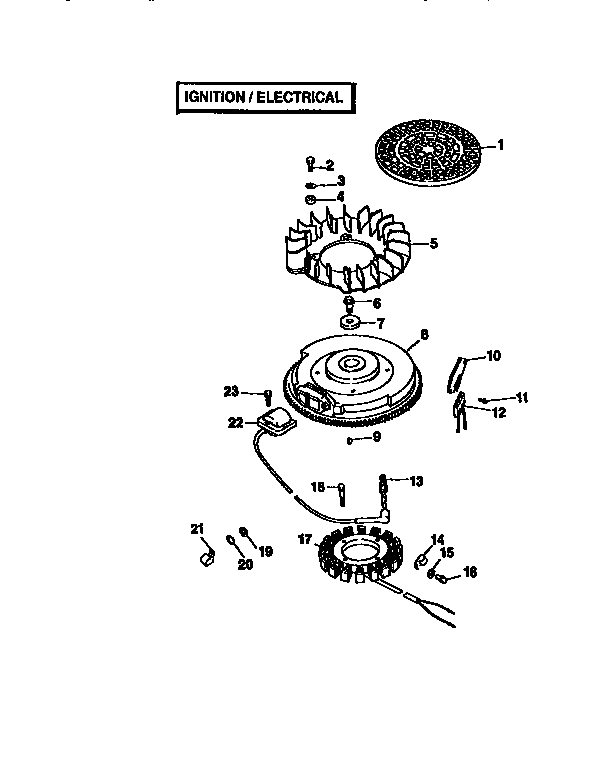

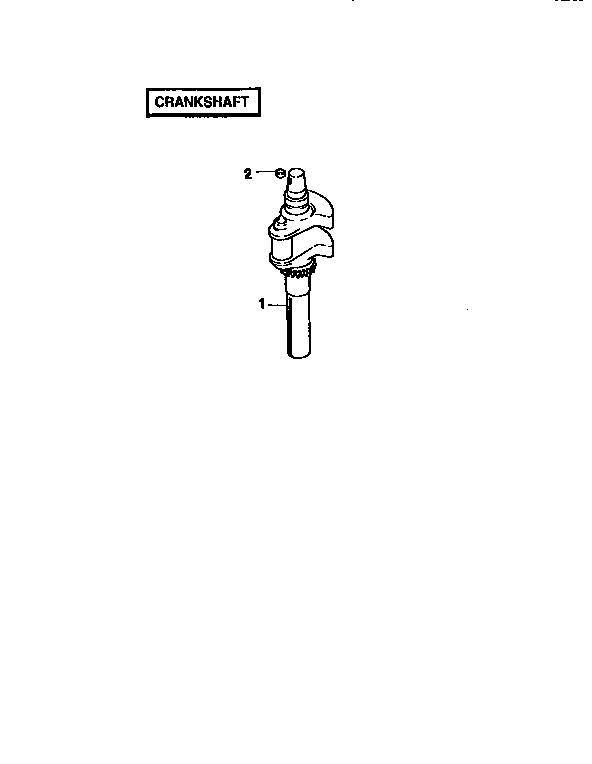

Engine diagram
Nipple
Part #13090336Replaced by #532428287
Manufacturer substitutionThis part replaces 13090336. Substitute parts can look different from the original.In Stock$30.0317% OFF Phone Price : $36.03QtyMower deck diagram
Lawn Tractor Mandrel Shaft
Part #137553Replaced by #532137553

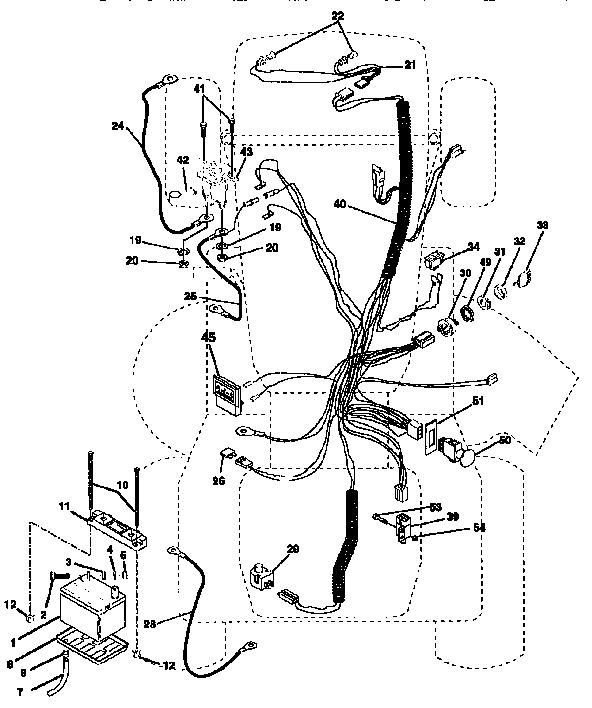

Manufacturer substitutionThis part replaces 137553. Substitute parts can look different from the original.In Stock$46.6311% OFF Phone Price : $52.63QtyElectrical diagram
Lawn Tractor Seat Switch
Part #121305XReplaced by #532421062
Manufacturer substitutionThis part replaces 121305X. Substitute parts can look different from the original.This item is not returnableIn Stock$40.4813% OFF Phone Price : $46.48QtyElectrical diagram
Lawn Tractor Headlight Switch
Part #110712XReplaced by #532110712
Manufacturer substitutionThis part replaces 110712X. Substitute parts can look different from the original.This item is not returnableIn Stock$12.6814% OFF Phone Price : $14.68QtySteering assembly diagram
Lawn Tractor Steering Shaft
Part #145103Replaced by #532145103
Manufacturer substitutionThis part replaces 145103. Substitute parts can look different from the original.In Stock$122.559% OFF Phone Price : $134.55QtySeat assembly diagram
Bolt
Part #139888Replaced by #532139888

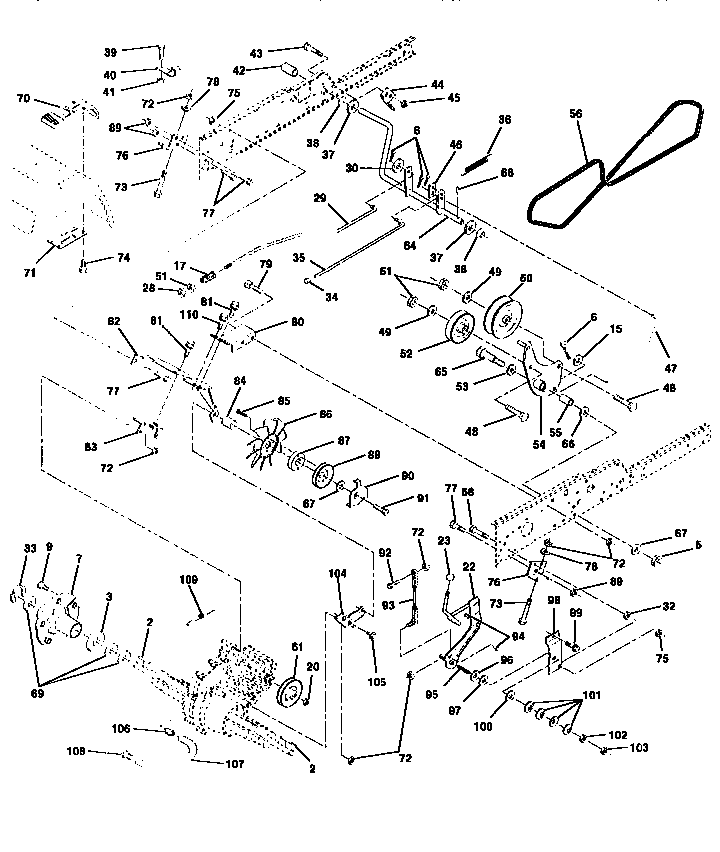

Manufacturer substitutionThis part replaces 139888. Substitute parts can look different from the original.In Stock$6.7213% OFF Phone Price : $7.72QtyGround drive diagram

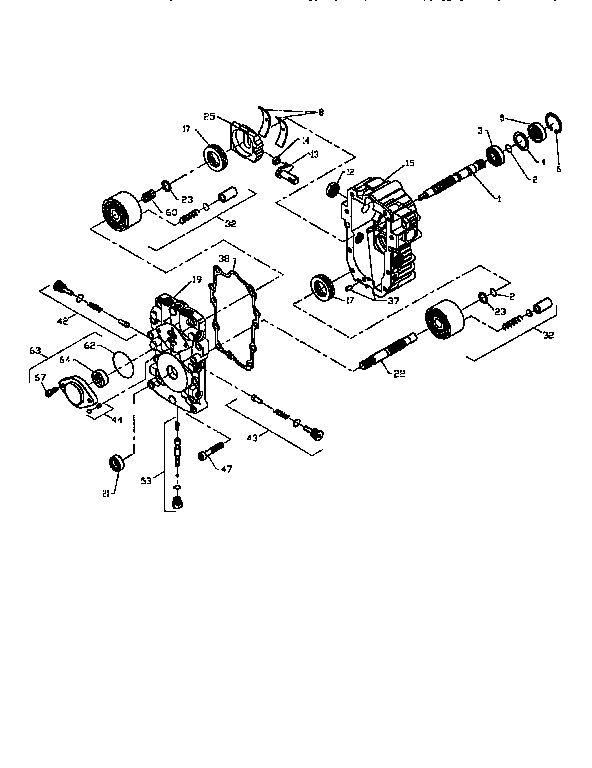

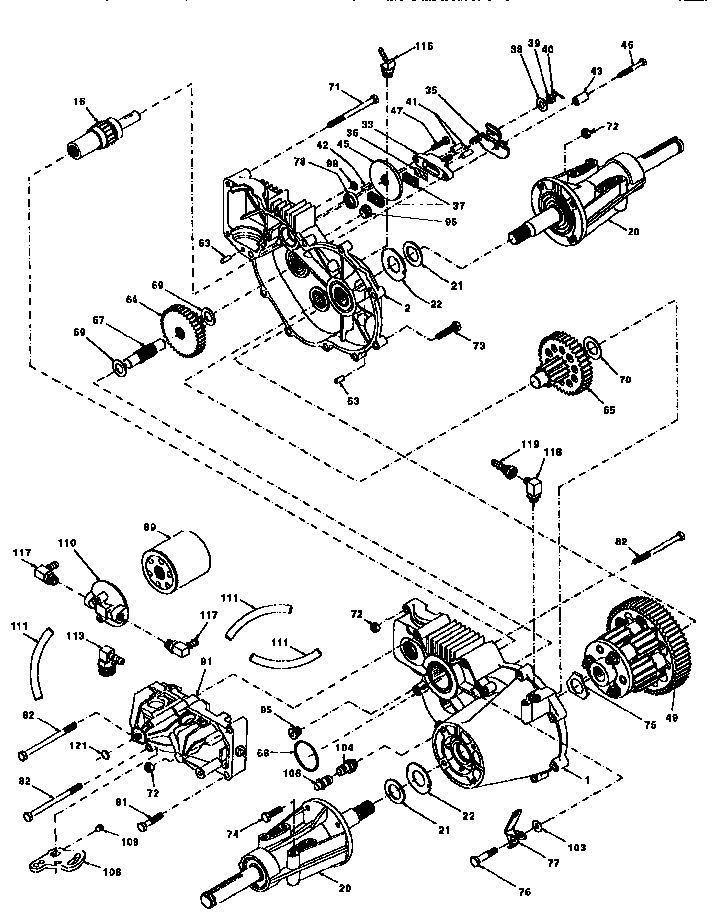

Lawn & Garden Equipment Hinge Screw
Part #88652Replaced by #532088652

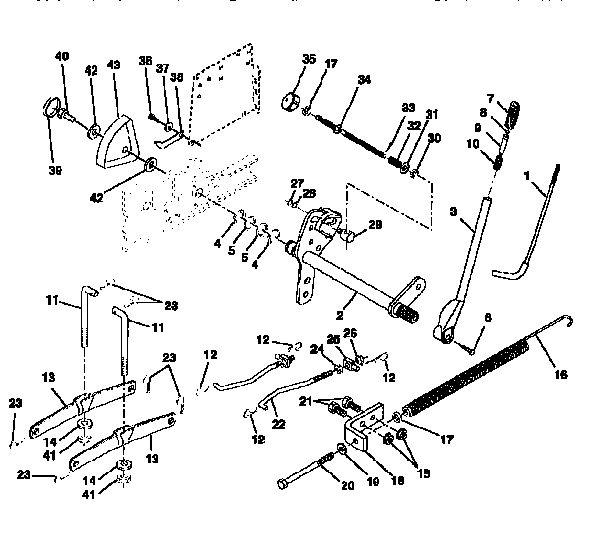

Manufacturer substitutionThis part replaces 88652. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0317% OFF Phone Price : $6.03QtyLift assembly diagram
Arm
Part #139867Replaced by #531165801
Manufacturer substitutionThis part replaces 139867. Substitute parts can look different from the original.In Stock$30.8116% OFF Phone Price : $36.81QtyMower deck diagram
Lock Washer
Part #10071000Replaced by #810071000
Manufacturer substitutionThis part replaces 10071000. Substitute parts can look different from the original.In Stock$8.6310% OFF Phone Price : $9.63Qty
