Craftsman 917250830-1977 lawn tractor - 1977 Parts
Here are the diagrams and repair parts for Craftsman 917250830-1977 lawn tractor - 1977, as well as links to manuals and error code tables, if available.

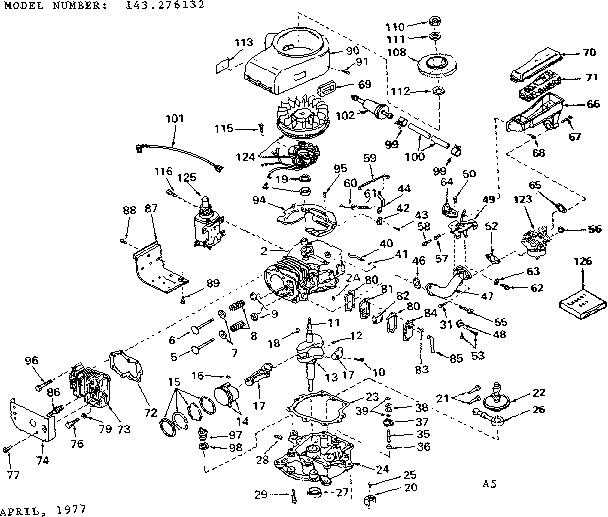

View engineBy Schematic
By Part

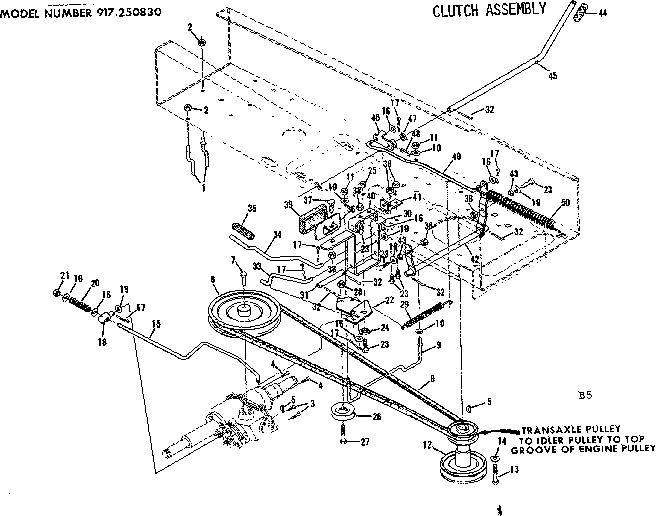

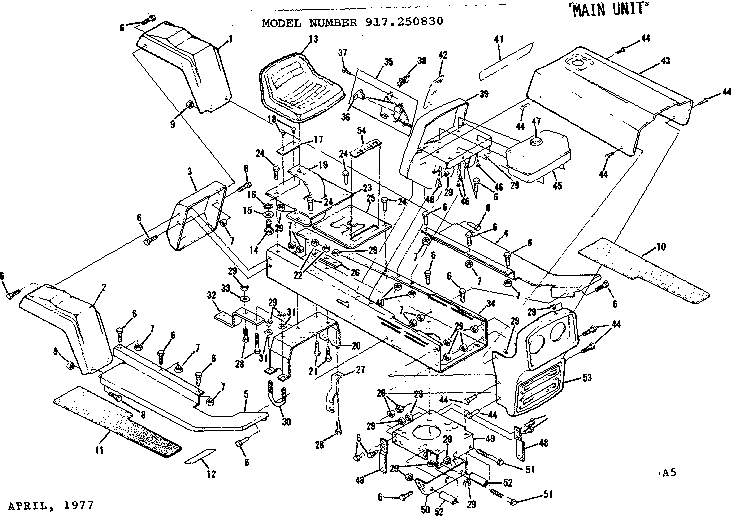

SELECT DIAGRAM
Browse Parts for 917250830-1977 Riding Mowers & Tractors

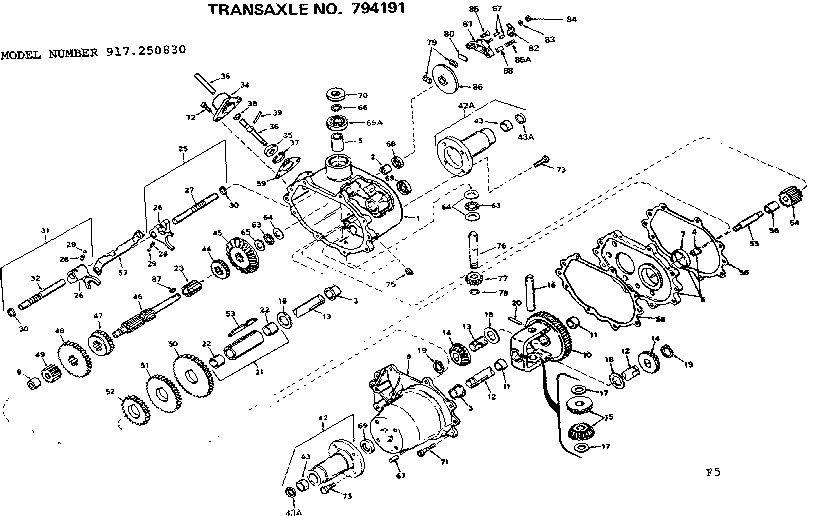

Transaxle diagram
Brake Lever
Part #790004Replaced by #790004
Manufacturer substitutionThis part replaces 790004. Substitute parts can look different from the original.In Stock$11.34
Qty
Transaxle diagram
Pinion
Part #778068Replaced by #778131
Manufacturer substitutionThis part replaces 778068. Substitute parts can look different from the original.$37.0614% OFF Phone Price : $43.06
QtyTransaxle diagram
Bearing
Part #780066Replaced by #780066
Manufacturer substitutionThis part replaces 780066. Substitute parts can look different from the original.This item is not returnableIn Stock$9.03QtyTransaxle diagram
Bearing
Part #780064Replaced by #780064

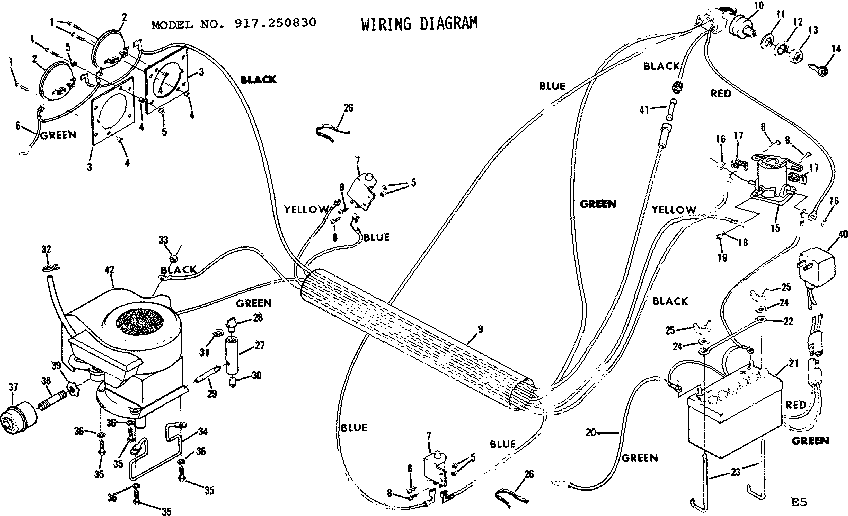

Manufacturer substitutionThis part replaces 780064. Substitute parts can look different from the original.This item is not returnableIn Stock$6.77QtyWiring diagram diagram
Nut
Part #67759Replaced by #532124211
Manufacturer substitutionThis part replaces 67759. Substitute parts can look different from the original.In Stock$10.4916% OFF Phone Price : $12.49QtyTransaxle diagram
Pin
Part #792049Replaced by #792049
Manufacturer substitutionThis part replaces 792049. Substitute parts can look different from the original.This item is not returnableIn Stock$6.77QtyTransaxle diagram
Gear
Part #778067Replaced by #778132
Manufacturer substitutionThis part replaces 778067. Substitute parts can look different from the original.In Stock$28.44QtyTransaxle diagram
Bearing
Part #780071Replaced by #780071
Manufacturer substitutionThis part replaces 780071. Substitute parts can look different from the original.In Stock$11.34QtyTransaxle diagram
Gasket
Part #788033Replaced by #788033A

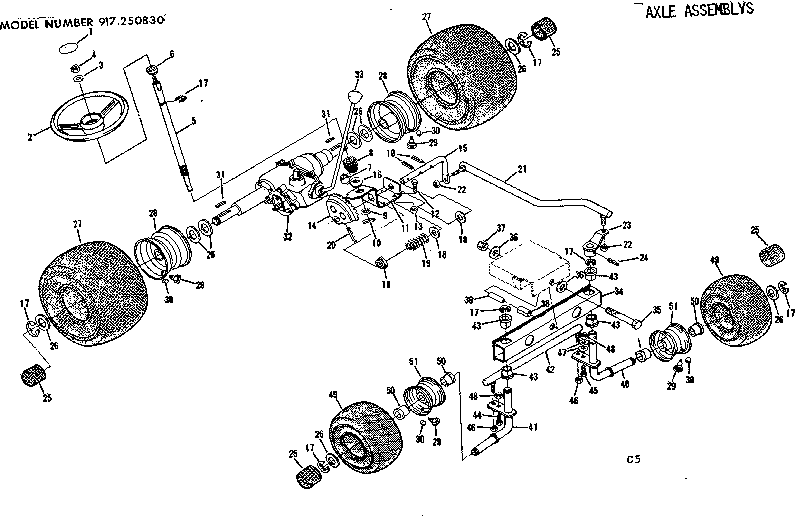

Manufacturer substitutionThis part replaces 788033. Substitute parts can look different from the original.This item is not returnableIn Stock$4.26QtyAxle assemblys diagram
Washer
Part #59164Replaced by #819171416
Manufacturer substitutionThis part replaces 59164. Substitute parts can look different from the original.This item is not returnableIn Stock$7.40Qty
