Bosch
Washer

Model # WFMC5301UC/16 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFMC5301UC-16 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Washer Hot Water Inlet Valve 422245
#407

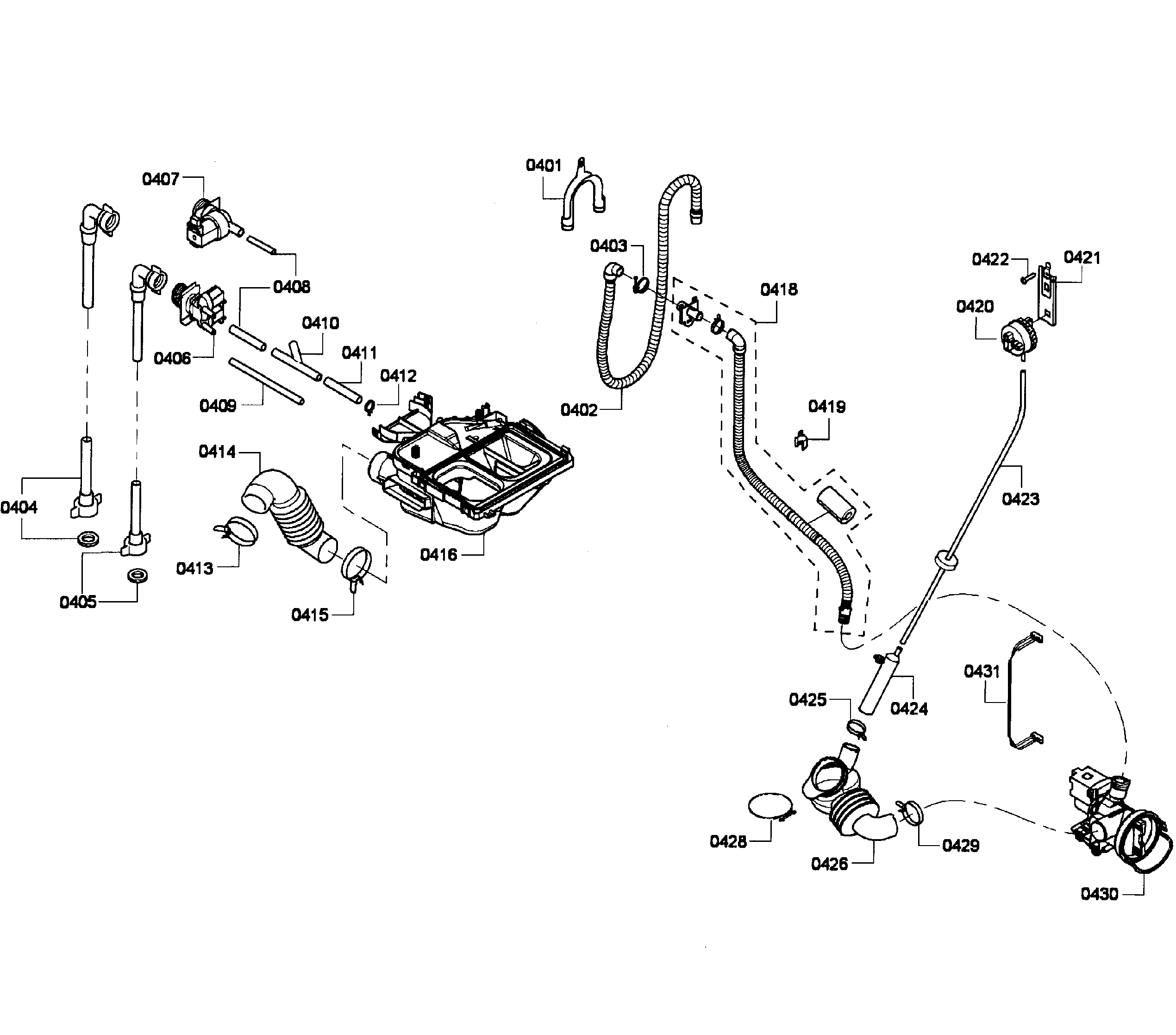

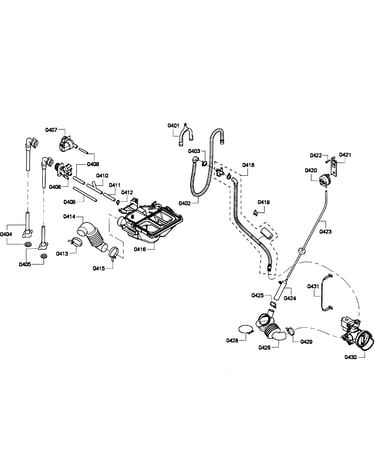

Pump/dispenser diagram

Washer hot water inlet valve

Part #422245

Replaced by #00422245

?
Manufacturer substitution
This part replaces 422245. Substitute parts can look different from the original.
BEST SELLER
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Washer Damper 642112
#329

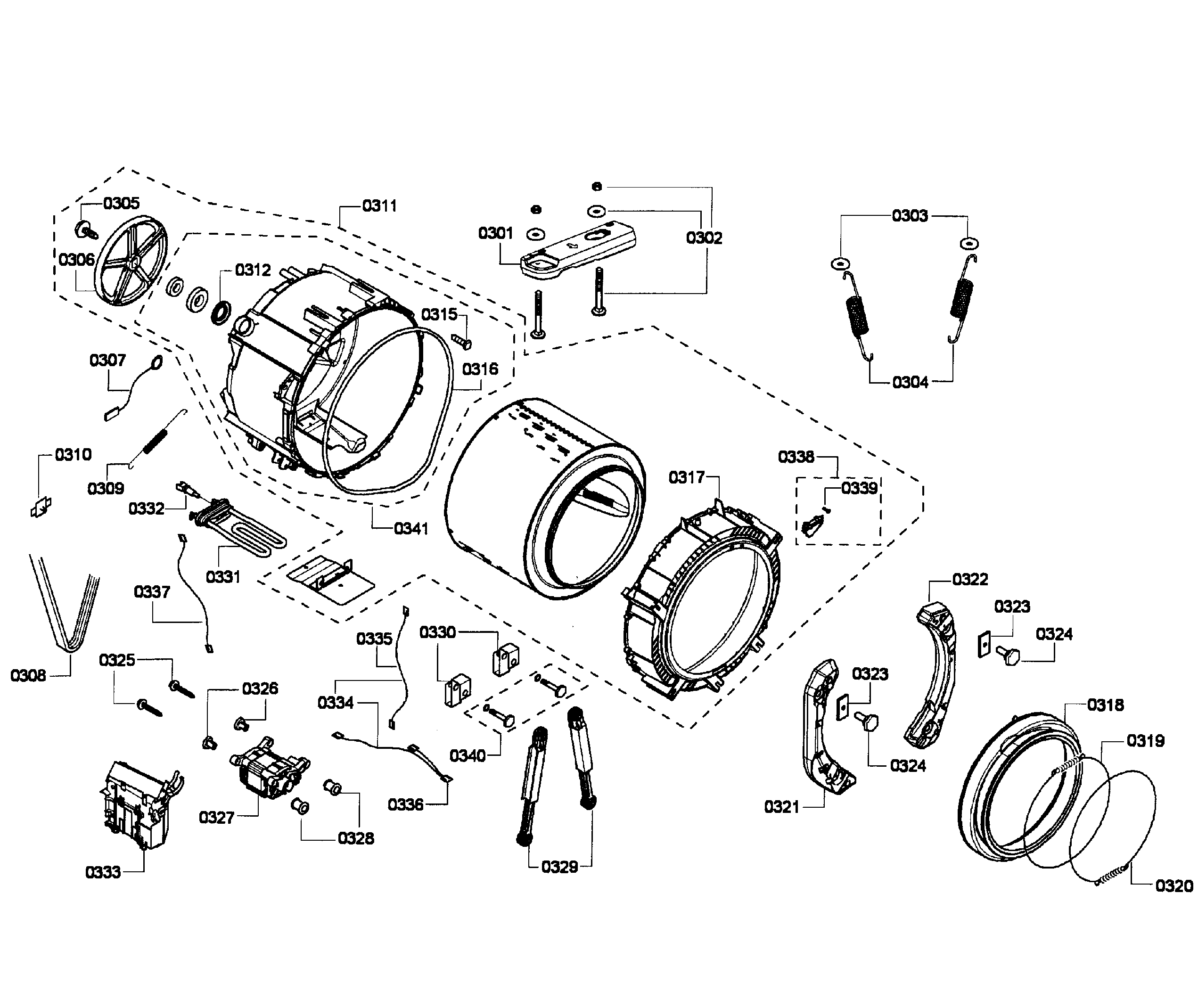

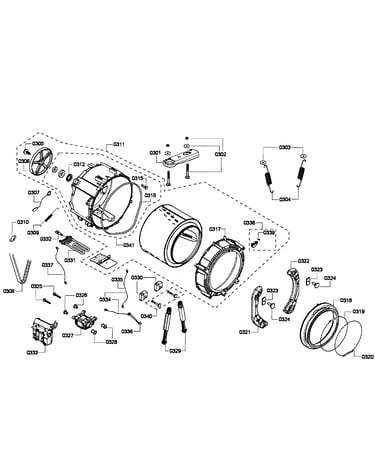

Drum assy diagram

Washer damper

Part #642112

Replaced by #00642112

?
Manufacturer substitution
This part replaces 642112. Substitute parts can look different from the original.
$68.79 |
8% OFF Phone Price : $74.79
In Stock
Washer Door Boot 667487
#318

Drum assy diagram

Washer door boot

Part #667487

Replaced by #00667487

?
Manufacturer substitution
This part replaces 667487. Substitute parts can look different from the original.
$80.99 |
7% OFF Phone Price : $86.99
In Stock
Washer Door Boot Clamp 644646
#320

Drum assy diagram

Washer door boot clamp

Part #644646

The manufacturer no longer makes this part, and there's no substitute part

Clamp 644645
#319

Drum assy diagram

Clamp

Part #644645

Replaced by #00648264

?
Manufacturer substitution
This part replaces 644645. Substitute parts can look different from the original.
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Switch 491681
#420

Pump/dispenser diagram

Switch

Part #491681

Replaced by #00491681

?
Manufacturer substitution
This part replaces 491681. Substitute parts can look different from the original.
$67.79 |
8% OFF Phone Price : $73.79
In Stock
Weight 143681
#321

Drum assy diagram

Weight

Part #143681

Replaced by #00143681

?
Manufacturer substitution
This part replaces 143681. Substitute parts can look different from the original.
$100.05 |
11% OFF Phone Price : $112.05
In Stock
Bracket 491695
#330

Drum assy diagram

Bracket

Part #491695

Replaced by #00491695

?
Manufacturer substitution
This part replaces 491695. Substitute parts can look different from the original.
$45.07
In Stock
Ctl.mudule 668977
#106

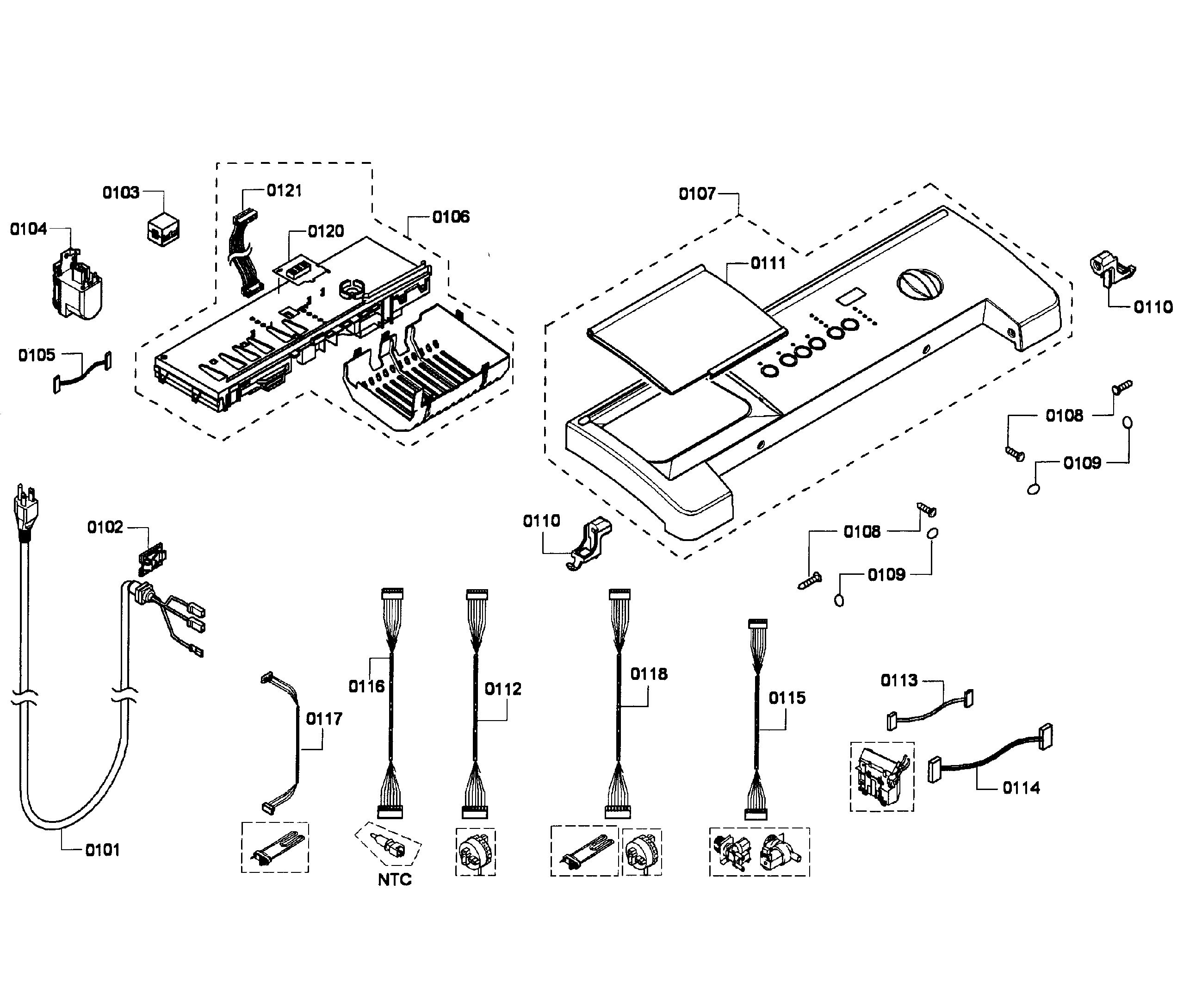

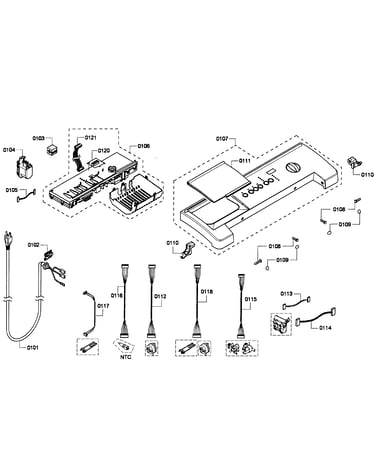

Control panel diagram

Ctl.mudule

Part #668977

Replaced by #00668977

?
Manufacturer substitution
This part replaces 668977. Substitute parts can look different from the original.
$639.74 |
$12.00 OFF Phone Price : $651.74
In Stock
Washer Flat Washer, 10 X 20.5-mm 605059
#236

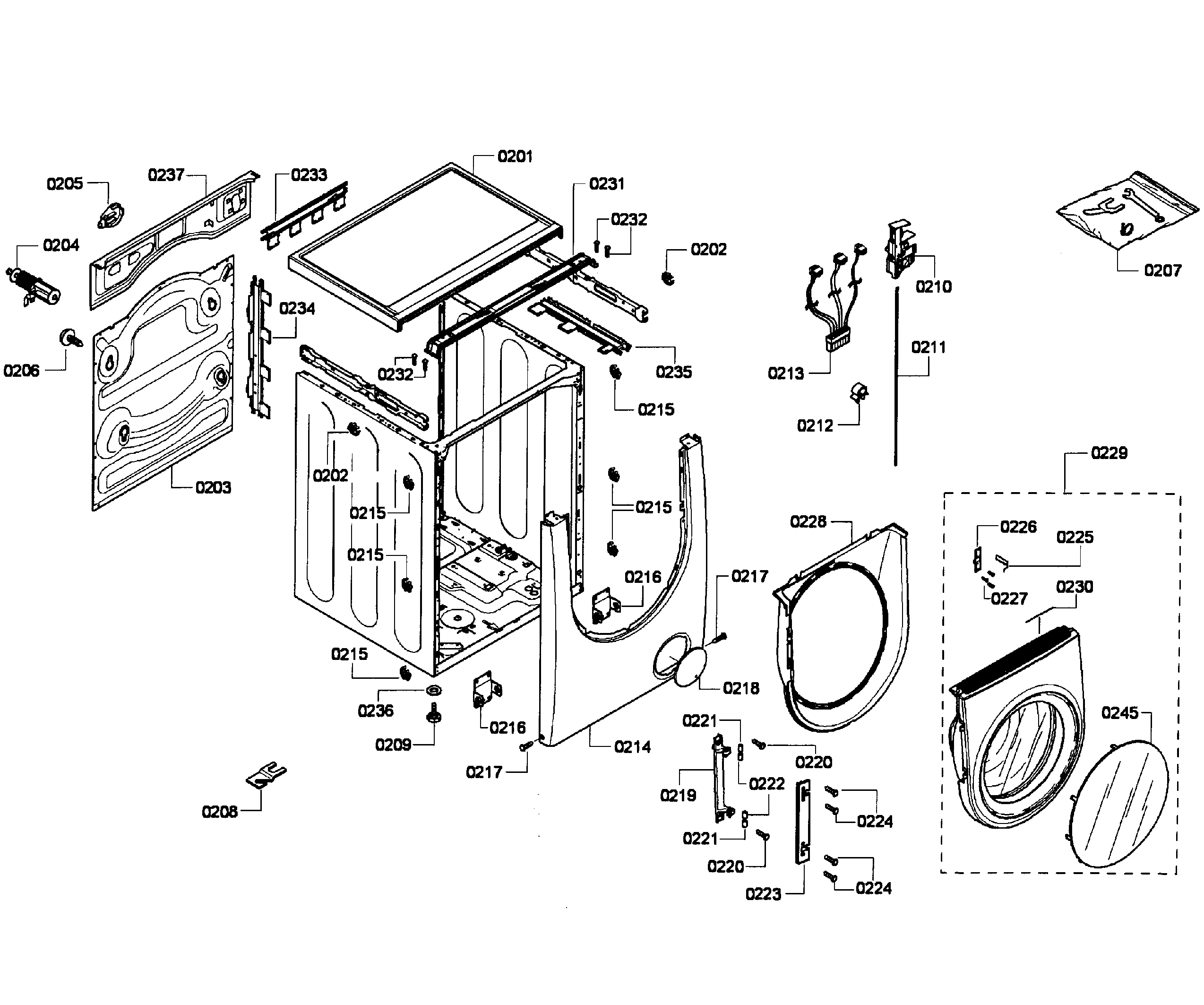

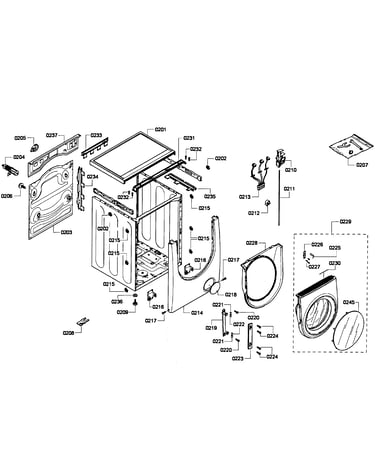

Cabinet assy diagram

Washer flat washer, 10 x 20.5-mm

Part #605059

Replaced by #00605059

?
Manufacturer substitution
This part replaces 605059. Substitute parts can look different from the original.
This item is not returnable
$2.26
In Stock
