Kenmore Elite 11026922503 washer Parts

Yes. Kenmore Elite is Kenmore’s higher-end line, and your Kenmore Elite washer model 11026922503 is built to deliver stronger performance and more refined features than standard Kenmore models, while still focusing on practical value and serviceability.

What “high end” means for Kenmore Elite washers

Kenmore Elite typically sits above standard Kenmore models in areas that matter day to day:

• More cycle and option flexibility (better fabric care and soil handling)
• Stronger spin and wash performance for larger or heavier loads
• More robust mechanical design and replaceable components
• Better overall fit and finish compared with entry-level lines

For model-specific operation details (cycle use, water level, temperature selection, and dispenser use), use the 11026922503 owner's manual.

How this affects repairs and parts

A “high-end” washer still uses wear parts that eventually need replacement. The advantage is that many common failures are straightforward to diagnose and fix with the right part.

Common service-related parts for this model include:

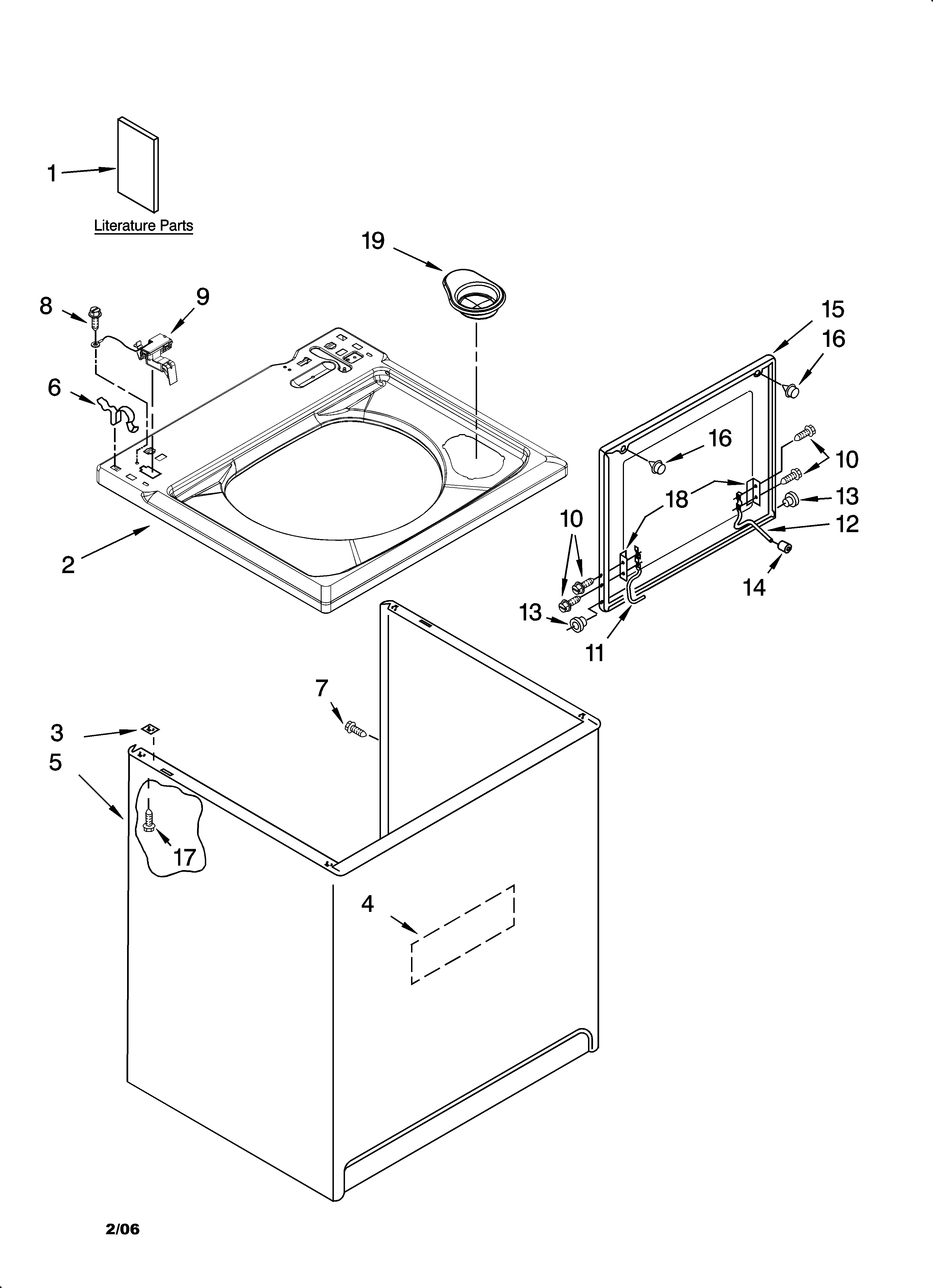

• Washer lid switch assembly WP8318084 (won’t start, stops mid-cycle, no spin with lid open)
• Washer drain pump WP3363394 (won’t drain, slow drain, water left in tub)

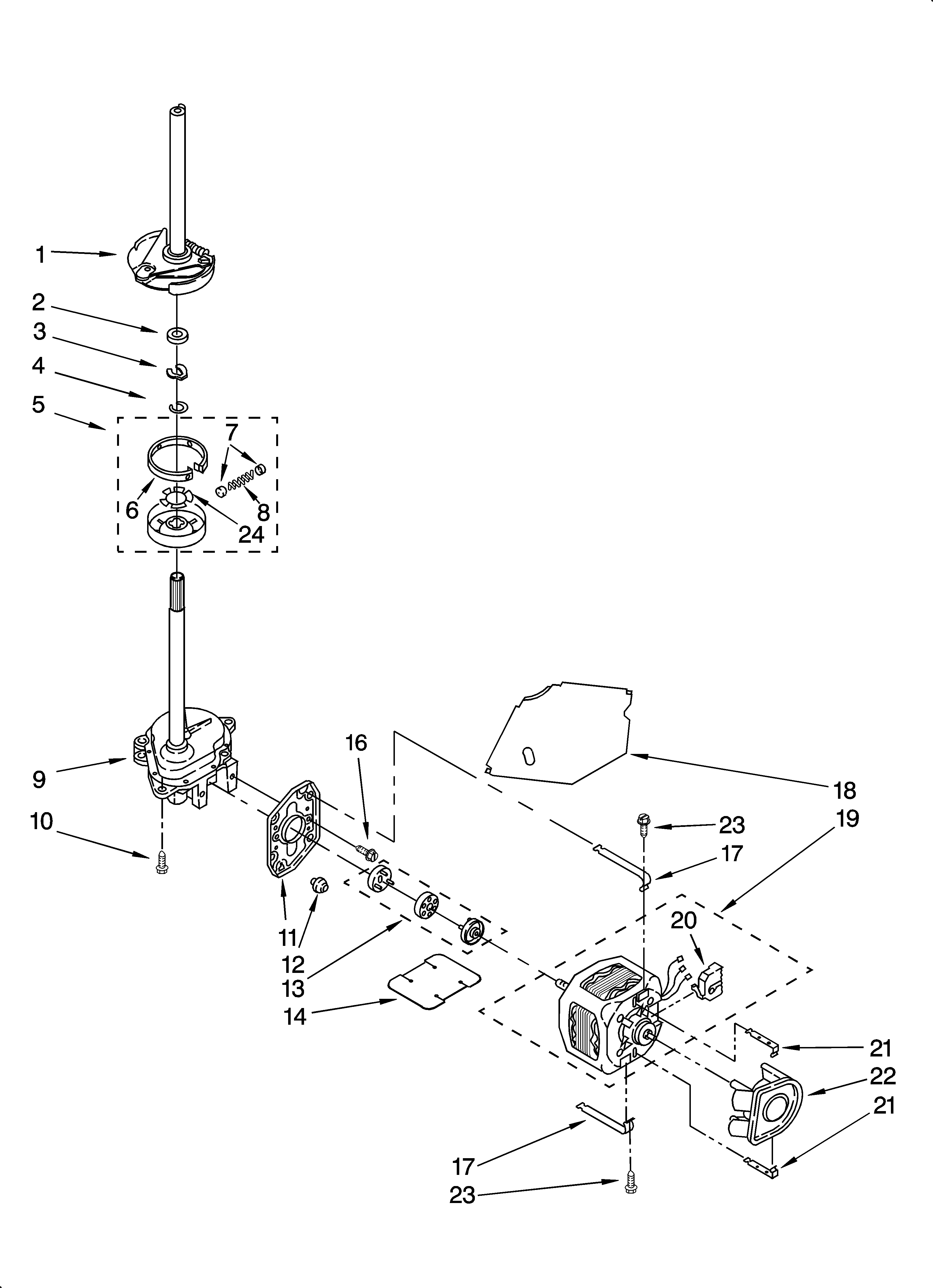

• Washer motor coupling 285753A (motor runs but won’t agitate or spin)

Quick comparison: standard vs Elite (typical)

Feature area	Standard Kenmore (typical)	Kenmore Elite (typical)
Cycles and options	Basic	More specialized
Performance under heavy loads	Moderate	Stronger
Serviceability	Varies	Often better supported
Ownership experience	Value-focused	Premium value

Why it matters

Knowing Kenmore Elite is a higher-end line helps set expectations: you can justify repairing it when the tub, basket, drive system, or controls are otherwise in good shape. It also helps you prioritize maintenance steps like proper leveling to reduce vibration and wear (covered in the 11026922503 installation guide).

To order replacement parts for model 11026922503, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

Most Kenmore washers last 10 to 15 years with normal household use and basic maintenance. For your Kenmore Elite washer 11026922503, keeping it level, avoiding overloads, and fixing early symptoms (no-drain, no-spin, leaks) helps you reach the full service life; see the 11026922503 owner's manual for care guidance.

Typical lifespan and what changes it

A washer’s life is mainly driven by load size, cycle frequency, and how quickly wear parts are replaced.

• Normal family use: 10 to 15 years
• Heavy use (large household, frequent bulky loads): closer to 8 to 12 years
• Light use (few loads per week): often 12 to 15 years
• Poor leveling or chronic overloading: shortens life by stressing the suspension, drive, and tub
• Freezing storage/operation: can cause damage if water remains inside

Maintenance that extends life (high impact)

These steps prevent the most common failures we see in top-load washers like model 11026922503.

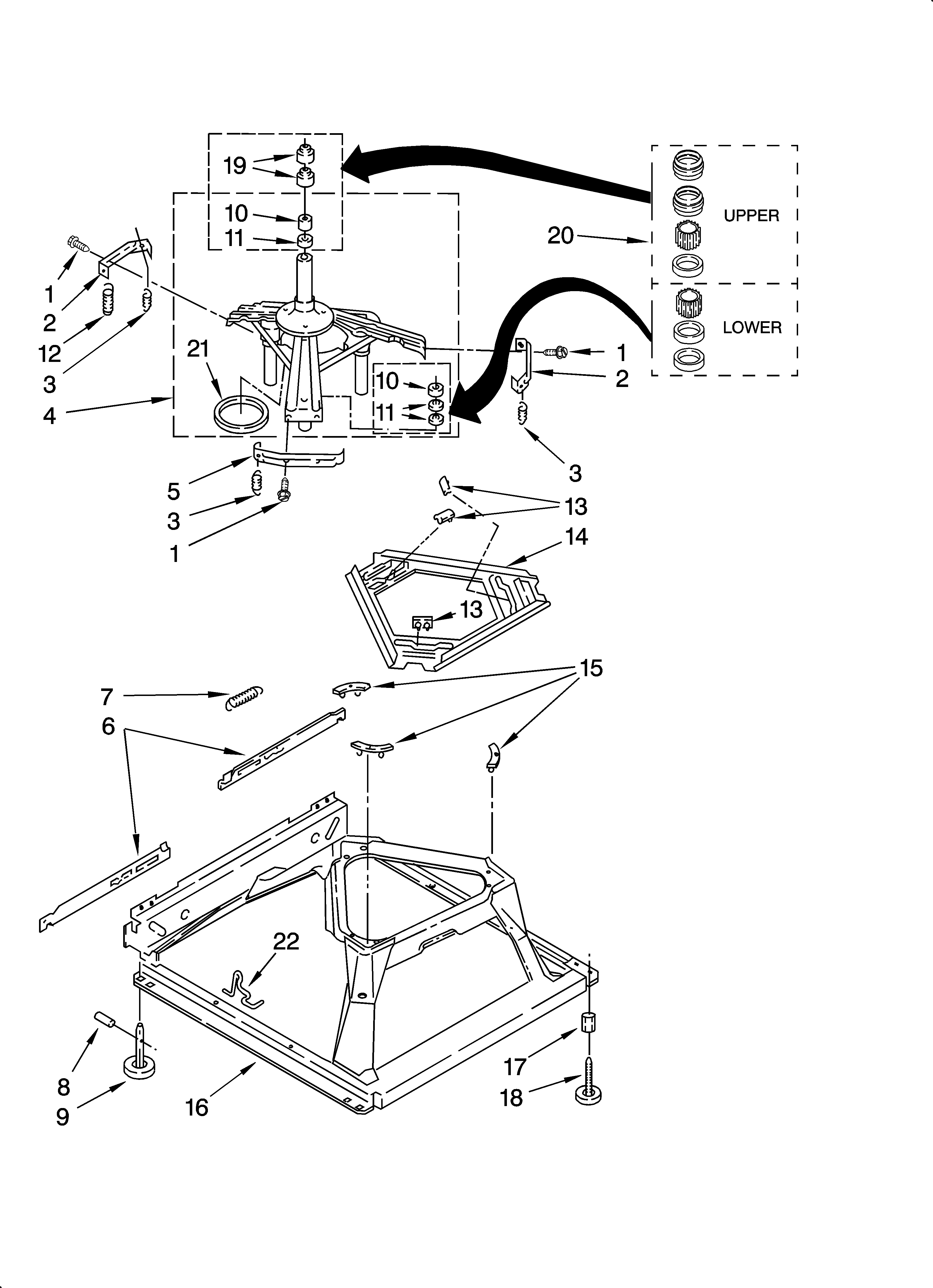

• Keep the washer level and stable to reduce out-of-balance wear
• Do not overload; heavy loads strain the drive system and suspension
• Use the right amount of detergent and clean residue regularly

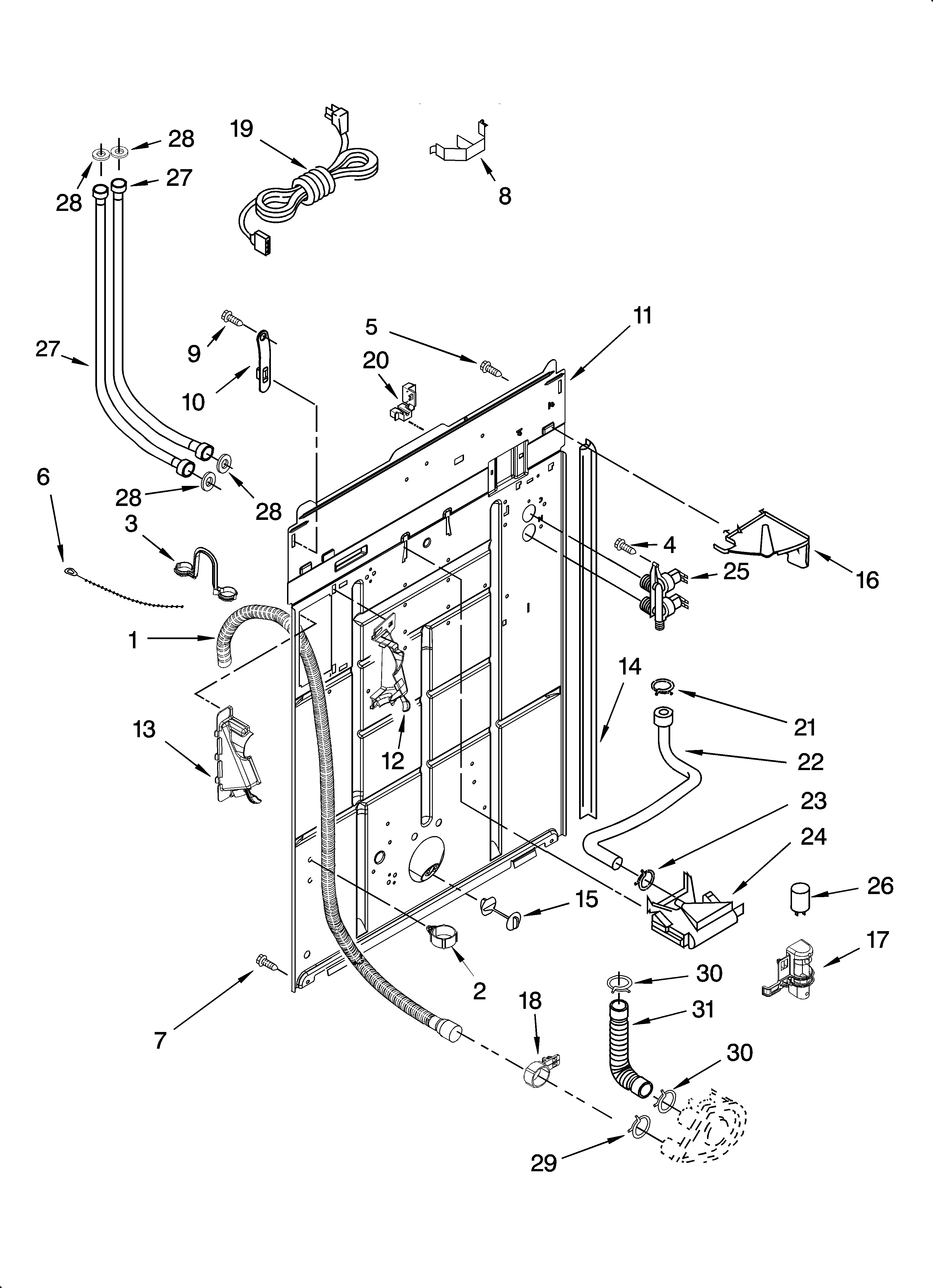

• Check fill and drain hoses for seepage and replace at the first sign of cracking
• Protect against freezing; do not store or operate at or below 32°F (0°C)

Wear parts that commonly decide “repair vs. replace”

If the washer is otherwise in good shape, replacing a few common parts can add years of service.

Symptom	Common wear area	Example part for this model
Won’t drain or drains slowly	Drain pump or blockage	Washer drain pump WP3363394
Won’t spin, intermittent agitation	Lid switch or drive coupling	Washer lid switch assembly WP8318084

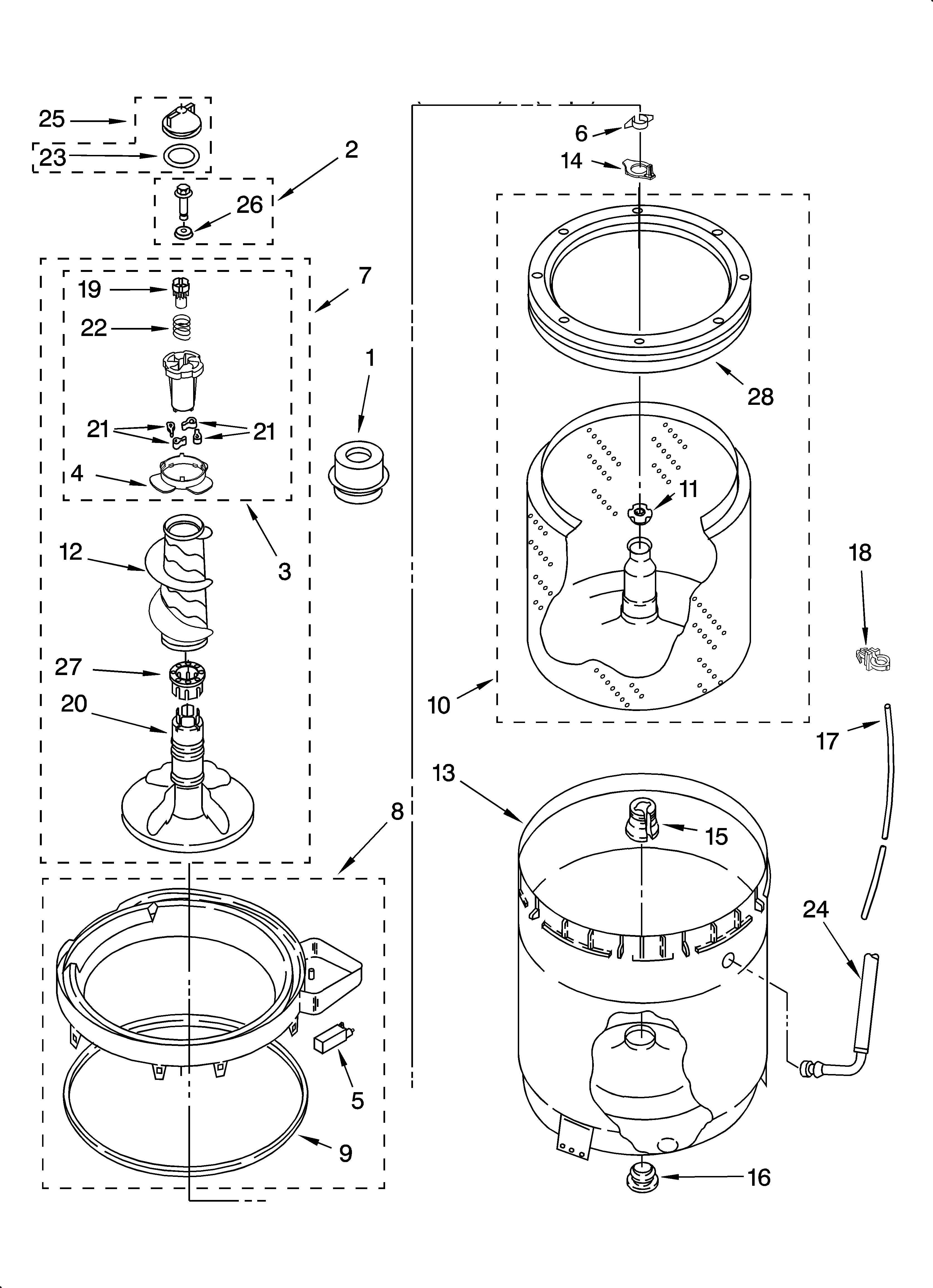

Agitator slips or “ratchets”	Agitator dogs	Agitator dog 80040

Why it matters

Knowing the typical 10 to 15 year lifespan helps you plan smart repairs. If your 11026922503 is within that range, addressing early issues (drain, spin, vibration) usually prevents bigger damage to the basket, gear case, and tub.

You can order replacement parts for Kenmore model 11026922503 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

To force-drain a Kenmore Elite washer model 11026922503, we first cut power, then manually remove water through the drain path (hose or pump) and clear any blockage so the drain pump can move water again. Use the steps in the 11026922503 installation guide for safe hose routing and to prevent backflow.

Fast, safe force-drain steps

• Unplug the washer (or switch off the breaker) before touching hoses or the pump.
• Bail out water from the tub if it is very full (a small cup and bucket works).
• Check the drain hose for a kink, crush point, or frozen section.
• Lower the drain hose into a shallow pan or floor drain to let gravity start draining (keep control of the hose end).
• Clear the standpipe or laundry tub drain if it is backing up.
• If the washer still will not drain, inspect the drain pump for a clog or failure; the replacement is the washer drain pump WP3363394.

What to check first (quick diagnosis)

What you see	Most likely cause	What we do next
Water will not move at all	Clogged hose or clogged pump	Remove hose, check for obstructions, inspect pump inlet
Water drains slowly	Partial clog or restricted standpipe	Clear hose and household drain, verify air gap at standpipe
Washer will not spin and won’t drain	Lid switch not sensing closed lid	Test lid switch operation, replace if needed

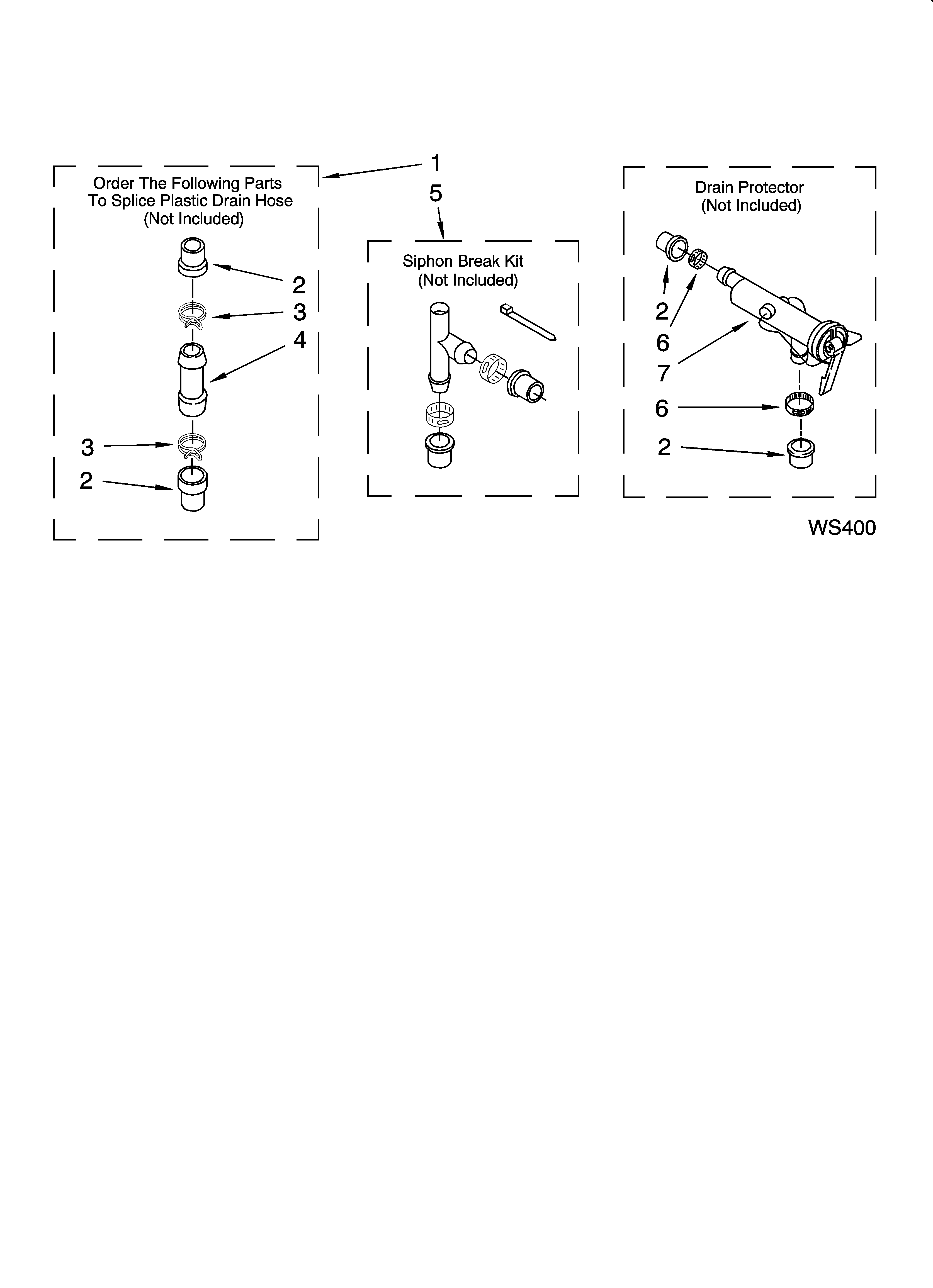

Drain hose setup that prevents “no-drain” problems

A lot of “won’t drain” calls come from an incorrect hose setup. For this model, we route the hose so it is secure but still has an air gap at the standpipe; we also avoid forcing extra hose down into the standpipe because that can cause siphoning or backflow.

Key setup points:

• Do not force excess drain hose into the standpipe.
• Keep the hose secure but loose enough to maintain an air gap.
• Do not lay excess hose on the bottom of a laundry tub.
• Strap the hose in place so it cannot whip or slip out.

Why it matters

Force-draining gets water out quickly, but clearing the restriction (hose, standpipe, or pump) prevents repeat flooding, protects the drain pump, and helps the washer reach spin speed without stopping mid-cycle.

You can order model-specific replacement parts from the parts list for 11026922503, or search by model on Sears PartsDirect.

Last updated: February 2026

The cubic-foot capacity for Kenmore Elite washer model 11026922503 is found in the model’s published specifications; use the 11026922503 owner's manual to locate the exact capacity value for your unit. For planning purposes, most Kenmore top-load washers of this design are typically about 3.2 to 3.8 cu. ft.

Where to find the exact capacity for model 11026922503

Capacity is usually listed with other technical specs (sometimes as “basket volume” or “tub capacity”).

• Open the 11026922503 owner's manual
• Check sections labeled Specifications, Features, or Washer dimensions
• Look for terms such as capacity, basket volume, or tub volume
• If you are matching a replacement basket or tub, use the model number to confirm part compatibility

Quick sizing guide (typical ranges)

Use this only as a practical reference when you need a rough idea for load size.

Washer type	Typical capacity range	Best for
Standard top-load (agitator)	3.2 to 3.8 cu. ft.	Everyday loads, towels
Larger top-load (high capacity)	4.0 to 5.0 cu. ft.	Bulky items, comforters

Why it matters

Cubic feet helps you estimate how much laundry the basket holds and whether bulky items will circulate properly. It also helps when comparing washers, but it is not the only fit factor.

Also verify these when comparing or installing

Clearances and hookups can matter as much as capacity.

• Space for lid opening and rear hose clearance
• Hot and cold water supply and hose reach
• Drain setup (standpipe or laundry tub height)
• A level, solid floor to reduce vibration

If your washer seems to “handle less” than expected, installation and load balance often play a bigger role than basket size; the installation guide covers leveling and location requirements.

You can order model-matched replacement parts from the parts list for 11026922503, or search by model number on Sears PartsDirect.

Last updated: February 2026
