Kenmore 66513543N413 dishwasher Parts

Yes. We still support Kenmore dishwasher parts, and for Kenmore model 66513543N413 many common replacement parts are available for typical repairs like draining issues, leaking, poor cleaning, and rack problems. The key is matching parts to your exact model number using the 66513543N413 owner's manual.

How to make sure you get the right part

Use your full model number 66513543N413 (from the tub frame label) and match the symptom to the part category.

• Confirm the model number exactly (all digits and letters)
• Identify the symptom (won’t drain, won’t fill, leaks, door won’t latch, rack won’t roll)
• Check for visible damage (cracks, broken clips, worn wheels, loose wiring)
• Compare the old part shape and connector style before ordering
• Follow the safety steps in the 66513543N413 installation guide before servicing

Common Kenmore 66513543N413 parts customers replace

These are frequent fixes for this model when performance drops or a component breaks.

Symptom	Likely part to check	Example part for this model

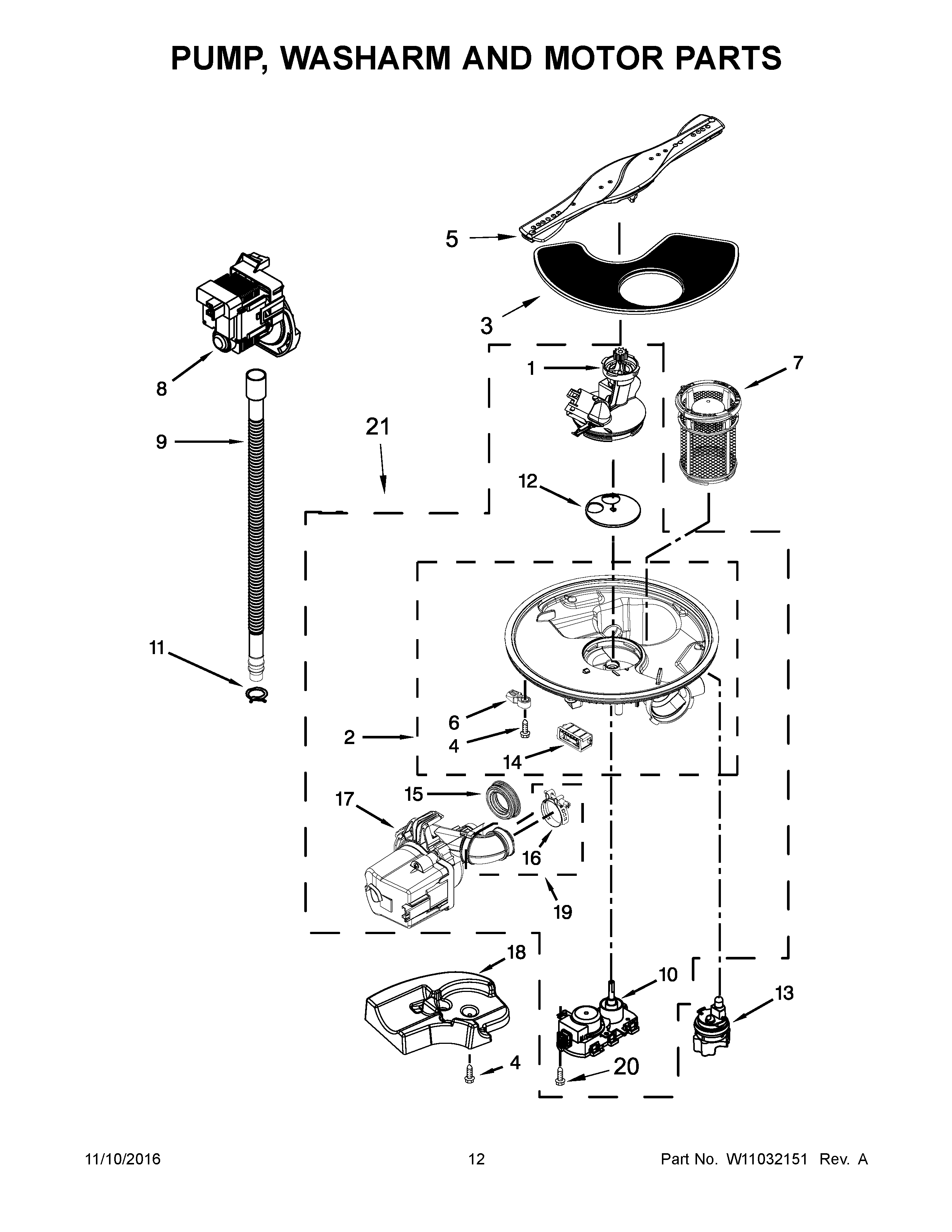

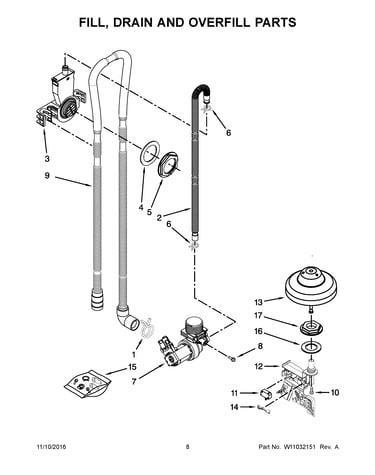

Dishwasher won’t drain	Drain pump, drain hose	Dishwasher drain pump WPW10348269

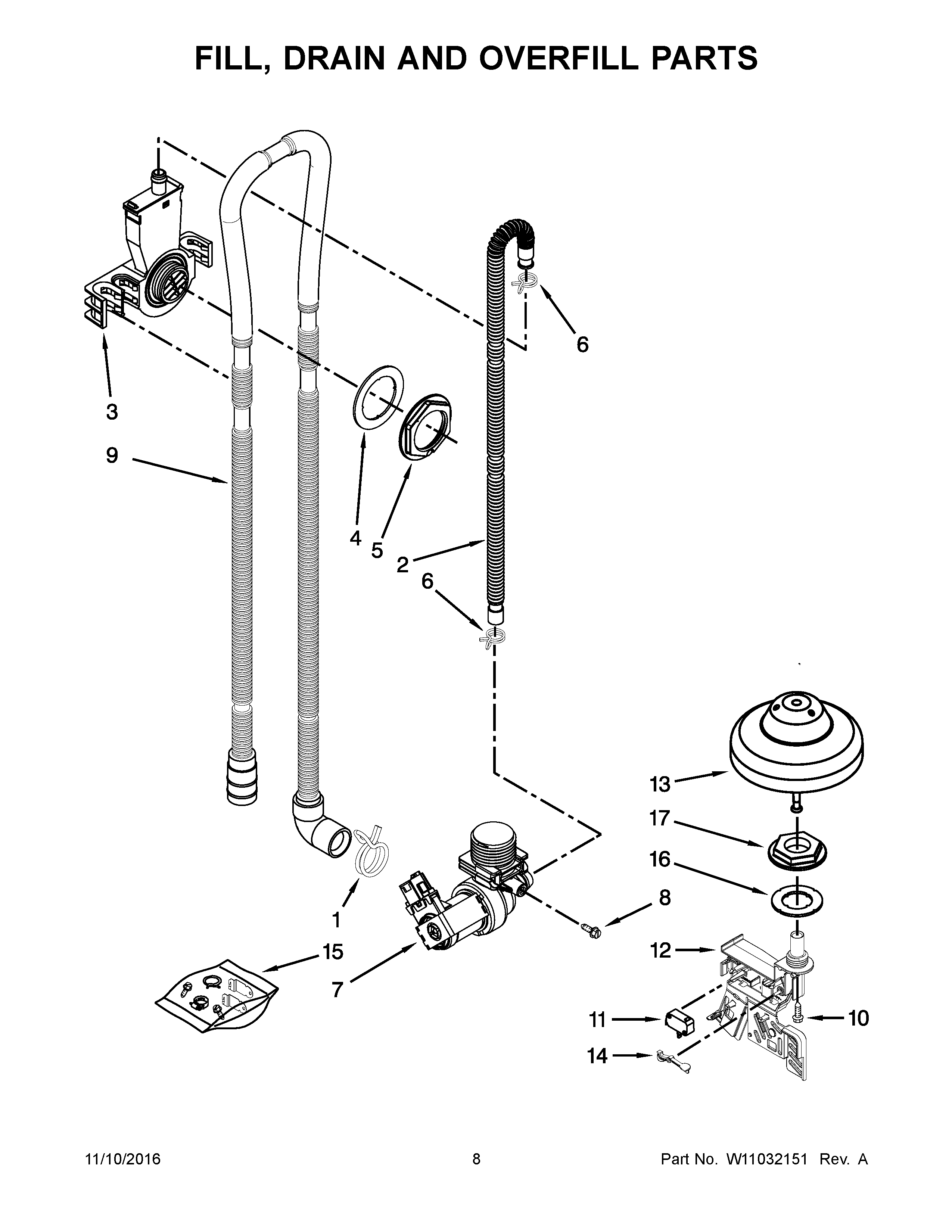

Not filling or fills slowly	Water inlet valve	Dishwasher water inlet valve W11175771

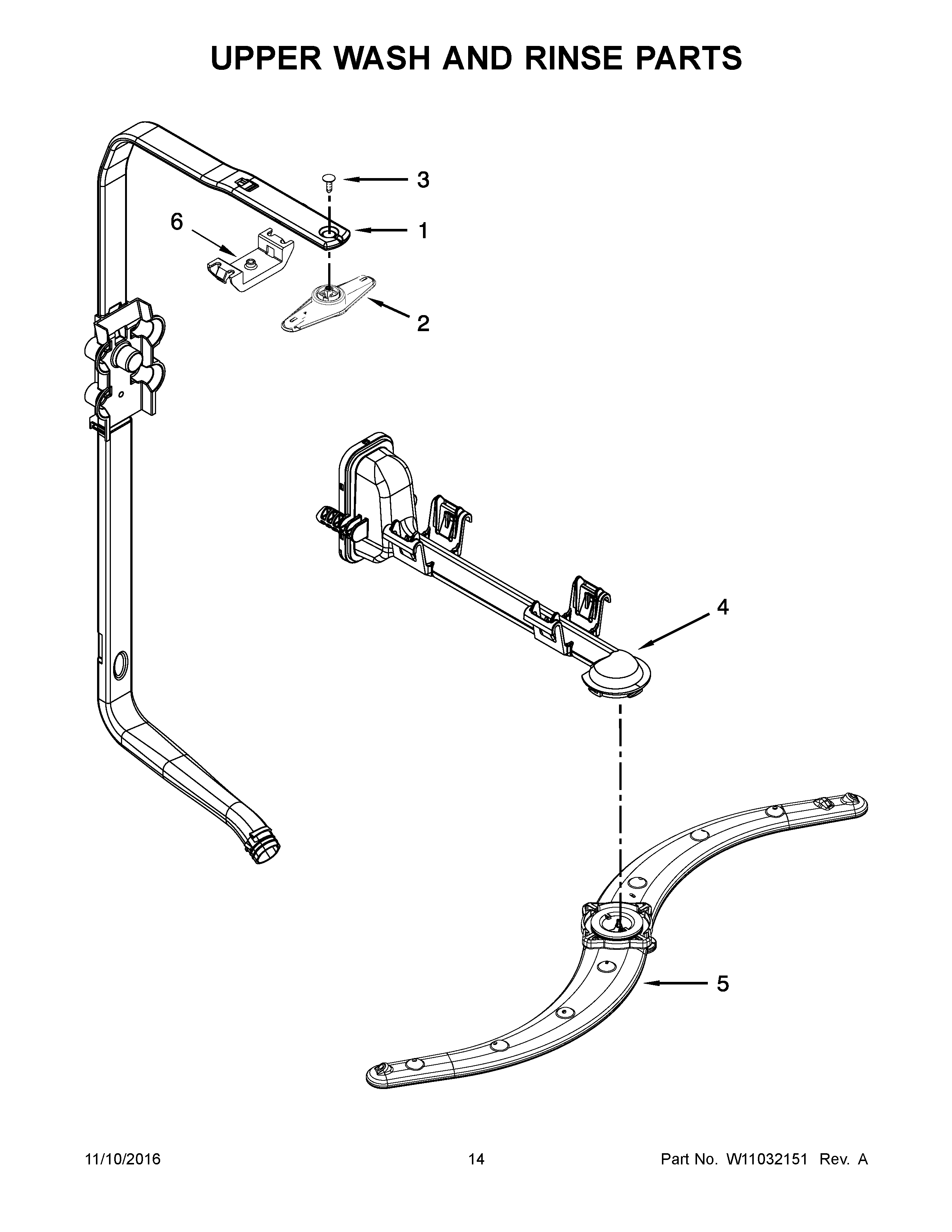

Poor wash coverage	Spray arm, circulation issues	Dishwasher spray arm, lower W10849471

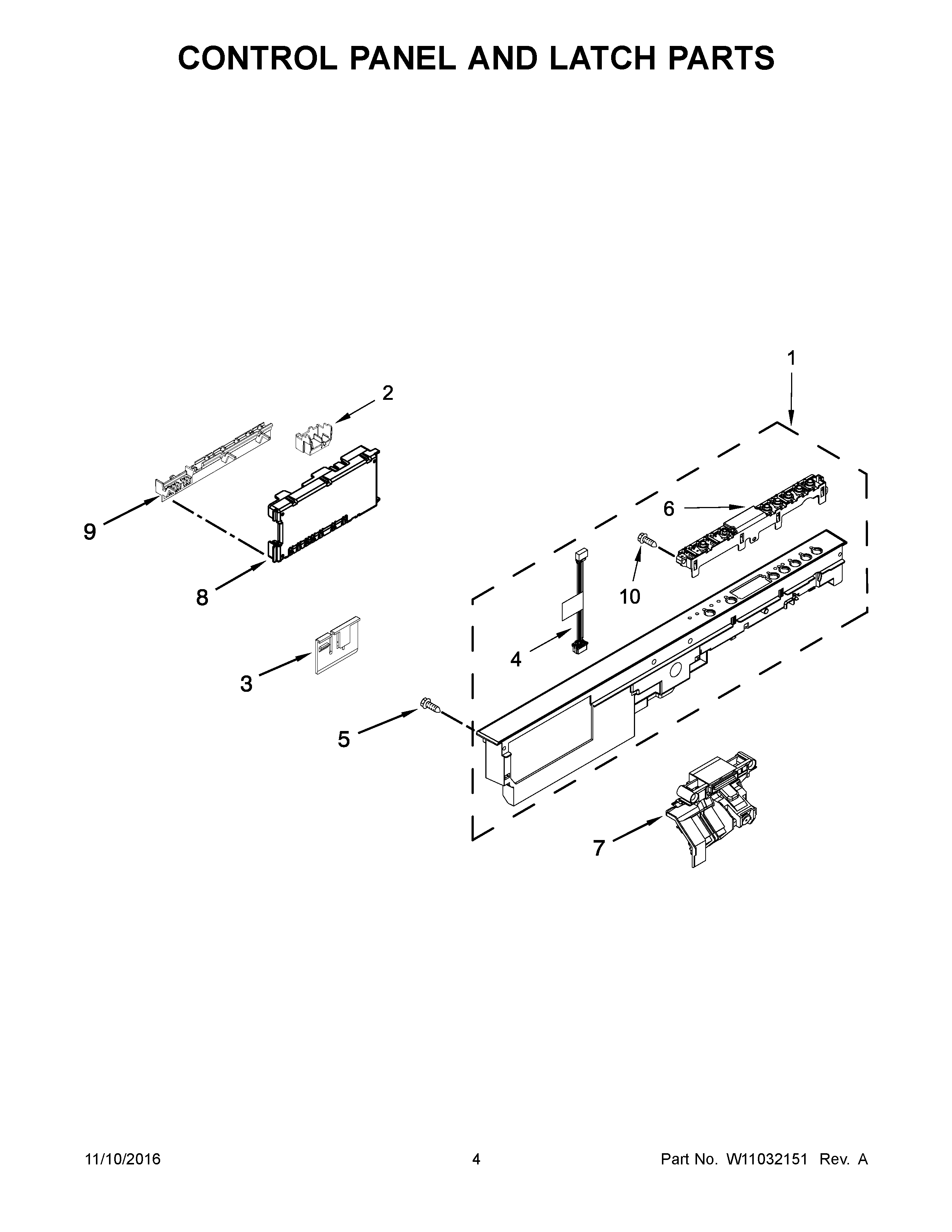

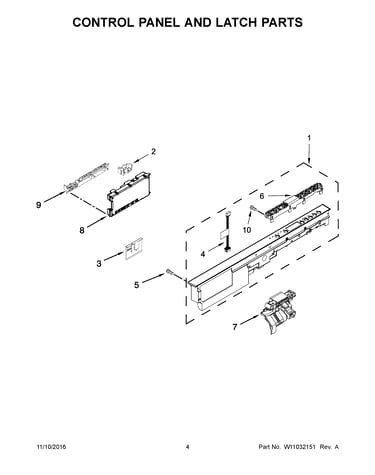

Door won’t stay closed	Door latch	Dishwasher door latch WPW10653840

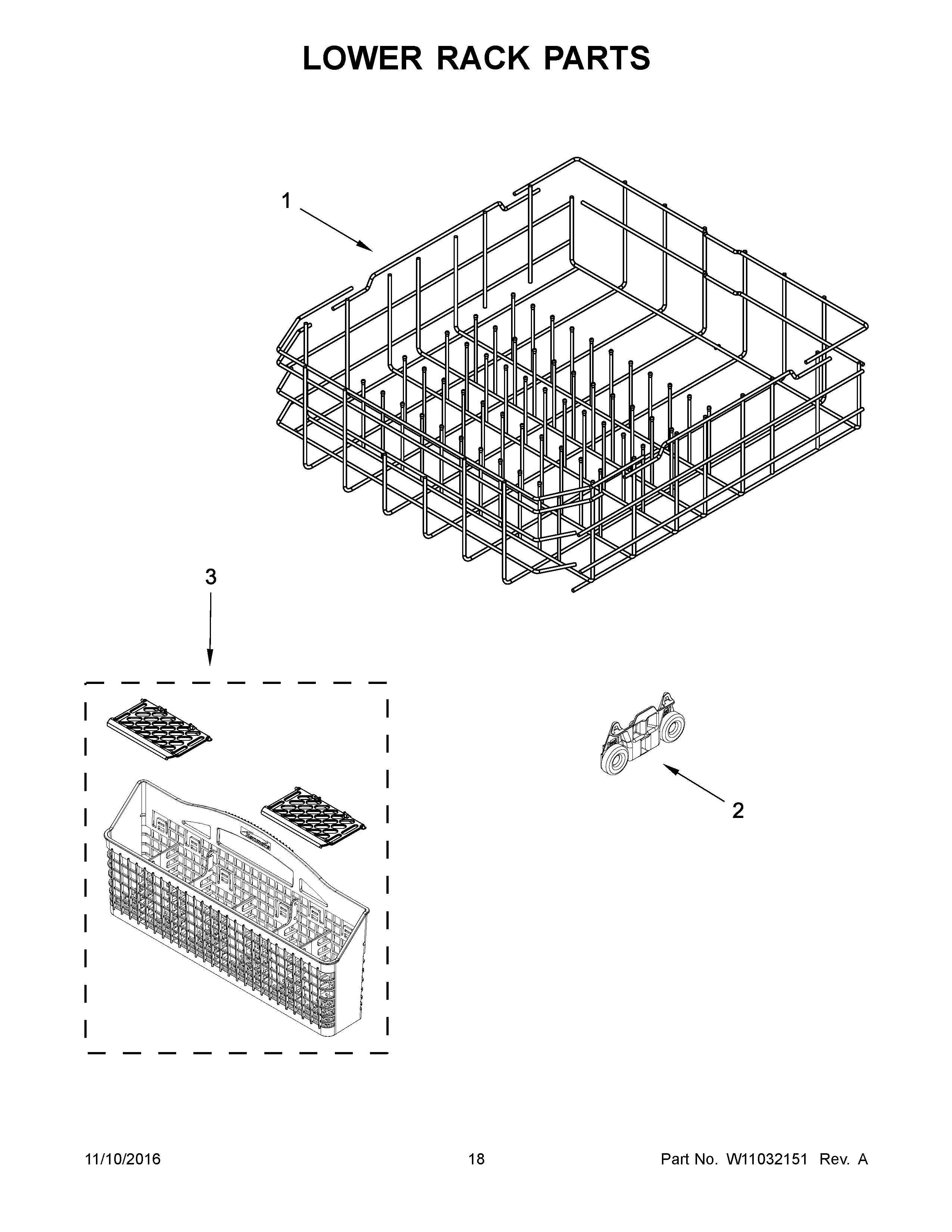

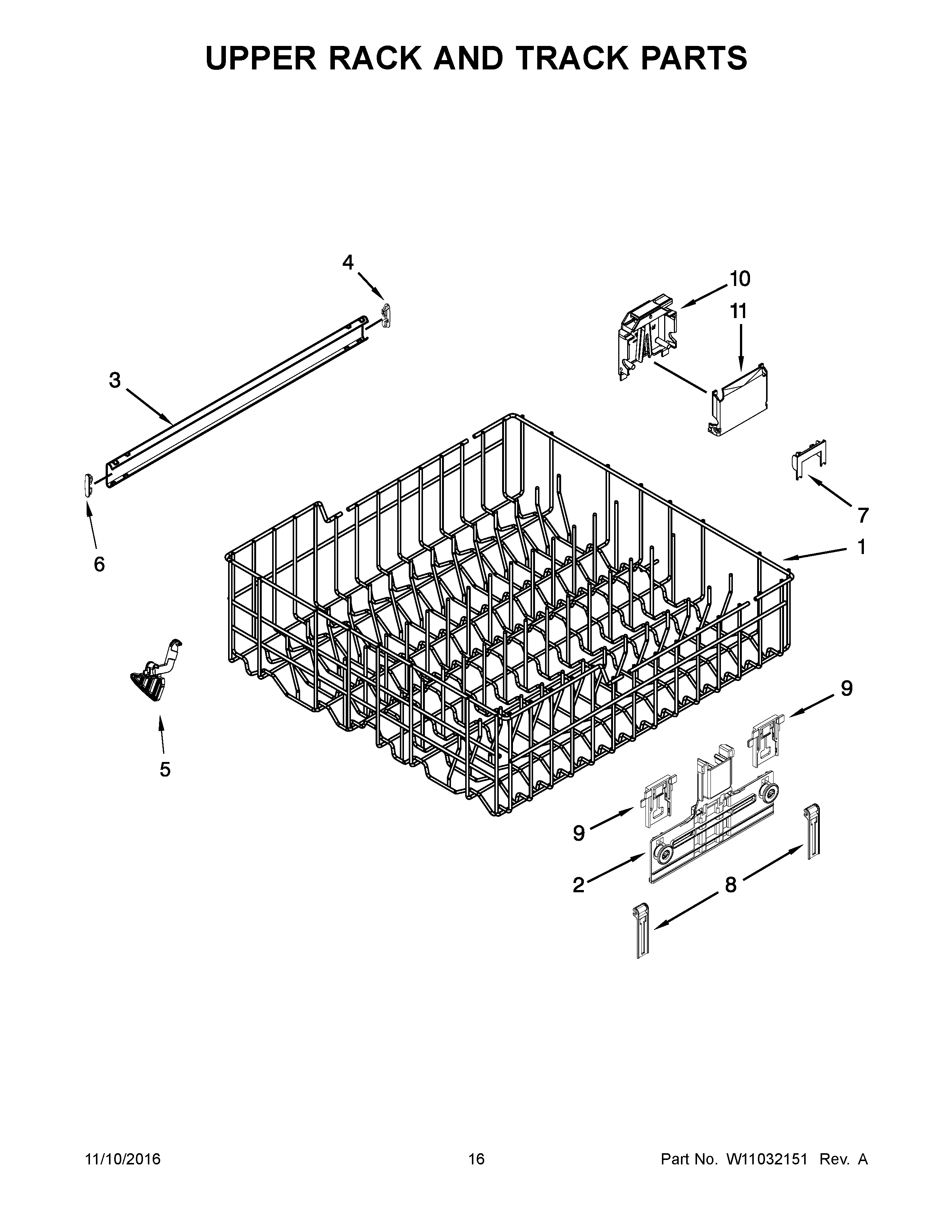

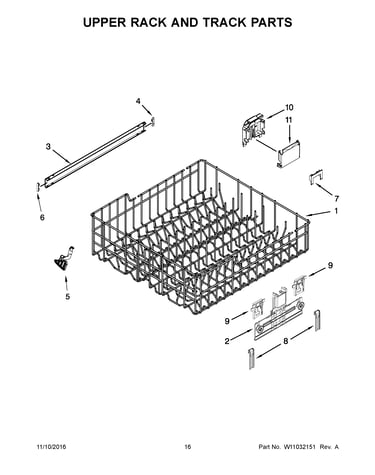

Upper rack problems	Adjusters, rail stops, wheels	Dishwasher rack adjuster W10712395

Why it matters

Kenmore dishwashers are built with serviceable components, so replacing a targeted part (like a drain pump, inlet valve, or rack adjuster) often restores normal operation without replacing the whole dishwasher.

Helpful troubleshooting resource

If your dishwasher is flashing lights or showing a fault pattern, use Kenmore 665 model dishwasher error codes to narrow the problem to the right circuit or component.

Last updated: February 2026

Your Kenmore dishwasher’s model number is usually printed on a sticker or metal tag inside the door opening. For the unit on this page, the model number format looks like 66513543N413; matching that exact number ensures you get the right parts and troubleshooting steps.

Where to look for the model tag

Check these common locations first (in order):

• Along the inner door frame (left or right side)
• On the top edge of the door (visible when the door is open)
• On the tub wall just inside the door opening
• Behind the toe-kick panel at the bottom front (if your model uses a tag there)
• On the side of the cabinet frame (visible when the door is open)

If you find multiple numbers, use the one labeled Model (not the serial number).

What the model number helps you do

Once you have the model number, you can match parts and instructions correctly for your exact Kenmore dishwasher.

You’re trying to do	Why the model number matters	Example for this page
Order replacement parts	Parts vary by series and revision	66513543N413
Diagnose a problem	Error codes and symptoms can differ	Use the model-specific guides
Confirm fitment	Racks, pumps, and latches are not universal	Match by model first

Quick tips to avoid ordering the wrong part

• Copy the model number exactly, including letters and all digits
• Take a clear photo of the tag before ordering
• If the tag is worn, try a flashlight at an angle to read faint printing
• Use the model number when checking diagrams and part descriptions
• When replacing rack hardware, match the style and mounting points (not just the name)

Why it matters

Kenmore dishwashers in the 665 series share many components, but small design changes can affect fit. Using the exact model number helps ensure parts like a door latch, drain pump, or rack adjuster match your dishwasher.

For additional model-specific details, use the 66513543N413 owner's manual.

Last updated: February 2026

A bottom leak on Kenmore dishwasher model 66513543N413 is usually caused by water escaping past the door seal, a loose or damaged hose connection, or a leak at the pump and sump area. We focus first on where the water appears (front, center, or back) to pinpoint the failing part.

Quick checks that solve most bottom leaks

• Pull the toe-kick panel and run a short cycle to see where the first drip starts.
• Check the door seal and lower door area for tears, gaps, or heavy buildup that prevents sealing.
• Confirm the dishwasher is level; a forward tilt can push water over the front lip.
• Inspect the drain hose routing for kinks, cracks, or a loose clamp (especially near the sink/disposer).
• Look for oversudsing (too much detergent or non-dishwasher soap) that can force water out the front.

Where the leak shows up and what it usually means

Where you see water	Most common cause	What to inspect first
Front center (under door)	Door not sealing, unit not level, oversudsing	Door seal area, leveling feet, detergent use
Center bottom (under tub)	Pump/sump leak, hose/grommet leak	Pump area, hose connections, grommet
Back left/right	Fill or drain plumbing leak	Water inlet valve area, drain hose connection

Parts that commonly cause bottom leaks on this model

If the leak is coming from underneath (not the door), these parts are frequent culprits:

• Dishwasher pump grommet WPW10538166 (can seep if hardened, nicked, or not seated)
• Dishwasher drain hose 8269144A (splits, pinholes, or loose clamps)
• Dishwasher water inlet valve W11175771 (can drip at the valve body or fittings)

Why it matters

Even a small leak can damage flooring and cabinets, and it can also trip a float or safety condition that stops the cycle. Finding the first drip point is the fastest way to avoid replacing the wrong part.

Helpful references for this Kenmore dishwasher

• Use the 66513543N413 owner's manual for leveling guidance, detergent recommendations, and normal water behavior.
• Use the 66513543N413 installation guide to verify correct drain hose routing and connection points.

Last updated: February 2026
