Model # 4KG25H3XSL5 Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid 4KG25H3XSL5 mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

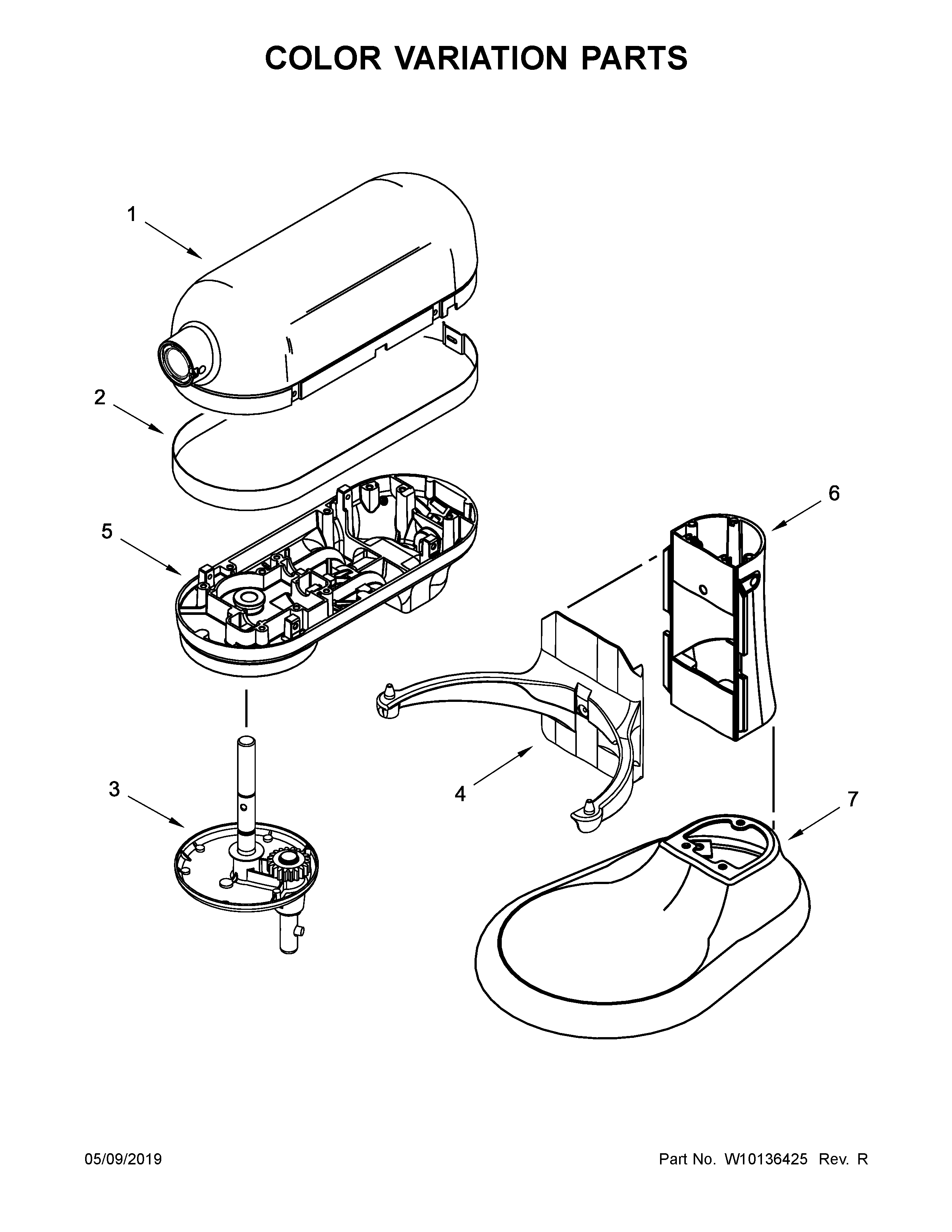

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |

Stand Mixer Speed Control Board And Knob (black) 9706648
#19

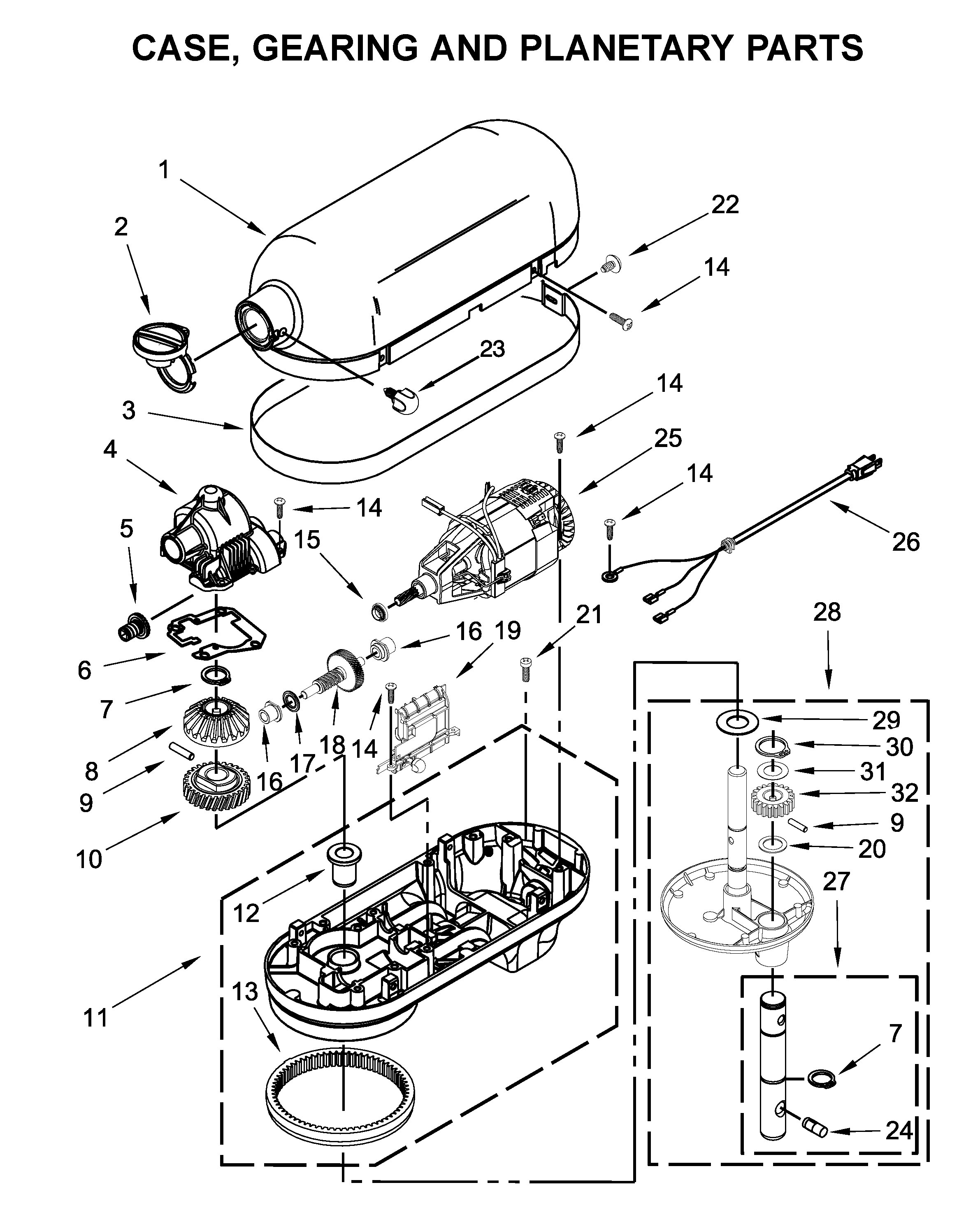

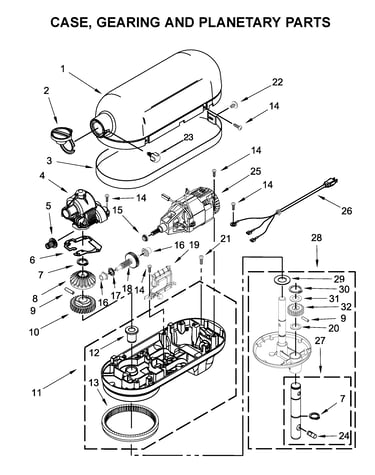

Case, gearing and planetary parts diagram

Stand mixer speed control board and knob (black)

Part #9706648

Replaced by #WP9706648

?
Manufacturer substitution
This part replaces 9706648. Substitute parts can look different from the original.
BEST SELLER
$73.31
14% OFF MSRP : $85.00
In Stock
Dryer Drum Roller Ring 9703438
#30

Case, gearing and planetary parts diagram

Dryer drum roller ring

Part #9703438

Replaced by #WP9703438

?
Manufacturer substitution
This part replaces 9703438. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.79
75% OFF MSRP : $15.00
In Stock
Pin-bowl 240185
#4

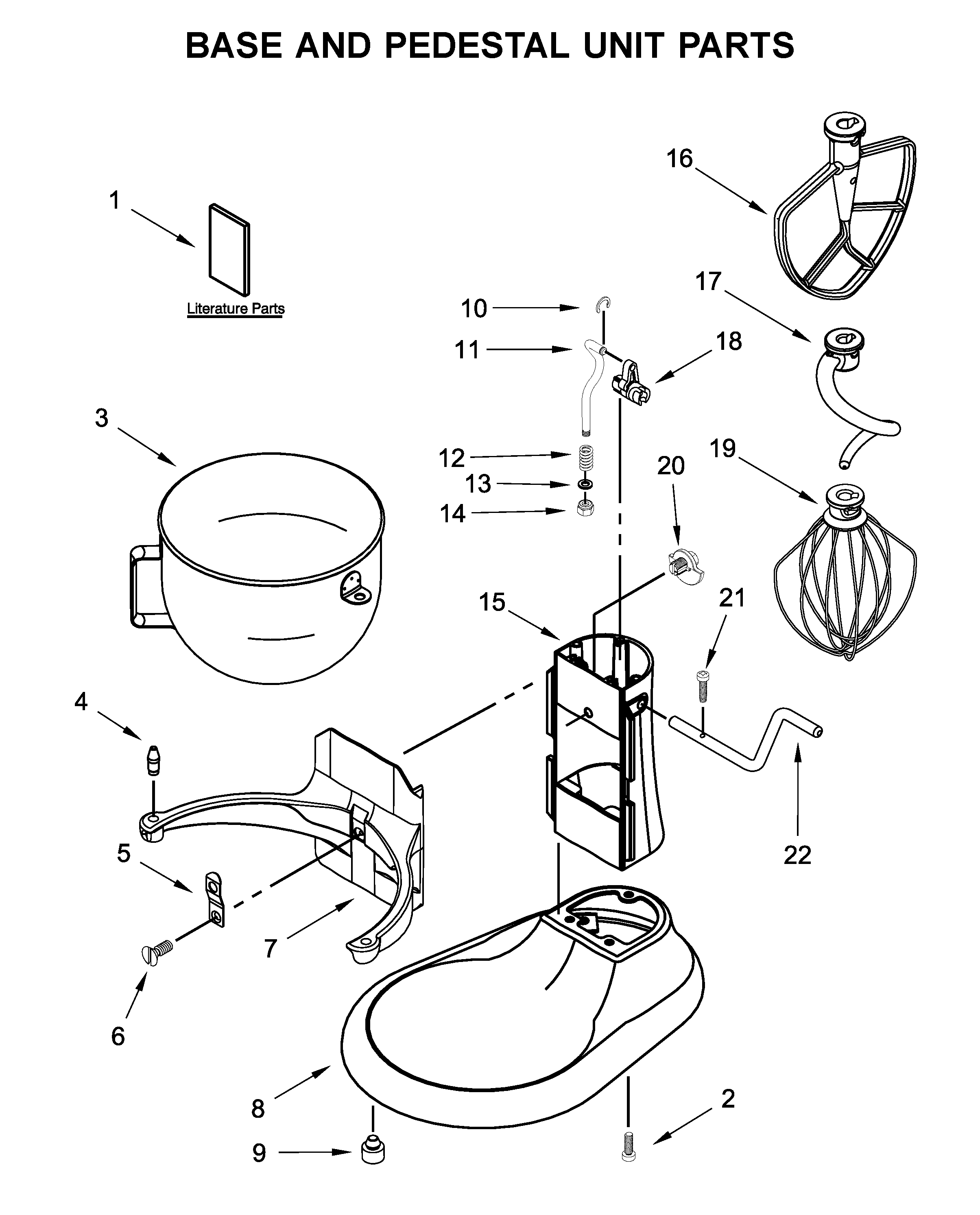

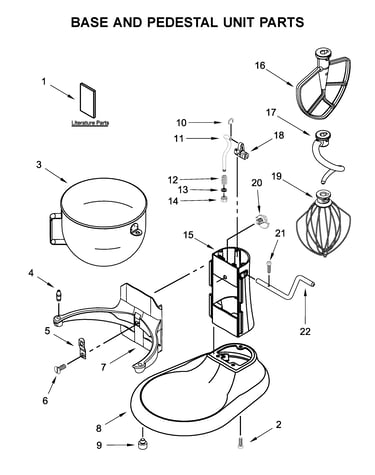

Base and pedestal unit parts diagram

Pin-bowl

Part #240185

Replaced by #WP240185

?
Manufacturer substitution
This part replaces 240185. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Gear, Attachment Hub Level W11175144
#5

Case, gearing and planetary parts diagram

Gear, attachment hub level

Part #W11175144

Replaced by #W11192795

?
Manufacturer substitution
This part replaces W11175144. Substitute parts can look different from the original.
This item is not returnable
$20.87
19% OFF Phone Price : $25.87
In Stock
Gear - Bevel W11044501
#8

Case, gearing and planetary parts diagram

Gear - bevel

Part #W11044501

Replaced by #W11192795

?
Manufacturer substitution
This part replaces W11044501. Substitute parts can look different from the original.
This item is not returnable
$20.87
19% OFF Phone Price : $25.87
In Stock
Bearing W10170080
#16A

Case, gearing and planetary parts diagram

Bearing

Part #W10170080

Replaced by #WPW10170080

?
Manufacturer substitution
This part replaces W10170080. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Gasket 9709511
#6

Case, gearing and planetary parts diagram

Gasket

Part #9709511

Replaced by #WP9709511

?
Manufacturer substitution
This part replaces 9709511. Substitute parts can look different from the original.
This item is not returnable
$7.79
11% OFF Phone Price : $8.79
In Stock
Screw 3400863
#21

Base and pedestal unit parts diagram

Screw

Part #3400863

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400863. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Screw 3400814
#14

Case, gearing and planetary parts diagram

Screw

Part #3400814

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400814. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Lift Arm 9706885
#18

Base and pedestal unit parts diagram

Lift arm

Part #9706885

Replaced by #WP9706885

?
Manufacturer substitution
This part replaces 9706885. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
