Model #11088762790 Kenmore laundry center

Here are the repair parts and diagrams for your Kenmore 11088762790 laundry center.

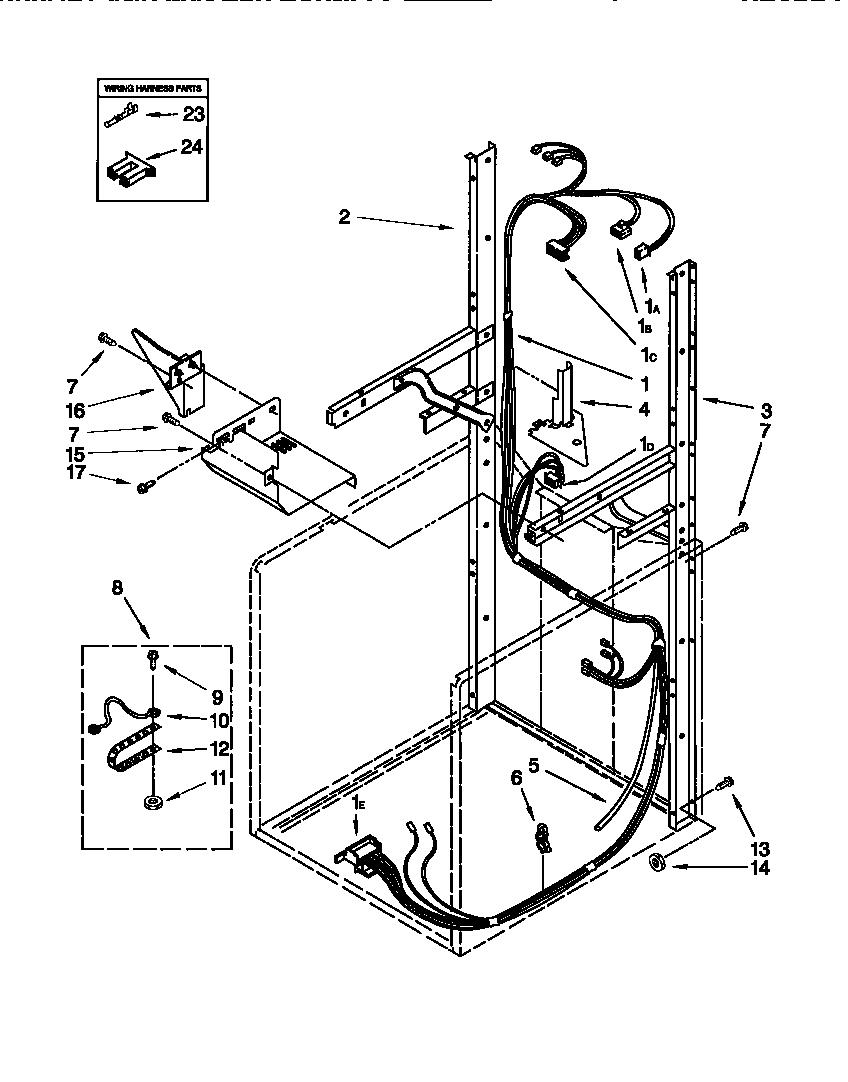

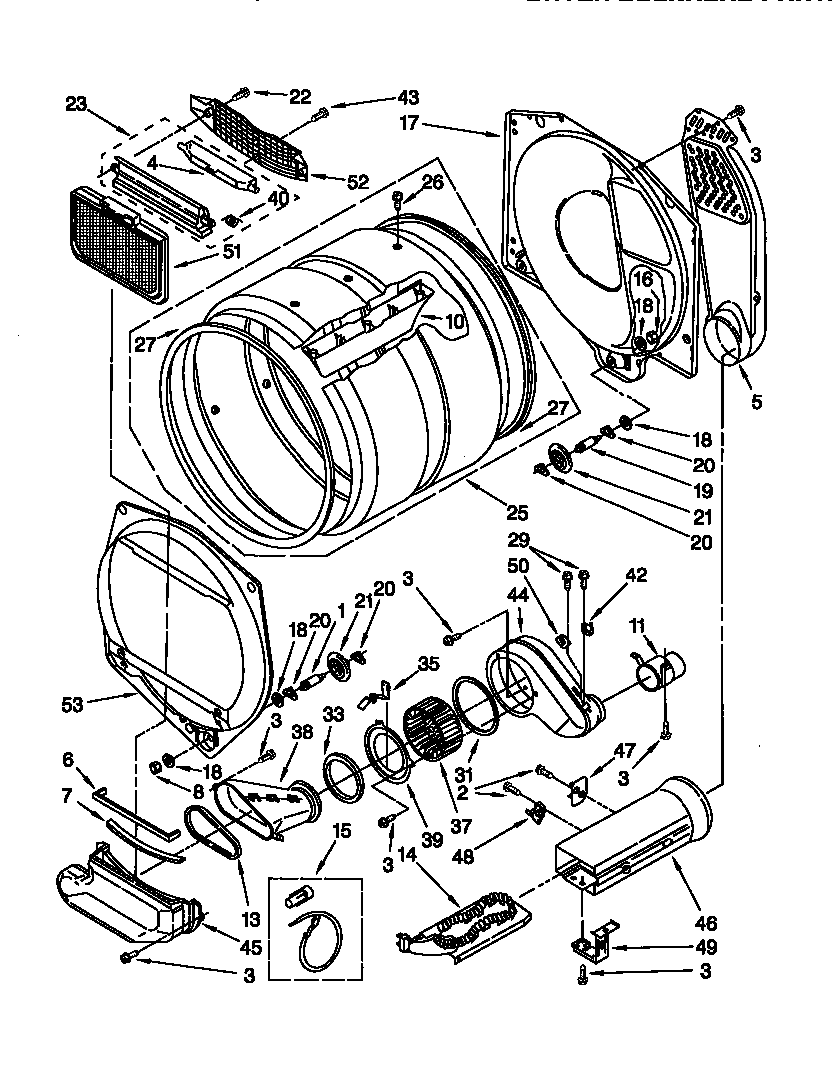

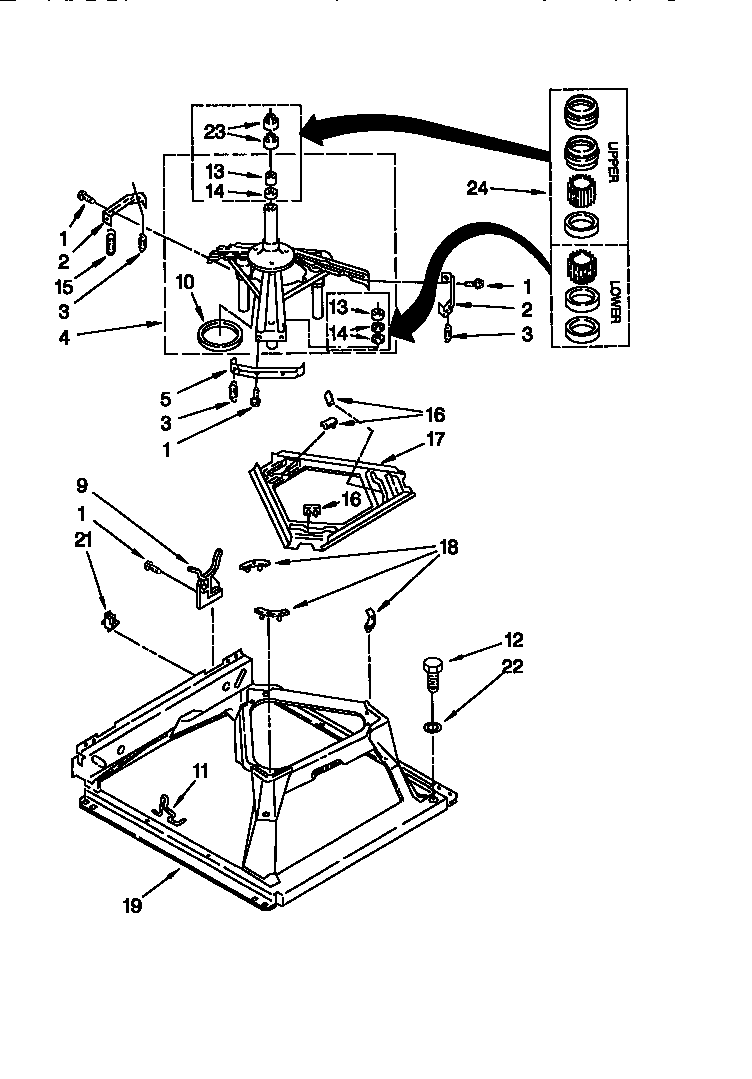

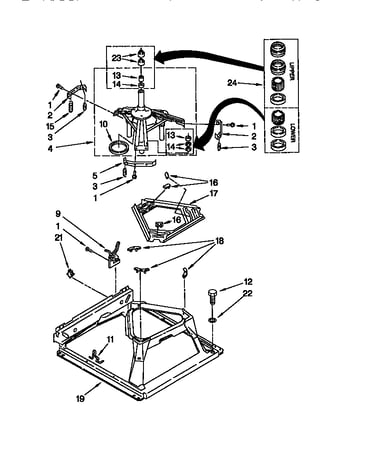

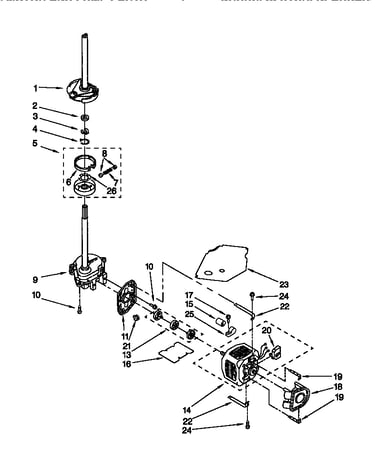

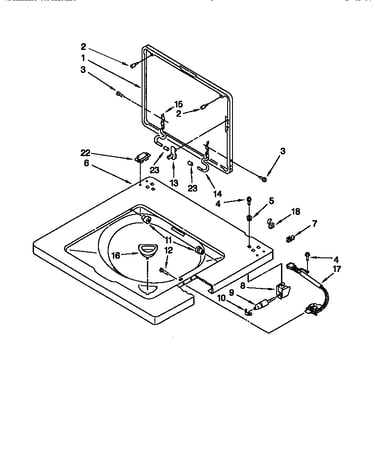

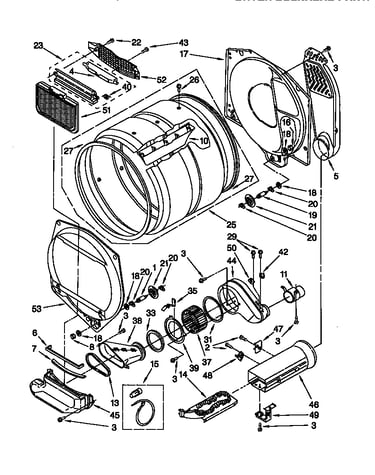

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 299 parts

Dryer Terminal Block Wire Set

#51

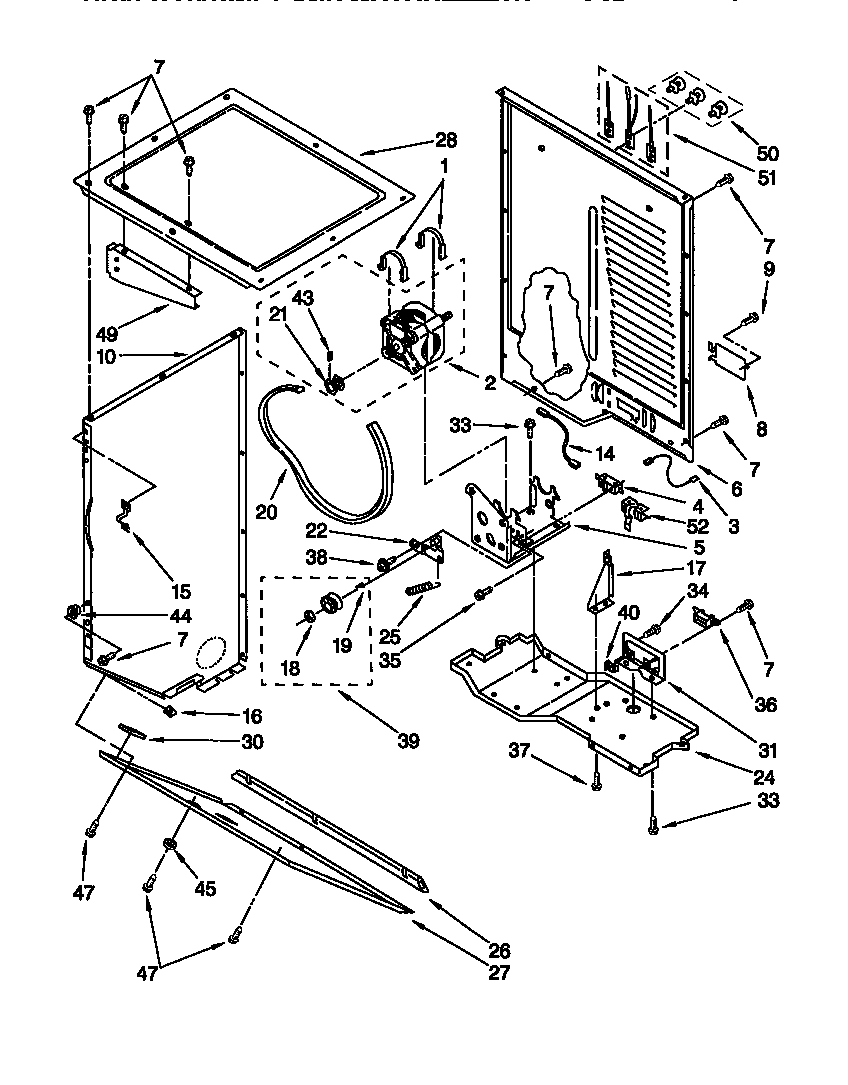

Dryer cabinet/ motor Diagram

$32.77

In Stock

Washer Siphon Break Kit

#4

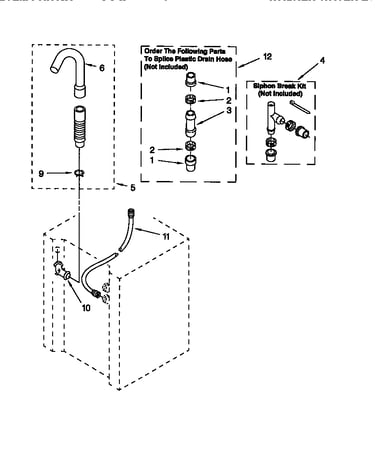

Washer water system Diagram

$19.29

In Stock

Washer Control Knob

#10A

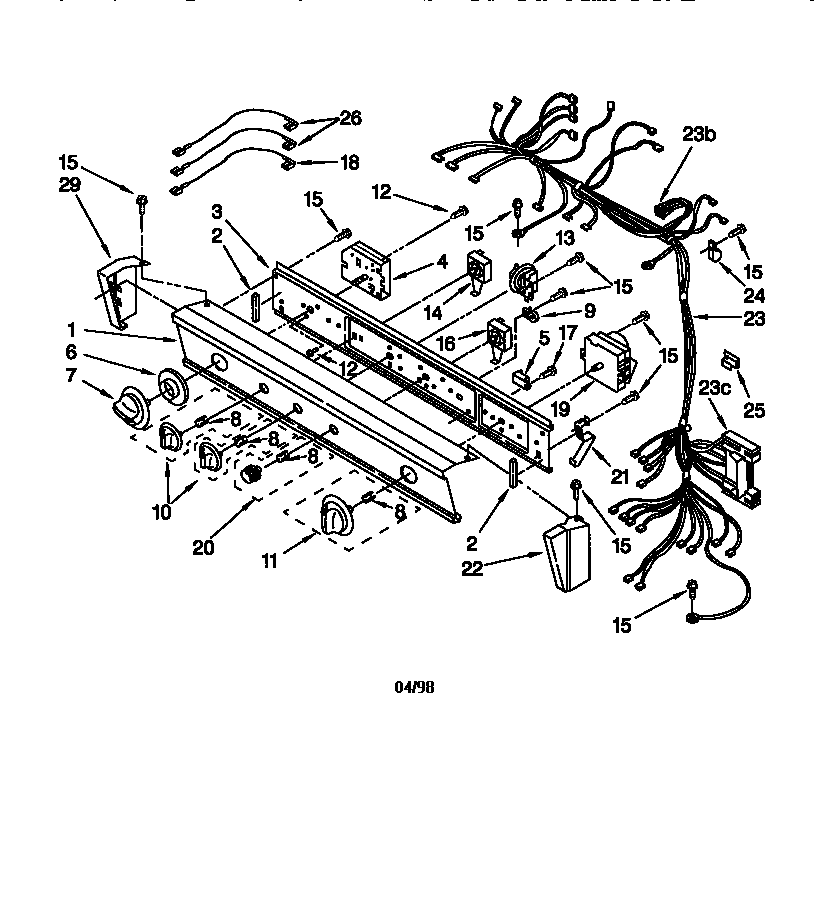

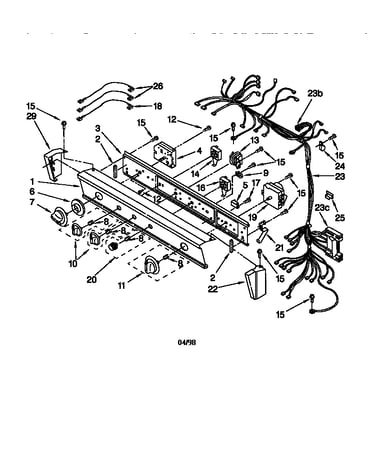

Washer/dryer control panel Diagram

Washer control knob

Part #3402574

$8.35

In Stock

Dryer Belt Switch Jumper Wire

#18

Washer/dryer control panel Diagram

$15.67

In Stock

Washer Inlet Hose

#7

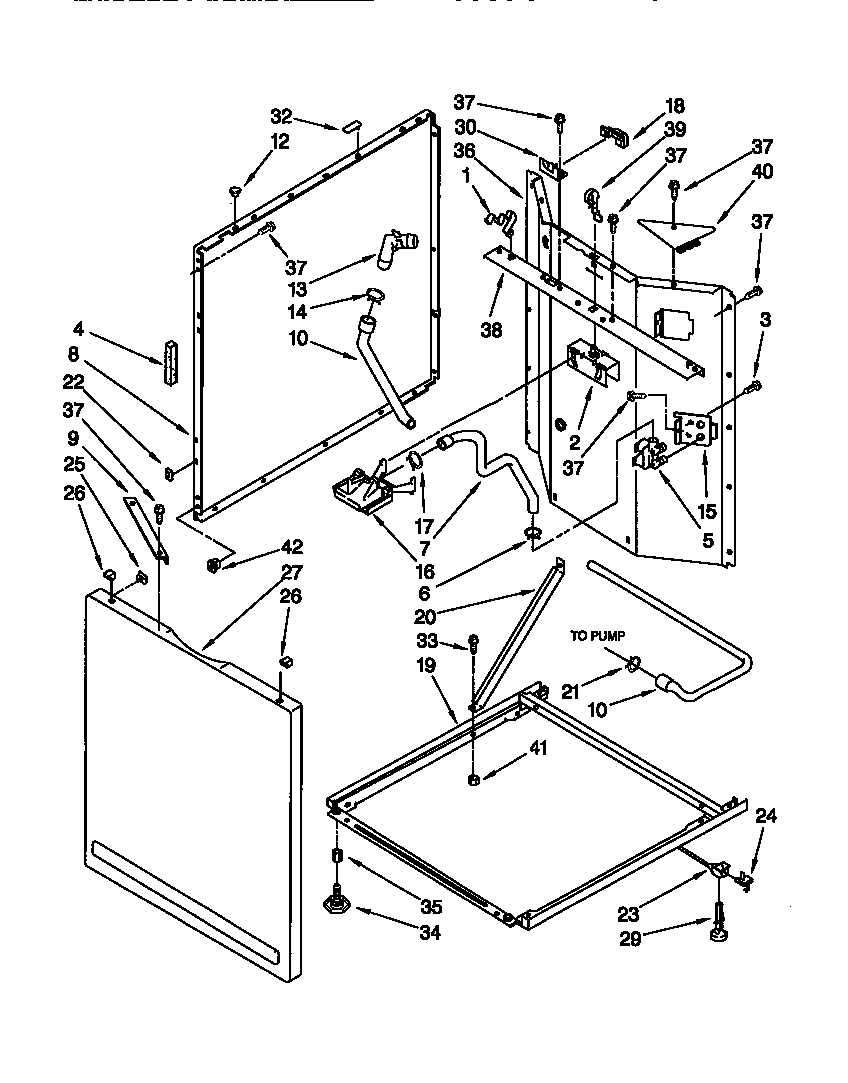

Washer cabinet Diagram

Washer inlet hose

Part #3352236

$17.93

In Stock

Washer Agitator Auger

#6

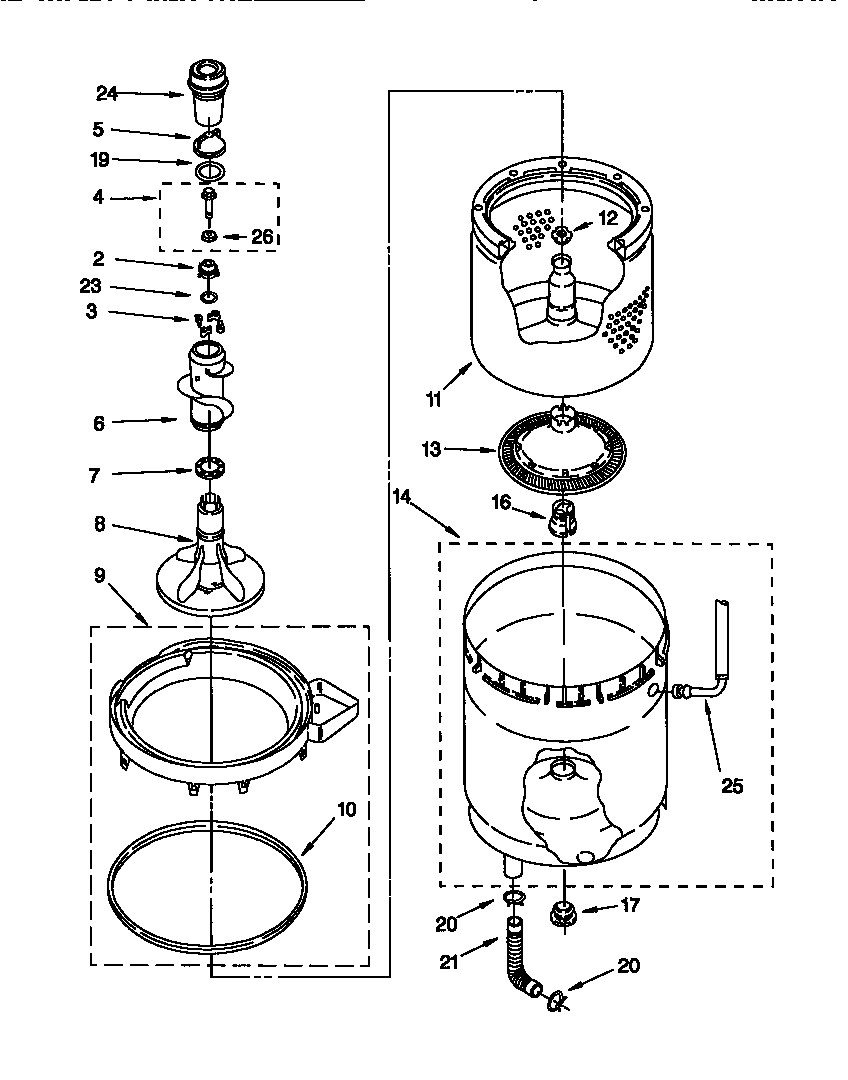

Agitator, basket and tub Diagram

Washer agitator auger

Part #3349610

$32.30

In Stock

Panel

#27

Dryer cabinet/ motor Diagram

Panel

Part #3389272

$98.45

In Stock

Clip

#15

Dryer cabinet/ motor Diagram

Clip

Part #3389231

$10.19

In Stock

Panel

#17

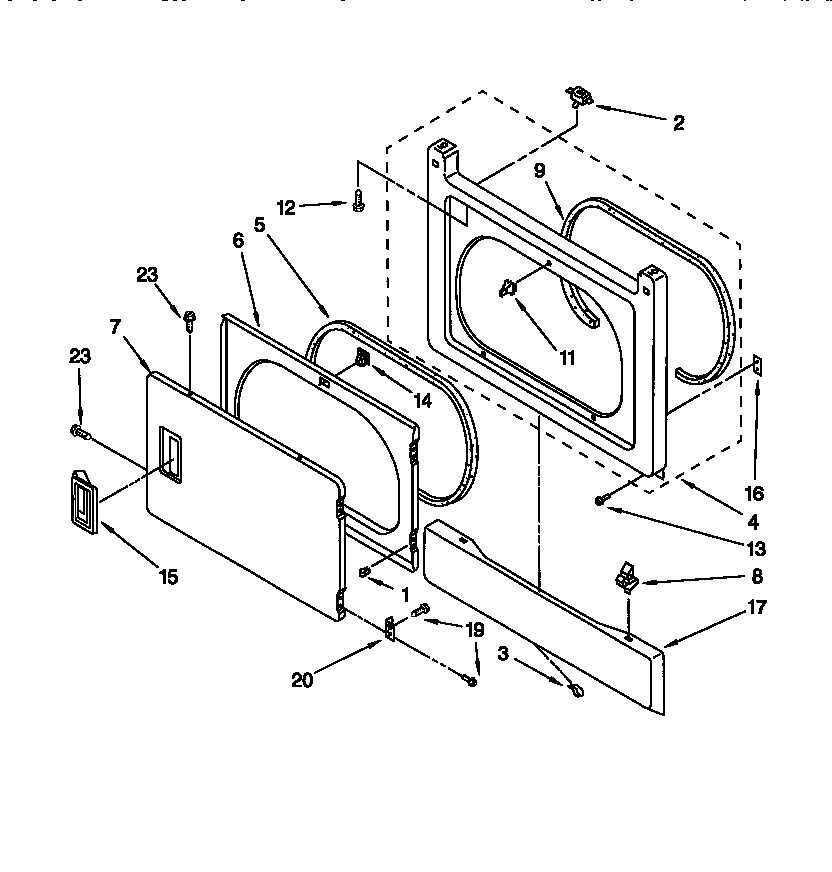

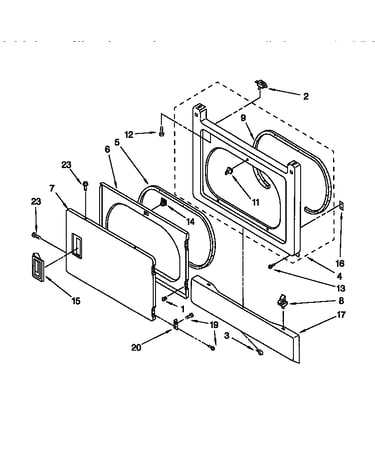

Dryer front panel/door Diagram

Panel

Part #3388958

$46.65

In Stock

Washer Cover

#26

Dryer cabinet/ motor Diagram

Washer cover

Part #3389683

$49.46

In Stock

Symptoms common to all laundry centers

Choose a symptom to see related laundry center repairs.

Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad heating element
Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply problem, blown fuse
Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control board
Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components
Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown fuse, control failure
Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring
Main causes: clogged drain system, blocked drain hose, bad drain pump
Main causes: broken dryer drive belt, weak drive motor, binding drum seals
Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failure, bad water valve
