Model # FEF336ECB Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FEF336ECB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

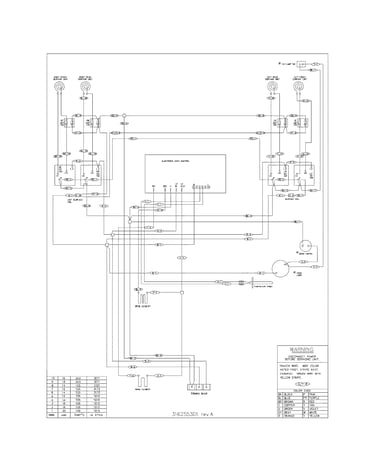

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |

Range Bake Element (replaces 316075104) 316075103
#67

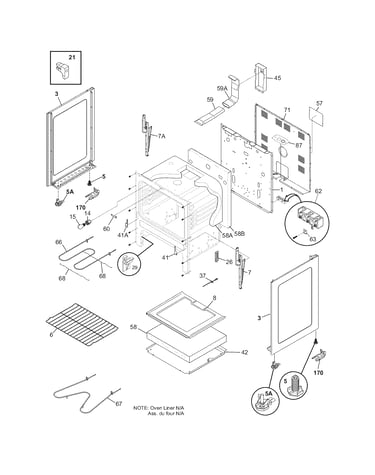

Body diagram

Range bake element (replaces 316075104)

Part #316075103

BEST SELLER
$34.86
13% OFF Phone Price : $39.86
In Stock
Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

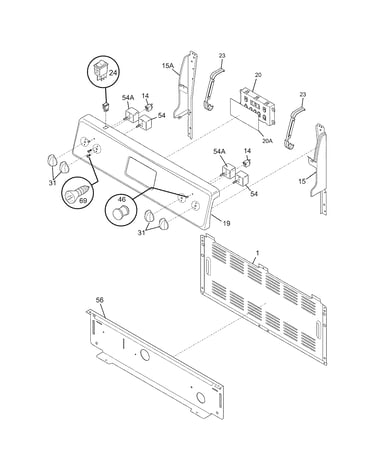

Backguard diagram

Range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.81
12% OFF Phone Price : $41.81
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.78
11% OFF Phone Price : $17.78
In Stock
Range Oven Door Inner Glass 316237100
#8

Door diagram

Range oven door inner glass

Part #316237100

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316237100. Substitute parts can look different from the original.
BEST SELLER
$85.47
6% OFF Phone Price : $90.47
In Stock
Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$57.73
8% OFF Phone Price : $62.73
In Stock
Oven Probe 316233900
#37

Body diagram

Oven probe

Part #316233900

Replaced by #316217008

?
Manufacturer substitution
This part replaces 316233900. Substitute parts can look different from the original.
BEST SELLER
$25.89
16% OFF Phone Price : $30.89
Back Order
Range Radiant Surface Element, 6-in 316010205
#15

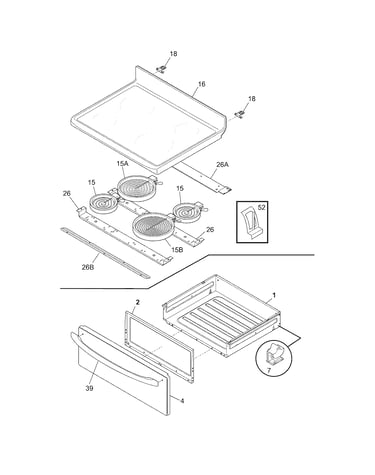

Top/drawer diagram

Range radiant surface element, 6-in

Part #316010205

Replaced by #318178110

?
Manufacturer substitution
This part replaces 316010205. Substitute parts can look different from the original.
BEST SELLER
$151.57
6% OFF Phone Price : $161.57
In Stock
Range Drawer Glide, Front (replaces 08067766, 3012698, 3051361, 3131687) 3051162
#29

Body diagram

Range drawer glide, front (replaces 08067766, 3012698, 3051361, 3131687)

Part #3051162

BEST SELLER
This item is not returnable
$3.89
20% OFF Phone Price : $4.89
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#7

Top/drawer diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69
18% OFF Phone Price : $5.69
In Stock
Range Control Board 316222807
#20

Backguard diagram

Range control board

Part #316222807

Replaced by #5304518660

?
Manufacturer substitution
This part replaces 316222807. Substitute parts can look different from the original.
BEST SELLER
$143.45
7% OFF Phone Price : $153.45
In Stock
