Kenmore Elite 11027086603 washer Parts

Kenmore washer model numbers are read left to right: the first 3 digits identify the manufacturer that built the washer for Kenmore, and the remaining digits narrow it down to the exact series and feature set. For model 11027086603, the 110 prefix is the key identifier to start with; confirm the full number on the rating label and match it in the owner's manual.

What each section of a Kenmore model number tells you

Most Kenmore washer model numbers follow this pattern:

• First 3 digits (prefix): manufacturer code (who built it for Kenmore)
• Middle digits: base design or series (platform and major components)
• Last digits: version, color, or feature variations (minor changes)

Quick example using your model

Example model	Prefix (builder code)	What it helps with
11027086603	110	Picking the correct parts diagrams and repair procedures

Where to find the correct model number on the washer

Use the model number exactly as printed (all digits matter). Check these common locations:

• Under the lid on the top rim of the washer opening
• On the back panel
• On the cabinet frame near the lid hinge area
• In the paperwork that came with the washer (Use and Care Guide)

Why it matters for parts and troubleshooting

Kenmore model numbers can look similar, but small digit changes can mean different components (lid lock, drain pump, suspension, or control). Matching the full model number helps ensure the right fit and correct repair steps.

If you are troubleshooting symptoms (like out-of-balance or spin issues), the model family can also point you to the right error-code information, such as the Kenmore 110 vmax top load washer error codes guide.

Last updated: February 2026

Yes, your Kenmore Elite washer model 11027086603 uses a drain pump system that can trap debris; it is not a traditional, user-access door filter like many front-load washers. We use the owner's manual to confirm your washer’s basic care and safe access steps before checking for clogs.

Where “filtering” happens on this washer

On model 11027086603, the most common places that act like a filter are in the drain path:

• The drain pump inlet area (coins, hair pins, lint can collect here)
• The drain hose (kinks or buildup can restrict flow)
• The standpipe or laundry tub drain (house drain restriction can mimic a washer clog)
• The tub-to-pump hose connections (small items can lodge at bends)

If you’re seeing slow drain, standing water, or a drain-related error, checking the drain path is the right move.

Quick checks before you open anything

These steps solve many “filter” complaints without disassembly:

• Unplug the washer before inspecting hoses or parts
• Confirm the drain hose is not pushed too far into the standpipe (helps prevent siphoning)
• Make sure the drain hose is not kinked or crushed behind the washer
• Run a Drain/Spin cycle with the tub empty to see if draining improves
• Listen for the drain pump: a steady hum with no water movement often points to a blockage

Parts that commonly relate to drain clogs

If the washer will not drain and you’ve ruled out the house drain and hose routing, the drain pump or its connections are the next most common causes.

Symptom	Most likely area	What to check first
Water stays in tub	Drain pump or blockage	Pump noise and hose for clogs
Drains slowly	Partial restriction	Drain hose routing and buildup
Loud rattling during drain	Debris in pump	Foreign objects at pump inlet

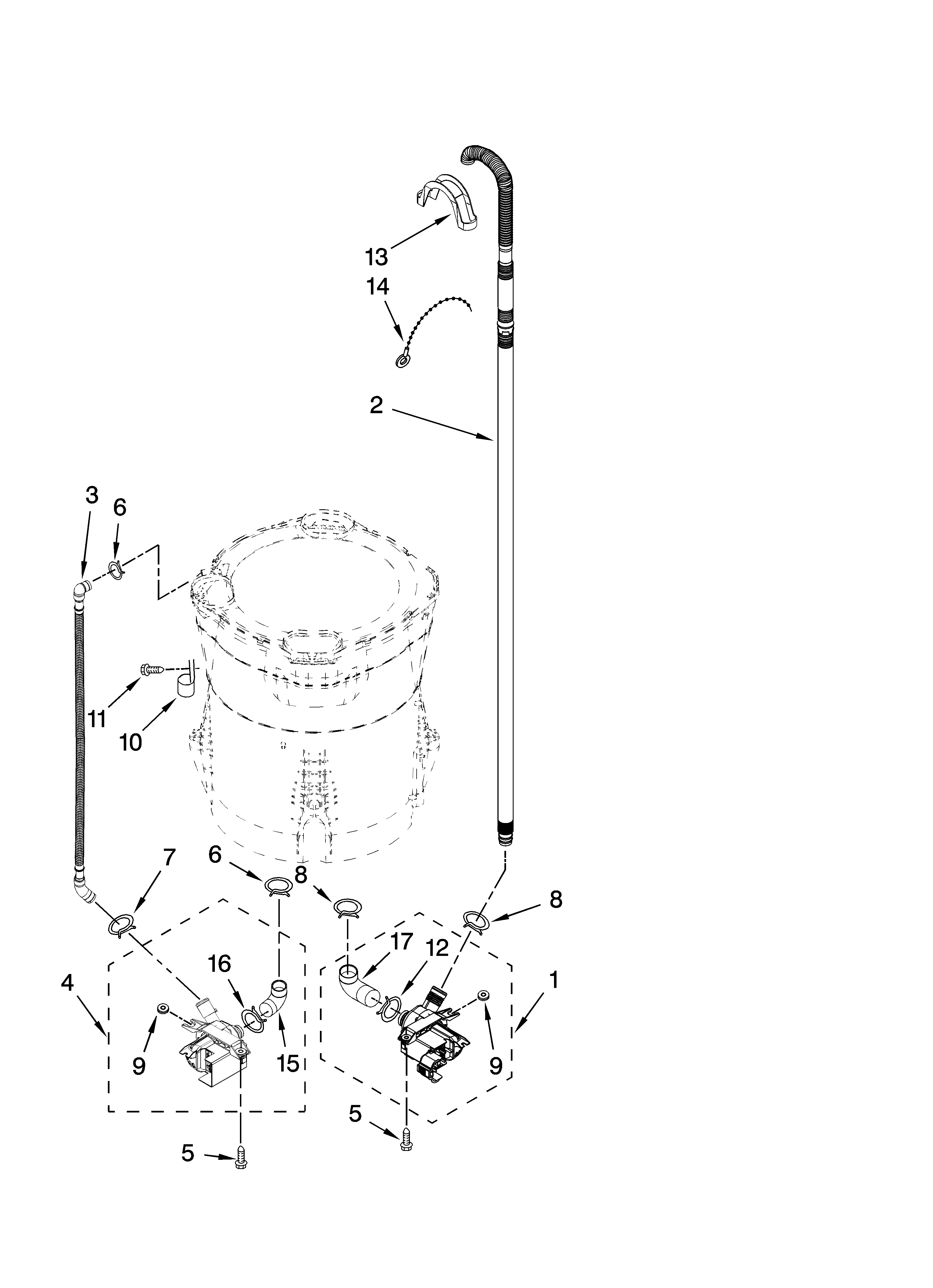

Model-matched part that’s often involved in no-drain issues: pump-water W10536347.

Why it matters

A restricted drain path can leave water in the tub, cause poor spin performance, and lead to repeated cycle interruptions. Clearing the drain path early helps protect the pump and reduces odor and residue problems.

Last updated: February 2026

To force your Kenmore Elite washer model 11027086603 to drain, we recommend canceling the cycle and running a Drain/Spin (or Spin) cycle first. If the tub is still full, you can manually drain it by lowering the drain hose into a shallow pan and clearing common clogs in the hose or drain pump.

Fast ways to get the water out

• Try Cancel/Stop, then select Drain/Spin (or Spin) and start the cycle.
• If the washer will not run, unplug it for safety before handling water.
• Lower the drain hose into a bucket or shallow pan to gravity-drain the tub (keep the hose end below the water level in the tub).
• Check the drain hose for kinks, pinches, or freezing.
• If draining is slow or stops, suspect a clog at the pump or hose; the drain pump is a common cause.

Check the drain hose setup (prevents siphoning and drain problems)

A misrouted hose can cause siphoning, slow draining, or repeated refilling. The installation instructions for this washer specify key limits.

Setup item	What to check	Why it matters
Standpipe height	Standpipe should be at least 39 in. (99 cm) high	Helps prevent siphoning and drain-back
Hose insertion depth	Do not insert more than 4 1/2 in. (11.4 cm) of hose into the standpipe/drainpipe	Too deep can siphon or restrict flow
Drain hose form	Use the hose form and secure it	Keeps the hose from collapsing or slipping

For the exact routing and tie-strap method, follow the installation guide.

When a part is likely needed

If the washer hums but will not drain, drains very slowly, or leaves standing water, the drain pump is often the fix for this model.

Common parts to check:

• Pump-water W10536347 (drain pump)
• Drain hose for internal blockage or a collapsed section
• Hose connections and clamps for leaks after reassembly

Why it matters

Standing water can damage clothing, cause odor, and strain the motor and drive system. Getting the hose routing right and restoring normal pump flow prevents repeat drain failures.

Last updated: February 2026

To hard reset your Kenmore Elite washer model 11027086603, unplug it (or turn off the breaker) for 1 minute, restore power, then press POWER and start a cycle. This clears many temporary control glitches and gets the washer responding again. See the owner's manual for the exact button functions on this model.

Hard reset steps (power cycle)

• Press STOP twice to end the cycle and turn the washer off.
• Unplug the washer from the grounded outlet (or switch the laundry breaker off).
• Wait 60 seconds.
• Plug the washer back in (or turn the breaker on).
• Press POWER.
• Select a cycle and press START with the lid closed.

If the washer still will not respond

These checks fix the most common causes after a reset:

• Confirm the washer is plugged into a grounded 3-prong outlet (no adapter, no extension cord).
• Make sure the lid is fully closed; the washer will not start with the lid open.
• If the lid will not lock or the Lid Lock light behavior seems wrong, inspect the lid strike area and consider replacing the washer lid lock WPW10619844.
• If the washer will not drain and seems stuck mid-cycle, check for a drain restriction; a failing drain pump can also cause a “won’t finish” symptom (replacement option: pump-water W10536347).

What “reset” does and does not do

What a hard reset can fix	What it usually will not fix
Frozen buttons, unresponsive control, cycle that will not start after a power glitch	Broken lid lock, drain pump failure, wiring damage, repeated error codes caused by a mechanical problem

Why it matters

A hard reset is a safe first step because it restores normal control operation without disassembly. If the same symptom returns often, a failing component (commonly the lid lock or drain system) is usually the real cause.

Last updated: February 2026

The Kenmore Elite washer model 11027086603 is a high-efficiency top-load design; washers in this Kenmore 110 platform are typically about 3.2 to 3.8 cubic feet. For the exact published capacity for your specific unit, check the specifications section in the 11027086603 owner's manual.

How to get the exact capacity for your washer

Use these reliable ways to confirm capacity for model 11027086603:

• Check the specifications pages in the 11027086603 owner's manual (look for “capacity” or “cu. ft.”)
• Confirm the full model number on the model tag (commonly under the lid or on the tub rim)
• If you still need a number, measure the inner basket (diameter and depth) and calculate volume in cubic feet
• Use capacity as a planning number for load size; do not load above the top of the stainless basket

Typical capacity range for this style of Kenmore washer

These ranges help you estimate load size and detergent use when you do not have the spec page in front of you.

Washer style	Typical capacity
Traditional standard top-load	2.9 to 3.5 cu. ft.
HE top-load (like many Kenmore Elite 110 models)	3.2 to 3.8 cu. ft.
Large high-capacity top-load	4.0 to 4.8 cu. ft.

Why it matters

Capacity affects cleaning performance and out-of-balance risk. Overloading reduces turnover and can cause vibration during spin; it also changes how much HE detergent you should use.

Loading and detergent tip for 11027086603

This washer is designed for High Efficiency (HE) detergent and proper loading. Load items loosely and keep the load below the top of the stainless steel basket, as outlined in the 11027086603 owner's manual.

Last updated: February 2026
