GE GFD28GSLESS bottom mount refrigerator

GE GFD28GSLESS bottom mount refrigerator Parts

Here are the diagrams and repair parts for GE GFD28GSLESS bottom mount refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

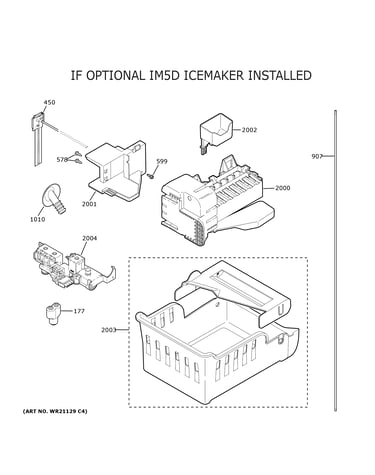

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GFD28GSLESS Refrigerators

GE BOTTOM MOUNT REFRIGERATOR GFD28GSLESS FAQs

A bottom-mount refrigerator is better when you want everyday convenience and organization because fresh food sits at eye level and the freezer is in a pull-out drawer. A top-mount refrigerator is better when you want the simplest layout and typically the lowest operating cost.

Quick comparison

Feature Bottom mount (like GE GFD28GSLESS) Top mount
Fresh food access Easier (less bending) More bending
Freezer access Easier for bulky items (drawer/baskets) Easier for quick grabs
Organization Strong (drawers, bins, dividers) Basic, fewer zones
Energy use Often slightly higher Often slightly lower
Price Usually higher Usually lower

When a bottom-mount fridge is the better choice

  • You use the refrigerator section far more than the freezer.
  • You want better visibility and organization for produce, deli, and beverages.
  • You prefer a freezer drawer with baskets for sorting frozen foods.
  • You want a modern layout with more convenience features.

When a top-mount fridge is the better choice

  • You want a straightforward design with fewer moving parts.
  • You want a budget-friendly option.
  • You do not mind bending to reach fresh food.
  • You want a layout that is easy to fit in tighter kitchens.

What matters for GE GFD28GSLESS specifically

This model is a bottom-freezer design; the GFD28GSLESS owner’s manual covers handling, care, and installation details (including clearance and moving guidance). If you are deciding between styles, compare your kitchen clearance, how often you use the freezer, and how much you value drawer-style organization.

Why it matters

Choosing the right mount style reduces daily bending, improves food visibility (which helps reduce waste), and can prevent door and drawer issues caused by tight clearances or overloading.

Last updated: January 2026

Bottom-freezer refrigerators like the GE GFD28GSLESS make fresh food easy to reach, but the tradeoffs are that frozen items sit lower (more bending), the freezer drawer can be harder to organize, and these models often cost more than basic top-freezer designs.

Common disadvantages to expect

  • More bending and lifting: you typically squat to reach items in the lower basket, especially bulky frozen foods.
  • Drawer organization challenges: stacked baskets can hide items; small packages get buried.
  • Heavier access: a loaded freezer drawer can feel heavy to pull out and push in.
  • Space needs in front: the freezer drawer needs clearance to open fully.
  • Potentially higher purchase price: bottom-freezer designs often include more features and hardware than top-freezer models.

Quick comparison: bottom freezer vs top freezer

Feature Bottom freezer Top freezer
Fresh food access Easier (at eye/waist level) More bending for fridge items
Frozen food access More bending/squatting Easier reach
Freezer organization Drawer and baskets; items can stack Shelves; items are more visible
Typical cost Higher Lower

Tips to reduce the downsides

  • Keep heavy items (meat, large bags) in the upper freezer basket when possible.
  • Use bins or labeled freezer bags to group foods (breakfast, veggies, snacks).
  • Avoid overfilling; leave room so the drawer closes smoothly and seals well.
  • If the drawer feels misaligned or rubs, check leveling and door alignment steps in the GFD28GSLESS owner's manual.

Why it matters

Bottom-freezer models are great for everyday refrigerated foods, but if you rely heavily on frozen storage or have mobility concerns, the lower drawer design and heavier loads can be a daily frustration.

Last updated: January 2026

Cooling problems are the most common issue we see with GE refrigerators, including the GE GFD28GSLESS. Symptoms usually show up as warm fresh food, soft ice cream, or temperature swings; the root cause is often airflow restriction, dirty condenser coils, a defrost problem, or a failing fan.

Most common causes to check first

  • Temperature settings were changed or the unit is in a demo or sabbath type mode
  • Condenser coils are dirty (poor heat release causes weak cooling)
  • Door gasket is leaking (warm air and moisture load the system)
  • Evaporator fan is not running or is noisy (no cold air circulation)
  • Frost buildup from a defrost issue (air cannot pass through the evaporator)
  • Air vents are blocked by food packages (restricted airflow)

Quick troubleshooting steps (in order)

  1. Confirm the set temperatures and give the refrigerator 24 hours to stabilize after any adjustment.
  2. Listen for the evaporator fan when the doors are closed; a failed fan often causes warm spots.
  3. Inspect door seals for gaps, tears, or areas that do not grip a sheet of paper.
  4. Clean the condenser area and make sure there is good airflow around the cabinet.
  5. If you see heavy frost on the back wall inside, focus on defrost components and airflow.

Symptom-to-likely-cause guide

Symptom Most likely cause What to do next
Fresh food warm, freezer cold Airflow or damper issue Clear vents; check fan operation
Both sections warm Condenser coils, compressor, or control issue Clean coils; check for error codes
Frost on rear freezer panel Defrost system problem Defrost and diagnose heater/sensor
Door alarm keeps sounding Door not sealing or not fully closed Check gasket and door alignment

Why it matters

Cooling issues can spoil food quickly and force the sealed system to run longer than normal, which increases wear and energy use. Catching airflow, gasket, and coil problems early prevents bigger failures.

Helpful GE resources

Last updated: January 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…
