KitchenAid YKMHC319EBS1 microwave/hood combo Parts

Name: KitchenAid YKMHC319EBS1 Parts | Diagrams | Sears PartsDirect
Brand: KitchenAid
SKU: YKMHC319EBS1
Availability: InStock

Here are the diagrams and repair parts for KitchenAid YKMHC319EBS1 microwave/hood combo, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

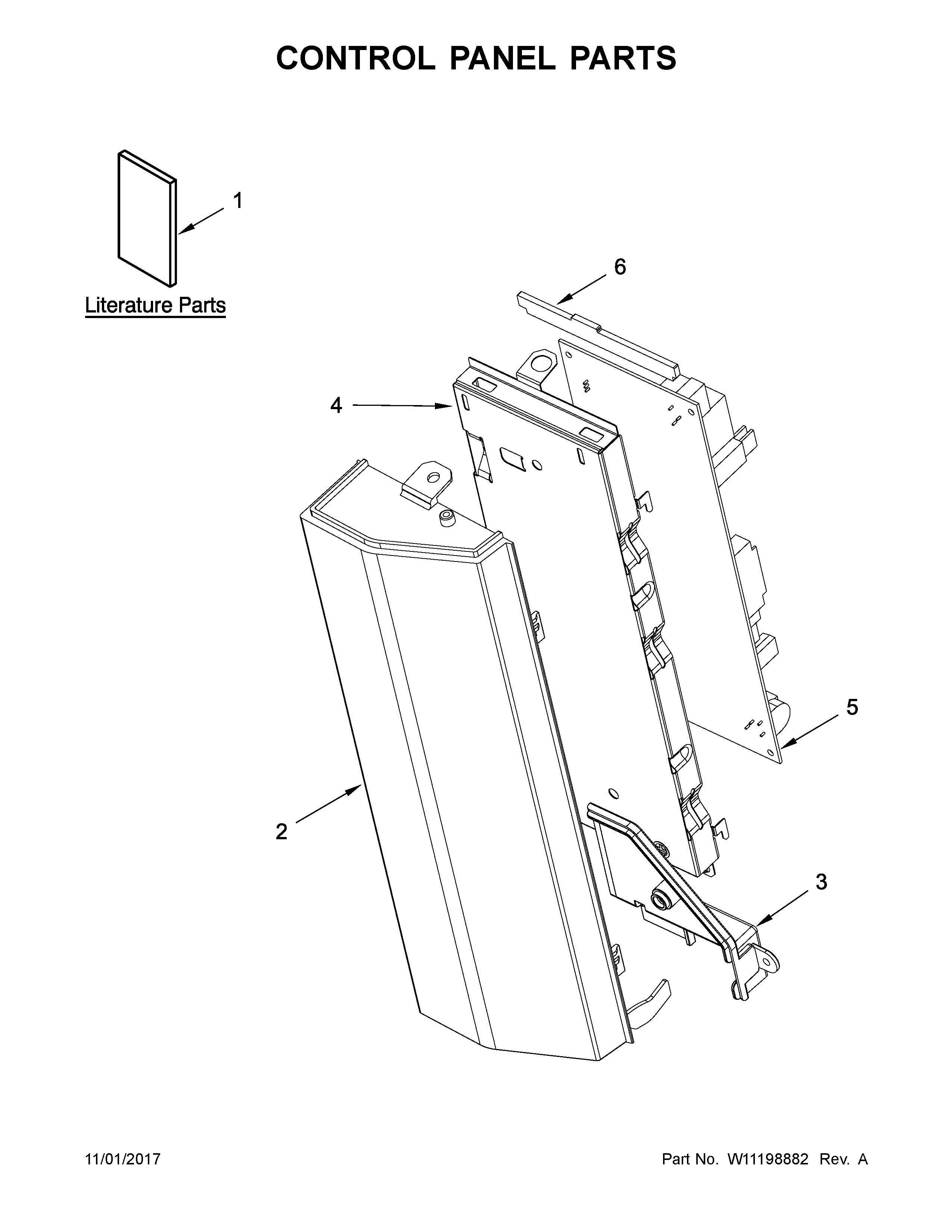

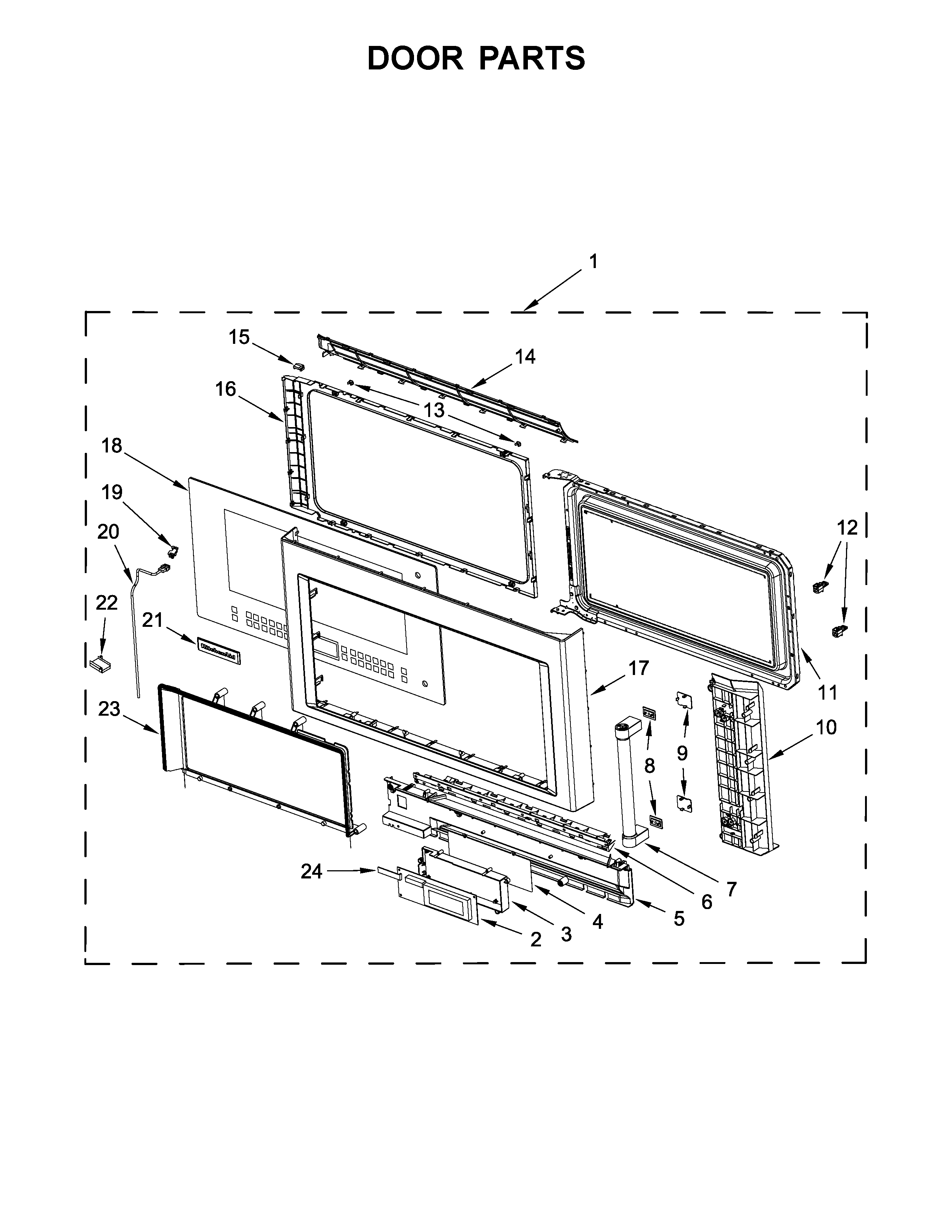

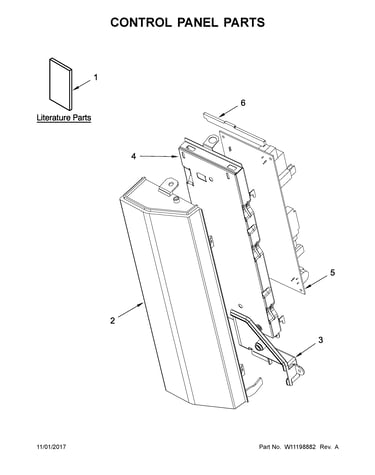

Browse Parts for YKMHC319EBS1 Microwave/Hood Combo

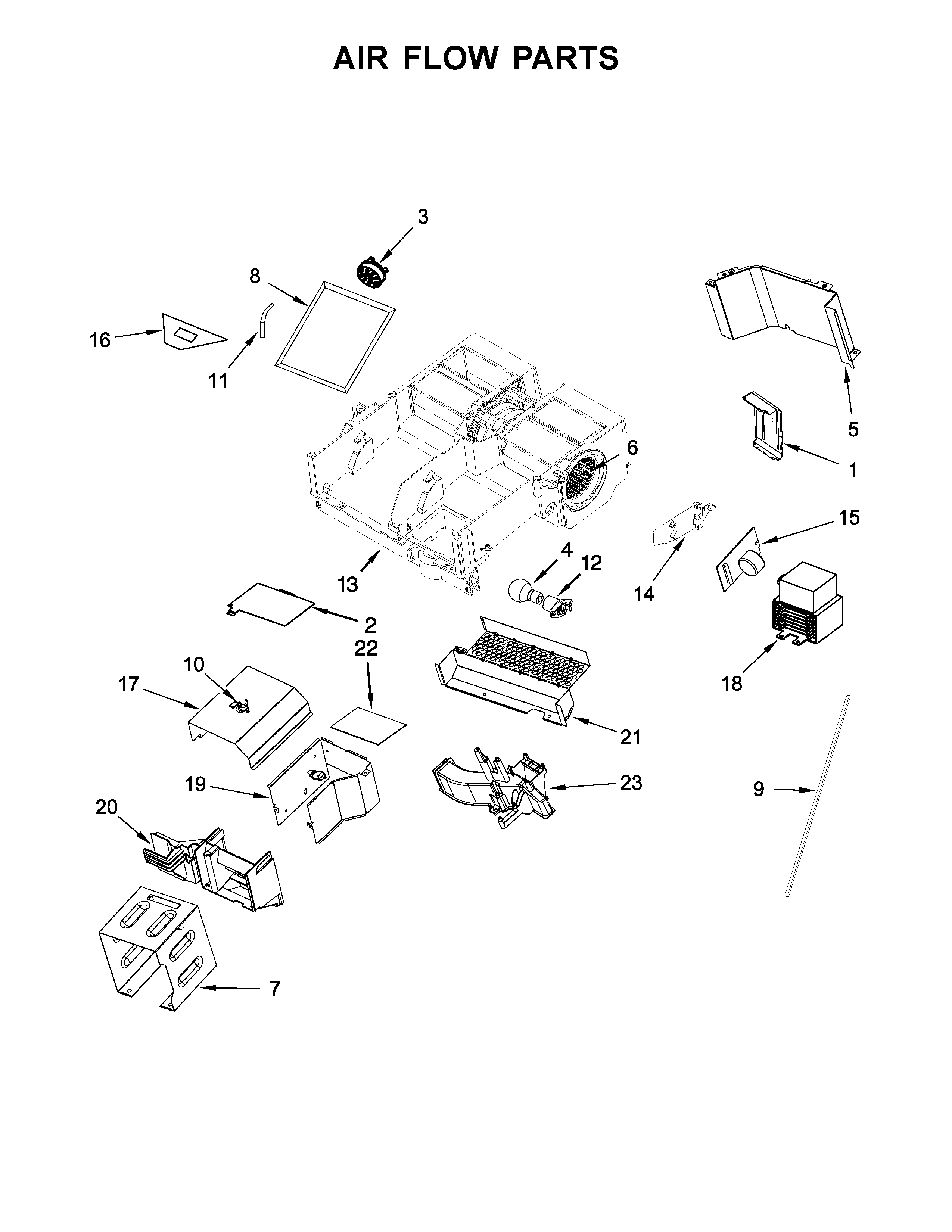

Air flow parts diagram
Lamp Assembly
Part #4393681
Replaced by #8206232A
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.91
14% OFF Phone Price : $6.91
Qty

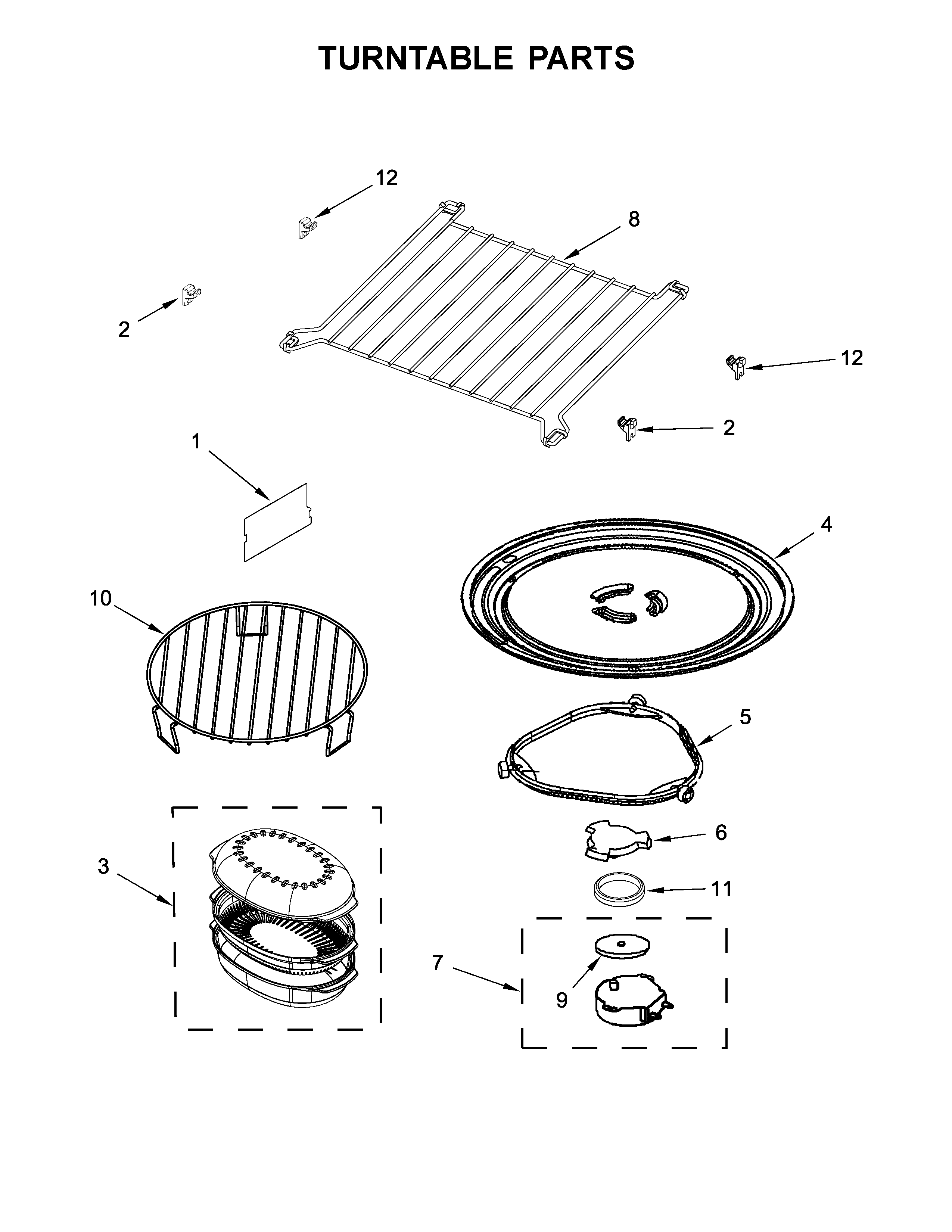

Turntable parts diagram
Turntable Motor
Part #W10466420
Replaced by #WPW10466420
Manufacturer substitution
This part replaces W10466420. Substitute parts can look different from the original.
In Stock
$40.12
13% OFF Phone Price : $46.12
Qty

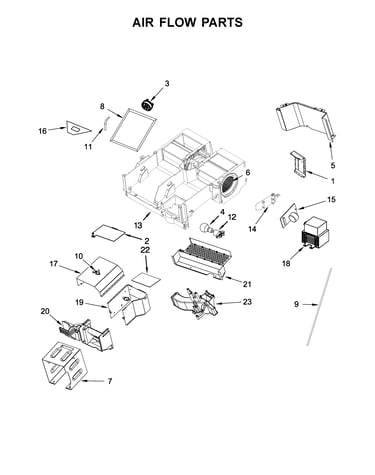

Air flow parts diagram
Magnetron
Part #W10754514
The manufacturer no longer makes this part, and there's no substitute part

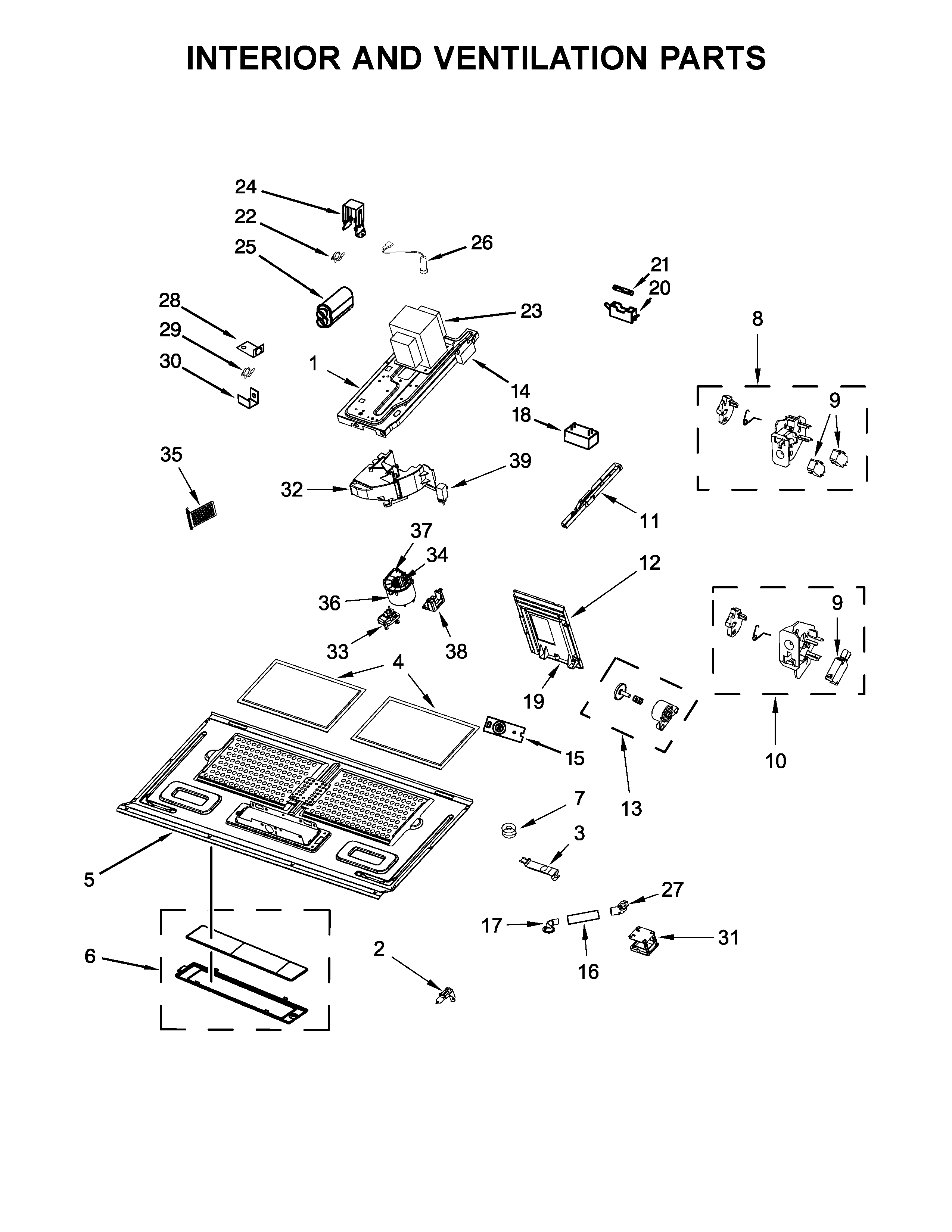

Interior and ventilation parts diagram
Assembly, Lower Interlock (includes Switches)
Part #W11169315
Replaced by #W11192679
Manufacturer substitution
This part replaces W11169315. Substitute parts can look different from the original.
In Stock
$25.56
19% OFF Phone Price : $31.56
Qty
Interior and ventilation parts diagram
Assembly, Upper Interlock (includes Switches)
Part #W11169313
Replaced by #W11192678
Manufacturer substitution
This part replaces W11169313. Substitute parts can look different from the original.
In Stock
$25.56
19% OFF Phone Price : $31.56
Qty

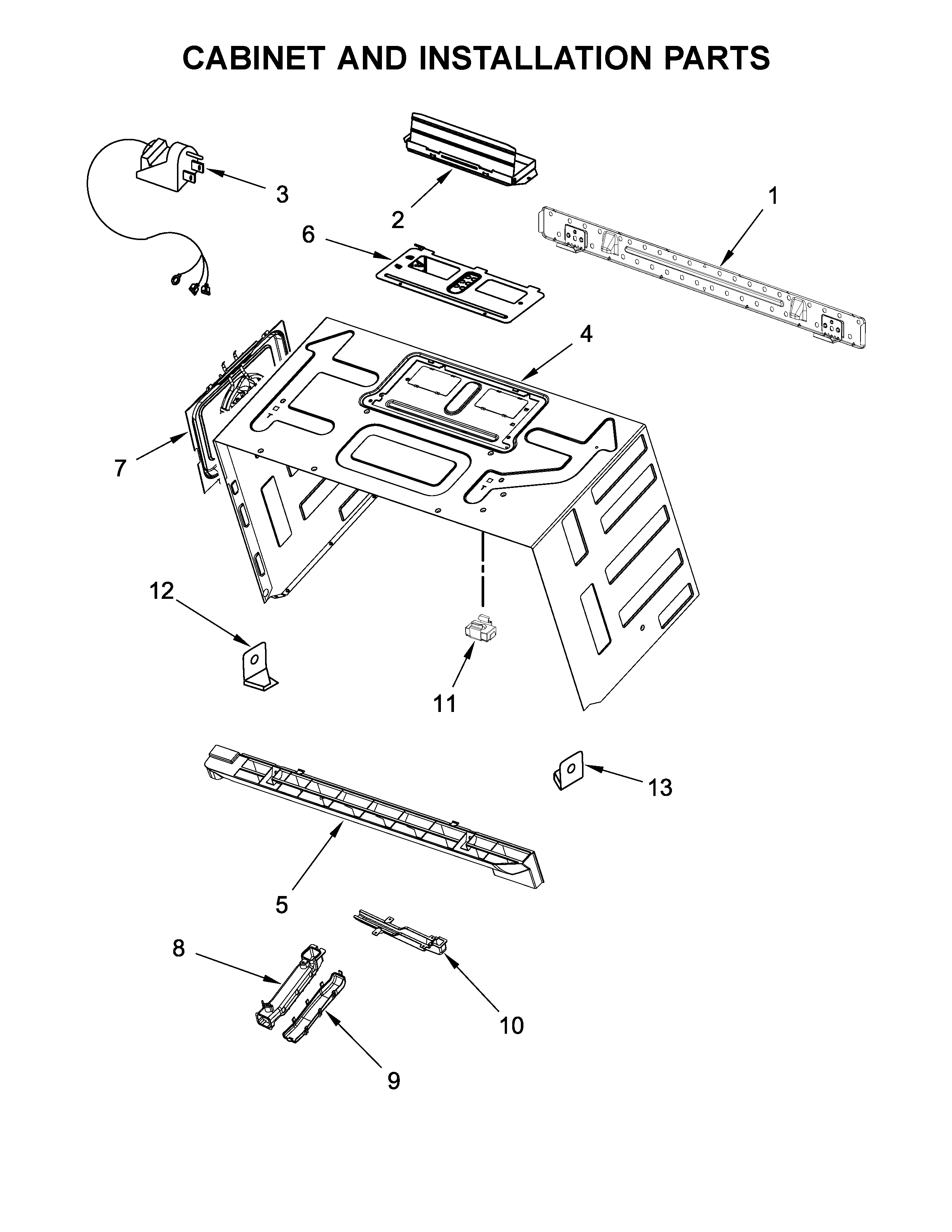

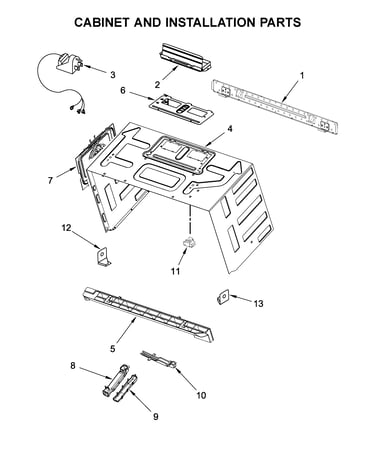

Cabinet and installation parts diagram
Microwave Vent Damper
Part #W10748710
Replaced by #W10843943
Manufacturer substitution
This part replaces W10748710. Substitute parts can look different from the original.
In Stock
$64.34
9% OFF Phone Price : $70.34
Qty
Cabinet and installation parts diagram
Microwave Installation Template
Part #W10190018
This item is not returnable
In Stock
$5.81
15% OFF Phone Price : $6.81
Qty
Cabinet and installation parts diagram
Microwave Mounting Nut
Part #W10596040
This item is not returnable
In Stock
$5.93
14% OFF Phone Price : $6.93
Qty
Turntable parts diagram
Waveguide Cover
Part #W11085126
Replaced by #W11197783
Manufacturer substitution
This part replaces W11085126. Substitute parts can look different from the original.
In Stock
$40.90
13% OFF Phone Price : $46.90
Qty
Air flow parts diagram
Housing
Part #W10210878
Replaced by #WPW10210878
Manufacturer substitution
This part replaces W10210878. Substitute parts can look different from the original.
In Stock
$23.18
21% OFF Phone Price : $29.18
Qty
