Kenmore 41793702201 stacked laundry center Parts

Yes, but not as a separate “stacking kit” setup. The Kenmore 41793702201 is a stacked laundry center, meaning the washer and dryer are already built as one unit and are installed as a single appliance; follow the clearances and venting rules in the 41793702201 installation guide.

What “stacked laundry center” means

A stacked laundry center is factory-configured with the dryer mounted above the washer in one cabinet. You do not stack a separate dryer onto a separate washer.

• Install it as one piece (do not separate the dryer and washer sections)
• Make sure the dryer door can fully open in the chosen location
• Level the unit to reduce vibration and noise
• Use the correct exhaust ducting and routing for safe drying performance
• Plan for service access; extra space makes future repairs easier

Installation checks that matter most

The installation instructions call out key items to verify during setup and your first test cycle.

Check	What to look for	Why it matters
Leveling	Cabinet sits solid with no rocking	Reduces vibration and walking
Drain	Proper standpipe or drain connection	Prevents leaks and poor draining
Exhaust	Correct duct size, short run, no crushing	Prevents long dry times and overheating
Power	Correct electrical connection for the unit	Prevents no-start and nuisance trips

Closet or recessed installs (common question)

If you are placing the 41793702201 in a closet or recessed space, use the minimum spacing guidance in the 41793702201 installation guide. For easier installation and service, we recommend allowing extra clearance beyond the minimums.

Why it matters

Trying to “stack” separate appliances can create stability and venting problems. With a laundry center like the Kenmore 41793702201, correct leveling, spacing, and exhaust setup are what keep cycles quiet, safe, and efficient.

Last updated: February 2026

For Kenmore stacked laundry center model 41793702201, the dryer capacity is 5.5 cubic feet. “70 series” is a Kenmore feature-series label used across multiple designs, so the most accurate capacity comes from the model’s specifications in the 41793702201 owner's manual.

What “70 series” means for capacity

“70 series” does not identify one single drum size; Kenmore used it on different dryer platforms (standalone and laundry center). Capacity is tied to the full model number on the rating label.

• Use the complete model number (example: 41793702201)
• Match the appliance type (stacked laundry center vs standalone dryer)
• Compare only dryers with similar cabinet size and venting design
• Use the spec section in the manual for the exact cubic feet

Typical capacity ranges (for comparison)

These ranges help when you are comparing a “70 series” dryer to other Kenmore dryers.

Dryer type	Common capacity range	Common clue
Stacked laundry center dryer	5.5 cu. ft.	One-piece washer/dryer frame
Full-size standalone dryer (27-inch)	6.5 to 7.0 cu. ft.	Separate dryer cabinet
Compact dryer (24-inch)	3.5 to 4.5 cu. ft.	Smaller cabinet footprint

Why it matters

Dryer capacity affects load size, airflow, and dry time. If you load a 5.5 cu. ft. laundry center dryer like a full-size 7.0 cu. ft. dryer, clothes dry slower and lint buildup increases.

Last updated: February 2026

Kenmore model numbers are read in sections: the first 3 digits identify the manufacturer source, the middle digits identify the product platform, and the final digits (and sometimes letters) identify feature and production variations. For Kenmore stacked laundry center model 41793702201, the 417 prefix is the key identifier we use to match correct parts and service info.

Where to find the model number on this laundry center

For Kenmore 41793702201, we use the serial plate inside the dryer door area for the most reliable model and serial information.

• Open the dryer door and look along the inside door opening
• Copy the full model number exactly (all digits)
• Record the serial number too (helps with production changes)
• Use the full number when ordering parts like a belt, drain pump, or thermostat
• Keep a photo of the plate for future reference

For the exact location and how the information is listed, use the 41793702201 owner's manual.

What the sections of a Kenmore model number usually mean

Kenmore numbers are designed to help identify who built the unit and which design family it belongs to.

Example section	What it typically tells us	Why it matters
First 3 digits (prefix)	Manufacturer source (for example, 417)	Determines the correct parts catalog and service procedures
Middle digits	Design/platform identifiers	Helps narrow down compatible assemblies
Last digits/letters	Feature and production variations	Prevents ordering a part that looks similar but does not fit

Why it matters when buying parts or troubleshooting

Using the full model number prevents mismatched parts and speeds up diagnosis for common laundry center issues (no heat, no tumble, won’t drain, error codes).

• Parts can change by production run even within the same model family

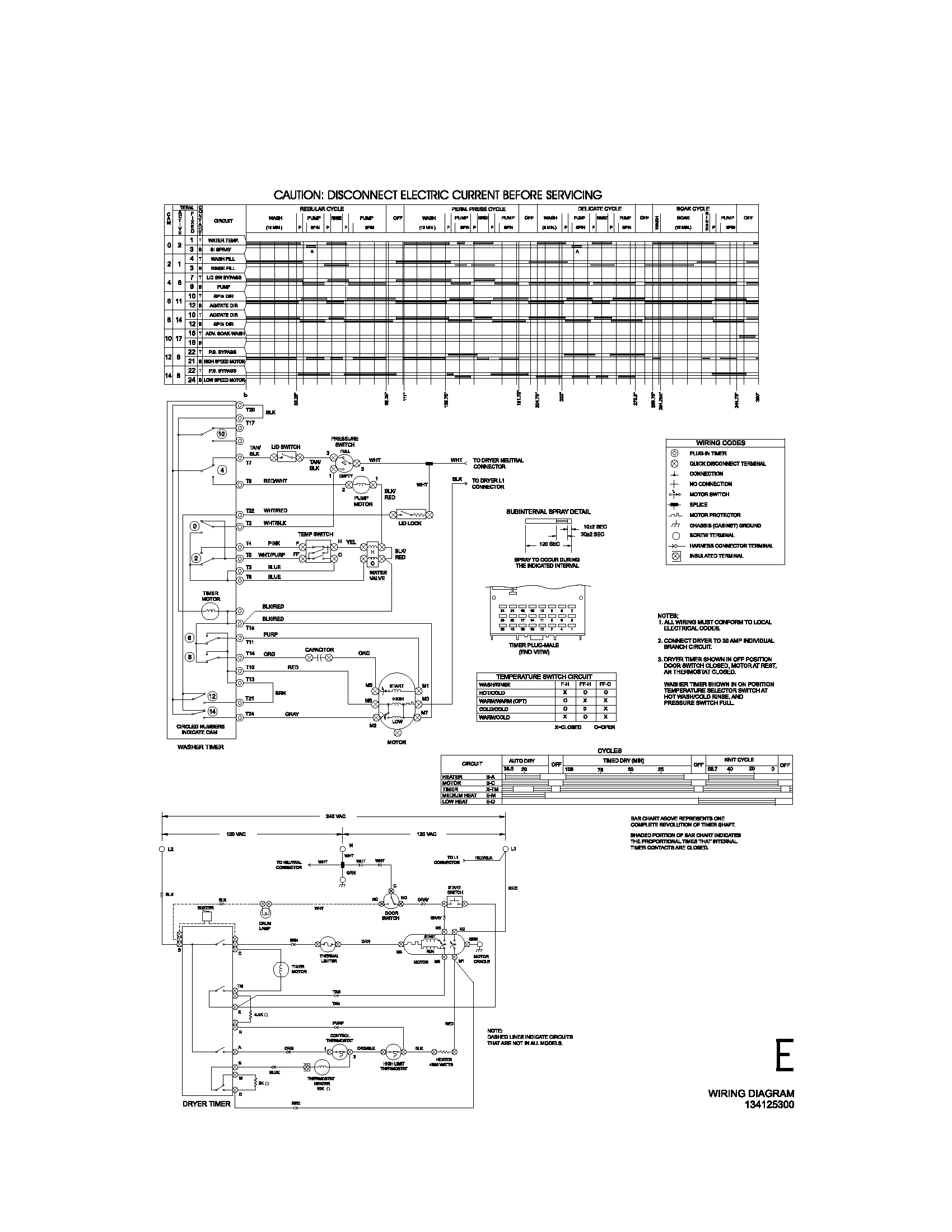

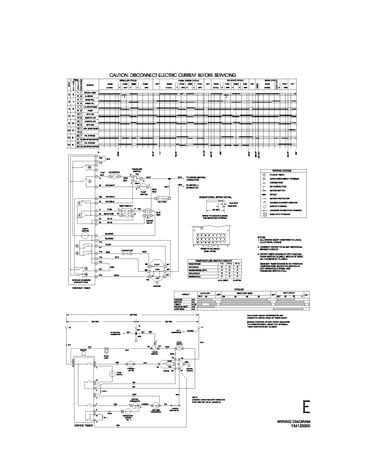

• Diagrams and wiring differ by prefix and variation
• Error code lists are model-family specific

If you are troubleshooting a washer fault on a Kenmore 417-series laundry center, use Kenmore 417 laundry center -washer error codes to match the code to the right checks.

Last updated: February 2026

A Kenmore washer typically lasts 10 to 15 years. For the Kenmore 41793702201 stacked laundry center, lifespan depends most on load size, water quality, and routine care; keeping the drain path clear and avoiding overloads helps the washer reach the upper end of that range.

Typical lifespan by washer type

Most Kenmore washers fall into these real-world ranges:

Washer type	Typical lifespan	What usually ends it first
Top-load washer	12 to 15 years	Suspension wear, transmission or drive issues
Front-load washer	10 to 12 years	Bearings, door boot leaks, drain pump problems
Stacked laundry center washer (like 41793702201)	10 to 14 years	Drain pump, belt, bearings, control/timer

What shortens washer life fastest

We see these habits and conditions reduce service life the most:

• Overloading the tub (extra strain on bearings, belt, and motor)
• Chronic out-of-balance loads (vibration damages supports and bearings)
• Poor draining from a kinked hose or restricted standpipe
• Hard water buildup (valves and internal passages work harder)
• Skipping basic cleaning (lint, coins, and debris end up in the pump)

Maintenance that adds years

Use these simple practices to extend the life of the washer section of your laundry center:

• Keep loads at a reasonable size; do not pack items tightly
• Level the unit and redistribute heavy items to prevent repeated off-balance spinning
• Make sure the drain setup meets the height and flow requirements in the installation guide
• Verify hot water is hot enough for good cleaning (the guide commonly targets about 130°F)
• Address slow draining early; a failing pump often gets louder before it quits

Parts that commonly fail on this model

If you are troubleshooting draining or spin issues on Kenmore 41793702201, these model-matched parts are common suspects:

• Washer drain pump 137221600
• Belt 134511600

Why it matters

A washer near the end of its lifespan often shows up as longer cycle times, poor spinning, or draining problems. Catching those symptoms early can prevent secondary damage (for example, a restricted drain can lead to repeated out-of-balance spinning).

Last updated: February 2026
