KitchenAid KSRB25FRBX00 side-by-side refrigerator Parts

The KitchenAid KSRB25FRBX00 is a full-size side-by-side refrigerator in the 25 cu. ft. class. For exact exterior height, width, and depth, we use the model’s specification section in the owner's manual, since “how big” can mean both cabinet dimensions and door/panel dimensions.

What “big” usually means (and what to check)

When customers ask about size, it typically falls into these buckets:

• Overall exterior dimensions (fit in the opening)
• Capacity (cubic feet of storage)
• Door swing and clearance (space to open doors fully)
• Custom panel dimensions and weight limits (if you have wood panels)

If you are measuring for a remodel or replacement, focus on exterior dimensions and clearances first.

Model-specific panel sizing details (from the manual)

If your KSRB25FRBX00 uses custom wood door panels, the manual provides panel guidance and limits:

• Flat wood panels under 1/4 in. (6.35 mm) thick are not recommended
• Raised panels can be built using 1/4 in. backing or 3/4 in. stock with routed edges
• Refrigerator door panel weight limit: 25 lb (9.98 kg)
• Freezer door panels combined weight limit: 18 lb (6.80 kg)

Quick reference table (panel limits)

Item	Limit
Refrigerator door panel weight	25 lb (9.98 kg) max
Freezer door panels combined weight	18 lb (6.80 kg) max
Flat panel thickness guidance	1/4 in. (6.35 mm) recommended

Why it matters

Correct sizing prevents installation problems like doors that hit cabinets, poor airflow, and warm temperatures. Panel weight limits also protect hinges and door alignment over time.

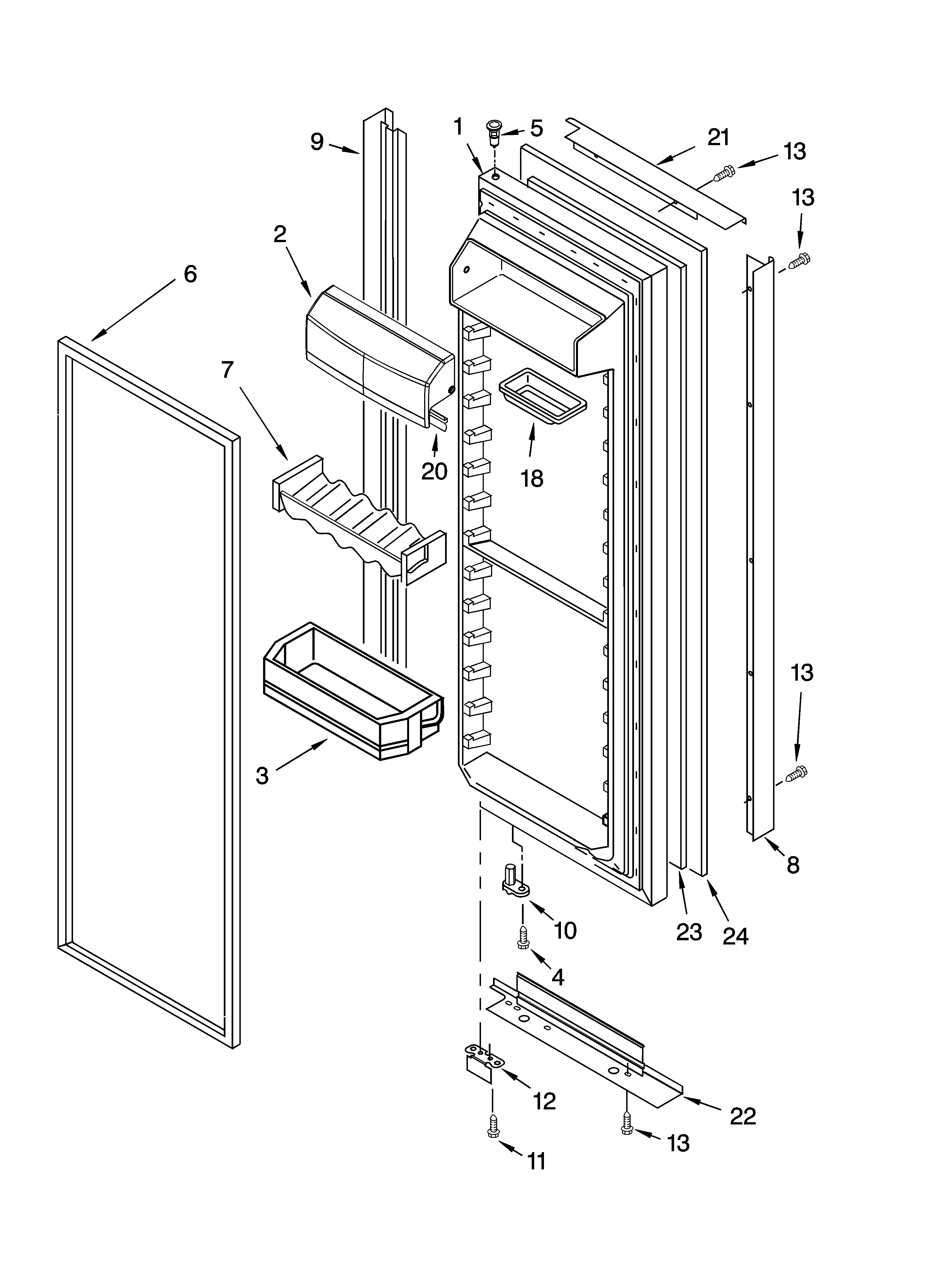

Ordering parts that affect fit and door operation

If you are correcting door closing or alignment issues that can make the refrigerator feel “too big” for the space, common related parts include the refrigerator door cam (black) WP2182179. You can also search by model on Sears PartsDirect if you need additional door hardware.

Last updated: February 2026

To replace the water filter on your KitchenAid KSRB25FRBX00 side-by-side refrigerator, remove the old base-grille filter cartridge, install the new cartridge, then reset the filter status light so the indicator returns to green. Use the steps in the KSRB25FRBX00 owner's manual.

Step-by-step: changing the base grille water filter

1. Locate the filter cartridge cap in the front base grille.
2. Rotate the cap counterclockwise to a vertical position.
3. Pull the cap and filter cartridge straight out through the base grille.
4. Install the new filter cartridge into the cap, then push it back into the housing.
5. Rotate the cap clockwise until it stops (locked position).

• Keep a towel handy; some water can spill from the old cartridge.
• If the cap feels hard to turn, back it off and re-seat the cartridge so it is straight.
• After installation, dispense water to flush air from the lines.

Reset the filter indicator light (two common styles)

After you change the cartridge, reset the status light using the method your KSRB25FRBX00 uses:

Indicator style	What you do	What you should see
Style 1	Press the light switch 5 times within 10 seconds	Status changes red to green
Style 2	Press and hold the water filter reset button	Status turns green

If water flow is weak after replacing the filter

A noticeable drop in dispenser flow usually means the filter is full, installed incorrectly, or there is air in the water lines.

• Remove and reinstall the cartridge to ensure it is fully seated and locked.
• Dispense water normally; trapped air typically clears within 24 to 72 hours.
• If flow improves when the filter is removed, replace the cartridge.
• If you use reverse osmosis, low supply pressure can cause poor flow; the manual notes RO systems typically need 40 to 60 psi minimum to the RO unit.

For more help with the process and fit, follow our DIY steps in how to replace the water filter in a KitchenAid refrigerator.

Why it matters

A properly installed water filter helps maintain normal water dispenser and ice maker flow, reduces dripping caused by air in the lines, and keeps the filter status indicator accurate so you replace the cartridge at the right time.

If you need model-matched replacement parts, order from the parts list for KSRB25FRBX00 or search by model on Sears PartsDirect.

Last updated: February 2026

The most common KitchenAid refrigerator problems are ice maker and water dispensing issues, followed by warm temperatures caused by poor airflow or frost buildup. On the KitchenAid KSRB25FRBX00, these symptoms usually trace to the water supply path or the evaporator fan and defrost system; use the KSRB25FRBX00 owner's manual for model-specific checks.

Most common symptoms and what they point to

• No ice or slow ice: ice maker issue, low water pressure, restricted water line
• No water or weak water: air in the line, frozen water tube, inlet valve problem
• Fridge warm but freezer cold: evaporator fan or air diffuser not moving air
• Frost on freezer back wall: defrost heater or defrost bi-metal not clearing frost
• Leaking water: clogged defrost drain, loose water tube connection, valve seepage

Quick checks we recommend before replacing parts

• Confirm the shutoff valve is fully open and the supply line is not kinked
• Verify household water pressure is in the typical 30 to 120 psi range
• Listen for the evaporator fan with the door switch held closed
• Look for heavy frost buildup on the freezer evaporator cover
• Clean condenser coils and keep the condenser fan area clear (if accessible)

Common fix areas and example parts for KSRB25FRBX00

Symptom	Likely system	Example part

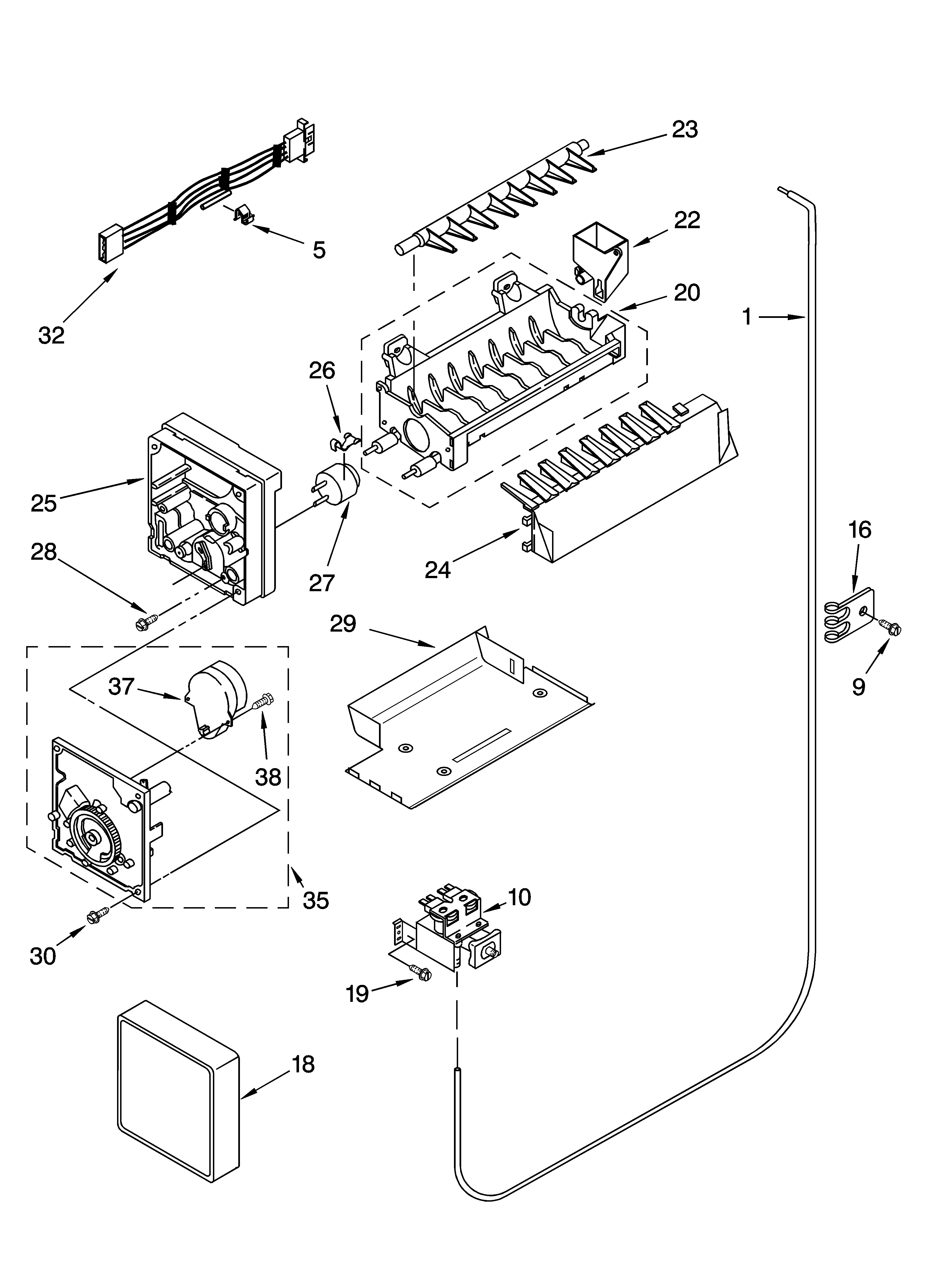

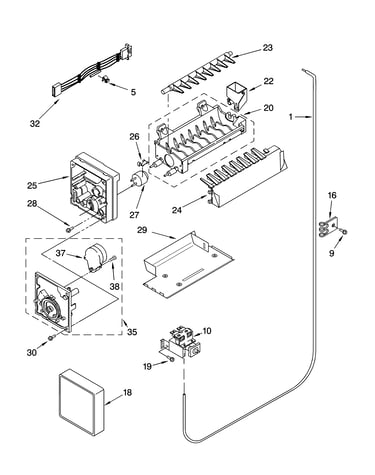

No ice / small cubes	Ice maker and fill	Refrigerator ice maker assembly 2198597
No water / weak water	Water inlet	Refrigerator inlet valve W10408179
Frost buildup	Defrost system	Refrigerator heater WP2323198

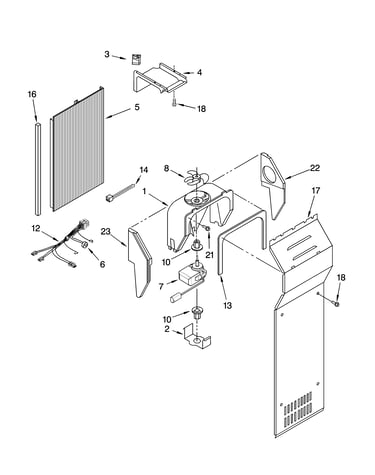

Warm fridge section	Air circulation	Evaporator motor WP2315549

Why it matters

Water-supply, airflow, and defrost problems can mimic a major cooling failure. Fixing a restricted water line, a weak inlet valve, or a frosted evaporator early helps stabilize temperatures and prevents repeat icing.

You can order replacement parts from the parts list for KSRB25FRBX00, or search by model on Sears PartsDirect.

Last updated: February 2026

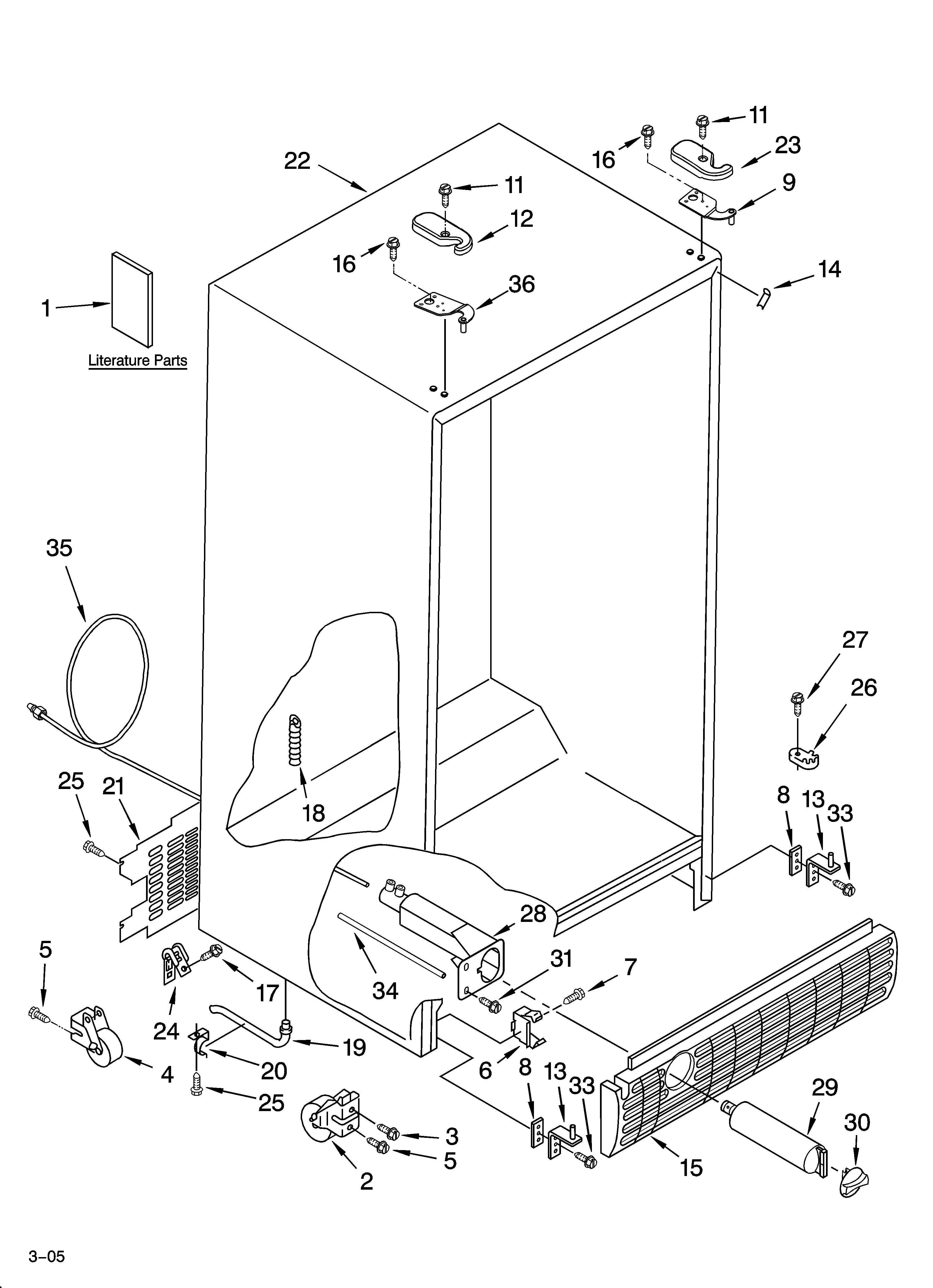

On the KitchenAid KSRB25FRBX00 side-by-side refrigerator, the water filter is located in the front base grille. You access it from the front by finding the filter cap in the grille, then turning the cap to remove the cartridge (see the owner's manual).

How to find and remove the base grille filter

We use the base grille filter style on this model; the filter cap is at the front, low on the refrigerator.

• Look at the front bottom grille (toe-kick area).
• Find the round filter cap in the grille.
• Rotate the cap counterclockwise to a vertical position.
• Pull the cap and cartridge straight out through the grille.
• Expect a small amount of water to spill from the old cartridge.

What you should do after replacing the filter

Replacing the cartridge can introduce air into the water line, so flushing is part of a correct filter change.

• Dispense and discard 2 to 3 gallons of water to flush the system.
• If water spurts or drips at first, keep flushing until flow steadies.
• If your ice maker was turned off, turn it back on after flushing.

Quick reference table

Task	What you will see on KSRB25FRBX00	What to do
Locate filter	Cap in the front base grille	Open access at the bottom front
Remove filter	Cap turns to vertical	Turn counterclockwise, pull out
Restore water flow	Air in lines possible	Flush 2 to 3 gallons
Low flow after change	Filter may be mis-seated	Reinstall cartridge, then flush

Why it matters

Knowing the exact filter location prevents forcing panels in the fresh food compartment and helps you avoid leaks. A properly seated base grille cartridge also keeps water flow strong for the dispenser and ice maker.

If you need replacement water-system parts for this model, common related items include the refrigerator water filter housing WP2186443 and the refrigerator inlet valve W10408179. You can also search by model number on Sears PartsDirect.

Last updated: February 2026
