Craftsman 917271071 lawn tractor Parts

To tell what model Craftsman mower you have, we recommend locating the product identification label on the tractor and matching the model number exactly as printed. For this Craftsman riding lawn tractor, the owner’s manual lists the model as 917.271071 (often shown without the dot as 917271071). See the 917271071 owner's manual for label location details and the exact model format.

Where to find the model number on a Craftsman riding mower

Most Craftsman riding mowers and lawn tractors place the ID label in one of these spots:

• Under the seat (often on the underside of the seat pan or on the fender pan below it)
• On the frame near the rear wheels
• Under the hood near the engine compartment
• Near the footrest area on the chassis rail

How to read the label so you get the right parts

When you find the label, copy the information exactly. Small differences can change the mower deck, drive belt, or steering parts.

• Write down the full model number (all digits)
• Note any dots or dashes (example: 917.271071 vs 917271071)
• Record the product number or serial number if shown
• Use the model number when selecting parts like a blade, V-belt, or mandrel assembly

Quick model number format guide

What you see	What it usually means	What to do
917.271071	Manual-style model format	Use the same digits when searching
917271071	Label or parts-site format	This is the same model without the dot

Why it matters

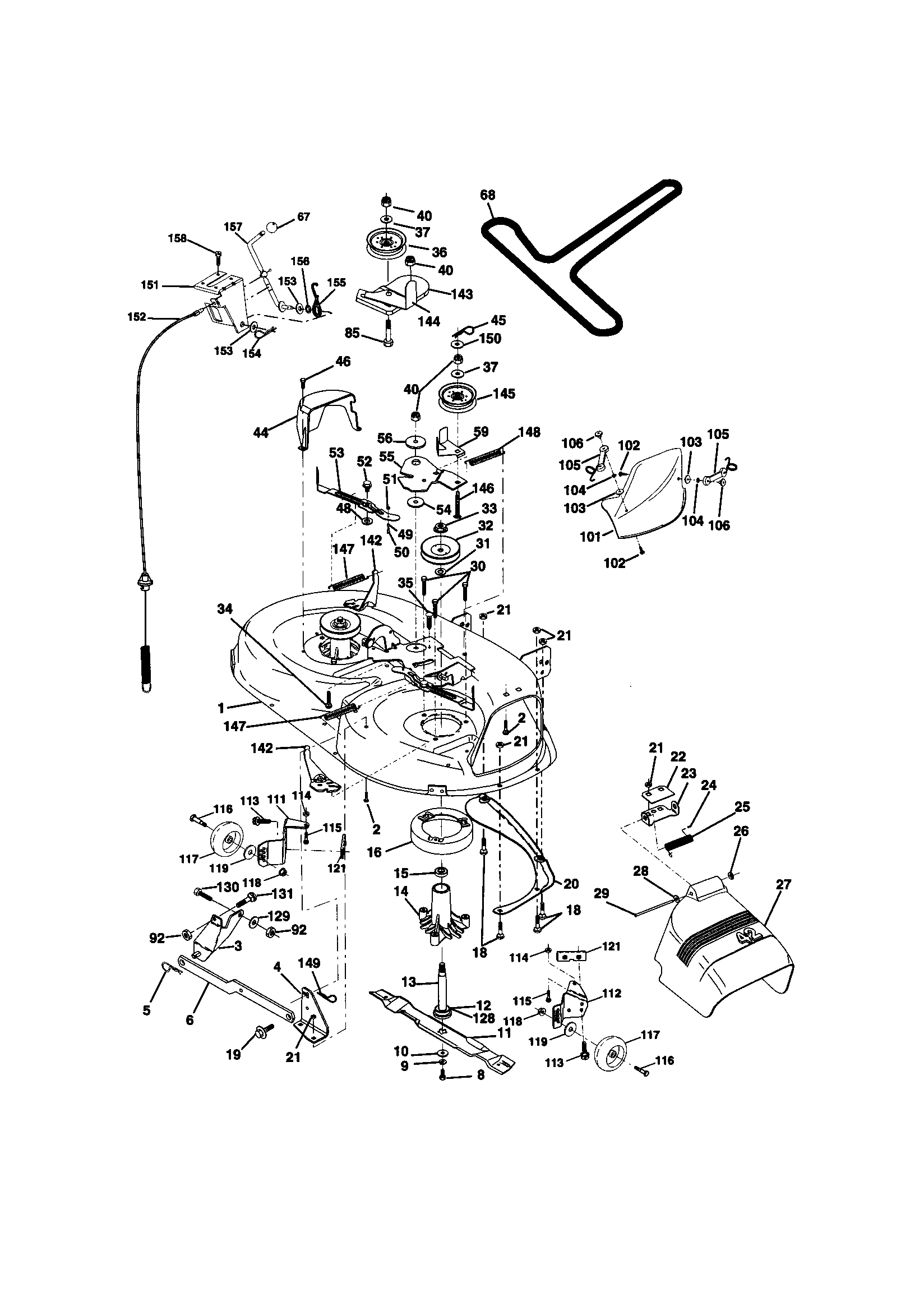

The model number ties your tractor to the correct parts diagrams and specifications. For example, the mower deck parts list for model 917.271071 includes items like the husqvarna lawn tractor mulching blade, 21-in 532134149, which must match your deck setup to fit and cut correctly.

Last updated: February 2026

Yes, replacing the engine on your Craftsman lawn tractor model 917271071 is worth it when the tractor chassis, mower deck, and drive system are still solid and the total engine swap cost stays well below the cost of a comparable replacement tractor. If the deck is rusted through, the transaxle is failing, or multiple major systems need work, replacing the tractor is the better value.

Quick decision checklist

• The mower deck is structurally sound (no cracks or severe rust-through)
• The blades and mandrels can be serviced normally (no seized spindles)
• The ground drive works consistently (no slipping, loss of drive, or loud transaxle noise)
• You can complete basic maintenance safely (engine off for adjustments and repairs)
• The engine replacement cost is less than about half the price of a comparable new rider

What to inspect on model 917271071 before you buy an engine

Use the 917271071 owner's manual to confirm safety interlocks and basic service checks, then inspect these high-cost areas:

Area to check	What “good” looks like	What pushes you toward replacement
Mower deck and cut quality	Deck levels correctly; no heavy vibration	Persistent vibration from bent mandrel or damaged deck housing
Blade system	Blades tighten correctly; hardware not stripped	Star/mandrel wear, repeated loosening, or damaged mounting surfaces
Belts and pulleys	Belts track correctly; no burning smell	Frequent belt failures or pulley wobble
Safety interlocks	Starts only with brake/clutch depressed; shuts off when it should	Interlock problems that are bypassed or unreliable

Parts that often get replaced during an engine swap

Even with a new engine, worn deck and drive parts can limit performance. These model-matched parts are common add-ons:

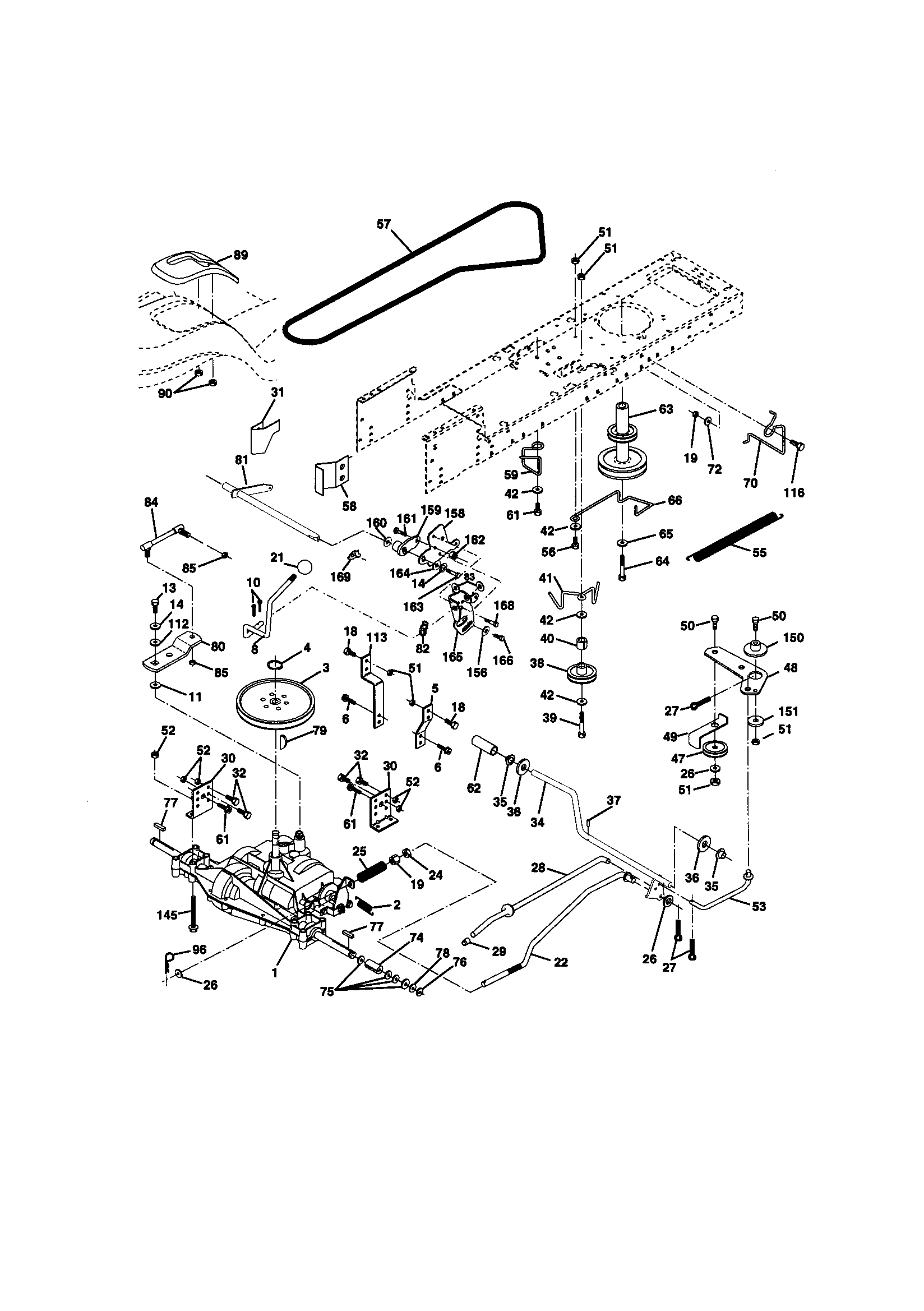

• V-belt 532138255 if the ground drive belt is glazed, cracked, or stretched
• Husqvarna lawn tractor mandrel assembly 532130794 if a blade spindle is noisy, loose, or seized
• Husqvarna lawn tractor mulching blade, 21-in 532134149 if blades are bent, damaged, or won’t hold an edge

Why it matters

A new engine only pays off if the rest of the tractor is safe and mechanically sound. The manual emphasizes keeping fasteners tight, servicing blades carefully, and never making adjustments with the engine running; those basics help you avoid repeat failures after the swap.

Last updated: February 2026

Common problems on the Craftsman 917271071 lawn tractor include a clicking or no-start condition, loss of power, excessive vibration, and poor cut or poor discharge. These issues usually trace to battery and wiring faults, fuel and tune-up needs, or mower deck, blade, and belt wear; use the 917271071 owner's manual troubleshooting chart to pinpoint the cause.

Most common symptoms and likely causes

• Engine clicks but will not start: weak battery, dirty terminals, loose or damaged wiring, faulty solenoid or starter
• Loss of power: dirty air filter, stale or dirty fuel, dirty fuel filter, low or dirty oil, faulty spark plug, clogged muffler
• Excessive vibration: worn or bent blade, loose blade bolt, bent blade mandrel, loose or damaged parts
• Poor cut (uneven): deck not level, buildup under deck, low or uneven tire pressure, worn or bent blade
• Blades will not rotate: obstruction in clutch mechanism, worn deck drive belt, frozen idler pulley, frozen blade mandrel

Quick checks we recommend first

• Shut the engine off, remove the key, disconnect the spark plug wire, let hot parts cool
• Clean grass and debris from under the mower housing and around the mandrels
• Set throttle to FAST when mowing; slow ground speed in heavy grass
• Check tire pressure side-to-side, then level the mower deck
• Inspect blades for bends and tightness; tighten hardware as needed

Parts that commonly solve deck and cutting complaints

Symptom	What to inspect	Example part for this model
Excessive vibration	Blade mandrel play, rough bearings	Husqvarna lawn tractor mandrel assembly 532130794
Poor cut or discharge	Blade condition and correct blade type	Husqvarna lawn tractor mulching blade, 21-in 532134149
Blades will not rotate	Deck drive belt wear or damage	V-belt 532138255

Why it matters

Most “big” mower problems start as basic maintenance issues: dirty airflow, stale fuel, loose hardware, or deck buildup. Correcting those early improves starting reliability, reduces vibration, and prevents premature belt and mandrel damage.

Last updated: February 2026

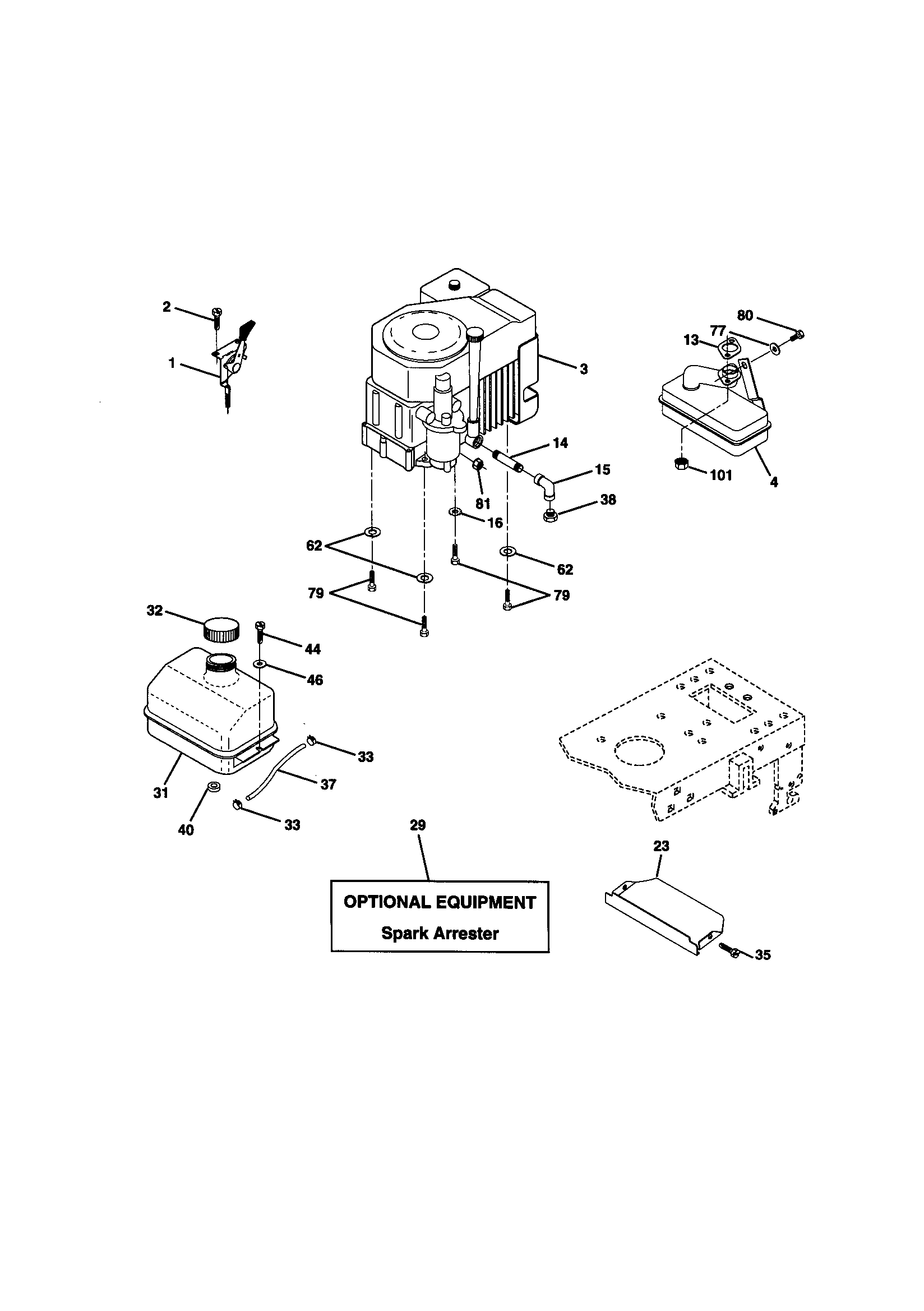

The Craftsman riding mower model 917271071 uses a 16 HP electric-start engine (as listed in the model’s documentation). For the most accurate engine identification details (such as the exact engine model and service numbers), match the engine label on your tractor to the specs in the 917271071 owner's manual.

How to confirm the exact engine model on your tractor

Use these checks to identify the engine correctly before ordering tune-up parts (spark plug, air filter, fuel filter) or doing repairs:

• Look for the engine ID label on the blower housing, valve cover, or near the starter
• Record the engine model, type, and code (or similar ID fields)
• Compare those numbers to the engine information in the 917271071 owner's manual
• Verify your tractor model tag shows 917271071
• Use the engine ID (not just horsepower) when buying ignition or carburetor parts

Key specs we can confirm for model 917271071

From the product specifications in the manual, these are the core maintenance specs tied to the engine system:

Spec	Value
Gasoline capacity	1.25 gallons (unleaded regular)
Recommended oil type	SAE 10W-30 (above 32°F), SAE 5W-30 (below 32°F)
Oil capacity	4.0 pints with filter; 3.5 pints without filter
Spark plug	Champion RC12YC (gap .040 in.)

Why it matters

Craftsman lawn tractors often have multiple engine variants across similar-looking models. Using the engine’s model/type/code prevents ordering the wrong ignition parts, filters, or service items, and it helps ensure correct oil and spark plug selection.

Last updated: February 2026

Craftsman model 917.271071 is identified in the documentation as a 16 HP, electric start, 42-inch mower, 6-speed transaxle lawn tractor, but the manual does not list a single “model year.” For the exact build year, we use the tractor’s product identification label and the date/serial information referenced in the 917271071 owner's manual.

How to find the exact year on your tractor

Check these common locations on Craftsman front-engine lawn tractors:

• Under the seat on the fender pan (lift the seat and look for a sticker or metal tag)
• On the frame near the rear wheels
• Under the hood near the dash or steering column area
• Near the transaxle area on the frame rail

Write down everything on the tag (model number, serial number, and any date code). The serial number and date code are what we use to pinpoint the manufacturing date.

What we can confirm from the manual (model identification)

The manual’s cover page confirms the configuration for model 917.271071, which helps ensure you are matching the correct parts and diagrams.

Item	What it tells you	Why it helps
Model number	917.271071	Confirms the exact tractor family
Deck size	42-inch mower	Narrows blade, belt, and mandrel matches
Starting system	Electric start	Points to battery, starter, solenoid circuits
Transmission	6-speed transaxle	Helps match drive belt and linkage parts

Why the exact year matters

Craftsman tractors often keep the same model number across multiple production runs, and small mid-run changes can affect fit.

• Ensures the correct deck parts (blade, mandrel, idler) match your build
• Helps avoid ordering the wrong drive belt length
• Improves accuracy when troubleshooting wiring and safety interlock circuits
• Confirms the right steering and chassis diagrams

Parts examples that depend on correct identification

Once you confirm the tractor’s ID tag details, these common wear items are easier to match:

• Husqvarna lawn tractor mulching blade, 21-in 532134149 (deck cutting performance)
• V-belt 532138255 (ground drive engagement and speed)

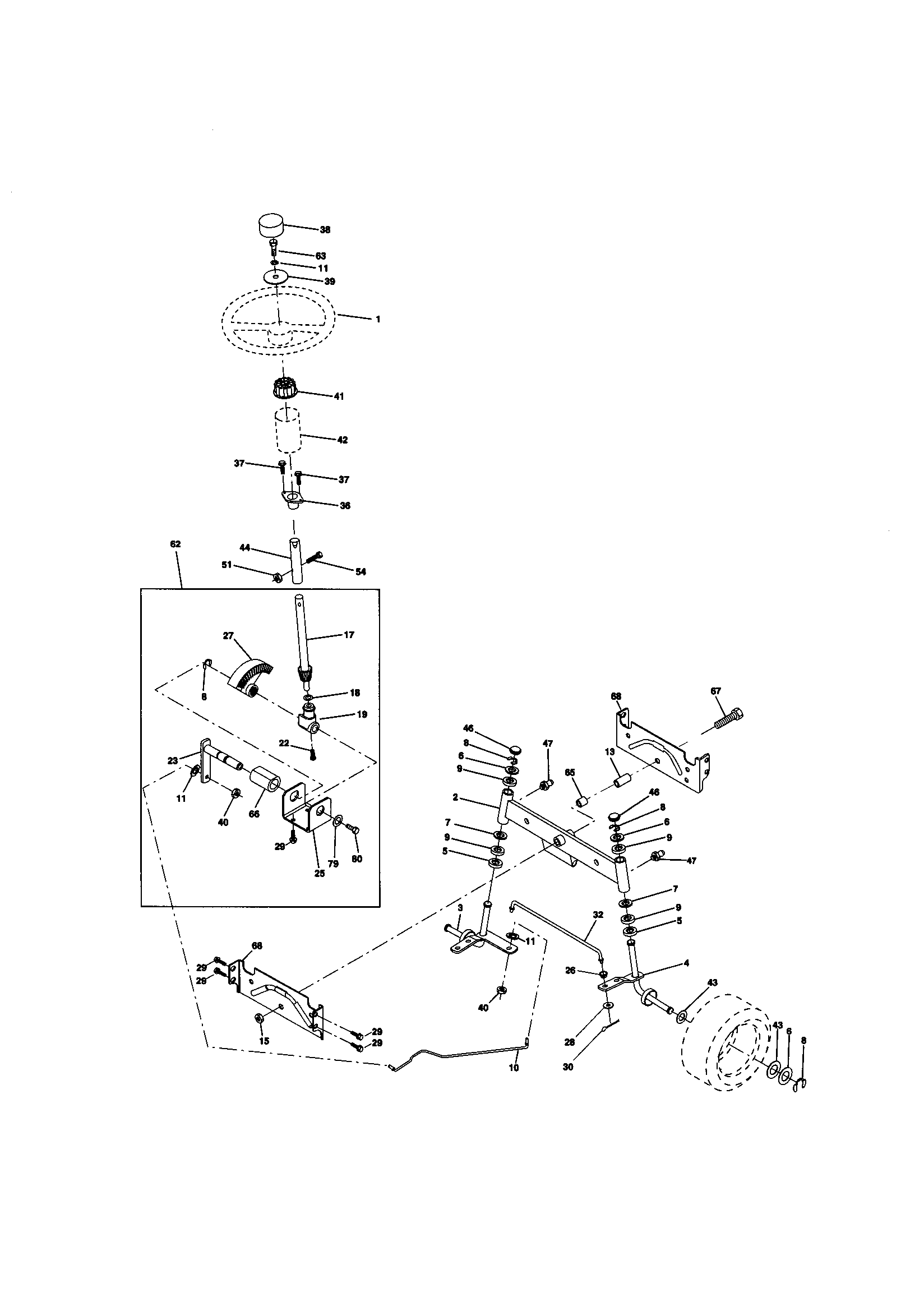

• Drag link 532156438 (steering response and alignment)

Last updated: February 2026
