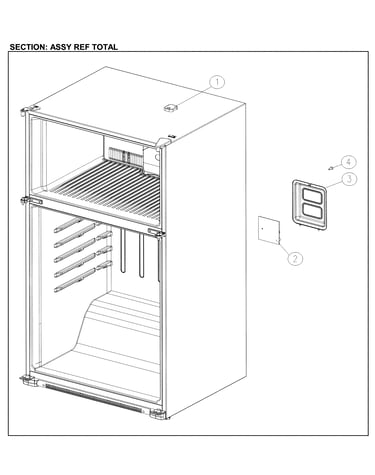

Kenmore 11171219613 top-mount refrigerator Parts

For Kenmore model 11171219613, the capacity is 14.2 cu ft. You can confirm it on the rating/spec label and in the 11171219613 owner's manual; the model number itself does not reliably encode cubic feet across Kenmore refrigerators.

Quick ways to find capacity (most accurate first)

• Check the spec/rating label inside the fresh food section (often on a side wall or near the crisper area).
• Look up the capacity in the 11171219613 owner's manual.
• If the label is missing, estimate capacity by measuring the usable interior space and calculating volume.

Estimating cubic feet by measuring (when you need a rough number)

Use this method when you cannot read the label:

• Measure interior width, height, and depth in inches (fresh food and freezer separately if you want more detail).
• Multiply: W x H x D = cubic inches.
• Convert to cubic feet: cubic inches ÷ 1728 = cubic feet.
• Subtract space taken by thick insulation, shelves, bins, and the evaporator cover; measured volume usually reads higher than the official “usable” capacity.

Example calculation table

What you measure	Formula	Result
Interior volume in cubic inches	W x H x D	cubic inches
Convert to cubic feet	cubic inches ÷ 1728	cu ft

Why the model number usually is not enough

Kenmore model numbers can indicate series and configuration, but capacity varies by cabinet design, insulation thickness, and freezer layout. For 11171219613, the official capacity is already listed as 14.2 cu ft, so you do not need to decode the model number.

Related help for Kenmore 111 refrigerators

If you are checking capacity because cooling or display issues are happening, use the error code reference for this platform: Kenmore 111 model top freezer refrigerator error codes.

Last updated: February 2026

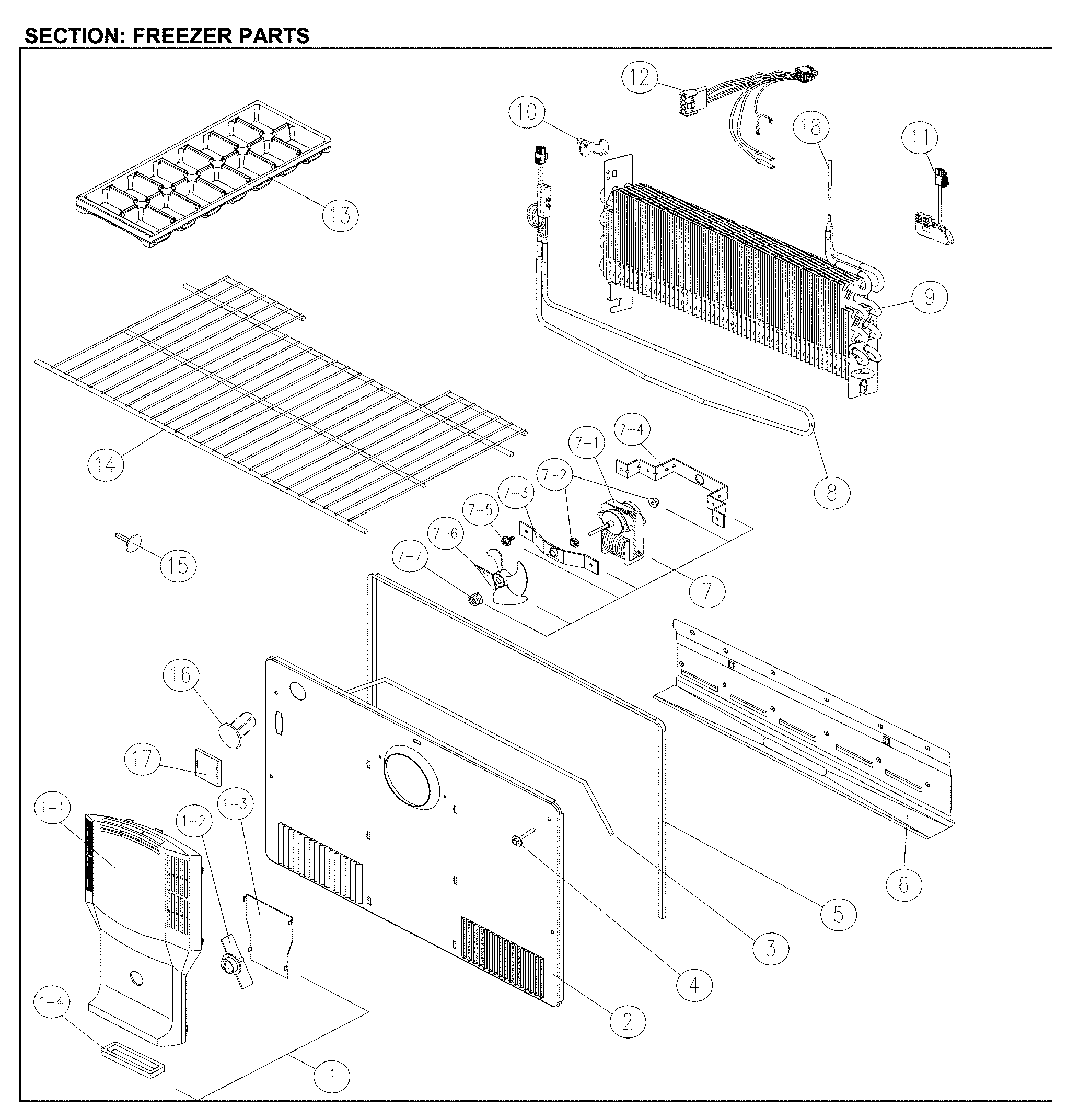

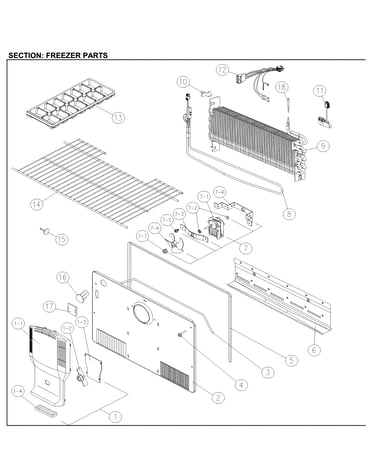

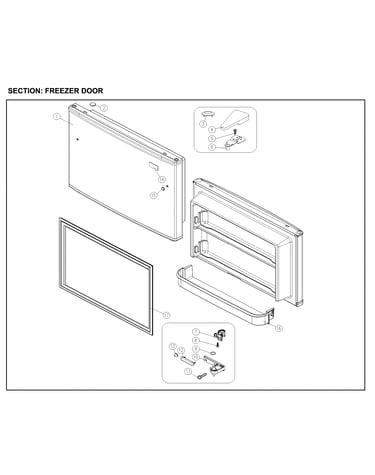

On the Kenmore 11171219613 top-mount refrigerator, the top section is the freezer compartment. It’s the coldest area of the appliance and is designed to keep foods frozen; some models also support an optional ice maker.

What the freezer compartment does

• Maintains freezing temperatures for long-term food storage
• Helps keep ice cream and frozen foods solid
• Often shares airflow with the fresh food section through vents

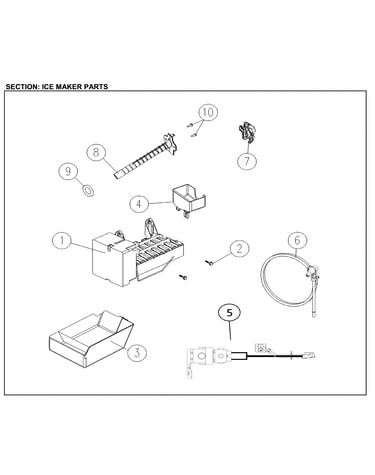

• May include an ice bin or space for an optional ice maker (model dependent)

Top-mount vs. other refrigerator layouts

Refrigerator style	Where the freezer is	Common benefit
Top-mount (top freezer)	Top	Easy access to frozen foods
Bottom freezer	Bottom	Fresh foods at eye level
Side-by-side	Left or right side	Narrow door swing, split access

Why it matters

Knowing the correct name helps when you’re troubleshooting cooling issues, checking temperature settings, or looking up diagrams and safety guidance for your Kenmore refrigerator.

Where to confirm model-specific features

For the exact compartment layout, controls, and any ice maker notes for model 11171219613, use the 11171219613 owner's manual.

Last updated: February 2026

For Kenmore model 11171219613, the correct water filter is the one specified for your exact configuration (filter style and mounting location). The fastest match is to check the part number printed on your current filter, then confirm the replacement procedure and location in the 11171219613 owner's manual.

How to identify the right filter (what to check)

Use these checks in order; they prevent ordering the wrong filter even when Kenmore filter numbers look similar.

• Look at the old filter label: match the full part number exactly.
• Confirm the filter location: inside the fresh food compartment, in the grille, or inline behind the unit.
• Check the connection style: push-in, quarter-turn, or twist-lock.
• Verify if your unit uses an optional ice maker: some setups use filtration only when the ice maker is installed.
• Match by model number: use 11171219613 when searching parts to avoid cross-model mix-ups.

Quick comparison: common Kenmore filter setups

These are the most common configurations; your current filter’s label is the deciding factor.

What you see on your fridge	Most likely filter type	What to do next
Filter cartridge inside the fridge	Internal cartridge	Match the number on the cartridge and replace it the same way
No cartridge inside, but water line is filtered	Inline filter	Identify the inline filter on the supply line and match its label
No water/ice features installed	No filter used	Confirm whether the ice maker/water kit is installed before buying

Why it matters

Using the exact-matching refrigerator water filter protects water flow to the dispenser and ice maker, helps prevent leaks at the filter head, and keeps taste and odor performance consistent.

After you install the new filter

• Flush several gallons of water (or follow the manual’s flush steps).
• Check for drips around the filter housing and water line connections.
• If your model has a filter indicator, reset it per the 11171219613 owner's manual.

For step-by-step filter styles and replacement tips, use our guide: how to replace the water filter in a Kenmore refrigerator.

Last updated: February 2026

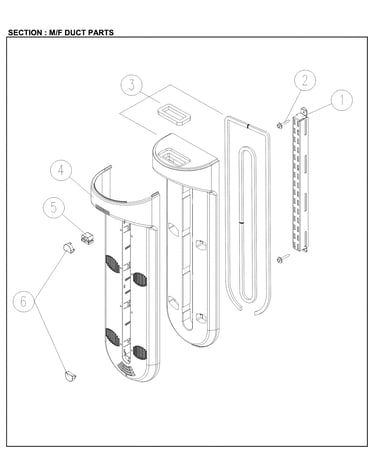

The ER IF (or Er IF) code on your Kenmore 11171219613 points to an ice fan (ice room fan) airflow problem. That fan pushes freezer air through ducts to keep the ice maker area cold; when airflow is blocked or the fan is not running correctly, the control displays ER IF.

What to check first (fast, no tools)

• Power reset: unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
• Make sure the freezer door closes fully and the door gasket seals all the way around.
• Look for frost or ice buildup around the rear freezer panel or air vents.
• Confirm nothing is blocking the air passages (bags, boxes, or ice bin position).
• If you recently changed settings, return freezer temp to a normal range (most top-mount units run best around 0°F in the freezer).

Common causes of ER IF on this model family

Likely cause	What you may notice	Typical fix
Ice fan not spinning	No airflow to ice maker area, warmer ice	Clear obstruction; replace fan motor if failed
Frosted-over air duct/evaporator area	Fan noise changes, weak airflow, frost on panel	Defrost and correct the defrost/airflow issue
Door not sealing or left ajar	Frost buildup returns quickly	Adjust door, clean gasket, improve seal
Wiring/control issue	Code returns immediately after reset	Inspect connections; service diagnosis

Why it matters

When the ice fan cannot move cold air, the ice maker compartment warms up. That leads to slow ice production, clumping, melting and refreezing, and can also contribute to excess frost that reduces overall cooling efficiency.

Safety and service note

This refrigerator uses flammable refrigerant (R600a). We recommend leaving sealed-system and internal refrigeration repairs to a trained service technician. For model-specific component locations and access steps, use the owner's manual.

Related help: Kenmore 111 model top freezer refrigerator error codes

Last updated: February 2026

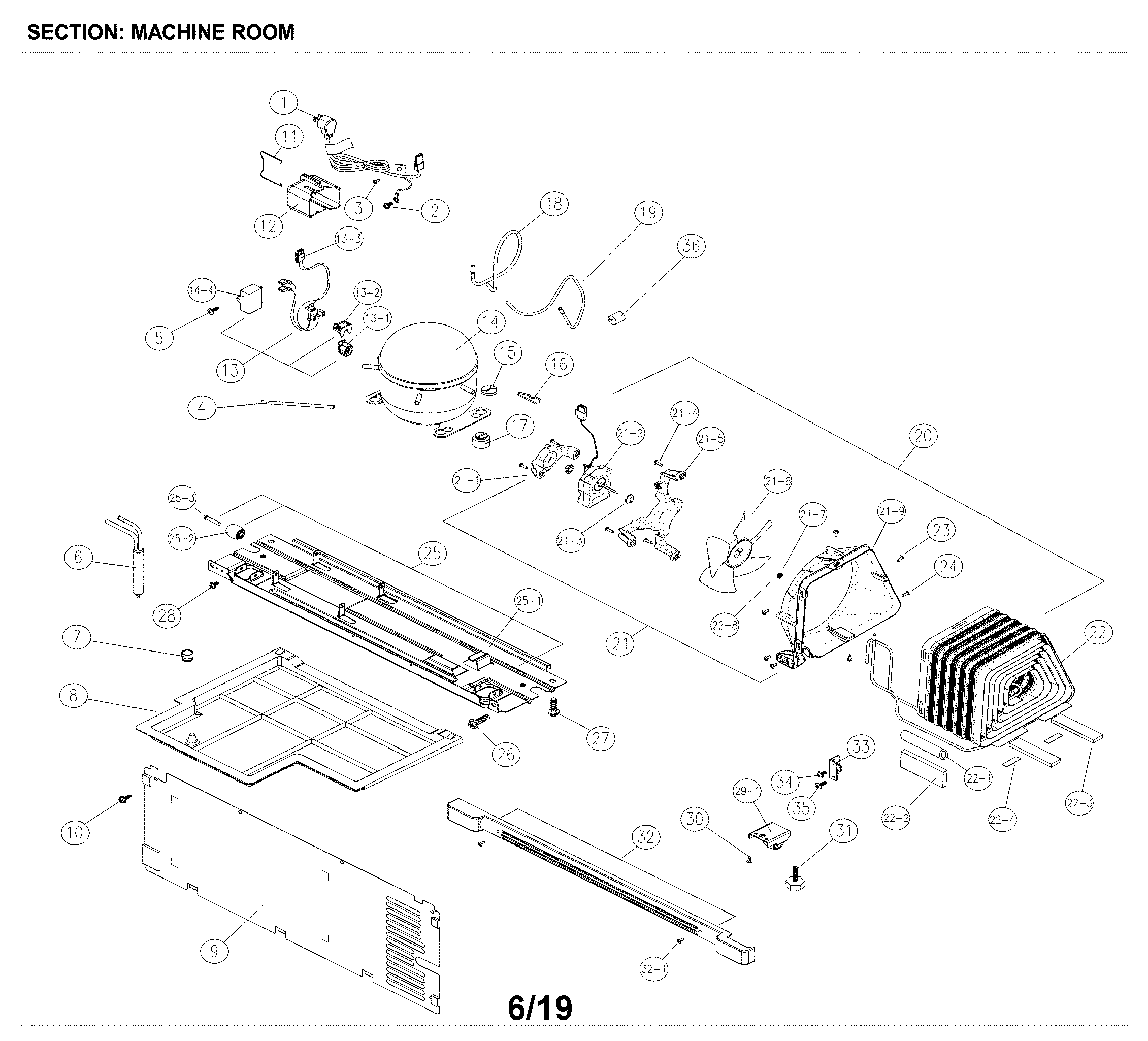

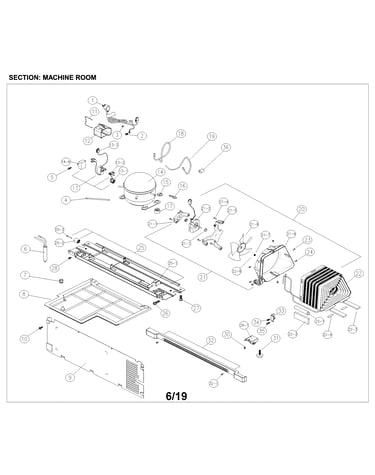

On a Kenmore top-mount refrigerator like model 11171219613, the compressor (sealed system repair) is the most expensive repair in most cases because it involves specialized sealed-system labor in addition to the part.

What usually makes it the costliest repair

Sealed-system work typically costs the most because it can involve refrigerant recovery and recharge, leak testing, and sealed tubing repairs.

• Compressor replacement often includes significant labor time
• Sealed-system diagnosis can add cost before parts are replaced
• Refrigerant handling requires specialized equipment
• A leak in the sealed system can increase the scope of the repair

Safety note for model 11171219613

This refrigerator uses flammable refrigerant; sealed-system repairs must be performed by trained service personnel. We recommend reviewing the safety warnings in the owner's manual before any service.

Other expensive refrigerator parts (common runners-up)

These repairs can also be high-cost depending on the failure and labor involved:

• Main control board (electronic control)
• Evaporator or condenser coil (sealed-system components)
• Evaporator fan motor (moves cold air through the compartments)
• Defrost system components (heater, thermostat, sensor)
• Ice maker components (if equipped)

Quick comparison: typical cost drivers

Repair area	Why it gets expensive	DIY-friendly?
Compressor / sealed system	Specialized tools, refrigerant work, leak testing	No
Control board	Higher part cost, careful diagnosis	Sometimes
Fan motor	Disassembly time, access difficulty	Often
Defrost repair	Multiple possible failed parts	Often

Why it matters

If the compressor or sealed system is failing, comparing repair cost versus the refrigerator’s age and condition helps you decide whether repair makes sense. Many non-sealed-system issues (fans, defrost, controls) are more practical to repair.

Last updated: February 2026
