KitchenAid KSRG25FTSS01 side-by-side refrigerator Parts

The KitchenAid KSRG25FTSS01 is a full-size side-by-side refrigerator; most units in this class are about 33 inches wide, 65 to 71 inches tall, and 30 to 35 inches deep (depth varies most with handles). For the exact dimensions and capacity for your unit, use the KSRG25FTSS01 owner's manual.

What “big” usually means (and what to measure)

Use these common measurements when planning a fit, moving the refrigerator, or ordering door and hinge parts:

• Width: cabinet width (not including door swing clearance)
• Height: floor to top of cabinet or hinge cover
• Depth: cabinet-only depth vs. depth including doors and handles
• Clearances: space behind and above for airflow, plus door-swing room
• Capacity: total cubic feet (fresh food + freezer)

Quick measuring checklist (best practice)

1. Measure the opening (width, height, depth) in three places.
2. Measure the refrigerator cabinet and then measure again including handles.
3. Confirm you can clear doorways and turns on the delivery path.
4. Plan for airflow clearance so the condenser can reject heat efficiently.

Typical size ranges for side-by-side refrigerators

Measurement	Typical range	Why it varies
Width	32 to 36 in.	model family and door design
Height	65 to 71 in.	hinge style, leveling legs
Depth	30 to 35 in.	handles, door thickness

Why it matters

Getting the right dimensions prevents installation headaches, protects flooring and cabinetry, and helps avoid door-seal issues that can lead to warm temperatures and excess frost.

If you are also planning a filter replacement while you have the unit pulled out, match the correct filter for this model, such as the refrigerator water filter EDR3RXD1.

Last updated: January 2026

The most common KitchenAid refrigerator problems are temperature instability (warm fridge or freezer), ice maker and water dispenser issues, and noisy operation from fans. On the KitchenAid KSRG25FTSS01, these symptoms usually trace back to airflow, defrost, or water-supply components; use the KSRG25FTSS01 owner's manual to match symptoms to the correct checks.

Most common issues we see (and what they look like)

• Not cooling evenly: freezer is cold but fresh food is warm, or temperatures swing day to day

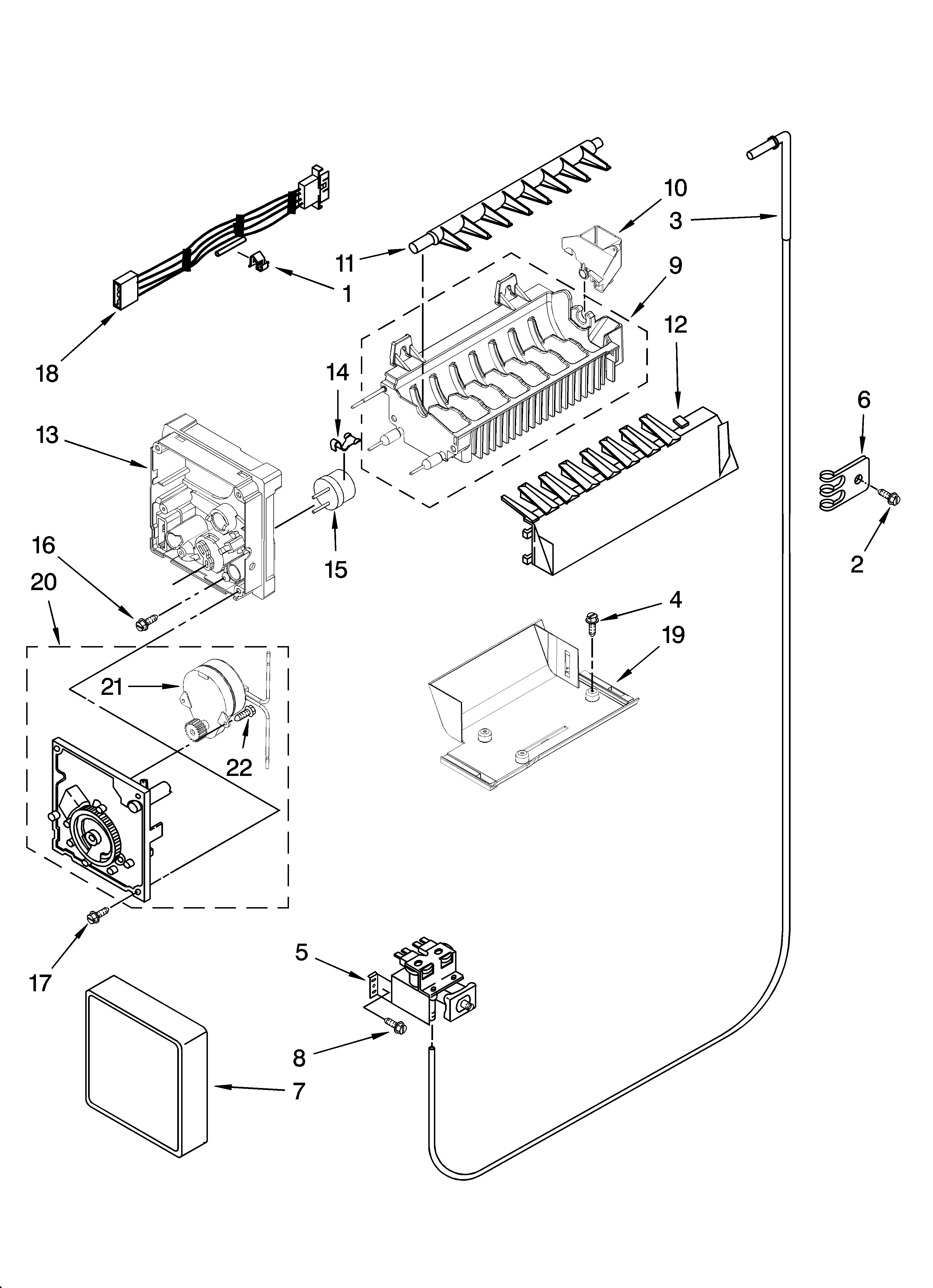

• Ice maker problems: slow ice production, hollow cubes, no ice, or clumping in the bin

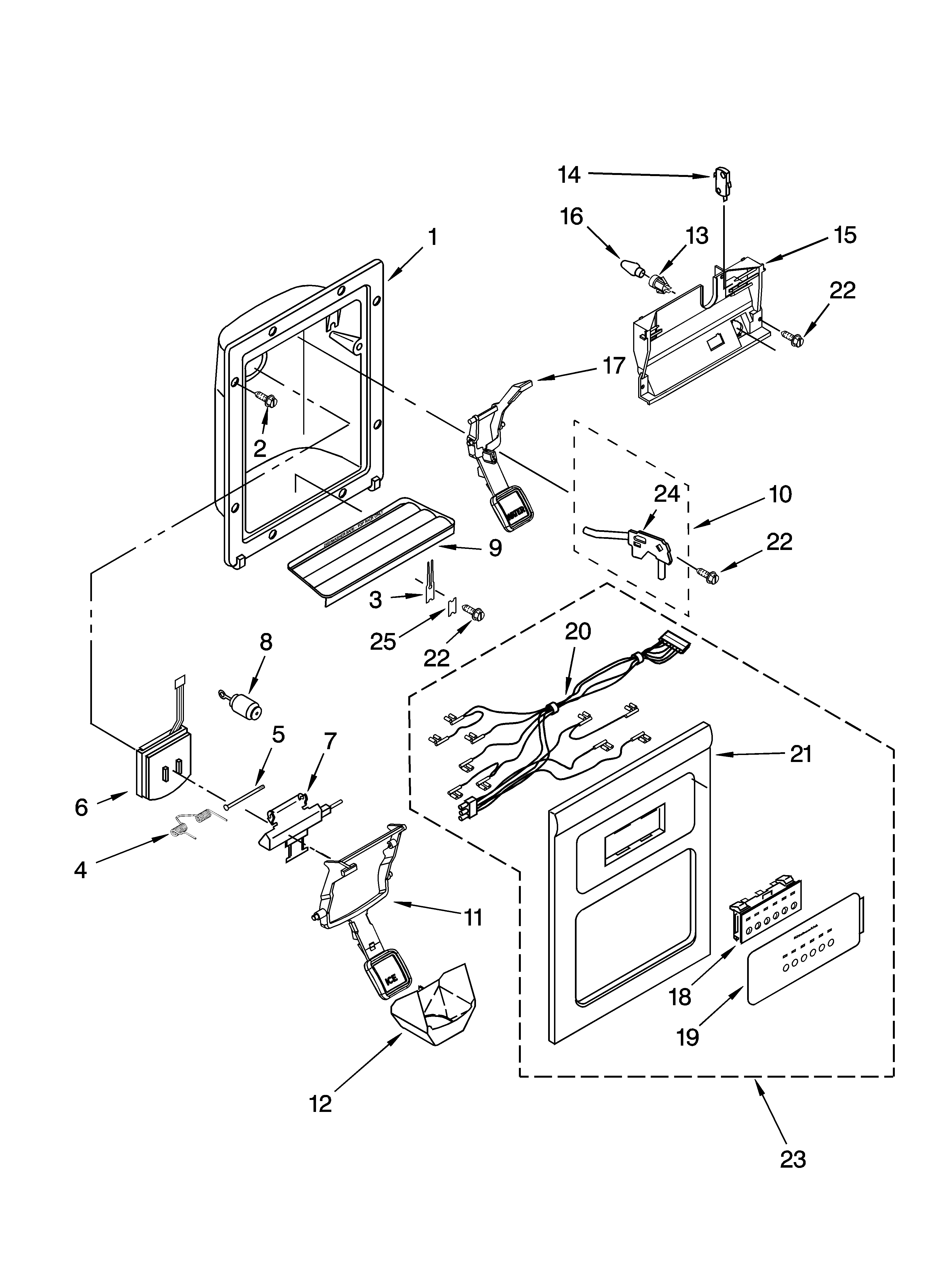

• Water dispenser issues: weak flow, sputtering, bad taste, or no water
• Noisy operation: buzzing, rattling, or a loud fan sound that comes and goes
• Frost buildup: heavy frost on the freezer back wall, poor airflow, warmer temps

Quick checks you can do first

• Confirm controls are set correctly and allow 24 hours after changes for temperatures to stabilize.
• Make sure vents inside both compartments are not blocked by food packages.
• Clean dust from the condenser area (restricted airflow can raise temps and increase noise).
• If water or ice is slow, replace the filter and purge air from the dispenser.
• Check door sealing: a poor seal can cause frost, long run times, and temperature swings.

Common symptom-to-part mapping (helps you troubleshoot faster)

Symptom	Most likely system	Parts that often relate
Warm fridge/freezer, frost on back wall	Defrost system	Defrost heater, defrost thermostat

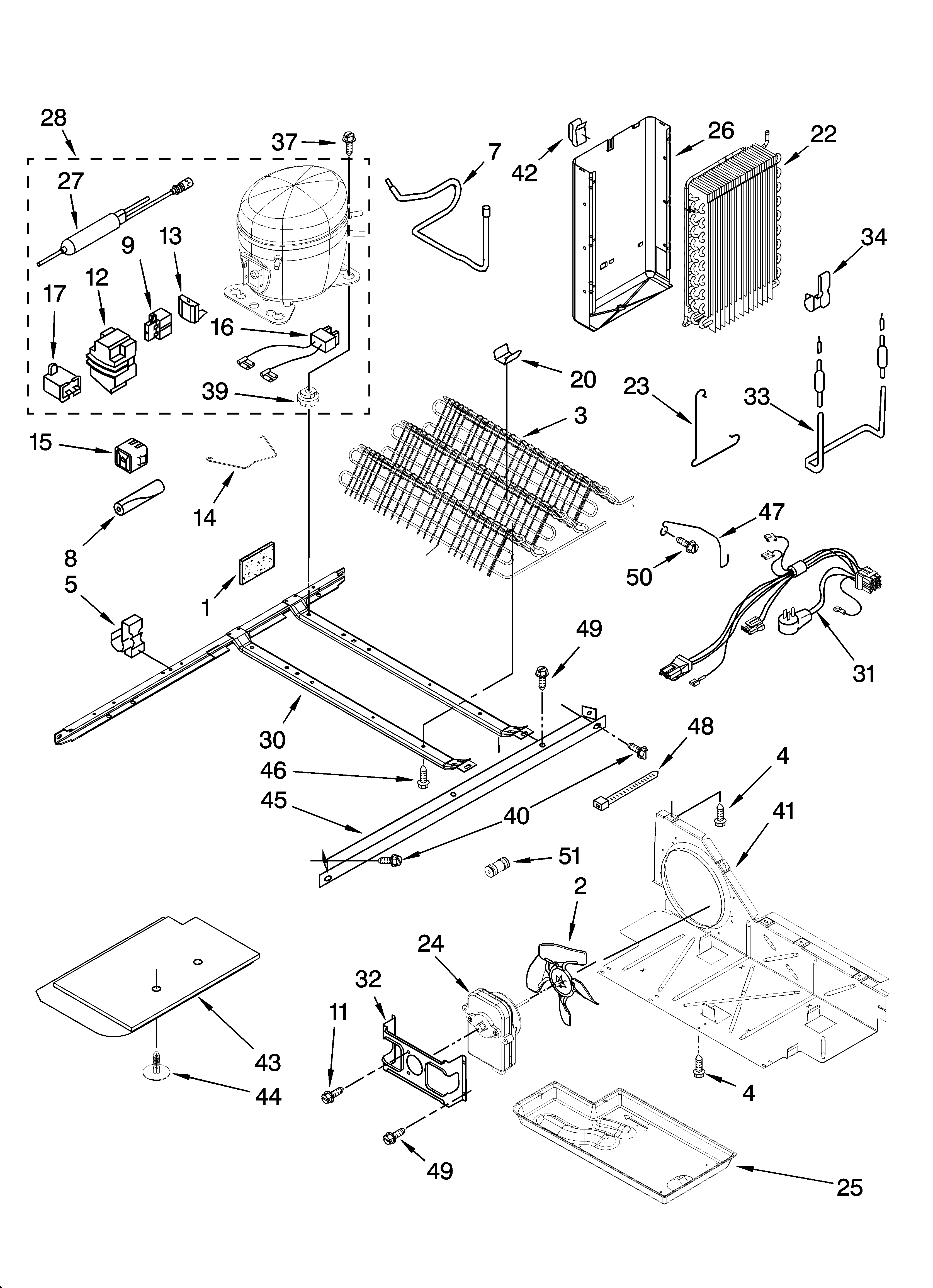

Loud freezer fan noise, warm fresh food	Airflow/evaporator fan	Evaporator fan motor, fan blade
No ice or slow ice, no water at dispenser	Water supply	Water filter, inlet valve
Bad-tasting water or reduced flow	Filtration	Refrigerator water filter EDR3RXD1

Why it matters

Catching the “big three” early (cooling, airflow, water/ice) prevents food spoilage, reduces compressor run time, and helps you avoid repeat failures caused by restricted airflow, frost buildup, or low water pressure.

Last updated: January 2026

Your KitchenAid side-by-side refrigerator’s complete model number and serial number are printed on the model and serial number label on the product. For KSRG25FTSS01, use that label to copy the model number exactly as shown for parts and service.

Where to look on the refrigerator

Check these common label locations for KitchenAid side-by-side models like KSRG25FTSS01:

• Inside the fresh food (refrigerator) compartment on a side wall
• Near the top interior ceiling of the fresh food compartment
• Behind the crisper drawers or on the frame near the crisper area
• Along the door jamb (the frame area the door seals against)
• Occasionally behind the toe grille at the bottom front

For diagrams and model-specific references, use the owner's manual.

How to record it correctly (so parts fit)

Write down both the model number and serial number from the label; the manual notes you will need the complete model and serial number when requesting help or ordering parts.

• Copy every letter and number (including any suffix like “01”)
• Use the model number (KSRG25FTSS01) to match parts diagrams
• Keep the serial number for age and production details
• Take a clear photo of the label for future reference

Why it matters

The model number identifies the exact configuration of your refrigerator (controls, ice maker setup, water system, and door parts). Using the complete model number prevents ordering a similar-looking part that will not mount, plug in, or seal correctly.

Quick reference

What to find	Where it’s printed	What you use it for
Model number	Model/serial label	Selecting correct parts and diagrams
Serial number	Model/serial label	Identifying production details and records

Last updated: March 2026
