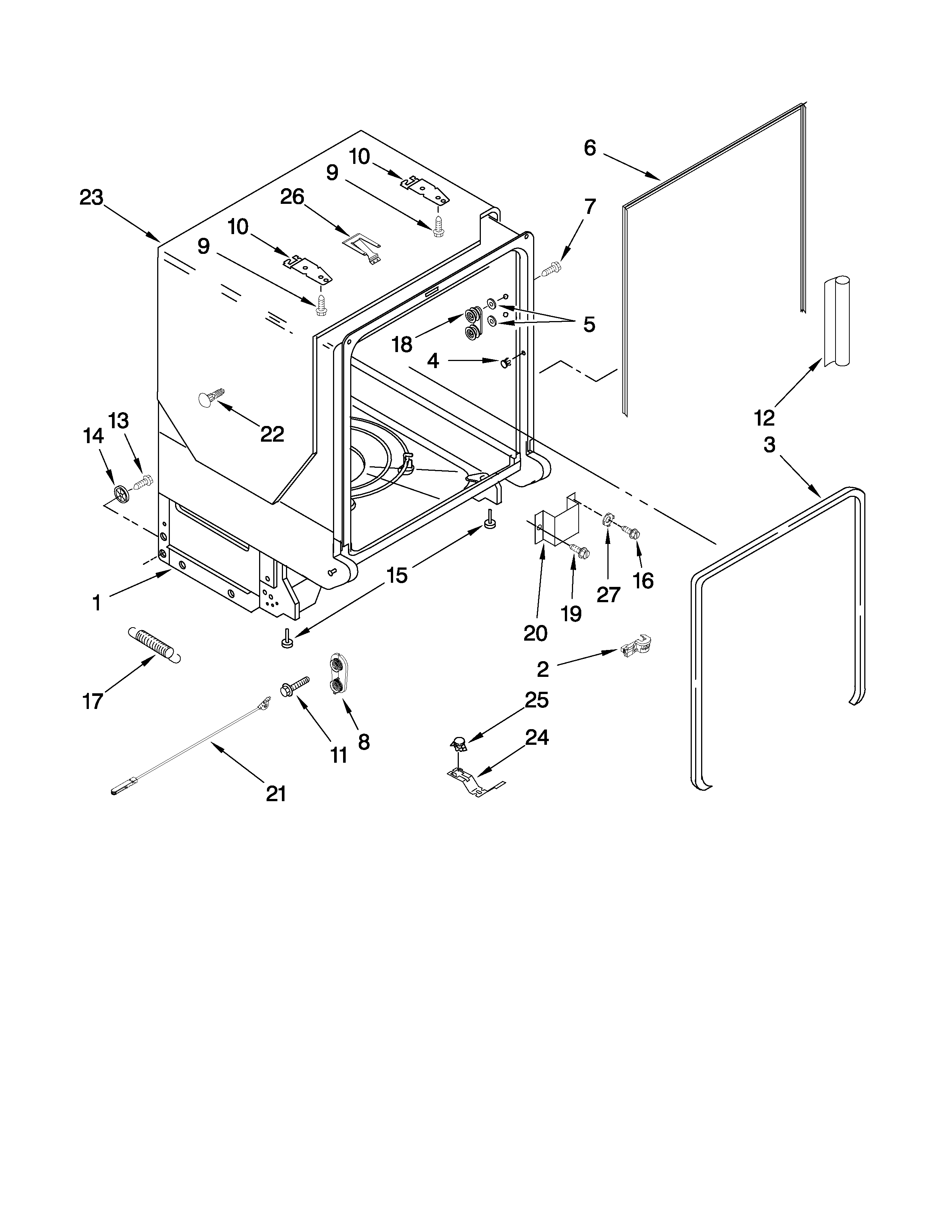

On the KitchenAid KUDC03FVSS3 dishwasher, fixing the rubber door seal usually means reseating the gasket evenly in its channel or replacing it if it is torn, hardened, or permanently deformed. A correctly seated seal prevents leaks and helps the door close and latch smoothly.

Quick checks before you start

• Turn off power to the dishwasher at the breaker.
• Open the door and inspect the full perimeter of the tub opening for gaps, twists, or loose sections.
• Clean the channel and the seal with warm water and mild dish soap; remove grease and detergent buildup.
• Check for damage: splits, flattened spots, or sections that will not stay seated.
• Confirm the door is not rubbing the cabinet or screws; misalignment can mimic a “bad seal.”

How to reseat the rubber seal (most common fix)

1. Start at the top center of the tub opening.
2. Press the seal into the channel using your fingers, working a few inches at a time toward both corners.
3. Continue down both sides, keeping the seal evenly seated with no stretching.
4. Close and latch the door; keep it closed for several hours so the gasket can relax into position.

When to replace the seal

Replace the seal if it will not stay in the channel after reseating, or if it is cracked, torn, or stiff. For leak symptoms that look like a seal issue but persist after reseating, also inspect the lower door area and venting components.

Symptom	Most likely cause	What to do next
Drips from the corners	Seal not fully seated	Reseat from top center outward
Water at the bottom center	Door alignment or lower splash/leak path	Check leveling and door closing
Seal looks wavy or stretched	Seal installed with tension	Reinstall without pulling on it
Seal is brittle or split	Worn gasket	Replace the gasket

Why it matters

A properly fitted door gasket keeps wash water inside the tub, protects surrounding cabinets and flooring, and helps the dishwasher maintain correct wash pressure for better cleaning.

For model-specific diagrams and door adjustment guidance, use the KUDC03FVSS3 owner’s manual and the KUDC03FVSS3 installation guide.

Last updated: February 2026

On the KitchenAid KUDC03FVSS3 dishwasher, “03” is usually seen as part of a fault display (often shown as F03) related to draining. It points to the dishwasher not moving wastewater out properly due to a clog, hose routing issue, or a drain pump problem. Use the KUDC03FVSS3 owner’s manual for the model’s exact reset and troubleshooting steps.

What to check first (no parts)

• Cancel the cycle, then start a drain and listen for the drain pump running.
• Check the sink drain or garbage disposer for a clog.
• If connected to a disposer, make sure the disposer inlet knockout plug was removed.
• Inspect the drain hose for kinks, crushing, or improper high-loop routing.
• Check for food debris at the drain connection under the sink.
• Verify the home breaker or fuse is good.

When “03/F03” becomes a drain system repair

If the drain path is clear and the dishwasher still will not drain, we focus on the drain pump and the drain hose. The installation routing details (high loop, connection points) are covered in the KUDC03FVSS3 installation guide.

What you notice	Most common cause	What we do next
Hums but no water leaves	Clog at hose/disposer or weak pump	Clear blockage; inspect pump impeller
Drains slowly	Partial clog or restricted hose routing	Correct routing; replace hose if needed
No drain sound	Power/control issue or failed pump	Check power; test pump and wiring

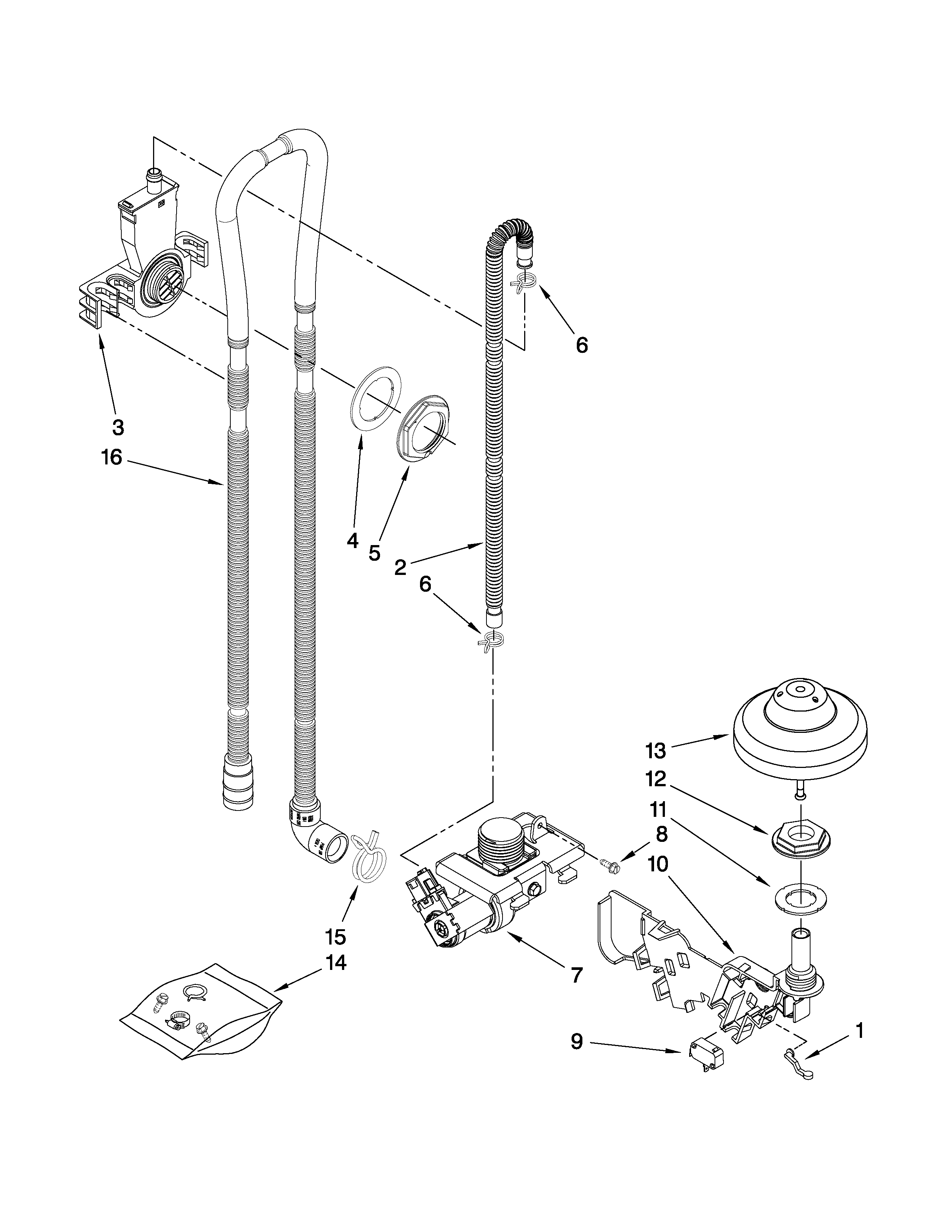

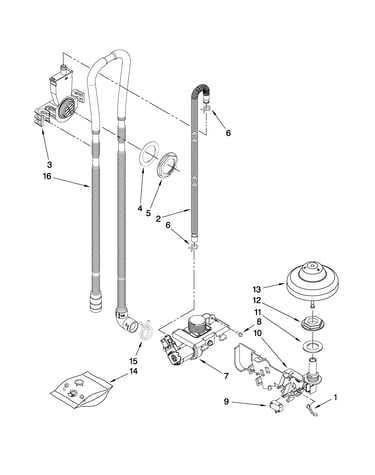

Parts that commonly fix a drain-related “03/F03”

• Dishwasher drain pump WPW10348269 (pumps wastewater out of the tub)
• Dishwasher drain hose 8269144A (replacement if kinked, restricted, or leaking)
• Dishwasher drain hose WPW10545278 (alternate drain hose used on some installations)

Why it matters

A drain fault can leave dirty water in the tub, create odors, and prevent the cycle from completing. Clearing the drain path first avoids unnecessary part replacement and restores normal wash performance.

Last updated: February 2026

A KitchenAid dishwasher typically lasts 10 years with normal household use and basic maintenance. For your KitchenAid KUDC03FVSS3 undercounter dishwasher, consistent cleaning, correct loading, and fixing small leaks or drain issues early are the biggest factors that keep it running longer.

What affects dishwasher lifespan most

• Water quality: hard water speeds up mineral buildup on the heater and inside the sump
• Cleaning and loading habits: blocked spray arms and overcrowding reduce wash performance
• Heat and drying performance: poor heating can leave moisture that contributes to odors and residue
• Drain health: slow draining strains the drain pump and can cause standing water
• Door sealing: a worn seal can cause leaks that damage nearby components

Quick maintenance checklist (5 to 10 minutes)

• Scrape heavy food off dishes before loading.
• Keep the bottom area clear so debris does not interfere with draining.
• Use rinse aid correctly; avoid overfilling to prevent dispenser leaks.
• Run a monthly cleaning cycle (especially with hard water).
• Check for drips at the door and address them early.

Common “end-of-life” symptoms and likely repair areas

Symptom	What it often points to	Example part for KUDC03FVSS3
Standing water after cycle	Drain restriction or weak drain pump	Dishwasher drain pump WPW10348269

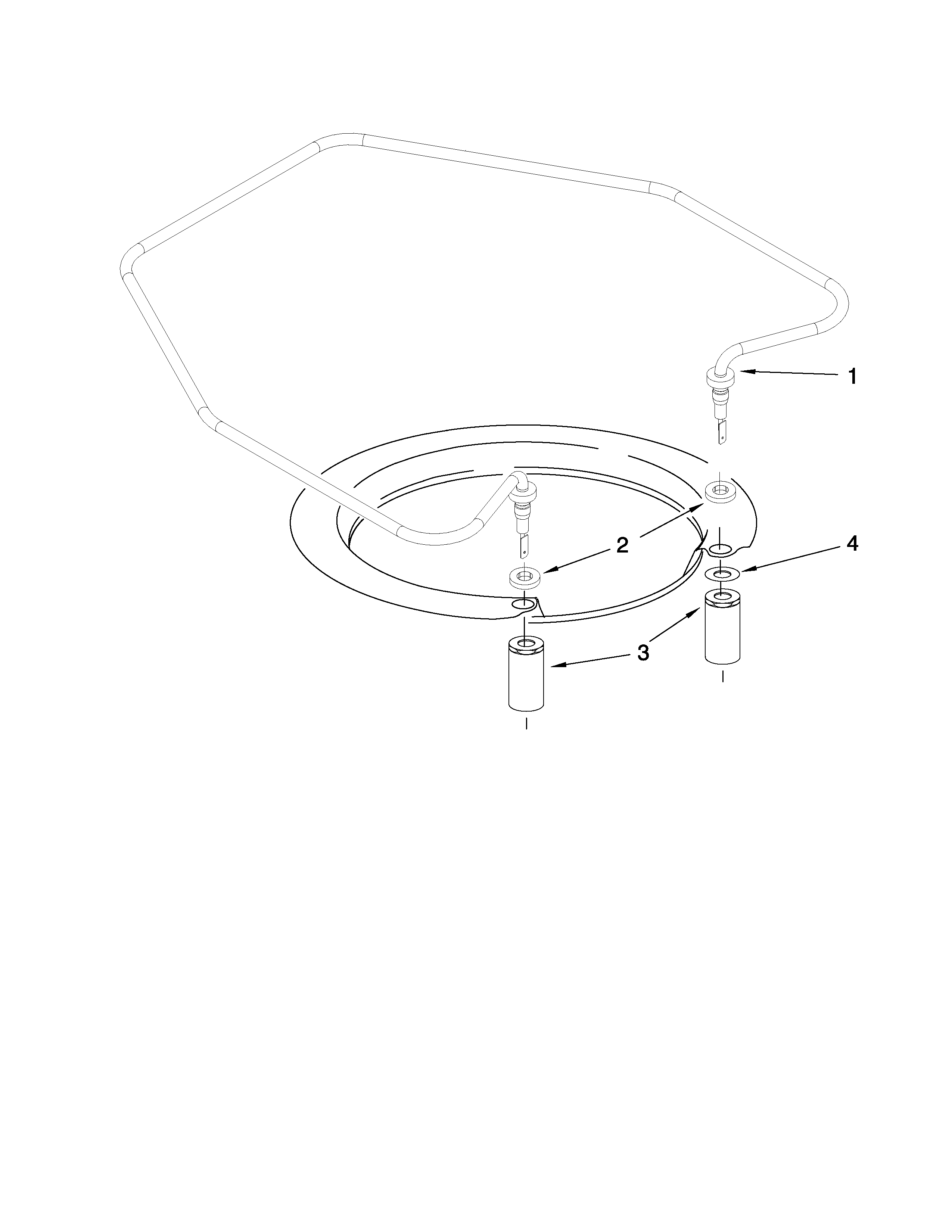

Not drying well, water not heating	Heating circuit issue	Heater element WPW10082892
Leaks at the front corners	Door seal wear or door alignment	Dishwasher door seal W11196317
Poor cleaning, gritty residue	Wash system or filtration issues	Sump and motor area (inspect)

Why it matters

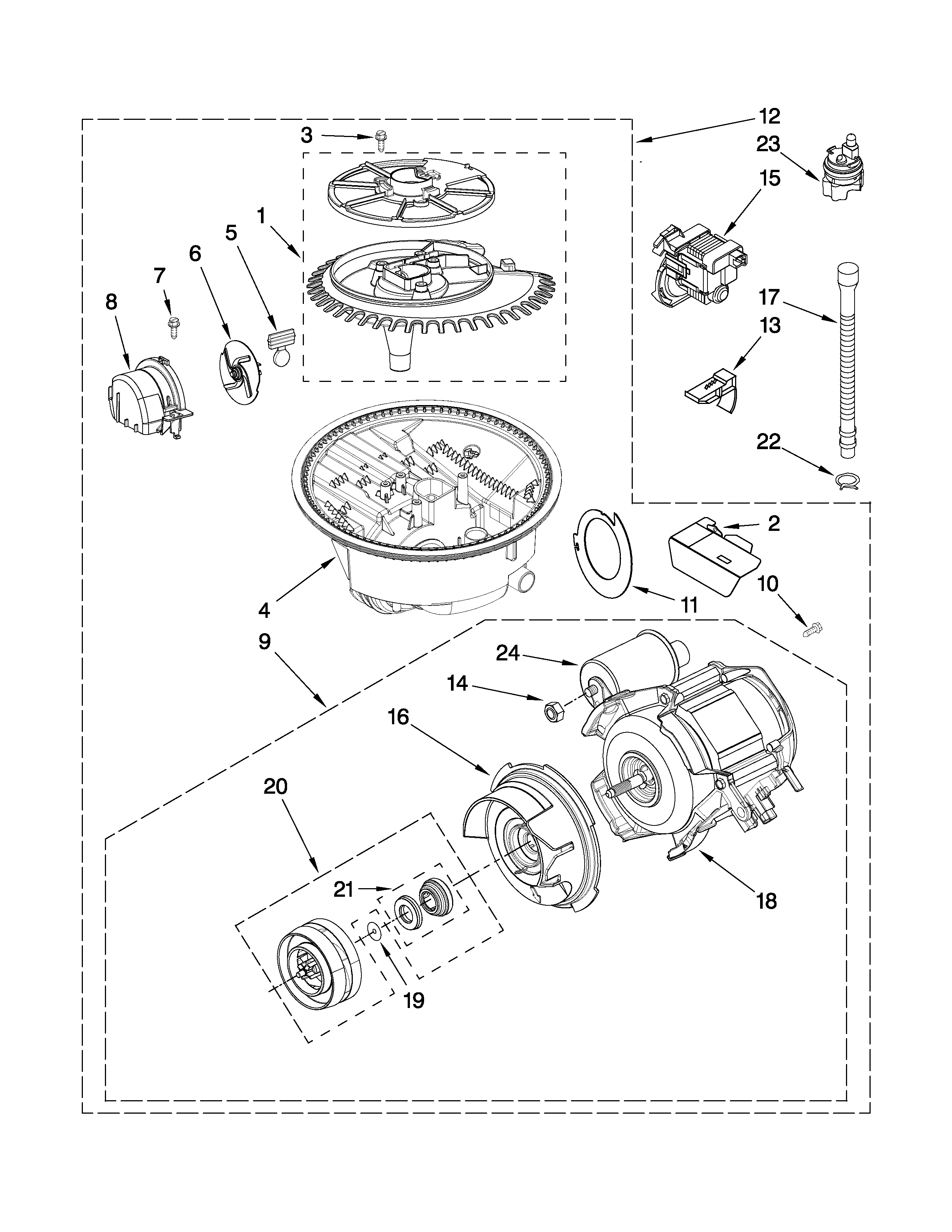

Most dishwasher “failures” start as performance problems (slow drain, weak heating, small leaks). Catching those early helps you avoid bigger repairs like a sump and motor assembly replacement and helps your KitchenAid dishwasher reach its full expected lifespan.

For model-specific use and care details (cycle options, loading guidance, indicators), follow the KUDC03FVSS3 owner’s manual.

Last updated: February 2026

Drain and water-flow issues are the most common problems we see on KitchenAid dishwashers like model KUDC03FVSS3. Typical symptoms include standing water in the tub, slow draining, or poor cleaning, often tied to a clogged filter path, a kinked drain hose, or a weak drain pump.

Quick symptoms and what they usually point to

• Water left in bottom after cycle: drain restriction, drain pump problem, or drain hose issue
• Gurgling or slow drain: partial clog in hose or air gap/disposer connection
• Dishes not clean: spray arm blockage, sump restriction, or circulation issue
• Cycle pauses and won’t continue: door not latched or START/RESUME needs to be pressed
• No power or dead control: house power issue or a blown dishwasher fuse

Most common checks (in order)

1. Confirm the door is fully closed and latched, then press START/RESUME if it’s blinking (normal pauses can happen during a cycle).
2. Check for a drain restriction: look for food debris in the sump area and verify the sink/disposer drain connection is clear.
3. Inspect the drain hose routing: make sure it is not kinked, crushed, or sagging.
4. Listen for the drain pump at the end of the cycle: a loud hum with little or no water movement often indicates a blockage or failing pump.
5. If the unit is completely dead, check the home breaker/fuse first; then test the dishwasher’s internal fuse.

Parts that commonly solve drain-related problems

Symptom	Most likely part area	Example part for KUDC03FVSS3
Standing water, won’t drain	Drain pump	Dishwasher drain pump WPW10348269
Slow drain, leaks under sink	Drain hose	Dishwasher drain hose 8269144A
Dead dishwasher (no lights)	Internal fuse	Fuse W10258275

Why it matters

Drain and flow problems can make the dishwasher look like it has a “cleaning” failure when the real issue is water not moving correctly. Fixing the drain path early helps prevent odors, standing water, and repeat cycle interruptions.

Where to confirm model-specific steps

Use the KUDC03FVSS3 owner’s manual troubleshooting section for the exact indicator-light behavior and the recommended checks for “won’t run” and “not draining” symptoms.

Last updated: February 2026
