Whirlpool DU948PWKB1 dishwasher Parts

Repair cost for a Whirlpool dishwasher like model DU948PWKB1 usually falls between $150 and $500 for common problems (drain issues, leaks, poor cleaning, or not heating). The total depends on the failed part, labor rates in your area, and whether the repair is a simple adjustment or a component replacement.

Typical repair cost ranges (parts + labor)

• Minor fixes: $150 to $250 (clogs, loose connections, small leak sources)
• Mid-level repairs: $250 to $400 (inlet valve, latch, dispenser, drain hose)

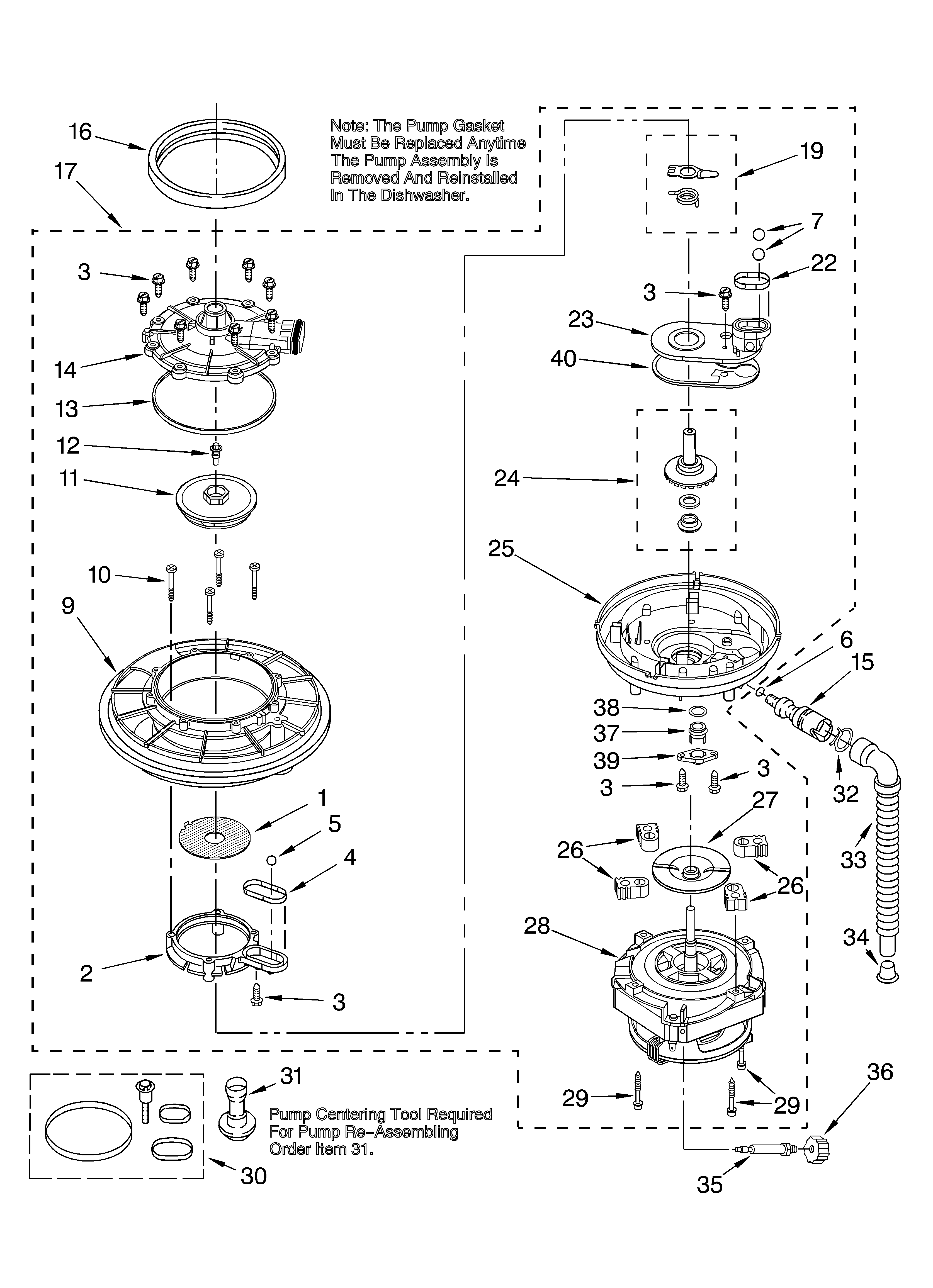

• Major repairs: $400 to $700 (pump/motor-related work, multiple parts, electrical diagnosis)

Common symptom	Likely repair area	Typical total cost
Leaking at the door	Door seal, alignment	$150 to $350
Not filling	Water inlet valve, float	$200 to $450
Not draining	Drain hose, drain path	$180 to $450
Poor drying	Heater circuit, rinse aid	$200 to $500

Parts that commonly affect price on DU948PWKB1

Parts pricing varies, but these model-matched parts are frequent drivers of the final bill:

• Dishwasher door seal WPW10509257 (door leak and moisture escape)
• Valve-inlt W10844024 (no fill, slow fill, or fill errors)
• Dishwasher drain hose WP3374077 (drain leaks, kinks, or restricted draining)

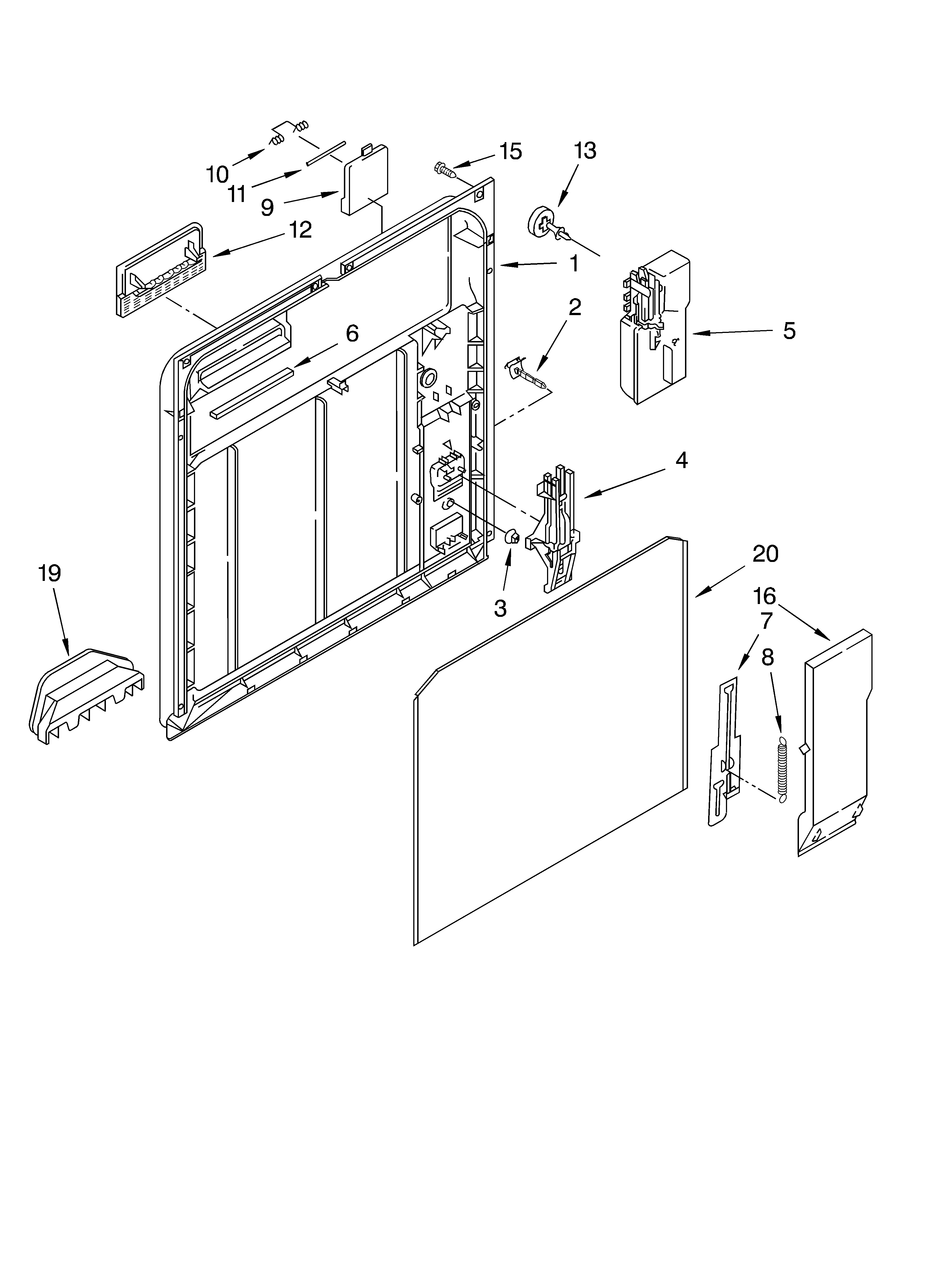

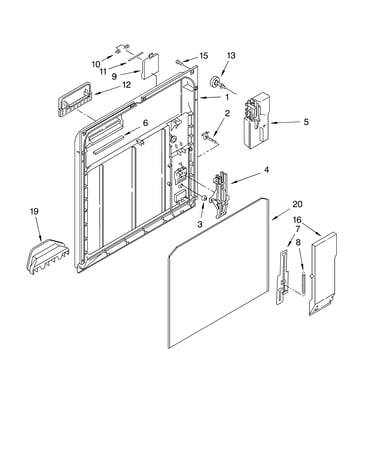

• Dishwasher door latch WP3380854 (won’t start or stops mid-cycle)
• Heater WPW10082896 (poor drying, cool wash water)

What changes the cost the most

• Service call and diagnostic fee: often applied toward the repair if you proceed
• Access time: built-in dishwashers can take longer to pull out and reinstall
• Multiple failures: leaks can involve a seal plus a hose or clamp
• Electrical troubleshooting: intermittent power or control issues increase labor time

Why it matters

Dishwasher repairs are usually cost-effective when the unit is otherwise in good shape, especially for targeted issues like a door leak or drain problem. If you’re seeing an error or the dishwasher won’t run, using a code-based diagnosis can prevent replacing the wrong part.

Helpful DIY references

• How to reset a Whirlpool dishwasher
• Whirlpool dishwasher error codes

Last updated: February 2026

The most common Whirlpool dishwasher problems (including model DU948PWKB1) are poor draining, leaks, and poor cleaning. In many cases, the fix is basic maintenance (cleaning filters and spray arms) or correcting a simple issue like a blocked drain path or a door seal that is no longer sealing.

Most common symptoms and what usually causes them

• Not draining: clogged drain hose, blocked sink/disposer connection, or a stuck float
• Leaking: worn door seal, loose clamps, or a door that is not latching fully
• Not cleaning well: clogged spray arm holes, overloading, or low water temperature
• Not drying: rinse aid empty, heater issue, or opening the door too soon
• Bad odor: food debris buildup, standing water, or infrequent cleaning

Quick checks we recommend first (fast, no parts)

1. Cancel/drain the cycle and listen for the drain pump running.
2. Inspect the tub bottom for standing water and remove debris.

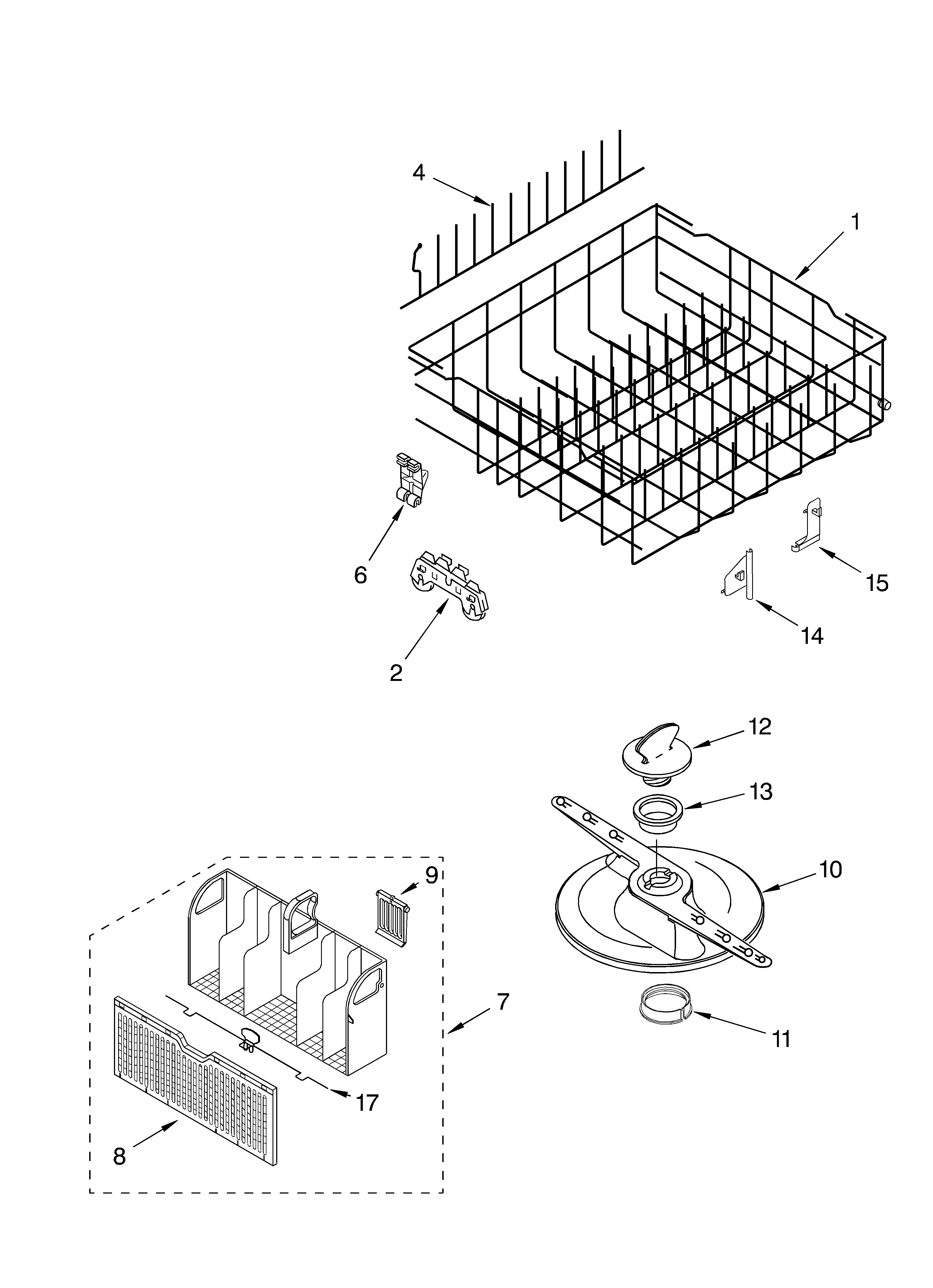

3. Spin the spray arms by hand; clear blocked holes.
4. Confirm the door closes firmly and the latch engages.
5. Run a cleaning cycle using a dishwasher cleaner and hot water.

Parts that commonly solve these problems on DU948PWKB1

Problem	What to inspect	Example part for this model
Leak at the door	Torn, flattened, or dirty gasket	Dishwasher door seal WPW10509257
Won’t drain / drains slowly	Kinked or clogged drain line	Dishwasher drain hose WP3374077
Overfills or leaks into base	Float stuck or not moving freely	Dishwasher float assembly WP3376397
Door won’t stay shut	Latch not catching consistently	Dishwasher door latch WP3380854

Why it matters

Drain, leak, and wash-performance issues can snowball: a small clog can cause standing water and odor, and a weak door seal can lead to water damage. Catching the root cause early keeps cycles shorter, dishes cleaner, and helps protect the kitchen floor.

Last updated: February 2026

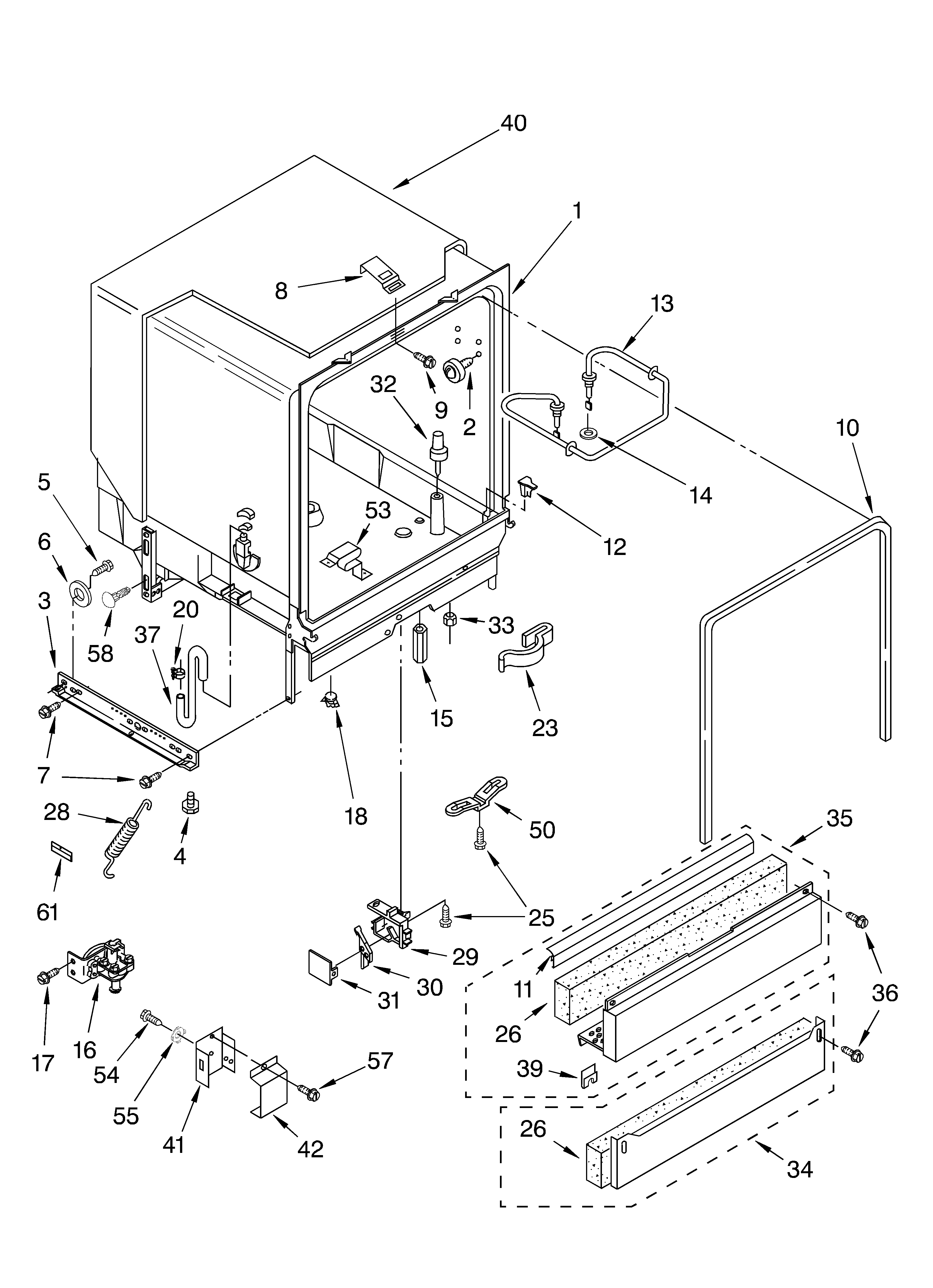

On your Whirlpool dishwasher model DU948PWKB1, the most reliable way to get the right replacement part is to use the model and serial tag on the tub frame (not a number printed on the part itself). Once you have the model number, we can match the correct parts list for your exact dishwasher.

Where to look for the model and serial tag

Check these common locations on Whirlpool dishwashers like DU948PWKB1:

• Along the inside edge of the door (left or right side) when the door is open
• On the top edge of the inner door panel
• On the tub frame near the door opening
• Occasionally behind the toe panel area (lower front)

What numbers matter (and what to ignore)

Dishwashers can have several different numbers on labels and parts. Here is what to use.

What you find	Example format	Use it for ordering parts?
Model number	DU948PWKB1	Yes (best starting point)
Serial number	Letters and numbers	Sometimes (date/series match)
Part number on a component	Stamped/printed on the part	Sometimes (can be superseded)
Control panel numbers	Printed near buttons	No

Tips to make sure you get the correct part

• Write the model number exactly as shown: DU948PWKB1
• If the tag is worn, take a clear photo with the door open and good lighting
• Match the symptom to the part category (leak, no fill, not draining, poor cleaning)
• Compare your old part to the listing photos and description before ordering
• If you are replacing a leak-related item, inspect nearby seals and clamps at the same time

Common examples for this model

If you are troubleshooting a specific issue, these are examples of parts customers often look up by model:

• Leaks at the door: dishwasher door seal WPW10509257
• Not filling or filling slowly: valve-inlt W10844024
• Not draining: dishwasher drain hose WP3374077

Why it matters

Using the model tag prevents ordering a look-alike part that does not fit your exact Whirlpool dishwasher configuration. Whirlpool often uses similar-looking parts across multiple series, and the model number is what locks in the correct match.

Last updated: February 2026
