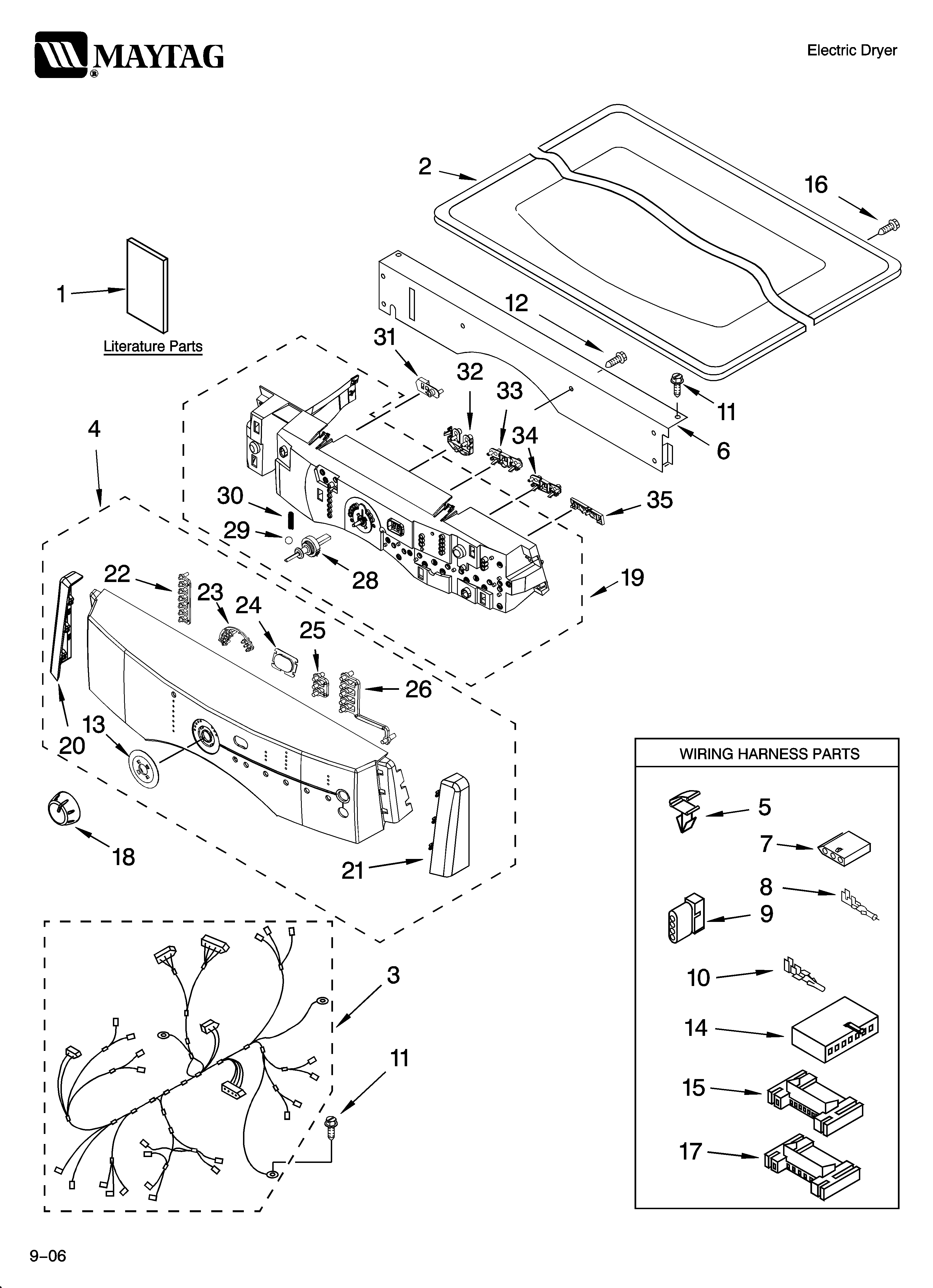

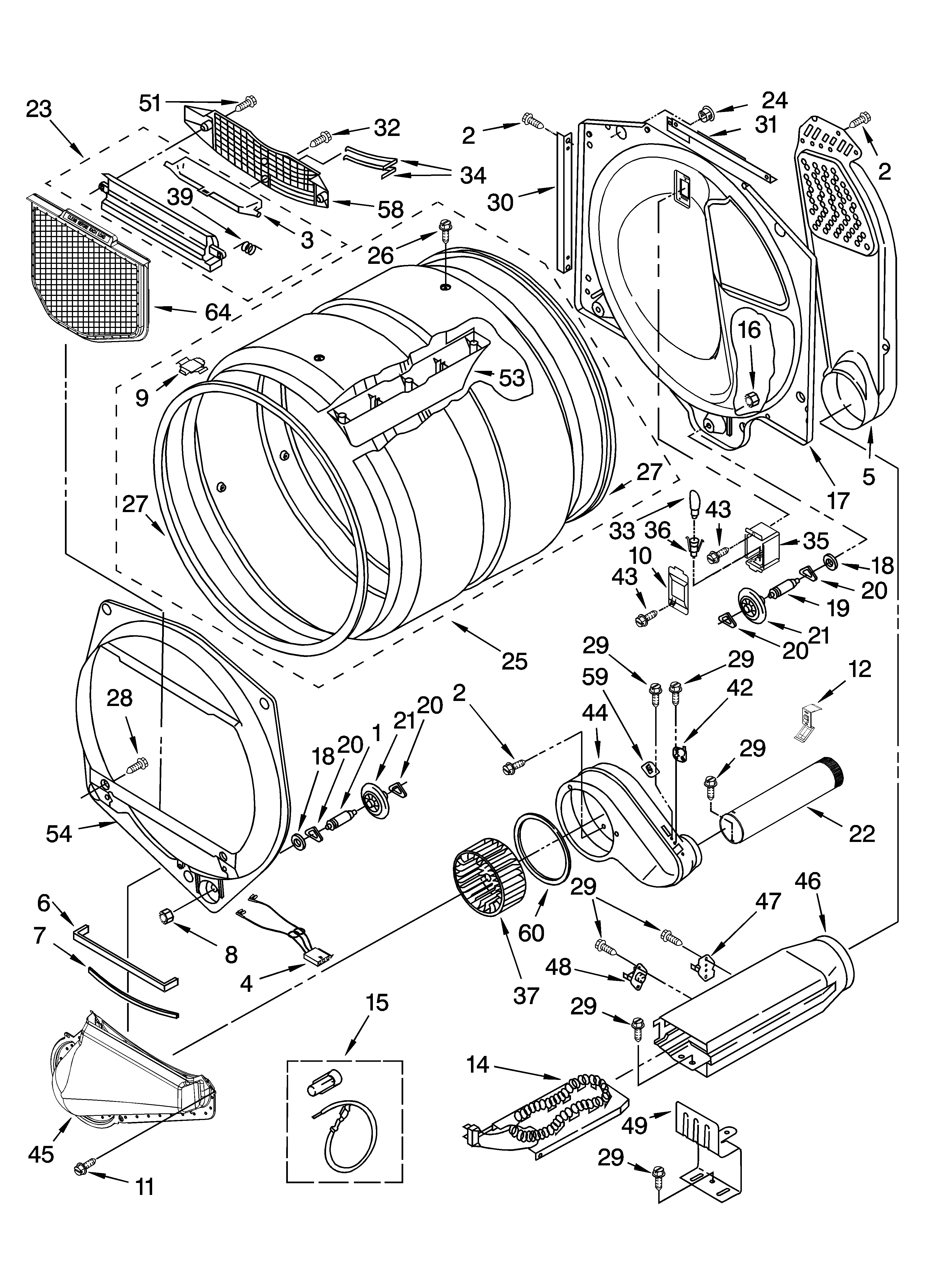

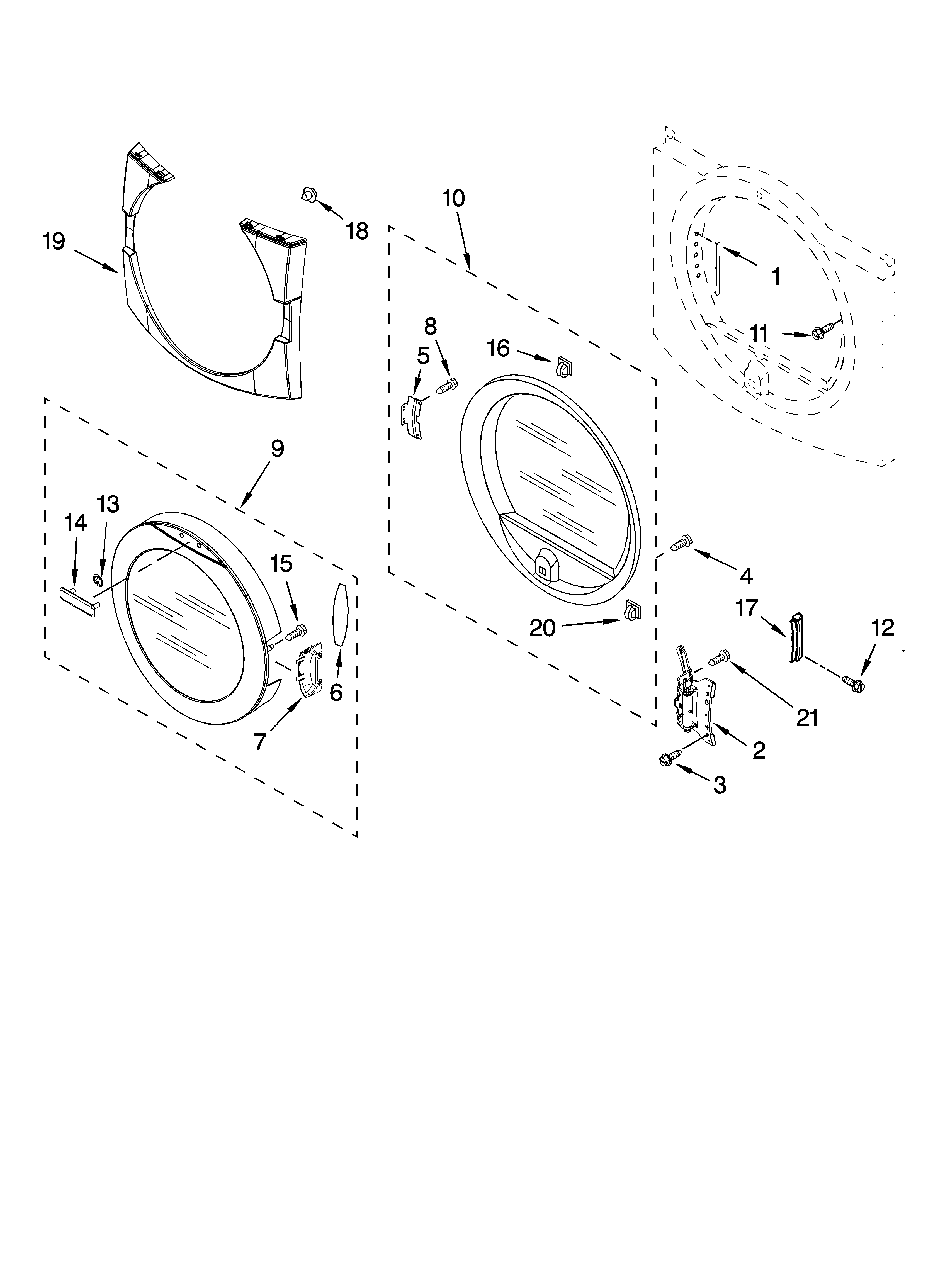

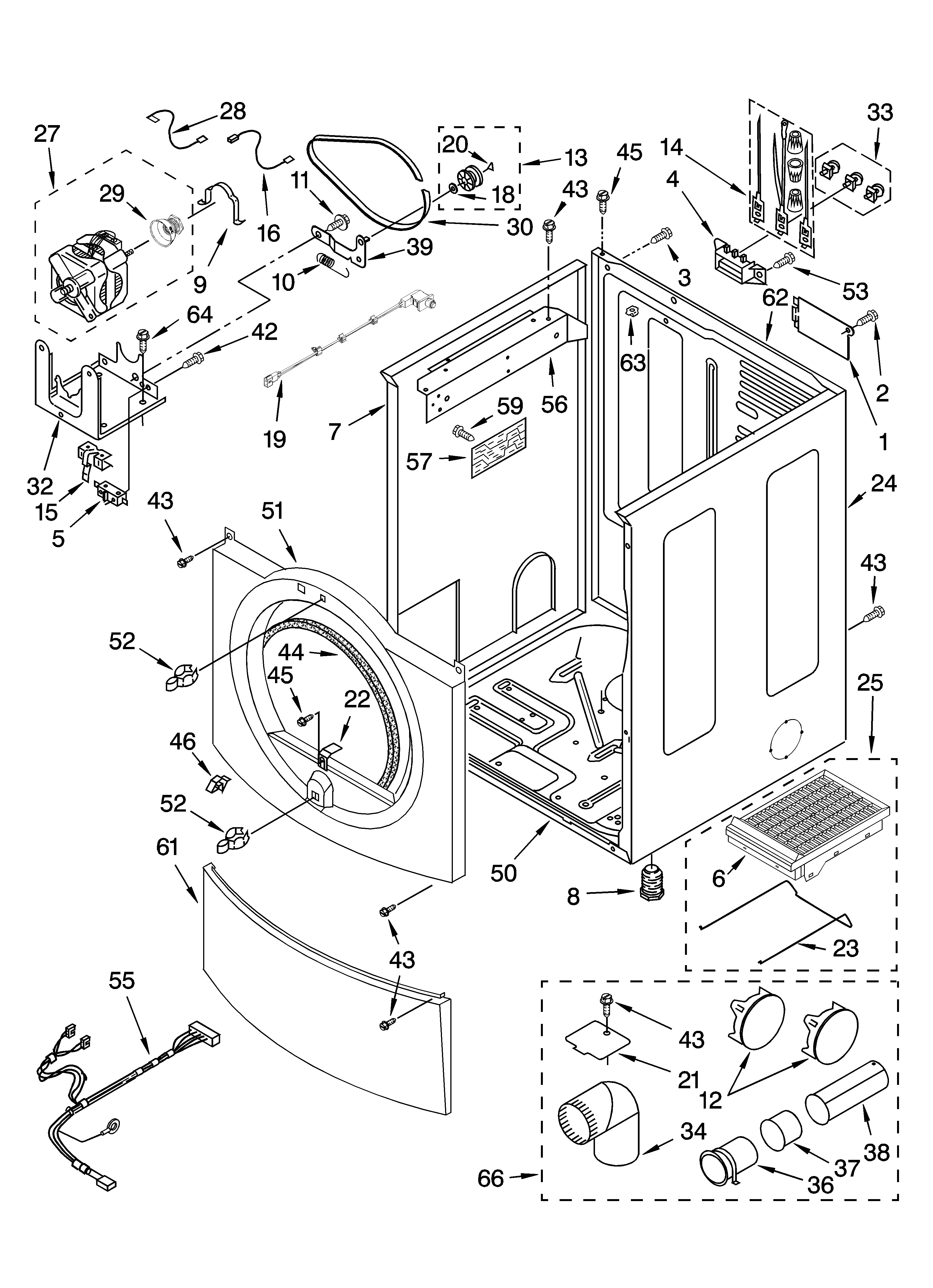

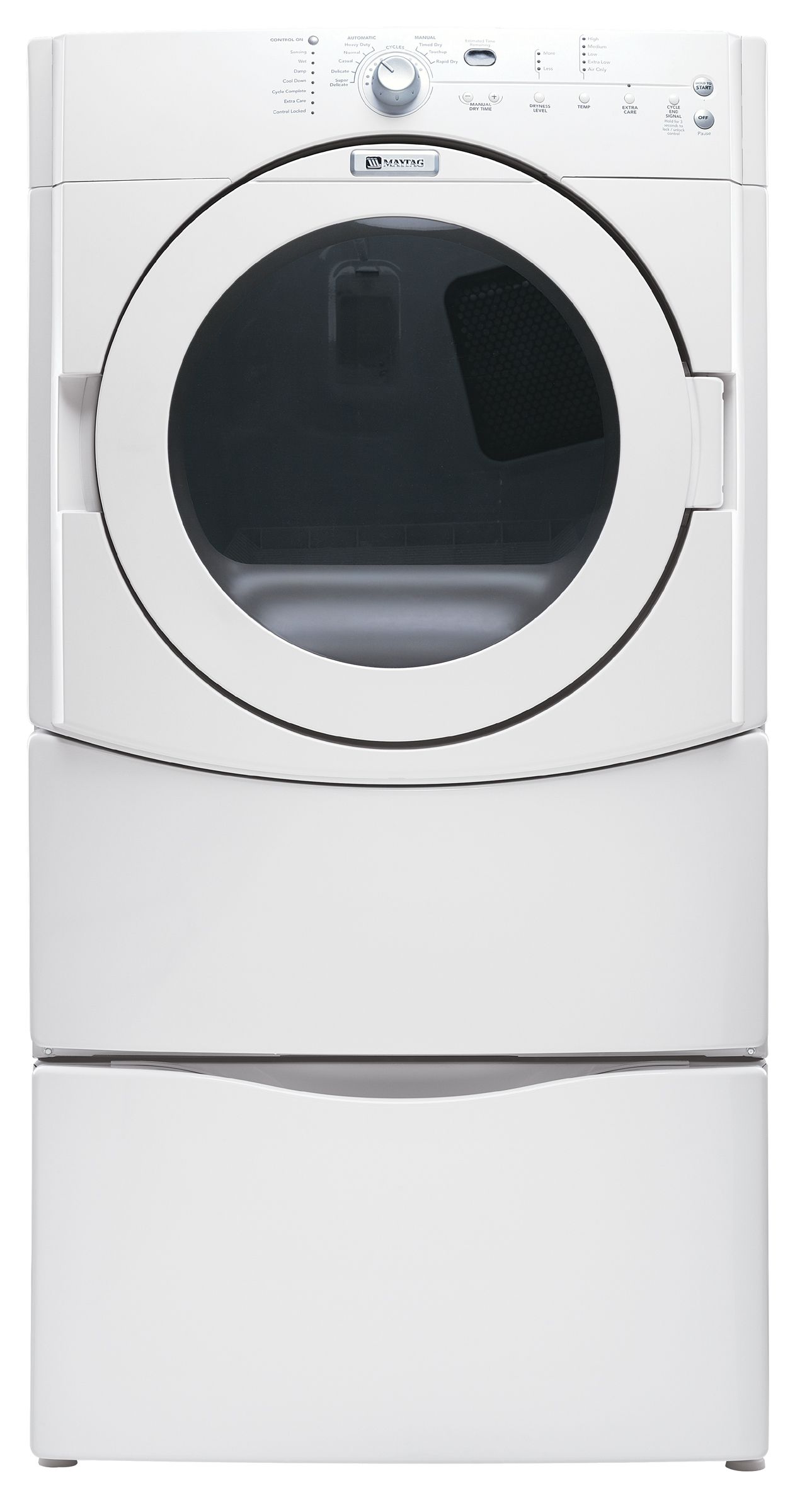

Maytag MED9600SQ0 dryer Parts

The AF code on your Maytag MED9600SQ0 dryer points to an airflow restriction. We fix it by cleaning the lint screen and then clearing the entire exhaust path (lint housing, blower area, vent hose, and outside hood) so the dryer can move air and dry normally.

• Unplug the dryer (or switch off the breaker) before opening panels.
• Clean the lint screen with warm water and a soft brush; remove any fabric softener film.
• Disconnect the vent hose from the back of the dryer and remove packed lint.
• Check the outside vent hood; make sure the flap opens fully and is not blocked.
• Run a timed dry cycle for 5 to 10 minutes with the vent disconnected (brief test only) to see if airflow improves.
• If airflow is still weak, inspect the blower housing and internal ducting.

If the venting is clear and AF keeps returning, we focus on airflow and temperature feedback parts:

• Dryer blower wheel WP697772 (broken or slipping wheel reduces airflow)
• Dryer thermistor WP8577274 (incorrect temperature sensing can trigger airflow-related faults)

Restricted airflow makes the dryer run hotter and longer, which can trip safety devices, increase energy use, and lead to repeated shutdowns or poor drying performance.

For model-specific access steps and panel removal guidance, follow the MED9600SQ0 owner's manual.

Last updated: January 2026

To reset an error code on your Maytag dryer model MED9600SQ0, we power-cycle the dryer: turn it off, disconnect power for a few minutes, then restore power and restart a cycle. If the code returns, the dryer is still detecting the underlying problem.

• Press Power/Cancel to stop the cycle.
• Unplug the dryer (or switch the breaker off).
• Wait 2 to 5 minutes.
• Restore power.
• Start a cycle and watch for the code to reappear.

An error code that returns after a reset usually points to a real fault (heat, airflow, sensor, or drive system). Use these quick checks first:

• Clean the lint screen and confirm strong airflow at the outside vent.
• Avoid overloading; heavy loads can trigger moisture-sensing and temperature issues.
• If the dryer is not heating, check for restricted venting and heat-system problems.
• If the dryer tumbles poorly or squeals, inspect belt and drum support components.
• If the dryer stops mid-cycle, check door closure and overheating symptoms.

Resetting clears the control’s temporary state, but it does not fix the condition that triggered the code. Addressing airflow, heating, and sensor issues helps prevent repeat errors, long dry times, and overheating.

For model-specific control panel behavior and any diagnostic steps, follow the MED9600SQ0 owner’s manual.

Last updated: January 2026

The most common Maytag dryer problem is no heat or long dry times caused by restricted airflow (lint buildup or a clogged vent). Poor airflow overheats the dryer and commonly leads to a blown thermal cut-off or thermostat, and it can also contribute to “won’t start” symptoms on models like Maytag MED9600SQ0.

• Clothes take much longer than normal to dry
• Dryer runs but doesn’t heat (or heat is weak)
• Dryer shuts off mid-cycle
• Burning smell or the cabinet feels unusually hot
• Dryer won’t start after overheating (some safety parts open and stop operation)

Use these steps before replacing parts; they prevent repeat failures.

• Clean the lint screen every load; wash it with mild soap if it has fabric softener residue
• Inspect the vent hose for kinks, crushing, or excessive length
• Clear lint from the exhaust duct and outside vent hood; confirm the flap opens fully
• Run a timed heat cycle and check airflow outside; it should feel strong and steady
• Avoid overloading; heavy loads restrict tumbling and airflow

If airflow is good and the dryer still won’t heat, these are frequent culprits on electric dryers.

Restricted venting is the #1 driver behind repeated heating failures. Fixing airflow first protects the heating element, thermostats, and wiring, and it also reduces dry time and energy use.

For model-specific operating tips and maintenance intervals, follow the MED9600SQ0 manual.

Last updated: January 2026
