How wide is a Kenmore side by side refrigerator?
Kenmore side-by-side refrigerator widths vary by model; most are built in the 32 to 36 inch range. For Kenmore model 10657577791, use the dimension diagram in the 10657577791 owner's manual to confirm the exact overall width (and whether handles are included).
The manual for model 10657577791 gives installation spacing requirements that affect the opening width you need:
- Allow 1/2 inch (1.25 cm) clearance on each side and at the top for ventilation
- Leave extra space behind the refrigerator for water line connections if you have an ice maker
- If installing next to a fixed wall, allow at least 2 inches (5.08 cm) on the hinge side (depending on the model) for door swing
Measure the refrigerator and then add the clearances above.
- Measure cabinet width (the main box)
- Measure overall width across the doors
- Measure width with handles (handles often add the most)
- Add 1/2 inch per side for ventilation
- Add wall clearance if a door must swing past a fixed wall
| What you are measuring | Where to measure | Use it for |
|---|---|---|
| Cabinet width | Back or mid-body of the box | Fit between cabinets |
| Overall width | Front across both doors | Tight openings |
| Width with handles | Furthest handle point | Final “will it clear” check |
A refrigerator that is “close enough” in width can still run hot or be hard to use if it lacks side ventilation space or the doors cannot open fully for bins and drawers.
Last updated: February 2026
What is the code Sy Ef on a Kenmore refrigerator?
On a Kenmore refrigerator, the SY EF code typically points to a freezer evaporator fan circuit problem (the fan that moves cold air through the freezer and into the fresh food section). On model 10657577791, start by checking for ice buildup blocking airflow and then inspect the fan area using the 10657577791 owner's manual.
- Power reset: Unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
- Airflow blockage: Make sure packages are not blocking freezer vents.
- Frost/ice buildup: Heavy frost on the freezer back panel often indicates a defrost or airflow issue.
- Door seal: A leaking gasket can cause excess frost and fan interference.
- Fan noise: Listen for a grinding, squealing, or intermittent fan sound from the freezer.
| What you notice | Most likely issue | What to do next |
|---|---|---|
| SY EF plus warm fridge section | Poor airflow from freezer | Check for frost buildup and confirm the evaporator fan runs |
| Clicking or fan tries to start | Fan blade hitting ice or obstruction | Defrost and clear ice; inspect fan blade |
| Heavy frost returns quickly | Defrost system problem | Check defrost heater and defrost bi-metal |
| Door not sealing well | Moist air entering freezer | Inspect/clean gasket and confirm doors close fully |
If you find heavy frost or repeated icing that interferes with airflow, these parts are common suspects on this model:
- Refrigerator heater WP2323198 (defrost heater)
- Refrigerator defrost bi-metal WPW10225581 (defrost thermostat)

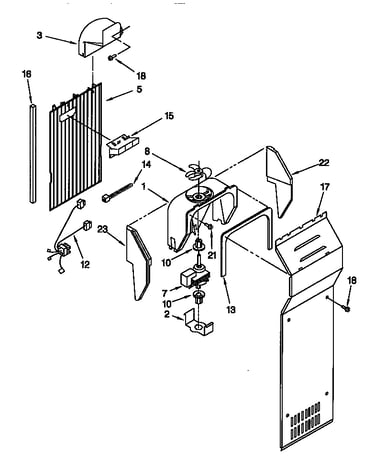

- Refrigerator evaporator fan blade WP2169142 (damaged blade can wobble or strike ice)

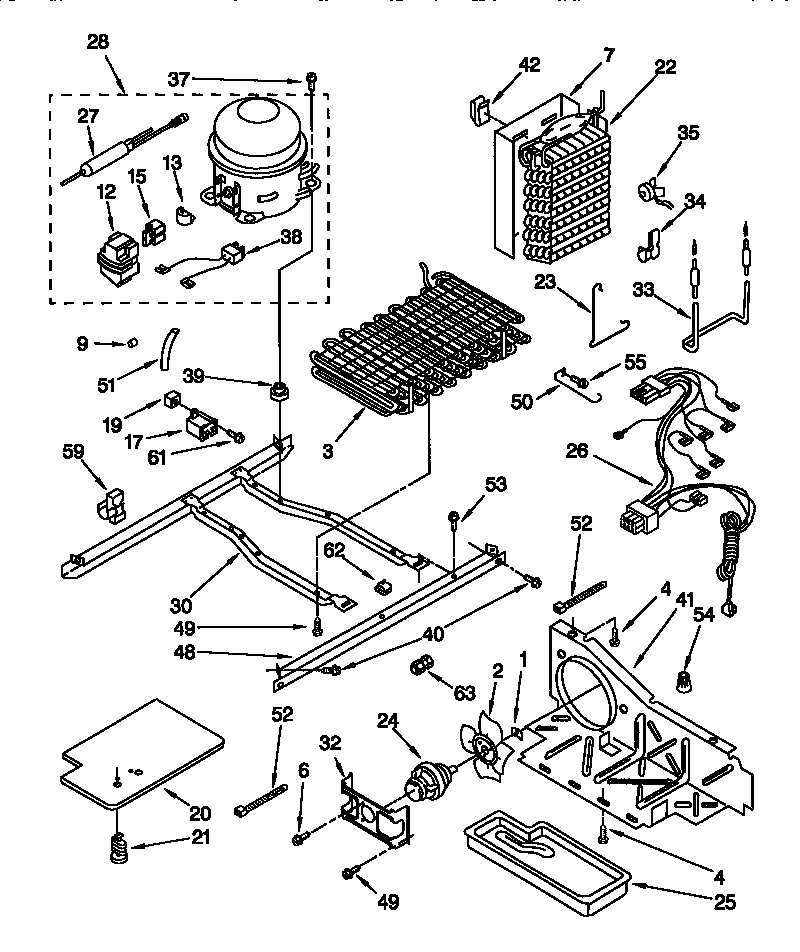

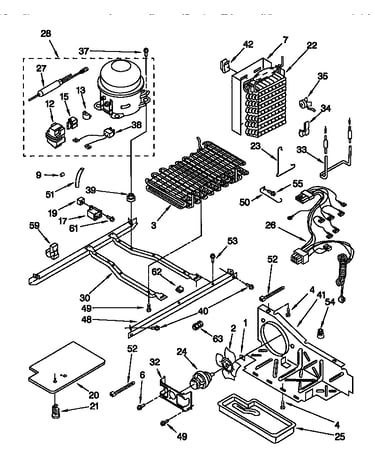

The evaporator fan and defrost system work together to keep air moving and the evaporator coil clear of ice. When airflow drops, the freezer may still feel cold while the fresh food section warms, and the refrigerator can run longer than normal.
Last updated: February 2026
What is the average lifespan of 10657577791?
The average lifespan of the Kenmore 10657577791 side-by-side refrigerator is about 14 years. Regular maintenance (cleaning coils, keeping door seals tight, and replacing filters on schedule) helps it reach that service life with fewer cooling and ice maker problems.
- Condenser airflow: Dusty coils and a blocked toe grille make the compressor run hotter and longer.
- Door seal condition: Air leaks create frost, temperature swings, and longer run times.
- Ice maker and dispenser use: Heavy use increases wear on moving parts and water components.
- Water quality and filter changes: Sediment can restrict flow and stress the inlet valve.
- Temperature settings and loading: Overpacking reduces airflow and can cause warm spots.
| Task | How often | What it prevents |
|---|---|---|
| Vacuum condenser area and toe grille | Every 6 months | Overheating, poor cooling |
| Check door gaskets for gaps and tears | Every 3 to 6 months | Frost, moisture, warm temps |
| Replace water filter (if equipped) | About every 6 months | Slow dispensing, bad taste, valve strain |
| Confirm freezer is near 0°F and fridge near 37°F | Monthly | Food spoilage, ice issues |
If you are addressing specific symptoms, these model-matched parts are often involved:

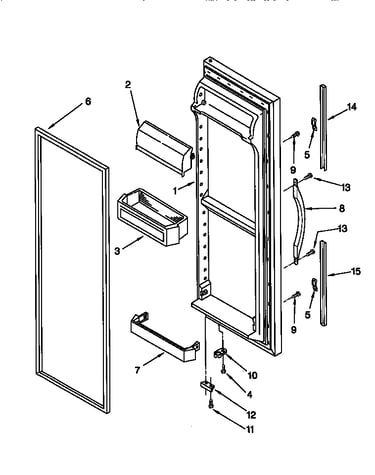

- Whirlpool refrigerator door gasket, black 2159083 (fresh food door sealing)

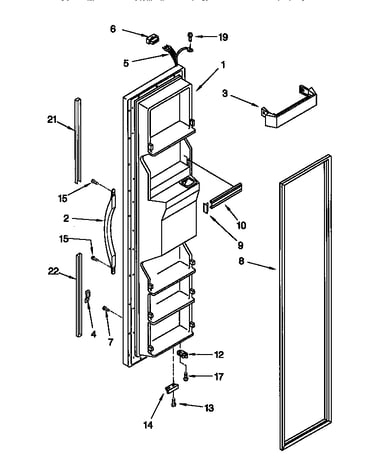

- Whirlpool refrigerator freezer door gasket (black) 2159082 (freezer door sealing)
- Refrigerator inlet valve W10853654 (water to dispenser and ice maker)

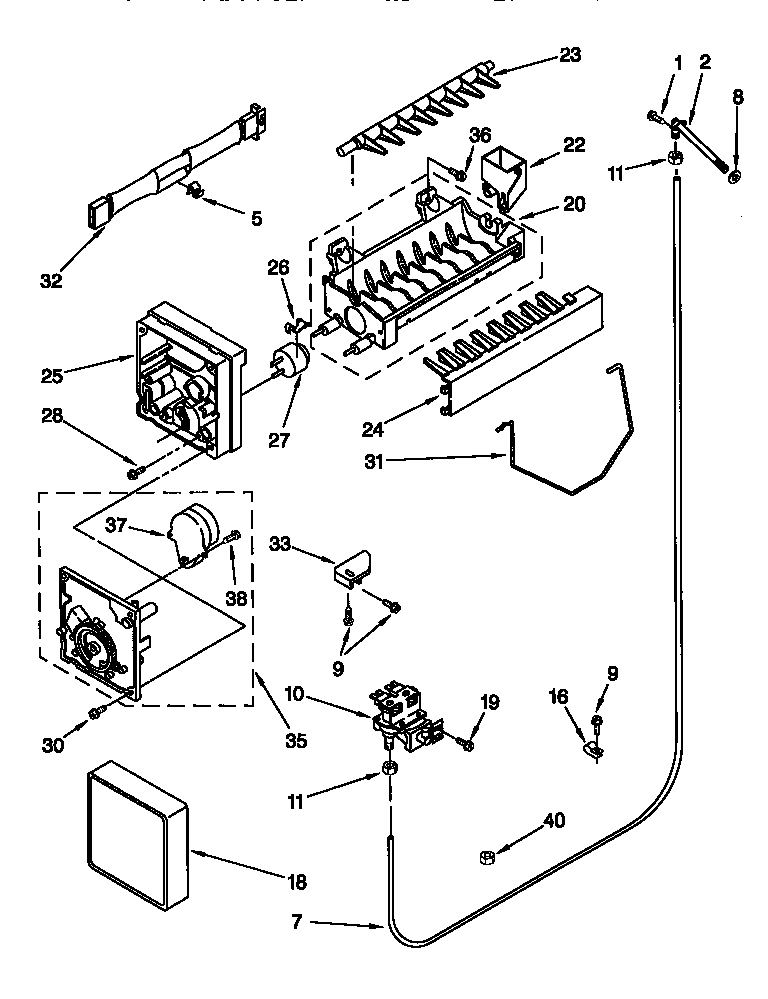

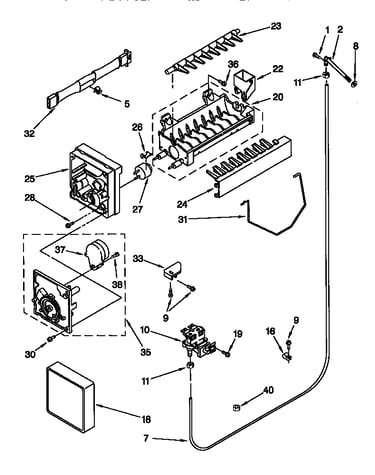

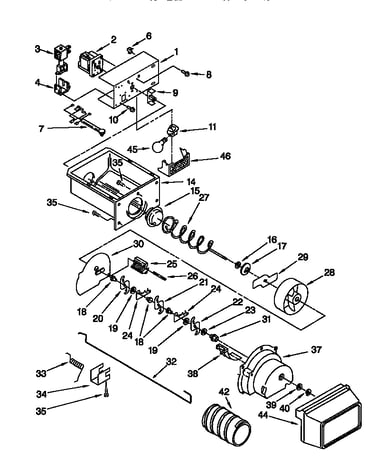

- Ice maker assembly - refrigerator ice maker by whirlpool 4317943 (ice production)
Once a refrigerator gets past the 10-year mark, small efficiency losses (air leaks, dirty coils, weak fans) add up to higher run time and more temperature complaints. Staying ahead of those wear items is usually the difference between a refrigerator that lasts 12 years and one that reaches 14 years or more.
For model-specific care, cleaning points, and settings, follow the owner's manual.
